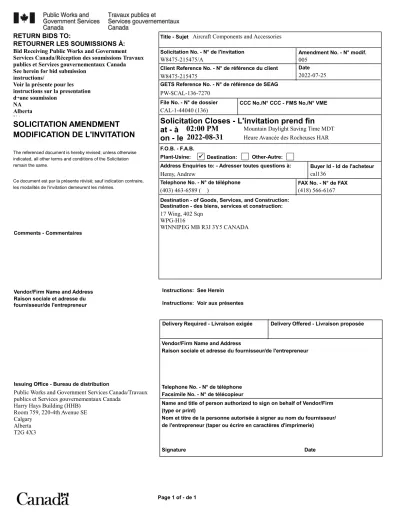

RETOURNER LES SOUMISSIONS À:
Bid Receiving Public Works and Government Services Canada/Réception des soumissions Travaux publics et Services gouvernementaux Canada See herein for bid submission
instructions/
Voir la présente pour les instructions sur la presentation d une soumission
NA Alberta NA
CCC No./N° CCC - FMS No./N° VME
SOLICITATION AMENDMENT MODIFICATION DE L'INVITATION
Destination: Other-Autre:
FAX No. - N° de FAX (418) 566-6167
Issuing Office - Bureau de distribution
Public Works and Government Services Canada/Travaux publics et Services gouvernementaux Canada
Harry Hays Building (HHB) Room 759, 220-4th Avenue SE Calgary
Alberta T2G 4X3
indicated, all other terms and conditions of the Solicitation The referenced document is hereby revised; unless otherwise remain the same.
les modalités de l'invitation demeurent les mêmes.
Ce document est par la présente révisé; sauf indication contraire,
Instructions: Voir aux présentes Instructions: See Herein
Delivery Required - Livraison exigée Delivery Offered - Livraison proposée Vendor/Firm Name and Address
Comments - Commentaires
Raison sociale et adresse du fournisseur/de l'entrepreneur
Solicitation No. - N° de l'invitation W8475-215475/A
Client Reference No. - N° de référence du client W8475-215475
GETS Reference No. - N° de référence de SEAG PW-$CAL-136-7270
File No. - N° de dossier CAL-1-44040 (136)
Solicitation Closes - L'invitation prend fin at - à
on - le
F.O.B. - F.A.B.
Plant-Usine:
Address Enquiries to: - Adresser toutes questions à:
Hemy, Andrew
Telephone No. - N° de téléphone (403) 463-6589 ( )
Destination - of Goods, Services, and Construction:
Destination - des biens, services et construction:
17 Wing, 402 Sqn WPG-H16
WINNIPEG MB R3J 3Y5 CANADA
cal136
Buyer Id - Id de l'acheteur
Vendor/Firm Name and Address
Raison sociale et adresse du fournisseur/de l'entrepreneur
Facsimile No. - N° de télécopieur Telephone No. - N° de téléphone
Name and title of person authorized to sign on behalf of Vendor/Firm (type or print)
Nom et titre de la personne autorisée à signer au nom du fournisseur/
de l'entrepreneur (taper ou écrire en caractères d'imprimerie)
Signature Date
2022-07-25 Date 005
Amendment No. - N° modif.
02:00 PM 2022-08-31
Mountain Daylight Saving Time MDT Heure Avancée des Rocheuses HAR
Page 1 of - de 1
Page 1 of - de 14
This amendment 005 is raised to incorporate the following items into solicitation W8475-215475/A:
Notice to Bidders
Photos of aircraft components that were taken by DND during the site visit are being made available as part of this solicitation process. A CD containing the images will be sent out upon request. Those who wish to receive a copy are to contact the Contracting Authority (Andrew Hemy) in writing with their request. As these images are considered controlled goods all parties requesting the photos are required to be registered in the Controlled Good Program prior to receiving the photos.
Questions and answers Question 1:
There are several mandatory requirements related to the dimensions, weight and balance of the replacement radar to fit in the current nose cone of the DASH-8 without modification. For example:
4.1.2 The RADAR system components MUST be located within the CT142 nose cone and the NTS rack, with the exception of the control / display units and power and networking cables.
4.1.3 The components of the RADAR system MUST fit without modifications to the exterior profile of the Radome.
4.1.4 The installation of the RADAR system components located within the CT142 nose cone MUST include compensation for differences in aircraft weight and balance from the current RADAR system.
4.1.5 The total weight of all components of the RADAR system, mounts, harnesses, and modifications to the CT142 MUST not exceed the centre of gravity limits for the CT142 IAW ref F.
Please provide the outline drawings with dimensions for the nose cone profile, including any mounting restrictions, to allow us to assess the suitability of our radar for this requirement. Additionally, please provide Reference F noted in section 4.1.5 ie. C-12- 142-000/MB-001 Aircraft Flight Manual.
Answer 1:
Copies of the nose cone drawing and an excerpt from the Weight and Balance Manual are available upon request and will be provided on a CD via mail to those who request a copy. Those who wish to receive a copy are to contact the Contracting Authority (Andrew Hemy) in writing with their request.
The flight manual is considered controlled goods and access to it requires registration in the Controlled Goods Program. A copy of the flight manual will be provided on a CD upon request, once registration in the Controlled Goods Program is confirmed. Those who wish to receive a copy of the flight manual are to contact the Contracting Authority (Andrew Hemy) in writing with their request.
Page 2 of - de 14
Question 2:
Is it desired to have the 4 students and 2 Nav instructors view a TAWS Terrain map?
Answer 2:
Yes, it is desirable (although not mandatory) to enable the NTS stations to view a TAWS terrain map.
Question 3:
Do TCAS targets currently display on the 6 trainer position screens?
Answer 3:
No, TCAS targets do not display on the NTS station screens.
Question 4:
Applicable Documents
Will bidders be given access to the DND manuals listed in Section 3.2 on page 33?
Answer 4:
Yes, copies of the manuals listed are available upon request and will be provided on a CD via mail to those who request a copy. Those who wish to receive a copy are to contact the
Contracting Authority (Andrew Hemy) in writing with their request. Please note that the C-12-142- 000/TE-001 CT142 Dash 8 Interactive Electronic Technical Manuals are controlled goods and bidders must be registered with the Controlled Goods Program prior to receiving them. A-GA- 001-001/AG-001 DND Flight Safety Programme is no longer available and will be removed from this solicitation.
Question 5:
TAA Recognition
Can the bidders be provided with an outline of what is required to achieve TAA Recognition?
Answer 5:
See paragraph 4.1.5.a. of the SOR (page 35). Where a contractor is accredited by a civilian airworthiness authority for the full scope and depth of the work to be performed under the contract, all that is usually required to achieve TAA recognition is to complete the Recognition Survey (Appendix A-4 to Annex A) and provide documentation demonstrating that their civilian accreditation satisfies the requirements of the DND Technical Airworthiness Manual.
If the contractor’s civilian accreditation does not encompass the full scope and depth of the contracted work, the contractor must amend or create the necessary policies and procedures, usually in the form of a DND Airworthiness Supplement.
Page 3 of - de 14
CNS-ATM General
If the requested systems already have civilian STC approval will the DND TA require any additional certification testing or will the standard post installation testing required by the existing STCs be sufficient?
Answer 6:
In the case where the civilian STC is applicable to the DHC-8-102 and where no prior DND modifications of the CT142 render the STC non-applicable, and where the STC is issued by a recognized airworthiness authority, DND will not require additional certification testing.
If prior DND modifications affect the applicability of a DHC-8-102 STC, but where the STC has been amended and re-issued as a limited STC for the CT142 specifically, DND will not require additional certification testing.
Question 7:
If the current military configuration of the aircraft results in the need for design changes to the existing STC data is there an expectation of civilian certification for unique military requirements or with DND TA approval be sufficient?
Answer 7:
In the case of design changes to an existing STC, the contractor may opt to complete civilian certification for the amended design or provide support to the DND airworthiness approval of the new design.
The level of support required in the latter case is difficult to predict in the hypothetical but could include providing supporting documentation to the DTAES 3 certification team, developing or providing engineering data, and acting as a liaison between DND and the OEM of the equipment, though this list is not comprehensive.
Question 8:
What, if any, intellectual property rights does DND expect for existing civilian STCs that are used?
Answer 8:
DND expects the right to use and conduct 1st and 2nd line maintenance on the equipment provided, as well as the right to locally produce any non-procurable components (e.g. CT142- specific brackets). The contractor must provide DND with the right to hold and reference all drawings related to the equipment installation. DND also expects the right to hold any amended TMT or TMT Server source code and the right to use and modify that source code locally.
Page 4 of - de 14
Question 9:
Is the initial training for operations & maintenance expected to be a combined training class or two separate classes?
Answer 9:
Maintenance and Operator training is expected to be two separate classes.
Question 10:
Is the contractor free to provide the content of the training material in their own format, or are there specific DND expectations?
Answer 10:
Yes, the contractor may provide the training material content in their own format.
Question 11:
Is it possible to separate the CNS-ATM requirements from the radar requirements so that the CNS-ATM part of the contract can be finished while the radar system is being designed?
Answer 11:
As per paragraph 4.3.5 of the SOR (page 37), installation of the two systems may be separated for the first aircraft with the concurrence of the TA. For the remaining aircraft DND requires the CNS-ATM and radar to be competed/installed at the same time.
Question 12:
ADS-B Out
Is there currently an interlock system between the civilian transponders and the IFF system? If so is a description of that interlock function available?
Answer 12:
Yes, there is an interlock system. A push action switch and annunciator assembly (XPDF- ATC/IFF) is installed on a panel situated in the left aft portion of the cockpit center console. This switch-light serves to provide an operational selection between the IFF transponder or the dual Mode-S (ATC) transponders. Simultaneous operation of IFF and TCAS/Mode-S systems is not operationally feasible.
When “ATC” operation is selected for use, the bottom left portion of the switch-light is illuminated with a white “ATC” status. When lit, the IFF system is forced into a standby condition.
When “IFF” operation is selected for use, the bottom left portion of the switch-light is similarly illuminated with a white “IFF” status. When lit, both of the Mode-S transponders and the TCAS system are forced into a standby condition.
This interlock behaviour must be maintained.
Page 5 of - de 14
Is there a desire to disable the extended squitter output without completely disabling the transponders?
Answer 13:
No, this is not required.
Question 14:
TCAS II Change 7.1
Will an earlier version of TSO C119( ) be acceptable? There are many TCAS systems in-service and in-production that were built to earlier versions and there are not that many choices for units built to the latest C119e version of the TSO.
Answer 14:
TSO C119c and later are all acceptable. If TSO C119c is used, hybrid surveillance is a desired (although not mandatory) functionality.
Question 15:
TAWS A
Is the current FMS configured to conduct Localizer Performance with Vertical guidance (LPV) approaches? If so will this have to be integrated into the TAWS A system (a civilian
requirement)?
Answer 15:
Yes, the current FMS is configured to conduct LPV approaches. The TAWS system must comply with all civilian requirements.
Question 16:
Radar
Does DND expect the new radar system (excluding NTS interface) to be civilian certified by STC or will DND TA approval be sufficient?
Answer 16:
Either civilian certification via STC or DND TAA approval for the radar will be sufficient, with the certification route at the bidder’s discretion. For the DND TAA certification path, the contractor must provide support to the DND certification team. This support may include providing
supporting documentation to the DTAES 3 certification team, developing or providing engineering data, and acting as a liaison between DND and the OEM of the equipment, though this list is not comprehensive.
Page 6 of - de 14
Question 17:
What level of detail is required to meet the “classify surface contacts” when the radar is operating in Maritime Surveillance mode?
Answer 17:
The radar must be able to classify contacts as ‘Small’ (e.g. fishing and pleasure craft), ‘Medium’
(frigate-sized warships), and ‘Large’ (e.g. merchant shipping vessels, cruiser-sized warships).
Question 18:
Can more information be provided on the requirement to “provide high resolution imaging of roads, bodies of water, habited areas and power lines.”? For example, does the radar have to detect the transmission wires between powerline towers, or just the powerline towers
themselves?
Answer 18:
The radar image quality must meet or exceed the capability of the current radar. In the example, the radar does not need to detect transmission wires – imaging the power lines by the towers themselves will suffice.
Question 19:
What is the “hook on contact” function at the NTS stations?
Answer 19:
The NTS station operator must be able to designate radar tracks or geographical positions that the radar will track
Question 20:
IRU
What systems currently use IRU data?
Answer 20:
The Electronic Flight Instrument System (EFIS) uses analog attitude and heading data to drive the Electronic Horizontal Situation Indicator (EHSI) and the Electronic Attitude Direction Indicator (EADI).
The FMS Computer takes in pitch, roll, and heading data through the ARINC 429 bus for the Computer Display Unit (CDU). The search radar similarly takes in data through the ARINC 429 bus to stabilize the transmitter/receiver.
Page 7 of - de 14
Is the IRU used to support True navigation at northern latitudes?
Answer 21:
Yes, and this is a capability must be retained.
Question 22:
What is the model and part numbers of the IRS?
Answer 22:
The IRS consists of the following parts:
Description Part Number
Inertial Reference Unit (IRU) HG1095AC02 Mode Selector Unit (MSU) CG1042AB03
IRS Switch Panel 83445006-001
Computer Display Unit (CDU) 3017-41-211
Question 23:
RADAR
Are the radar capabilities listed in the RFP the same as what the current radar can do? For example: See powerlines?
Answer 23:
Yes, DND is seeking only to replace the radar hardware, not to upgrade the capability. With reference to the power lines example in the RFP: the current radar can discern the power line towers but not the transmission wires. This meets the requirement for land navigation as the presence of the power line is discernable from the towers. That same level of detail is acceptable in the new radar.
Question 24:
What level of detail is required to meet the ship classification requirement?
Answer 24:
The radar must be able to classify contacts as ‘Small’ (e.g. fishing and pleasure craft), ‘Medium’
(frigate-sized warships), and ‘Large’ (e.g. merchant shipping vessels, cruiser-sized warships).
Page 8 of - de 14
Question 25:
FMS
Can we obtain a copy of the current FMS configuration settings?
Answer 25:
The current FMS configuration settings are found in the table below:
DISPLAY CONFIG
DISPLAY TYPE FLAT PANEL
COLORS STANDARD
FUEL OPT
FUEL MODE ENABLE
BASIC WEIGHT [As req’d]
# OF ENGINES 2
DISPLAY UNITS LBS
FUEL FLOW TYPE DC LINEAR
FF SCALING
INPUT RANGE 0-5 VDC
LOWER FLOW RATE 0
UPPER FLOW RATE 1200
LOWER VOLTAGE 0
UPPER VOLTAGE 5
MIN FF 75 PPH
APU OPT
FUEL FLOW 1 0
FUEL FLOW 2 0
FUEL FLOW 3 0
FUEL FLOW 4 0
APU SOURCE NONE
Page 9 of - de 14
PERF OPT
BASIC ENABLED
MANUAL DISABLED
ADVANCED DISABLED
MIN DIVERT RWY 5000 FT
CLIMB GRAD 750 FT/MIN
VNAV OPT
VNAV MODE ENABLED
ENRTE FPA LIMIT -6
APPR FPA LIMIT -4
VDEV STOW ENABLED
VDEV SCALE NORMAL
TGT V/S -0
TGT FPA -3
TEMP COMP COLD
429/571/ASCB VDEV ENRT-APPR
429/571/ASCB PITCH ENRT-APPR
429/571/ASCB VERT SPD ENRT-APPR
ANALOG VDEV ENRT-APPR
ANALOG PITCH ENRT-APPR
V/S DESCENT DISABLED
ALT HOLD DISABLED
SPD HOLD DISABLED
SPD CLIMB DISABLED
VFLC DISABLED
DESCENT V/S 0
APPR STEER PITCH
Page 10 of - de 14
APPR OPT
APPR MODE ENABLED
REMOTE TUNE DISABLED
REMOTE ARM DISABLED
ROLL GAINS 3X
LAT STEER ROLL
EFIS OPT
TYPE 429 GAMA
NAV OPT
A/C TYPE FIXED WING
AC ROLL STR ENABLED
HDG SEL ENRT-APPR
AT OR BELOW 15000
BANK LIMIT (AT OR BELOW) 30
AT OR ABOVE 17000
BANK LIMIT (AT OR ABOVE) 15
SRCH ROLL GAINS 1X
XFILL OPT
MASTER ENABLED
INIT ENABLED
FUEL ENABLED
FPL ENABLED
XFILL MODE PUSH
TUNE PRESETS DISABLED
CABIN DISP
CABIN DISP DISABLED
TAWS CONFIG
MODE/RANGE SEL DISABLED
PAGE DISPLAY N/A
Page 11 of - de 14
INTERFACE DISABLED
WAAS CONFIG
ONSIDE X +10.0M
OFFSET X +10.0M
ONSIDE Y -00.3M
OFFSET Y +00.3M
ONSIDE Z +02.1M
OFFSET Z +02.1M
WAAS ENABLED
EGNOS ENABLED
MSAS ENABLED
GAGAN ENABLED
XCHAN MONITOR ENABLED
PASSCODE ---
ARINC MON 1 NONE
ARINC MON 2 NONE
ANALOG MON LOW
ANALOG DEV LOW
FMS CONFIG
STRUT SW ANALOG
NAV DB EXP [As req’d]
MAX STBY TIME 4 HOURS
PLT DB @ PWRUP RETAINED
FLIGHT INFO FLIT NBR
SYNC PWRUP - ENABLE
INSTALLATION DUAL
LP APPROACHES ENABLED
Page 12 of - de 14
ARINC RCV
PORT 0 HS WAAS 1
PORT 1 HS WAAS 2
PORT 2 LS 429 ADC
PORT 3 NO SENSOR
PORT 4 NO SENSOR
PORT 5 NO SENSOR
PORT 6 HS429 IRS 1
PORT 7 SYNC
ARINC XMIT
PORT 1 429 HS
PORT 2 571 LRN
PORT 3 SYNC
PORT 4 NONE
FAA FIAS
WAAS FEATURES DISABLED
HAL METERS 25
VAL METERS 25
GPA MULT 0.25
HAL DISP 100
VAL DISP 100
NASA T38
NASA T38 DISABLED
Page 13 of - de 14
DISC IN
DISC IN 1 NONE
DISC IN 2 NONE
DISC IN 3 NONE
DISC IN 4 NONE
DISC IN 5 NONE
DISC IN 6 STRUT
DISC IN 7 NONE
DISC IN 8 GO AROUND
DISC IN 9 DHC VNV CPL
DISC IN 10 28V DHC VNAV ARM
DISC IN 11 NONE
DISC OUT
DISC OUT 1 NONE
DISC OUT 2 WPT ANN
DISC OUT 3 SXTK ANN
DISC OUT 4 APPR ANN
DISC OUT 5 HDG ANN
DISC OUT 6 DHC ARM ANN
DISC OUT 7 GPS INTEQ
DISC OUT 8 NONE
DISC OUT 9 DHC VNV REQ
A561 XMIT
561 BUS DIST ONLY
DTG FORMAT 561E/568A
Page 14 of - de 14
CSDB OPT
RCVR 1 NO SENSOR
RCVR 2 NO SENSOR
RCVR 3 NO SENSOR
RCVR 4 NO SENSOR
XMITTER 1 NONE
XMITTER 2 NONE
ANALOG OPT
WPT BRG SIG WPT BRG
WPT BRG FMT NONE
DESIRED TRK SYCHRO
OFFSET +0
RELATIVE TO NORTH
RELATIVE TO NOSE
ANALOG ATT HDG ONLY
PITCH CMD DHC
AIR DATA
ALT DISPLAY BARO ALT
A/S DISPLAY TAS
MINIMUM TAS 60 KTS
SAT FORMAT DIGITAL
MACH FORMAT DIGITAL
BARO ALT FMT DIGITAL
PRES ALT FMT DIGITAL
A/S FORMAT DIGITAL
ALL OTHER TERMS AND CONDITONS REMAIN THE SAME
