Field visits to moisture troubled housing in a Maritime climate
Scott, D. L.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
NRC Publications Record / Notice d'Archives des publications de CNRC: https://nrc-publications.canada.ca/eng/view/object/?id=1d714345-2b60-4491-ba05-d5cd5d1c51e8 https://publications-cnrc.canada.ca/fra/voir/objet/?id=1d714345-2b60-4491-ba05-d5cd5d1c51e8
ISSN
0701 5216BUILDING
PRACTICE
NOTE
FIELD VISITS
TO MOISTURE
TROUBLEDHOUSING IN
A MARITIMECLIMATE
B Y
D.L.
ScotCDivision of Building Research, National &search Council of Canada
O t t a w a , September 1984 r N R C - C16T1
BLDG.
RES.
.-
L I B R A R Y
'.?
01-
U -
4
5
FIELD VISITS
TO
MOISTURR TROUBLEDHOUSING
IN
AMARITIME
CLTMATEby
D.L. Scott*
ABSTRACT
This Mote d e s c r i b e s l a c a l f z e d moisture damage to maritime housing t h a t can b e attributed to a combination ~f inadequate d e t a i l i n g and poor workmanship oz lack of maintenance.
INTRODUCTION
aver t h e p a s t f e w years a number of field v i s i t s have been made t a
investigate the nature and extent a£ moisture-induced damage to wood frame
housing within A t l a n t i c Canada. The number
of
cases investigated does nota l l o w a meaningful s t a t i s t i c a l p r e d i c t i o n concerning moisture problems in the overall b u i l d i n g population. It does appear, however, that a
small
percentage of wood hame housing suffers f r o m localized moisture damage chatcan be
attributed t o poor original detailing and workmanship ora
l a c k of oqgoing maintenance. The four b u i l d i n g s d e s c r i b e d i n this Note are locatedin the.
~alifax,
M.S.
area andSt.
John's, Newfoundland. Each was constructed w i t h i n t h e last ten years and can b e considered r e p r e s e n t a t i v e of l o c a lpractice.
CASE ONE
A factory-built s p l i t entry three bedroom home constructed in the fall
of 1982 near Halifax w a s occupied by two adults and one c h i l d . The owners
camplained a f roof l e a k s id rhe v i c i n i t y
of
t h e
bathroom w f t h each successivewarm
rainy day fallowing cold weather.An inspectian of the r a o f i n March 1984 found all asphalt s h i n g l e s in
place and a p p r o p r i a t e l y tabbed down. Flashings around the roof caps for
bath
and kitchen exhaust fans were w e l l sealed during a prevlous vislt by thecontractor. The a t t i c hatch w a s weatherstripped and the glass f i b r e b a t t s
were
i n s t a l l e d uniformly. The waferboard roaf sheathing had turned blackw i t h mold and was saturated over an area immediately above the bathroom and
common plumbing w a l l w i t h the kitchen ( F i g . 1 ) .
No
w e t n e s so.r
d i s c o l o r a t i o n w a s evident in other areas of t h e attic- During c h i s visit the bathroom fan*
A t l a n t i c Regional S t a t i o n , D i v i s i o n af B u i l d i n g Research, National Research Council Canada, Halifax, Nova S c o t i a .Figure 1. Saturated roof sheathing
g r i l l was removed, exposing gaps of up to 12.5 mm
(%
in.) between t h e f a nhousing and adjacent drywall. Similar g a p s w e r e found between the head
l i n e r
of the cabinet above the kitchen szove and t h e range hood fan duct, As air
leakage appeared to be the main moisture c o n t r i b u t o r , these gaps w e r e
caulked. A hygrothemograph w a s installed to record indoor temperature
and h m i d i t y
-
Weekly v i s i t s w e r e made t o i n s t a l l n e w charts and to monitor the
c o n d i t i s n of the roof sheathing. One week after caulking around t h e exhaust f a n housing, the roof sheathing was found to be e s s e n t i a l l y dry above
the bathroom, with some reductian in moisture above the cornon plumbing
0 w a l l . Tcqeratures throughout t h e study period were maintained at 18 C
(65'~) and t h e relative humidity varied between 50 and 6 4 p e r c e n t . The high humidity readings can be a t t r i b u t e d to the clothes dryer (unvented u n t i l
l a t e in t h e study) and low ventilation rates combined with a reasonably
tight house.
By the second week, t h e w e t roof sheathing condition still p e r s i s t e d
above the plumbing wall and a more d e t a i l e d examination of air leakage
sources was undertaken. The kitchen range hood and cabinet were removed,
exposing a substantial gap between the drop ceiling and range hood d u c t ( F i g . 2 ) . When the duct w a s removed, a d d i t i o n a l lacatfans f o r a i r leakage
were discovered at t h e plumbing stack and through several holes drilled in the t o p p l a t e (Fig. 3). These holes to the attic were interconnected
w i t h an uncovered plumbing access hatch located behznd a false f r o n t o n the
Figure '3.. Air leakage past plumbing and electrical services
Figure 4. Uncovered plumbtng access
allows moisture to enter
A f u r t h e r check
in
the attic revealed untaped ductwork and free water t r a p p e d below the polyethylene vspourbarrier
( F i g .5).
Figure 5. Ductwark in a t t i c untaped

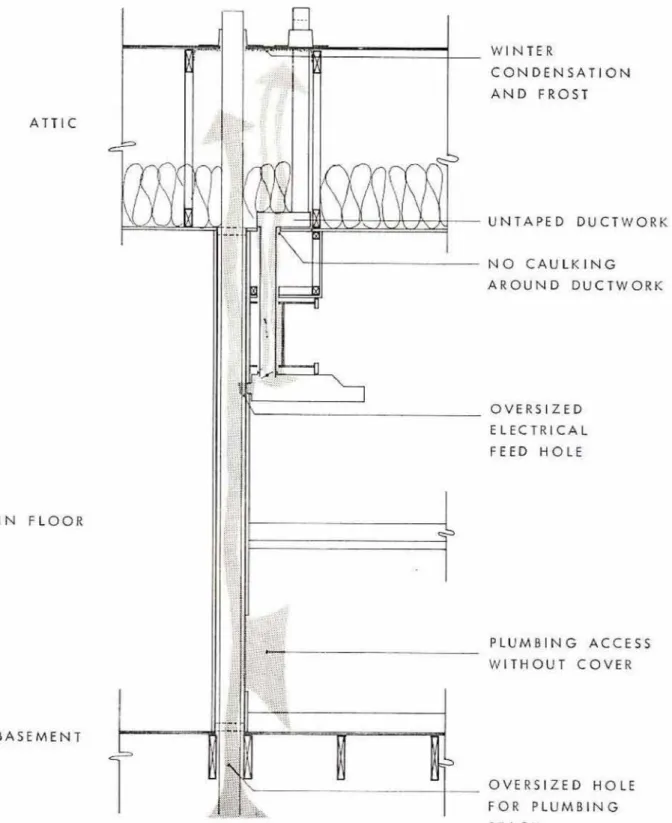

Several clear air leakage paths had now been confirmed for moisture- laden a i r from the kitchen area i n t o t h e
a t t i c
(Fig. 4). After enteringthe attic the moist air would rise until it hit the cold sheathing, where
frost would form, init-iatlng the cycle leading t o " a t t i c rafn" during
mild
weather. The b u i l d e r sealed off the a i r leakage paths and iastalled a hatchto the plumbing chase. The remaining wet sheathing
then
dried within aweek. The
house ownerwas encouraged
to eliminate indoor clothes drying andto increase the use o f exhaust fans in an effort to reduce relative humidities to levels of about
40
percent.A T T I C M A I N FLOOk B A S E M E N T W I N T E R C O N D E N S A T I O N A N D F R O S T U N T A P E D DUCTWORK N O C A U L K I N G A R O U N D D U C T W O R K O V E R S I Z E D E L E C T R I C A L F E E D HOLE PLUMBING A C C E S S W I T H O U T COVER O V E R S I Z E D H O L E FOR PLUMBING S T A C K
CASE
TWOAluminum s i d i n g installers replacing the s i d i n g on a two storey duplex
discovered water between t h e sheathing paper and 9.5 mm (318 in.) plywood sheathing. The plywood showed water s t a i n s and preliminary signs of rot in
the stud s p a c e s immediately adjacent to the t i l e d bathtub enclosure in the
second f l o o r bathroom, with the darkest p a t t e r n immediately o p p o s i t e the
soap dish ( F i g s .
7 and
8).Figure
7 .
Deteriorated sheathingon bathtub w a l l
Figure 8. Same pattern on
adjacent housing *it
me
moisture content of t h e plywood was approximately 15 percent across m o s t of t h e w a l l , increasing to30
percent in the center of the darkpatches.
me
s h e a t h i n gwas
cut away at t h e location of the soapdish
andf r i c t i o n fit i n s u l a t i o n removed. The polyethylene vapous barrier had been cut to i n s t a l l t h e soap
d i s h
and a substantial amountof mildew
growth andmoisture had accumulated between the polyethylene and the gypsum drywall

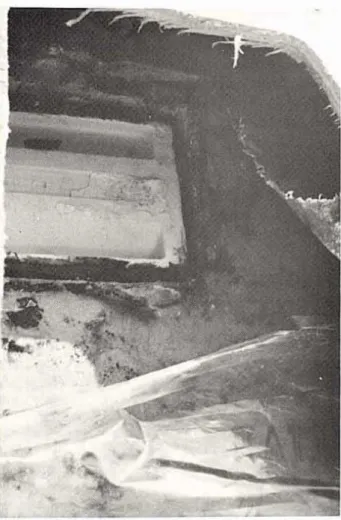

Figure 9 . Sheathing cutback behind
soap d i s h
The vapour b a r r i e r stopped at t h e rim of the bathtub, leaviug friction f i t glass fibre insulation exposed t o the area under the tub. Since the house occupants noted the soap d i s h had been loose for some time, it becomes d i f f i c u l t to assess t h e relatllve moisture contribution from direct leakage during showers, a i r leakage at the soap d i s h and d i f f u s i o n and air leakage
through t h e unprotected insulation below the bathtub. These factors did, however, combTne to overcome the natural drying potential of the w a l l in the
area immediately around the bathtub. The remainder of the sheathing in the
These houses were constructed to currenr practice fur the day w i t h respect to insulation and vapour barriers. The plumber r o u t i n e l y roughs i n
the bathtub in advance of the application of insulation,which makes i n s u l a t i n g
below
t h e tub d i f f i c u l t and t h e installation of an air and a vaposrbarrier
i m p o s s i b l e . Consideration
should
be given to i n s t a l l i n g a barrier such asa s i n g l e sheet
of
plywood or waferbsard b e l o w the tubrim
before the tub is i n s t a l l e d . This practice wouldreduce
moisturebuildup
with911 thewall by
limiting a i r
f l a wand
vapaux d i f f u s i o n i n t othe wall
cavity.In
addition, the movement of moisture through deteriorating ceramlc tile gmut and at fixtures such as soap d i s h e s s e t through t h e gypsumd r y w a l l is almost i n e v i t a b l e
ff the
wall isn't ~=ar;efully m a i n t a i n e d .Surface mounted f i x t u r e s wauld
at leasr
avoid cutting the p o l y e t h y l e n e andgypsumboard, which would assist in maintaining air and vapour tightness ( F i g . 10). SURFACE MOUNT
F I X T U R E S
M A I N T A I N C E R A M I CT I L E
G R O U T A P P L Y B A R R I E RS U C H
A S PL,YWQOD OR W A F E R B O A R D B E H I N D B A T H T U BCASE THREE
A s i m i l a r case resulted in m o r e serious damage before the owner w a s alerted to t h e pxoblem. The ,exterior w a l l o f a second storey bathroom was
composed of aluminum s i d i n g , asphalt b u i l d i n g paper, 9.5 mrn (318
in.)
sheathing, 38 x 140 rmn (2 x 6 in-) s t u d s , RSI 3.52 (R20) insulation and a
polyethylene vapour
barrier
extending from t h e c e i l i n g to the tubrim.
A field v i s i tin October
revealed large areas of deteriorated plywood sheathing adjacent to the bathtub enclosure and extending down p a s t the second storey headerl i n e
in one location. Theplywood
subflooring a t thefiller end of the bathtub had deteriorated below the v i n y l
floor
covering to t h e extent that it was structurally unsound. Water s t a i n s w e r e evident on t h e c e i l i n g of the kitchen b e l o w t h e bathroom. The occupants i n d i c a t e dthat water spillage during childrens' baths and showers was common
and
chatm o s t water would d i s a p p e a r at the open joint between the v i n y l flooring
and bathtub. Considerable damage w a s caused by
t h i s
continued wetting( F i g . 11). At the time af inspection t h e w a l l sheathing had a l m a s t n o
structural c a p a b i l i t y and the fibreboard backerboard installed w i t h the aluminum siding w a s saturated (Fig. 12).

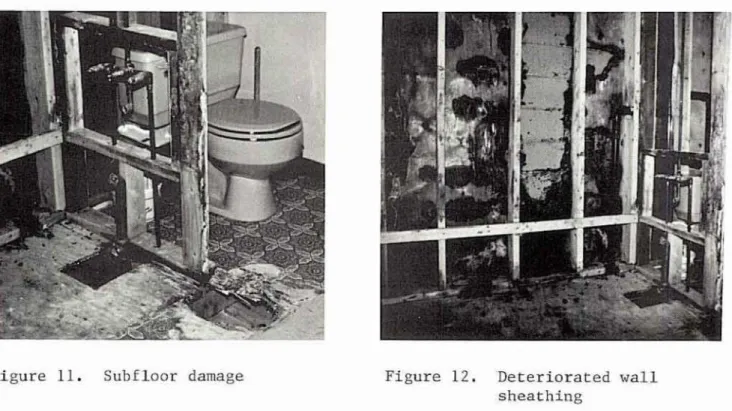

Figure 11. S u b f l o o r damage Figure 12. Deteriorated wall
sheathing
In t h i s example, a i r in the Eloorlceiling cavity picked up moisture
spilled i n t o t h e cavity. T h i s moist a i r was able to migrate up through the subfloor, where a l a r g e hole w a s cut for the trap on the bathtub and out
into the
outer
wall across the full length o f the bathtub.Damage to the exterior w a l l
and
f l o o r c o u l d have been reduced ore l i m i n a t e d by controlling water s p i l l a g e , Although most houses up until
r e c e n t l y have been constructed without an air or a vapour barrier b e l o w
the bathtub rim, this problem w o u l d have been greatly reduced if both had
CASE FOUR
A two-storey duplex l o c a t e d in
the
St. John's, Newfoundland, area w a sinvestigazed in March. The exterior
wall system consisted
of gypsum drywall,polyethylene, paper clad
E I
2.1 ( R f 2 ) b a t t s between 38 x 89 mm (2 x 4 in.) studs 400 mm (16 in.) on center and an exterior f i n i s h of 9 . 5 mm (318 in.)plywood with vertical and
horizontal
battens. Little is known of the insidetemperature and moisture conditions maintained in this u n i t .
The plywood cladding on the SE comer w a s removed, revealing a w e t
stain b n
the panel
s t a r t i n g at t h e h e i g h t of an electrical box and extending down to t h e p l a t e (Figs.13 and
14).Figure
13.
Wet sheathing causedby a i r leakage at
electrical box
Figure 14. Insulation details
adjacent to e l e c t r i c a l b ox
Moisture-laden air had apparently leaked o u t p a s t h o l e s around and
through
the electrical boxes and condensed on the back of the siding.Water
forming
at t h i s location ran down in a fan-shaped pattern to saturatet h e
sill plate and header. The moisture content of the sheathing and studsvaried considerably in relation to the proximity of the electrical outlet ( F i g . 15)
.
PLYWOOD CLADDING
Figure 15.
FRAMING ON SE CORNER
VALUES
WITH
ARROWS WERETAKEN
75
mm (3 in.) FROMOUTSIDE FACE
Percent moisture c o n t e n t in
w a l l
componentsSubstantial rot w a s found in the
sill p l a t e s
and h e a d e r s behind t h elower r i g h t and upper l e f t hand corners af the panel. Both locations are below an electrical outlet ( s u b j e c t
to
air leakage) and an unflashedhorizontal j o i n t
in the c l a d d i n g ( s u b j e c t
to rain leakage). The glassf i b r e i n s u l a t i o n w a s dry, except where it was wadded
in
around t h eelectrical
box.
CONCLUSIONS
Hoisture damage in the houses studied w a s l o c a l i z e d and appeared to
result from one of three factors:
1. Information
on
working drawlngs for many houses is inadequate to convey critical details regarding air and vapour c o n t r o l . In general,residential warking drawings contain only dimensions and material
napes, leaving much of the detailing to standard trade procedures. T h i s p r a c t i c e , while economical in expediting a b u i l d i n g p r a j e c t , has
been shown to produce long term problems.
mre
d e t a i l should beconveyed to
the
a p p r o p r i a t e trades.2.
The q u a l i t y of workmanship determines whether a construction detail is f i n a l l y s u i t a b l e for its intended use. Withnut adequareand rtmely
i n s p e c t i o n , t h e construction process soon conceals the evidence, making
future discovery and correction d i f f i c u l t and costly. A small amount
of
additional care on the part of the trades, encouraged by adequate supervision, will lead t o a salu~ion that is more economical and satisfactory ~o the Contractor and b u i l d i n g owner,3. B u i l d i n g s m s t
be
maintained to remain serviceable. Homeowners could b e n e f i t from reading and following manuals d i s t r i b u t e d by many homewarranty p l a n s .
To
avoid the type of problems d e s c r i b e d in thdsNote, the b u i l d i n g owner should identify and a t t e n d to minor
maintenance problems before s e r i o u s deterioration begins.
