Publisher’s version / Version de l'éditeur:
Vous avez des questions? Nous pouvons vous aider. Pour communiquer directement avec un auteur, consultez la première page de la revue dans laquelle son article a été publié afin de trouver ses coordonnées. Si vous n’arrivez pas à les repérer, communiquez avec nous à [email protected].
Questions? Contact the NRC Publications Archive team at
[email protected]. If you wish to email the authors directly, please see the first page of the publication for their contact information.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
Internal Report (National Research Council of Canada. Division of Building
Research), 1985-04-01
READ THESE TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS WEBSITE. https://nrc-publications.canada.ca/eng/copyright
NRC Publications Archive Record / Notice des Archives des publications du CNRC :
https://nrc-publications.canada.ca/eng/view/object/?id=4af2677e-1214-4c2c-aef9-ba6b6df135f9 https://publications-cnrc.canada.ca/fra/voir/objet/?id=4af2677e-1214-4c2c-aef9-ba6b6df135f9
NRC Publications Archive
Archives des publications du CNRC
For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.
https://doi.org/10.4224/20337863
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Method for determining the gas permeability of urea formaldehyde
foam insulation samples
NATIONAL RESEARCH COUNCIL OF CANADA DIVISION OF BUILDING RESEARCH
DBR INTERNAL REPORT NO. 499
METHOD FOR DETERMINING THE GAS PERMEABILITY OF UREA FORMALDEHYDE FOAM INSULATION SAMPLES
by S. J . R o l f e and P . J . S e r e d a
Checked by: Approved by: L.W. Gold Date: A p r i l 1985
Prepared for: Records P u r p o s e s
ABSTRACT
The r e s i s t a n c e t o a i r f l o w w a s measured f o r UFFI and o t h e r i n s u l a t i n g materials u s i n g a s i m p l e t e s t d e v e l o p e d f o r t h i s p u r p o s e . The r e s i s t a n c e t o a i r f l o w of a foam s p e c i m e n may g i v e an i n d i c a t i o n of i t s s t r u c t u r e and t h e amount of d e g r a d a t i o n t h a t h a s o c c u r r e d . When compared t o o t h e r i n s u l a t i n g m a t e r i a l s , W F I had a h i g h r e s i s t a n c e i n most c a s e s .
METHOD FOR DETERMINING THE GAS PERMEABILITY OF UREA FORMALDEHYDE FOAM INSULATION SAMPLES
S.J. Rolfe and P.J. Sereda
I t was b e l i e v e d t h a t t h e g a s p e r m e a b i l i t y of u r e a formaldehyde foam i n s u l a t i o n (UFFI) was an i m p o r t a n t m a t e r i a l p r o p e r t y t h a t c o u l d p r o v i d e t h e b a s i s f o r an a s s e s s m e n t of t h e e x t e n t and e f f e c t i v e s i z e of foam c e l l
i n t e r c o n n e c t i o n s , and t h e r e f o r e t h e e a s e of removal of o f f - g a s e s by a i r f l o w t h r o u g h t h e foam.
P r e l i m i n a r y t e s t s e s t a b l i s h e d ' t h a t a l i n e a r r e l a t i o n s h i p e x i s t e d
between t h e volume of a i r f l o w i n g t h r o u g h a g i v e n t h i c k n e s s and a r e a of foam and t h e p r e s s u r e d r o p r e q u i r e d t o s u s t a i n t h e flow. It was t h e r e f o r e
p o s s i b l e t o d e t e r m i n e t h e r e s i s t a n c e - t o - f l o w f a c t o r t h a t would c h a r a c t e r i z e t h e g i v e n sample. The f o l l o w i n g r e l a t i o n s h i p was developed:
*
( p r e s s u r e d r o p p e r u n i t l i n e a r v e l o c i t y p e r u n i t t h i c k n e s s of sample) Where: P1 i s t o t a l p r e s s u r e d r o p , mm Hg P 2 i s t o t a l p r e s s u r e drop a c r o s s empty f u n n e l s , mm Hg V i s volume of a i r p e r u n i t t i m e , t , (mm)3/min A i s c r o s s - s e c t i o n a l a r e a of sample, (mm)2 h i s sample t h i c k n e s s , cmT h i s n o t e d e s c r i b e s t h e proposed t e s t method and g i v e s some t y p i c a l r e s u l t s . T h i s may p r o v i d e t h e b a s i s f o r comparison between d i f f e r e n t foams and o t h e r i n s u l a t i n g m a t e r i a l s .
EXPERIMENTAL
Sample P r e p a r a t i o n
The sample f o r t e s t i n g uust be an u n d i s t u r b e d p i e c e of UFFI. From t h i s , a c o r e was t a k e n w i t h a t h i n - w a l l e d t u b e ( s i m i l a r t o a c o r k b o r e r ) a s shown i n F i g u r e 1 t o p r o v i d e a c y l i n d r i c a l specimen a b o u t 2 mm g r e a t e r i n d i a m e t e r t h a n t h e i n s i d e d i a m e t e r of t h e f u n n e l i n t o which i t i s pressed.
It was i m p o r t a n t t h a t t h e s i z e s of t h e specimen and t h e f u n n e l were s u c h t h a t t h e r e was an a i r t i g h t s e a l between t h e foam and t h e f u n n e l s o t h a t a i r d i d n o t bypass t h e sample.
The specimens were made by r o t a t i n g t h e s h a r p c u t t e r a s i t was g e n t l y p r e s s e d i n t o t h e foam. The ends of t h e specimen were c u t f l a t w i t h a s h a r p k n i f e t o make t h e specimen 50 mm l o n g . The c u t t i n g was done w h i l e t h e
Apparatus
The a p p a r a t u s f o r t h e s e e x p e r i m e n t s was made f r o m s t a n d a r d l a b o r a t o r y equipment ( F i g u r e 2). UFFI specimens were h e l d between two s i n t e r e d g l a s s f u n n e l s (Pyrex 36060, 60
mL,
c o a r s e f r i t ) s e a l e d t o g e t h e r w i t h PVCe l e c t r i c a l t a p e . The p r e s s u r e d r o p a c r o s s t h e specimen was measured w i t h a mercury f i l l e d U-tube manometer w i t h a m i r r o r e d s c a l e c a l i b r a t e d i n mm. Flow r a t e was measured w i t h a r o t a m e t e r ( F i s h e r and P o r t e r S t a b l - V i s
F l o w r a t o r #LK-7355) and p r e s s u r e was c o n t r o l l e d w i t h a g a s r e g u l a t o r . A l l
c o n n e c t i o n s were made w i t h Tygon t u b i n g . T e s t P r o c e d u r e
P r i o r t o t h e t e s t i n g of foam s p e c i m e n s , t h e assembly of t h e two f u n n e l s ( w i t h o u t a specimen) was c o n n e c t e d i n t o t h e a p p a r a t u s . P r e s s u r e a c r o s s t h e . f u n n e l s was a d j u s t e d u s i n g t h e r e g u l a t o r t o d i f f e r e n t v a l u e s i n d i c a t e d on t h e manometer, and t h e s e were r e c o r d e d w i t h t h e c o r r e s p o n d i n g f l o w r a t e a s p o i n t s on a graph. T h i s measurement r e p r e s e n t e d a b l a n k v a l u e , n e c e s s a r y t o c o r r e c t v a l u e s o b t a i n e d w i t h t h e specimen.
T h i s t e s t was r e p e a t e d i n d u p l i c a t e f o r e a c h specimen t o check f o r changes t h a t might have o c c u r r e d on i n c r e a s e and d e c r e a s e of p r e s s u r e .
I£ a
change o c c u r r e d between t h e f i r s t and s e c o n d t e s t s , i t i n d i c a t e d t h a t t h e s e a l i n g of t h e sample i n t h e f u n n e l had changed, a l l o w i n g a i r t o bypass t h e specimen around i t s edges. Once samples were s a t i s f a c t o r i l y p u t i n t o t h e f u n n e l s , c r a c k i n g and s p l i t t i n g were n o t a problem.RESULTS AND DISCUSSION
I n a l l c a s e s , t h e p r e s s u r e vs. f l o w c u r v e s were s t r a i g h t l i n e s w i t h v e r y l i t t l e s c a t t e r ( F i g u r e 3). The p e r m e a b i l i t y ( p ) of a specimen was d e f i n e d t o be t h e s l o p e of t h i s l i n e minus t h e s l o p e of t h e l i n e p l o t t e d f o r empty f u n n e l s . The r e s i s t a n c e of a sample t o a i r f l o w (Rf) c o u l d t h e n be c a l c u l a t e d f r o m p a f t e r measuring t h e specimen d i a m e t e r and t h i c k n e s s .
I n i t i a l measurements were done u s i n g f u n n e l s chosen a t random from l a b s t o c k . Some of t h e s e measurements showed a d e c r e a s e i n r e s i s t a n c e t o a i r f l o w w i t h r e p e a t e d a p p l i c a t i o n s of p r e s s u r e ( F i g u r e 4 1 , and r e s i s t a n c e
i n c r e a s e d when t h e specimen was compacted.
To check t h e p o s s i b i l i t y t h a t a i r p a s s e d between e d g e s of t h e foam and t h e f u n n e l r a t h e r t h a n t h r o u g h t h e foam, t h e measurements were r e p e a t e d w i t h h i g h vacuum s t o p c o c k g r e a s e on t h e i n s i d e of t h e f u n n e l s t o s e a l t h e e d g e s of t h e specimen. The measurements done i n t h i s manner were r e p r o d u c i b l e even a f t e r a p p l i c a t i o n of a 75 mm Hg p r e s s u r e d i f f e r e n c e , and t h e r e s i s t a n c e d e c r e a s e d when t h e sample was compacted. F u r t h e r i n v e s t i g a t i o n showed t h a t some f u n n e l s had a s l i g h t l y l a r g e r i n s i d e d i a m e t e r t h a n t h e mean of t h e l a b s t o c k (one mm s m a l l e r i n s i d e d i a m e t e r t h a n t h e i n s i d e d i a m e t e r of t h e
c u t t e r ) , s o t h e s e were removed f r o m t h e s t o c k . With s m a l l e r f u n n e l s ( a t l e a s t 2 mm s m a l l e r i n s i d e d i a m e t e r t h a n t h e i n s i d e d i a m e t e r of t h e c u t t e r ) , t h e r e was no e v i d e n c e of a i r b y p a s s i n g specimens a t p r e s s u r e s up t o
100 mm Hg. Subsequent measurements were done w i t h t h e s m a l l e r d i a m e t e r f u n n e l s and n o g r e a s e .
The r e s i s t a n c e t o a i r f l o w of f o u r specimens e a c h of f o u r UFFI samples was measured, and t h e a v e r a g e r e s u l t s a r e g i v e n i n T a b l e 2. The r e s i s t a n c e t o a i r f l o w of foam specimens v a r i e d by 20% t o 50% f o r e a c h foam sample. Three of t h e samples (foams A, B and D) had h i g h r e s i s t a n c e t h a t d e c r e a s e d when t h e specimens were compacted. This i n d i c a t e d t h a t c e l l w a l l s i n foam s t r u c t u r e were f r a c t u r e d l e a d i n g t o an i n c r e a s e i n t h e e f f e c t i v e s i z e of i n t e r c o n n e c t i n g c h a n n e l s . Foam D was an e x c e p t i o n b e c a u s e i t s r e s i s t a n c e d e c r e a s e d and t h e n i n c r e a s e d i n e x p l i c a b l y on compaction.
An e x c e p t i o n t o t h i s behaviour was Foam C. It had a low i n i t i a l r e s i s t a n c e t h a t i n c r e a s e d when t h e foam was compacted. In t h i s c a s e ,
compaction tended t o d e c r e a s e t h e e f f e c t i v e s i z e of i n t e r c o n n e c t i n g c h a n n e l s which must have been l a r g e t o s t a r t w i t h - (The m i c r o s t r u c t u r e of UFFI i s r e p o r t e d i n a n o t h e r n o t e ) .
I t i s r e a l i z e d t h a t compaction may i n c r e a s e t h e p a t h l e n g t h p e r u n i t t h i c k n e s s and t h a t a f a c t o r may need t o be a p p l i e d i f compacted samples were t o be u s e d -
When t h e r e s i s t a n c e of UFFI t o a i r f l o w was compared t o t h e r e s i s t a n c e of o t h e r i n s u l a t i o n t y p e s ( T a b l e 3 1 , UFFI appeared r e l a t i v e l y impermeable, e x c e p t Foam C.
CONCLUSION
The r e s i s t a n c e t o a i r f l o w was measured f o r UFFI and o t h e r i n s u l a t i n g m a t e r i a l s u s i n g a s i m p l e t e s t developed f o r t h i s purpose. The r e s i s t a n c e t o a i r f l o w of a foam specimen may g i v e an i n d i c a t i o n of i t s s t r u c t u r e and t h e amount of d e g r a d a t i o n t h a t h a s o c c u r r e d . When compared t o o t h e r i n s u l a t i n g m a t e r i a l s , UFFI had a h i g h r e s i s t a n c e i n most c a s e s .

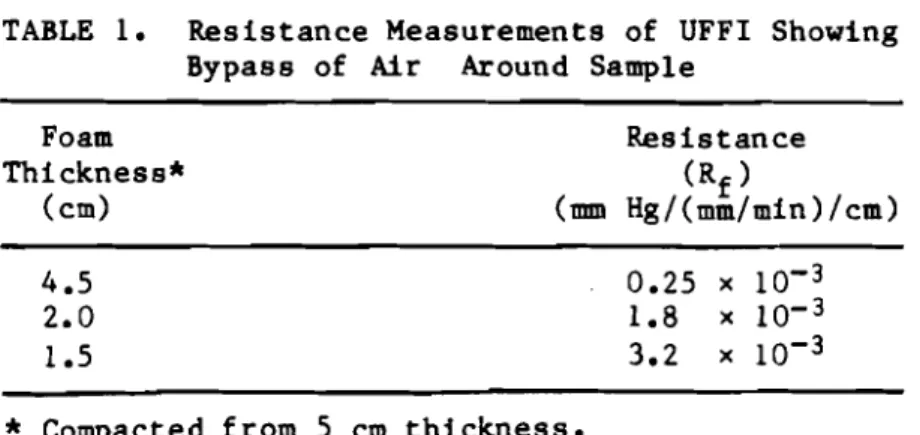

TABLE 1. R e s i s t a n c e Measurements of UFFI Showing Bypass of Air Around Sample
Foam T h i c k n e s s * (cm) R e s i s t a n c e (Rf (m Hg/(mm/min)/cm)
*
Compacted f r o m 5 c m t h i c k n e s s .TABLE 2. R e s i s t a n c e t o A i r Flow of UFFI Samples Foam R e s i s t a n c e (R )
T h i c k n e s s * (mm Hg/(mm/min)/cm~ x
(cm) Foam A Foam B Foam C Foam D
-
*
Compacted f r o m 5.0 cm t h i c k n e s s . TABLE 3. R e s i s t a n c e of V a r i o u s I n s u l a t i n g M a t e r i a l s t o A i r Flow - R e s i s t a n c e M a t e r i a l (mm Hg/(mm/min)/cm) F i b r e g l a s s B a t t 0.036 x 1 0 ' ~ F i b r e g l a s s S h e a t h i n g 0.15 x lo-3 Blown C e l l u l o s e 0.15 x l o - 3 UFFI ( A v e r a g e ) 8 1 0 ' ~SHARPENED CUTTING EDGE F I G U R E 1 S P E C I M E N C O R E C U T T E R F O R M A K l N G U F F l S P E C I M E N S R LAB A I R Y 1 :
<
PYREX SINTERED GLASS FUNNELS F I G U R E 2 T E S T A P P A R A T U S F O R P E R M E A T I O N M E A S U R E M E N T SP R E S S U R E A C R O S S S A M P L E , m m H g F I G U R E 3
P R E S S U R E A C R O S S S A M P L E , m m Hg F I G U R E 4
FLOW RATE V S P R E S S U R E D R O P FOR UFF l S P E C I M E N S H O W I N G B Y P A S S OF A I R . N U M B E R S I N D I C A T E THE ORDER I N W H I C H THE M E A S U R E M E N T S WERE M A D E
