Study of efflorescence on experimental brickwork piers
Ritchie, T.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
NRC Publications Record / Notice d'Archives des publications de CNRC:
https://nrc-publications.canada.ca/eng/view/object/?id=5e200877-a7b1-4205-a26b-f709f4fa5410
https://publications-cnrc.canada.ca/fra/voir/objet/?id=5e200877-a7b1-4205-a26b-f709f4fa5410
-
--
TH1
N211-2
no. 19
c .2
BLDG
JIUDY
OF EFFLORESCENCE ON EXPERIMENTAL
BRlC
By
T.
RitchieR E S E A R C H P A P E R N O . 19
Division of Building Research, National Research Council, Ottawa, Ontario, Canada
P R I C E 10 C E N T S
[Reprinted from the J o u r n a l of the American Ceramic Society, 38
[lo]
357-361 (1955).]Study of Efflorescence on Experimental Brickwork Piers
by T. RlTCHlEDivision of Building Research, National Research Council, O t t a w a , Ontario, Canada
Efflorescence o n brickwork piers m a d e of three types of brick a n d six mortars appeared t o de- pend mainly o n (a) t h e Portland c e m e n t content of t h e mortar, (b) t h e type of brick, a n d (c) t h e season of t h e year. Efflorescence formed in t h e cold p a r t of t h e y e a r a n d w a s a b s e n t i n t h e sum- mer. Portland c e m e n t substituted for lime i n m o r t a r s contributed t o efflorescence; however, t h e a m o u n t of efflorescence depended also o n t h e type of brick (probably o n t h e pore structure).
I. Introduction
T
HE purpose of this paper is t o describe the occurrence of efflorescence on certain brickwork structures in relation t o the properties of the brick and mortars used a n d t o some other factors.In building science the term "eHorescence"lneans the forma- tion of deposits of salts on the surfaces of masonry as a result of exposure t o the weather. Usually efflorescence is con- sidered a problem only because i t disfigures the masonry; the disfigurement is often extreme, particularly when there is contrast of color between t h e salt deposits a n d the masonry material, such as white efflorescence on red brick.
I t is generally considered t h a t when the rnasonry becomes wet, such as from rain, soluble salts in i t are taken into solu- tion. Evaporation of this moisture subsequently takes place, the solution being transported t o the surface of the
masonry, where its evaporation results in the formation of salt deposits.
Many different salts have been found t o form efflorescence on masonry. Sulfate salts of sodium, potassium, calcium, or magnesium have frequently been detected.' On brick- work, efflorescence containing t h e carbonates of sodium and potassium, a n d ferrous sulfate, has been
Chloride and nitrate salts have been found in efflorescence on a n d sodium vanadate and various silicates have been mentionedl(~) as components of efflorescence on masonry.
I t is generally considered t h a t substances capable of f o m - ing efflorescence may originate in the masonry units. in the
Received February 28, 1955.
This paper is a contribution from the Division of Building Research, National Research Council (Report No. 64), and is published with the approval of the Director.
The author is assistant research officer, Division of Building Research, National Research Council.
'
( a ) Great Britain Department of Scientific and Industrial Research; Report of Building Research Board with Report of Director of Building Research, 1927.(b) B. Butterworth, "Efflorescence and Staining of Brickwork,"
Brirk Bull , 1 , No. 11, December 1950 (published by the Kational Federation of Clay Industries, Londo;).
(c) F. 0. Anderegg, "Efflorescence, ASTM Bull., 1952, No. 185, T P 155-61; Cerarn. Abstr., 1953, April, p. 62j.
After its formation, the efflorescence m a y disappear and re- 11. Experimental Brickwork structures appear during the year,'(" and i t is more pronounced a n d
prevalent On in the of the
1952 in Ottawa for studies of some aspects of the weathering of certain masonry materials. Three types of brick were used Efflorescence has formed on oyasion when Portland cement in the piers. For each type, six mortars were used, whi was used in masonry mortar, whereas under similar conditions varied in composition from lime and sand only as one extr with lime mortar no efflorescence occurred. The efflorescence
has been attributed1ca), t o alkaline material in the Portland (Text continz~ed on page 360) cement.
W. E. Brownell, "Fundamental Factors Influencing Efflores- R. K. Robertson, "Efflorescence," J. Can. Ceranl. Soc., 13, cence of Clay Products," J. Am. Ceram. Soc., 32 [12] 375-89
4 0 4 3 (1944); Cerant. Abstr., 23 [9] 151 (1944). (1949). P L A N A L T E R N A T E C O U R S E - C O N C R E T E C A P - - D A M P C O U R S E (COPPER F O I L ON TARREO F I B E R ) F R O N T S I D E
Fig. 1. Form of brickwork piers.
Table I. Properties of the Brick
Range in value
Property Brick Brlck B r ~ c k
determ~ned A B C
Initial rate of ab-
sorption (gm.)* 54.5 to 104.7 2.2 to 6.2 35.2 t (avg. 75.5) (avg. 3.8) (avg. Absorption 24 l3.c. ( % I t 6 2 to 10 3 0 9 t o 3 . 6 11.8 to Absorption 5 H.B.
(%I$
8 5 to-13 2 2 . 4 to 5 . 2 14 5 to 15.8 Saturation coef- ficient§ 0 . 7 3 t o O 80 0 3 8 t 0 0 . 7 1 0 81 t o 0 87 Compressive strength (1b.l sq. in.) 4630 to 6420 17,100 to 5820 to 6040>
17,600*
Amount, in grams, of water absorbed by a dry brick when placed in '/B in. of water for one minute (flat side down), corrected for a standard area of 30 sq. in.t
Amount of water absorbed by a brick, espressed as a percent- age of its dry weight, when the brick is immersed in water, at room temperature, for 24 hours.$ Amount of water absorbed by a brick, expressed as a per- centage of its dry weight, when after immersion for 24 hours i t is immersed in boiling water for 5 hours and then cooled to room temperature in the water for 18 hours.
9
Ratio of the amounts of water absorbed by a brick during immersion in water a t room temperature for 24 hours and during immersion in boiling water for 5 hours.October
1955
Ej'iorescence o n E.vperimental Brickwork Pier$
3

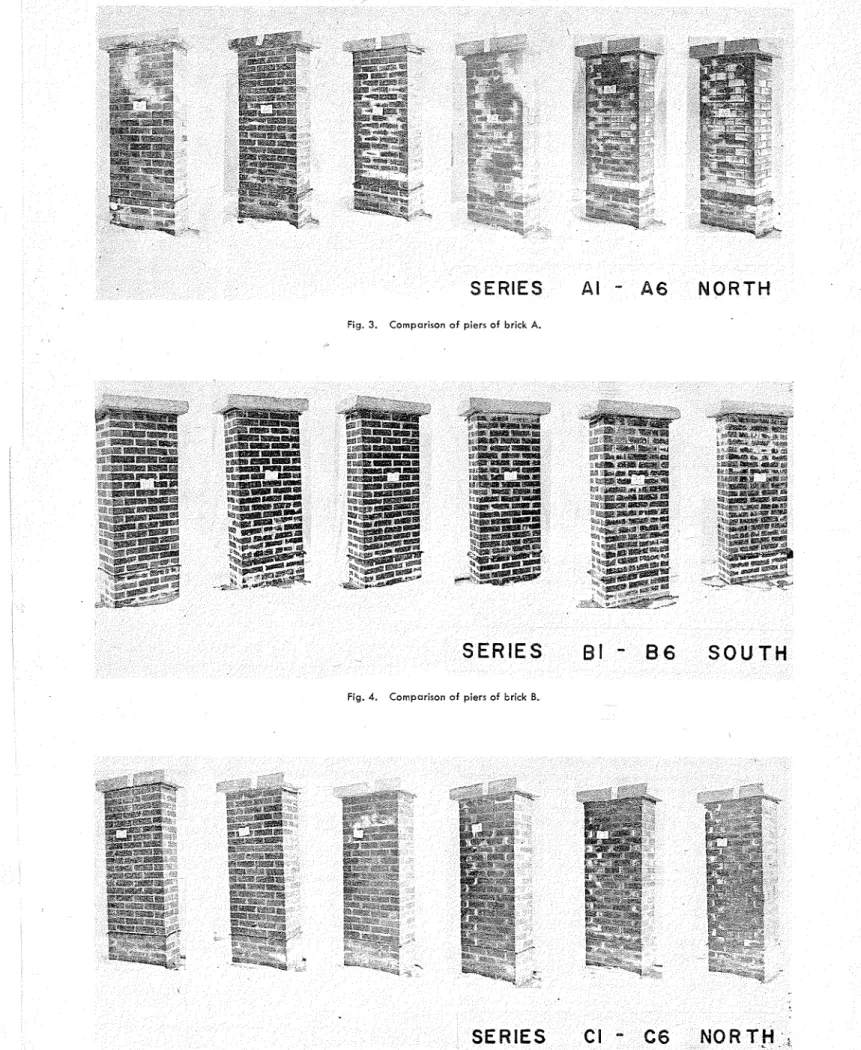

Fig. 3. Comparison o f piers of brick A.
Fig. 4. Comparison of piers of trick B.
Ceramic Society-Ritchie
Vol. 38, N o .10
to Portland ceinent and sand only as the other extreme.T h e cementinglnaterial of the four intermediate mortars .ivas a mixture, in various proportions, of Portland cement and lime. I n all mortars a ratio of cementing material t o sand of one t o three, by volume, was maintained. Each pier was of solid brickwork and was approximately 5 ft. high, 2 f t . long, a n d 1 ft. thick. The form is shown in Fig. 1. The bottom four courses were separated from the remainder of the pier by a sheet of copper foil and tarred fiber, and the concrete cap was similarly separated from the brickwork. This damp proofing was inserted a t the bottom to prevent rise of ground moisture into the pier, and a t illc top to prevent downward movement of moisture. The piers were placed about 5 f t . apart and were arranged in rows of six, one row for each t y p e of brick. The arrangement is shown in Fig. 2.
The three types of brick used are designated A, B, and C. All were red in color, although differing in shade, and all were solid (not cored or perforated). The type A brick were made by the dry-press method and were smooth-faced; types B and C were made by the stiff-mud method and h a d wire-cut exposure surfaces. Some properties of sanlples of the three types of brick, determined by standard method^,^ are shown in Table I . T h e range in values of the brick prop- erties are, except for compressive strength, for ten samples.
T h e brick were laid in six different mortars. The propor- tions of the mortar components are shown in Table 11. I n all the mortars a ratio of cementing material to sand of one to three, by volume, was maintained. T h e lime used was obtained by slaking a high-calcium quicltlilne. T h e p u t t y thus made was stored for n o r e than four months before use. The sand used was a local natural sand which has been em- ployed extensively for ~nasonry work in the Ottawa area. T h e particle-sizc grading was adjusted b y the addition of certain fractions to conform t o standard specification re- q u i r e m e n t ~ . ~
Ill. Occurrence of E.Rlorescence on the Piers Efflorescence formed on several of the piers in the fall and winter following their construction in August 1952. Certain of the piers have remained free of efflorescence and others have been affected by i t in varying degree (from very slightly to heavily marked).
During the year after the construction of the piers t h e efflo- rescence gradually dinliilished in intensity during the spring and early summer until it became unnoticeable even on the piers which had been heavily marked. I n the late part of the year, however, the efflorescence again developed, and continued as a general condition throughout the late fall and winter. In the next surnmer (1954), a great decrease in the intensity of the efflorescence took place.
I t has been noted on Inany occasions t h a t the efflorescence has disappeared in rainy weather and has subsequently re- appeared in dry weather. However, in the summer, even after a heavy wetting by rain, efflorescence did not develop after the change to dry weather. For any particular pier t h e efflorescence may form on all, or only some, of the sides, but i t fonns most frequently on the south side.
T h e piers in which brick A was used varied widely in the amount of efflorescence, as is sho~vn in Fig. 3. T h e pier marked A1 has mortar colnposed of lime and sand; t h a t marked A6 has mortar composed of Portland cement and sand. T h e mortar conlpositions of the intermediate piers correspond t o those shown in Table 11.
None of the piers of brick B were affected by efflorescence.
Table II. Compositions of the Mortars Components
(by volume) 0 . 0 P C : l . O L:3.0 S 0.2 PC:O.8 L:3.0 S
PC = Portland cement; L = lime; and S = sand.
Table Ill. Analysis of Efflorescence
(%)
Componentof sample Pier A3 Pier A6
M ~ O CaO
Insoluble in water None detected
The piers of brick C are compared in Fig. 5 and are arranged as t o mortar composition in the same way as previously.
All t h e photographs of Figs. 3, 4, and 5 were taken on t h e same day in March 1954.
IV.
Chemical Analysis of Efflorescence Sanlples of the efflorescence on two piers of brick X were obtained by scraping t h e salts from the brick surfaces. Chemical analysis of these samples was carried out, with respect t o the components listed in Table 111.The mortar of pier A3 consisted of 0.4 part Portland cement,
0.G part lime, and 3.0 parts sand, by volume; the mortar of pier A6 consisted of 1.0 part Portland cement and 3.0 parts sand, by volume.
V. Discussion
The occurrence and amount of efflorescence on the piers appear to depend mainly on three factors: the composition of the mortar used, the properties of t h e brick used, and the weather conditions prevailing.
During two years following construction of the piers the efflorescence developed in the fall and winter and departed in the summer. This cycle was repeated subsequently.
This cycling occurrence of efflorescence appears to have been due in some way t o differences in weather conditions throughout the year. Weather records,"owever, showed no great difference in rainfall between summer and winter. T h e rainfall in Ottawa for certain months of 1952 and 1953 is shown in Table IV. T h e weather records6 indicate, in addition, no appreciable difference ir? wind speed for the winter and summer months. There is, of course, wide variation in temperature throughout t h e year, and it h a s been postulated elsewhere2 t h a t the rate of drying of brickwork in cold weather is very slo~v, a condition said t o be favorable for efflorescence.
These piers are shown in Fig. 4 and are arranged as t o mortar
4 "Standard Methods of Sampling and Testing Brick,"
con~position in the sanle n:ay as in Fig. 3. Some of the brick A,S.T,M, ~ ~
c
67-50; 1950 ~~~~l~~~~~~ ~ i to ~~~k ~ of ~ ~ ~ i ~ ~of these piers became stained, particularly with mortar of A.S.T.M. Standards, Part 3.
relatively high Portland cernent content. Staining was 6 "Standard Specifications for Aggregate for Masonry Mortar,"
caused by separation from mortar, the brick were A S.T.M. Designation Part C 144-44; A.S.T.M. Book of Standards, 3, 1949.
laid of a slurry of cementing material which flowed over some 6 Meteorological Division, Department of Transport; Monthly
October
1955B ' o r e s c e n c e o n Expe7
Table IV. Rainfall in Ottawa for Certain Months of 1952 and 1953*
19.52 rainfall 1953 rainfall 1953 rainfall
(in.) (in.) (in.)
October 1.99 June 2 60 October 1 16
November 2 04 July 1.95 November 1 16
December 2 21 August 2.51 December 2 42
*
See footnote AI n conilectioil whh rate of dryi~ig as a factor ill the forma- tion of efflorescence, it is of interest t o cite t h e problem in brickmaking of "dry-house scum," which is the concentration of salts a t a drying surface when ~lloist clay brick are dried before being fired I n dealing with this problem it has bee11 noted,7 "Another means by which the scum may be prevented is t o greatly increase the rate of drying of the green brick. If the drying progresses slowly, the evaporation takes place a t t h e surface of the brick and any soluble salts will be con- centrated there If, however, the drying is hastened beyond a certain rate, the surface of the brick quickly becomes dry, and the balance of the moisture in the body is evaporated from below the surface and thus the bulk of the soluble salts will remain below the surface where they cannot produce any scumming." Rapid drying as a means of overco~ning this problem alsv has been mentioned e l s e ~ h e r e . ~
T h e occurrence and amount of efflorescence on the pier5 also appear t o be a function of the composition of the mortar used and of t h e properties of the brick.
I n the case of the piers of bricks A aucl C , the anlount of efflorescence generally increased as the proportion of Portland cement in the mortar increased; the piers of brick C, however, were affected t o a much lesser degree by efflorescence.
Marked differences in the amount of efflorescence on the piers occurred when the same mortar (of relatively high Portland cement content) was used with the three types of brick. Thus, with brick B no efflorescencc developed, witli brick C relatively slight efflorescence occurred; and with brick A relatively heavy efflorescence formed. Table I shows t h a t the rate of water absorption of the brick varici greatly. Brick of type B (piers of which gave no efflorescence) are relatively low in rate of water absorption. Brick of type A (piers of which gave much efflorescence with mortars of high Portland cement content) are high in rate of absorption. Brick of type C (piers of which gave slight efflorescence) are relatively moderate in rate of absorption The differences in water absorption rates undoubtedly reflect differences in the pore structures of the three types of bricli used, which in- fluenced greatly the liability of the \-arious brick to be affected by efflorescence.
There was some indication t h a t the concrete caps on the piers m a y have interfered in certain cases with the fonnation of efflorescence. This was so particularly with pier A1
Joseph Keele, Investigations in 1921 of the Mines Branch, Department of M'ines, Canada.
L. A. Palmer, Cause and Prevention of Kiln and Dry-House Scum and of Efflorescence on Face-Brick Walls," B u r . Standards
Tech. Paper, No. 370, 50 pp. (1928); Cerawz. Abstr., 7 [lo] 687
(1928).
,irnerctal Brickwork Piers
361
(Fig. 3). T h e copper foil separating the cap fro111 t h e brick- work was installed in two parts, designed t o be overlapped. I t has been found in some cases, howeirer, such as shown in Fig. 6 , t h a t the two parts had become separated, or ove lapped only slightly, so t h a t the possibility of water movem into the top of the piers must be considered. I n pier efflorescence started to form just beneath the copper and gradually extended downward fro111 t h a t location. has been observed frequently i n other structures t h a t br work beneath concrete window sills, or other concrete units, has been marked by erflorescence in the region adjacent t o such a unit, whereas other parts of the wall have been free of efflorescence
VI. Conclusions
This study cvntinlls other experiences, whicli have been cited, t h a t t h e co~nposition of t h e mortar may considerably influence the occurrence of efflorescence on brickworl:. When efflorescence fonned on the piers studied in this work, it was in general more exterisive and pronounced for t h e mortars of higher proportions of Portland cement. Hower-er, piers of different brick b u t with the same Inortar of high Portland cement content were affected b y e ~ o r e s c e n c e to markedly different extents; with one type of brick no efflorescence de- veloped, with another a collsiderahle amount, a n d with the third, only a slight amount.
The efflorescence on the piers studied was seasonal, being present in the fall, winter, and spring of the year, b u t disap- pearing in the summer. Tenlperature appears t o be the factor controlling this cycle, possibly because of its effect on the rate of e\.aporation of moisture from the bricl;work, whereby the salt deposits m a y 1)e fonned either within, or o n the sur- face, of the masonry.
Acknowledgment
J.-&I. Billy of the Divisio~~ of Builclillg Research, Kational Research Couiicil, assisted in this study. The a ~ ~ a l y s i s of sam- ples of efflorescencc, s h o ~ v l ~ in Tal~le 111, was carried out by E. C. Goodhue, Division of Applied Cllen~istry. Sational Research Council.
