The design of a high precision, wide common mode range auto-zero comparator

The Design of a High Precision, Wide Common

Mode Range Auto-Zero Comparator

by

Anders

Wen-Dao Lee

S.B. EE, Massachusetts Institue of Technology (2014)

Submitted to the Department of Electrical Engineering and Computer Science in partial fulfillment of the requirements for the degree of

Master of Engineering in Electrical Engineering and Computer Science at the

MASSACHUSETTS INSTITUTE OF TECHNOLOGY June 2015

c

Massachusetts Institute of Technology 2015. All rights reserved.

Author . . . . Department of Electrical Engineering and Computer Science

May 18, 2015

Certified by . . . . Roger Zemke Design Manager, Linear Technology VI-A Company Thesis Supervisor

Certified by . . . . Charles G. Sodini LeBel Professor of Electrical Engineering MIT Thesis Supervisor

Accepted by . . . . Prof. Albert R. Meyer Chairman, Masters of Engineering Thesis Committee

The Design of a High Precision, Wide Common Mode Range

Auto-Zero Comparator

by

Anders Wen-Dao Lee

Submitted to the Department of Electrical Engineering and Computer Science on May 18, 2015, in partial fulfillment of the

requirements for the degree of

Master of Engineering in Electrical Engineering and Computer Science

Abstract

This thesis discusses the design and analysis of a high common-mode input auto-zero comparator for use in a Hot Swap controller. Comparators are essential building blocks within the current limit detection schemes of Hot Swap controllers. However, the current limit detection scheme places a sense resistor in the current path, burn-ing static power. Reducburn-ing this power consumption while maintainburn-ing the overall accuracy of the detector can be done by decreasing the full scale sense voltage across the sense resistor, decreasing the size of the sense resistor, and increasing the overall accuracy of the comparator. This is realized by using an auto-zero comparator de-signed in Linear Technology’s 0.6µm BiCMOS process. The overall topology uses the closed loop offset storage with an auxiliary amplifier scheme. The input and auxiliary amplifier are based on the fully differential folded cascode topology with some key changes. The comparator is a typical PMOS comparator with internal hysteresis and additional circuitry added to maintain symmetry for as long as possible. A Widlar bandgap-based circuit provides the necessary internal reference. The comparator was designed and verified using LTspice and Linear Technologys in house models. The resulting design has an absolute accuracy better than ±200µV over temperature, increasing the relative accuracy with the sense resistor value halved from previous designs. Additionally, the comparator can handle inputs from zero to sixty volts and settles to a new offset sample in less than 3µs.

VI-A Company Thesis Supervisor: Roger Zemke Title: Design Manager, Linear Technology

MIT Thesis Supervisor: Charles G. Sodini Title: LeBel Professor of Electrical Engineering

Acknowledgments

I am eternally grateful to God for proving me with the opportunity, strength, and wisdom to study at MIT for the past five years.

I would like to thank Roger Zemke, my VI-A company supervisor. Without his guidance and patience, this project could not have happened. I appreciate the time and effort he put into explaining concepts and circuits, building me up as a better engineer. Bob Jurgilewicz was also a key figure in my time at Linear Technology. I am very appreciative of the time he took to mentor me and to be available when I needed help. To Sam Nork and the rest of the Boston design center team: thank you. I would also like to thank Charlie Sodini for his guidance in the development and writing of this thesis.

A very special thank you goes to Emily Seitz, my fianc´ee. I am thankful for your patience and love as I finish my master’s program and am incredibly excited to spend the rest of my life with you. Last but not least, I am thankful for my parents and siblings. I would not be here if it werent for their love, support, and sacrifice. I am indebted to how much they have done for me.

There are too many others to list by name who have been instrumental in my life, whether it be mentoring, challenging, investing, or just being there for me. I am extremely thankful for the roles you have played in my life.

Contents

1 Introduction 17

1.1 Motivation . . . 17

1.2 Existing Hot Swap Controller Limitations . . . 18

1.3 Thesis Goals . . . 19

1.4 Thesis Outline . . . 20

2 Theory of Auto-Zeroing 21 2.1 Auto-Zero Amplifier Configurations . . . 22

2.1.1 Open Loop Configuration . . . 22

2.1.2 Closed Loop Configuration . . . 23

2.1.3 Closed Loop Configuration with Auxiliary Amplifier . . . 24

2.2 Auto-Zeroing and Noise . . . 26

3 Amplifiers 31 3.1 Input Amplifier . . . 31 3.1.1 Input Transistors . . . 31 3.1.2 Folded Cascode . . . 33 3.2 Biasing . . . 34 3.3 Auxiliary Amplifier . . . 36 3.4 Device Sizing . . . 38 4 Internal Comparator 41 4.1 Design and Operation . . . 41

4.2 Hysteresis . . . 43

5 Voltage References 45 5.1 Approach . . . 45

5.2 Bandgap Reference . . . 47

5.2.1 Classical Widlar Bandgap Reference . . . 47

5.2.2 Thesis Bandgap and Resistor Sizing . . . 49

5.3 25mV Reference . . . 51

6 Switching 55 6.1 Switch Timing . . . 56

6.2 Clock Circuitry . . . 57

6.3 Switch Construction . . . 58

6.4 High Voltage Switching . . . 59

6.4.1 Blast Signal Generators . . . 60

6.4.2 Voltage Clamp . . . 61

7 Supplies 65 7.1 Low Voltage Supplies . . . 65

7.2 Charge Pump Output . . . 66

7.3 VrailAandVrailD . . . 67

8 Final Design Verification and Conclusion 69 8.1 Offset Cancelation . . . 69

8.2 dV/dt Rejection . . . 71

8.3 Current Consumption . . . 73

8.4 Closed Loop Step Response . . . 74

8.5 Capacitor Holding Time . . . 76

8.6 Propagation Delay . . . 77

8.7 Noise . . . 78

A Tables of Transistors 81

List of Figures

1-1 Comparator use scenario for the this thesis’s design . . . 17

2-1 Open loop cancellation configuration . . . 23

2-2 Closed loop cancellation configuration . . . 24

2-3 Closed loop configuration with auxiliary amplifier . . . 25

2-4 The block diagram of the system designed for this thesis . . . 26

2-5 Typical noise spectral density of a MOS transistor [7] . . . 27

2-6 Auto-zero noise cancellation behavior modeled by an RC circuit [8] . 27 2-7 The effect of an auto-zero process on low passed noise with a bandwidth five times larger than the sampling frequency [8] . . . 28

2-8 The noise spectral density of the auto-zero amplifier with a sampling period of 1ms . . . 29

3-1 The input amplifier topology . . . 32

3-2 The bias cell . . . 34

3-3 The auxiliary amplifier . . . 36

3-4 The bode plot of auxiliary amplifier . . . 37

3-5 The transconductance effectiveness factor curve . . . 39

4-1 The internal comparator’s topology . . . 42

4-2 The hysteresis loop of the internal comparator . . . 43

5-1 The first method of providing a 25 mV reference . . . 46

5-2 The current implementation of the 25 mV reference . . . 46

5-4 The bandgap cell used in the reference circuitry . . . 49

5-5 The bandgap reference voltage versus temperature . . . 50

5-6 Generation of the 25mV reference from the bandgap . . . 51

5-7 The 25 mV reference voltage versus temperature . . . 53

6-1 The placement of switches around the the circuit . . . 55

6-2 The timing diagram of the switch logic . . . 56

6-3 The logic used to generate the proper clock signals . . . 57

6-4 A transmission gate . . . 58

6-5 The circuitry used to level shift the logic signals . . . 59

6-6 The half-monostable edge detectors used to generate the blast signals 60 6-7 The blast signal response of the edge detectors . . . 61

6-8 The voltage clamp . . . 62

7-1 The implementation of the low voltage supplies . . . 65

7-2 The charge pump modeling circuitry . . . 66

7-3 The circuitry used to generate VrailAandVrailD . . . 67

8-1 simplified diagram showing testing . . . 70

8-2 The threshold error versus temperature in the typical-typical environ-ment . . . 70

8-3 The maximum dV/dt rejected versus the distance from the threshold 72 8-4 The quiescent analog supply current over temperature . . . 73

8-5 The quiescent charge pump current over temperature . . . 74

8-6 The closed loop step response over temperature . . . 75

8-7 The time it takes to deviate 0.1% from the initial stored value . . . . 76

8-8 The leakage path of the storage capacitors . . . 77

8-9 The propagation delay versus overdrive . . . 78

B-1 The threshold accuracy measured in a typical-typical process . . . 86

B-2 The threshold accuracy measured in a fast-fast process . . . 86

B-4 The threshold accuracy measured in a slow-fast process . . . 87 B-5 The threshold accuracy measured in a fast-slow process . . . 88

List of Tables

1.1 The core design goals for this thesis project . . . 19

3.1 The transconductances calculated using the EKV method . . . 39

8.1 The final design specifications . . . 79

A.1 The N-channel devices used in the design . . . 81

Chapter 1

Introduction

1.1

Motivation

Hot Swap controllers are essential in many modern server and communication systems. The inclusion of a Hot Swap controller allows circuit boards to be inserted or removed into live system backplanes. The systems no longer have to be powered down for system maintenance or load capacity adjustments. An essential function of the Hot Swap controller is limiting the amount of current being passed to the load. This current is sensed by placing a small resistor in the current path and comparing the voltage drop across the resistor against a reference.

While this is a conceptually easy solution, there are several factors to take into consideration while designing the current limit detecting circuitry. The accuracy of the circuitry is constrained by the threshold voltages size and the absolute accuracy of the comparator. The comparator must also be able to handle a wide range of common-mode input voltages as the current sensing is done on the high side.

Auto-zeroing can be applied to the comparator to greatly increase its absolute accuracy, reducing the necessary threshold voltage and increase the relative accuracy of the system. An auto-zero comparator periodically samples its offset and then uses a compensation network to drastically reduce its impact. As the offset changes due to temperature, voltage, and time, the auto-zero comparator can recalibrate itself to properly account for it. In addition to eliminating dc offsets, the auto-zero sampling also greatly reduces 1/f noise. A precision trimmed comparator, while smaller, does not have these advantages.

1.2

Existing Hot Swap Controller Limitations

There is a wide array of high voltage Hot Swap controllers on the market. These controllers are able to take input voltages up to 80V, but none are able to ground sense. They also have a current limit threshold voltages of at least 50mV with a typical accuracy of only 10-20%. Linear Technologys only on-market Hot Swap controllers that ground senses, meaning they can opperate with an input common mode voltage of zero voltes, are the LTC4213 and the LTC4216. However, these controllers can only handle voltages up to 6 volts. Their most accurate controller, the LTC4218, has an accuracy of 5% on a 15mV threshold, but its voltage range only includes 2.9V to 26.5V. The most accurate high voltage control is the LTC4231, which has an accuracy of 6% on a 50mV threshold and an input common mode range of 2.7V to 36V [1]. Texas Instruments’ TPS2490 Hot Swap controller has a common mode voltage range of 9 V to 80 V with a threshold accuracy of 10% of 50 mV [2]. Maxim’s MAX5934 also has the same limitations as Texas Instrument’s part [3]. There are currently no ground sensing high precision and high voltage controllers.

1.3

Thesis Goals

This thesis aims to develop an improved comparator for use in a Hot Swap controller that satisfies or exceeds the core specifications in given in Table 1.1. The three primary design objectives that must be met: the comparator is able to ground sense, a 25mV threshold voltage used, and the system must be accurate within 1% of the threshold voltage.

Input common-mode range 0-60V Maximum threshold error <1% of 25mV Offset sampling blind time <10µs Charge pump quiescent current <10µA Propagation delay (response time) <25µs Table 1.1: The core design goals for this thesis project

With an input common mode that includes ground, the current limiting circuitry will be able to function if there is a short at the output. The 25mV threshold is half the threshold of comparable devices on the market. This halves the power dissipated by the sense resistor for a given current. With the increased accuracy, systems using this chip do not have to be as conservatively designed.

The current specifications help to ensure that the comparator is still efficient and does not impact the performance elsewhere on the chip. During the auto-zeroing process, which is detailed in Chapter 2, there is a window where the comparator is disconnected from the signal path. In order to minimize this time, the comparator must be able to settle and calibrate within 10µs. Propagation delay is the maximum amount of time it takes for the comparator to signal an overcurrent situation. This includes the blind time as the worst case scenario has the comparator offline right when the current limit is breached. The comparator must also be able to hold this calibration for a relatively long amount of time, on the order of a few milliseconds, allowing for a small duty cycle. In addition to these requirements, design choices were made to minimize quiescent current consumption off of the low voltage rails and to minimize area consumption.

1.4

Thesis Outline

The rest of the thesis is organized as follows. Chapter 2 discusses the theory behind the auto-zero circuitry, showing the basis for its advantages, limitations, and noise behavior. The design, implementation, and performance of the amplifier stages is presented in Chapter 3. Chapter 4 looks at the internal comparator design. The voltage reference used to set the 25mV threshold is covered in Chapter 5. Chapter 6 includes the switch timing, switch construction, and logic level shifting circuitry. The modeling and generation of the supplies and rails used in the design are detailed within Chapter 7. Chapter 8 contains the testing setups, tests, and results that verify the performance of the design. Finally, Chapter 9 summarizes the design and results as well as providing suggestions for areas of further study.

The auto-zero comparator was designed using Linear Technologys 0.6µm BiCMOS process. This process has access to high voltage MOSFETs, some of which can withstand voltages over 100V. Depletion-mode NMOS and PMOS devices are also available. Depletion-mode NMOS and PMOS devices have negative and positive threshold voltages, respectively, and pass current with zero Vgs. Tables detailing the

symbols, voltage ratings, and threshold voltages of the transistors used in the design can be found in Appendix A.

The voltage rails used throughout the design are discussed in depth in Chapter 7, but are referred to throughout the rest of the design exposition. There are six rails used throughout the system. The first are the low voltage analog and digital supplies, PWRA and PWRD, which nominally are 2.5V. Next is the input voltage, Vi, which can have a value from zero to sixty volts. A charge pump output, cpo,

sits twelve volts above Vi and analog and digital rails, VrailA and VrailD, maintain a

Chapter 2

Theory of Auto-Zeroing

Although this thesis examines the implementation of an auto-zero comparator, the core auto-zero circuitry is centered on an amplifier stage and, as such, this section will deal mainly in the realm of auto-zero amplifier circuits.

The concept of an auto-zero amplifier is very simple: sample the offset of the amplifier and then eliminate it from the input signal. While precision trimming a device can be used to reduce its initial offset, there is no way to account for offset shifts due to time, temperature, voltage stresses, and physical stress due to packaging. An auto-zero circuit periodically adjusts for the offset, taking care of the initial offset and its drift. Auto-zero circuits also heavily attenuate low frequency (1/f) noise [4]. As long as the noise does not change much between the sampling phase and the comparison phase, it will be reduced. Although the low frequency noise is attenuated, the overall noise floor is raised due to the sampling aliasing of wideband noise.

The sampling nature of an auto-zero amplifier also causes the amplifier to be offline during the sampling phase. Having the amplifier periodically offline is fine in a discrete time circuit, but can be problematic in a continuous time application. One way to address this issue is to use two amplifiers in parallel and ping-pong between them, having one sample while the other is active. In the current sensing application, it was determined that having a short blind time and small duty cycle was less detrimental than the additional power and area that would be consumed by adding a second amplifier. Additionally, this blind time can be wrapped into the

comparator response time specification. In the worst case scenario, the response time is equal to the comparator’s blind time plus the propagation delay. If this is still less than the desired response time, the comparator will be able to function unhindered even with a window of blind time.

2.1

Auto-Zero Amplifier Configurations

An auto-zero amplifier can be implemented in three main ways: open loop cancella-tion, closed loop cancellacancella-tion, and closed loop cancellation using an auxiliary amplifier [5]. All of them act as normal amplifiers during the comparison phase but differ in how they cancel and store the offset. Although these configurations could be implemented as single-ended amplifiers, charge injection can become a dominant contributor to error in an auto-zero circuit. By using at fully differential scheme, the impact of charge injection is significantly reduced. The charge injection error is converted to a common-mode term and then rejected by the differential architecture. In this section, only the effect of auto-zeroing on DC offset will be explored. The next section will discuss the impact auto-zeroing has on noise.

2.1.1

Open Loop Configuration

During the sampling phase, the open loop cancellation configuration, shown in Figure 2-1, has its inputs shorted together and the outputs after the capacitors also shorted. With the inputs shorted, the differential input voltage becomes only Vos and

the amplified version, Av · Vos, is stored on the capacitors. The shorts are removed

during the comparison phase and the input voltage consists of Vin+ Vos. Because the

capacitors already have the amplified version of Vos stored, the voltage seen between nodes X and Y is:

Figure 2-1: Open loop cancellation configuration

A major limitation of this scheme is that the amplifiers gain must be low enough, often less than 100 [5], so that it does not saturate when the offset is sampled. It is possible to use several open loop auto-zero amplifiers in series to increase the overall gain.

2.1.2

Closed Loop Configuration

The closed loop cancellation configuration, shown in Figure 2-2, uses a closed common mode feedback loop to store the offset voltage on the input side of the amplifier. With the inputs shorted together and the unity gain loop closed, the output, which is stored on the input capacitors, is given as:

A

A + 1 · Vos (2.2) During the comparison phase, the output seen is:

A  Vin+ Vos− A A + 1· Vos  = A  Vin+ Vos A + 1  (2.3)

Figure 2-2: Closed loop cancellation configuration

The offset is reduced by the open loop gain of the amplifier! Storing the offset at the input gives the distinct advantage over the open loop configuration of allowing the amplifier to have extremely high gain. However, this configuration requires that the amplifier to be unity gain stable [6]. Also, because the offset is stored at the input of the closed loop cancellation configuration, it will be seeing the input common mode voltage, which could be moving anywhere from ground all the way to sixty volts in this application. Additionally, the thermal noise of the capacitors is no longer reduced by the gain of the amplifier.

2.1.3

Closed Loop Configuration with Auxiliary Amplifier

This third topology is used as the basis for the auto-zeroing circuitry in this thesis. By using a secondary amplifier and storing the offset in the feedback loop, as shown in figure 2-3, the offset storage capacitors are no longer in the signal path or exposed to moving high voltages and the amplifier is still able to have high gain. During the sampling phase, the inputs are tied together and the loop is closed; ignoring Vos2, the

Figure 2-3: Closed loop configuration with auxiliary amplifier

output voltage stored on the capacitors, can be derived as:

Vout1 = A1Vos1 − A2Vout1 (2.4)

Vout1 =

A1

1 + A2

· Vos1 (2.5)

During the comparison phase, the loop is broken but the auxiliary amplifier still injects its offset correction into the output. The output referred offset voltage is:

Vout2 = A1Vos1 − A2Vout1 (2.6)

Vout2 = A1Vos1− A1A2 1 + A2 · Vos1 (2.7) Vout2 = A1 1 + A2 · Vos1 (2.8)

Which gives an equivalent input referred offset of:

Vos,ref =

1 1 + A2

· Vos1 (2.9)

The offset from the secondary amplifier is ignored in the calculations because it is divided by the ratio of A1/A2 when brought out to the input. By testing the system

beyond the expected Vos1 values, we can account for offsets from the auxiliary stage.

The amplifier gains were chosen such that A1is large and A2is still big, but smaller

than A1. A large A2 is needed because the overall input referred offset is proportional

to the input offset divided by the gain of the second stage. A1 must be larger than A2

so that the sampled voltage is large enough that small fluctuations caused by charge injection are negligible. Any offset from charge injection, the auxiliary stage, or the internal comparator is reduced by A1 when input referred. A large A1 ensures that

the input stage dominates the offset.

The closed loop configuration with an auxiliary amplifier with a comparator block added to the end is used in this thesis, as shown in Figure 2-4. The capacitors right before the comparator block hold the signal during the sampling phase, preventing the comparator’s output from varying uncontrollably.

Figure 2-4: The block diagram of the system designed for this thesis

2.2

Auto-Zeroing and Noise

Auto-zero amplifiers attenuate 1/f noise in addition to eliminating offset. However, because they are under-sampled systems, wide band white noise is aliased back into the baseband, raising the overall noise floor. Noise within the circuit is generated

by the transistors and capacitors. MOS devices have flicker (1/f) noise and thermal noise. The 1/f noise is a result of traps near the silicon/oxide interface which randomly capture and release carriers. Thermal, or Johnson-Nyquist, noise is caused by thermal agitation of charge carriers and is approximately white. The storage capacitors also generate thermal noise, which is proportional to kT/C, where k is the Boltzmann constant and T is the temperature. A 1 pF capacitor can cause up 64µV of noise but because the storage capacitors are after the input amplifier, the kT/C noise becomes much smaller when input referred.

Figure 2-5: Typical noise spectral density of a MOS transistor [7]

Figure 2-6: Auto-zero noise cancellation behavior modeled by an RC circuit [8]

from a time varying noise source (made up of 1/f and white noise). DC and low frequency noise do not change much from the sample and are attenuated while high frequency noise is not; the circuit acts as a high pass filter. Figure 2-6 models this behavior using and RC circuit. During the sampling phase, the switch is closed and the noise source, VN, appears across the capacitor, assuming that the RC time

constant is much less than the sampling time. During the comparison phase, the output voltage now becomes the difference between the current value of VN and the

sampled value on the capacitor. The capacitor, however, is storing information about the high frequency noise at the sampled time, causing low frequency errors when it is held and subtracted. The under-sampling of the system causes the wideband noise of the replicas to alias back into the base band. While the DC offset and 1/f noise are greatly attenuated, the overall noise floor is raised [8].

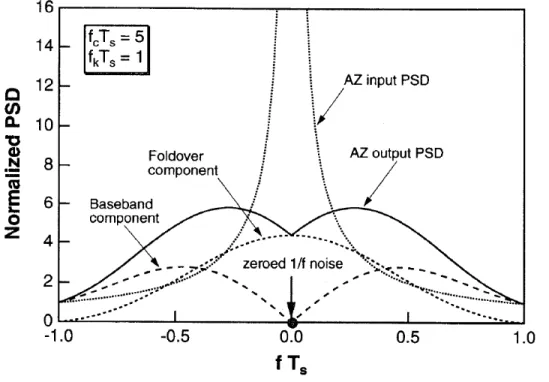

Figure 2-7: The effect of an auto-zero process on low passed noise with a bandwidth five times larger than the sampling frequency [8]

The definition of white noise is noise that has equal power spectral density over all frequencies. This is not a realistic representation of noise in a circuit because ideal white noise has infinite power. To model the noise within the system, band-limited

white noise is used. Because the amplifier acts like a single pole system through its 0dB point, the noise bandwidth can be determined using the equation derived in [9]:

fN =

π

2 · f1 = 1.57f1 (2.10) Where fN is the noise bandwidth and f1 is the -3dB frequency of the amplifier.

The input amplifier has a cutoff frequency (f1) of 8kHz, giving a noise bandwidth of

12.8kHz. Figure 2-8 shows the input, high-passed, and aliased output noise spectral density of the auto-zero amplifier with a sampling period of 1ms. The RMS noise has been reduced from 17.9µVrms to 4.4µVrms.

Figure 2-8: The noise spectral density of the auto-zero amplifier with a sampling period of 1ms

Chapter 3

Amplifiers

This chapter presents the requirements, design, and implementation of the amplifier stages. The heart of the auto-zero comparator is an auto-zero amplifier. Two am-plifiers are needed for the topology used in this thesis: the input amplifier and the cancellation amplifier.

3.1

Input Amplifier

The input amplifier fulfills two main duties within the auto-zero comparator: level shifting the input signal and providing a high gain input stage. By level shifting the input immediately, the rest of the auto-zero circuitry can be done using well defined voltage rails. It also eliminates the need for many high voltage tubs and reduces the impact of common mode steps, which would be the case if the signal were level shifted at the output. A PMOS input, fully differential folded cascode topology was used to realize these requirements. Additionally, this topology also provides 720mV of output swing.

3.1.1

Input Transistors

The differential pair of the input amplifier consists of six PMOS devices, mpi1through

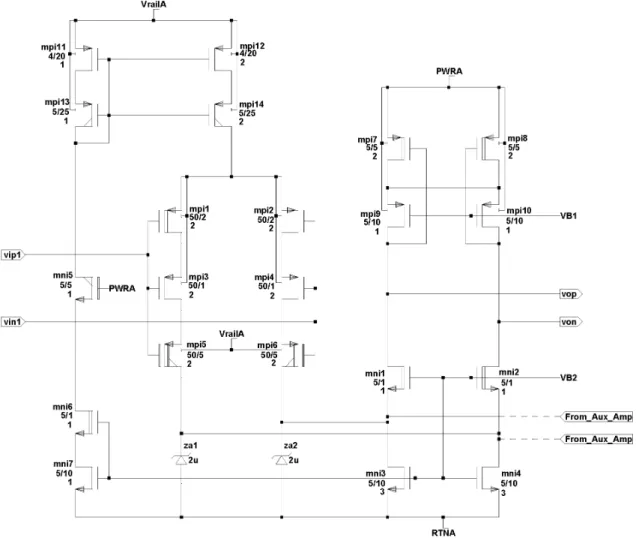

require-Figure 3-1: The input amplifier topology

ment. Although PMOS amplifiers common-mode voltage usually doesn’t include the upper rail, the charge pump sitting on top of the input voltage eliminates any head-room issues.

The 5V PMOS, mpi1 through mpi4, are isolated devices; as long as their terminals

stay within 5V of each other, they will not be damaged. This remains the case as mpi5, mpi6, and mpi14 consume an excess voltages that could potentially harm the

inputs. The native devices mpi1 and mpi2 have a threshold voltage of -1.48V while

the enhancement devices mpi3 and mpi4 have a threshold voltage of -0.95V. They are

cascoded by tying their gates together. Provided that all of these devices remain in saturation, the gm of the input amplifier is determined only by the gm of mpi1 and

50/2, the input amplifier has a fairly large transconductance. Further discussion of the sizing can be found later on in this chapter.

The high voltage transistors mpi5 and mpi6 are depletion mode PMOS devices and

do the brunt of the level shifting. The drains of mpi5 and mpi6 are tied to low voltage

nodes, which sit nominally at 400mV, in the transistor stack. Because depletion mode PMOS devices have a positive threshold voltage, mpi5 and mpi6 are always in saturation and do not affect the small signal performance of the amplifier. They only consume any excess voltage, should any appear between the inputs and the low voltage nodes.

3.1.2

Folded Cascode

The stack of transistors is based on the folded cascode topology but has been adapted to meet the requirements of this application. The new topology also has a well biased output, allows for input level shifting, and provides a low impedance node that can be used for multiple inputs. This comes at the cost of the very high gain of a folded cascode, however, the amplifier still has the gain similar to a basic active load.

The NMOS devices are still cascoded; mni1 and mni2 have a threshold voltage of

0.37V and mni3 and mni4 have a threshold voltage of 0.78V. The voltage on the nodes

that the input transistors feed into is a low impedance node and hence very stable. This allows the secondary amplifier stage, which will be discussed in later on in this chapter, to feed into there without impacting the performance of the input amplifier. The PMOS transistors, however, are no longer cascoded.

The top PMOS, mpi7 and mpi8, have their gates tied to an output, setting the

common-mode output voltage to a Vgs below the top rail. The drains of the mpi7 and

mpi8 are also tied together, allowing the output of the amplifier to still swing. By

having the drains tied, either mpi7or mpi8can be turned off due to its output swinging

high while the other supplies the current for both branches. With this topology, the output resistance looking up into the PMOS is now only on the order of ro instead

of gmro, reducing gain. If there were no short between the drains, mpi7 and mpi8

resistance 1/gm path to ground. This can also be explained on a larger scale: the

gate-source voltage of the diode connected transistor is relatively fixed as it passes current. The differential current from the input transistors is only a few nanoamps over the operating range of interest so a diode connection would provide almost no differential voltage at the output.

The topology, sizing and biasing used provides a DC gain of 72dB, or a gain of 4000, and a gain-bandwidth product of 17.2MHz.

3.2

Biasing

Figure 3-2: The bias cell

the auto-zero comparator. Because the 0.6µm BiCMOS process has depletion mode devices, a low voltage depletion NMOS is used to produce the reference current. By grounding the mnb2s gate and placing a resistor between its source and ground, a

reference current inversely proportional to the resistor size is generated. This current only fluctuates by ±10% over temperature.

The ouput current of the depletion NMOS biases a pair of cascoded PMOS devices that are diode connected. The PMOS are cascoded to enhance the Vdsmatching as the

current is mirrored. The PMOS device current is then mirrored to set up the current bias for the NMOS devices. These gate voltages are used to set the bias voltages in the input amplifier and keeps the currents throughout the amplifier and comparator stages relatively constant within the circuit. To scale the current, multiples of the same transistors are used, i.e. 2µA and 1 µA can be generated from the same reference by using twice as many devices in parallel for the 2µA mirror. This helps to ensure that the currents are all properly ratioed. If the current ratios were set by resizing the W/L ratios, the δW and δL error terms between devices would not track as consistently. For example, using multiples proveds a width of 2 · (W + δW ), twice the original size, W + δW . If the device width increased by a factor of 2, the new area would be 2 · W + δW , which is no longer scales the error terms as well.

It is important that this same current is also sent through the input transistors, although it must be taken off of VrailA. The current is mirrored using the NMOS

bias voltage and then sent up and mirrored with PMOS devices off of VrailA. To

protect the low voltage devices, mni5 is placed in the current translating path. The

gate of mni5 is tied to the low voltage supply, so mni6 and mni7 never see anything

above that. In earlier design iterations, the input transistors current was supplied by a depletion mode PMOS. However, when process variations and temperatures were tested, the PMOS and NMOS current sources would sometimes drift in opposite directions. When the input transistor current decreased and NMOS current increased, the gain of the input amplifier was drastically reduced.

3.3

Auxiliary Amplifier

Figure 3-3: The auxiliary amplifier

The offset cancellation amplifier consists of a PMOS differential pair that feeds into the same low impedance node as the input differential pair. The differential pair consists of cascoded devices to reduce any loading effect they may have on the input amplifier. Transistors with low threshold voltages had to be used to prevent the cascode from pushing the current mirror out of saturation. mpa1 and mpa2 have

a threshold voltage of -0.75V while mpa3 and mpa4 have a threshold voltage of -0.4V.

While the very thin low Vt devices used for mpa3 and mpa4 are not very consistent,

they are only used for providing increased resistance and do not affect the stages gm

while in saturation.

The storage capacitors, ca1 and ca2, are tied to supply rather than ground because

Figure 3-4: The bode plot of auxiliary amplifier

the capacitors would still be relatively constant. If the storage caps were tied to ground, the gate voltagess of mpa1 and mpa2 would be pinned while their source

voltages moved, creating a varying Vgsand reducing the effectiveness in the amplifier’s

cancellation.

The auxiliary amplifiers transfer characteristics must allow it to be stable when a unity gain loop is closed around it during the sampling phase. No additional compensation capacitors need to be added to the system because they are already implemented with the offset storage capacitors. With these capacitors, the amplifier acts like a single pole system and its closed loop bode plot can be seen in Figure 3-4. It has a DC gain of 58dB, a gain of around 800, a phase margin of around 90◦, and a crossover frequency of 470kHz. The 90◦of phase margin creates a very stable system and while the 470kHz crossover frequency isnt very fast, it is fast enough for the system to settle within 0.1% of its final value in less than 3µs. [10] The bode plots of the offset cancellation amplifier are shown in Figure 3-4.

3.4

Device Sizing

The sizing of the differential pairs is a key factor to the device offset, transconduc-tance, and overall performance of the auto-zero comparator. The standard deviation of the offset caused by mismatch between a pair of closely spaced devices can be described using the Pelgrom model [11]:

σ = √An

W L (3.1)

As the area of the devices increases, they are more accurately matched. The constant Ap is dependent on the fabrication process and is approximately 12 mV ·µm in the 0.6µm BiCMOS process. The offset of the input pair of transistors has a standard deviation of 0.85mV, meaning 99.9% of the devices produced will have a mismatch of less than 5.6mV.

The EKV model was used to determine the transconductance of the differential pairs. First the nominal transconductance is found using the equation:

gmo =

Id

nVt

(3.2)

Where Id is the drain current, n is a process parameter (equal to 1.4 in the 0.6µm BiCMOS process), and Vt is the thermal voltage. Then the transconductance is

multiplied by the transconductance effectiveness factor (TEF). The TEF is modeled as a sigmoid curve defined by equation 3.3 and represents how far into strong or weak inversion the device is. This curve is shown in Figure 3-5. The value of x is determined by equation 3.4; the constant kx is process and device dependent. It is

approximated as 21 for a PMOS device in the 0.6µm BiCMOS process. [12]

T EF = _p 1

1 + 0.5√x + x (3.3)

x = kxId

W / L (3.4)

Figure 3-5: The transconductance effectiveness factor curve W/L Id x TEF gmo gm

Input Amp 100 1µA 0.21 .834 27.5 22.9 Aux Amp 0.267 1µA 78.8 .109 27.5 2.99

Table 3.1: The transconductances calculated using the EKV method

gm1/gm2 when input referred. By making gm1 much larger, any offset from sources

other than the input differential pair is negligible. Table 3.1 shows the values described in this section for the input and auxiliary amplifiers.

Chapter 4

Internal Comparator

After the input signal is compensated for offset and amplified, it is sent to the internal comparator. The internal comparator’s purpose is to convert the differential signal into a single-ended logic level output. It does not have to be extremely accurate as its offset is divided by the gain of the first stage when input referred.

4.1

Design and Operation

The architecture of the comparator is based on a PMOS variant of the complete com-parator with internal hysteresis found in [13]. The additional wrap around circuitry was taken from a previous Linear Technology comparator design. The wrap around circuitry allows the circuit, including the hysteresis, to be symmetric for as long as possible. A PMOS variant was used to match the input amplifier stage because the output of the input amplifier is biased relative to the supply rail using a PMOS device. If an NMOS comparator were used, a low supply rail could cause the comparator’s input Vgs to be below the threshold voltage, severly impacting performance. The

capacitors cc1 and cc2 hold the comparator’s input when the system is sampling the

input offset. This holds the comparator’s output value and prevents glitching during the sampling phase. Because a PMOS comparator was used, the capacitors are tied to the supply rail instead of ground to maintain a constant Vgs even if the rail moves.

and then accounted for later.

When a positive differential signal is applied across the inputs, cip and cin, the

gates of mpc2and mpc1respectively, the current through mpc1increases and the current

through mpc2decreases. If the differential signal is large enough, all of the tail current

will flow through mpc1. The increased current passes through mnc6 and causes the

gate of mnc6 to rise. mnc5 mirrors this increased current, pulling it through mpc3.

When the comparator tries to mirror this current to mpc6, there is no path for it to

flow. The decreased current through mpc2 has shut off the gate of mnc10. mpc4 acts

as a short to the analog supply rail, pulling the drain of mpc6 up. The output is then

sent to a series of inverters providing a logic level output, Vco.

Figure 4-1: The internal comparator’s topology

When a negative differential signal is applied, mnc5 and mnc6 shut off, turning off

mpc3 through mpc6. mnc4, mnc9, and mnc10 are now turned on; mnc10 acts as a short

to ground. This output is then sent through the inverters, providing Vco.

The circuit without hysteresis can also be thought of as a 1/gm loaded stage

differential pair loaded with diode connected transistors, providing a gain of around 1. The second stage consists of mnc4 and mnc10 acting as an NMOS in a common

source amplifier loaded by the cascode of mpc4 and mpc6. This provides a high gain

stage whose output is sent to the inverters.

4.2

Hysteresis

Figure 4-2: The hysteresis loop of the internal comparator

The comparators hysteresis is generated by mnc7and mnc8. When the comparator

is in its low state, mnc7 is off while mnc8 is on. The drain of mnc8 is connected to the

negative input current path and wants to be pulling 3/2 the current through mnc9.

As the differential voltage heads towards the positive trip point, mpc1 turns on. Once

it is able to supply enough current such that id,mnc8 = 1.5 · id,mnc9, the comparator

trips. The same process occurs when transition from high to low. mnc7wants to draw

1.5 · id,mnc6 and the comparator will only trip once mpc2 is able to source that much

of the input amplifier, this hysteresis becomes less than 15µV. Because the overall system is slow to respond to low overdrive situations, input referred hysteresis is not of much concern. However, the internal hysteresis helps to suppress output errors caused by random and coherent noise.

Chapter 5

Voltage References

The 25 mV reference needs to be accurate. Even if the rest of the design has nanovolt accuracy, a bad reference can completely destroy accuracy.

5.1

Approach

One approach to implementing the 25 mV threshold is injecting the offset into a low impedance node. The amplifier topology used already has the auxiliary amplifier injecting an offset cancelling current. If a second auxiliary current is controlled to equal a 25 mV offset, then the reference can be generated completely with a low voltage reference and low voltage devices. The gm of the input stage is controlled by

the dimensions of mpi1and mpi2in Figure 3-1 as well as their bias currents. Generating

a 25 mV differential signal as well as matching the widths and lengths are both fairly simple, but matching current becomes an issue with a high voltage input. As the input voltage increases, the leakage from the high voltage transistors also increases. If the currents are going to be mirrored and matched, there will have to be at least one high voltage transistor within the current mirror path as the current is translated from the low voltage rail up to the charge pump. This high voltage transistor can have up to 10 nA of leakage current out of a total 1µA at high voltage and high temperature. The mismatch in current limits the amount of matching between the input stage and the offset injection stage and limits the overall accuracy of the comparator.

Figure 5-1: The first method of providing a 25 mV reference

The second approach to generating the 25 mV offset reference is to place a reference voltage on top of the input rail. The voltage cannot be placed 25 mV below the rail as the common-mode input voltage range needs to include ground. Approaching the reference with this method provides some distinct benefits. Firstly, the bias current of the input differential pair no longer needs to precisely match any other currents throughout the system. It also allows for the offset voltage sampling conditions to match the trip point. In the first approach, the comparator trips when the negative input is 25 mV below the positive input. With the second approach, the comparator can be set to trip right when the positive input becomes greater than the negative input, identical to the sampling phase environment.

5.2

Bandgap Reference

The reference voltage is first generated using a bandgap voltage reference, provid-ing good stability over temperature. The bandgap reference used in this thesis was taken from a previous Linear Technology design and is based on the classical Widlar bandgap reference.

5.2.1

Classical Widlar Bandgap Reference

A bandgap reference generates its stable output voltage by combining a temperature coefficients that are complementary and proportional to absolute temperature (CTAT and PTAT, respectively). If sized correctly, they will cancel each other out, resulting in minimal temperature drift [14].

VREF = VCT AT + VP T AT (5.1) δVCT AT δT = − δVP T AT δT (5.2) δVREF δT = δVCT AT δT + δVP T AT δT = 0 (5.3)

During the operation of a Widlar bandgap cell, shown in Figure 5-3, the ∆VBE

between Q1 and Q2 can be expressed as:

∆VBE = VBE1− VBE2 = I2R3 (5.4) ∆VBE = Vtln  I1 Is1  − Vtln  I2 Is2  (5.5)

If VBE1 is assumed to be approximately equal to VBE3, the following relationships

develop: I1R1 = I2R2 (5.6) I1 I2 = R2 R1 (5.7) I2 = ∆VBE R3 = Vt R3 ln I1Is2 I2Is1  = Vt R3 ln Is2R2 Is1R1  (5.8)

Figure 5-3: A classic Widlar bandgap cell

The output voltage, VREF, of the Widlar cell can now be defined as:

VREF = VBE3+ I2R2 = VBE3+

R2 R3 ln Is2R2 Is1R1  Vt= VBE3+ KVt (5.9) δVREF δT = δVBE3 δT + K δVt δT (5.10)

The temperature coefficient of a NPNs base-emitter junction is approximately −2 mV/◦C [15] while the temperature coefficient of Vt is around 0.085 mV/◦C. The values of Is1

and Is2 are directly proportional to the areas of their respective BJTs. By properly

sizing the transistors and resistors, the two temperature coefficients can cancel each other out. The reference voltage at this point is nominally 1.2-1.3 V.

Although the Is and resistor values have some temperature dependence, these are

drift away from the initial bias point, To, the temperature coefficients start to move,

changing VREF by up to a few millivolts.

5.2.2

Thesis Bandgap and Resistor Sizing

Figure 5-4: The bandgap cell used in the reference circuitry

The major difference between the Wildar reference and the reference used in this thesis is the presence of rbg4. The output voltage now appears on top of rbg4instead of

rbg1 and rbg2. By including rbg4, rbg1 and rbg2 can now be matched and less resistance

is used overall. If rbg4 were not used, both rbg1 and rbg2 would have to be increased by

condition in the rest of the cell. The new expression for VREF is given by equation

5.11

VREF = VBE3+ I2Rbg2+ 2I2Rbg4 = VBE3+

 Rbg2+ 2Rbg4 Rbg3 ln Is2 Is1  Vt (5.11)

The output of the bandgap reference, shown in Figure 5-5, varies by 3.5 mV over temperatures ranging from -55◦C to 125◦C. This movement gets reduced by a factor of 50 when scaled to the 25 mV reference, resulting in 70µV of movement at the reference. This change in reference voltage is the small enough that the auto-zero comparator can still meet the accuracy specification.

Figure 5-5: The bandgap reference voltage versus temperature

rbg4 was sized by iterating through many resistor values and plotting the refer-ence voltage versus temperatures from -55◦C to 125◦C. The circuitry that transposes the bandgaps output to a 25mV reference also has some fluctuations due to increased leakage current with increased temperature. Sizing the resistor in the bandgap

refer-ence properly helps mitigate the impact of these leakages.

5.3

25mV Reference

The output of the bandgap reference must be scaled down to 25 mV and translated on top of the input voltage. This is accomplished by generating a current proportional to the bandgaps output voltage and then mirroring it off of the charge pump output, as shown in Figure 5-6.

Figure 5-6: Generation of the 25mV reference from the bandgap

The bandgaps output is sent to one terminal of an actively loaded differential pair, which drives the NMOS mnr3. The current flowing through mnr3 is determined by

the bandgaps voltage and the resistance of rr3; its value of 1.252 MΩ sets a nominal

current of 1µA. This current is then mirrored off of the charge pump output using transistors mpr1 through mpr4 and sent down through rr1 to the load. The voltage

that appears on rr1 is the bandgap voltage scaled by the factor rr1/rr3. Although

the differential pair will have a systemic offset of up to 2mV due to non-infinite gain, the offset is also scaled down with the overall voltage resulting in less than 50µV of movement at the 25 mV reference. Because the systemic offset is also relatively constant over temperature, its impact can be reduced when either rr1 or rr3 are

trimmed.

The bias current through mnr1 and mnr2 is set by the resistor rr4. The common

source node is a Vgs below the output of the bandgap reference, about 500mV. With

a resistance of 250 kΩ, rr4 sets a total bias current of around 2µA.

The charge pump output was used instead of VrailA to provide headroom for

the cascoded diode connected PMOS transistors. The cascode was created this way (instead of tying the gates of mpr2 and mpr4 together) because references accuracy is

critical to the performance of the entire system and depends on the current matching between the two branches.

The high voltage NMOS, mnr3, was implemented using a depletion mode device.

When an enhancement mode transistor was used, the differential pair began to have headroom issues. The output of the differential pair was set to approximately 1.25 V + Vgs,mnr3. With the low voltage supply being only 2.5 V, mpr5 was being pushed

out of saturation. A depletion mode NMOS has a negative threshold voltage and eliminates this problem. It does run the risk of trying to pull the output too low; rr2 was placed to prevent that. rr2 provides a fixed voltage bump over temperature

for the same reason the 25 mV drop across rr1 is fixed, its ∆R tracks that of rr3.

Additionally, the depletion-mode NMOS was sized near minimum size to reduce its parasitic capacitance. As the input common-mode voltage changes, the charging and discharging of mnr3’s parasitic capacitances is the leading contributor to threshold

errors.

Figure 5-7. It has the characteristic upside down parabola shape found in bandgap references.

Chapter 6

Switching

There are three sets of switches, S1, S2, and S3, that must be properly timed for the auto-zero comparator to switch states and settle quickly. S1 determines whether the internal comparator is connected to the input signal path, S2 determines whether the inputs are sampling the reference or monitoring the input, and S3 determines whether the offset cancelation loop is open or closed. The placement of the switches throughout the circuit can be seen in Figure 6-1

6.1

Switch Timing

Although the auto-zero comparator has two main states, the sampling and comparison phases, the switches also have intermediary states. The sequence in which the switches are connected and disconnected can impact the overall performance of the system. The timing diagram showing the switch controlling signals is shown in Figure 6-2

Figure 6-2: The timing diagram of the switch logic

When transitioning from the comparison phase to the offset sampling phase, S1 is first turned off, disconnecting the internal comparator from the input signal path. The internal comparator only sees the inputs stored on its capacitors and the transients and changing values from the cancellation phase do not reach the output. S2 is then turned off, turning on S2B, and the inputs of the auto-zero comparator are tied together. After the inputs are tied together, S3 turns on and the offset cancellation loop is closed.

When transitioning from the offset sampling phase to the comparison phase, S3 is the first switch to be turned off. This breaks the offset cancellation loop, stores the offset, and prevents this stored offset from being affected by the rest of the switching sequence. S2 then reconnects the inputs to monitor the voltage drop across the sense resistor. As the output of the input amplifier approaches its final value, the internal

comparator is reconnected. The short delay, t21, between switching the input

transis-tors and reconnecting the internal comparator prevents the discrepancy between the closed and open loop values from incorrectly tripping the comparator.

6.2

Clock Circuitry

The entire switching system is controlled by a single enable signal. When the signal is low, the auto-zero comparator is in its sampling phase. When the signal changes to a high level, the auto-zero comparator transitions out of the sampling phase to the comparison phase. The clock circuitry, shown in Figure 6-3, contains a series of logic gates and delays that properly spaces out the transitions of the different clock signals.

6.3

Switch Construction

The majority of the switches used throughout the auto-zero comparator are simple transmission gates, as shown in Figure 6-4. Transmission gates allow for conduction in both directions, even as the signal approaches the rail voltages. The MOS devices are minimum sized to reduce gate area, minimizing the amount of charge injected as the switch turns on and off. No compensation for charge injection, such as dummy MOS devies, is needed as nearly the whole design is fully differential and symmetric. The signals and the capacitors they are being stored on are also large enough that mismatch due to charge injection has a minimal impact.

Figure 6-4: A transmission gate

The only switches that are not implemented as transmission gates are the main input switches, controlled by S2 and S2 in Figure 6-1. These switches are implemented using back-to-back NMOS devices. Even though the input voltage may reach 60 V, low voltage devices can be used by placing them in tubs connected to the input voltage. NMOS switches had to be used as PMOS switches cannot be turned on if the common-mode input voltage is at ground. The input switches are controlled by versions of S2 and S2B level shifted to switch between the input voltage and VrailA.

Figure 6-5: The circuitry used to level shift the logic signals

6.4

High Voltage Switching

While all of the clock circuitry and most of the switching is done using the low voltage digitally supply, which lies between 2.5 V and 5 V, the input switches ride a rail that can be anywhere from zero to sixty volts. To control the input switches, the logic must be level shifted to the necessary levels. The level shifted logic lies between Vi and VrailD. VrailD is generated off of the charge pump and provides a voltage

approximately 4.5 V above Vi. These voltage levels make it possible to use the low

voltage devices sitting in tubs as switches. The low voltage devices take up much less area and also reduce the amount of leakage current. The reduced leakage current in the input switches as a significant impact on the overall accuracy of the comparator as a few nanoamps can cause up to 100µV of shift in the 25 mV reference.

Figure 6-6: The half-monostable edge detectors used to generate the blast signals

off of the charge pump. To minimize the charge pump current used, the level shifter uses a latch. While a large but brief blast of current is used during transitions, only a very light quiescent current is needed to hold the logic levels.

The circuitry used to shift the logic signal is shown in Figure 6-5. When S2 turns on, mns18 is turned on and mns19 is turned off. mns21 is hit by the voltage pulse

and pulls a large current through mns18, pulling HVo down to the clamp voltage.

mns19 is turned off and mps9 is turned on, setting the other output node up to VrailD

and turning off mps8. After the blast pulse has passed, mns18 still passes a 50 nA

trickle current and the logic levels are held. When S2 transitions low, the same thing happens but to the opposite branches. The output of the system is taken from a single side and passed through inverters to sharpen the transitions. mps10 and mns16

are medium voltage devices, as the clamp voltage lies between six and seven volts to ensure that the inverter does not pass current outside of the transitions. The second inverter only sees Vi and VrailD and can be implemented using 5 V devices.

6.4.1

Blast Signal Generators

Half-monostable edge detectors are used to generate the blast current signal pulses. Both the rising edge and falling edge detectors, shown in Figure 6-6, are made up of an RC high pass filter and inverters. When the rising edge detector is hit with a pulse, the voltage across the resistor spikes up and then exponentially decays to zero with a time constant of τ = RC. This spike is converted to a clean pulse with a width

of approximately 0.69τ by feeding into a series of inverters. 15V devices were used for mps5 and mns13 as they must be able to withstand a Vgs greater than 2·PWRD. This

voltage difference is created when the falling edge pulls the gates of these transistors to a PWRD below ground. The RC value used in the edge detectors generates a pulse with a width of approximately 70 ns. The falling edge detector functions the same way except the resistor is now connected to the positive rail. When the falling edge hits, the output of the RC filter is pulled low and then exponentially rises to the positive rail. The response of the edge detector circuitry is shown in Figure 6-7

Figure 6-7: The blast signal response of the edge detectors

6.4.2

Voltage Clamp

The clamp used in this circuit was borrowed from a previous Linear Technology design and is shown in Figure 6-8. The clamp forces the voltage of VN to be no more than

four diode connected PMOS drops, 6-7 V, below the input voltage, VP. The current

pulled off of VP is limited by the size of R1. Once the voltage across R1 is enough

to turn on M6, M6 will supply the rest of the current required by VN. Within this

application the drain of M6 is tied to VP but is kept so that the diode drops across

M1 through M4 is relatively constant, even when a large amount of current needs to

Chapter 7

Supplies

This chapter details the generation and modelling of the different power supplies and rails used within the auto-zero comparator design. The supplies include the digital and analog low voltage supplies as well as the output of a charge pump. In addition to these supplies, rails are generated between the input voltage and the charge pump.

7.1

Low Voltage Supplies

Figure 7-1: The implementation of the low voltage supplies

The low voltage analog and digital supplies provide the majority of the power to the auto-zero comparator. The low voltage rails can have a value of somewhere between 2.5 and 5 volts. The analog supply feeds all of the low voltage current

sources, mirrors, amplifiers, and references. The digital supply powers the clocking and switching circuitry. Both of the supplies have their own return paths, RTNA and RTND. The seperate analog and digital supplies help prevent the noisy digital transitions from interacting and interfereing with the analog supply. These supplies are implemented using voltage sources in series with small resistances and their return paths consist of a small resistor to ground.

7.2

Charge Pump Output

Figure 7-2: The charge pump modeling circuitry

The auto-zero comparator was designed around using it to measure the voltage across a sense resistor in an NMOS power path controller. This power path controller has a charge pump used to drive the gates of the power FETs. The output of the charge pump sits around twelve volts above the input to the auto-zero comparator. However, charge pumps are inefficient and weak; drawing too much current from it will diminish the output voltage and impact the performance of the power FETs. The auto-zero comparator is also not the only device that will want to use the charge

pump output. Therefore, 10µA was set as the maximum amount of quiescent charge pump current the comparator can use.

Because the charge pump is already present on the chip, no actual charge pump was implemented for this design. Instead, it was modeled as a twelve volt supply in series with a resistor and a Schottky diode sitting on top of the input voltage. A large capacitor was also placed between the output of the Schottky diode and the input voltage to act as a reservoir. The charge resevoir allows the charge pump to ride through large transients, such as the the blast current pulled during the high voltage switching. The resistance models the finite output resistance of the charge pump, assumed to be 100, and decreases the charge pump voltage if too much current is pulled off of it.

7.3

V

and V

Figure 7-3: The circuitry used to generate VrailA and VrailD

above the input voltage, Vi. Although voltages above Vi are needed for the auto-zero

comparator to operate, twelve volts above Vi is excessive for most of the circuitry and

forced the use of medium voltage devices. By creating a rail 5 V above Vi, low voltage

devices sitting in tubs can be used instead.

VrailAand VrailDare generated using the circuitry shown in Figure 7-3. The resistor

r1 is sized and used in conjunction with the depletion PMOS, mp1, to generate 1µA

current. mp1feeds into the zener diode, zd1, which is sitting on Vi, setting its cathodes

voltage to 5.5V above Vi. This voltage is sent to mn1 and mn2, whose sources create

VrailA and VrailD. The voltages of VrailA and VrailD are now set to Vi+ 5.5 − Vgs, or

approximately five volts. Low pass filters are placed between the cathode of zd1 and

the gates of mn1 and mn2 to isolate the VrailA from switching noise that will appear

Chapter 8

Final Design Verification and

Conclusion

This chapter presents the tests and results used to verify the design.

8.1

Offset Cancelation

The primary design goal for this thesis is the improved accuracy of the comparator. The maximum threshold error allowable is less than 1% of 25 mV, or less than 250µV. The threshold voltage of the comparator is defined as the average value of the rising and falling thresholds.

A testing sequence, visualized in Figure 8-1, was used to verify the accuracy of the comparator. Initially the inputs to the auto-zero comparator is held in the sampling mode for a while. This allows the startup transients to settle out and the system to reach its normal operating point. The auto-zero comparator then switches into the comparison phase and a differential signal 5 mV than the expected threshold is applied. The 5 mV step is then removed and the differential voltage applied is just the expected threshold value. If the output of the comparator does not go low, then the lower threshold is incremented down until the comparator trips. The same process was initially used to find the upper threshold (except the input was stepped up and the threshold incremented upwards) but because the hysteresis is a constant 50µV,

the threshold voltage could be found by finding the lower threshold and shifting it up 25µV.

The test thresholds were incremented at 25µV steps. The step size was chosen because it was small enough to give some inclination as to how the system deals with offset but large enough that simulation time was not wasted on unnecessary resolution.

Figure 8-1: simplified diagram showing testing

Figure 8-2: The threshold error versus temperature in the typical-typical environment

The threshold tests were run for input offsets ranging from −50 mV to 50 mV at 5 mV increments, input common-mode voltages of 0 V and 60 V, and at -55◦C,

27◦C, and 125◦C. In addition to these parameters, the tests were run over all of the process corner models, typical-typical, fast-fast, slow-slow, fast-slow, and slow-fast. The threshold error in microvolts versus input offset in millivolts for the typical-typical process is shown in Figure 8-2. The entire collection of corner data is in Appendix B. All of the corners met the threshold specification for offsets of up to ±50 mV over temperature and input common-mode voltage. In fact, none of the tests had threshold errors that exceeded ±200µV. This is extremely good as the 6.6σ value of the input pair is only 5.6 mV, much less than the ±50 mV tested.

8.2

dV/dt Rejection

In addition to being able to handle high common-mode input voltages, the comparator must also be able to reject movements in the common-mode input voltage. The voltage on the load capacitance begins to ramp up once it is connected to the source and should not falsely trip the comparator. Fortunately, the Hot Swap controller limits the rate of change in voltage to prevent the load from seeing sparks and glitches caused when the board is connected. The change in voltage is limited to a rate of 1 V/µs and this will only be seen for a maximum of 60 µs. The design goal provided was that the comparator must not falsely trip if it is sitting 1mV away from the threshold.

To quantify how well the common-mode dV/dt is rejected, the comparators was set a fixed value away from the threshold and the common-mode voltage was swept up to 60 V over 60µs several times. The distance from the threshold voltage was increased until the comparator no longer tripped due to the change in input voltage. The plot of the maximum dV/dt rejected versus the distance from the threshold can be seen in Figure 8-3.

Although the comparator is fully differential and would be expected to have very good common mode dV/dt rejection, it barely meets the required specification. The changing input voltage affects the 25 mV reference. The capacitance between the drain and bulk of the high voltage depletion NMOS, mnr3 in Figure 5-6, fluctuates

Figure 8-3: The maximum dV/dt rejected versus the distance from the threshold

with the input voltage, changing the amount of current being pulled through the reference mirror. The NMOS was decreased in size to reduce the overall capacitance, but it will still draw an extra 20 nA during high dV/dt periods. Other attempts at compensating for the extra current were ineffective. Placing a matching dummy NMOS in the other side of the mirror did not help, as its source being near Vincaused

too much mismatch between it and the original depletion NMOS. The issue in the reference will always be present as long as a low voltage signal is being translated up on top of Vin. The only way to avoid it would be to place the whole reference

generation circuit between Vin and VrailA. Moving the reference between these two

rails would double the total current being pulled off of the charge pump, making this solution impractical.

8.3

Current Consumption

To measure the current from the analog rail, the circuit was allowed to reach its steady state and then the total current from the analog voltage source was measured. Mea-surements were taken over temperatures ranging from -55◦C to 125◦C. The current consumed from the low voltage analog supply increased linearly with temperature and had a maximum total consumption of 19µA.

Figure 8-4: The quiescent analog supply current over temperature

The charge pump current is the more critical design parameter. Because the charge pump is weak, inefficient, and used by other circuit blocks, the auto-zero comparator was designed to use less than 10µA of charge pump current. The charge pump current measurement was taken by allowing the circuit to reach its operating point and then reading the current passing through the charge pump source and subtracting any current being used by the charge pump model (e.g. the current charging the capacitor). The charge pump current was measured over temperatures

ranging from −55◦ C to 125◦ C and with the input voltage at 0 V and 60 V. The maximum current drawn from the charge pump was less than 6.5µA and occurred at 125◦C. The changes in the input voltage had a negligible impact on the charge pump current, increasing it less than 100 nA with voltage. The blast current from the high voltage level shifter also has an insignificant impact on current consumption as the blast window is extremely short.

Figure 8-5: The quiescent charge pump current over temperature

8.4

Closed Loop Step Response

The performance of the closed loop step response is critical to the performance of the auto-zero comparator. If the loop rings or does not settle quickly enough, the stored offset value will be incorrect and hinder the offset cancellation. To test the response of the closed loop to a step, an input offset was applied to the auto-zero comparator and stored. The comparator then was placed into the comparison phase and the offset

was stepped. When the comparator switched back to the sampling phase, the loop was hit with the stepped offset and the response was captured.

Figure 8-6: The closed loop step response over temperature

The auxiliary amplifier was designed to have approximately 90◦ of phase margin, eliminating spikes and ringing. However, Figure 8-6 clearly shows some overshoot. This overshoot is caused by the switching between phases. The closed loop not only has to respond to the step, but also to a change in transfer function when connected. The loop responds quickly, taking less than 3µs to settle from an input offset step of 5 mV. This 5 mV jump is much larger than any change in offset the comparator is likely to see between two adjacent sampling periods so it provides a conservative estimate as to how much time the loop needs to settle.
