Self-supported sulphurized TiO2 nanotube layers as positive electrodes for lithium microbatteries

(1)

HAL Id: hal-02323068

https://hal.archives-ouvertes.fr/hal-02323068

Submitted on 30 Nov 2020

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of

sci-entific research documents, whether they are

pub-lished or not. The documents may come from

teaching and research institutions in France or

abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est

destinée au dépôt et à la diffusion de documents

scientifiques de niveau recherche, publiés ou non,

émanant des établissements d’enseignement et de

recherche français ou étrangers, des laboratoires

publics ou privés.

Self-supported sulphurized TiO2 nanotube layers as

positive electrodes for lithium microbatteries

Girish Salian, Milos Krbal, Hanna Sopha, Chrystelle Lebouin, Marie-Vanessa

Coulet, Jan Michalicka, Ludek Hromadko, Alexander Tesfaye, Jan Macak,

Thierry Djenizian

To cite this version:

Girish Salian, Milos Krbal, Hanna Sopha, Chrystelle Lebouin, Marie-Vanessa Coulet, et al..

Self-supported sulphurized TiO2 nanotube layers as positive electrodes for lithium microbatteries. Applied

Materials Today, Elsevier, 2019, 16, pp.257-264. �10.1016/j.apmt.2019.05.015�. �hal-02323068�

(2)

ContentslistsavailableatScienceDirect

Applied

Materials

Today

jo u r n al hom e p a g e :w w w . e l s e v i e r . c o m / l o c a t e / a p m t

Short

communication

Self-supported

sulphurized

TiO

2 nanotube

layers

as

positive

electrodes

for

lithium

microbatteries

Girish

D. Salian

a

_,

_Milos

_Krbal

b

_,

_Hanna

_Sopha

b,c

_,

_Chrystelle

_Lebouin

d

_,

_{Marie-Vanessa}

_Coulet

d

_,

Jan

Michalicka

c

_,

_Ludek

_Hromadko

b

_,

_Alexander

_T.

_Tesfaye

a

_,

_Jan

_M.

_Macak

b,c

_,

_Thierry

_Djenizian

a,∗ a_Mines_{Saint-Etienne,}_Center_of_{Microelectronics}_in_Provence,_Department_of_Flexible_Electronics,_F-13541,_Gardanne,_France

b_Center_of_Materials_and_{Nanotechnologies,}_Faculty_of_Chemical_Technology,_University_of_Pardubice,_Nam._Cs._Legii_565,_53002,_Pardubice,_Czech_Republic c_Central_European_Institute_of_Technology,_Brno_University_of_Technology,_{Purky ˇnova}_123,₆₁₂_00,_Brno,_Czech_Republic

d_{Aix-Marseille}_University,_CNRS,_MADIREL,_UMR_7246,_Marseille,_France

a

r

t

i

c

l

e

i

n

f

o

Articlehistory:

Received4March2019

Receivedinrevisedform22May2019 Accepted30May2019 Keywords: Titaniananotubes Sulphurization Self-supported Cathode Li-ionmicrobatteries

a

b

s

t

r

a

c

t

Wereportthesynthesisandcharacterizationofself-supportedsulphurizedTiO2nanotubelayersasa

cathodematerialforLimicrobatteries.SulphurizedTiO2nanotubeswereobtainedbyannealingof

self-supportedTiO2nanotubesinsulphuratmosphere.Themorphology,structure,compositionandthermal

stabilityoftheTixOySznanotubelayerswerestudiedbyscanningelectronmicroscopy,transmission

electronmicroscopy,X-raydiffraction,X-rayphotoelectronspectroscopyandthermogravimetric anal-ysis.Theelectrochemicalbehaviorsofthechemicallymodiﬁednanotubeswereinvestigatedbycyclic voltammetryandchronopotentiometrytechniques.Thisnanostructuredelectrodeusedasacathode materialshowedhighratecapabilitiesevenatveryfastkinetics.Remarkably,ahighdischargecapacity (340␮Ahcm−2)hasbeenretrievedafter100cycleswith100%coulombicefﬁciencyattestingtheexcellent stabilityoftheelectrode.

1. Introduction

The development of modern microelectronic devices like microelectromechanicalsystems(MEMS),RadioFrequency Iden-tification (RFID) tags, medical implants, or smart cards, have necessitatedtheneedofmicroscalepowersources [1–5].These microscale power sources must not only be miniaturized but also fulfill the energy and the power density requirements of thedevices.Lithiumbatterieshavebeencharacterizedbyhigher energyperunitweightoftheknownenergystoragesystemsand hence theycan be miniaturized tobe integrated in microelec-tronicdevices[2].However,theelectrochemicalperformanceof2D microbatteriescomposedofplanarthin-filmscannotfeedavariety oflowpowerdevices.Inthiscontext,self-supported3D nanoarchi-tecturesareexpectedtoofferseveraladvantagesformicrobatteries suchasshorttransportlengthofcharges,interpenetrationbetween activecomponents,andsmallarealfootprints[6–9].Pristineand chemicallymodified self-supportedTiO2nanotube layers(TNTs)

havebeenextensivelyexploredasanodesforLi-ionmicrobatteries

[2,9–24].

∗ Correspondingauthor.

E-mailaddress:[email protected](T.Djenizian).

TNTshavealsobeenreportedtobegoodintercalationhosts for sulphur [25,26]. Sulphur as a cathode material possesses a hightheoreticalcapacityof1675mAhg−1andhenceahighenergy densitymakingaverygoodcandidateforlithium-sulphur(Li-S) batteries[27–30].However,therearesomelimitationsassociated withLi-Sbatterieslikepoorconductivityofsulphur,shortcycle life,low cyclingefﬁciency,or hugecapacity fademainlydue to thedissolution oftheactivematerialin theelectrolyte[27].To overcometheseproblems,transitionmetalsulphidessuchasTiS2

andTiS3havebeenstudiedaspositiveelectrodesforLibatteries

[31–35].Ingeneral,transitionmetalsulphidesexhibithigh electri-calconductivityandlowsolubilityinelectrolytes[36–38].These properties represent a clearadvantage over elemental sulphur. ThetheoreticalcapacityofcrystallineTiS3(556mAhg−1)ishigher

thanthat ofTiS2 (240mAhg−1)[39,40].Lindicetal.foundthat

theTiS3containingTiOxSythin-ﬁlmsexhibitedhigherareal

capac-itiesfortheinitialfewcyclesbutsufferedfromhighcapacityfade

[35].Hayashietal.reportedthatamorphousTiS3particleshavea

highreversiblecapacityof400mAhg−1inall-solid-statebatteries

[41].Self-supportedTNTscontainingTiS3 phasewasreportedby

Kyeremetangetal.[34].Theelectrodedeliveredgoodinitialareal capacitiesbutahugecontinuouscapacityfadehasbeenobserved duringcyclingtests.Actually,thestabilityofthedischarge capac-itiesdeliveredbythecathodematerialwaspoorwithacapacity

https://doi.org/10.1016/j.apmt.2019.05.015

(3)

258 G.D.Salianetal./AppliedMaterialsToday16(2019)257–264

fadeinamatterof50cycles.Theoriginofthedegradationwas attributedtotheeventualstructuraldistortionofthematerialas thecatholyteformationhasnotbeenevidenced.

Inthepresentstudy,wereportthatremarkable electrochemi-calperformanceofsulphurizedTNTscanbeobtained.Weovercome thecapacityfadingduetostructuraldistortionproblemby control-lingthesynthesisparametersduringthesulphurizationtreatment. Theresultantsulphurizednanotubesdeliverexcellentareal capac-itieswithgoodstabilityofthedischargecapacitiesupto100cycles evenatfastkineticsmakingsulphurizedTNTsapotentialcandidate asapositiveelectrodeforLimicrobatteries.

2. Materialsandmethods

2.1. SynthesisofTNTsandsulphurizedTNTs

The TNTs were obtained by anodizing Ti substrates. Prior toanodization,the Tifoils (127␮m thick,Sigma-Aldrich) were degreasedbysonicationinisopropanolandacetonefor1mineach, thenrinsedinisopropanolanddriedinair.Theelectrochemical setupconsistedofatwo-electrodeconﬁgurationusingaplatinum foilasthecounterelectrode,whiletheTifoils(workingelectrodes) werepressedagainstanO-ringoftheelectrochemicalcell, leav-ing1cm2_open_to_the_electrolyte_that_consisted_of_ethylene_glycol

containing176mMNH4Fand 1.5vol%H2O[42].Theelectrolyte

waspreparedfromreagentgradechemicals.Beforeuse,the elec-trolytewasagedfor9hbyanodizationofblankTisubstratesat60V underthesameconditionsasforthemainanodizationexperiments

[43].Electrochemicalexperimentswerecarriedoutatroom tem-peratureemployingahigh-voltagepotentiostat(PGU–200V,IPS ElektroniklaborGmbH).Theanodizationwascarriedoutat60Vfor 4hwithaninitialsweepingrateof1Vs−1.Aftertheanodizationthe TNTswererinsedandsonicatedinisopropanolfor5minanddried inair.Theas-obtainedpristineTNTsbeingamorphous,theywere afterwardannealedinamufﬂeoven(400◦C,1h)toobtainanatase structure.Inthenextstep,TNTsalongwith0.2gofpuresulphur wereplacedintopre-cleanedquartzampouleswhichwere subse-quentlyevacuatedto10−3Paandsealed.Theevacuatedampoules wereheatedat400◦Cfor3h,andthennaturallycooledtoroom temperatureinsidethefurnace.Thetemperaturewasincreased witharateof5◦Cmin−1.ThesulphurizedTNTlayersaredesignated asS-TNTs.

2.2. Materialcharacterizations

ThemorphologyofthepristineTNTsand S-TNTswere char-acterizedbyaﬁeld-emissionSEM(FESEMJEOLJSM7500F)and a high-resolution transmission electron microscope (FEI Titan Themis 60-300, operated at 300keV) equipped with a high angleannular darkﬁeld (HAADF)detector(Fischione) for scan-ningtransmissionelectronmicroscopy(STEM)imagingandwith energydispersive X-ray(EDX) spectroscope(FEISUPER-X)with 4×30mm2_windowless_silicon_drift_detectors._The_{cross-sectional}

viewsweretakenfrommechanicallybentsamplesorscratched samplesbyscalpel.Thebendingprocessledtotheruptureofthe nanotubelayers,enablingtovisualizeevenindividualnanotubes invariousdetails.DiffractionanalysesoftheS-TNTswerecarried outusing X-ray diffractometer(XRD, D8 Advance, BrukerAXE) todeterminethedifferentphasespresentin thematerialusing CuK␣(=1.54 ˚A)radiationequippedwithasecondarygraphite monochromatorandNa(Tl)I scintillationdetector.The chemi-calcompositionofS-TNTswasdeterminedbyultra-highvacuum (UHV, basepressure below 1_×10−9mbar)X-ray photoelectron spectroscopy(XPS,ESCA2SR,Scienta-Omicron)using monochro-maticAlK␣source(1486.6eV). TheXPSwasperformedonthe

S-TNTpowderscratchedoutfromtheS-TNTlayerinorderto aver-agesignaloverentiredepthofS-TNTlayer.Thestabilityofthe S-TNTswas monitoredusingthermogravimetricanalysis(TGA). ThemeasurementsweredoneusingaQ500 apparatusfromTA Instrument. Inorder toavoid anyoxidization, theS-TNTswere heatedunderAratmosphereandaheatingrateof5◦Cmin−1was appliedfromambienttemperatureupto600◦C.

2.3. Electrochemicalmeasurements

TheelectrochemicalperformanceofthepristineTNTsand S-TNTswerestudiedusingSwagelok-typecells.Forthegalvanostatic charge/discharge cycling tests, pristine TNTs and S-TNTs were assembledinatwo-electrodeconﬁgurationwithametallicLifoil (Aldrich)as thecounter electrode anda glass ﬁber(Whatman) soakedintheelectrolyteusedastheseparator.Theelectrolyte con-sistedofasolutionof1MLiPF6inethylenecarbonate(EC)/diethyl

carbonate (DEC) (1:1, in w/w) (Sigma-Aldrich). For the cyclic voltammetrytests,pristineTNTsandS-TNTswereassembledina three-electrodesystemwithtwoLifoilsactingrespectivelyas ref-erenceandcounterelectrodesandseparatedbyaWhatmanpaper soakedinEC:DECwith1MLiPF6.Thecellswereassembledinan

argon-ﬁlledglovebox(MBraun,Germany),with<0.5ppmH2Oand

<0.5ppmO2atmosphere.Thecyclicvoltammetryandgalvanostatic

charge/dischargetestswerecarriedoutusingaVMP3potentiostat (BioLogic,France).TheCVcurveswererecordedinapotential win-dowof1–3Vvs.Li/Li+_at_a_scan_rate_of_0.1_mV_s−1_,_both_for_pristine

TNTsandS-TNTsGalvanostaticcharge/dischargetestswere per-formedatmultipleC-ratesinthepotentialwindowof1–3Vvs. Li/Li+_.

3. Resultsanddiscussions

Fig. 1a and b shows the SEM images of the top and cross-sectional viewsof thepristine TNTs. Thenanotubeswere characterizedbyanouterdiameterof∼145nm,aninner diame-terof∼135nmandthewallthicknessof∼5nmatthetopofthe nanotubelayers.Duetotheconicalshapeofthenanotubes, how-ever,thetubewallgetsthickerandtheinnernanotubediameter getssmallerindeeperpartsofthenanotubelayer,asshownin ourpreviouswork[42].Thethicknessofthenanotubelayerswas ∼15␮m.Fig.1cshowsthetopviewofS-TNTs.Asobservedfrom theSEMimage,thesulphurdepositionformsathicklayeronthe nanotubesalongtherimofthenanotubewalls.Thethicknessof thislayeris∼35nm.However,thenanotubularmorphologyis pre-servedaftertheheattreatmentinthesulphuratmosphere,whichis apparentfromSEMimagesinFig.1candd,andinadetailed STEM-HAADFimageofafragmentofS-TNTsshowninFig.1e.Inaddition, asapparentfromtheSTEM-EDXelementalmap,thecomposition oftheS-TNTisveryuniformalongthewalls,withSspeciesevenly distributedwithintheTNTwalls(seeFig.S1formoredetails).

Thestructure ofS-TNTshasbeeninvestigatedbyXRD analy-sis.TheXRDpatterngiveninFig.2arevealsthepresenceoftwo phases,i.e.anataseTiO2andTiS3(formulaTi4+S22−S2−).However,

thepresenceofTiS2inthematerialcannotbeexcludedasitcould

bepresentintheamorphousformatthistemperature[35,39,40]. TheTipeaksstemfromtheunderlyingTisubstrate.Inordertohave abetterinsightintothechemicalcompositionofthematerial,the chemicalstateofS-TNTsurfacewasexaminedbyXPS.TheS2p andTi2pspectraareshowninFig.2b.S2pspectrumconsistedof twodoubletsat160.2eVand161.5eVassignedtosulﬁdeS2−_and

disulﬁdepairsS22−,respectively.TheratioofS22−toS2−doublet

areaswasfoundtobe1.2,whichcorrespondedto3:2ratioofTiS3

toTiS2,respectively[44].TheformationofTiSxwasalsoreﬂected

(4)

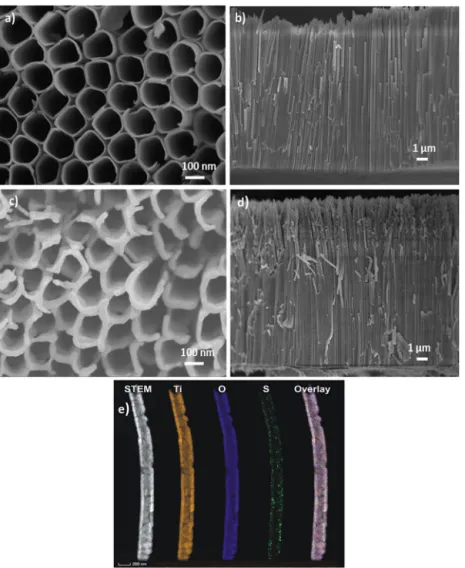

Fig.1.SEMimagesofthepristineTNTs(a)topviewand(b)cross-sectionalview;theS-TNTs(c)topviewand(d)cross-sectionalview;(e)STEM-HAADFimageandSTEM-EDX elementalmapsofafragmentoftheS-TNTs.

Thepresenceofelementalsulphurcouldnotbeverifiedbecauseit wasnotstableunderUHVconditions.Nohigheroxidationstatesof sulphurweredetected.ThestabilityoftheS-TNTisillustratedon theTGAthermogrammgiveninFig.2c.Ithastobenotedthatthe weightlossesarenormalizedinrespectwiththeestimatedmass ofnanotubes.Theanalysisrevealstwoweightlossstages.Thefirst oneisabout2.4%andoccursbetween150and200◦C.Itisattributed totheevaporationofasmallamountsulphurasconfirmedbythe TGAcurveforpuresulphur[45].Thisresultsuggeststhat unre-actedsulphurwaspresentinthesample,eithertrappedinsidethe nanotubesoradsorbedatthesurface.Thefactthatsulphurwasnot observedinXRDpatternmaybeattributedtoitsamorphousnature resultingfromthesulphurizationprocess.Thesecondweightloss stagestartsaround300◦Candcorrespondstoaweightlossequal to16.9%.ItcanbeattributedtothedecompositionofTiS3 phase

intoTiS2[46,47].

TheelectrochemicalbehaviorofpristineTNTsandS-TNTs sam-ple were studied by cyclic voltammetry (Fig. 3a and c). The reduction peak at 1.75V vs. Li/Li+ _and _the _oxidation _peak _at

2.1Vvs.Li/Li+_correspond_to_the_Li+_{insertion/extraction}_into/from

theanatasephase presentinbothsamples,accordingtoEq.(1) [8,11–13].AdditionallytheareaundertheCVcurvefortheS-TNTs ishigherthanthepristineTNTssuggestinghigherelectron trans-fers.ExaminationoftheCVsuptothe10th_cycle_for_S-TNTs_reveals

thepresenceofpeakstypicalforseveralreactionswithLiionsfor

S-TNTs.Thepresenceofgoodreversibilityisachievedby demon-stratinganoverlapinsweeps.

TiO2+xLi++xe−↔ LixTiO2 for 0 ≤x≤1 (1)

Then,otherreversiblebroadanodic/cathodicpeaksobservedat potentialshigher than2.1Varedue tothepresence ofSin the formofsulphidesasithasbeenreportedforTixOySzthinﬁlms[35].

Hence,TixOySzcanreactwithLiionsaccordingtoEq.(2).

Ti_xO_yS_z+nLi+₊_ne−_↔ _Li

nTixOySz for 0 ≤n≤1 (2)

However,twocathodicpeaksat1.9Vand2.1Vappearingonly intheﬁrstcyclecanbeattributedtotheirreversiblereactionofTiS3

withLi+_._Actually,_TiS

3reactswithupto3Li+performulaunit(2Li+

reactirreversibly)inatwo-stepintercalationmechanismaccording toEqs.(3)and(4)[33,34].

TiS3+2Li++2e−→ Li2TiS3 (3)

Li2TiS3+xLi++xe−↔Li2+xTiS3 for0 ≤x≤ 1 (4)

InEq.(3),the[S22−]bondspresentinTiS3arebrokenduring

theinsertionofLi+_into_the_structure_resulting_in_the_reduction_of

S22−.Thisirreversiblereactionleadstoachangeinthetitanium

coordinationpolyhedronfromtrigonalprismatictothemore sta-bleoctahedrongeometry[33].Thenextreaction(Eq.(4))whichis reversible,takesplaceduringtheinsertionofthethirdLi+_in_Li

(5)

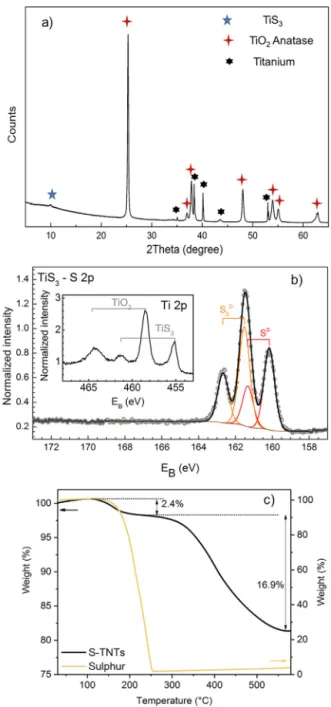

Fig.2. (a)XRDpatternofS-TNTssample;(b)XPSS2pandTi2p(inset)spectraofS-TNTssample;(c)TGAcurvesforS-TNTssampleandpureSulphurrecordedinAr atmospherewithaheatingrateof5◦Cmin−1.

atapotentialofaround2.3Vasithasbeenconﬁrmedbythelarge cathodicpeakvisibleaftertheﬁrstcycle.DisorderedTiS2couldalso

reactwithupto1Li+_per_formula_unit_reversibly_according_to_Eq.

(5)[35,40].

TiS2+Li++e−↔LiTiS2 (5)

Itcanbenoticedthatthepresenceofacathodicplateaubetween 2.2and1.8Vcanbeascribedtoapseudocapacitiveeffect,whichis typicalfornanodomains[48].Gonzálezetal.showedthatshorter nanotubescontributedtotheadditionalcapacityduetolargearea exposedtotheelectrolyte[49].Whiteleyetal.reportedthat dis-ordered LiTiS2 composed of nanocristallites showed additional

chargestoragederivedbyreducingsurfaceTi3+_to_Ti2+_at_higher

voltagesandmorereversiblythantraditionallyshown[50]. Galvanostaticcharge/dischargetests wereperformed onthe pristineTNTsandS-TNTssamplesinhalf-cell(vs.Li/Li+₎

conﬁgu-ration.ThecurrentwasappliedbasedonTNTsassumingaporosity of78%.TheporositycalculationisbasedontheamountoftheTiO2

nanotubespercm2_._The_volume_of_the_TNTs_was_calculated_by

sub-tractingtheinnertubeareafromoutertubearea. Fig.3b andd showsthegalvanostaticcharge/dischargecurvesoftheelectrodes atacurrentdensityof34␮Acm−2(C/10)forthepristineTNTsand S-TNTsrespectively.Eachcycleshowsthepresenceof characteris-ticplateausthatareconsistentwiththepeaksobtainedfromtheCV curves.Theﬁrstcycledeliversadischargecapacityof342␮Ahcm−2 (70mAhg−1) and 748␮Ahcm−2 (197mAhg−1) for the pristine TNTsandS-TNTs,respectively.Theﬁrstirreversiblecapacityisa characteristicoftheTiO2basedelectrodesduetothereactionofLi

ionswithstructuraldefectsandtheresidualwater[9,51,52]. Possi-blewaystomitigatethisirreversiblecapacityhasbeensuggested byBruttietal.,whereinTiO2hasbeenpre-lithiatedbyadding

nano-lithiumpowder[53].The10thcyclegivesadischargecapacityof 285␮Ahcm−2(51mAhg−1)and578␮Ahcm−2(152mAhg−1)for thepristineTNTsandS-TNTsrespectively.Clearlythedischarge capacitiesfortheS-TNTsarehigherthantheirpristine counter-partssuggestingthatthecapacitiesinS-TNTsarecontributedboth

(6)

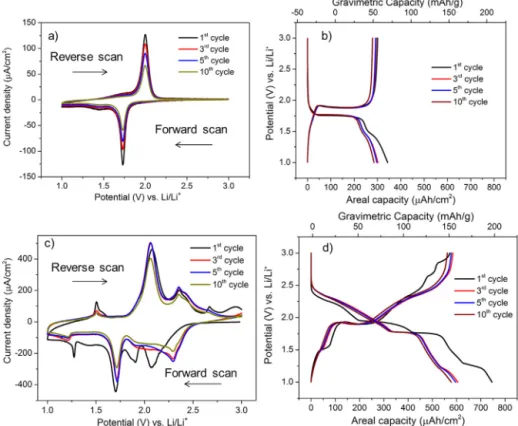

Fig.3. (a)CyclicvoltammetrycurvesofthepristineTNTssampleatascanrateof0.1mVs−1_;_(b)_{galvanostatic}_{charge/discharge}_curves_of_the_pristine_TNTs_at_C/10_rate;_(c)

cyclicvoltammetrycurvesoftheS-TNTssampleatascanrateof0.1mVs−1;(d)galvanostaticcharge/dischargecurvesoftheS-TNTsatC/10rate.Thepotentialrangeforboth CVandGalvanostatictestswere1–3Vvs.Li/Li+_.

byanataseandthetitaniumsulphides.Theoperatingvoltageof theS-TNTssampleis2.3Vsuggestingthatitisapotentialpositive electrodeforlithiummetalbatteries.

Fig.4a shows thelong-termcycling behaviorof thepristine TNTsand S-TNTssample for 100cyclesat acurrent density of 340␮Acm−2 (1C). The discharge capacities for the S-TNTs are remarkably higher than the pristine TNTs suggesting that the enhanceddischargecapacityofS-TNTsisduetothecontribution oftheanataseandthetitaniumsulphidephases.

The cycle behavior for the S-TNTs shows stable capacities upto 100cycleswith 100% coulombicefﬁciency (Fig. 4b).The 100th cycle delivered a discharge capacity of 400␮Ah cm−2. The capacity retention between the ﬁrst reversible cycle (2nd cycle) and the 100th cycle is 93%. These results show the excellent electrochemical behavior of the S-TNTs. To investi-gate further on the rate performance of the S-TNTs, the cell was cycled at higher current densities (Fig. 4a). The elec-trode delivers discharge capacity values of ∼543␮Ahcm−2 (145mAhg−1)at68␮Acm−2(C/5),∼430␮Ahcm−2(110mAhg−1) at340␮Acm−2(1C),∼300␮Ahcm−2(78mAhg−1)at680␮Acm−2 (2C),∼170␮Ahcm−2(46mAhg−1)at1.7mAcm−2(5C).The elec-trode shows high rate capabilities at very fast kinetics. More remarkably,thedischargecapacitiesareretrievedaftercyclingat veryhighcurrentdensitiesattestingtheexcellentstabilityofthe materialcomparedtopreviouswork[34].

Origins of the high discharge capacity and the outstanding stabilityduringcyclingtestsmayhavetwoexplanations.Firstly, accordingtotheﬁrstcycle,sulphurionsmainlycontributetothe electrochemicalprocesses.Lindicetal.suggestedthattheTiOxSy

ﬁlmsdeliveringgoodcyclestabilityshowedthereductionofthe disulphidebondsweremorereversiblethantheﬁlmswhichgave poorcyclestability[33].Thesamereasoncouldbeattributedinthe presentstudy.Secondly,thesameresearchgroupsuggestedthat thecapacityfadingismainlyattributedtothestructuraldistortions

duringthereactionwithlithium.TheS-TNTssampleinthepresent studyportraysgoodcyclingstability,whichindicatesthat struc-turaldistortionsarenotpresentandthatthestructureistherefore morestable.Whenwecomparetheresultsofthepreviousreports fortheS-TNTsbyKyeremetangetal.[34],thearealcapacitiesherein arehigherandadditionallythedischargecapacitiesupto100cycles isstable.ProbablythestructuraldistortionintheTiOxSynanotubes

fromthepreviousstudy,comesfromthefactthattheformation ofthisphasewasfasterduringtheheattreatment(200◦Cmin−1), whichcouldrenderthephaselesscrystallinewithmorestructural distortionsand defects.Whereasin thepresentstudy,theheat treatmentinthesulphuratmosphere wasdoneat5◦Cmin−1,a muchslowerrateforwhichthematerialhasampletimetoform stablephaseswithlessstructuraldistortions.

Post-mortemanalysiswasperformedafter100cycles.Thecell afterthecyclingtestwasdisassembledtoretrievetheelectrode.

Fig.5aandbshowstheSEMimagesofthecycledsample.In com-parisonwithSEMimagesoftheS-TNTsbeforecycling(Fig.1cand d),thereisnomajordegradationandthenanotubularmorphology ispreserved.Fig.5canddshowstheXRDdiffractogramrecorded ontheS-TNTsampletestedafter100cycles.Inagreementwith theelectrochemicaltests,theTiS3peakactuallydisappearedwhile

anadditionalsmallpeakconﬁrmstheformationoftheLi2TiS3and

LiTiS2phases(Fig.5d).Evenremarkably,anotherpeak

correspond-ingtotheappearanceofLiTiO2isobservedinthediffractogram.

SuchinactiveLTOfromanelectrochemicalpointofviewmay con-tributetothestabilizationoftheelectrodeasithasbeenreported elsewhere[53].Inordertoclarifytheelectrochemicalreactionof theS-TNTelectrodewithLiions,XPSmeasurementshavebeen per-formedafterthe2ndchargeandthe3rddischarge.TheresultingS 2pXPSspectraofS-TNTssamplesareshowninFig.5e.Thecharge anddischargecycleswereaccompaniedbythedeacreaseofTiS3

contentrelativetoTiS2 andbyapartialsurfaceoxidationof

(7)

Fig.4. (a)LongtermcyclingtestsofpristineTNTsandS-TNTssamplefor100cyclesatacurrentdensityof340␮Acm−2_(1C_rate);_(b)_coulombic_efﬁciency_of_the_S-TNTs

samplefor100cycles;(c)electrochemicalperformanceofS-TNTsatvariouscurrentdensities(Crates).

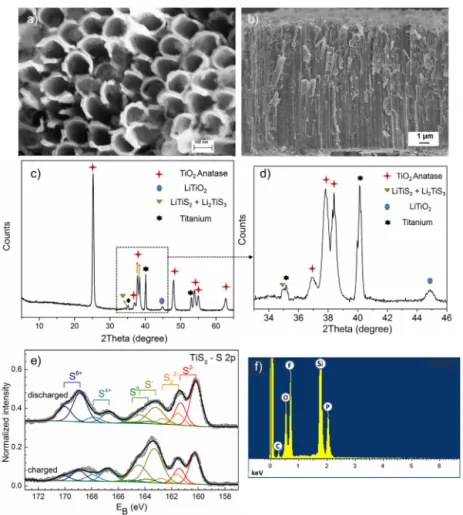

Fig.5. SEMimagesoftheS-TNTssamplepostlong-termcyclingtestsfor100cycles(a)topview;(b)cross-sectionalview;(c)XRDdiffractogramofthecycledsample;(d) zoomedimageoftheXRDdiffractogram;(e)S2pXPSspectraofS-TNTsafter2ndchargeand3rddischarge;(f)EDXspectrumanalysisoftheelectrolyteretrievedfromthe cell.

(8)

featuringthe1:7TiS3toTiS2ratioconﬁrmingthereactions

men-tionedabove.TheoxidationstatesofS−,S4+_,_and_S6+_were_observed

inS2pspectraasdoubletsat163.2,166.7,and168.8eVinboth chargedandthedischargedstateoftheelectrode.Thisresults sug-geststhe formationof a SEI-like layerprobably composedof a mixtureofLiS,Li2SO3,andLi2SO4 thatcouldberesponsiblefor

theinitialcapacityfading.Apost-mortemEDXspectrumanalysis (Fig.5f)oftheelectrolyteretrievedfromthecellafterthe100cycles revealedonlythepresenceofP,C,FandOelementsindicatingthat therewasnosulphurdissolutionintotheelectrolyte(Sisignalis detectedbecausetheelectrolytewasdriedatroomtemperature onaSisubstrate).

4. Conclusions

Self-supportedsulphurizedTiO2nanotube layerswere

inves-tigatedaspotentialpositiveelectrodesforLimicrobatteries.The morphologyofthesulphurizedTNTsrevealedthatthechemical treatmenthasnot altered the morphologyof the titania nano-tubes.Additionally,theSTEM-EDXanalysisconﬁrmedtheuniform distributionofsulphurwithinthenanotubes.Thechemical char-acterizationexperiments revealedthepresence ofanataseTiO2

and TiS3 phases. According to the galvanostatic cycling tests,

the TixOySz nanotubes delivered an average areal capacity of

600␮Ahcm−2atC/10ratewithcoulombicefﬁcienciesof100%and acapacityretentionbetweenthe2ndandthe100thcycleof93% comparedtotheirpristinecounterparts.Therateperformanceof theelectrodesdeliveredstablecapacityvaluesevenatveryfast kinetics(170_␮Ahcm−2at5Crate)andthelong-termcyclingtests upto 100cyclesshowedremarkablestability compared tothe previousreports.Thepost-mortemanalysisrevealedthatthe nan-otubularmorphologyisnotaffectedandthephasesofTiS3andTiS2

areretainedaftercycling.TheEDXanalysisshowsnodissolution ofSulphuraftercyclingandXPSanalysissuggesttheformationof aSEI-likelayercomposedoflithiumsulﬁdesthatcouldbe respon-siblefortheinitialcapacityfading.Thereasonsfortheexcellent electrochemicalbehaviorscanbeattributedtotheoptimized ther-malparametersforthefabricationofTixOySznanotubesandthe

formationofinactiveLiTiO2improvingthestructuralstabilityof

theelectrode.

Acknowledgments

The authors gratefully acknowledge the European Research Council (project No. 638857) and the Ministry of Education, Youth and Sports ofthe CzechRepublic(projects LM2015041, LM2015082,LQ1601andCZ.02.1.01/0.0/0.0/16013/0001829)for ﬁnancialsupportofthiswork,whosepartwascarriedoutwiththe supportofCEITECNanoResearchInfrastructure.Thisworkhasbeen carriedoutthankstothesupportoftheA*MIDEXproject(n◦ ANR-11-IDEX-0001-02)fundedbythe ¨Investissementsd’Avenir”French governmentprogram,managedbytheFrenchNationalResearch Agency(ANR).

AppendixA. Supplementarydata

Supplementarydataassociatedwiththisarticlecanbefound,in theonlineversion,atdoi:10.1016/j.apmt.2019.05.015.

References

[1]S.Ferrari,M.Loveridge,S.D.Beattie,M.Jahn,R.J.Dashwood,R.Bhagat,Latest advancesinthemanufacturingof3Drechargeablelithiummicrobatteries,J. PowerSources286(2015)25–46,http://dx.doi.org/10.1016/j.jpowsour.2015. 03.133.

[2]B.L.Ellis,P.Knauth,T.Djenizian,Three-dimensionalself-supportedmetal oxidesforadvancedenergystorage,Adv.Mater.26(2014)3368–3397,http:// dx.doi.org/10.1002/adma.201306126.

[3]J.F.M.Oudenhoven,L.Baggetto,P.H.L.Notten,All-solid-statelithium-ion microbatteries:areviewofvariousthree-dimensionalconcepts,Adv.Energy Mater.1(2011)10–33,http://dx.doi.org/10.1002/aenm.201000002. [4]M.Roberts,P.Johns,J.Owen,D.Brandell,K.Edstrom,G.ElEnany,C.Guery,D.

Golodnitsky,M.Lacey,C.Lecoeur,H.Mazor,E.Peled,E.Perre,M.M. Shaijumon,P.Simon,P.L.Taberna,3Dlithiumionbatteries–from

fundamentalstofabrication,J.Mater.Chem.21(2011)9876–9890,http://dx. doi.org/10.1039/c0jm04396f.

[5]Y.Wang,B.Liu,Q.Li,S.Cartmell,S.Ferrara,Z.D.Deng,J.Xiao,Lithiumand lithiumionbatteriesforapplicationsinmicroelectronicdevices:areview,J. PowerSources286(2015)330–345,http://dx.doi.org/10.1016/j.jpowsour. 2015.03.164.

[6]L.Baggetto,H.C.M.Knoops,R.A.H.Niessen,W.M.M.Kessels,P.H.L.Notten,3D negativeelectrodestacksforintegratedall-solid-statelithium-ion microbatteries,J.Mater.Chem.20(2010)3703–3708,http://dx.doi.org/10. 1039/b926044g.

[7]S.K.Cheah,E.Perre,M.Rooth,M.Fondell,A.Hårsta,L.Nyholm,M.Boman,T. Gustafsson,J.Lu,P.Simon,K.Edström,Self-supportedthree-dimensional nanoelectrodesformicrobatteryapplications,NanoLett.9(2009)3230–3233,

http://dx.doi.org/10.1021/nl9014843.

[8]G.F.Ortiz,I.Hanzu,P.Knauth,P.Lavela,J.L.Tirado,T.Djenizian,TiO2

nanotubesmanufacturedbyanodizationofTithinﬁlmsforon-chipLi-ion2D microbatteries,Electrochim.Acta54(2009)4262–4268,http://dx.doi.org/10. 1016/j.electacta.2009.02.085.

[9]G.D.Salian,C.Lebouin,A.Demoulin,M.S.Lepihin,S.Maria,A.K.Galeyeva,A.P. Kurbatov,T.Djenizian,Electrodepositionofpolymerelectrolytein

nanostructuredelectrodesforenhancedelectrochemicalperformanceof thin-ﬁlmLi-ionmicrobatteries,J.PowerSources340(2017)242–246,http:// dx.doi.org/10.1016/j.jpowsour.2016.11.078.

[10]N.Plylahan,M.Letiche,M.K.SamyBarr,B.Ellis,S.Maria,T.N.T.Phan,E.Bloch, P.Knauth,T.Djenizian,HighenergyandpowerdensityTiO2nanotube

electrodesforsingleandcompletelithium-ionbatteries,J.PowerSources273 (2015)1182–1188,http://dx.doi.org/10.1016/j.jpowsour.2014.09.152. [11]H.Sopha,G.D.Salian,R.Zazpe,J.Prikryl,L.Hromadko,T.Djenizian,J.M.

Macak,ALDAl2O3-coatedTiO2nanotubelayersasanodesforlithium-ion

batteries,ACSOmega2(2017)2749–2756,http://dx.doi.org/10.1021/ acsomega.7b00463.

[12]N.A.Kyeremateng,F.Vacandio,M.T.Sougrati,H.Martinez,J.C.Jumas,P. Knauth,T.Djenizian,EffectofSn-dopingontheelectrochemicalbehaviourof TiO2nanotubesaspotentialnegativeelectrodematerialsfor3DLi-ionmicro

batteries,J.PowerSources224(2013)269–277,http://dx.doi.org/10.1016/j. jpowsour.2012.09.104.

[13]G.D.Salian,B.M.Koo,C.Lefevre,T.Cottineau,C.Lebouin,A.T.Tesfaye,P. Knauth,V.Keller,T.Djenizian,Niobiumalloyingofself-organizedTiO2

nanotubesasananodeforlithium-ionmicrobatteries,Adv.Mater.Technol.3 (2018),http://dx.doi.org/10.1002/admt.201700274.

[14]N.Plylahan,M.Letiche,M.K.S.Barr,T.Djenizian,All-solid-statelithium-ion batteriesbasedonself-supportedtitaniananotubes,Electrochem.Commun. 43(2014)121–124,http://dx.doi.org/10.1016/j.elecom.2014.03.029. [15]G.Du,Z.Guo,P.Zhang,Y.Li,M.Chen,D.Wexler,H.Liu,SnO2nanocrystalson

self-organizedTiO2nanotubearrayasthree-dimensionalelectrodefor lithiumionmicrobatteries,J.Mater.Chem.20(2010)5689–5694,http://dx. doi.org/10.1039/c0jm00330a.

[16]Q.Zhu,H.Hu,G.Li,C.Zhu,Y.Yu,TiO2nanotubearraysgraftedwithMnO2

nanosheetsashigh-performanceanodeforlithiumionbattery,Electrochim. Acta156(2015)252–260,http://dx.doi.org/10.1016/j.electacta.2015.01.023. [17]L.Gao,H.Hu,G.Li,Q.Zhu,Y.Yu,Hierarchical3DTiO2@Fe2O3nanoframework

arraysashigh-performanceanodematerials,Nanoscale6(2014)6463–6467,

http://dx.doi.org/10.1039/c4nr00387j.

[18]D.Fang,K.Huang,S.Liu,Z.Li,ElectrochemicalpropertiesoforderedTiO2

nanotubeloadedwithAgnano-particlesforlithiumanodematerial,J.Alloys Compd.464(2008)L5,http://dx.doi.org/10.1016/j.jallcom.2007.09.141. [19]Y.Fan,N.Zhang,L.Zhang,H.Shao,J.Wang,J.Zhang,C.Cao,Co3O4-coated

TiO2nanotubecompositessynthesizedthroughphoto-depositionstrategy

withenhancedperformanceforlithium-ionbatteries,Electrochim.Acta94 (2013)285–293,http://dx.doi.org/10.1016/j.electacta.2013.01.114. [20]Y.Zhao,W.Zhu,G.Z.Chen,E.J.Cairns,Polypyrrole/TiO2nanotubearrayswith

coaxialheterogeneousstructureassulfurhostsforlithiumsulfurbatteries,J. PowerSources327(2016)447–456,http://dx.doi.org/10.1016/j.jpowsour. 2016.07.082.

[21]J.Brumbarov,J.Kunze-Liebhäuser,Silicononconductiveself-organizedTiO2

nanotubes-ahighcapacityanodematerialforLi-ionbatteries,J.Power Sources258(2014)129–133,http://dx.doi.org/10.1016/j.jpowsour.2014.02. 049.

[22]M.Madian,L.Giebeler,M.Klose,T.Jaumann,M.Uhlemann,A.Gebert,S. Oswald,N.Ismail,A.Eychmüller,J.Eckert,Self-organizedTiO2/CoOnanotubes

aspotentialanodematerialsforlithiumionbatteries,ACSSustain.Chem.Eng. 3(2015)909–919,http://dx.doi.org/10.1021/acssuschemeng.5b00026. [23]S.H.Kim,S.Y.Choi,FabricationofCu-coatedTiO2nanotubesandenhanced

electrochemicalperformanceoflithiumionbatteries,J.Electroanal.Chem. 744(2015)45–52,http://dx.doi.org/10.1016/j.jelechem.2015.03.007. [24]Y.Tang,X.Tan,G.Hou,G.Zheng,NanocrystallineLi4Ti5O12-coatedTiO2

(9)

264 G.D.Salianetal./AppliedMaterialsToday16(2019)257–264 Electrochim.Acta117(2014)172–178,http://dx.doi.org/10.1016/j.electacta.

2013.11.095.

[25]B.Ding,L.Shen,G.Xu,P.Nie,X.Zhang,Encapsulatingsulfurintomesoporous TiO2hostasahighperformancecathodeforlithium-sulfurbattery,

Electrochim.Acta107(2013)78–84,http://dx.doi.org/10.1016/j.electacta. 2013.06.009.

[26]X.Qian,X.Yang,L.Jin,D.Rao,S.Yao,X.Shen,K.Xiao,S.Qin,J.Xiang,Highrate lithium-sulfurbatteriesenabledbymesoporousTiO2nanotubespreparedby

electrospinning,Mater.Res.Bull.95(2017)402–408,http://dx.doi.org/10. 1016/j.materresbull.2017.07.009.

[27]S.Evers,T.Yim,L.F.Nazar,Understandingthenatureofabsorption/adsorption innanoporouspolysulﬁdesorbentsfortheLi-Sbattery,J.Phys.Chem.C116 (2012)19653–19658,http://dx.doi.org/10.1021/jp304380j.

[28]Z.W.Seh,W.Li,J.J.Cha,G.Zheng,Y.Yang,M.T.McDowell,P.C.Hsu,Y.Cui, Sulphur-TiO2yolk-shellnanoarchitecturewithinternalvoidspacefor

long-cyclelithium-sulphurbatteries,Nat.Commun.4(2013),http://dx.doi. org/10.1038/ncomms2327.

[29]H.Wang,S.Li,D.Li,Z.Chen,H.K.Liu,Z.Guo,TiO2coatedthree-dimensional

hierarchicallyorderedporoussulfurelectrodeforthelithium/sulfur rechargeablebatteries,Energy75(2014)597–602,http://dx.doi.org/10.1016/ j.energy.2014.08.029.

[30]K.Xie,K.Zhang,Y.Han,K.Yuan,Q.Song,J.G.Wang,C.Shen,X.Liu,B.Wei,A novelTiO2-wrappedactivatedcarbonﬁber/sulfurhybridcathodeforhigh

performancelithiumsulfurbatteries,Electrochim.Acta210(2016)415–421,

http://dx.doi.org/10.1016/j.electacta.2016.05.172.

[31]G.L.Holleck,J.R.Driscoll,Transitionmetalsulﬁdesascathodesforsecondary lithiumbatteries-II.Titaniumsulﬁdes,Electrochim.Acta22(1977)647–655,

http://dx.doi.org/10.1016/0013-4686(77)85134-7.

[32]Y.Onuki,R.Inada,S.Tanuma,S.Yamanaka,H.Kamimura,Electrochemical characteristicsoftransition-metaltrichalcogenidesinthesecondarylithium battery,SolidStateIonics11(1983)195–201,http://dx.doi.org/10.1016/ 0167-2738(83)90024-3.

[33]M.H.Lindic,H.Martinez,A.Benayad,B.Pecquenard,P.Vinatier,A.Levasseur, D.Gonbeau,XPSinvestigationsofTiOySzamorphousthinﬁlmsusedas

positiveelectrodeinlithiummicrobatteries,SolidStateIonics176(2005) 1529–1537,http://dx.doi.org/10.1016/j.ssi.2005.04.007.

[34]N.A.Kyeremateng,N.Plylahan,A.C.S.DosSantos,L.V.Taveira,L.F.P.Dick,T. Djenizian,SulﬁdatedTiO2nanotubes:apotential3Dcathodematerialfor

Li-ionmicrobatteries,Chem.Commun.49(2013)4205–4207,http://dx.doi. org/10.1039/c2cc36857a.

[35]M.H.Lindic,B.Pecquenard,P.Vinatier,A.Levasseur,H.Martinez,D.Gonbeau, P.E.Petit,G.Ouvrard,Electrochemicalmechanismsduringlithiuminsertion intoTiO0.6S2.8thinﬁlmpositiveelectrodeinlithiummicrobatteries,J.

Electrochem.Soc.152(2005)A141,http://dx.doi.org/10.1149/1.1834893. [36]M.S.Whittingham,Theroleofternaryphasesincathodereactions,J.

Electrochem.Soc.123(1976)315,http://dx.doi.org/10.1149/1.2132817. [37]M.S.Whittingham,Electricalenergystorageandintercalationchemistry,

Science(80-.)192(1976)1126–1127,http://dx.doi.org/10.1126/science.192. 4244.1126.

[38]M.S.Whittingham,Chemistryofintercalationcompounds:metalguestsin chalcogenidehosts,Prog.SolidStateChem.12(1978)41–99,http://dx.doi. org/10.1016/0079-6786(78)90003-1.

[39]B.Fleutot,B.Pecquenard,F.LeCras,B.Delis,H.Martinez,L.Dupont,D. Guy-Bouyssou,Characterizationofall-solid-stateLi/LiPONB/TiOS microbatteriesproducedatthepilotscale,J.PowerSources196(2011) 10289–10296,http://dx.doi.org/10.1016/j.jpowsour.2011.07.018.

[40]M.H.Lindic,B.Pecquenard,P.Vinatier,A.Levasseur,H.Martinez,D.Gonbeau, P.E.Petit,G.Ouvrard,CharacterizationofrfsputteredTiOySzthinﬁlms,Thin

SolidFilms484(2005)113–123,http://dx.doi.org/10.1016/j.tsf.2005.02.014. [41]A.Hayashi,T.Matsuyama,A.Sakuda,M.Tatsumisago,Amorphoustitanium

sulﬁdeelectrodeforall-solid-staterechargeablelithiumbatterieswithhigh capacity,Chem.Lett.41(2012)886–888,http://dx.doi.org/10.1246/cl.2012. 886.

[42]H.Sopha,L.Hromadko,K.Nechvilova,J.M.Macak,Effectofelectrolyteageand potentialchangesonthemorphologyofTiO2nanotubes,J.Electroanal.Chem.

759(2015)122–128,http://dx.doi.org/10.1016/j.jelechem.2015.11.002. [43]R.Zazpe,M.Knaut,H.Sopha,L.Hromadko,M.Albert,J.Prikryl,V.Gärtnerová,

J.W.Bartha,J.M.Macak,Atomiclayerdepositionforcoatingofhighaspect ratioTiO2nanotubelayers,Langmuir32(2016)10551–10558,http://dx.doi. org/10.1021/acs.langmuir.6b03119.

[44]C.G.Hawkins,L.Whittaker-Brooks,ControllingsulfurvacanciesinTiS2−x

cathodeinsertionhostsviatheconversionofTiS3nanobeltsfor

energy-storageapplications,ACSAppl.NanoMater.1(2018)851–859,http:// dx.doi.org/10.1021/acsanm.7b00266.

[45]B.Ding,C.Yuan,L.Shen,G.Xu,P.Nie,X.Zhang,Encapsulatingsulfurinto hierarchicallyorderedporouscarbonasahigh-performancecathodefor lithium-sulfurbatteries,Chem.AEur.J.19(2013)1013–1019,http://dx.doi. org/10.1002/chem.201202127.

[46]M.Barawi,E.Flores,M.Ponthieu,J.R.Ares,F.Cuevas,F.Leardini,I.J.Ferrer,C. Sánchez,Hydrogenstoragebytitaniumbasedsulﬁdes,J.Electr.Eng.3(2015) 24–29,http://dx.doi.org/10.17265/2328-2223/2015.01.004.

[47]A.J.Molina-Mendoza,J.O.Island,W.S.Paz,J.M.Clamagirand,J.R.Ares,E. Flores,F.Leardini,C.Sánchez,N.Agraït,G.Rubio-Bollinger,H.S.J.vanderZant, I.J.Ferrer,J.J.Palacios,A.Castellanos-Gomez,Highcurrentdensityelectrical breakdownofTiS3nanoribbon-basedﬁeld-effecttransistors,Adv.Funct.

Mater.27(2017)1605647,http://dx.doi.org/10.1002/adfm.201605647. [48]G.A.Muller,J.B.Cook,H.Kim,S.H.Tolbert,B.Dunn,Highperformance

pseudocapacitorbasedon2Dlayeredmetalchalcogenidenanocrystals,Nano Lett.15(2015)1911–1917,http://dx.doi.org/10.1021/nl504764m. [49]J.R.González,E.Zhecheva,R.Stoyanova,D.Nihtianova,P.Markov,R.R.

Chapuis,R.Alcántara,F.Nacimiento,J.L.Tirado,G.F.Ortiz,Afractal-like electrodebasedondouble-wallnanotubesofanataseexhibitingimproved electrochemicalbehaviourinbothlithiumandsodiumbatteries,Phys.Chem. Chem.Phys.17(2015)4687–4695,http://dx.doi.org/10.1039/c4cp04572f. [50]J.M.Whiteley,S.Hafner,S.S.Han,S.C.Kim,V.-D.Le,C.Ban,Y.H.Kim,K.H.Oh,

S.-H.Lee,J.Mater.Chem.A5(2017)15661–15668,http://dx.doi.org/10.1039/ C7TA03756B.

[51]D.Bauer,A.J.Roberts,N.Matsumi,J.A.Darr,Nano-sizedMo-andNb-doped TiO2asanodematerialsforhighenergyandhighpowerhybridLi-ion

capacitors,Nanotechnology28(2017)195403,http://dx.doi.org/10.1088/ 1361-6528/aa69df.

[52]S.Brutti,V.Gentili,P.Reale,L.Carbone,S.Panero,Mitigationofthe irreversiblecapacityandelectrolytedecompositionina

LiNi0.5Mn1.5O4/nano-TiO2Li-ionbattery,J.PowerSources196(2011)

9792–9799,http://dx.doi.org/10.1016/j.jpowsour.2011.08.022.

[53]C.Park,W.Chang,H.Jung,J.Kim,H.Sohn,Electrochemistrycommunications nanostructuredSn/TiO2/Ccompositeasahigh-performanceanodeforLi-ion

batteries,Electrochem.Commun.11(2009)2165–2168,http://dx.doi.org/10. 1016/j.elecom.2009.09.021.
