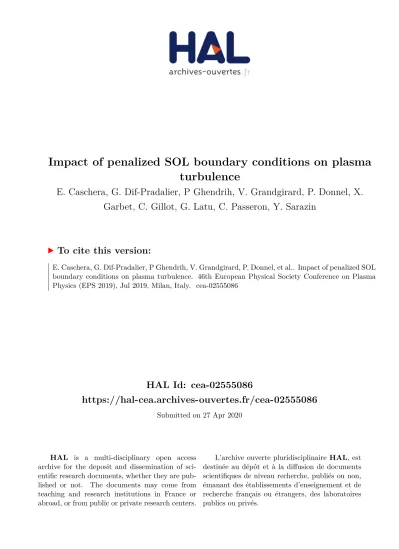

Impact of penalized SOL boundary conditions on plasma turbulence

(1)

HAL Id: cea-02555086

https://hal-cea.archives-ouvertes.fr/cea-02555086

Submitted on 27 Apr 2020

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Impact of penalized SOL boundary conditions on plasma turbulence

E. Caschera, G. Dif-Pradalier, P Ghendrih, V. Grandgirard, P. Donnel, X. Garbet, C. Gillot, G. Latu, C. Passeron, Y. Sarazin

To cite this version:

E. Caschera, G. Dif-Pradalier, P Ghendrih, V. Grandgirard, P. Donnel, et al.. Impact of penalized SOL boundary conditions on plasma turbulence. 46th European Physical Society Conference on Plasma Physics (EPS 2019), Jul 2019, Milan, Italy. �cea-02555086�

(2)

E. Caschera, G. Dif-Pradalier, P. Ghendrih, V. Grandgirard, P. Donnel, X. Garbet, C. Gillot, G. Latu, C. Passeron, Y. Sarazin

Impact of penalized SOL

boundary conditions

on plasma turbulence

(3)

HPC plasma modeling

| PAGE 2

• Electrostatic ITG

• Global

• 5D full-f

10 millions h/monoproc 104processors

GYrokinetic SEmi LAgrangian

(4)

Penalization for plasma-wall interaction

| PAGE 3 Flux-driven

[Dif-Pradalier PFR 2017]

─ Plasma open system boundary = Heat sink ─ Affect edge-core turbulence

─ Realistic boundary = 2 directions

─ Penalized immersed boundaryas edge fluid codes [Bufferand, JNM, 2013], [Isoardi, JPC,2010]

(5)

Realistic heat sink = poloidal asymmetry

| PAGE 4

o Heat sink = Cold

o Resolution demanding 𝑣_∥, 𝜇 & (𝑟, 𝜃)

o ∥ transport in SOL, interrupts current loop o Adiabatic electrons = NO ⊥ 𝑒− transport

" 2D SOL-like" Poloidal asymmetry −𝜈(𝑓 − 𝑓_{𝑐𝑜𝑙𝑑}) " symmetric SOL" Poloidal symmetry −𝜈(𝑓 − 𝑓 𝑒−𝜆𝑟)

o Restoring towards exponential profiles

[Caschera, 2018]

(6)

The reversed Er builds a

transport barrier

𝑣_𝐷 + + + + +

- -

-

- -

-

- -

_-

-

— ∥ electron dynamic in the SOL → 𝜙 _𝐹𝑆 = Λ𝑇_𝑒 — 𝑐𝑜𝑟𝑒 dominated by ion physics

— Reversed Er self-consistently generated (as experimental measurements)  Edge transport barrier (not steady state simulation)

| PAGE 5

𝐸(𝑟) Reversal

𝐸_𝑟 ∼ 𝛻𝑝𝑖 𝑛_𝑒 𝐸_𝑟 ∼ Λ𝛻𝑇_𝑒 Ra dial elec tric field 𝑬(𝒓) Reversal Initial 𝑡 = 104Ω_𝑖−1 Temperature gradient Ion dynamics ∥ electron dynamics Electric potential

(7)

A strong

𝑬 × 𝑩shear

drives axisymmetric instability

| PAGE 6 • Threshold on ExB shear

• ExB shear = poloidal velocity  Kelvin-Helmholtz

 Axisymmetric simulation, evolving only n=0  « Neoclassical »

 Turbulence activity in neoclassical SOL

Poloidal spectum

(PVG

[D’angelo, PoF, 1965], [Garbet, Fenzi, PoP, 1999])

−0,1 0,1 Potential fluctuations 𝑡 = 4000Ω_𝑖−1 𝑇_𝑒𝛿𝑛_𝑒 𝑒𝑛_𝑒

 Plasma polarization is sufficient to drive turbulence

GAM Small

scales eddies

(8)

SOL is determinant for edge turbulence

| PAGE 7

 SOL impact on turbulent fluctuations [Kadomtsev 65; Garbet NF 94, Hahm PoP 05]

Potential fluctuations

−𝟎, 𝟎𝟐

𝟎, 𝟎𝟐

𝑇_𝑒𝛿𝑛_𝑒 𝑒𝑛_𝑒

o Non-linear dynamics, SOL-evolving o Only with SOL boundary [Holland PoP 11]

Potential fluctuations −𝟎, 𝟎𝟐 𝟎, 𝟎𝟐 𝑇_𝑒𝛿𝑛_𝑒 𝑒𝑛_𝑒 • ITG modes

• Same core turbulence

T urbulenc e int ensity 0.95 0.1 1D SOL 2D Observed dynamics: Shear @ separatrix Turbulence Inward (Edge) Turbulence Outward (SOL)

o Tore Supra profiles, Edge linearly stable o Edge turbulence only with SOL+Limiter

(9)

| PAGE 8

Global = core + edge + SOL

1) Transient barrier by Er reversal

2) Instability even in axisymmetric framework 3) Qualitative 𝛿𝑛/𝑛 experimental trend

Potential fluctuations

−𝟎, 𝟎𝟐

𝟎, 𝟎𝟐

𝑇_𝑒𝛿𝑛_𝑒 𝑒𝑛_𝑒

Limiter boundary leads to new physics in GYSELA simulations

― Many different non-linear phenomena at a time: Kelvin-Helmholtz, ITG, spreading, flows ― Push towards steady-state boundary layer

(10)

| PAGE 9

Back-up slides

(11)

Evidence of edge-core interplay

| PAGE 10

T

urbul

en

ce

drive

𝜌 = 𝑟/𝑎

T

urbul

ence

in

tensity

[Dif-Pradalier, 2017]

(12)

The weak transport barrier

depends on core dynamics

| PAGE 11 Initial 𝐸_𝑟 𝑟 > 𝑎 = 0 𝐸_𝑟 𝑟 > 𝑎 = Λ𝑇_𝑒 T em pera ture gradient Initial

(13)

𝑬

_𝒓

Reversal at separatrix modifies SOL

poloidal symmetries

Vertical drift + + + + + +

-

- -

-

- -

-

−𝜈𝑀(𝑓 − 𝑓_{𝑐𝑜𝑙𝑑})

o Slow dynamic in the limiter

o Strong polarization on SOL flux surfaces o Particles loss at r max

| PAGE 12 SOL Polarization

Inverse rotation btw core/SOL

Reversed 𝐸_𝑟 ↔ v_𝜃

• Vertical drift + SOL flows • HFS density accumulation • Barrier at separatrix

 Polarization of the LIMITER (grounded)

𝑬

_𝒁

< 𝟎

𝝓 > 𝟎

𝜙 = 0

⊙ 𝑩 𝐄

𝒗

_𝑬×𝑩

LIMITER brakes the current loop → SOL poloidal asymmetries

Normalized radius r/a

Initial

De

nsity

(14)

Initial transient in the SOL

| PAGE 13

log (𝑛)

(15)

Axisymmetric simulations:

barrier on the profiles

| PAGE 14

Density

(16)

Recovering

𝜹𝒏/𝒏 behavior

(17)

3D IMAGES

(18)

Self-organized heat sink

| PAGE 17

1. Heat & momentum sink  Cold immersed boundary  Poloidally asymmetric  ∥ transport in SOL

Adiabatic electrons

NO Particle sink,

Constrained ⊥ particle transport NO recombination Open system Confined plasma 𝑃_𝑎𝑑𝑑 _𝑃_{𝑙𝑜𝑠𝑠} 𝑊 Heat source Heat loss

−𝜈(𝑓 − 𝑓

_{𝑐𝑜𝑙𝑑}

)

Poloidal section/ Mask

Self-organized

Heat Source

Heat Sink

 All heat reaching the limiter is removed  SOL = boundary for core

(19)

Different SOL equilibrium

| PAGE 18

Density Temperature Pressure

𝜌 = 𝑟/𝑎 𝜌 = 𝑟/𝑎 𝜌 = 𝑟/𝑎

Initial Initial Initial

Adiabatic electrons
