The contemporary degassing rate of 40Ar from the solid
Earth
Michael I. Bender, Bruce Barnett, Gabrielle Dreyfus, Jean Jouzel, Don Porcelli
To cite this version:
Michael I. Bender, Bruce Barnett, Gabrielle Dreyfus, Jean Jouzel, Don Porcelli. The
contempo-rary degassing rate of 40Ar from the solid Earth. Proceedings of the National Academy of
Sci-ences of the United States of America , National Academy of SciSci-ences, 2008, 105 (24), pp.8232-8237.
�10.1073/pnas.0711679105�. �hal-03108626�
The contemporary degassing rate of
40
Ar
from the solid Earth
Michael L. Bender*†, Bruce Barnett*, Gabrielle Dreyfus*‡, Jean Jouzel‡, and Don Porcelli§
*Department of Geosciences, Princeton University, Princeton, NJ 08544;‡Institute Pierre Simon Laplace, Laboratoire des Sciences du Climat et del
L’Environnement, Commissariat a` l’Energie Atomique-Centre National de la Recherche Scientifique㛭Université de Versailles Saint-Quentin, CE Saclay, 91191 Gif-sur-Yvette, France; and§Department of Earth Sciences, Oxford University, Parks Road, Oxford OX13PR, England
Edited by Karl K. Turekian, Yale University, New Haven, CT, and approved April 1, 2008 (received for review December 12, 2007)
Knowledge of the outgassing history of radiogenic40Ar, derived
over geologic time from the radioactive decay of40K, contributes
to our understanding of the geodynamic history of the planet and the origin of volatiles on Earth’s surface. The40Ar inventory of the
atmosphere equals total 40Ar outgassing during Earth history.
Here, we report the current rate of40Ar outgassing, accessed by
measuring the Ar isotope composition of trapped gases in samples of the Vostok and Dome C deep ice cores dating back to almost 800 ka. The modern outgassing rate (1.1ⴞ 0.1 ⴛ 108mol/yr) is in the
range of values expected by summing outgassing from the conti-nental crust and the upper mantle, as estimated from simple calculations and models. The measured outgassing rate is also of interest because it allows dating of air trapped in ancient ice core samples of unknown age, although uncertainties are large (ⴞ180 kyr for a single sample orⴞ11% of the calculated age, whichever is greater).
geochronology兩 ice cores 兩 geodynamics 兩 noble gases
T
he elemental abundance and isotopic composition of noble gases in the atmosphere inform us about Earth’s composi-tion, the history of the ocean and atmosphere, and the present and past geodynamics of the planet. The atmospheric abundance of40Ar reflects the balance between production by radioactivedecay of40K in the crust, upper mantle, and lower mantle, and
outgassing to the atmosphere. It is well recognized that the atmospheric inventory comprises approximately half of the total
40Ar produced by potassium decay over Earth history, assuming
the canonical value of 240 ppm for the K content of the bulk silicate Earth (1). The most parsimonious explanation for the remainder is that there is a large reservoir containing unde-gassed Ar, which is presumably the lower mantle (1). However, extensive seismic evidence has shown that oceanic plates subduct into the lower mantle while plumes rise from the core-mantle boundary to produce volcanism at the surface (e.g., refs. 2 and 3). Because of such observations, it is problematic to maintain that the lower mantle is undegassed. A number of recent papers have attempted to explain the limited atmospheric40Ar
inven-tory in the face of whole mantle convection. As one example, Davies (4) and Lassiter (5) have proposed that the bulk silicate Earth K concentration is⬇150 ppm rather than 240.
In this article, we present and explore another constraint on the planetary40Ar balance: the contemporary degassing rate of 40Ar. We determine this rate by measuring the paleoatmospheric 40Ar/38Ar ratio of fossil air from ice core samples. Critical to this
effort are the Vostok and especially EPICA Dome C cores (6), which allow us to access air as old as⬇779 ka. We compare the observed outgassing rate with the contributions to this term from outgassing of the continental crust and various degassing modes of the upper mantle. It is possible to account for the present rate of 40Ar increase with our estimates of degassing rates by the
continental crust and midocean ridge volcanism, although the uncertainties are large.
The paleoatmospheric 40Ar/36Ar ratio has previously been
examined by measuring the isotopic composition of Ar retained
in the Devonian Rhynie Chert (7). Rhynie Chert Ar has a
40Ar/36Ar ratio of 291.0, when the modern ratio is taken as 295.5.
The Rhynie Chert data correspond to a40Ar outgassing rate of
0.66⫻ 108 mol/yr, and a rate of increase in the atmospheric 40Ar/36Ar ratio (or 40Ar/38Ar ratio) of 0.040 ‰/Ma. These
numbers are problematic because of the possibility that the samples have been contaminated with atmospheric Ar subse-quent to their formation (which makes the rate of 0.04 ‰/Ma a lower limit). If one accepts the Rhynie data, determining the
40Ar rise rate for the more recent past is still useful because the
rate may have varied since the deposition of the Rhynie Chert. Measuring the paleoatmospheric 40Ar/38Ar ratio in ice core
samples is complicated by gravitational fractionation in the firn (8, 9), the snowpack overlying the zone of ice where air is trapped in isolated bubbles. At Vostok and Dome C, the firn layer is⬇100 m thick, and gravitational fractionation enriches heavy isotopes relative to light isotopes by⬇0.5 ‰/mass unit. The correspond-ing enrichments for 40Ar/38Ar and 40Ar/36Ar are 1 and 2‰,
respectively, factors of 20–40 higher than the change in the paleoatmospheric ratios we need to measure. To address this challenge we note that gravitational enrichments scale exactly with mass differences, and we assume that the atmospheric
38Ar/36Ar ratio has remained constant throughout the
measure-ment period. We then calculate the paleoatmospheric40Ar/38Ar
ratio, relative to the modern atmosphere, as: ␦40/38Ar
paleoatmosphere⫽␦40/38Arsample⫺ 1.002 ⫻␦38/36Arsample
[1]
1.002 is the precise ratio of the mass difference between40Ar and 38Ar, and 38Ar and 36Ar. Isotope ratios are reported in the
standard ␦ notation, with 40/38, 40/36, and 38/36 indicating the isotope abundances that are being compared. In practice, the mass spectrometer reference is pure Ar, and the paleoatmo-spheric ratio is calculated after subtracting the␦ values measured for air relative to this reference. We refer to the paleoatmo-spheric value in terms of␦40/38Ar, because this term is closest to
the measured property, but the paleoatmospheric␦40/36Ar value
would be identical.
Although some deep ice cores are well dated to their base, this is not the case for other glacial ice. In Greenland, the GISP2 and GRIP cores have disturbed glacial ice at their base, underlain by dirty ice that may date to the origin of the Greenland Ice Sheet (10). There is also ice of unknown age at Vostok (11) and Siple Dome (West Antarctica) beneath the well ordered strata. In the Dry Valleys region of Antarctica, glacial ice underlying englacial
Author contributions: M.L.B., G.D., J.J., and D.P. designed research; B.B. and G.D. performed research; B.B. contributed new reagents/analytic tools; M.L.B., G.D., J.J., and D.P. analyzed data; and M.L.B., G.D., J.J., and D.P. wrote the paper.
The authors declare no conflict of interest. This article is a PNAS Direct Submission.
†To whom correspondence should be addressed. E-mail: bender@princeton.edu.
debris may have a very old age. Having determined the rate of change of the40Ar/38Ar ratio of air, we have a tool for dating
these samples by measuring the Ar isotope composition of their trapped gases.
We assume that the outgassing rate has been constant during recent Earth history. Constancy is likely for mantle degassing associated with the widely dispersed processes at midocean ridges. Most degassing is from the continental crust, however, and here rates may vary as weathering rates change and major tectonic events wax and wane. Therefore, our assumption of constant outgassing is provisional, and can hopefully be refined if old ice samples are recovered with datable ash layers.
In this article, we describe the analytical method used to measure 40Ar/38Ar in ice core samples and present results
describing the atmospheric increase, and we discuss the impli-cations of the data for simple Earth outgassing models.
Results
We have analyzed a total of 15 Holocene ice samples from 4 ice cores, 9 samples dating to⬇100 and 400 ka from the Vostok ice core, and 7 samples dating to⬇800 ka from the EPICA Dome C ice core. Data are summarized in Table 1, and the paleoat-mospheric ␦40/38Ar ratio is plotted vs. age in Fig. 1. The best
estimate of precision comes from the analysis of trapped air in a variety of ice core samples dated toⱕ5 ka: ⫾0.012‰ (1). Paleoatmopsheric␦40/38Ar, calculated according to Eq. 1 and
written as ␦40/38Ar ⫺ ␦38/36Ar, is plotted vs. age in Fig. 1. A
regression line gives the best fit to the data and corresponds to a rate of change in the ␦40/38Ar of 0.066⫾ 0.007 ‰/Ma (1
confidence limits). This rate corresponds to a 40Ar outgassing
rate of 1.1⫾ 0.1 ⫻ 108mol/yr. The uncertainty is the uncertainty
in the regression associated with scatter in the data. The data are
consistent with a constant rate of change during the study period, but given the large uncertainty and low resolution, we can only say that there is no evidence for variability. Here, we assume that the rate has been constant for the recent geologic past. With this assumption, we can date trapped gases in old ice. For a single sample, given a reproducibility of⫾ 0.012 ‰ and an uncertainty Table 1. Isotopic composition of Ar in ice core trapped gases

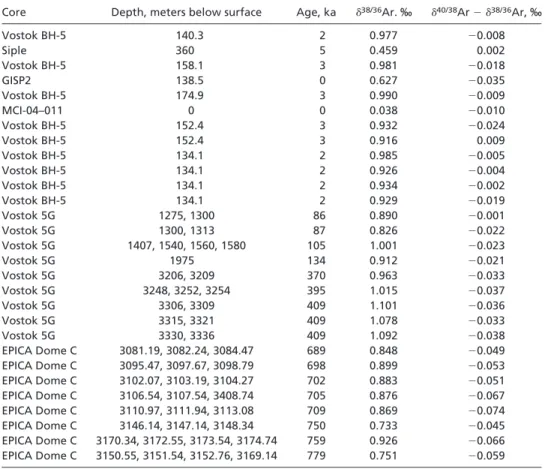

Core Depth, meters below surface Age, ka ␦38/36Ar. ‰ ␦40/38Ar⫺␦38/36Ar, ‰
Vostok BH-5 140.3 2 0.977 ⫺0.008 Siple 360 5 0.459 0.002 Vostok BH-5 158.1 3 0.981 ⫺0.018 GISP2 138.5 0 0.627 ⫺0.035 Vostok BH-5 174.9 3 0.990 ⫺0.009 MCI-04–011 0 0 0.038 ⫺0.010 Vostok BH-5 152.4 3 0.932 ⫺0.024 Vostok BH-5 152.4 3 0.916 0.009 Vostok BH-5 134.1 2 0.985 ⫺0.005 Vostok BH-5 134.1 2 0.926 ⫺0.004 Vostok BH-5 134.1 2 0.934 ⫺0.002 Vostok BH-5 134.1 2 0.929 ⫺0.019 Vostok 5G 1275, 1300 86 0.890 ⫺0.001 Vostok 5G 1300, 1313 87 0.826 ⫺0.022 Vostok 5G 1407, 1540, 1560, 1580 105 1.001 ⫺0.023 Vostok 5G 1975 134 0.912 ⫺0.021 Vostok 5G 3206, 3209 370 0.963 ⫺0.033 Vostok 5G 3248, 3252, 3254 395 1.015 ⫺0.037 Vostok 5G 3306, 3309 409 1.101 ⫺0.036 Vostok 5G 3315, 3321 409 1.078 ⫺0.033 Vostok 5G 3330, 3336 409 1.092 ⫺0.038 EPICA Dome C 3081.19, 3082.24, 3084.47 689 0.848 ⫺0.049 EPICA Dome C 3095.47, 3097.67, 3098.79 698 0.899 ⫺0.053 EPICA Dome C 3102.07, 3103.19, 3104.27 702 0.883 ⫺0.051 EPICA Dome C 3106.54, 3107.54, 3408.74 705 0.876 ⫺0.067 EPICA Dome C 3110.97, 3111.94, 3113.08 709 0.869 ⫺0.074 EPICA Dome C 3146.14, 3147.14, 3148.34 750 0.733 ⫺0.045 EPICA Dome C 3170.34, 3172.55, 3173.54, 3174.74 759 0.926 ⫺0.066 EPICA Dome C 3150.55, 3151.54, 3152.76, 3169.14 779 0.751 ⫺0.059
Units: ‰ with respect to air.
Fig. 1. Paleoatmospheric␦40/38Ar ratio plotted versus age.
Bender et al. PNAS 兩 June 17, 2008 兩 vol. 105 兩 no. 24 兩 8233
in the rate of change of 11%, the age uncertainty would be⫾ 180 ka or 11% of the age, whichever is greater. With this uncertainty, ␦40/38Ar dating is not useful for well ordered sections of deep ice
cores, but can be used to date old ice samples of unknown age as discussed above.
Discussion
The40Ar Outgassing Rate and the Atmospheric40Ar Mass Balance.
Following the literature we regard atmospheric40Ar as coming
from radioactive decay of40K in three realms: the continental
crust, the upper mantle at midocean ridges, and other sources Table 2. Estimates of40Ar outgassing rates from the solid Earth by various processes
Calculating the rate of atmospheric40Ar increase
Ar content of the atmosphere 1.65⫻ 1018mol
Rate of40Ar increase (this article) 0.066 ‰/Myr
Resulting outgassing rate 1.1⫻ 108mol/yr
Calculating40Ar degassing from the continental crust
From chemical weathering
关K兴 of river water (35) 44mol/liter
Global water discharge 3.74⫻ 1016liters/yr
Average K-Ar age of weathering basement rocks (36) K-Ar age⫽ 1.12 Ga, ⬅40Ar/K⫽ 2.7 ⫻ 10⫺7mol/g
Fraction of K released because of weathering of basement rocks (36) 34%
Average K-Ar age of weathering sediment (30, 37) K-Ar age⫽ 0.5 Ga, ⬅40Ar/K⫽ 1.0 ⫻ 10⫺7mol/g
Fraction of K released due to weathering of sediments (38) 66%
Outgassing by chemical weathering 0.40⫻ 108mol/yr
From mechanical weathering
Mass of total suspended solids (37, 39) 3⫻ 1015g/yr
K concentration in TSS (35) 2 wt %
Average age (30, 37) 0.5 Ga,40Ar/K⫽ 1.0 ⫻ 10⫺7mol/g
Outgassing by mechanical weathering 0.06⫻ 108mol/yr
Diffusion from sediments
Degassing model to explain difference between measured K-Ar and stratigraphic ages (31)
0.05–0.13⫻ 108mol/yr
From metamorphism
First-order constant b for degassing to match average basement K-Ar age (40)
3.7⫻ 10⫺10yr⫺1
Mass of crust processed per year (assuming a constant fraction of the crust is degassed per year)
7.5⫻ 1015g/yr
Concentration of K in crust (41) 1.5 wt %
Average age of processed rocks 1.12 Ga
40Ar/K ratio 2.7⫻ 10⫺7mol/g
40Ar released by metamorphism 0.3⫻ 108mol/yr
Subtotal40Ar flux from continents 0.81–0.89x108mol/yr
Box model calculations of crustal degassing
Degassing rate from crustal age and40Ar retention of Armstrong (27) 1.68–2.24⫻ 108mol/yr
Degassing rate from crustal age and40Ar retention of Taylor and
McClennan (28)
1.28–1.62⫻ 108mol/yr
Degassing rate calculated from crustal age and40Ar retention of Allegre
et al. (1)
0.73–0.86⫻ 108mol/yr
Degassing rate calculated from crustal age and40Ar retention of Coltice
et al. (29)
0.79–1.01⫻ 108mol/yr
Total range of model continental crust fluxes 0.79–2.24⫻ 108mol/yr
Calculating40Ar outgassing from the mantle
From midocean ridges
Rate of3He outgassing (12) 422 mol/yr
MORB3He/4He (8R
A) 1.1⫻ 10⫺5
MORB source4He/40Ar (see text) 1.9
Outgassing at midocean ridges 0.20⫻ 108mol/yr
From hotspots
Max. rate of volcanism,incl. seamounts (23) 1–12% of MOR
Concentration assuming average 20 RA(see text) 1⫻ MORB
Intraplate hotspot outgassing (upper limit) 0.024⫻ 108mol/yr
From subduction zones
Volcanic production relative to MORB (22) 5% 0.01⫻ 108mol/yr
From extension zones
Groundwater He data for extensional basins (21) 0.04⫻ 108mol/yr
Total40Ar flux from mantle 0.27⫻ 108mol/yr
Total40Ar degassing from mantle and continental crust based on present
fluxes
(1.08–1.16)⫻ 108mol/yr
(such as mantle plumes). By using data in Table 2, we calculate outgassing rates of these realms and compare them with global outgassing assessed using our data, 1.1⫻ 108mol/yr (Table 2).
Outgassing from Midocean Ridge Spreading Centers and Other Mantle Sources.We estimate the radiogenic40Ar outgassing rate from
the upper mantle, starting with the midocean ridges. We base our calculation on estimates of the3He degassing rate, the4He/3He
ratio of the upper mantle, and the4He/40Ar ratio of the upper
mantle:
40Ar f lux from upper mantle⫽ F 3He-UM
⫻ 共4He/3He兲
UM/共4He/40Ar兲UM [2]
The subscript ‘‘UM’’ refers to the upper mantle and F⫽ flux. For the3He flux from the upper mantle (F
3He-UM) we adopt
a value of 422 mol/yr, based on mantle trace element studies of Saal et al. (12) (Table 2) and a recent analysis of the oceanic3He
distribution in the context of ocean circulation models.¶
Paren-thetically, this flux is considerably less than the ‘‘canonical’’ value of 103mol/yr (13), derived from a zero-order model of ocean
mixing. (4He/3He)
UM, the4He/3He ratio of the upper mantle, is
9.1⫻ 104.4He/40Ar ratios in basalt glasses from the upper mantle
are enriched relative to parent magmas during vesiculation, because4He is more soluble in the melt (14, 15). Four studies
give estimates of (4He/3He)
UM independent of vesiculation.
Studies of well gases derived from the mantle give ratios between 0.5 and 3.4, with a mean of 1.9 (16, 17). Winckler et al. (18) measured4He/40Ar in Red Sea brines ranging from 1.5 to 2.7,
with a mean of 2.1. Moreira et al. (19) measured ratios in ‘‘popping rocks’’ from the Mid-Atlantic Ridge lying between 1.4 and 1.7, and averaging 1.5. We adopt the median of these estimates (1.9), and calculate an upper mantle outgassing rate of
40Ar at midocean ridges of 0.20⫻ 108mol/yr. Stuart and Turner
(20) measured the4He/40Ar ratios between 3.4 and 36.4 in fluid
inclusions from hydrothermal vent sulfide deposits, interpreting the lower values as representing ratios in the upper mantle. Adding these values to the average would decrease the calculated
40Ar outgassing rate of the upper mantle by⬇30%.
We estimate that the crustal production rate in back arc basins is 5% of the midocean ridge rate. If the other terms are the same as at midocean ridges, the corresponding mantle 40Ar flux
associated with subduction zones is then only 0.01⫻ 108mol/yr.
The mantle40Ar loss through extensional basins, estimated
based on a mantle3He flux of 8.4–84 mol/yr (21) is also very
small, up to only 0.04⫻ 108mol/yr.
Finally, we estimate lower mantle degassing by calculating
40Ar degassing from hotspot volcanism. Intraplate volcanic
fluxes have been estimated to lie between⬇1% (22) and 12% (23) of the midocean ridge rate (the highest estimate includes seamounts38) and to have a 3He/4He ratio of 20 times
atmo-spheric (24). Assuming that hotspots are the result of mixing of midocean ridge basalt (MORB) source material and a small amount of material with a 3He/4He ratio of 50 R
aand a 3He concentration that is 10 times greater than MORB (25, 26), then a simple mass balance calculation indicates that hotspot sources have an average3He concentration that is⬇2.5 times greater
than MORB, and a similar4He concentration. If both
compo-nents have the same4He/40Ar ratio, the40Ar concentrations are
also similar. The maximum contribution of40Ar from the hotspot
source is simply equal to 12% of the contribution from ridges, the number corresponding to the relative proportion of volcanism. The corresponding hotspot outgassing rate is 0.024⫻ 108mol/yr.
We thus estimate mantle degassing of 40Ar as 0.27 ⫻ 108
mol/yr,⬇25% of the global value estimated from the ice core data.
Outgassing from the Continental Crust: Estimates from Box Models. We calculate outgassing rates from the continental crust in four ways based on simple assumptions, together with independently estimated terms in the literature (Table 2). We assume that40Ar
degassing is proportional to the40Ar content of the continental
crust. The40Ar mass balance of the continental crust is then:
d关40Ar兴
crustMcrust/dt⫽ ⫺k1⫻ 关40Ar兴crustMcrust⫹40K
⫻ 关40K兴
crustMcrust⫻ branching ratio [3]
k1is the first-order degassing rate constant,40Kis the40K decay
constant, and Mcrust is the mass of the crust. We note that
[40Ar]
crustand Mcrustare both time-dependent terms.
According to Armstrong (27), the mass of the continental crust grew to its present value early in Earth history, and has remained roughly constant since. We assume that the mass of the crust increased linearly from zero at 4.4 Ga to its present magnitude at 3.6 Ga. We adopt values for the mass and composition of the continental crust listed in Table 2, and an average40Ar/K age of 1.12 Ga (Table 2). The degassing rate
constant is then adjusted by using a simple finite-difference model to give our chosen value for the average crustal40Ar/K
age. The current degassing rate, given by the product of k1and
the40Ar inventory, is 2.24⫻ 108mol/yr. Alternatively, we assume
that degassing has been first-order with respect to the Ar concentration and radiogenic heat production. In this case the crustal40Ar mass balance is described by:
d关40Ar兴
crustMcrust/dt⫽ ⫺ k2⫻ 共heat production兲
⫻ 关40Ar兴
crustMcrust⫹40K⫻ 关40K兴crustMcrust⫻ branching ratio
[4]
The calculated degassing rate is then higher earlier in Earth history, and lower today: 1.68⫻ 108mol/yr.
We repeat this calculation according to Taylor and McLennan (28), who argue that the crust has increased in mass throughout geologic time. We assume that crustal mass began to grow from zero at 3.8 Ga, rising linearly to 20% of the current mass at 3.2 Ga, 80% of the current mass at 2.5 Ga, and then to 100% today. Other terms remain as in the Armstrong calculation. We then estimate that the current outgassing rate is 1.62⫻ 108mol/yr if
outgassing is first-order with respect to the crustal40Ar
inven-tory, and 1.28 ⫻ 108mol/yr if it also scales linearly with heat
production.
We also estimate modern 40Ar outgassing with very simple
models applied to the continental crust as envisioned by Allegre
et al. (1) and Coltice et al. (29). According to these articles, the
crust has an age of either 2.0 Ga (1) or 2.7 Ga (29), and has retained half its argon. In each case, we assume that the crust formed instantaneously at a time corresponding to its age, and that40Ar loss is first-order with respect to concentration. We
next calculate the rate constant that gives the assumed values of crustal age and40Ar retention. Given retention, age, and the rate
constant, we then calculate the present day outgassing rate. The results are 0.86⫻ 108and 1.01⫻ 108mol/yr for crustal ages of
2.0 and 2.7 Ga, respectively. Finally, we repeat this calculation after invoking the assumption that the40Ar loss constant scales
with the product of heat production and concentration, and get current loss rates of 0.73 and 0.79⫻ 108mol/yr for crustal ages
of 2.0 and 2.7 Ga, respectively. Fluxes calculated in this way are low because the crust lacks the memory of earlier times when
40Ar production was faster.
¶Bianchi D, Sarmiento JL, Gnanadesikan A, Schlosser P (2008) Constraining the upwelling
branch of the meridional overturning circulation with helium-3 numerical simulations. 2008 Ocean Sciences Meeting, March 2–7, 2008, Orlando, FL (abstr.).
Bender et al. PNAS 兩 June 17, 2008 兩 vol. 105 兩 no. 24 兩 8235
Outgassing from the Continental Crust: Estimates Based on Observed Fluxes for the Various Pathways. As an alternative to these box models, we consider the individual pathways by which crustal
40Ar is lost to the atmosphere, and estimate the loss rates
associated with each.
Argon can be degassed during the chemical breakdown of K-bearing mineral phases. The total amount of K released can be calculated from the total riverine flux of dissolved K to the ocean. This flux is divided here into K derived from older crystalline rocks and younger sediments, with the K-Ar ages and proportions shown in Table 2. We assume that all of the Ar associated with dissolved K in rivers has been outgassed to the atmosphere. By using results in Table 2, we calculate that chemical weathering leads to an outgassing flux of 0.39 ⫻ 108
moles of40Ar per year. As seen in Table 2, this is the largest
calculated continental Ar flux. It is difficult to estimate the uncertainties associated with each parameter used, although the most poorly constrained is likely to be the 40Ar/K ratio of
weathered minerals.
‘‘Mechanical weathering,’’ as used here, includes all of the K associated with the suspended load of rivers carried to the oceans. We assume that all of the40Ar originally associated with
this K is released, either during the chemical transformation of crystalline rocks to K-bearing solid phase products of weather-ing, or during deposition and diagenesis. Sedimentation is largely cannibalistic (30), so that the average K-Ar age of the crustal sedimentary mass has been adopted for the source material. The largest uncertainties are likely to be the initial K-Ar age of sediments and the extent to which they are degassed. The calculated40Ar degassing rate caused by mechanical weathering,
0.06⫻ 108mol/yr, is a relatively minor crustal flux.
The entire sedimentary mass may also lose 40Ar diffusively
from K-bearing phases. Based on discrepancies between strati-graphic ages and measured K-Ar ages, Lerman et al. (31) calculated that the associated40Ar loss is 0.05–0.13⫻ 108mol/yr.
We estimate degassing associated with metamorphism by assuming that the average K-Ar basement age reflects40Ar loss
according to a first-order rate constant. The amount of 40Ar
released is based on the average K-Ar age and K concentration of basement rocks. Our estimate for the resulting flux is 0.3⫻ 108mol/yr. The two largest uncertainties are the actual rate of
material being metamorphosed over recent time scales and the actual K-Ar age of the material being metamorphosed. Regard-ing the former, a similar rate is obtained by assumRegard-ing that in active areas the temperature increases by⬇10°C/Ma (32), and dividing by a typical geotherm of⬇10°/km to determine the rate at which material is heated above the feldspar closure temper-ature of⬇250°C over an area the size of Tibet, the area where most of active metamorphism is currently occurring (P. England, personal communication).
Overall, the calculations indicate that metamorphism and chemical weathering are the main pathways for degassing of the continental crust. The degassing rate associated with all of the crustal processes described above, 0.80–0.88⫻ 108mol40Ar per
year, is similar to the rate obtained from the ice core data of 1.1 ⫻ 108 mol/yr. Also similar are degassing rates calculated
above from simple models (0.7–2.2⫻ 108mol/yr). Our
calcula-tions thus support the general understanding that crustal degas-sing is the major source of40Ar to the atmosphere.
Summary and Conclusions.We have measured the rate of increase in the 40Ar/38Ar ratio of air by measuring the triple isotope
composition of Ar in ice-core-trapped gases going back to⬇779
ka B.P. The results imply a contemporary rate of increase in the
40Ar/38Ar ratio of 0.066⫾ 0.007 ‰/Myr, and a40Ar outgassing
rate of 1.1⫾ 0.1 ⫻ 108mol/yr. With this rate, it is possible to date
trapped gases in old ice of unknown age, with an uncertainty of approximately⫾180 kyr (1) or ⫾11% (whichever is greater) for a single sample.
The observed atmospheric40Ar increase (1.1⫻ 108mol/yr) is
similar to the summed outgassing rates estimated for the con-tinental crust (0.80–0.88⫻ 108mol/yr) and the upper mantle
(0.27⫻ 108mol/yr). The close agreement is fortuitous, but the
similarity of rates validates the current understanding of 40Ar
outgassing as outlined above.
Materials and Methods
We measured the isotopic composition of Ar in air by using a modified version of the method of Severinghaus et al. (33). To extract and purify Ar from trapped air, we placed 200- to 500-g samples of ice in glass flasks sealed with Viton O-rings, cooled the flasks to⫺30°C, and pumped to vacuum. We melted the ice, equilibrated water and head space, and drained the water as described by Emerson et al. (34). We then removed residual water and CO2by freezing
with liquid N2, and transferred the noncondensible gases (essentially O2, N2,
and Ar) onto a mole sieve U-trap at liquid N2temperature. We then warmed
the trap and expanded the gas into a Pyrex and quartz loop containing SAES ST 101 getter material on one side of the loop. Heating the getter to 900°C led to convection of the gases through the loop, as well as to the absorption of all compounds other than the noble gases. The purified noble gases were then transferred into a stainless steel tube immersed in liquid He.
We measured␦40/38Ar and␦38/36Ar by using a standard Finnigan MAT 252
isotope ratio mass spectrometer with collectors configured for the simulta-neous measurement of masses 36, 38, and 40. To maximize the sensitivity of the instrument to relatively small Ar samples, we bypassed the instrument’s inlet system by attaching the sample side capillary inlet to a cross, with the sample tube connected to another port of the cross. The reference side inlet was customized such that the reference ion current could be set at a value identical to that on the sample side, and then a volume containing reference gas could be isolated that was identical to the volume containing the sample gas. The ion currents were balanced to approximately⫾0.2%, and this balance was maintained while ion current ratios were measured. Each sample was analyzed for⬇2 h, leading to high precision even for ratios involving38Ar
(0.063% natural abundance).
Ar purified from trapped gases of⬇200- and ⬇500-g samples was frozen into stainless steel tubes of nominal volumes 3 scc and 12 scc, respectively, to provide appropriate pressures in the dual inlet system during the analyses. Zero enrichments (the artefactual isotopic difference measured when the identical gas is admitted to the mass spectrometer on both sample and standard sides) were slightly different for the two tube sizes. As well, values of␦40/38Ar⫺ 1.002 ⫻␦38/36Ar were lower, by 0.028‰, for small air samples
(nominally, 0.2 scc air, corresponding to a 200-g ice sample) than for large air samples (0.5 scc, corresponding to 500 g of ice). We observed no such differ-ence, however, in the Ar isotopic composition of contemporary ice (age⬍5 ka). When we calculated␦40/38Ar⫺ 1.002 ⫻␦38/36Ar for these contemporary ice
samples by using the average of all zero enrichment measurements and all air measurements, we obtained essentially identical results for large and small tubes: this term was higher for small tubes by 0.005⫾ 0.007‰ (standard error of the difference). Therefore, we normalized Ar isotopic compositions of all our ice core samples against our average measured value for ice core trapped gases. This approach is nearly equivalent to comparing the composition of Ar in old ice samples with the composition of contemporary samples collected from the same mass of ice core.
The standard deviation of␦40/38Ar⫺ 1.002 ⫻␦38/36Ar for the contemporary
ice core samples (age,ⱕ5 ka) is ⫾0.012‰ (n ⫽ 12). There was insufficient ice to carry out duplicate analyses on older samples.
ACKNOWLEDGMENTS. M.L.B. was stimulated to pursue this research by a talk given by K. K. Turekian many years ago. We thank J. L. Sarmiento and D. Bianchi for discussions about the hydrothermal3He in seawater and P.
En-gland for discussions about metamorphic degassing of the continental crust. D. Marchant, Boston University, provided an ice sample from Mullins Valley, Antarctica. This work was supported by a grant from the Office of Polar Programs, National Science Foundation.
1. Allegre CJ, Hofmann A, O’Nions K (1996) The Argon constraints on mantle structure.
Geophys Res Lett 23:3555–3557.
2. Hutko AR, Lay T, Garnero EJ, Revenaugh J (2006) Seismic detection of folded, sub-ducted lithosphere at the core-mantle boundary. Nature 441:333–336.
3. Montelli R, et al. (2004) Finite-frequency tomography reveals a variety of plumes in the mantle. Science 303:338 –343.
4. Davies G (1999) Geophysically constrained mantle mass flows and the 40Ar budget: A degassed lower mantle? Earth Planet Sci Lett 166:149 –162.
5. Lassiter JC (2004) Role of recycled oceanic crust in the potassium and argon budget of the Earth: Toward a resolution of the ‘‘missing argon’’ problem. Geochem Geophys
Geosyst, 10.1029/2004GC000711.
6. EPICA (2004) Eight glacial cycles from an Antarctic ice core. Nature 429:623– 628. 7. Cadogan PH (1977) Palaeoatmospheric argon in Rhynie chert. Nature 268:38 – 41. 8. Sowers T, Bender M, Raynaud D (1989) Elemental and isotopic composition of occluded
O2 and N2 in polar ice. J Geophys Res Atmos 94:5137–5150.
9. Craig H, Horibe Y, Sowers T (1988) Gravitational separation of gases and isotopes in polar ice caps. Science 242:1675–1678.
10. Souchez R, et al. (December 20, 2006) Gas isotopes in ice reveal a vegetated central Greenland during ice sheet invasion. Geophys Res Lett, 20.1029/2006GL028424. 11. Souchez R, et al. (April 11, 2002) Highly deformed basal ice in the Vostok core,
Antarctica. Geophys Res Lett, 10.1029/2001GL0114192.
12. Saal AE, Hauri EH, Langmuir CH, Perfit MR (2002) Vapor undersaturation in primitive mid-ocean-ridge basalt and the volatile content of Earth’s upper mantle. Nature 419:451– 455.
13. Craig H, Clarke WB, Beg MA (1975) Excess 3He in deep water on the East Pacific Rise.
Earth Planet Sci Lett 12:125–132.
14. Honda M, Patterson DB (1999) Systematic elemental fractionation of mantle-derived helium, neon, and argon in mid-oceanic ridge glasses. Geochim Cosmochim Acta 63:2863–2873.
15. Sarda P, Moreira M (2002) Vesiculation and vesicle loss in mid-ocean ridge basalt glasses: He, Ne, Ar elemental fractionation and pressure influence. Geochim
Cosmo-chim Acta 66:1449 –1458.
16. Ballentine CJ, Marty B, Sherwood Lollar B, Cassidy M (2005) Neon isotopes constrain convection and volatile origin in the Earth’s mantle. Nature 433:33–38.
17. Holland G, Ballentine CJ (2006) Seawater subduction controls the heavy noble gas composition of the mantle. Nature 441:186 –191.
18. Winckler G, et al. (2001) Constraints on origin and evolution of Red Sea brines from helium and argon isotopes. Earth Planet Sci Lett 184:671– 683.
19. Moreira M, Kunz J, Allegre C (1998) Rare gas systematics in popping rock: Isotopic and elemental compositions in the upper mantle. Science 279:1178 –1181.
20. Stuart FM, Turner G (1998) Mantle-derived Ar40 in mid-ocean ridge hydrothermal fluids: Implications for the source of volatiles and mantle degassing rates. Chem Geol 147:77– 88.
21. O’Nions RK, Oxburgh ER (1988) Helium, volatile fluxes and the development of continental crust. Earth Planet Sci Lett 90:331–347.
22. Reymer A, Schubert G (1984) Phanerozoic addition rates to the continental crust.
Tectonics 3:63–77.
23. Batiza R (1982) Abundances distribution, and sizes of volcanoes in the Pacific Ocean and implications for the origin of non-hotspot volcanoes. Earth Planet Sci Lett 60:195–206. 24. Graham DW (2002) Noble gas isotope geochemistry of mid-ocean ridge and ocean
island basalts: Characterization of mantle source reservoirs. Rev Mineral Geochem 47:247–318.
25. Porcelli D, Ballentine CJ (2002) Models for the distribution of terrestrial noble gases and evolution of the atmosphere. Rev Mineral Geochem 47:411– 480.
26. Gonnermann HM, Mukhopadhay S (2007) Non-equilibrium degassing and a primordial source for helium in ocean-island volcanism. Nature 449:1037–1040.
27. Armstrong RL (1968) A model for evolution of strontium and lead isotopes in a dynamic Earth. Rev Geophys 6:175–199.
28. Taylor SR, McLennan SM (1985) The Continental Crust: Its Composition and Evolution (Blackwell Scientific, London).
29. Coltice N, Albarede F, Gillet P (2000) On the origin of noble gases in mantle plumes.
Science 288:845– 847.
30. Veizer J, Jansen SL (1985) Basement and sedimentary recycling. 2. Time dimension to global tectonics. J Geol 93:625– 643.
31. Lerman A, Ray BM, Clauer N (2007) Radioactive production and diffusional loss of radiogenic 40Ar in clays in relation to its flux to the atmosphere. Chem Geol 243:205– 224.
32. England PC, Thompson AB (1984) Pressure temperature time paths of regional meta-morphism. 1. Heat-transfer during the evolution of regions of thickened continental crust. J Petrol 25:894 –928.
33. Severinghaus JP, Sowers T, Brook EJ, Alley RB, Bender ML (1998) Timing of abrupt climate change at the end of the Younger Dryas interval from thermally fractionated gases in polar ice. Nature 391:141–146.
34. Emerson S, Quay PD, Stump C, Wilbur D, Schudlich R (1995) Chemical tracers of productivity and respiration in the subtropical Pacific Ocean. J Geophys Res Oceans 100:15873–15887.
35. Martin JM, Meybeck M (1979) Elemental mass balance of material carried by major world rivers. Mar Chem 7:173–206.
36. Hurley PM, Rand JR (1969) Pre-drift continental nuclei. Science 164:1229 –1242. 37. Veizer J, Jansen SL (1979) Basement and sedimentary recycling 2. Time dimension to
global tectonics. J Geol 87:341–370.
38. Wollast R, Mackenzie FT (1983) The global cycle of silica. Silicon Geochemistry and
Biogeochemistry, ed Aston SR (Academic, London), pp 39 –75.
39. Milliman JD, Meade RH (1983) World-wide delivery of river sediment to the oceans. J
Geol 91:1–21.
40. Hamano Y, Ozima M (1978) Earth-atmosphere evolution model based on Ar isotopic data. Terrestrial Rare Gases, eds Alexander EC, Jr, Ozima M (Japan Scientific Society Press, Tokyo), pp 155–171.
41. Rudnick R, Gao S (2003) The role of lower crustal recycling in continent formation.
Geochim Cosmochim Acta 67:A403.
Bender et al. PNAS 兩 June 17, 2008 兩 vol. 105 兩 no. 24 兩 8237
