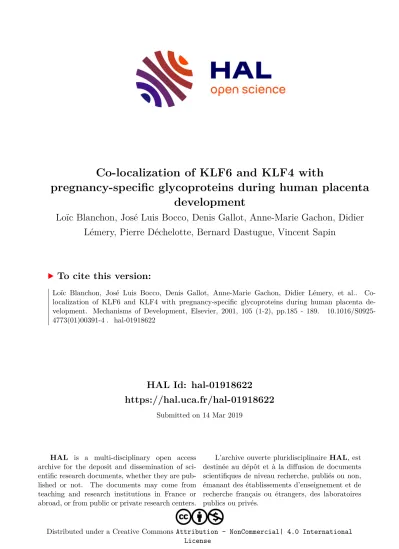

HAL Id: hal-01918622 https://hal.uca.fr/hal-01918622
Submitted on 14 Mar 2019
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
Distributed under a Creative Commons Attribution - NonCommercial| 4.0 International License
Co-localization of KLF6 and KLF4 with
pregnancy-specific glycoproteins during human placenta development
Loïc Blanchon, José Luis Bocco, Denis Gallot, Anne-Marie Gachon, Didier Lémery, Pierre Déchelotte, Bernard Dastugue, Vincent Sapin
To cite this version:
Loïc Blanchon, José Luis Bocco, Denis Gallot, Anne-Marie Gachon, Didier Lémery, et al.. Co-
localization of KLF6 and KLF4 with pregnancy-specific glycoproteins during human placenta de-
velopment. Mechanisms of Development, Elsevier, 2001, 105 (1-2), pp.185 - 189. �10.1016/S0925-
4773(01)00391-4�. �hal-01918622�
Gene expression pattern
Co-localization of KLF6 and KLF4 with pregnancy-speci®c glycoproteins during human placenta development
LoõÈc Blanchon
a, Jose Luis Bocco
b, Denis Gallot
c, Anne-Marie Gachon
a, Didier LeÂmery
c, Pierre DeÂchelotte
d, Bernard Dastugue
a, Vincent Sapin
a,*
aINSERM U.384, Faculte de MeÂdecine, 63000 Clermont-Ferrand, France
bUniversidad Nacional de Cordoba, Cordoba, Argentina
cUnite de MeÂdecine Materno-Foetale, Clermont-Ferrand, France
dService d'Anatomo-Pathologie, Clermont-Ferrand, France
Received 27 February 2001; received in revised form 17 April 2001; accepted 23 April 2001
Abstract
Pregnancy-speci®c glycoproteins (PSGs) are major placental proteins essential for the maintenance of normal gestation. However, little is known about their gene expression regulation during placentation. It was previously demonstrated that the human core promoter binding protein recently renamed KruÈppel-like factor (KLF) 6 binds to a highly conserved sequence within the PSG promoters and is mainly expressed in human term placenta. Here, we determined the expression pattern of the 13 other KLFs during human placental development.
We demonstrate that eight KLFs exhibit speci®c expression patterns in human placental tissues and membranes, in favor of a functional cooperation of speci®c KLFs during placentation. In addition, we demonstrate that KLF6, KLF4 and PSG proteins are co-expressed in same cell types of placental villi and membranes. This experimental evidence further strengthens the potential cross talk of both transcription factors for PSG gene regulation in vivo.q2001 Elsevier Science Ireland Ltd. All rights reserved.
Keywords: Development; Human placenta; Trophoblast; KruÈppel-like factor; Pregnancy-speci®c glycoprotein
The placenta is composed by the extraembryonic cyto- trophoblastic cells, which progressively differentiate into multinucleated syncytiotrophoblasts (Kaufmann and Burton, 1994). The syncytiotrophoblasts synthesize a number of pregnancy proteins such as the pregnancy-speci-
®c glycoproteins (PSGs) (Cross et al., 1994).
The PSGs are the major placental proteins secreted to maternal circulation during pregnancy with still unresolved function (Khan et al., 1992). PSG biosynthesis is mainly regulated at transcriptional level during human placental development (Bocco et al., 1989), implicating an in vitro interaction of GC-box motif with KLF6, which could be functional in vivo for regulation of PSG genes (Koritsch- oner et al., 1996, 1997; Slavin et al., 1999)
KLF6 belongs to a new family of KruÈppel zinc ®nger
transcription factors (Turner and Crossley, 1999). The KLF molecules have been shown to exhibit important tissue speci®c developmental regulatory functions (Dang et al., 2000). All KLFs could bind similar promoter sequences, present in several genes (Okano et al., 2000). Together, these observations are in agreement with cooperation between speci®c KLFs aimed to orchestrate tissue-speci®c developmental gene expression.
In order to gain knowledge regarding the involvement of KLFs during placentation, we analyzed the expression of the fourteen KLFs along with the PSG products during different steps of human pregnancy.
1. Results and discussion
KLF1/EKLF (Miller and Bieker 1993), KLF5/BTEB2/
IKLF (Anderson et al., 1995), KLF9/BTEB (Imataka et al., 1992), KLF12/AP2-rep (Imhof et al., 1999), KLF13 and KLF14/KKLF (Scohy et al., 2000) were never expressed at detectable levels in placental tissues. In contrast, the eight other KLFs showed a differential expression pattern in placental tissues and/or membranes (Table 1).
Showing a similar expression pattern than PSG tran-
0925-4773/01/$ - see front matterq2001 Elsevier Science Ireland Ltd. All rights reserved.
PII: S0925-4773(01)00391-4
* Corresponding author. Tel.:133-4-7360-8024; fax:133-4-7327-6132.
E-mail address:[email protected] (V. Sapin).
Abbreviations: BKLF, basic KLF; BTEB, basic transcription element bind- ing protein; CPBP, core promoter binding protein; EKLF, erythroid KLF;
GKLF, gut KLF; IKLF, intestinal KLF; LKLF, lung KLF; KLF, KruÈppel- like factor; KKLF, kidney KLF; PLH, placental lactogen hormone; PSG, pregnancy-speci®c glycoprotein; TGF, transforming growth factor; TIEG, TGFbimmediate-early gene; UKLF, ubiquitous KLF.
L. Blanchon et al. / Mechanisms of Development 105 (2001) 185±189 186
Table1 SummaryoftheKLFgeneexpressionpro®lesduringhumanplacentationinvilliandplacentalmembranes PSG-5KLF2 (LKLF)KLF3 (BKLF)KLF4 (GKLF)KLF6 (CPBP)KLF7 (UKLF)KLF8 (BKLF3)
KLF10 (TIEG1) KLF11 (TIEG2) KLF12 (AP-2re
p)KLF1,-5,-9, -13,-14 Placentaltissues 6thweek(®rsttrimester)11221212122 14thweek(secondtrimester)11121212122 29thweek(thirdtrimester)11111112122 37thweek(term)11111111122 Placentalmembranes Chorion(extra-embryonic origin)12211212122 Amnion(embryonicorigin)11111112122 Trophoblasticcells Primarycultureoftrophoblasts11111111122 Celllines: BeWOandJAR11111111112 JEG-311111211112
were expressed at all stages analyzed by reverse transcrip- tase±polymerase chain reaction (RT±PCR). As expected, the KLF6 gene expression correlated directly with the PSG pattern, further supporting its function as regulator of PSG genes transcription in vivo.
The function assigned for the KLF2/LKLF molecule is also of biological interest for placental development. This molecule is involved in the assembly of the vascular tunica and blood vessel stabilization during development (Kuo et al., 1997), both of which are biological functions also neces- sary for placental vasculogenesis (Cross et al., 1994).
KLF11, also called TIEG-2, was initially identi®ed as a TGFb-inducible immediate-early gene transcription factor (Cook et al., 1998). Taking into account that the TGFb pathway plays an essential role for normal placentation, it is interesting to propose that KLF11 also mediates TGFb signaling in this tissue. Additionally, it was demonstrated
(Kim et al., 1998; Kojima et al., 2000).
Four KLF family members were not detected during the
®rst early steps of pregnancy, namely KLF3/BKLF (Cross- ley et al., 1996), KLF4/GKLF (Shields et al., 1996), KLF7/
UKLF (Matsumoto et al., 1998) and KLF10/TIEG1 (Cook et al. 1998). Nevertheless, the KLF4 expression became detectable and was co-expressed together with KLF6 in the placenta from mid-gestation until parturition. Note that these proteins co activated the human keratin-4 promoter (Okano et al., 2000).
At term, human placenta expressed eight KLFs, with similar expression whether the placenta was obtained by chirurgical cesarean or spontaneous parturition, excluding implications of these KLFs for labor parturition.
As previously described (Chou and Zilberstein, 1990), PSG is expressed in placental villi (Fig. 1C,I). Interestingly, KLF6 was also detected in placental villi (Fig. 1D,F), but was
Fig. 1. Expression of KLF6, KLF4, PSG and PLH on human placental villi at term and in cytotrophoblasts. In situ mRNA detection encoding PSG (C), KLF6 (D) and KLF4 (E) proteins was done on adjacent slides. Immunodetection was performed on adjacent slides of placental villi and on primary cytotrophoblasts isolated from term placenta, for PSG (I,N), KLF6 (F,J,O), KLF4 (G,K,P), and PLH (H,L) proteins, respectively. Incubations with sense riboprobes (B) and primary antibodies free (M) were presented as negative controls. Histological organization of the placental villi at term is presented in (A) using methylene blue coloration. Magni®cation: A±H,£200; I±P,£400. EC, endothelial cells; FBV, fetal blood vessel; MB, maternal blood; PF, placental ®broblasts; PV, placental villi; St, syncytiotrophoblast.
mainly co-expressed with PSG in syncytiotrophoblastic cells (Fig. 1I,J). The same expression pattern was found for KLF4 (Fig. 1E,G,K), strongly supporting the potential involvement of this molecule in concert with KLF6 for the in vivo PSG gene regulation. This hypothesis is further strengthened by the presence of consensus sequence for KLF4/GKLF binding in PSG promoter (Panzetta-Dutari et al., 2000). The KLF6, KLF4 and PSG co-localization was still observed on primary cultures of cytotrophoblasts cells (Fig. 1N±P).
We also analyzed KLF expression in the placental membranes at term where PSG biosynthesis was also reported (Plouzek and Chou, 1991). Expression of PSG mRNA was con®rmed in both, chorionic and amniotic membranes along with seven KLFs transcripts. Interest- ingly, the amnion and chorion membranes, which are from embryonic and extra-embryonic origin, respectively, showed differences in the KLF expression pattern. The amnion and chorion membranes have been implicated in erythropoiesis during pregnancy (Moritz et al., 1997). It is interesting to mention that both KLF2 and 3 share regula-
tory roles during erythropoiesis mainly through the control of globin gene expression (Dang et al., 2000).
KLF6, KLF4 and PSG molecules are also co-expressed in amniotic (Fig. 2C,D,F,G,H and data not shown) as well as in chorionic membranes (Fig. 2K,L and data not shown) at mRNAs and protein levels.
In conclusion, we demonstrate that human KLFs are speci®cally expressed in placenta throughout pregnancy.
The KLF6 and KLF4 are co-expressed with PSG molecules in placenta as well as in villi and membranes stressing their cooperation for PSG gene expression control.
2. Methods
In situ hybridization was performed as already described (Slavin et al. 1999). Primary culture of cytotrophoblasts was realized according to Jacquemin et al. (1998) and character- ized using a speci®c marker, the cytokeratin 7 (Blaschitz et al., 2000). The template cDNAs used to generate PSG,
L. Blanchon et al. / Mechanisms of Development 105 (2001) 185±189 188
Fig. 2. Expression of KLF6, KLF4 and PSG-5 proteins on human placental membranes. Immunodetection of PSG (C,F,K), KLF6 (D,G,L) and KLF4 (H) was performed on human amniotic (A±H) and chorionic (I±L) membranes at term. Primary antibody-free incubations (B,E,J) are presented as negative controls.
Histological organization of the amniotic and chorionic membranes at term is presented in (A±I) using methylene blue coloration. Magni®cations: A±D and I,
£200; E±H and J±L,£400. AE, amniotic epithelium; AM, amniotic mesoderm; CM, chorionic mesoderm; LFS, Langhans ®brinoid stria; SL, spongy layer.
RNA labeling kit SP6/T7, Roche) have been described in Shields et al. (1996) and Koritschoner et al. (1997). The immunohistochemistry experiments were performed as previously described (Sapin et al., 1997) using antibodies against GKLF (M-19), KLF6/Zf9 (R-173, Santa Cruz Biotechnology), PLH (Sigma) and PSG (Dako).
Acknowledgements
We thank the Centre Hospitalo-Universitaire for its ®nan- cial support (PHRC 2000). L.B. is supported by a MERT grant.
References
Anderson, K.P., Kern, C.B., Crable, S.C., Lingrel, J.B., 1995. Isolation of a gene encoding a functional zinc ®nger protein homologous to erythroid Kruppel-like factor: identi®cation of a new multigene family. Mol. Cell.
Biol. 15, 5957±5965.
Blaschitz, A., Weiss, U., Dohr, G., Desoye, G., 2000. Antibody reaction patterns in ®rst trimester placenta: implications for trophoblast isolation and purity screening. Placenta 21, 733±741.
Bocco, J.L., Panzetta, G., Flury, A., Patrito, L.C., 1989. Expression of pregnancy speci®c beta 1-glycoprotein gene in human placenta and hydatiform mole. Biochem. Int. 18, 999±1008.
Chou, J.Y., Zilberstein, M., 1990. Expression of the pregnancy-speci®c beta 1-glycoprotein gene in cultured human trophoblasts. Endocrinology 127, 2127±2135.
Cook, T., Gebelein, B., Mesa, K., Mladek, A., Urrutia, R., 1998. Molecular cloning and characterization of TIEG2 reveals a new subfamily of transforming growth factor-beta-inducibleSp1-like zinc ®nger-encod- ing genes involved in the regulation of cell growth. J. Biol. Chem.
273, 25929±25936.
Cross, J.C., Werb, Z., Fisher, S.J., 1994. Implantation and the placenta: key pieces of the development puzzle. Science 266, 1508±1518.
Crossley, M., Whitelaw, E., Perkins, A., Williams, G., Fujiwara, Y., Orkin, S.H., 1996. Isolation and characterization of the cDNA encoding BKLF/TEF-2, a major CACCC-box-binding protein in erythroid cells and selected other cells. Mol. Cell. Biol. 16, 1695±1705.
Dang, D.T., Pevsner, J., Yang, V.W., 2000. The biology of the mammalian Kruppel-like family of transcription factors. Int. J. Biochem. Cell. Biol.
32, 1103±1121.
Imataka, H., Sogawa, K., Yasumoto, K., Kikuchi, Y., Sasano, K., Kobaya- shi, A., Hayami, M., Fujii-Kuriyama, Y., 1992. Two regulatory proteins that bind to the basic transcription element (BTE), a GC box sequence in the promoter region of the rat P-4501A1 gene. EMBO J. 1, 3663±
3671.
Imhof, A., Schuierer, M., Werner, O., Moser, M., Roth, C., Bauer, R., Buettner, R., 1999. Transcriptional regulation of the AP-2alpha promo- ter by BTEB-1 and AP-2rep, a novel wt-1/egr-related zinc ®nger repres- sor. Mol. Cell. Biol. 19, 194±204.
Jacquemin, P., Sapin, V., Alsat, E., Evain-Brion, D., Dolle, P., Davidson, I., 1998. Differential expression of the TEF family of transcription factors in the murine placenta and during differentiation of primary human trophoblasts in vitro. Dev. Dyn. 212, 423±436.
Kaufmann, P., Burton, G., 1994. Anatomy and genesis of the placenta. In:
Knobil, E., Neil, J.D. (Eds.). The Physiology of Reproduction, 2nd Edition. Raven, New York, pp. 15±75.
Khan, W.N., Teglund, S., Bremer, K., Hammarstrom, S., 1992. The preg- nancy-speci®c glycoprotein family of the immunoglobulin superfamily:
12, 780±787.
Kim, Y., Ratziu, V., Choi, S.G., Lalazar, A., Theiss, G., Dang, Q., Kim, S.J., Friedman, S.L., 1998. Transcriptional activation of transforming growth factor beta1 and its receptors by the Kruppel-like factor Zf9/
core promoter-binding protein and Sp1. Potential mechanisms for auto- crine ®brogenesis in response to injury. J. Biol. Chem. 273, 33750±
33758.
Kojima, S., Hayashi, S., Shimokado, K., Suzuki, Y., Shimada, J., Crippa, M.P., Friedman, S.L., 2000. Transcriptional activation of urokinase by the Kruppel-like factor Zf9/COPEB activates latent TGF-beta1 in vascular endothelial cells. Blood 95, 1309±1316.
Koritschoner, N.P., Panzetta-Dutari, G.M., Bocco, J.L., Dumur, C.I., Flury, A., Patrito, L.C., 1996. Analyses of cis-acting and trans-acting elements that are crucial to sustain pregnancy-speci®c glycoprotein gene expres- sion in different cell types. Eur. J. Biochem. 236, 365±372.
Koritschoner, N.P., Bocco, J.L., Panzetta-Dutari, G.M., Dumur, C.I., Flury, A., Patrito, L.C., 1997. A novel human zinc ®nger protein that interacts with the core promoter element of a TATA box-less gene. J. Biol.
Chem. 272, 9573±9580.
Kuo, C.T., Veselits, M.L., Barton, K.P., Lu, M.M., Clendenin, C., Leiden, J.M., 1997. The LKLF transcription factor is required for normal tunica media formation and blood vessel stabilization during murine embry- ogenesis. Genes Dev. 11, 2996±3006.
Matsumoto, N., Laub, F., Aldabe, R., Zhang, W., Ramirez, F., Yoshida, T., Terada, M., 1998. Cloning the cDNA for a new human zinc ®nger protein de®nes a group of closely related Kruppel-like transcription factors. J. Biol. Chem. 273, 28229±28237.
Miller, I.J., Bieker, J.J., 1993. A novel, erythroid cell-speci®c murine tran- scription factor that binds to the CACCC element and is related to the Kruppel family of nuclear proteins. Mol. Cell. Biol. 13, 2776±2786.
Moritz, K.M., Lim, G.B., Wintour, E.M., 1997. Developmental regulation of erythropoietin and erythropoiesis. Am. J. Physiol. 273, R1829±
R1844.
Okano, J., Opitz, O.G., Nakagawa, H., Jenkins, T.D., Friedman, S.L., Rustgi, A.K., 2000. The Kruppel-like transcriptional factors Zf9 and GKLF coactivate the human keratin 4 promoter and physically interact.
FEBS Lett. 473, 95±100.
Panzetta-Dutari, G.M., Koritschoner, N.P., Bocco, J.L., Nores, R., Dumur, C.I., Patrito, L.C., 2000. Transcription of genes encoding pregnancy- speci®c glycoproteins is regulated by negative promoter-selective elements. Biochem. J. 350, 511±519.
Plouzek, C.A., Chou, J.Y., 1991. Isolation and characterization of a human amnion epithelial cell line that expresses the pregnancy-speci®c beta1- glycoprotein gene. Endocrinology 129, 950±958.
Sapin, V., Dolle, P., Hindelang, C., Kastner, P., Chambon, P., 1997. Defects of the chorioallantoic placenta in mouse RXR alpha null fetuses. Dev.
Biol. 191, 29±41.
Scohy, S., Gabant, P., Van Reeth, T., Hertveldt, V., Dreze, P.L., Van Vooren, P., Riviere, M., Szpirer, J., Szpirer, C., 2000. Identi®cation of KLF13 and KLF14 (SP6), novel members of the SP/XKLF transcrip- tion factor family. Genomics 70, 93±101.
Shields, J.M., Christy, R.J., Yang, V.W., 1996. Identi®cation and charac- terization of a gene encoding a gut-enriched Kruppel-like factor expressed during growth arrest. J. Biol. Chem. 271, 20009±20017.
Slavin, D., Sapin, V., Lopez-Diaz, F., Jacquemin, P., Koritschoner, N., Dastugue, B., Davidson, I., Chatton, B., Bocco, J.L., 1999. The Krup- pel-like core promoter binding protein gene is primarily expressed in placenta during mouse development. Biol. Reprod. 61, 1586±1591.
Streydio, C., Vassart, G., 1990. Expression of human pregnancy speci®c beta 1 glycoprotein (PSG) genes during placental development.
Biochem. Biophys. Res. Commun. 166, 1265±1273.
Turner, J., Crossley, M., 1999. Mammalian Kruppel-like transcription factors: more than just a pretty ®nger. Trends Biochem. Sci. 24, 236±
240.
