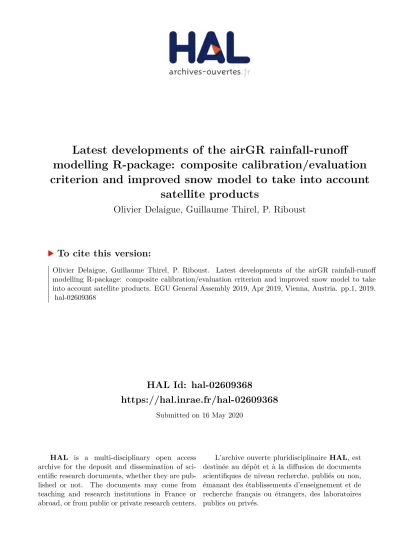

Latest developments of the airGR rainfall-runoff modelling R-package: composite calibration/evaluation criterion and improved snow model to take into account satellite products

(1)

HAL Id: hal-02609368

https://hal.inrae.fr/hal-02609368

Submitted on 16 May 2020

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Latest developments of the airGR rainfall-runoff modelling R-package: composite calibration/evaluation criterion and improved snow model to take into account

satellite products

Olivier Delaigue, Guillaume Thirel, P. Riboust

To cite this version:

Olivier Delaigue, Guillaume Thirel, P. Riboust. Latest developments of the airGR rainfall-runoff modelling R-package: composite calibration/evaluation criterion and improved snow model to take into account satellite products. EGU General Assembly 2019, Apr 2019, Vienna, Austria. pp.1, 2019.

�hal-02609368�

(2)

Latest developments of the airGR rainfall-runoff modelling R-package:

composite calibration/evaluation criterion and improved snow model to take into account satellite products

Olivier Delaigue ¹ , Guillaume Thirel ¹ , Philippe Riboust ^1,2

1

IRSTEA – Hydrology Research Group (HYCAR) – Antony, France

2

Conseil G´en´eral des Hauts-de-Seine – Nanterre, France

air

GR is a family of lumped hydrological models designed for flow simulation at various time steps. The models are freely available in an R package called airGR (Coron et al., 2017, 2019). The models can easily be implemented on a set of catchments with limited data requirements.

GR hydrological models

I Designed with the objective to be as efficient as possible for flow simulation at various time steps (from hourly to interannual)

I Warranted complexity structures and limited data requirements

I Can be applied on a wide range of conditions, including snowy catchments (CemaNeige snow routine included)

Main components of the airGR package Plot diagnostics example (GR4J with CemaNeige)

Pot. evaporation computation (from temp.-based formula)

Optimization algorithm

Calibration/Validation testing procedure Criteria for model calibration and evaluation

Outputs

• Time series of simulated flows and internal state variables

• Efficiency criteria

• Plot diagnostics for simulation

Inputs

• Precipitation and temperature time series

• Streamflow time series

• Catchment size and latitude

• Hypsometric curve (for snow module)

Hydrological models

• GR4H (hourly)

• GR4J, GR5J, GR6J (daily)

• GR2M (monthly)

• GR1A (annual)

Snow model

• CemaNeige

7020

precip. [mm/d]

solid liquid 01/1990 01/1991 01/1992 01/1993 01/1994 01/1995 01/1996 01/1997 01/1998 01/1999

−1001020

temp. [°C]

mean layers

01/1990 01/1991 01/1992 01/1993 01/1994 01/1995 01/1996 01/1997 01/1998 01/1999

04008001200

snow pack [mm]

mean layers

01/1990 01/1991 01/1992 01/1993 01/1994 01/1995 01/1996 01/1997 01/1998 01/1999

0510152025

flow [mm/d]

01/1990 01/1991 01/1992 01/1993 01/1994 01/1995 01/1996 01/1997 01/1998 01/1999 observed simulated

1500

Jan May Sep

0150

30−days rolling mean

precip. & flow regime [mm/month]

0 0.4 0.8

non−exceedance prob. [−]

0.21520

flow [mm/d]

observed simulated

log scale

0.2 1 5 20

0.21520

observed flow [mm/d]

simulated flow [mm/d]

log scale

New features since EGU 2018 – airGR 1.0.5.12 vs airGR 1.2.13.16

I It is now possible to use a composite criterion to calibrate a GR model It can combine different:

. error criteria (NSE, KGE, KGE’)

. variables (flow, snow cover area [SCA], snow water equivalent [SWE]) . variable transformations (raw, square root, logarithm, inverse, sorted) . weights for the different variables

I A version of CemaNeige including a SWE-SCA Linear Hysteresis allows to use satellite SCA for calibration (Riboust et al., 2019)

. A new vignette explains how to use it

Validation performance criteria distributions on SCA and flow using CemaNeige with or without the Linear Hysteresis

● ● ●● ●● ●● ●

●● ● ●

● ● ● ● ● ●●●● ●

● ● ● ●●● ●●●

● ●

● ● ● ● ●●●

●

● ● ● ● ● ● ● ● ● ●● ●

●

● ● ● ●●

●●● ●●● ●● ● ●●

QSCA

0.0 0.5 1.0

Hyst noHyst

Criterion

Using a composite criterion for calibration of the Linear Hysteresis CemaNeige

I Variables needed (note the need for the SCA data)

## DatesR P T E Qls Qmm SCA1 SCA2 SCA3 SCA4 SCA5

## 1 2000-02-25 0 0.7 0.5 19046 0.721 0.228 0.678 0.865 0.935 NA

## 2 2000-02-27 0 0.1 0.4 18218 0.690 0.127 0.562 0.806 0.913 0.959

## 3 2000-02-28 0 -1.0 0.3 18855 0.714 0.158 0.604 0.844 0.932 0.946

## preparation of the InputsModel object

inMod <- CreateInputsModel(FUN_MOD = "RunModel_CemaNeigeGR4J",

DatesR = basinObs$DatesR, Precip = basinObs$P, PotEvap = basinObs$E, TempMean = basinObs$T, ZInputs = median(basinInfo$HypsoData),

HypsoData = basinInfo$HypsoData, NLayers = 5)

## calibration period selection

IndCal <- seq(which(format(basinObs$DatesR, format = "%Y-%m-%d") == "2000-09-01"), which(format(basinObs$DatesR, format = "%Y-%m-%d") == "2005-08-31"))

## preparation of the CalibOptions object

optCal <- CreateCalibOptions(FUN_MOD = "RunModel_CemaNeigeGR4J",

FUN_CALIB = Calibration_Michel, IsHyst = TRUE)

## preparation of the RunOptions object for the calibration period

optRun <- CreateRunOptions(FUN_MOD = "RunModel_CemaNeigeGR4J", InputsModel = inMod, IndPeriod_Run = IndCal, IsHyst = TRUE)

## efficiency criteria: 75 % KGE'(Q) + 5 % KGE'(SCA) on each of the 5 layers inCrit <- CreateInputsCrit(FUN_CRIT = rep("ErrorCrit_KGE2", 6),

InputsModel = inMod, RunOptions = optRun,

Obs = basinObs[IndCal, c("Qmm", "SCA1", "SCA2",

"SCA3", "SCA4", "SCA5")],

VarObs = list("Q", "SCA", "SCA", "SCA", "SCA", "SCA"), Weights = list(0.75, 0.05, 0.05, 0.05, 0.05, 0.05))

## calibration (GR4J with CemaNeige)

outCal <- Calibration(InputsModel = inMod, RunOptions = optRun, InputsCrit = inCrit, CalibOptions = optCal, FUN_MOD = "RunModel_CemaNeigeGR4J",

FUN_CALIB = Calibration_Michel)

Grid-Screening in progress (0% 20% 40% 60% 80% 100%) Screening completed (6561 runs)

Param = 432.681, -0.020, 83.096, 2.384, 0.002, 3.787, 15.000, 0.850 Crit. Composite = 0.8139

Steepest-descent local search in progress

Calibration completed (107 iterations, 8248 runs)

Param = 419.893, 0.517, 275.687, 1.345, 0.632, 3.864, 16.911, 0.472 Crit. Composite = 0.8995

Formula: sum(0.75 * KGE’[Q], 0.05 * KGE’[SCA], 0.05 * KGE’[SCA], 0.05 * KGE’[SCA], 0.05 * KGE’[SCA], 0.05 * KGE’[SCA])

1

I Data preparation

## 1 2000-02-25 0 0.7 0.5 19046 0.721 0.228 0.678 0.865 0.935 NA

## 2 2000-02-27 0 0.1 0.4 18218 0.690 0.127 0.562 0.806 0.913 0.959

## 3 2000-02-28 0 -1.0 0.3 18855 0.714 0.158 0.604 0.844 0.932 0.946

"SCA3", "SCA4", "SCA5")],

1

I Calibration options preparation (note the need for the new IsHyst argument)

## 1 2000-02-25 0 0.7 0.5 19046 0.721 0.228 0.678 0.865 0.935 NA

## 2 2000-02-27 0 0.1 0.4 18218 0.690 0.127 0.562 0.806 0.913 0.959

## 3 2000-02-28 0 -1.0 0.3 18855 0.714 0.158 0.604 0.844 0.932 0.946

"SCA3", "SCA4", "SCA5")],

1

I Composite criterion preparation

## 1 2000-02-25 0 0.7 0.5 19046 0.721 0.228 0.678 0.865 0.935 NA

## 2 2000-02-27 0 0.1 0.4 18218 0.690 0.127 0.562 0.806 0.913 0.959

## 3 2000-02-28 0 -1.0 0.3 18855 0.714 0.158 0.604 0.844 0.932 0.946

"SCA3", "SCA4", "SCA5")],

1

I Model calibration

## 1 2000-02-25 0 0.7 0.5 19046 0.721 0.228 0.678 0.865 0.935 NA

## 2 2000-02-27 0 0.1 0.4 18218 0.690 0.127 0.562 0.806 0.913 0.959

## 3 2000-02-28 0 -1.0 0.3 18855 0.714 0.158 0.604 0.844 0.932 0.946

"SCA3", "SCA4", "SCA5")],

1

airGR websites: get started with the packages or discover advanced uses

I High degree of customization with airGR:

. https://hydrogr.github.io/airGR/

I Simple features to learn hydrology with airGRteaching (Delaigue et al., 2018, 2019):

. https://hydrogr.github.io/airGRteaching/

airGRmaps interface (G´enot & Delaigue, 2019) to get parameter values of GR4J, GR5J or GR6J all over France

Future developments

I airGRmaps: parameter maps on France for GR4J, GR5J & GR6J models for ungauged bassins (Poncelet et al., submitted) available soon through a Shiny interface

I airGRtools: different useful tools like event detection, statistics computations (Base Flow Index, Standardized Streamflow Index), etc.

Download the airGR packages on the Comprehensive R Archive Network

I airGR: https://CRAN.R-project.org/package=airGR/

I airGRteaching: https://CRAN.R-project.org/package=airGRteaching/

References

I Coron L., Delaigue, O., Thirel, G., Perrin C. & Michel C. (2019). airGR: Suite of GR Hydrological Models for Precipitation-Runoff Modelling. R package version 1.2.13.16.

URL: https://CRAN.R-project.org/package=airGR.

I Coron, L., Thirel, G., Delaigue, O., Perrin, C. & Andr´eassian, V. (2017). The suite of lumped GR hydrological models in an R package. Environmental Modelling & Software, 94, 166–171.

DOI: 10.1016/j.envsoft.2017.05.002.

I Delaigue, O., Coron, L. & Brigode, P. (2019). airGRteaching: Teaching Hydrological Modelling with the GR Rainfall-Runoff Models (‘Shiny’ Interface Included). R package version 0.2.6.14.

URL: https://CRAN.R-project.org/package=airGRteaching.

I Delaigue O., Thirel G., Coron L. & Brigode P. (2018). airGR and airGRteaching: Two Open-Source Tools for Rainfall-Runoff Modeling and Teaching Hydrology. In: HIC 2018. 13th International Conference on

Hydroinformatics. EPiC Series in Engineering, 541–548. EasyChair. DOI: 10.29007/qsqj.

I Poncelet, C., Andr´eassian, V., & Oudin, L. (submitted). Regionalization of Hydrological Models by Group Calibration. Water Resources Research.

I Riboust, P., Thirel, G., Le Moine, N. & Ribstein, P. (2019). Revisiting a simple degree-day model for integrating satellite data: implementation of SWE-SCA hystereses. Journal of Hydrology and

Hydrodynamics, 1, 67, 70–81. DOI: 10.2478/johh-2018-0004.

National Research Institute of Science and Technology

for Environment and Agriculture HYDR O

Olivier Delaigue <[email protected]> EGU General Assembly 2019 - 7-12 April 2019 - Vienna (Austria) - EGU2019-4219 | HS2.2.4 airGR Development Team <[email protected]>
