Publisher’s version / Version de l'éditeur:
Vous avez des questions? Nous pouvons vous aider. Pour communiquer directement avec un auteur, consultez la
première page de la revue dans laquelle son article a été publié afin de trouver ses coordonnées. Si vous n’arrivez pas à les repérer, communiquez avec nous à PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca.
Questions? Contact the NRC Publications Archive team at
PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca. If you wish to email the authors directly, please see the first page of the publication for their contact information.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
Internal Report (National Research Council of Canada. Division of Building Research), 1963-07-01
READ THESE TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS WEBSITE.
https://nrc-publications.canada.ca/eng/copyright
NRC Publications Archive Record / Notice des Archives des publications du CNRC :
https://nrc-publications.canada.ca/eng/view/object/?id=0409b881-f21a-4773-ad77-9638c008c8a6 https://publications-cnrc.canada.ca/fra/voir/objet/?id=0409b881-f21a-4773-ad77-9638c008c8a6
NRC Publications Archive
Archives des publications du CNRC
For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.
https://doi.org/10.4224/20337991
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at Decay of masonry mortar due to sulphate salts
NATIONAL RESEARCH COUNCIL CANADA
D I V I S I O N O F B U I L D I N G RESEARCH
DECAY O F hlASONRY MORTAR DUE T O SULPHATE S A L T S
by T. R i t c h i e I n t e r n a l R e p o r t No. 276 of t h e D i v i s i o n of B u i l d i n g R e s e a r c h O t t a w a J u l y 1963
PREFACE
The s t u d y of t h e d u r a b i l i t y of b u i l d i n g m a t e r i a l s and components i s most i m p o r t a n t b u t a l s o most d i f f i c u l t . The d i f f i c u l t y a r i s e s n o t o n l y because of t h e v a r i e d and
sometimes complex ways i n which t h e environmental o r exposure f a c t o r s may i n t e r a c t w i t h t h e m a t e r i a l s t o cause changes i n d e s i r a b l e p r o p e r t i e s , b u t a l s o because t h e time o v e r which such e f f e c t s a r e of ooncern i s t h e u s e f u l o r s e r v i c e l i f e of t h e m a t e r i a l .
Long-time exposure of m a t e r i a l s i n a c t u a l s e r v i c e o r i n t e s t arrangements s p e c i a l l y d e v i s e d f o r t h e purpose i s t h e r e f o r e a d e s i r a b l e f e a t u r e of many d u r a b i l i t y s t u d i e s . A
number of b r i c k masonry p i e r s were c o n s t r u c t e d f o r long-time outdoor exposure t e s t s a s p a r t of t h e D i v i s i o n ' s program of masonry s t u d i e s . Some of them, a f t e r o n l y 3 y e a r s of
exposure, have developed a n i n t e r e s t i n g form of m o r t a r d e t e r i o r a t i o n which i s now d e s c r i b e d and d i s c u s s e d .
The a u t h o r , a r e s e a r c h o f f i c e r w i t h t h e I n o r g a n i c B u i l d i n g M a t e r i a l s S e c t i o n , i s i n charge of b r i c k masonry
s t u d i e s ,
Ottawa
DECAY OF MASONRY MORTAR DUE TO SULPHATE SALTS
T. R i t c h i e
S e v e r a l brickwork p i e r s were e r e c t e d a t t h e
D i v i s i o n ' s exposure s i t e i n Ottawa i n 1959. F l a k i n g of t h e m o r t a r from t h e j o i n t s of one of t h e p i e r s was observed s h o r t l y a f t e r th;! p i e r was c o n s t r u c t e i . Three y e a r s l a t e r t h e t r o u b l e had p r o g r e s s e d from s l i g h t s u r f a c e s p a l l i n g of t h e m o r t a r t o s e v e r e c r a c k i n g of t h e j o i n t s . llhe same-
m o r t a r was used i n a p i e r b u i l t of a d i f f e r e n t b r i c k b u t it
h a s n o t s u f f e r e d decay, and i t s perforinance i s c o n s i d e r e d s a t i s f a c t o r s . A s t u d s of t h e m a t e r i a l s used. and r e f e r e n c e t o l i t e r a t u i - e on c e r t a i n f a c t o r s a f f e c t i n g t h e d u r a b i l i t y of masonry m a t e r i a l s i n d i c a t e d t h a t -the decay of t h e m o r t a r was caused by t h e m i g r a t i o n of s u l p h a t e s a l t s from t h e b r i c k i n t o t h e - m o r t a r &here t h e i r subsequent c r y s t a l l i z a t i o n e x e r t e d s u f f i c i e n t p r e s s u r e t o cause decay of t h e mortar. PIERS
The p i e r s were e r e c t e d t o s t u d y t h e i n f l u e n c e of t h e p r o p e r t i e s of t h e m a t e r i a l s , and of o t h e r f a c t o r s , on t h e occurrence of e f f l o r e s c e n c e . They were c o n s t r u c t e d of s o l i d brickwork a b o u t 34 i n . wide, 52 i n , h i g h and 12 i n . t h i c k .
A s h e e t of copper f o i l was placed t h r o u g h t h e p i e r , a b o u t 1 2 i n . from t h e b a s e , t o p r e v e n t t h e r i s e of ground w a t e r i n t o t h e brickwork; t h e t o p of t h e briclrwork was covered by copper f o i l on which a c o n c r e t e c a p was s e t .
Two k i n d s of b r i c k s and t h r e e m o r t a r s were used. One of t h e b r i c k s had been made by t h e d r y - p r e s s method, t h e o t h e r by extl-usion. The e x t r u d e d b r i c k was on t h e a v e r a g e lower i n r a t e and amount of w a t e r a b s o r p t i o n and had h i g h e r compressive s t r e n g t h t h a n t h e d r y - p r e s s b r i c k . The p r o p e r t i e s of t h e b r i c k s a r e g i v e n i n Table I. F i f t e e n b r i c k s of each kind were t e s t e d f o r w a t e r a b s o r p t i o n p r o p e r t i e s and f i v e f o r compressive s t r e n g t h ; t h e range i n v a l u e s o b t a i n e d from t h e samples i s l i s t e d i n Table I. Mortars of t h r e e compositions were used: t h e f i r s t was prepared from lime and sand: t h e
-
Asecond from cement, lime and sand; and t h e t h i r d from masonry cement and sand. The s e v e r e c r a c k i n g of m o r t a r j o i n t s d e s c r i b e d p r e v i o u s l y h a s t a k e n p l a c e o n l y i n one of t h e p i e r s of t h e
1ime:sand m o r t a r ; t h e o t h e r p i e r of t h e same m o r t a r b u t d i f f e r e n t b r i c k h a s n o t s u f f e r e d from decay of t h e m o r t a r , PERFORnIANCE OF THE PIERS
The p i e r of t h e d r y - p r e s s b r i c k and 1ime:sand m o r t a r was e r e c t e d on 6 October 1959, while t h a t of t h e
extruded b r i c k and t h e same mortar was e r e c t e d on 14 October. When t h e p i e r s were examined i n Deceinber 1959, it was observed
t h a t f l a k e s of mortar were coming from t h e j o i n t s of t h e p i e r of d r y - p r e s s b r i c k s and t h a t t h e mortar of t h i s p i e r was s o f t i n many p l a c e s and could e a s i l y be scraped w i t h a k n i f e . The mortar of t h e p i e r of t h e extruded b r i c k , however, appeared t o be q u i t e hard and s t r o n g . The s p a l l i n g of t h e mortar j o i n t s of t h e p i e r of dry-press b r i c k s was a g a i n noted i n t h e w i n t e r of 1960-61, b u t it was n o t u n t i l t h e f o l l o ~ i i n g w i n t e r t h a t c r a c k s were observed i n t h e j o i n t s . B y June 1962
( l e s s t h a n t h r e e y e a r s a f t e r t h e p i e r had been c o n s t r u c t e d ) , t h e mortar j o i n t s had become s e v e r e l y cracked. The p i e r o f
t h e extruded b r i c k , however, continued t o perform s a t i s f a c t o r i l y i n t h e same p e r i o d of t i m e , and when examined i n June 1962 t h e r e was no evidence of decay o r d i s t r e s s i n t h e mortar of t h a t p i e r .
The s l i g h t s p a l l i n g of t h e s u r f a c e of t h e mortar o f t h e p i e r of d r y - p r e s s b r i c k s which occurred a t a n e a r l y age i s shown i n t h e photograph of Figure 1. I t s c o n d i t i o n a t a l a t e r age when s e v e r e c r a c k i n g had developed i s shown i n t h e photographs of Figure 2 which were t a k e n i n June 1362. I t i s e v i d e n t t h a t t h e mortar around almost a l l of t h e b r i c k s i n t h e p i e r i s cracked, and t h a t t h e c r a c k i n g has occurred i n a n unusual p a t t e r n . ' k e e x t e n t of t h e l o s s of m o r t a r from t h e s u r f a c e of t h e j o i n t s because of t h e s p a l l i n g a c t i o n i s e v i d e n t from a comparison of F i g u r e s 1 and 2.
The p i e r of t h e extruded b r i c k and lime m o r t a r i s shown i n Figure 3 which was taken i n June 1962. The c o n d i t i o n of t h i s p i e r i s considered good, w i t h no i n d i c a t i o n of t h e s p a l l i n g and c r a c k i n g t h a t a f f e c t e d t h e p i e r of d r y - p r e s s
b r i c k s . The mortar j o i n t s have r e t a i n e d t h e o r i g i n a l concave- t o o l e d s u r f a c e s , a s sho~vn i n t h e c l o s e - u p photograph.
CAUSE OF MORTAR DECAY
The n a t u r e of t h e mortar decay suggested f r o s t
a c t i o n a s t h e cause of f a i l u r e b u t t h i s was r u l e d o u t because of t h e s a t i s f a c t o r y performance of t h e o t h e r p i e r of t h e same mortar. I f f r o s t a c t i o n had been t h e c a u s e , b o t h p i e r s would have been s i m i l a r l y a f f e c t e d ; i n f a c t , t h e p i e r of extruded b r i c k s should hsve been a f f e c t e d f i r s t , because it was b u i l t a t a l a t e r d a t e when t h e weather had t u r n e d c o l d e r . The p i e r of extruded b r i c k s was e r e c t e d 8 days a f t e r t h e p i e r of d r y - p r e s s b r i c k s and t h e d a t e of e r e c t i o n of t h e former p i e r coincided w i t h t h e f i r s t below-freezing temperature of t h e season (14 October: 26OF).
Another cause of decay of masonry m a t e r i a l s b e s i d e s f r o s t a c t i o n i s t h e c r y s t a l l i z a t i o n of s a l t s w i t h i n them, t h e mechanical f o r c e e x e r t e d by t h e c r y s t a l s a s t h e y form
b e i n g s u f f i c i e n t t o d i s r u p t t h e m a t e r i a l s . S e v e r a l c a s e s o f d i s i n t e g r a t i o n of masonry from t h i s c a u s e have b e e n r e p o r t e d . A g e n e r a l d i s c u s s i o n of t h e problem h a s been p r e s e n t e d by Anderegg (1). A p a r t i c u l a r c a s e of s p a l l i n g of b r i c k s i n t h e w a l l of a b u i l d i n g c a u s e d by t h e c r y s t a l l i z a t i o n of c a l c i u m s u l p h a t e h a s been r e p o r t e d by H a r d e s t y ( 2 ) . S i m i l a r damage t o b r i c k s h a s been d e s c r i b e d by B u t t e r w o r t h ( 3 ) ; h e found t h a t magnesium s u l p h a t e o r c a l c i u m s u l p h a t e c o u l d c a u s e s p a l l i n g and d e c a y i f p r e s e n t i n b r i c k s i n s u f f i c i e n t q u a n t i t y . Damage t o m o r t a r by a s a l t c r y s t a l l i z a t i o n p r o c e s s was a l s o d e s c r i b e d by B u t t e r w o r t h ( 3 ) . The damage was a t t r i - b u t e d t o t h e a c t i o n of s o l u t i o n s of c a l c i u m s u l p h a t e i n t h e brickwork which a t t a c k p o r t l a n d cement p r o d u c t s i n t h e m o r t a r ; h y d r a t e d c a l c i u m a l u m i n a t e s a r e t h e r e b y c o n v e r t e d t o c a l c i u m s u l p h o - a l u m i n a t e , t h e change b e i n g accompanied b y c o n s i d e r a b l e e x p a n s i o n which c a u s e s d i s r u p t i o n of t h e m o r t a r . D i s i n t e g r a - t i o n of m o r t a r h a s been a t t r i b u t e d by Connor ( 4 ) t o e f f l o r e s c e n c e c o n t a i n i n g sodium and potassium s u l p h a t e s . H i s s t u d i e s
i n v o l v e d many b u i l d i n g s i n which t h e s u r f a c e of t h e m o r t a r had p r o g r e s s i v e l y s p a l l e d away, p r o d u c i n g deep p i t s i n t h e m o r t a r , t h e a c t i o n r e s u l t i n g from t h e c r y s t a l l i z a t i o n of
s a l t s n e a r t h e s u r f a c e .
It seems c l e a r from t h e s e few r e f e r e n c e s t h a t t h e d e c a y i n t h e m o r t a r of t h e p i e r c a n be e x p l a i n e d by s a l t c r y s t a l l i z a t i o n . A s w i l l be shown t h e b r i c k s used i n t h e p i e r which l a t e r s u f f e r e d from m o r t a r d e c a y c o n t a i n e d con- s i d e r a b l y more s o l u b l e s a l t s t h a n t h o s e i n t h e p i e r of sound m o r t a r , and i n a d d i t i o n , t h e decayed m o r t a r was much h i g h e r i n s u l p h a t e s a l t s t h a n t h e sound m o r t a r . It was t h o u g h t , t h e r e f o r e , t h a t t h e decay of t h e m o r t a r was due t o t h e
m i g r a t i o n of s u l p h a t e s a l t s from t h e b r i c k i n t o t h e m o r t a r , where t h e i r r e c r y s t a l l i z a t i o n caused d i s r u p t i o n of t h e m o r t a r .
SALTS I N BRICIGS
Before t h e p i e r s were c o n s t r u c t e d , t e s t s had been made of t h e v a r i o u s p h y s i c a l p r o p e r t i e s of t h e b r i c k s ; t h e
r e s u l t s a r e g i v e n in Table I. I n a d d i t i o n , a t e s t f o r e f f l o r e s - cence was made u s i n g t h e ASTM method i n which a b r i c k i s
p l a c e d f o r s e v e n days i n a pan c o n t a i n i n g d i s t i l l e d w a t e r 1
i n .
i n d e p t h . l//ater moves t h r o u g h t h e b r i c k and d i s s o l v e s s a l t s i n t h e b r i c k which a r e d e p o s i t e d on t h e s u r f a c e when t h e w a t e r e v a p o r a t e s . I n t h i s t e s t t h e d r y - p r e s s b r i c k s were h e a v i l y marked by s a l t d e p o s i t s b u t t h e e x t r u d e d b r i c k s were o n l y
s l i g h t l y a f f e o t e d . The samples t e s t e d a r e shown i n F i g u r e 4. The f i v e b r i c k s on t h e l e f t s i d e of e a c h row a r e t h o s e which were p l a c e d i n d i s t i l l e d w a t e r f o r s e v e n d a y s , t h e n d r i e d . The f i v e b r i c k s on t h e r i g h t s i d e of e a c h row a r e " c o n t r o l t ' b r i c k s which were d r i e d w i t h o u t t h e w e t t i n g t h a t t h e o t h e r
b r i c k s had received. T h i s t e s t c l e a r l y showed t h a t t h e dry- p r e s s b r i c k s had a much h i g h e r c o n t e n t of s o l u b l e s a l t s t h a n t h e extruded b r i c k s . Prom t h e work of o t h e r s on s o l u b l e
s a l t s i n b r i c k s it was considered probable t h a t s u l p h a t e s a l t s formed t h e e f f l o r e s c e n c e . A chemical a n a l y s i s of samples of t h e b r i c k s showed t h a t ' t h e d r y - p r e s s b r i c k con- t a i n e d 1 p e r c e n t SO4 while t h e extruded b r i c k contained
l e s s t h a n 0.05 p e r c e n t . !The compound formed by t h e s u l p h a t e was n o t determined.
SALTS
IE
MOR!PARThe lime f o r t h e mortar was hydrated lime which was soaked i n w a t e r o v e r n i g h t before b e i n g used. Although no chemical a n a l y s i s was made of t h e p a r t i c u l a r lime used i n c o n s t r u c t i n g t h e p i e r s , a n a n a l y s i s had been made of lime
obtained from t h e same source f o r previous work. This a n a l y s i s shovied t h a t t h e r e was no s u l p h a t e i n t h e l i m e , and t h a t v e r y small amounts of sodium and potassium were p r e s e n t ( 0 . 0 1 p e r c e n t a s potassium oxide and 0.02 p e r c e n t a s sodium o x i d e ) .
The a b i l i t y of s a l t s i n t h e d r y - p r e s s b r i c k s t o
migrate i n t o t h e mortar was i n d i c a t e d by t h e chemical a n a l y s i s of t h e mortar. I n June 1962, samples were t a k e n of decayed mortar from t h e p i e r of t h e d r y - p r e s s b r i c k and of a p p a r e n t l y sound mortzr from t h e p i e r of t h e extruded b r i c k . The chemical a n a l y s i s of t h e samples (Table 11) shows t h a t t h e r e was a con- s i d e r a b l y h i g h e r c o n t e n t of s u l p h a t e s a l t s i n t h e decayed mortar t h a n i n t h e sound mortar. X-ray a n a l y s i s was made of t h e sound and decayed mortars b u t d i d n o t y i e l d t h e i d e n t i t y of t h e
s u l p h a t e compound, n o r could it be l e a r n e d from d i f f e r e n t i a l thermal a n a l y s i s a l t h o u g h t h e l a t t e r i n d i c a t e d t h a t t h e
decayed mortar, and n o t t h e sound mortar, l o s t w a t e r on h e a t i n g t o a low temperature.
PERFORMANCE OF OTHER PIERS

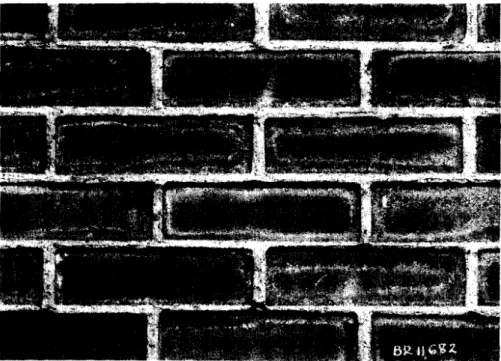

H e r s made of t h e d r y - p r e s s b r i c k w i t h cement:lirne mortar and w i t h masonry cement mortar have n o t s u f f e r e d t h e s e v e r e c r a c k i n g of t h e mortar which occurred i n t h e p i e r of lime mortar. S p a l l i n g of t h e s u r f a c e of t h e mortar j o i n t s h a s occurred i n b o t h p i e r s , b u t t o a g r e a t e r degree w i t h t h e
cement:lime t h a n w i t h t h e masonry cement mortar. I n a d d i t i o n , some c r a c k i n g i n t h e m o r t a r j o i n t s of t h e p i e r of cement:lime mortar h a s developed, a s shown i n Figure 5. The p i e r s of b o t h t h e cement:lime and t h e masonry cement m o r t a r s have, from time t o time, been h e a v i l y marked by e f f l o r e s c e n c e (mainly sodium and potassium s u l p h a t e ) ; t h e p i e r of lime mortar was much l e s s marked by e f f l o r e s c e n c e .
P i e r s of t h e extruded b r i c k and t h e cement:lime and masonry cement mortars were l e s s a f f e c t e d t h a n t h e p i e r s of t h e d r y - p r e s s b r i c k by s p a l l i n g of t h e mortar. I n
a d d i t i o n , t h e p i e r s of t h e extruded b r i c k have been much l e s s marked by e f f l o r e s c e n c e t h a n t h o s e of t h e d r y - p r e s s b r i c k .
A chemical a n a l y s i s was made t o determine t h e s u l p h a t e c o n t e n t of mortar t a k e n from t h e p i e r s of t h e dry- p r e s s and extruded b r i c k s . Both t h e cement:lime and t h e masonry cement mortars contained p o r t l a n d cement, which
i t s e l f normally c o n t a i n s a c e r t a i n amount of calcium s u l p h a t e and o t h e r s u l p h a t e compouhds. I t i s n o t p o s s i b l e , t h e r e f o r e , t o determine, from t h e chemical a n a l y s i s of t h e s e m o r t a r s , t h e amount of s u l p h a t e s a l t s which may have migrated from t h e b r i c k t o t h e m o r t a r , because some s u l p h a t e would have been
p r e s e n t o r i g i n a l l y i n t h e mortar i t s e l f . The s u l p h a t e c o n t e n t s of t h e mortars, shown i n Table 111, c l e a r l y i n d i c a t e , however, a much h i g h e r c o n c e n t r a t i o n of s u l p h a t e i n m o r t a r used w i t h t h e d r y - p r e s s b r i c k t h a n i n t h e same mortar used w i t h t h e extruded b r i c k , i n d i c a t i n g a m i g r a t i o n of s u l p h a t e s a l t s from t h e d r y - p r e s s b r i c k t o t h e mortar.
Although t h e cement:lime m o r t a r of t h e p i e r of d r y - p r e s s b r i c k was h i g h e r i n s u l p h a t e t h a n t h e lime mortar of t h e p i e r of t h e same b r i c k , t h e former m o r t a r d i d n o t s u f f e r decay t o t h e same e x t e n t . S e v e r a l r e a s o n s may be advanced
f o r t h e g r e a t e r s u s c e p t i b i l i t y of t h e lime m o r t a r t o s p a l l i n g and c r a c k i n g . It may be more permeable, t h e r e b y a l l o w i n g
more r e a d i l y t h e movement of s u l p h a t e s o l u t i o n s from t h e b r i c k i n t o t h e mortar and from p l a c e t o place i n t h e mortar. I t undoubtedly h a s lower s t r e n g t h , and t h e r e f o r e would be l e s s a b l e t o r e s i s t t h e i n t e r n a l p r e s s u r e caused by s a l t c r y s t a l l i z a - t i o n w i t h i n it. The p o r o s i t y and pore s i z e s and shapes of
t h e lime mortar a r e probably d i f f e r e n t from t h o s e of t h e o t h e r m o r t a r s , which may have a n e f f e c t on t h e p r e s s u r e developed i n t h e s a l t c r y s t a l l i z a t i o n process.
CONCLUSIONS
The decay of t h e 1ime:sand m o r t a r of a brickwork p i e r , which progressed i n t h r e e y e a r s from s l i g h t s u r f a c e s p a l l i n g t o s e v e r e c r a c k i n g of t h e m o r t a r i s b e l i e v e d t o have been caused by t h e m i g r a t i o n of s u l p h a t e s a l t s from t h e b r i c k i n t o t h e m o r t a r where t h e i r c r y s t a l l i z a t i o n caused d i s r u p t i o n of t h e mortar. Another p i e r of t h e same m o r t a r b u t of a b r i c k much lower i n s u l p h a t e s a l t s h a s n o t s u f f e r e d t h i s damage. The decayed mortar was much h i g h e r i n s u l p h a t e s a l t s t h a n t h e sound mortar from t h e o t h e r p i e r . S e v e r a l a r t i c l e s i n t h e l i t e r a t u r e have been c i t e d which d e s c r i b e t h e f a i l u r e of
masonry m a t e r i a l s by t h e p r o c e s s of s a l t c r y s t a l l i z a t i o n t o which t h e p r e s e n t f a i l u r e i s a t t r i b u t e d . S p a l l i n g of cement:
l i m e and masonry cement m o r t a r s h a s a l s o b e e n o b s e r v e d a n d i s a p p a r e n t l y a s s o c i a t e d w i t h s u l p h a t e i n t h e m o r t a r . Cement: l i m e and masonry cement m o r t a r s , however, a p p e a r t o b e l e s s s u s c e p t i b l e t h a n l i m e m o r t a r t o d e c a y from s u l p h a t e s a l t s , p r o b a b l y b e c a u s e o f t h e i r g r e a t e r s t r e n g t h a n d g r e a t e r r e s i s t a n c e t o m i g r a t i o n of s a l t s o l u t i o n s . ACKNOWLEDGMENTS The a u t h o r w i s h e s t o t h a n k E. C . Goodhue o f t h e D i v i s i o n of A p p l i e d Chemistry f o r making t h e c h e m i c a l a n a l y s e s and J. E. G i l l o t t of t h e D i v i s i o n of B u i l d i n g R e s e a r c h f o r making X-ray and D.T.A. s t u d i e s .
REFERENCES
1. Anderegg, F. 0. H f l o r e s c e n c e . B u l l . No. 1 8 5 , Amer. Soc. T e s t . M a t s . , O c t o b e r 1952.
2, H a r d e s t y , J , M. D i s i n t e g r a t i o n o f f a c e b r i o k b y d i s s o l v e d s a l t s . B e l l L a b o r a t o r i e s Record, Vol. 2 2 , No. 5 , J a n u a r y 1944.
3. B u t t e r w o r t h , B, Some e f f e c t s of s o l u b l e s a l t s i n c l a y p r o d u c t s . T r a n s a c t i o n s of t h e B r i t i s h Ceramic S o c i e t y , Vol. 3 6 , 1937.
4. Connor, C. C. and W. E. Okerson. Recent d i s i n t e g r a t i o n of m o r t a r i n b r i c k w a l l s . Proc. Amer. Soc. T e s t . Mats., Vol. 57, 1957.
TABLE I
PROPERTIES OF THE BRICKS
- T A B U I1 ANALYSIS OF MORTAR P r o p e r t y I n i t i a l r a t e of a b s o r p t i o n (gm/30 sq i n . Water a b s o r p t i o n (%) (24-hr immersion) Water a b s o r p t i o n ( % )
( 5
h r b o i l ) S a t u r a t i o n c o e f f i c i e n t Compressive s t r e n g t h ( p s i ) Dry-press B r i c k (range i n v a l u e ) 46.2-
87.1 6.1-
8.3 7.3-
10.5 0.75-
0.84 3310-
6150 Component C a Mg s04 C02 NaK
Extruded B r i c k ( r a n g e i n v a l u e ) 31.1-
55.4
6.1-
6.9 7.6 - 1 0 . 0 0.75-
0.86 6460-
10,830Sound Mortar From P i e r o f Extruded B r i c k , $ 8.75
1 - 7 9
(0.05 10.6 0.04 0.04 + Decayed Mortar Prom P i e rof Dry-press B r i c k ,
%
8.71
1.70 0.83 11.3 0.08 0.08TABLE I11
SULPHATE CONTENT O F CENENT:LIN[E AND MASONRY
CEMENT MOR'PARS Mortar Used in Pier 1:1:6 (cement:lime:sand) 1:3 (masonry cement:sand) 1:1:6 (cement:lime:sand) 1:3 (masonry cement:sand) Brick Used in Pier dry-press dry-press extruded extruded
%
So4 in Mortar 1.14 0.66 0.26 0.29Figure 1. S c a l i n g o f mortar surface a t an e a r l y age (dry-press b r i c k s and lime : sand mortar )
.
F i g u r e 2 . Cracking o f mortar j o i n t s ; p i e r o f d r y - p r e s s b r i c k s and 1 i m e : s a n d mortar.
Figure 3. Sound mortar joints; pier of extruded b r i c k s and 1ime:sand
mortar.
Figure 4. Efflorescence t e s t of t h e b r i c k s . Top row: extruded b r i c k s
Bottom row: dry-press b r i c k s
The f i v e b r i c k s on t h e l e f t of each row were placed i n 1 i n . of d i s t i l l e d water f o r
7
days t h e n d r i e d . The f i v e b r i c k s on t h e r i g h t a r e " c o n t r o l n samples which were d r i e d without previous wetting.Figure
