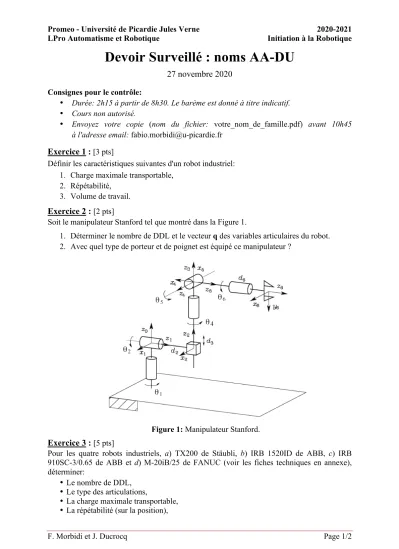

Promeo - Université de Picardie Jules Verne 2020-2021 LPro Automatisme et Robotique Initiation à la Robotique
F. Morbidi et J. Ducrocq Page 1/2
Devoir Surveillé : noms AA-DU
27 novembre 2020 Consignes pour le contrôle:
• Durée: 2h15 à partir de 8h30. Le barème est donné à titre indicatif.
• Cours non autorisé.
• Envoyez votre copie (nom du fichier: votre_nom_de_famille.pdf) avant 10h45 à l'adresse email: fabio.morbidi@u-picardie.fr
Exercice 1 : [3 pts]
Définir les caractéristiques suivantes d'un robot industriel:
1. Charge maximale transportable, 2. Répétabilité,
3. Volume de travail.
Exercice 2 : [2 pts]
Soit le manipulateur Stanford tel que montré dans la Figure 1.
1. Déterminer le nombre de DDL et le vecteur q des variables articulaires du robot.
2. Avec quel type de porteur et de poignet est équipé ce manipulateur ?
Figure 1: Manipulateur Stanford.
Exercice 3 : [5 pts]
Pour les quatre robots industriels, a) TX200 de Stäubli, b) IRB 1520ID de ABB, c) IRB 910SC-3/0.65 de ABB et d) M-20iB/25 de FANUC (voir les fiches techniques en annexe), déterminer:
• Le nombre de DDL,
• Le type des articulations,
• La charge maximale transportable,
• La répétabilité (sur la position),
Promeo - Université de Picardie Jules Verne 2020-2021 LPro Automatisme et Robotique Initiation à la Robotique
F. Morbidi et J. Ducrocq Page 2/2
• La masse du robot,
• Le rayon d'action,
• Les bornes des axes 2 et 3,
• La vitesse maximale des trois premiers axes,
• L'utilisation type.
En sachant que les produits à manipuler sont des para-brises en verre feuilleté de 6 kg, quel est le robot le plus adapté à une tâche de palettisation ?
Exercice 4 : [3 pts]
1. Décrire les fonctionnalités principales qu'on trouve dans le boîtier d'apprentissage d'un robot Stäubli à 6 axes. Illustrer, en particulier, les modes manuels "joint", "frame"
et "tool".
2. Expliquer les fonctions de mouvement suivantes pour un robot Stäubli à 6 axes:
• movel(point location, tOutil, mDesc),
• movec(pIntermédiaire, pCible, tOutil, mDesc).
3. Qu'est-ce que le language VAL3 ? Quelles sont les fonctionnalités de la Stäubli Robotics Suite ?
Exercice 5 : [3 pts]
1. Quels sont les éléments constitutifs du système d'actionnement de l'articulation d'un robot industriel ?
2. Définir les notions d'exactitude et de precision d'un capteur.
3. Pour chacun des capteurs suivants, indiquer s'il s'agit d'un capteur proprioceptif ou extéroceptif et actif ou passif: a) encodeur rotatif optique, b) capteur temps-de-vol, c) caméra industrielle, d) télémètre laser, e) capteur d'effort, f ) accéléromètre.
Exercice 6 : [4 pts]
Soit le robot planaire à 3 DDL (RRR) montré dans la Figure 2.
1. Fixer les repères et écrire le tableau des paramètres de Denavit-Hartenberg du robot.
2. Les coordonnées du point P dans le repère {x
3, y
3, z
3} sont p
3= [2, 2, 0]
T(mètres).
Déterminer les coordonnées du même point dans le repère {x
0, y
0, z
0} de la base.
3.
Est-ce que le repère {x
3, y
3, z
3} coïncide avec le repère de la pince ?
Figure 2 : Robot planaire à 3 DDL.
