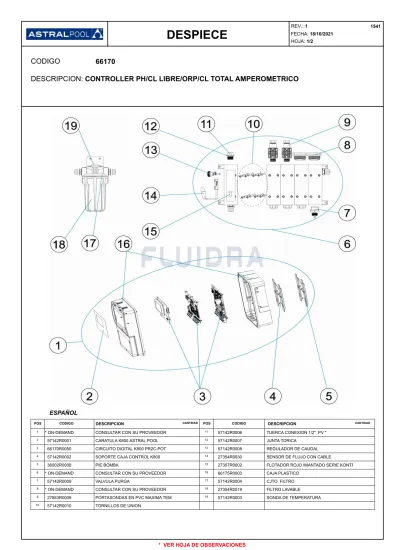

DESPIECE CODIGO DESCRIPCION: CONTROLLER PH/CL LIBRE/ORP/CL TOTAL AMPEROMETRICO ESPAÑOL * VER HOJA DE OBSERVACIONES

(1)

DESPIECE

^{REV.: 1}FECHA: 18/10/2021 ¹⁵⁴¹ HOJA: 1/2

CODIGO 66170

DESCRIPCION: CONTROLLER PH/CL LIBRE/ORP/CL TOTAL AMPEROMETRICO

ESPAÑOL

POS CODIGO DESCRIPCION ^CANTIDAD POS CODIGO DESCRIPCION ^CANTIDAD

1 * ON-DEMAND CONSULTAR CON SU PROVEEDOR ¹¹ 57142R0006 TUERCA CONEXION 1/2" PV "

2 57142R0001 CARATULA K800 ASTRAL POOL ¹² 57142R0007 JUNTA TORICA

3 66170R0050 CIRCUITO DIGITAL K800 PR2C-POT ¹³ 57142R0008 REGULADOR DE CAUDAL

4 57142R0002 SOPORTE CAJA CONTROL K800 ¹⁴ 27354R0030 SENSOR DE FLUJO CON CABLE

5 36002R0008 PIE BOMBA ¹⁵ 27357R0002 FLOTADOR ROJO IMANTADO SERIE KONTROL

6 * ON-DEMAND CONSULTAR CON SU PROVEEDOR ¹⁶ 66175R0003 CAJA PLASTICO

7 57142R0009 VALVULA PURGA ¹⁷ 57142R0004 CJTO. FILTRO

8 * ON-DEMAND CONSULTAR CON SU PROVEEDOR ¹⁸ 27354R0019 FILTRO LAVABLE

9 27883R0009 PORTASONDAS EN PVC MAXIMA TEM ¹⁹ 57142R0003 SONDA DE TEMPERATURA

10 57142R0010 TORNILLOS DE UNION

* VER HOJA DE OBSERVACIONES

(2)

DESPIECE

^{REV.: 1}FECHA: 18/10/2021 ¹⁵⁴¹ HOJA: 2/2

CODIGO 66170

DESCRIPCION: CONTROLLER PH/CL LIBRE/ORP/CL TOTAL AMPEROMETRICO

OBSERVACIONES

OBSERVACIONES CODIGO

POS

PARA: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

PARA: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

PARA: PLASTIC NUT PROBE 8 * ON-DEMAND

(3)

ÉCLATÉ

^{REV.: 1}DATE: 18/10/2021 ¹⁵⁴¹ PAG.: 1/2

CODE 66170

DESCRIPTION: PANNEAU DE COMMANDE PH/CHLORE LIBRE/ORP/CL TOTAL APEROMET

FRANCAIS

POS CODE DESCRIPTION ^QUANTITE POS CODE DESCRIPTION ^QUANTITE

1 * ON-DEMAND CONSULTEZ VOTRE FOURNISSEUR ¹¹ 57142R0006 ÉCROU CONNEXION 1/2' PVC

2 57142R0001 CACHE K800 ASTRAL POOL ¹² 57142R0007 JOINT TORIQUE

3 66170R0050 CIRCUIT DIGITAL K800 PR2C-POT ¹³ 57142R0008 RÉGULATEUR DE DÉBIT

4 57142R0002 SUPPORT BOÎTIER DE COMMANDE K800 ¹⁴ 27354R0030 CAPTEUR DE DÉBIT AVEC CÂBLE

5 36002R0008 BASE POMPE ¹⁵ 27357R0002 FLOTTEUR ROUGE AIMANTÉ SÉRIE KONTROL

6 * ON-DEMAND CONSULTEZ VOTRE FOURNISSEUR ¹⁶ 66175R0003 CAJA PLASTICO

7 57142R0009 VANNE DE PURGE ¹⁷ 57142R0004 ENS. FILTRE

8 * ON-DEMAND CONSULTEZ VOTRE FOURNISSEUR ¹⁸ 27354R0019 FILTRE LAVABLE

9 27883R0009 SUPPORT ELECTRODE ¹⁹ 57142R0003 SONDE DE TEMPÉRATURE

10 57142R0010 VIS DE FIXATION

* VOIR FICHE D'OBSERVATIONS

(4)

ÉCLATÉ

^{REV.: 1}DATE: 18/10/2021 ¹⁵⁴¹ PAG.: 2/2

CODE 66170

DESCRIPTION: PANNEAU DE COMMANDE PH/CHLORE LIBRE/ORP/CL TOTAL APEROMET

OBSERVATIONS

OBSERVATIONS CODE

POS

POUR: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

POUR: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

POUR: PLASTIC NUT PROBE 8 * ON-DEMAND

(5)

PARTS BREAKDOWN

^{REV.: 1}DATE: 18/10/2021 ¹⁵⁴¹ SHEET: 1/2

CODE 66170

DESCRIPTION: CONTROL PANEL PH/FREE CHLORINE/ORP/CL TOTAL APEROMETRIC

ENGLISH

POS CODE DESCRIPTION ^QUANTITY POS CODE DESCRIPTION ^QUANTITY

1 * ON-DEMAND CONSULT YOUR SUPPLIER ¹¹ 57142R0006 CONNECTION NUT 1/2" PV "

2 57142R0001 FACE PANEL K800 ASTRAL POOL ¹² 57142R0007 O-RING

3 66170R0050 DIGITAL CONNECT K800 PR2C-POT ¹³ 57142R0008 FLOW REGULATOR

4 57142R0002 BRACKET CONTROL BOX K800 ¹⁴ 27354R0030 FLOW SENSOR WITH CABLE

5 36002R0008 PUMP BASE ¹⁵ 27357R0002 KONTROL SERIES RED MAGNETIC FLOAT

6 * ON-DEMAND CONSULT YOUR SUPPLIER ¹⁶ 66175R0003 CAISSON PLASTIQUE

7 57142R0009 PURGE VALVE ¹⁷ 57142R0004 FILTER KIT

8 * ON-DEMAND CONSULT YOUR SUPPLIER ¹⁸ 27354R0019 WASHABLE FILTER

9 27883R0009 ELECTRODE HOLDER ¹⁹ 57142R0003 TEMPERATURA PROBE

10 57142R0010 METALLIC CONNECTIONS

* SEE OBSERVATIONS SHEET

(6)

PARTS BREAKDOWN

^{REV.: 1}DATE: 18/10/2021 ¹⁵⁴¹ SHEET: 2/2

CODE 66170

DESCRIPTION: CONTROL PANEL PH/FREE CHLORINE/ORP/CL TOTAL APEROMETRIC

OBSERVATIONS

OBSERVATIONS CODE

POS

FOR: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

FOR: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

FOR: PLASTIC NUT PROBE 8 * ON-DEMAND

(7)

ESPLOSO

^{REV.: 1}DATA: 18/10/2021 ¹⁵⁴¹ PAG.: 1/2

CODICE 66170

DESCRIZIONE: CONTRILLER DI PH/CLORO LIBERO/ORP/CL TOTAL AMPEROMETRICO

ITALIANO

POS CODICE DESCRIZIONE ^QUANTITA' POS CODICE DESCRIZIONE ^QUANTITA'

1 * ON-DEMAND CONSULTA IL TUO FORNITORE ¹¹ 57142R0006 DADO CONNESSIONE 1/2" PV "

2 57142R0001 MASCHERINA K800 ASTRAL POOL ¹² 57142R0007 GIUNTA TORICA

3 66170R0050 CIRCUITO DIGITALE K800 PR2C-POT ¹³ 57142R0008 REGOLATORE DI CAUDALE

4 57142R0002 SUPPORTO CASSA CONTROLLO K800 ¹⁴ 27354R0030 SENSORE DI FLUSSO CON CAVO

5 36002R0008 PIEDE POMPA ¹⁵ 27357R0002 GALLEGGIANTE ROSSO MAGNETICO SERIE KONTROL

6 * ON-DEMAND CONSULTA IL TUO FORNITORE ¹⁶ 66175R0003 PLASTIC BOX

7 57142R0009 VALVOLA SPURGO ¹⁷ 57142R0004 INSIEME FILTRO

8 * ON-DEMAND CONSULTA IL TUO FORNITORE ¹⁸ 27354R0019 FILTRO LAVABILE

9 27883R0009 SUPPORTO ELETTRODO ¹⁹ 57142R0003 SONDA DI TEMPERATURA

10 57142R0010 VITI DI UNIONE

* SI FACCIA RIFERIMENTO AL FOGLIO DELLE OSSERVAZIONI

(8)

ESPLOSO

^{REV.: 1}DATA: 18/10/2021 ¹⁵⁴¹ PAG.: 2/2

CODICE 66170

DESCRIZIONE: CONTRILLER DI PH/CLORO LIBERO/ORP/CL TOTAL AMPEROMETRICO

OSSERVAZIONI

OSSERVAZIONI CODICE

POS

PER: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

PER: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

PER: PLASTIC NUT PROBE 8 * ON-DEMAND

(9)

EINZELTEILE

^{ÜBER.: 1}DATUM: 18/10/2021 ¹⁵⁴¹ BLATT: 1/2

CODE 66170

BESCHREIBURG: CONTROLLER PH/FREIES CHLOR/ORP/CL TOTAL AMPEROMETRISH

DEUTSCH

POS CODE BESCHREIBURG ^MENGE POS CODE BESCHREIBURG ^MENGE

1 * ON-DEMAND KONTROLLIEREN SIE IHREN LIEFERANTEN ¹¹ 57142R0006 ANSCHLUSSMUTTER 1/2" PV "

2 57142R0001 BEDIENFELD K800 ASTRAL POOL ¹² 57142R0007 O-RING

3 66170R0050 DIGITALER SCHALTKREIS K800 PR2C-POT ¹³ 57142R0008 DURCHFLUSSREGLER

4 57142R0002 HALTERUNG STEUERSCHRANK K800 ¹⁴ 27354R0030 DURCHFLUSSMESSER MIT KABEL

5 36002R0008 PUMPENFUSS ¹⁵ 27357R0002 SCHWIMMER ROT SERIE KONTROL

6 * ON-DEMAND KONTROLLIEREN SIE IHREN LIEFERANTEN ¹⁶ 66175R0003 SCATOLA PLASTICA

7 57142R0009 ABLASSVENTIL ¹⁷ 57142R0004 FILTERSET

8 * ON-DEMAND KONTROLLIEREN SIE IHREN LIEFERANTEN ¹⁸ 27354R0019 FILTER WASCHBAR

9 27883R0009 SONDENHALTERUNG AUS PVC MAXIMA TEM ¹⁹ 57142R0003 TEMPERATURSONDE

10 57142R0010 VERBINDUNGSSCHRAUBEN

* SIEHE ANMERKUGSBLATT

(10)

EINZELTEILE

^{ÜBER.: 1}DATUM: 18/10/2021 ¹⁵⁴¹ BLATT: 2/2

CODE 66170

BESCHREIBURG: CONTROLLER PH/FREIES CHLOR/ORP/CL TOTAL AMPEROMETRISH

HINWEISE

HINWEISE CODE

POS

FÜR: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

FÜR: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

FÜR: PLASTIC NUT PROBE 8 * ON-DEMAND

(11)

ITEM

^{REV.: 1}DATA: 18/10/2021 ¹⁵⁴¹ FOLHA: 1/2

CODIGO 66170

DESCRICÃO: PAINEL DE CONTROLE PH / CLORO LIVRE /ORP/CL TOTAL APEROMÉTRICO

PORTUGUES

POS CODIGO DESCRICÃO ^QUANTIDADE POS CODIGO DESCRICÃO ^QUANTIDADE

1 * ON-DEMAND CONSULTE SEU FORNECEDOR ¹¹ 57142R0006 PORCA CONEXÃO 1/2" PV "

2 57142R0001 PAINEL K800 ASTRAL POOL ¹² 57142R0007 JUNTA TÓRICA (6 UT)

3 66170R0050 CIRCUITO DIGITAL K800 PR2C-POT ¹³ 57142R0008 REGULADOR DE CAUDAL

4 57142R0002 SUPORTE CAIXA CONTROLO K800 ¹⁴ 27354R0030 SENSOR DE FLUXO COM CABO

5 36002R0008 BASE BOMBA ¹⁵ 27357R0002 BOIA VERMELHA MAGNETIZADA SÉRIE KONTROL

6 * ON-DEMAND CONSULTE SEU FORNECEDOR ¹⁶ 66175R0003 BEHÄLTER KUNSTSTOFF

7 57142R0009 VÁLVULA DE PURGA ¹⁷ 57142R0004 CJTO. FILTRO

8 * ON-DEMAND CONSULTE SEU FORNECEDOR ¹⁸ 27354R0019 FILTRO LAVÁVEL

9 27883R0009 SUPORTE ELECTRODO ¹⁹ 57142R0003 SONDA DE TEMPERATURA

10 57142R0010 PARAFUSO DE FIXAÇÃO

* VEJA A FICHA DE OBSERVACÕES

(12)

ITEM

^{REV.: 1}DATA: 18/10/2021 ¹⁵⁴¹ FOLHA: 2/2

CODIGO 66170

DESCRICÃO: PAINEL DE CONTROLE PH / CLORO LIVRE /ORP/CL TOTAL APEROMÉTRICO

OBSERVACÕES

OBSERVACÕES CODIGO

POS

PARA: KONTROL 800 PH-RX-CL 1 * ON-DEMAND

PARA: MODULAR PROBE HOLDER PH,RX,CL 6 * ON-DEMAND

PARA: PLASTIC NUT PROBE 8 * ON-DEMAND
