Characterization of the Hygrothermal
Performance of Wall Systems
W. Maref, M. Manning , M. Rousseau & W. Lei
ASHRAE Seminar 29- Moisture Management Concerns in Commercial
and Residential Buildings, New York, USA, January 21, 2008
Slide 2
Team
K. Abdulghani
W. Lei
M. Ma
nning
W
. Ma
ref
M. Nic
h
olls
T. Aubin
M
. Rousseau
R. Berzins
Slide 3
Outline
• Background
• Field Exposure of Wall Facility (FEWF)-BES
• Results and Discussion
• Summary
• Future Work
Slide 4
Ventilation and Wall Research House Facility
2. FIELD EXPOSURE
OF WALL FACILITY –
(FEWF) BES
Study & compare traditional & innovative BE strategies
1. VENTILATION,
HEATING AND
COOLING FACILITY
- IEStudy & compare
traditional & innovative ventilation, heating & cooling strategies
Slide 5
Field Exposure of Wall
Facility (FEWF)
Objectives
– Compare performance of different side-by-side wall assemblies
– improve understanding of HAM response of wall and window
assemblies exposed to naturally occurring climate loads of Ottawa as
well as to indoor environment loads of T, RH and P defined by
occupancy and HVAC systems.
– Research the interaction between the building envelope and the
indoor environment
– Complement IRC’s controlled laboratory test and modeling
simulations
Slide 6
Field Exposure of Wall
Facility (FEWF)
•
Experimental Approach
–
Year 1 (2006-2007) Commissioned the facility by monitoring
three identical test specimens of traditional construction
(2x6) through Fall, Winter and Spring.
–
Year 2 (2007-2008) Examine the effect of exterior insulation
retrofit on the hygrothermal response of wood-frame walls.
This project is jointly funded with CMHC and NRCan
–
Year 3 and beyond Expand the program in collaboration
with Indoor Environment to examine whole house
performance issues.
Slide 7 South facade Instr ed w Instrument ed window Instrumented window Test frame designed to provide the largest possible free bay for placement of several test specimens Max. 19 ft available Stack casing location North facade West facade
Slide 8
Field Exposure of Walls
Slide 10 DETEC_9 DETEC_11 T_10 T_8 16.0 T_9 RHT_7 DETEC_14 DETEC_13 DETEC_12 MP_1 2.0 DETEC_10 T_7 RHT_6 15.0 2.0 20.0 17.0 3.0
LAYER 4 - Interior Face of OSB
HF_1 (W2 only) JW_3 DETEC Thermistor Heat Flux Moisture Pin Wireless Relative Humidity
Slide 11 14.0 7.0 DETEC _17 DETEC _16 MP_3
LAYER 5 - Stud Cavity
DET EC_15 MP _2 HF_2 (W2 on ly ) Moisture Pin
Slide 13 RHT_9 15.0 T_13 T_14 17.0 T_11 RHT_8 T_12
LAYER 6 - Interior Face of Insulation & Stud Cavity (Exterior side of Vapour Barrier)
P_3 (Low Pressure) 7.3 10.0 HF_3 (W2 only) JW_4 Delta Pressure
Slide 14
LAYER 7 - Interior Face of Drywall
17.0 15.0 T_18 T_17 RHT_10 (air) T_16 T_15 7.0 T_19 (W2 and W3 only) Thermocouple
Slide 15
W3
W2
Slide 18
Experimental Approach
• Challenging the wall experimental begins:
– Stage 1- Create air leakage path and monitor under
naturally occurring int. and ext. conditions on two of
three specimens (1 week)
Slide 19 D ryw a ll
W1
W2
W3
Slide 20
Air Leakage
Slide 21
• Challenging the wall experimental begins:
– Stage 1- Create air leakage path and monitor under
naturally occurring int. and ext. conditions on two of
three specimens (1 week)
– Stage 2- Increase indoor RH to 70% and induce 5
Pa positive pressure while air leak is present in two
specimens, for a certain period of time
Slide 22 D ryw a ll
W1
W2
W3
Slide 23
Conditioning Chamber
on the Room Side
W1
W2
Slide 24 Wall specimen EXT. INT. Conditioning chamber Moisture-laden air exfiltration
Slide 25
• Challenging the wall experimental begins:
– Stage 1- Create air leakage path and monitor under
naturally occurring int. and ext. conditions on two of
three specimens (1 week)
– Stage 2- Increase indoor RH to 70% and induce 5
Pa positive pressure while air leak is present in two
specimens, for a certain period of time
– Stage 3- Return to naturally occurring conditions to
monitor drying. Disassemble the indoor chamber
Slide 26
Slide 27
FEWF Chamber RH%, Pressure Vs Time
-10 0 10 20 30 40 50 60 70 80 28 -J an-07 4-F eb -07 11 -F eb -07 18-F eb-07 25-F eb-07 4-M ar -07 11 -M ar -07 18-M ar -0 7 25 -M ar -07 1-A pr -0 7 8-A pr -0 7 15-A pr -0 7 2 2-A pr-0 7
Date and Time
RH (% ), P (P a ) RH, % Pressure, Pa W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W5 W W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 6 mm opening 3 mm opening Incomplete data
Slide 28
FEWF Chamber RH%, Pressure Vs Time
-10 0 10 20 30 40 50 60 70 80 28 -J an-07 4-F eb -07 11 -F eb -07 18-F eb-07 25-F eb-07 4-M ar -07 11 -M ar -07 18-M ar -0 7 25 -M ar -07 1-A pr -0 7 8-A pr -0 7 15-A pr -0 7 2 2-A pr-0 7
Date and Time
RH (% ), P (P a ) RH, % Pressure, Pa W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W5 W W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 6 mm opening 3 mm opening Incomplete data Condition A • 0 Pa pressure • 70% RH • No opening
Slide 29
FEWF Chamber RH%, Pressure Vs Time
-10 0 10 20 30 40 50 60 70 80 28 -J an-07 4-F eb -07 11 -F eb -07 18-F eb-07 25-F eb-07 4-M ar -07 11 -M ar -07 18-M ar -0 7 25 -M ar -07 1-A pr -0 7 8-A pr -0 7 15-A pr -0 7 2 2-A pr-0 7
Date and Time
RH (% ), P (P a ) RH, % Pressure, Pa W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W5 W W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 6 mm opening 3 mm opening Incomplete data Condition B • 5 Pa pressure • 50% RH • 6 mm opening
Slide 30
FEWF Chamber RH%, Pressure Vs Time
-10 0 10 20 30 40 50 60 70 80 28 -J an-07 4-F eb -07 11 -F eb -07 18-F eb-07 25-F eb-07 4-M ar -07 11 -M ar -07 18-M ar -0 7 25 -M ar -07 1-A pr -0 7 8-A pr -0 7 15-A pr -0 7 2 2-A pr-0 7
Date and Time
RH (% ), P (P a ) RH, % Pressure, Pa W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W5 W W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 6 mm opening 3 mm opening Incomplete data Condition C • 5 Pa pressure • 30% RH • 3 mm opening
Slide 31
FEWF Chamber RH%, Pressure Vs Time
-10 0 10 20 30 40 50 60 70 80 28 -J an-07 4-F eb -07 11 -F eb -07 18-F eb-07 25-F eb-07 4-M ar -07 11 -M ar -07 18-M ar -0 7 25 -M ar -07 1-A pr -0 7 8-A pr -0 7 15-A pr -0 7 2 2-A pr-0 7
Date and Time
RH (% ), P (P a ) RH, % Pressure, Pa W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W5 W W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 6 mm opening 3 mm opening Incomplete data Condition D • 0 Pa pressure • 50% RH • 3 mm opening
Slide 32
Slide 33

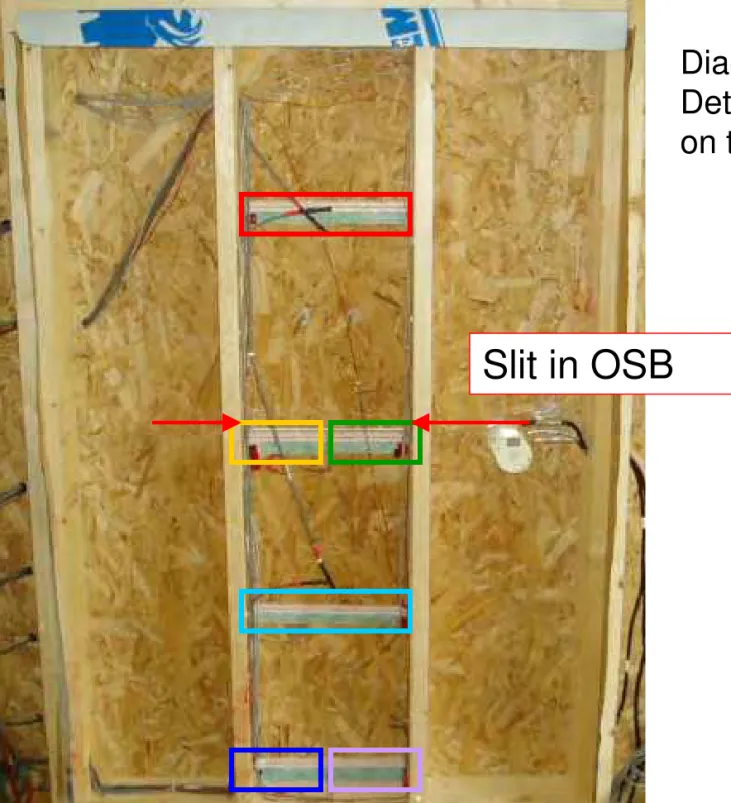

Diagram for Moisture
Detection Tape Locations
on the interior of the OSB
Slide 34
Diagram for Moisture
Detection Tape Locations
in the Stud Cavity
Slide 35 Exterior Interior Vinyl Siding Sheathing Membrane OSB
Stud Cavity with Fiberglass Insulation
Vapour Barrier Drywall
Material
P1 P2 P3 P Chamber
Reference for all Pressure Sensors: Room Interior
Pressure Tap Locations
+ve pressure = pressure at the tap location is higher than the pressure in the room
Slide 36
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 22-F eb-07 23-F eb-07 24 -F eb -07 25 -F eb -07 26 -F eb -07 27 -F eb -07 28 -F eb -07 1-M a r-0 7 2-M a r-0 7 3-M a r-0 7 4-M a r-0 7 5-M a r-0 7 6-M ar -07 7-M ar -07
Date and Time
Pr e s su re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p ee d ( k m/ h) P1 - Pressure at Exterior P2 - Pressure behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Wind speed data is from the Ottawa Airport
Slide 37
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 22-F eb-07 23-F eb-07 24 -F eb -07 25 -F eb -07 26 -F eb -07 27 -F eb -07 28 -F eb -07 1-M a r-0 7 2-M a r-0 7 3-M a r-0 7 4-M a r-0 7 5-M a r-0 7 6-M ar -07 7-M ar -07
Date and Time
Pr e s su re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p ee d ( k m/ h) P1 - Pressure at Exterior P2 - Pressure behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind Wind from the West causes
Slide 38
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 22-F eb-07 23-F eb-07 24 -F eb -07 25 -F eb -07 26 -F eb -07 27 -F eb -07 28 -F eb -07 1-M a r-0 7 2-M a r-0 7 3-M a r-0 7 4-M a r-0 7 5-M a r-0 7 6-M ar -07 7-M ar -07
Date and Time
Pr e s su re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p ee d ( k m/ h) P1 - Pressure at Exterior P2 - Pressure behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind Wind from the East causes
Slide 39
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 22-F eb-07 23-F eb-07 24 -F eb -07 25 -F eb -07 26 -F eb -07 27 -F eb -07 28 -F eb -07 1-M a r-0 7 2-M a r-0 7 3-M a r-0 7 4-M a r-0 7 5-M a r-0 7 6-M ar -07 7-M ar -07
Date and Time
Pr e s su re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p ee d ( k m/ h) P1 - Pressure at Exterior P2 - Pressure behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind When the chamber is
pressurized, the exfiltration condition is forced (chamber and stud cavity pressure is higher than exterior pressure)
Slide 40
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 22-F eb-07 23-F eb-07 24 -F eb -07 25 -F eb -07 26 -F eb -07 27 -F eb -07 28 -F eb -07 1-M a r-0 7 2-M a r-0 7 3-M a r-0 7 4-M a r-0 7 5-M a r-0 7 6-M ar -07 7-M ar -07
Date and Time
Pr e s su re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p ee d ( k m/ h) P1 - Pressure at Exterior P2 - Pressure behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
When the chamber is
pressurized, the exfiltration condition is forced (chamber and stud cavity pressure is higher than exterior pressure)
Except when +ve pressures from North and West winds negate the effect.
Slide 41
Conditions
Condition Pressure RH Opening Week
A 0 Pa 70% None 7 B 5 Pa 50% 6 mm 3 days in week 8 (22 to 24 Feb) C 5 Pa ~30% 3 mm 2 days in week 11 (16 to 17 Mar) D 0 Pa 50% 3 mm 15
Slide 42 Moi s tur e C ont e n t W a ll 2 Int e ri or O S B 0% 5% 10 % 15 % 20 % 25 % 30 % 35 % 40 % 28-Jan-07 4-Feb-07 11-Feb-07 18-Feb-07 25-Feb-07 4-Mar-07 11-Mar-07 18-Mar-07 25-Mar-07 1-Apr-07 8-Apr-07 15-Apr-07 22-Apr-07 Da te a n d Ti m e Moisture Content (%) 20 9 M C 21 0 M C 21 1 M C 21 2 M C 21 3 M C 21 4 M C Sli t in O S B
Slide 43 Moi s tur e C ont e n t W a ll 2 Int e ri or O S B 0% 5% 10 % 15 % 20 % 25 % 30 % 35 % 40 % 28-Jan-07 4-Feb-07 11-Feb-07 18-Feb-07 25-Feb-07 4-Mar-07 11-Mar-07 18-Mar-07 25-Mar-07 1-Apr-07 8-Apr-07 15-Apr-07 22-Apr-07 Da te a n d Ti m e Moisture Content (%) 21 2 M C Slit in O S B
Slide 44 Mo is tu re C ont e nt W a ll 2 S tud C a v ity 0% 5% 10 % 15 % 20 % 25 % 30 % 35 % 40 % 28-Jan-07 4-Feb-07 11-Feb-07 18-Feb-07 25-Feb-07 4-Mar-07 11-Mar-07 18-Mar-07 25-Mar-07 1-Apr-07 8-Apr-07 15-Apr-07 22-Apr-07 Da te a n d T im e Moisture Content (%) 21 7M C
Slide 45 Interior / Intérieur Exterior / Extérieur 6 7 1 5 2 3 4 Layer
Plastic Air/Vapour Barrier Drywall
Vinyl Siding Sheathing Membrane
Stud Cavity with Fiberglass Insulation OSB
Material
Wall 2 Horizontal Cross Section
-10.7 67 63 -10.5 59 -9.1 81 -7.3 15 19.5 71 22.5 -9.4 -8.8 -3.3 -6.6 17.2 17.6 20.2 20.9 Week 07 11-Feb-07
Condition A: 0 Pa, 70% RH, no opening
• Despite the high humidity on the interior of the room (71%), the humidity behind the air/vapour barrier is low, 15%
• The location with the highest RH is the interior of the OSB, at ~81% - still below dewpoint
T RH
T Interior T
Slide 46 -15 -10 -5 0 5 10 15 20 25 0 2 4 6 8 1 0 1 2 1 4 T e m p er at u re ( °C ) W2 T W3 T
DewPoint of Room Air
vi ny l s idi ng WR B OS B st u d ca vi ty w ith fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• The dewpoint of room air is ~17°C, a condition met by temperatures partway through the insulation
• The interior of the wall remains dry due to being well sealed
Slide 47 0 2 4 6 8 10 12 14 0 2 4 6 8 1 0 1 2 14 H u m idit y R a ti o (g v /k g da ) W1 humidity ratio W2 humidity ratio W3 humidity ratio vi n y l s idi ng WRB OS B st u d ca vi ty wi th fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• A large drop in the moisture content of the air occurs across the vapour barrier
• Air moisture content on the exterior side of the vapour barrier is nearly identical to the reference wall – with no added
indoor humidity loads
Slide 48
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 11-F eb-07 12 -F eb-07 13 -F eb -07 14 -F eb-07 15 -F e b-07 16 -F eb-07 17-F eb-07 18 -F eb-07 19 -F e b-07
Date and Time
P ress ur e ( P a) -100 -80 -60 -40 -20 0 20 40 60 W in d sp ee d (k m /h ) P1 - Pressure atExterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition A: 0 Pa, 70% RH, no opening
With no opening, the stud cavity pressure follows the exterior pressure closely
Slide 49
FEWF Wall 2 - Interior of OSB - Layer 4 - Liquid
0 20000 40000 60000 80000 100000 120000 2/10/07 0:00 2/11/07 0:00 2/12/07 0:00 2/13/07 0:00 2/14/07 0:00 2/15/07 0:00 2/16/07 0:00 2/17/07 0:00 2/18/07 0:00 2/19/07 0:00 Date and Time
R e si st an ce ( k ⎝ ) 209L 210L 211L 212L 213L 214L 11-Feb-07 Resistan c e (k Ω )
Condition A: 0 Pa, 70% RH, no opening
• The interior surface of the OSB remains dry at all moisture detection tape locations
Slide 50 Interior / Intérieur Exterior / Extérieur 6 7 1 5 2 3 4 Layer
Plastic Air/Vapour Barrier Drywall
Vinyl Siding Sheathing Membrane
Stud Cavity with Fiberglass Insulation OSB
Material
Wall 2 Horizontal Cross Section
-7.0 66 63 -6.5 62 -5.0 100 -3.2 30 20.4 49 23.0 -5.4 -5.2 -0.1 -2.1 18.4 18.7 21.0 21.3 7.42 6.67 7.22 Week 08 22-Feb-07 Interior Exterior
Condition B: 5 Pa, 50% RH, 6mm opening
• The interior of the room is at 49% RH, the humidity behind the air/vapour barrier is 30% RH – indicating that moisture is being introduced through the opening • The location with the highest RH is the interior of the OSB, at 100% - condensation would be expected
T RH
Slide 51 -10 -5 0 5 10 15 20 25 0 2 4 6 8 1 0 1 2 14 T em p era tu re ( °C ) W2 T W3 T
Dewpoint of Room Air
vi ny l s id ing WRB OSB st u d ca vit y w ith fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• The dewpoint of room air is ~12°C, a condition met by temperatures at the middle of the
insulation
• The opening in the vapour barrier allows moisture to enter the cavity, condensation is expected anywhere to the exterior of the insulation
Slide 52 0 1 2 3 4 5 6 7 8 9 10 0 2 4 6 8 1 0 1 2 14 H u m id ity R a ti o (g v /k g d a ) W1 humidity ratio W2 humidity ratio W3 humidity ratio vin y l s idi ng WRB OS B st u d ca vi ty wi th fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• The pressure and opening allow the high RH to enter the interior of the wall
• Air moisture content on the exterior side of the vapour barrier is higher than the reference wall – with no added indoor humidity loads
Slide 53
FEWF Wall 2 - Interior of OSB - Layer 4 - Liquid
0 20000 40000 60000 80000 100000 120000 2/23/07 12:00 2/23/07 18:00 2/24/07 0:00 2/24/07 6:00 2/24/07 12:00 2/24/07 18:00 2/25/07 0:00
Date and Time
R e si st an ce ( k⎠ ) 209L 210L 211L 212L 213L 214L Resi stan ce (k Ω )
Condition B: 5 Pa, 50% RH, 6mm opening
The interior surface of the OSB is wet, particularly at the base of the wall
Low resistance indicates the presence of liquid
Slit in OSB
Drying
Wetting
Wetting
Slide 54
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 23-Feb-07 12:00 23-Feb-07 18:00 24-Feb-07 0:00 24-Feb-07 6:00 24-Feb-07 12:00 24-Feb-07 18:00 25-Feb-07 0:00
Date and Time
Pr es s u re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s pe e d ( k m/h ) P1 - Pressure atExterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition B: 5 Pa, 50% RH, 6mm opening
For a large portion of the Condition B period, wind pressure balanced the applied 5 Pa chamber pressure.
Slide 55
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 23-Feb-07 12:00 23-Feb-07 18:00 24-Feb-07 0:00 24-Feb-07 6:00 24-Feb-07 12:00 24-Feb-07 18:00 25-Feb-07 0:00
Date and Time
Pr es s u re ( P a ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s pe e d ( k m/h ) P1 - Pressure atExterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition B: 5 Pa, 50% RH, 6mm opening
In two instances, the exterior pressure dropped below the chamber pressure, allowing exfiltration, and corresponding to the wetting patterns
Slide 56
Moisture Content - Wall 2 Interior OSB
0% 5% 10% 15% 20% 25% 30% 35% 40% 2/23/07 12:00 2/23/07 18:00 2/24/07 0:00 2/24/07 6:00 2/24/07 12:00 2/24/07 18:00 2/25/07 0:00
Date and Time
M o is tu re C o n te n t ( % ) 209MC 210MC 211MC 212MC 213MC 214MC
Condition B: 5 Pa, 50% RH, 6mm opening
Slide 57
FEWF Wall 2 - Stud - Layer 5 - Liquid
0 20000 40000 60000 80000 100000 120000 2/23/07 12:00 2/23/07 18:00 2/24/07 0:00 2/24/07 6:00 2/24/07 12:00 2/24/07 18:00 2/25/07 0:00
Date and Time
R e si st anc e ( k¬ ) 215L 216L 217L Resi stan ce (k Ω )
Condition B: 5 Pa, 50% RH, 6mm opening
Low resistance indicates the presence of liquid at the base of the stud cavity
Slide 58
Condition B: 5 Pa, 50% RH, 6mm opening
Moisture Content - Wall 2 Stud Cavity
0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 2/23/07 12:00 2/23/07 18:00 2/24/07 0:00 2/24/07 6:00 2/24/07 12:00 2/24/07 18:00 2/25/07 0:00
Date and Time
M o is tu re C o n te n t ( % ) 215L 216L 217L
Slide 59
Results
After
Slide 60
If
y
o
u
l
e
a
v
e
i
t
to
o
w
e
t
fo
r
to
o
l
o
n
g
,
th
e
n
…
.
Slide 61 Interior / Intérieur Exterior / Extérieur 6 7 1 5 2 3 4 Layer
Plastic Air/Vapour Barrier Drywall
Vinyl Siding Sheathing Membrane
Stud Cavity with Fiberglass Insulation OSB
Material
Wall 2 Horizontal Cross Section
-5.1 70 65 -4.3 67 -2.9 100 -0.9 29 20.8 27 23.0 -3.1 -3.0 1.5 0.3 18.8 19.3 21.2 21.4 6.91 6.20 6.72 Week 11 16-Mar-07
Condition C: 5 Pa, 30% RH, 3mm opening
• The interior of the room is at 27% RH, the humidity behind the air/vapour barrier is 29% RH – indicating that moisture is being introduced through the opening • The location with the highest RH is the interior of the OSB, at 100% - condensation would be expected
Interior Exterior
T RH
Slide 62 -10 -5 0 5 10 15 20 25 0 2 4 6 8 10 1 2 1 4 Te m p e ra tur e ( °C ) W2 T W3 T
Dewpoint of Room Air
vi ny l s id ing WR B OS B s tu d ca v ity w ith fib e rg la ss ai r / v a po ur b a rr ie r dr yw a ll
•The dewpoint of room air is ~4°C, a condition met by temperatures towards the outside of the
insulation
• The opening in the vapour barrier allows moisture to enter the cavity, condensation is expected at the OSB
Slide 63 0 1 2 3 4 5 6 7 8 9 10 0 2 4 6 8 1 0 1 2 14 H u m idit y R a ti o (g v /k g da ) W1 humidity ratio W2 humidity ratio W3 humidity ratio vin yl s idi ng WRB OS B st u d ca vi ty wi th fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• The pressure and opening allow the humidity to enter the interior of the wall
• Air moisture content on the exterior side of the vapour barrier is higher than the reference wall – with no added indoor humidity loads
Slide 64
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 16-Mar-07 0:00 16-Mar-07 6:00 16-Mar-07 12:00 16-Mar-07 18:00 17-Mar-07 0:00 17-Mar-07 6:00 17-Mar-07 12:00 17-Mar-07 18:00 18-Mar-07 0:00 Date and Time
Pr es su re (P a ) -100 -80 -60 -40 -20 0 20 40 60 Win d s p ee d (k m/ h) P1 - Pressure at Exterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition C: 5 Pa, 30% RH, 3mm opening
East winds for the majority of Condition C, kept exterior pressures low and allowed the Chamber and Stud Cavity Pressures to remain above the Exterior Pressure, creating an exfiltration condition
Slide 65
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60 16-Mar-07 0:00 16-Mar-07 6:00 16-Mar-07 12:00 16-Mar-07 18:00 17-Mar-07 0:00 17-Mar-07 6:00 17-Mar-07 12:00 17-Mar-07 18:00 18-Mar-07 0:00 Date and Time
Pr es su re (P a ) -100 -80 -60 -40 -20 0 20 40 60 Win d s p ee d (k m/ h) P1 - Pressure at Exterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition C: 5 Pa, 30% RH, 3mm opening
A change in wind direction towards the end of Condition C brought exterior pressure conditions close to stud cavity and chamber pressure.
Slide 66
FEWF Wall 2 - Interior of OSB - Layer 4 - Liquid
0 20000 40000 60000 80000 100000 120000 3/16/07 0:00 3/16/07 6:00 3/16/07 12:00 3/16/07 18:00 3/17/07 0:00 3/17/07 6:00 3/17/07 12:00 3/17/07 18:00 3/18/07 0:00
Date and Time
R e s ist an ce ( k ) 209L 210L 211L 212L 213L 214L
Condition C: 5 Pa, 30% RH, 3mm opening
The interior surface of the OSB is wet, particularly at the base of the wall
Resi stan ce (k Ω ) Slit in OSB
Slide 67
FEWF Wall 2 - Stud - Layer 5 - Liquid
0 20000 40000 60000 80000 100000 120000 3/16/07 0:00 3/16/07 6:00 3/16/07 12:00 3/16/07 18:00 3/17/07 0:00 3/17/07 6:00 3/17/07 12:00 3/17/07 18:00 3/18/07 0:00
Date and Time
R e si st an c e ( k ) 215L 216L 217L
Condition C: 5 Pa, 30% RH, 3mm opening
Low resistance indicates the presence of liquid at the base of the stud cavity
Resi
stan
ce (k
Ω
Slide 68 Interior / Intérieur Exterior / Extérieur 6 7 1 5 2 3 4 Layer
Plastic Air/Vapour Barrier Drywall
Vinyl Siding Sheathing Membrane
Stud Cavity with Fiberglass Insulation OSB
Material
Wall 2 Horizontal Cross Section
2.6 75 69 2.8 67 3.5 76 4.6 27 21.0 50 23.0 3.0 3.3 6.5 4.6 19.3 19.4 21.3 21.5 5.15 4.59 5.08 Week 15 08-Apr-07
Condition D: 0 Pa, 50% RH, 3mm opening
• The interior of the room is at 50% RH, the humidity behind the air/vapour barrier is 27% RH
•The location with the highest RH is the interior of the OSB, at 76% (likely due to the lack of a pressure
driving force for exfiltration, and warmer exterior temperatures)
Interior Exterior
T RH
Slide 69 0 5 10 15 20 25 0 2 4 6 8 1 0 1 2 1 4 Te m p e ra tur e ( °C ) W2 T W3 T
Dewpoint of Room Air
vi n y l sid in g WRB OS B s tu d ca v ity w ith fib e rg la ss in su la ti on ai r / va po ur ba rr ier dr yw al l
•The dewpoint of room air is ~12°C, a condition met by temperatures at the middle of the insulation •Condensation is
expected at the OSB, however, measurements indicate that room air is not exfiltrating as much as in Conditions B and C
Slide 70 0 1 2 3 4 5 6 7 8 9 10 0 2 4 6 8 1 0 1 2 14 Hu mi d it y Rat io ( g v /k g d a ) W1 humidity ratio W2 humidity ratio W3 humidity ratio vin y l s idi ng WR B OS B st ud c a vity w ith fib e rg la ss ai r / va po ur ba rr ie r d ry wa ll
• While the air moisture content on the exterior side of the vapour barrier is higher than the
reference wall, the effect is not as pronounced as Conditions B and C – where interior pressure was applied
Slide 71
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60
8-Apr-07 9-Apr-07 10-Apr-07 11-Apr-07 12-Apr-07 13-Apr-07 14-Apr-07 15-Apr-07 Date and Time
Pr es su re (Pa ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p e e d (k m/ h) P1 - Pressure at Exterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition D: 0 Pa, 50% RH, 3mm opening
West winds dominate at the
beginning and end of Condition D, creating conditions for infiltration
Slide 72
Pressure, Wind speed and direction
-20 -10 0 10 20 30 40 50 60
8-Apr-07 9-Apr-07 10-Apr-07 11-Apr-07 12-Apr-07 13-Apr-07 14-Apr-07 15-Apr-07 Date and Time
Pr es su re (Pa ) -100 -80 -60 -40 -20 0 20 40 60 Wi nd s p e e d (k m/ h) P1 - Pressure at Exterior P2 - Pressure Behind Cladding P3 - Pressure in Stud Cavity Chamber Pressure N wind E wind S wind W wind
Condition D: 0 Pa, 50% RH, 3mm opening
East winds cause the exterior pressure to be below the interior pressure, resulting in exfiltration conditions
Slide 73
FEWF Wall 2 - Interior of OSB - Layer 4 - Liquid
0 20000 40000 60000 80000 100000 120000 4/8/07 0:00 4/9/07 0:00 4/10/07 0:00 4/11/07 0:00 4/12/07 0:00 4/13/07 0:00 4/14/07 0:00 4/15/07 0:00
Date and Time
R e si st an ce ( k ) 209L 210L 211L 212L 213L 214L
Condition D: 0 Pa, 50% RH, 3mm opening
The interior surface of the OSB is dry at all
measured locations Resi stan ce (k Ω ) Slit in OSB
Slide 74
FEWF Wall 2 - Stud - Layer 5 - Liquid
0 20000 40000 60000 80000 100000 120000 4/8/07 0:00 4/9/07 0:00 4/10/07 0:00 4/11/07 0:00 4/12/07 0:00 4/13/07 0:00 4/14/07 0:00 4/15/07 0:00
Date and Time
R e si st an c e ( k ) 215L 216L 217L
Condition D: 0 Pa, 50% RH, 3mm opening
Resi
stan
ce (k
Ω
)
The surface of the stud cavity is dry
Slide 75
SUMMARY
•
We looked at risk of condensation due to exfiltration
(wetting) combined with infiltration (drying)
•
Looked at the importance of wind speed and directions and
orientation of the envelope.
• Wind from West causes +ve pressures and infiltration • Wind from East causes –ve pressures and exfiltration
• When the chamber is pressurized the exfiltration cdt is forced (Chamber & Stud cavity pressure is higher than ext pressure) except when +ve from N & W winds negate the effect.
•
If we have to look for long time period the exfiltration cdt, we
have to pressurized the chamber more than 35 Pa.
•
Experimental results will be used to benchmark the HAM
Slide 76
Plans for this Winter and Spring
• Context:
– Focus on two energy retrofit scenarios for
exterior walls
• The question to investigate:
– What is the effect of the properties of thermal
insulation installed on the exterior of an existing
R20 wall on the wetting and drying potential of
that assembly, particularly when air leakage is
involved?
Slide 77
Adding thermal insulation on the exterior
of an insulated stud cavity wall can …
• Reduce thermal bridging at the framing
ᄕ
• Raise the temperature of that cavity, during cold
weather, resulting in lower potential for
condensation in stud cavity
ᄕ
• Reduce the drying potential to the exterior
ᄔ
• Promote mould growth in a wet cavity as the
cavity stays warmer over longer periods of the
Slide 78
What Happens Depends On:
• Vapour permeance and air permeance of added
insulation layer
• R value of the external layers in relation to the R
value of the internal layers
• Methods of installation for the insulation and siding
layers
• Air leakage rates & paths (deficiencies, gaps, cracks
unsealed openings in the assembly)
• Indoor conditions of RH, T and P
• Outdoor climate
• Other factors! e.g. rain penetration bypassing the 1
stSlide 79
Exterior
Interior
R20 2X6 typical construction
Addition of a Low Air and Vapour Permeance
Insulation
Addition of a High Air and Vapour Permeance Insulation
& sheathing membrane
Slide 80
Interior
Detail B Detail A
Wall 1 Wall 2 Wall 3
Wall 1 –Noexterior insulation Wall 2 – Lower Air and Vapour
Permeance
Wall 3 –HigherAir and Vapour Permeance
•Vinyl Siding
•Sheathing Membrane (Tyvek) •OSB
•2x6 Stud Cavity with Fiberglass Insulation •Plastic Air/Vapour Barrier
•Drywall
•Vinyl Siding
•2 in. XPS Rigid Foam Insulation, 24 in. wide sections installed horizontally, butt joints taped
•Sheathing Membrane (Tyvek) •OSB
•2x6 Stud Cavity with Fiberglass Insulation •Plastic Air/Vapour Barrier
•Drywall
•Vinyl Siding
•Sheathing Membrane (Tyvek)
•¾ in. x 1½ in. Vertical Strapping @ 16 in. (400 mm) o.c. mounted on blocks, with 2.5 in. Mineral Fibre Insulation Batts installed horizontally
•Sheathing Membrane (Tyvek) •OSB
•2x6 Stud Cavity with Fiberglass Insulation •Plastic Air/Vapour Barrier
•Drywall
Plan View of the Test Specimens in Test Bay
Exterior
Interior
Slide 81
Slide 82
TH
A
N
K
Y
OU
Slide 83
http://irc.nrc-cnrc.gc.ca/bes/facilities/fieldex_e.html
Lab
-EEEFField
-FEWFHAM
