Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté

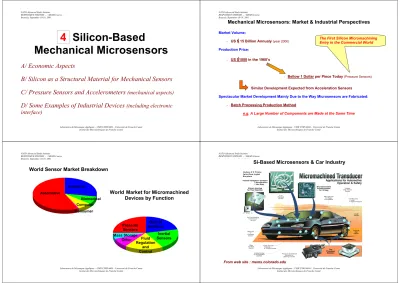

4 Silicon-Based
Mechanical Microsensors
A/ Economic Aspects
B/ Silicon as a Structural Material for Mechanical Sensors C/ Pressure Sensors and Accelerometers (mechanical aspects)
D/ Some Examples of Industrial Devices (including electronic interface)
Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Mechanical Microsensors: Market & Industrial Perspectives
Market Volume:
- US $ 15 Billion Annualy (year 2000) Production Price:
- US $1000 in the 1960’s
- Bellow 1 Dollar per Piece Today (Pressure Sensors)
Similar Development Expected from Acceleration Sensors Spectacular Market Development Mainly Due to the Way Microsensors are Fabricated:
- Batch Processing Production Method
e.g. A Large Number of Components are Made at the Same Time
The First Silicon Micromachining Entry in the Commercial World
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Automotive
Industrial
Biomedical Computer Consumer
World Sensor Market Breakdown
World Market for Micromachined Devices by Function
Pressure Sensors
Optical Switches
Inertial Sensors Fluid
Regulation and Control Other
Mass Storage
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Si-Based Microsensors & Car Industry
From web site : mems.colorado.edu
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Single Crystal Silicon as a Structural Material for Mechanical Sensors
SCS is an Optimal Material for Mechanical Sensors:
- Free from Mechanical Hysteresis ( no Plastic Deformation < 800°C)
Creep
Reproducible Signal
Low Mechanical Losses (Q Factor = 10
8in Vacuum) - SCS Fails Before it is Deformed Plastically (Brittle Material)
Overloaded Sensor Brakes Instead of Giving False Signal - Critical Stress of SCS Higher than the Yield Stress of Steels
SCS has a High Piezoresistivity
SCS Allows Integration of Sensing Elements and Electronics on the Same Substrate
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
MECHANICAL PROPERTIES OF STEEL Young modulus : 210GPa
Elastic Limit : from hundreds MPa up to 1GPa Ultimate Yield Strength : below 4GPa (steel)
below 2 GPa (Stainless Steel)
STRAIN
STRESS
ELASTIC LIMIT
MECHANICAL PROPERTIES OF SILICON
Young modulus : 190GPa Elastic Limit
= up to 7GPa Ultimate Tensile Strength
Comparing SCS and Steel Mechanical Properties
(Theoretically)
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Basic Transduction Mechanisms / Architectures & Materials
The Two Most Important Transduction Mechanisms (e.g. The Way Mechanical Deformations due to External Mechanical Forces are Measured) :
- Piezoresistive Sensors - Capacitive Sensors
The Two Main Classes of Mechanical Architectures:
- Membrane-Type Structures (Pressure & Flow Sensors) - Cantilever Beam Structures ( Acceleration Sensors) The Two Manufacturing Options & Corresponding Materials
- Monocrystalline Silicon (Bulk-Micromachined Sensors) - Polycristalline Silicon * (Surface-Micromachined Sensors)
* Note that Mechanical Properties of Polycristalline Silicon are Still Process Dependent !
Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Membrane-Type Structures
Cantilever Beam Structures
Mechanical Architectures
Pressure & Flow Sensors
Accelerometers
Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Force & Pressure Sensors
d: Plate separation of the unloaded diaphragm h: Thickness of the membrane
Spring
Element Sensor
Element
Force Pressure
Mechanical Deformation
Electrical Output Signal
Ebh
= F ε
3 0 4
32 1
dh r E
p C
C = δ
Sensor Beam Strain Gauge
Piezoresistive
Capacitive
d
p
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Pressure Sensors
Architecture of the Spring Element:
- Membrane (Always) Structural Material:
- Metal Membranes Monocrystalline Silicon Membranes Read-Out Mechanism:
- 1. Piezoresistive (Still the Most Widely Used)
- 2. Capacitive (Higher Sensitivity)
- 3. Resonant Pressure Sensors (Highest Accuracy) Early 1980’s
Suffer Much Less From:
- Creep - Fatigue - Hysteresis - Small Size
- High Elastic Modulus / Low Density Very High Resonance Frequency 1. Change in Resistance: 2 to 5%
2. Capacitance Change: 30 to 50%
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Piezoresistive Pressure Sensors
Most Currently Available Silicon Pressure Sensors Use a Piezoresistive Read-Out Mechanism
Typical Bulk Micromachined
Piezoresistive Pressure Sensor Surface Micromachined Piezoresistive Pressure Sensor With Polysilicon Membrane Polysilicon Membrane
Thickness: 2µm Monocrystalline Silicon Membrane
Thickness: Several Tens µm
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Capacitive Pressure Sensors
Two Configurations of Diaphragm Capacitive Pressure Sensors
The deflection of a circular membrane loaded by a pressure p is:
( ) 3 ( 0 2 2 ) 2
1 2
16
3 p r r
r Eh
w − −
= ν
d r
0h
( ) rdr d w C 2
rod ( 1 r )
0
−
= π ∫ ε
Non-Linear Capacity Response
Capacitance Changes as a function of the Contact Area
Much Closer to Linearity than a
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Comparing Piezoresistive & Capacitive Pressure Sensors
Membrane deformation has quite different consequences for the relative changes of capacity and resistance…
0 4 3
0 4
32 1 32
1
≈
= h
r E
p dh
r E
p C
δ C
0 2
6
1
=
∆ =
h r E G p R G
R ε
h d ≈
Since r
0/h >>1, sensitivity of capacitive pressure sensors is much higher…
Approximate solutions must be used for rectangular & square membranes.
Polysilicon Strain Gauge r
00 3 r
Gauge Factor Average Strain
Relative change of resistance Relative change of capacitance
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Intra-Ocular Pressure Sensor [BAC 90]
SEM Picture of the Membrane Showing the Bonded Region
Comparing Bulk & SM Capacitive Pressure Sensors
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Silicon-Based Accelerometers
The Next Big Silicon Micromachining Market Entry in the Industrial World After Pressure Sensors
Pressure Sensors Various Ranges of Pressure Measurements & Many Different Packages
Accelerometers Little Difference in Packaging & Operating Ranges Two Main Accelerometer Types cover all the Needs
“High g” “Low g”
- Airbag Accelerometers Operating Range: 50g
- Car Suspensions
- Anti-Lock Braking Systems (ABS)
Operating Range: 0 – 2g
Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Comparing Piezoresistive & Capacitive Accelerometers
Early Accelerometer Structure using Piezoresistors to Sense the Motion of a Proof Mass in Response to Acceleration.
- Poor matching & Linearity Characteristics - Large Variation with Temperature - Poor Sensitivity…
Bulk-Micromachined Accelerometers Moved to Capacitive Sensing Methods using Bonded Wafer Technique…
Capacitors Drift Little over Temperature Temperature Compensation Circuit is Minimal
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Bulk-Micromachined Accelerometers in Single Crystal Silicon
Basic 1D Bulk- Micromachined Capacitive Accelerometer
From [PUE 98]
3D Bulk- Micromachined Capacitive Accelerometer (a)Rest position, (b)Vertical Displacement due to z-axis acceleration, (c) Tilt due to x-axis acceleration
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Surface-Micromachined Accelerometers: Toward Integration of Electronics
Monolithic processing and reduced parts count yield high reliability at low cost.
Today’s Force-Balance
Integrated Accelerometer
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Surface-Micromachined Accelerometers in Poly Si
Restricted Proof Mass !
3-Axis Accelerometer Example (From BSAC) - 3 sensors x/y/z
- 500 kHz sampling rate - 2µm CMOS - 4 x 4 mm
2die - 5V/9Ma per axis
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Surface-Micromachined Accelerometers in Poly Si
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Commercialized 50-g Surface Micromachined Accelerometer
Analog Device’s ADXL50 Accelerometer
Capacitive sensor
NATO Advanced Study Institute RESPONSIVE SYSTEMS … / MEMS Course Brussels, September 10-19, 2001
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Some Commercialized Accelerometers
5 to 200g Single Axis Accelerometers Machined Through Electroplated Nickel (From Silicon Design,Inc.).
35g Surface-Micromachined Accelerometer
13 x 10 x 5 mm
3Package.
(From Delco).
3 Axis Accelerometer (From Silicon Sensing Systems/Japan).
3 Axis Open Frame Accelerometer.
(From Silicon
Designs, Inc.)
