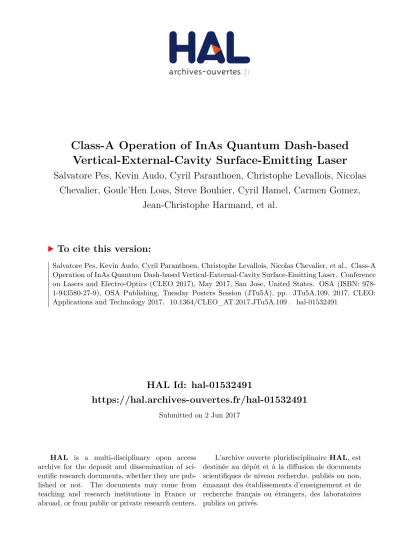

Class-A Operation of InAs Quantum Dash-based Vertical-External-Cavity Surface-Emitting Laser

HAL Id: hal-01532491

https://hal.archives-ouvertes.fr/hal-01532491

Submitted on 2 Jun 2017

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Class-A Operation of InAs Quantum Dash-based

Vertical-External-Cavity Surface-Emitting Laser

Salvatore Pes, Kevin Audo, Cyril Paranthoen, Christophe Levallois, Nicolas

Chevalier, Goulc’Hen Loas, Steve Bouhier, Cyril Hamel, Carmen Gomez,

Jean-Christophe Harmand, et al.

To cite this version:

Salvatore Pes, Kevin Audo, Cyril Paranthoen, Christophe Levallois, Nicolas Chevalier, et al.. Class-A Operation of InAs Quantum Dash-based Vertical-External-Cavity Surface-Emitting Laser. Conference on Lasers and Electro-Optics (CLEO 2017), May 2017, San Jose, United States. OSA (ISBN: 978-1-943580-27-9), OSA Publishing, Tuesday Posters Session (JTu5A), pp. JTu5A.109, 2017, CLEO: Applications and Technology 2017. �10.1364/CLEO_AT.2017.JTu5A.109�. �hal-01532491�

CLEO 2017

S. Pes

1,*

_{, K. Audo}

1

_{, C. Paranthoën}

1

_{, C. Levallois}

1

_{, N. Chevalier}

1

_{, G. Loas}

1

_{, S. Bouhier}

1

_,

C. Hamel

1

_{, C. Gomez}

2

_{, J.-C. Harmand}

2

_{, S. Bouchoule}

2

_{, H. Folliot}

1

_{and M. Alouini}

1

1

_{FOTON, UMR CNRS, INSA Rennes, Université de Rennes 1, 35708 Rennes, FRANCE}

2

_{Centre de Nanosciences et de Nanotechnologies, CNRS, Université Paris-Sud, 91360 Marcoussis, FRANCE}

*

_{salvatore.pes@insa-rennes.fr}

Class-A Operation of InAs Quantum Dash-based

Vertical-External-Cavity Surface-Emitting Laser

OP-QDH-VECSEL design and process

SiN

AR coating reflectivity

① InAs quantum dash-based (QDH) active region (3 sets

x 6 layers) growth on (001)-oriented InP substrate by

Gas-Source Molecular Beam Epitaxy

② Metamorphic growth of 17 pairs of

GaAs/Al

_0.97

Ga

_0.03

As Distributed Bragg Reflector

(λ

_Bragg

= 1600 nm) + Au layer deposition

③ Au-Au bonding on CVD-grade diamond heat-spreader

and InP substrate + InGaAs stop-etch layer wet etching

④ SiNx anti-reflection coating (λ

_AR

≈1600 nm) deposition +

flip-chip mount on a thermally-controlled copper heat-sink

2x2 µm

_{AFM image of the 1}

_uncapped

layer of a set of InAs quantum dashes

Active region TEM cross-section

(3 sets x 6 InAs QDH layers on

In

Ga

As

P

barriers)

InP

GaAs

InAs

QDH sets

Optical intensity field inside the structure

Polarization-resolved RT PL spectra of SQWs (black)

and QDHs (

red

,

blue

)

Applications

MICROWAVES:

• RADAR/LIDAR systems

• Ultra low-noise sources

• Dual-frequency lasers

• THz generation

METROLOGY:

• High resolution spectroscopy

• High pure optical reference

signal distribution

• Time/frequency metrology

Realization of an optical laser source with high spectral

purity, low intensity noise and highly tunability for

microwave photonics and coherent communication systems

Motivations

Conclusion

Demonstration of a Class-A Optically-Pumped InAs Quantum

Dash-based Vertical-External-Cavity Surface-Emitting Laser on InP.

MM-emission: P

_out

= 163 mW @ P

_inc

= 7 W, T=20°C

SM-emission: P

_out

= 10.4 mW @ P

_inc

= 1.1 W, T=19.5°C, 32 nm tuning

Polarization stably aligned along dash [1-10] direction, OPSR = 39 dB

Laser linewidth estimation: 22 kHz (49 mm-long cavity)

Phase noise: -110 dBc/Hz @ f > 200 kHz (free-running)

Class-A operation: f

_c

= 800 kHz, RIN = -158 dB/Hz (I

_phd

= 2 mA)

Funding

ANR and DGA within the ANR-ASTRID

HYPOCAMP project (grant

ANR-14-ASTR-0007-01) and a DGA-MRIS/Région Bretagne

scholarship (grant ARED-VELOCE 8917).

Future perspectives

Dual-frequency operation

Laser stabilisation on ULE cavity (metrology)

Electrical pumping

Single-frequency wavelength tuning

Laser characterization

Output characteristics and emission spectra

Multi-mode emission

T = 20°C

Single-mode emission

T = 19.5°C

ω

_MM-pump

= 145 µm x 210 µm

ω

_SM-pump

= 80 µm x 120 µm

Laser linewidth and phase noise

References

S. Pes et al., "Class-A Operation of an Optically-Pumped 1.6 µm-emitting

Quantum Dash-based Vertical-External-Cavity Surface-Emitting Laser on

InP", Opt. Express 25(10), 11760-11766 (2017)

Polarization-resolved SM-emission

Class-A operation
