Contents lists available atScienceDirect
Electric
Power
Systems
Research
j o u r n a l h o m e p a g e :w w w . e l s e v i e r . c o m / l o c a t e / e p s r
Flashover
voltage
of
silicone
insulating
surface
covered
by
water
droplets
under
AC
voltage
F.
Aouabed
a,
A.
Bayadi
a,∗,
R.
Boudissa
baDépartementElectrotechnique,UniversitéFerhatAbbasdeSétif1,Sétif,Algeria
bLaboGénieElectrique,UniversitéA.Mira,Béjaia,Algeria
a
r
t
i
c
l
e
i
n
f
o
Articlehistory:
Received26May2015
Receivedinrevisedform
13September2016 Accepted10October2016 Keywords: Contamination Flashover Testing
Siliconerubberinsulators
Surfacewettability
Waterdroplets
a
b
s
t
r
a
c
t
Dischargescausedbywaterdropletsonthesurfaceofpolymericinsulatorscanaffectthelong-term reliabilityofthecomponentbyloweringthesurfacehydrophobicityboostingsurfacedischarges.The mainobjectiveofthisworkistoquantifytheeffectofdifferenttypesofwaterdropsarrangements,their positionanddrybandswidthontheflashovervoltageofthesiliconeinsulatingsurfacewithnon-uniform electricfieldsystems.ThetestsweredoneonarectangularsampleunderACvoltage.Waterdropletswith differentconductivitiesandvolumeswereplacedonthesiliconerubbersurfacewithamicropipette.A rod-rodelectrodesystemisused.
Thefindingsofthisworkindicatethattheperformanceofthesamplesdecreaseswiththepresenceof waterdropsontheirsurfaces.Further,theseexperimentalfindingsshowthatthereisalimitingnumber ofrowsfromwhichtheflashovervoltageoftheinsulationisminimalandconstant.Thisminimumisa functionofthedistancebetweentwosuccessiverows.
Finally,itisconcludedthatthesystemwithstandvoltageincreaseswhentherowofdropletsonthe electrodeaxisisremoved.
©2016ElsevierB.V.Allrightsreserved.
1. Introduction
Nowadays,siliconerubberinsulationmaterialsarewidelyused inhighvoltageoutdoorinsulationsystemsastheycancombat pol-lutionflashoverproblems.
Thedifferenceinpollutionflashoverperformance ofsilicone rubberandotherinsulatingmaterialsisduetothewaythatwater wetstheirsurfaces.Itresidesasdiscretedropsonsiliconerubber, andthemechanismofflashoverisduetothebreakdownofthe airbetweenthewaterdropsandthedeformationofthesedrops inthedirectionoftheelectricfieldwhichbringstheinsulationto degradationandfailure.
Duringthepast25yearspolymericmaterialshaveemergedasa viableoptiontoporcelainand/orglassforoutdoorinsulation[1,2]. Polymericinsulatorsareincreasinglybeingusedinboththe dis-tributionandtransmissionsystemsbecauseoftheirverystrong resistancetothecontamination,theirlightness,theirmechanical resistanceand theirverygood wettability.The deterioration of
∗ Corresponding author at: Département d’Electrotechnique, Faculté de
Technologie, Université Ferhat Abbas Sétif 1, Algeria. Tel.:+213665303202;
fax:+21336611211.
E-mailaddresses:fatihaess@yahoo.fr(F.Aouabed),abayadi@yahoo.fr,
abayadi@univ-setif.dz(A.Bayadi),raboudissa@yahoo.fr(R.Boudissa).
insulatorsurfaceisoneofmainproblemstothesafetyand reli-abilityofelectricsystems.Thisisduetoenvironmentalconditions (light rain,morning dew), which significantly affect its perfor-mance.Itisknownthatwaterdropletsmaycause,underapplied electricfield,deteriorationofthesurfaceofanon-ceramic insula-toreveninconditionsoflowpollution.Thisisduetothefactthat waterdropletsonapolymersurfacelocallyincreasetheapplied electricfield. Localfield intensificationswilllead topartial dis-chargesand/orlocalizedarcs.Thesepartialdischargesdestroythe hydrophobicityandcausethedegradationoftheinsulatorswhich canplayanimportantroleinlong-termperformance[9–13].The influenceofvariousparametersonthebehaviorofwaterdroplets onpolymericsurfacesunderhighelectricfieldshasbeenthesubject ofseveralinvestigations[3–13].Themainobjectivewastoincrease thealternatingelectricfield.Karady[5],forexample,presentedthe resultsofanexperimentalinvestigationwhichprovidesabetter understandingofthephenomenaleadingtoflashover.Itwasshown thatthehydrophobicnatureofsiliconerubbersurfaceresultsina flashovermechanismdifferentfromthatofporcelaininsulators. Changesinsurfaceresistanceinducedbydischargeactivityonwet andcontaminatedsurfacehavebeenidentifiedasoneofthesources offlashoverofsiliconeinsulators.Phillipsetal.[10]publishedthe resultsofaresearchthatcorrelatestheinsulatorsagingwithcorona activitiesfromwaterdroplets.Usingsmall-scaleexperiment,itwas shownthatWaterdropsonthesheathsurfacesofSiRinsulatorcan http://dx.doi.org/10.1016/j.epsr.2016.10.025
producecorona,andthefieldnecessarytoproducecoronadepends onthedropletssizeandthesurfacehydrophobicity.
Swift[14] studiedtheoreticalandexperimentalinvestigation ofdropletsonthesurfaceinsulatorfromtheviewpointofwater triggeredelectricalbreakdownofanair-dielectricinterface.Itwas shown that greatly reducing thehydrophobicity of the surface by sparking the flashover voltage, but recovery to the fully-hydrophobicvaluetakesonlyafewminutes.andthatforthefully hydrophobiccase,flashoveristriggeredbygrossdistortionofthe waterdroplet.
InRef.[15],theauthorshavepresentedanexperimentalstudy ontheproblemsarisingfromtheapplicationofuniformacelectric fieldsonwaterdropletsdepositedonpolymersurfaces.
Differentpolymericmaterialswereused.Itwasshownthat vari-ousparameterssuchaswaterconductivity,dropletvolume,droplet positioningand polymer surface roughness affectthe flashover voltage.Itwasalsoreportedthatthepositioningofthedroplets playsagreaterroleindeterminingtheflashovervoltagethanthe dropletvolume.
InRef.[16],testshavebeendoneonwaterdropletsof differ-entconductivitiesandvolumesdepositedonthesurfaceofsilicone rubber.Factorsaffectingthecoronadischargeofwater droplets wereanalyzedbycalculatingtheelectricfield.Theauthorsreported thatwaterdropletsincreasetheelectricfieldandcancausecorona discharge.Theyalsoobservedthatthedropletvibratesandliedown tothepositiveelectrodeinawavesynchronismwiththeapplied voltagefrequency.
Fernandoetal.[17]studiedthebehaviorofleakagecurrenton compositeinsulatorsofdifferentmaterials.Theyconcludedthat theleakagecurrentiscapacitiveinnatureandoftenhasa sinu-soidalshape.Whenthehydrophobicityislost,theleakagecurrent becomesmoreresistive,withpeaksduetodischargesindrybands. Lopesetal.[20] measuredpartialdischarge(PD)fromwater dropletsonasiliconerubberinsulatingsurfaceinanacfield.They haveshownthatthepresenceofwaterdropletsonasiliconerubber surfaceproducesanelectricfieldenhancement.Thefield enhance-mentfactordependsonthesizeandnumberofdroplets.Theyalso observedthattheelectrostaticforces changethedropletshapes andspreadtheminthefielddirection.
Souzaetal.[21]investigatedthecoronainceptionandits rela-tion withpolymer surface conditions. They concludedthat the associationwaterdropletsandpollution,enhancetheelectricfield andcanleadtocoronadischargesandeventuallytofailures,under heavycontaminatedregions.
Phillips et al. [22], for example, presented summarized the findingsoftheextensiveresearchcarriedoutbythesetwo orga-nizations (EPRIand STRI)todeterminea practical limit forthe permissiblee-fieldoninsulatorsurfacesfordesignpurposes.
However,totheauthors’bestknowledge,Afewtheoreticaland experimentalworksstudyingtheinfluenceofthecombinationthe dropletsarrangementswithdrybandsonpolymericsurfacehave beendone[18].
Toformabetterviewofthebehaviorofwaterdropletsunder anon-uniformelectricfield,wecarriedoutseveralexperimental testsinthehighvoltagelaboratory.Weinvestigatedtheinfluence ofthenumberofwaterdropletsrowsandthedistancebetween them.Thispapersummarizesfindingsofexperimentswhichallow quantifyingtheseeffectsontheflashovervoltage.
2. Experimentalsetupandtestprocedure
Thewithstandvoltagemeasurementandvisualizationofthe airgapdisruptionphenomenonwereconductedusingequipments depictedinFig.1.ThetestcircuitconsistsofaHVtransformer(Tr) havingamaximumsecondaryvoltageof140kV.Acontrolunit(CU)
Fig.1. Laboratorytestsetup.
(CU:transformercontrolunit;Tr:HVtransformer;Cam:camescope;PC:personal
computer;To:testobject;C1,C2:capacitivedivider;Ra:resistance;V:digitalpeak
voltmeter).
forautomaticormanualspeedrampcontrol.Adigitalpeak volt-meter(V)atthelow-voltagearmofacapacitivedivider(C1,C2)
wasusedforvoltagemeasurements.Acurrent-limitingresistance (Ra)wasconnectedinserieswithtestobject(To).Thedevelopment
oftheelectricaldischargealongthesamplesurfacewasvisualized andrecordedfrominceptiontofullflashoverusingavideocamera system
Theairgapsystemhastwopointelectrodes.Thehigh-voltage andearthelectrodesconsistofacylindricalstainlesssteelrod5mm indiameter.Theyareterminatedbyaconicaltiphavinganangle of60◦andradiusofcurvatureof0.5mm.
TherodsarefixedontheholesoftwoPVCtubes.
The test specimen is a plate-shaped silicone rubber having 120mm in length,80mm in width and 5mm in thikness.The pollution solutioncomprises saltand distilledwater. Thewater droplets havebeendepositedonthehydrophobicsurfaceusing amicropipette.Thevolumeofthesedropletscanbeobtainedby tuningthemicropipetteatthedesiredsize.Inthiscase,thevolume ofwaterdropletsdepositedis40l.Thevolumeconductivityv
ofthepollutingsolutionwasdirectlymeasuredbyamobileprobe volumeconductimeterandwasfoundtobeabout180S/cm.
Theairgapdistancewastakenequalto6cm.Twentyfivetests werecarriedoutandvoltagestepsVofapproximately5%ofUc
wereused.Thesetestparametersarewellwithintherecommended valuesforsuchstatisticalmeasurementswherethenumberoftests n shouldbebetween20and 60 testsand thevoltagestep V between1%and 10% oftheflashovervoltage. Beforeeach new test,thesampleiscleanedandrinsedwithwaterthendriedusing papertissue.Thencleanedwiththeisopropanolalcohol.Foreach calculatedmeanvalue,byapplyingcorrectionfactors,adisruptive dischargevoltagemeasuredingiventestconditions(temperature T, pressure P,humidityH) isconverted totheequivalentvalue underthestandardreferenceatmosphericconditions(T0=20◦C,
P0=101.3kPa,H0=11g/m3)[19].Thegroupofwaterdropletsis
characterizedbyacoupleofvariable(ar,dg).Thedistancearisthe widthbetweentwosuccessiverowsanddgisthedistancebetween twosuccessivecolumnsofwaterdropletsasshowninFig.2. 3. Resultsanddiscussion
Toinvestigatetheinfluenceofwaterdropletontheflashover voltageofasiliconerubberinsulatingsurfaceaseriesof experi-mentshavebeenconductedasfollows:
3.1. Effectofwaterconductivity
Fig.3showstheinfluenceofthewaterdropletsconductivityon themeanvalueoftheinsulatorflashovervoltagefortwodifferent numbersofrows.
Fig.2. Distributionofwaterdropletsonthesample.
Fig.3.Influenceofthewaterdropletsconductivityontheinsulatorflashover
volt-age.
Theobtainedresultsshowthatthechosenvaluesofrowsdoes notsignificantlyaffectthecharacteristicUc=f(v).
Furthermore, as can be seen, the average flashover voltage decreasesbyapproximately38%withthepollutionconductivity untilalimitvalueofabout2.5mS/cmbeyondwhichthedielectric
strengthofthesystemremainsconstant.Thisismainlyduetothe factthatfromthislimit,thewaterbecomesconductive.
3.2. Numberofrowsofwaterdroplets
Inthispartofourinvestigations,experimentswereperformed withoutanydropletsbetweentheelectrodes.Thiswasdonein ordertohavereferencevaluesoftheflashovervoltage.Inorder tounderstandtheinfluenceofdropletsnumberofrowsbetween theelectrodes,thelatterisvariedfrom1to11.Thevolume con-ductivityismaintainedconstantatabout180S/cm.Theobtained resultsareshowninFig.4.Theobservationswiththevideocamera systemhaveshownthattheflashoverprocessfromtheinception tofullflashoverisdescribedessentiallyasfollows:
a)First,thegroupofwaterdropletsdepositedonthesample sur-face,beforeitsenergization,isshowninFig.4a.Themiddlerow coincideswiththeelectrodesaxisanditsextremedropletsgot incontactwiththeirpoints.
b)In the second phase, Whenan electric field is applied, It is observedthatthewaterdropletsshapechangealongthe elec-trode axis leading to the decrease of the ignition distance (Fig.4b)andthesharpedgeofthewaterdropletsatthetripleline togetherwiththeoppositeelectrodeformanon-homogeneous fieldconfigurationwhichisthebasiccausetohavethestreamer inceptiononthesamplesurface.
c)Next,forthereasonthattheelectric-fieldstrengthneartheHV electrodeisstrongenough,electricaldischargeisestablished alongtheelectrodeaxisasshowninFig.4c,
d)Finally,thetestedsampleafterthefullflashoverisshownin Fig.4d.
Thevariationofflashovervoltageasafunctionofwaterdroplets numberis illustratedinFig.5.It canbeseenthatthepresence of water droplets covering the hydrophobic insulating surface energizedwithalternatingvoltagecausesthereductionofits per-formance.Indeed,theflashovervoltagedecreasesasthenumberof rowsincreases.Thiscanbeexplainedbythedecreaseofthe igni-tiondistancedue,inonehand,tothespaceoccupiedbyvolume ofwaterdropletsbeforedeformationandintheotherhand,tothe theirstretchingalongthepathfollowedbytheelectricdischarge.
Takingintoaccounttheseresultsitcanbeseenthattheflashover voltagedecreasesrapidlytoalimitvalueofthenumberofrows
Fig.5.Flashovervoltagevsthenumberofrowsdropletsfordifferentdistances
betweenthem.
Fig.6. Relativereductionofflashovervoltageasafunctionofrowsnumber.
fromwhich,itbecomesconstant,themaximumvariationofelectric performanceisestimatedto35%.Thevalueofthislimitisa func-tionofthedistancebetweentwosuccessiverows.Furthermore, whenthedistancearisdecreasedalongthecreepagedistanceof thesample,asignificantdecreaseinitsperformanceisobservedas well.
Fig.6 showsthe relativereduction of flashovervoltageas a functionofrowsnumber.Wecanseethattherelativereduction increasesrapidlytoalimitvalue(5rows)ofthenumberofrows fromwhich,itbecomesrelativelyconstant,whichisinaccordance withtheresultspreviouslyobtained.
The relative reduction betweenflashover voltage and water dropletsrowscanbeobtainedasfollows:
U =100%×(U0−Ui)/U0 (1)
whereU0,Uiaretheflashovervoltagecorrespondingtothecase
withoutandwithwaterdropletsrowsrespectively.iisvariedfrom 1to11.
Quantitatively,Table1summarizestheresultsobtainedforthe maximumrelativevariationofUCwheniistakenequalto0and
5respectively.Themaximumflashovervoltageoftheairgapwith fiverowsisabout35%lowerthanthatobtainedinthecaseofadry cleanatmosphere.Itshouldbenotedthatforthelastvalueinthe table,only3rowswereusedduetothedimensionsofoursamples.
Table1
Relativereductionofflashovervoltagewithnumberofrows.
Numberofrows Uc(kV) U(%) ar=1cm,dg=1cm 0 41.7 35% 5 27.31 ar=1cm,dg=2cm 0 41.7 14% 5 35.94 ar=2cm,dg=2cm 0 41.7 8% 5 38.43 ar=3cm,dg=2cm 0 41.7 5.35% 5 39.47 ar=4cm,dg=2cm 0 41.7 5.5% 3 39.4 0 1 2 3 4 5 34 36 38 40 Flashover voltage Uc (kV) Distance ar ( cm) dg = 2 cm, 2 rows dg = 2 cm, 3 rows dg = 2 cm, 4 rows
Fig.7.Effectofthedistancearontheinsulatorflashovervoltages.
3.3. Distancebetweentwosuccessiverows
Inthissectiontheeffectofthedistancearisinvestigated.The arrangement of water droplets onthesurface of thesample is designedsuchthatthereisnorowalongtheelectrodeaxis.The obtainedresultsare illustratedin Fig.7 forthree different val-uesofar.Ascanbeseentheflashovervoltageincreaseswiththe distancebetweentworows.Besidesthiswecanseethatthe volt-ageincreasesrapidlyuptoalimitfromwhichnoimprovementis detected.
3.4. Positionandwidthofadryzoneperpendiculartothe electrodesaxis
Fig.8shows theshape oftheinsulation performancevs the numberofrowsofwaterdropletsdepositedonthesurface perpen-diculartotheelectrodesaxis.Thetotalnumberofperpendicular rowsis7.Thenumberofparallelrowsinthiscaseisequalto5. Thedistancebetweentwosuccessiverowsisequalto1cmandthe waterdropletsconductivityisabout180S/cm.
ResultsofFig.8showthatwhencreatingadrybandinthe vicin-ityofthegroundedelectrode,theflashovervoltagepassesthrough amaximumforanairgapdistanceequaltoapproximately6cm whichcorrespondstoasinglerowofwaterdropletsincontactwith thehighvoltageelectrode.Thisoptimumcanbeexplainedbythe factthatafterdeformationofwaterdroplets(Fig.9a,b,d),the dis-chargearcoverwaterdropletsarisesfarawayfromtheendofthe highvoltageelectrodealongapathcharacterizedbyapeakinits middle(Fig.9c).
Thispathislongerthanthatbetweenthetwopointswithout waterdroplets.Thesysteminthiscaseismorerigidthanwhenthe drybandisatthehighvoltageside.However,whenthewidthof thedrybandisequaltohalfthedistancebetweentheelectrodes, thewithstandvoltageofthesystemwithadrybandinthevicinity
0 2 4 6 8 25 30 35 40 45 50
Water drops on th
e ground
side
Water drops on th
e hi
gh voltage s
ide
Flashover vo
ltage
U
C
(kV)
Distance dg (cm)
Fig.8. Relationbetweentheflashovervoltageandthedistancedg.
ofthehighvoltageelectrodeishigherthanthesamesystemwith thedrybandinthegroundelectrodeside.Thisdiscrepancyisdue tothefactthatdepositedwaterdropletsinthevicinityoftheHV electrodeshortentheinter-electrodepath
3.5. Positionandwidthofadrybandparalleltotheelectrodes axis
Inthis section,theeffectofthedrybanddistanceldb
paral-leltotheelectrodeaxisontheflashovervoltageisinvestigated. Thisinvestigationwasachievedbyremovingdropletsrowsfrom selectedareasoftheinsulatorsurface.Thewaterdropletsare char-acterizedbyanelectricconductivityequalto180S/cmhaving ar=1cmanddg=2cm.theinitialtotalnumberofrowsisequalto 11.
AsshowninFig.10,twoscenarioswerestudied:
a)Aftercoveringtheentiresurfaceofthesamplebywaterdroplets, rown◦6,bywhichwemeantherowalongtheelectrodeaxis,was removedfirst,thenrown◦5onitsrightnextcomesrown◦7on itsleft.
Thispracticecontinuesuntilonlyonerowremainsonthe sam-plesurface,
b)Inthesecondscenario,thedropletsrowswereremovedoneby onestartingfromrown◦1untilonlyonerowremainsonthe samplesurfaceaswell.
TheobtainedresultsareshowninFig.11,wherethevariation oftheflashovervoltageisplottedasafunctionofthedry band distanceldbpositionandwidth.
Ascanbeseen,inthecasewherewaterdropletsrowonthe elec-trodeaxiswasremoved,thedrybandcreatedcausesanincreasein thedielectricstrengthofthesystematitsmaximumvalue.From thislimitremovalofanyotherrowdoesnotproduceany improve-ment.Thismeansthattheexistenceoftherowalongtheelectrodes axiscontributessignificantlytotheshorteningofthearcingpath betweenthe two electrodes.This wasverifiedduring thetests byobtainingphotographicevidenceforthedischargesfollowing theinsulatorsurface(Fig.12).Itsremovaldoesnotautomatically changethepathoftheelectricdischarge,despitetheincreaseof theignitiondistanceandpartialdeformationofwaterdropletsof theadjacentrows.
Inadditiontothis,Fig.11indicatesthatadrybandhavinga widthlessthanorequalto5cmobtainedbydeletingfiverowsto theleftoftheelectrodeaxis(scenariob)doesnotaffectthesystem performanceandtheflashovervoltageisalwaysatitsminimum. However,Notonlytheremovalofthedropletsrown◦6,whichison theelectrodeaxis,increasesthedielectricstrengthofthesystem butitproducesthehighestflashovervoltageaswell.Fromthislimit noimprovementwasseenwhendeletingtherestofthedroplets rows.
4. Conclusions
Theanalysisoftheeffectofdifferenttypesofarrangementsof waterdropletsontheflashovervoltageofasiliconesurfacewith anon-uniformfieldelectrodesystemledmainlytothefollowing conclusions:
䊏Theperformanceofainsulatingsurfaceisreducedwhenitis uniformlycoveredbywaterdroplets;
䊏Undertheinfluenceofwaterdroplets,thereisalimitednumber ofrowsforwhichtheinsulationperformanceisminimal(about 35%lowerthanthatobtainedinthecaseofadryclean

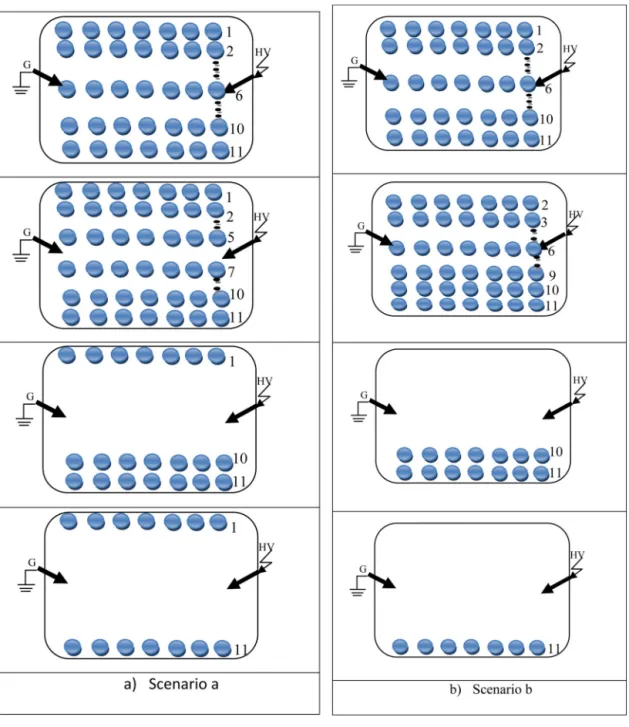

Fig.10.Consideredscenariosofthedryband. 0 2 4 6 8 10 12 25 30 35 40 45 Flashover voltage U C (k V ) Distance ldb (cm) Scenario a Scenario b
Fig.11. Variationoftheflashovervoltagevsthedrybanddistanceldb.
sphere)andis quiteconstantbeyondit.Thisminimumvalue dependsonthedistancebetweentwosuccessiverowsofwater droplets;
䊏Inthecasewherewaterdropletsrowontheelectrodeaxisdoes notexist,thecreateddrybandincreasesthedielectricstrength ofthesystem;
䊏Forthecasewhereadrybandiscreatedinthevicinityofthe groundelectrodesuchthatasinglerowexistalongtheline pass-ingthroughthehighvoltageelectrode,thewithstandvoltageof thesystemishigherthanthatinthecaseofabsenceofwater dropletsonthesurface.
䊏Theflashovervoltagedecreasesinanon-linearmannerandis slightlyaffectedbytheincreaseofthewaterconductivity,inhigh conductivitiesregion.Finally,theeffectoftheelectrical conduc-tivityofwater dropletsonitsperformance,erectedfallingto 38%.
Fig.12.Dischargestages:caseofadrybandparalleltotheelectrodeaxis.
Acknowledgements
Thisworkisapartofa researchprojectapprovedunderthe number:J0201220120004.Theauthorswould liketothankthe MinistryofhigherEducationandScienceResearchofAlgeriafor thefinancialsupportofthisproject.
References
[1]R.Hackam,OutdoorHVcompositepolymericinsulators,IEEETrans.Dielectr. Electr.Insul.6(5)(1999)557–585.
[2]E.A.Cherney,R.S.Gorur,RTVsiliconerubbercoatingsforoutdoorinsulators, IEEETrans.Dielectr.Electr.Insul.6(5)(1999)605–611.
[3]J.Ndoumbe,A.Beroual,A.M.Imano,Behaviourofwaterdropletsoninsulator surfacessubmittedtoDCvoltage–coalescence,ProceedingsoftheAnnual ReportConferenceElectricalInsulationandDielectricPhenomena(CEIDP) (2012)725–728.
[4]L.Yong,X.D.Boxue,Recurrentplotanalysisofleakagecurrentindynamic droptestforhydrophobicityevaluationofsiliconerubberinsulator,IEEE Trans.PowerDeliv.28(4)(2013)1996–2003.
[5]G.G.Karady,Flashovermechanismofnon-ceramicinsulators,IEEETrans. Dielectr.Electr.Insul.6(5)(1999)718–723.
[6]M.G.Danikas,R.Sarathi,P.Ramnalis,S.L.Nalmpantis,Analysisofpolymer surfacemodificationsduetodischargesinitiatedbywaterdropletsunder highelectricfields,Int.J.Electr.Electron.Eng.4(5)(2010)329–334.
[7]M.H.Nazemi,V.Hinrichsen,Partialdischargeinceptionelectricfieldstrength ofwaterdropletsonpolymericinsulatingsurfaces,IEEETrans.Dielectr.Electr. Insul.22(2)(2015)1088–1096.
[8]H.P.Nagaraj,N.Vasudev,K.N.Ravi,S.Aradhya,Behaviourofwaterdropletson polymersurface,ProceedingsoftheIEEE10thIntern.Conf.ontheProperties andApplicationsofDielectricMaterials(2012)1–4.
[9]Y.Zhu,K.Haji,M.Otsubo,C.Honda,N.Hayashi,Electrohydrodynamic behaviourofwaterdropletonanelectricallystressedhydrophobicsurface,J. Appl.Phys.39(2006)1970–1975.
[10]A.J.Phillips,D.J.Childs,H.M.Schneider,Agingofnon-ceramicinsulatordueto coronafromwaterdrops,IEEETrans.PowerDeliv.14(3)(1999)258–263.
[11]S.M.Rowland,F.C.Lin,Stabilityofalternatingcurrentdischargesbetween waterdropsoninsulationsurfaces,J.Appl.Phys.39(2006)3067–3076.
[12]D.A.Swift,C.Spellman,A.Haddad,Hydrophobicitytransferfromsilicone rubbertoadheringpollutantsanditseffectoninsulatorperformance,IEEE Trans.Dielectr.Electr.Insul.13(4)(2006)820–829.
[13]H.Wang,Z.Peng,S.Zhang,P.Liu,SimulationstudyonE-fielddistributionand coronacharacteristicsofcompositeinsulatorwithwaterdroplets,
ProceedingsoftheAnnualReportConferenceElectricalInsulationand DielectricPhenomena(CEIDP)(2013)422–425.
[14]D.A.Swift,Flashoverofaninsulatorsurfaceinairduetopollutedwater droplets,Proceedingsofthe4thIntConf.onPropertiesandApplicationson DielectricMaterials2(1994)550–553.
[15]M.G.Danikas,P.Rakitzis,K.Karakoulidis,Studyofparametersrelatedto deteriorationphenomenaduetowaterdropletsonpolymericsurfaces,J. Electr.Eng.57(3)(2006)130–137.
[16]S.Zhu,N.Yamashita,M.Anami,C.Otsulbo,Y.Honda,Coronadischarge phenomenonandbehaviourofwaterdropletsonthesurfaceofpolymerin theACelectricfield,Proceedingsofthe7thInt.Conf.onPropertiesand ApplicationsofDielectricMaterialsvol.2(2003)637–641.
[17]M.A.R.M.Fernando,S.M.Gubanski,Leakagecurrentpatternsoncontaminated polymericsurfaces,IEEETrans.Dielectr.Electr.Insul.6(5)(1999)660–667.
[18]M.G.Danikas,P.Ramnalis,R.Sarathi,Experimentalresultsonthebehaviour ofwaterdropletsonpolymericsurfacesundertheinfluenceofelectricfields: thecaseofaninclinedtestarrangementforPVC,rubberandsiliconerubber, FunktechnikplusJ.1(2)(2013)19–39.
[19]BSEN60060-1High-voltagetesttechniques.Part1:generaldefinitionsand
testrequirements,(2010).
[20]IvanJ.S.Lopes,SheshaH.Jayaram,EdwardA.Cherney,Astudyofpartial dischargesfromwaterdropletsonasiliconerubberinsulatingsurface,IEEE Trans.Dielectr.Electr.Insul.8(April(2))(2001)262–268.
[21]B.-A.L.Souza,I.J.S.Lopes,Experimentalinvestigationofcoronaonsetin contaminatedpolymersurfaces,IEEETrans.Dielectr.Electr.Insul.22(2) (2015)1321–1331.
[22]C.-A.J.Phillips,A.J.Maxwell,I.Engelbrecht,Electric-fieldlimitsforthedesign ofgradingringsforcompositelineinsulators,IEEETrans.PowerDeliv.30(3) (2015)1110–1118.
