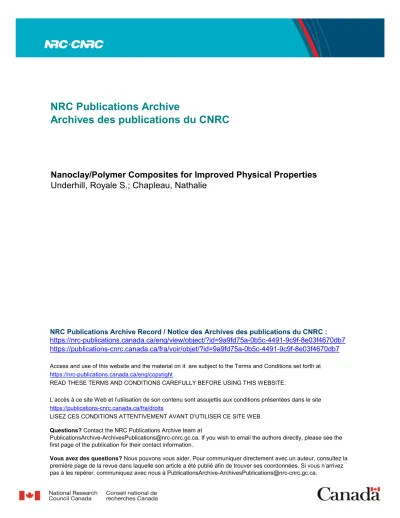

NRC Publications Archive Record / Notice des Archives des publications du CNRC :
https://nrc-publications.canada.ca/eng/view/object/?id=9a9fd75a-0b5c-4491-9c9f-8e03f4670db7
https://publications-cnrc.canada.ca/fra/voir/objet/?id=9a9fd75a-0b5c-4491-9c9f-8e03f4670db7
NRC Publications Archive
Archives des publications du CNRC
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Nanoclay/Polymer Composites for Improved Physical Properties
Underhill, Royale S.; Chapleau, Nathalie
Defence R&D Canada • R & D pour la défense Canada
Nanoclay/Polymer Composites For Improved
Defence Research and
Development Canada Recherche et développementpour la défense Canada
Canada
Physical Properties
Royale S. Underhill1and Nathalie Chapleau2 1Defence R&D Canada – Atlantic (Dockyard Lab (Atlantic)) 2National Research Council Canada – Industrial Materials Institute
8 April 2009 2009 CF/DRDC International Defence Applications of Materials Meeting
Acknowledgements
• DRDC Atlantic – Mr. Irv Keough (DMA, DSC, TGA) – Mr. Gary Fisher (XRD, SEM) – Dr. Shannon Farrell • NRC – IMI – Ms. Manon Plourde (abrasion tests) – Mr. Yves Simard (compounding) – Mr. Michel CarmelDefence R&D Canada • R & D pour la défense Canada
(XRD)
– Dr. Allison Nolting
(tensile tests)
(sheet casting and injection molding)
• NRC – IRC
– Dr. Joseph Su
(cone calorimetry)
Outline
• Future soldier requirements
• Nanoclay composites for improved functionality in
a lightweight product
• Experimental:
Sample Preparation
Defence R&D Canada • R & D pour la défense Canada
– Sample Preparation
– Composite Characterization
– Physical Properties
– Flammability
• Conclusions and Future Work
Soldier Systems Requirements
• A system that integrates all that s/he wears/carries.
• Future requirement to: – carry more, – utilize more technology, – withstand more extreme environments. • Multifunctional materials:
Defence R&D Canada • R & D pour la défense Canada
• Multifunctional materials: – lightweight, – enhance stealth, – ballistic protection, – CB resistance, – Power, – Durability, – Comfort.
Background – Clays
Defence R&D Canada • R & D pour la défense Canada
• Sheet-structure interspersed with water and cation layers – e.g., (½Na,Ca)0.7(Al3.3Mg0.7)(Si8O20)(OH)4·nH2O • Layers swell (Smectite Clays)
Background – Clay Nanocomposites
i
i
i
l
d
f li
d
Defence R&D Canada • R & D pour la défense Canada
• Conventional composite: 20-50% loading • Nanocomposite: 2-7% loading
microcomposite
(conventional)
intercalated
exfoliated
(nanocomposite)
Commercial Uses – Current
Main areas of use• Automotive, Packaging
Improved properties
• Mechanical: – Dimensional stability
– Tensile strength, Modulus, Tear strength • Barrier:
Defence R&D Canada • R & D pour la défense Canada
– Improved O2, CO2, VOC, H2O(g)barrier
• Flame retardancy: – Dripping and charring • Other:
– Surface – smooth, hard – UV-stability – Rheology
Sample Preparation (1)
Polymer Clay Conc. (% wt)
Polypropylene (PP) (Profax 1274) None 0 Natural (Cloisite 15A) 2 4 Compatibilized Natural (Cloisite + Low MW PP) 2 4 Compare natural vs. compatibilized
Defence R&D Canada • R & D pour la défense Canada
Synthetic (Perkalite F100) 2 4 Polyamide-6 (PA) (a.k.a. Nylon 6) (PA1015B) None 0 Natural (Cloisite 15A) 2 4 Synthetic (Lucentite SWN) 2 4 Synthetic (Somasif ME100) 2 4 Compare aspect ratio 50 vs. 6000
Compatibilization
Defence R&D Canada • R & D pour la défense Canada
• To make a clay more oleophilic:
– Reaction with short chain polypropylenes.
Sample Preparation (2)
Defence R&D Canada • R & D pour la défense Canada
• Sheets were extrusion cast. • Dogbones were injection
molded.
Nanoclay Composite Characterization
Composite Characterization: SEM
polypropylene + 4% natural clay
PP + Cloisite 15A A. Secondary e-image: – Variations in topography B. Back-scatter image: – Variations in atomic # 2m A.
Defence R&D Canada • R & D pour la défense Canada
• Fracture may have
occurred along clay
particles
2 m 2 m B. PP + 2 PP + 2 wtwt.% LDH.% LDH PP + 4 PP + 4 wtwt.% LDH.% LDHComposite Characterization: TEM
polypropylene + synthetic clay
• Note the “clumps”
Defence R&D Canada • R & D pour la défense Canada 500 nm 500 nm 100 nm 100 nm PP + 2 PP + 2 wtwt.% LDH.% LDH PP + 4 PP + 4 wtwt.% LDH.% LDH
Composite Characterization: XRD
polypropyleneDefence R&D Canada • R & D pour la défense Canada
• Natural clay did not disperse well in PP, even when
compatibilizer was used. – Corroborates microscopy data
• Synthetic clay dispersed better than natural clay in PP. • Presence of peaks indicates intercalation; not exfoliation.
Composite Characterization: SEM
polyamide + 4% natural clay
PA + Cloisite 15A A. Secondary e-image: – Variations in topography B. Back-scatter image: 2m A.
Defence R&D Canada • R & D pour la défense Canada
– Variations in atomic #
• No variations in
back-scatter indicate that
the clay is well
dispersed.
2m
2μm
B.
Natural
(in situpolymerization)
Natural Synthetic
Composite Characterization: TEM
polyamide + 2% clay
Defence R&D Canada • R & D pour la défense Canada
Cloisite 15A 200 nm Cloisite 15A (commercial grade) 200 nm 200 nm 200 nm
Lucentite (SWN) Somasif (ME100)
Composite Characterization: XRD
polyamide
Defence R&D Canada • R & D pour la défense Canada
• Intercalation observed in polyamide + natural clay system. • Synthetic clay; d-spacing increases only 0.01 nm
• Micrographs and XRD suggest PA has better dispersion than
Nanoclay Composite Physical Properties
Defence R&D Canada • R & D pour la défense Canada
Composite Physical Properties:
Thermal Gravimetric Analysis
• decomposition temperature: – PP1 (neat) = 456°C – PP + clay = 465°C
– PP2 (neat) = 463°C
+9°C
Defence R&D Canada • R & D pour la défense Canada
( ) – PP + syn. clay = 460°C
– PA (plain) = 441°C – PA + clay = 410°C
-31°C
-3°C
Composite Physical Properties:
Differential Scanning Calorimetry
• PP:
– No significant change when the amount of uncomp. nat. clay was varied in the composites. – When 4% comp. nat. clay was
added, crystallinity decreased and crystallization temperature (Tc) decreased 6°C.
Defence R&D Canada • R & D pour la défense Canada
– When synthetic clay was added, crystallinity didn’t change, but Tc increased 7°C.
• PA
– No significant change in melt or crystallization temperatures with the addition of clay.
Composite Physical Properties: DMA
• General trend is an increase in modulus with an
increase in clay loading.
• PP + comp. nat. clay composites tend to be stiffer
than their uncomp. counterparts.
Defence R&D Canada • R & D pour la défense Canada
Composite Physical Properties: Tensile
Defence R&D Canada • R & D pour la défense Canada
• Addition of clay increased both the max tensile stress and the
necking strength.
• Clay reduced ductility. • There was a strain rate dependence.
Composite Physical Properties: Tensile(2)
Composite Physical Properties: Impact (1)
) 0.4 0.5 0.6 PP PP + 4 wt.% Cloisite 15A (compatibilized)Defence R&D Canada • R & D pour la défense Canada
Time (ms) 0.0 0.5 1.0 1.5 2.0 Loa d (k N ) 0.0 0.1 0.2 0.3
Composite Physical Properties: Impact (2)
tal E nergy 2 3 4 Cast Sheets
E totalfor neat PP (1 mm thick sheet) ≈ 2 J
Defence R&D Canada • R & D pour la défense Canada
Neat PP PPNC1-2 PPNC1-4 PPNC2-2 PPNC2-4 Re la ti v e T o t 0 1 2
Composite Physical Properties: Abrasion
Defence R&D Canada • R & D pour la défense Canada
• ASTM D 1044-08 and D1242-87 • 1000 cycles with a 500g weight • 1 Hz
• PA showed better abrasion resistance than PP.
• As % of clay increased, the
abrasion resistance dropped.
Composite Flammability
Defence R&D Canada • R & D pour la défense Canada
• Radiant heats of 25 kW/m2and 35 kW/m2
• PA had the best results at low radiant heats.
• At high radiant heats, PA was as good as or better than the PP.
Conclusions – Nanoclay Composites
• Nanocomposites using natural and synthetic clays
in polypropylene and polyamide-6 matrices were
synthesized.
– Polyamide dispersed the clays best.
• Ideally polyamide nanoclay composites are
d b i
l i
h
l
Defence R&D Canada • R & D pour la défense Canada
made by intercalating the caprolactam
monomer into the clay and polymerizing in
situ
.
• The physical properties of the nanocomposites
showed minor improvements over the parent
polymers.
– Dispersion played a role.
Conclusions – Military Applications
• What do these results mean for potential textiles?
– Processing plays an important role in realizing
the improved properties of nanoclay
composites.
– Polyamides (a.k.a., nylon) appear to be the
b
i f
l
i
Defence R&D Canada • R & D pour la défense Canada
better matrix for nanoclay composites.
– More basic research is needed before these
composites can be transitioned to viable
technology for military applications.
– Nanoclay composites TRL = 2-3
Future Work
• Move forward with polyamide
– Investigate in situ polymerization
• Durability testing (UV, humidity, temperature)
• CB resistance
Defence R&D Canada • R & D pour la défense Canada
• Microfibre and nanofibre formation/testing
– Textile testing, comparison with “bulk”
nanocomposite properties.
Natural clay (Cloisite 15A)
Capillary Rheology for PP-based Nanocomposites
at 200°C
y (P a .s ) 500 (P a .s ) 500 Synthetic clay (Perkalite F100)Defence R&D Canada • R & D pour la défense Canada
Shear Rate (s-1) 100 1000 10000 Sh ear Vi sc osi ty 10 100 PP PPNC2-2 PPNC2-4 Shear Rate (s-1) 100 1000 10000 S hear Vi s c os it y 10 100 PP A2 A4
Transient Rheology for PA-based
Nanocomposites
1 0 1.2 1.4 s it y Stress growth test at 240oCDefence R&D Canada • R & D pour la défense Canada
Strain, 0.01 0.1 1 10 100 0.4 0.6 0.8 1.0 Neat PA PA + 2 wt.% Cloisite 15A Commercial PA (1015C2) Relative visco s
