Role of boundary conditions in helicoidal flow
collimation: Consequences for the von Kármán sodium
dynamo experiment
J. Varela, S. Brun, Bérengère Dubrulle, C. Nore
To cite this version:
J. Varela, S. Brun, Bérengère Dubrulle, C. Nore. Role of boundary conditions in helicoidal flow
collimation: Consequences for the von Kármán sodium dynamo experiment. Physical Review E :
Statistical, Nonlinear, and Soft Matter Physics, American Physical Society, 2015, 92 (6), pp.063015.
�10.1103/PhysRevE.92.063015�. �cea-01367262�
Role of boundary conditions in helicoidal flow collimation: Consequences
for the von K´arm´an sodium dynamo experiment
J. Varela,1,2S. Brun,1B. Dubrulle,3and C. Nore2
1AIM, CEA/CNRS/University of Paris 7, CEA-Saclay, 91191 Gif-sur-Yvette, France
2Laboratoire d’Informatique pour la M´ecanique et les Sciences de l’Ing´enieur, LIMSI, CNRS, Universit´e Paris-Sud,
Universit´e Paris-Saclay, Bˆat 508, Campus Universitaire F-91405 Orsay, France
3SPEC/IRAMIS/DSM, CEA, CNRS, University Paris-Saclay, CEA Saclay, 91191 Gif-sur-Yvette, France (Received 23 June 2015; revised manuscript received 27 October 2015; published 14 December 2015) We present hydrodynamic and magnetohydrodynamic (MHD) simulations of liquid sodium flow with the PLUTO compressible MHD code to investigate influence of magnetic boundary conditions on the collimation of helicoidal motions. We use a simplified cartesian geometry to represent the flow dynamics in the vicinity of one cavity of a multiblades impeller inspired by those used in the Von-K´arm´an-sodium (VKS) experiment. We show that the impinging of the large-scale flow upon the impeller generates a coherent helicoidal vortex inside the blades, located at a distance from the upstream blade piloted by the incident angle of the flow. This vortex collimates any existing magnetic field lines leading to an enhancement of the radial magnetic field that is stronger for ferromagnetic than for conducting blades. The induced magnetic field modifies locally the velocity fluctuations, resulting in an enhanced helicity. This process possibly explains why dynamo action is more easily triggered in the VKS experiment when using soft iron impellers.
DOI:10.1103/PhysRevE.92.063015 PACS number(s): 47.20.Ky, 47.65.−d, 47.27.Cn, 52.72.+v
I. INTRODUCTION
The dynamo effect is the main driver of magnetic field in celestial bodies through the transformation of mechanical energy in magnetic energy [1–3]. Given their huge dimensions and the extreme conditions prevailing in their environment, natural dynamos are characterized by control parameters that are presently out-of-reach of analytical or numerical grasp. To make progress, several liquid-metal dynamo experiments have been built [4–6], allowing observation and study of several regimes of astrophysical or geophysical interest with interesting open questions regarding the dynamo mechanisms. When the level of fluctuations is low, like in the Riga or Karlsruhe dynamo, the dynamo mechanism appears well de-scribed by a “laminar” mechanism, by which the mean velocity flow stretchs and folds the magnetic field lines, resulting in magnetic field growth [2]. The observed magnetic field is then similar to that predicted by kinematic computations. When the level of fluctuations is large, like in the VKS dynamo, the observed dynamo magnetic field is dipolar aligned with the symmetry axis of the setup, in contradiction with the “laminar” mechanism that predicts an equatorial dipole [7]. It has therefore been suggested that the dominant mechanism in VKS is, like in many celestial bodies, “turbulent” [8–10], with a magnetic field generation occurring either via the interaction of the differential rotation and the nonaxisymmetric velocity perturbations [8], or via self-interaction of the helical pertur-bations [11]. However, many features of the VKS dynamo are left unexplained. The VKS experiment generates turbulence through the counter-rotation of two impellers (i.e., disks fitted with blades). Both the geometry and the composition of the impellers influence the dynamo: (i) when the blades curvature is decreased, the dynamo threshold increases [12]; (ii) when the blades and the disks are made of soft-iron, with large magnetic permeability, the dynamo threshold is at least two to three times smaller than when the blades and/or the disks are made of copper, with large electrical conductivity, or with
stainless steel [13]; (iii) when the ferromagnetic impellers are magnetized, the dynamo threshold decreases [12]. This shows that a better understanding of the VKS dynamo requires investigation of the complex interaction of the large-scale flow, generated by the impeller, with magnetic field and current at the impeller. Previous investigations of the role of impeller material on the dynamo mechanism in VKS were restricted to the role of the boundary conditions onto the magnetic field growth with prescribed velocity [10,14,15].
In this paper, we study the influence of a prescribed mag-netic field (presumably issued from the disk magnetization) on the velocity fluctuations. We use magnetohydrodynamic (MHD) numerical simulations in a simplified geometry mim-icking the flow structure in the vicinity of the impeller. We show that the interplay between the magnetic and velocity fields results in a strong enhancement of the helicity only when ferromagnetic boundary conditions are used.
II. NUMERICAL MODEL
We use the PLUTO code with a viscous and resistive MHD single fluid model in 3D Cartesian coordinates [16]. The simulation domain is plotted in Fig. 1(a) and focused on the near impeller region and the flow in between two blades, with X, Y , and Z directions corresponding to local azimuthal (toroidal), radial, and vertical (poloidal) directions. For simplicity, we consider straight blades instead of curved blades and walls without thickness. The gray surfaces on Fig. 1(a) represent the blades (at X= 0 and X = 2), the impeller disk (at Z= 0) and the cylinder outer wall (at Y = 4). The influence of the blade’s geometry is taken into account via the velocity boundary condition, through , the ratio of the poloidal to toroidal mean velocity that varies from 0.9 to 0.4 as the blade’s curvature is changed from 72o to−72o [17].
In the blades and the impeller disk we impose either perfect ferromagnetic ( B× n = 0) or perfect conductor ( B· n = 0)
J. VARELA, S. BRUN, B. DUBRULLE, AND C. NORE PHYSICAL REVIEW E 92, 063015 (2015)
FIG. 1. (Color online) (a) Simulation domain for a portion of the flow in between two blades: X, Y , and Z directions correspond to local azimuthal, radial, and vertical direction with X∈ [0,2], Y ∈ [0,4], Z∈ [0,2]. (b) Whirl location versus value: X coordinate (dotted line), Z coordinate (dashed line), and module (solid line). (c) Magnetic field for simulations with different magnetic diffusion: Rem= 104 (dash-dot line), Rem= 103 (dotted line), Rem= 102
(dashed line), and Rem= 10 (solid line)
boundary conditions (n is the surface unitary vector), null velocity, and constant slope for the density (ρ) and pressure (p). For the wall at Y = 4 and at the other boundaries, the magnetic field is fixed to 10−3T and oriented in the azimuthal
X direction, mimicking an azimuthal disk magnetization as observed in the VKS experiment [18]. The value of 10−3T has been chosen to match the order of magnitude of the remnant magnetic field observed in the impeller, after a dynamo has been switched off. At the top boundary, the velocity is fixed to
V = (10, 0, − 10) m/s, mimicking the impinging velocity
field due to Ekman pumping towards the impeller. The density is fixed to 931 kg/m3 in the left wall outside the blade (X= 0) and has a constant slope in the rest. The pressure is calculated as p= ρv2
s/γ with γ = 5/3 the specific heat ratio
TABLE I. Gain factor (G) between the ferromagnetic and conductor cases for the simulations with Ren= 200 and Ren= 1000.
Ren= 200 hyyhzx= 1.90 hyyhxx= 0.01 hzyhxx= 0.01 hzyhzx= 53.50 Ren= 1000 hyyhzx= 2.48 hyyhxx= 2.33 hzyhxx= 1.10 hzyhzx= 1.17
and vs = 250 m/s the sound speed. The vs value is one order
smaller than the real sound speed in liquid sodium to keep a time step large enough for the simulation to remain tractable. The consequence is a small enhancement of the compressible properties of the flow (subsonic low Mach number flow or pseudoincompressibility regime); nevertheless the impact on the simulations is small and the incompressible nature of the liquid sodium flow is preserved.
The numbers of grid points are typically 128 in the X and
Z directions and 256 in the Y direction for the simulations with kinetic Reynolds number Ren= ρV L/η = 200, with L= 1 m and η the dynamic viscosity. For the simulations
with Ren= 1000 we double the resolution in each dimension.
We chose to illustrate our results with the Ren= 200 cases,
which are more didactic to explain the physical mechanisms at play than the Ren= 1000 cases, since in the latter the system
enters a chaotic regime due to the precession of the whirl vortex, leading to a more complex regime to analyze. However, we demonstrate in the text and TableIthat the trends in both configurations are the same. The robustness of the model was further tested for different values of magnetic diffusivity (λ) as showed in Fig.1(c)for a range of simulations with magnetic Reynolds number Rem= V L/λ taking values between 10
to 104. The magnetic energy decreases when the magnetic
diffusivity increases; in the simulation with Rem= 10 no
enhancement of the magnetic field is observed, while for a simulation with Rem= 100 the magnetic energy is around six
times smaller than the Rem= 104case. The effective magnetic
Reynolds number of the numerical magnetic diffusion due to the model resolution corresponds to Rem≈ 6 × 103 in the
simulation with Ren= 200. The simulations we show in this
paper are performed using the numerical magnetic diffusion of the code for simplicity. We perform hydrodynamic (HD) simulation with no magnetic field and MHD simulations, with perfect ferromagnetic and perfect conductor boundary conditions at the blades and impeller disk.
III. VORTEX LOCATION AND AMPLITUDE
We have run several HD simulations with increasing Reynolds number Ren and ranging from 0.6 to 1. In all
cases, we observe that the impinging of the velocity at the impeller generates a radial helicoidal vortex, with a kinetic helicity increasing from 50 to 330 ms−2 when Renis varied
from 10 to 1000, meaning that the vortex becomes more and more focused. A visualization of the resulting helicoidal vortex is displayed in Fig.2 at Ren= 200. At a given Ren,
increasing the value of has two main effects: first, it
FIG. 2. (Color online) Magnetic and velocity field stream lines at Ren= 200 and = 0.8 in the perfect ferromagnetic (a) and
conductor (b) simulations in the all domain. Isocontour of the magnetic field (0.005 T in the ferromagnetic and 0.001 T in the conductor cases). Magnetic field module in the Y= 2 plane.
increases the vortex kinetic helicity proportionally to (data not shown). Second, it changes the location of the vortex with respect to the blades [see Fig. 1(b)]: as is increased, the vortex is pushed toward the upstream impeller, moving from
X= 0.75 m for = 0.6 to X = 0.55 m for = 1, but it is
in the configuration with = 0.8 where the whirl is closer to the left blade and the impeller base [see Fig.1(b), solid line]. This intensification of the vortex and its displacement closer to the wall can potentially make it more sensitive to any current circulating within the blades. These results are compatible with HD simulations performed by other authors [19]. To study this effect, we thus introduce a background magnetic field to investigate this interplay between the vortex flow and the magnetic field.
IV. INFLUENCE OF BOUNDARY CONDITIONS
We now fix Ren= 200, = 0.8 (corresponding to TM
73 impeller rotating in the unscooping direction in the VKS experiment) and apply a large-scale magnetic field in the azimuthal (X) direction at the boundaries, with ferromagnetic (denoted as Bvecn) or perfect conductor (denoted as Bdotn) boundary conditions at the impeller. In both cases, there is a generation of a magnetic field in the radial (Y ) direction. The magnetic field lines are collimated by the vortex leading to a local enhancement of the magnetic field. In the (Bvecn) case [Fig.2(a)] the magnetic field is almost five times larger than in the (Bdotn) case [Fig.2(b)] pointing out the essential role played by the magnetic field boundary conditions in making the interaction between the flow and the magnetic field more efficient. An explanation of this can be found by investigating the geometry of the current streamlines (Fig.3). The currents
FIG. 3. (Color online) Angle between the current and the unitary surface vector in the Bvecn configuration (a) and the Bdotn configu-ration (b) in a zoomed box. The arrows indicate the orientation of the current on the blades and black lines are current stream lines nearby the upstream blade.
in the ferromagnetic walls are parallel to the surface (gray arrows) and are shorted out with the current lines inside the fluid, as can be observed for the current lines plotted nearby the upstream blade and the impeller base [black lines, Fig.3(a)], not connected with the wall and creating a current whirl. This short-circuit avoids the transfer of magnetic energy from the fluid to the wall, resulting in a tighter collimation and enhanced magnetic field amplitude overall. For the conducting walls, the scenario is the opposite [Fig.3(b)]: the currents are perpendicular to the blades and the impeller base, connected with the current lines inside the fluid. Therefore, the fluid accumulates a smaller amount of magnetic energy resulting in a weaker magnetic field collimation and enhancement. To quantify this effect, we define the magnetic energy as a volume average in a region nearby the whirl [ME]=MEdx/dx,
provided in Fig.4(d). The amount of magnetic energy in the ferromagnetic wall case is seven times the one computed in the conducting wall case. In the sequel, we keep this notation for volume averaged quantities.
V. LORENTZ FORCE FEEDBACK ON VORTEX FLOW
The magnetic field reaches locally values of 10−2 T (100 gauss) but there is no discernible influence on the mean-flow helicity, as can be seen in Fig.4(a): the kinetic helicity time evolutions ([v · ω], with ω the vorticity) overlap for the Bvecn, Bdotn, and HD simulations. Moreover, the current helicity ([ B· J /ρ], with Jthe current density) is five times larger in the Bvecn simulation [Fig.4(b)], but still two orders of magnitude
J. VARELA, S. BRUN, B. DUBRULLE, AND C. NORE PHYSICAL REVIEW E 92, 063015 (2015)
FIG. 4. (a) Kinetic helicity. Ferromagnetic case (solid line), conductor case (dashed line), and hydro case (dotted line) (b) Current helicity. (c) Magnetic energy. (d) Total helicity. (e) Helicity of fluctuations. (f) Helicity of fluctuations in Bvecn case: kinetic helicity (solid line), current helicity (dashed line); and Bdotn case: kinetic helicity (dotted line), current helicity (dash-dot-dot line). All values are averaged in a volume localized around the whirl.
smaller than the kinetic helicity. As a result, the total helicity (H eT = [ B· J /ρ− v · ω]) is dominated by the kinetic term,
so that it is not influenced by the magnetic field, whatever the boundary conditions [Fig.4(e)]. In contrast, the helicity of the fluctuations, defined as Hef = [ B· J/ρ− v· ω], where the denotes the fluctuating part with respect to the time average,
is sensitive to the boundary conditions [Figs.4(c)and4(f)]. Splitting the fluctuating helicity into a current J H and a kinetic
KHparts, we see in Fig.4(f)that, in the Bdotn case, J H
KH, while in the Bvecn case, J H dominates, showing that the magnetic field is strong enough to perturb the velocity
fluctuations.
To further quantify the variations of the fluctuating helicity for our five different setups (HD reference run, ferromagnetic, and conductor cases for both Ren number values), we have
computed the nine components of the helicity tensor hij
(data not shown), defined as hij = iknu k∂ju
n. Due to the
moderate Reynolds number in the Ren= 200 simulations,
the fluctuations are not very strong (of the order of 1% of the mean velocity), so that the representative amplitudes of these quantities (maximum of the order of 10−3 m/s2) are several orders smaller than in the Ren= 1000 simulations. In
order to analyze what a hypothetical α2 dynamo loop based
on the components of the helicity tensor (e.g., By →hyy,hzy Bx →hxx,hzx By) would yield, one can define a gain factor Gusing the ratio between the time averaged components of the dynamo loop for the ferromagnetic and conductor cases (e.g., G= (|hij||hkm|)ferro/(|hij||hkm|)cond). This allows us
to assess what boundary condition configurations lead to the

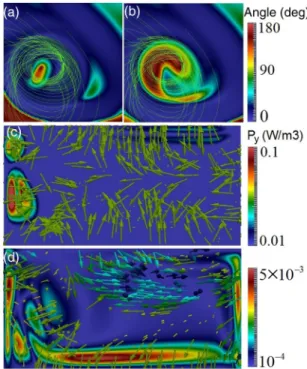

FIG. 5. (Color online) Angle between the velocity and the mag-netic fields for (a) the Bvecn and (b) the Bdotn simulation (plane
Y = 1) at t = 1 s. Properties of the Poynting vector in the upstream
blade: (c) Bvecn, (d) Bdotn cases. The arrows direction (resp. color) codes its orientation (respectively, its angle with the unitary vector normal to the surface). The color in the blade codes its modulus.
largest dynamo loop enhancement. In TableI, we show first for the Ren= 200 case that the gain factor is for most components
greater than 1. This result confirms that the simulations with ferromagnetic boundary conditions are more efficient to collimate the flow and to induce the magnetic field, a trend that is further reinforced for the simulations with Ren= 1000
where all components of the gain factor are now greater than 1.
Figures 5(a) and5(b) show that regions of alignment or antialignment of the magnetic and the velocity fields are associated with maxima of the magnetic energy. To clarify the magnetic energy transfer from the fluid to the boundary we calculate the Poynting vector on the upstream blade, defined as Py = μ1
0( E× B), with Ethe electric field. The Poynting
vector in the Bvecn case is parallel to the surface so there is not a net flux of magnetic energy leaving the system, while in the Bdotn simulation the Poynting vector is not parallel to the surface so there is a net flux of magnetic energy. As a consequence, the magnetic energy in the Bvecn case remains in the fluid while in the Bdotn simulation it can be transferred to the wall.
VI. DISCUSSION
We have shown that the impinging of the large-scale flow upon the impeller generates a coherent radial vortex between the blades. This flow collimates any existing magnetic field that in return modifies locally the velocity fluctuations and the helicity tensor. From Table 1, we see that the products of the dynamo loop hyyhzx, hyyhzy, and hzyhzxincrease when
changing the wall properties from conducting to ferromagnetic material in the Ren= 200 simulations, a trend that is even
more robust in the nonstationary Ren= 1000 cases where all
the products are larger for a ferromagnetic material. Within the first-order smoothing approximation, the α tensor is defined as α= τh [11], where τ is the correlation time. This effect therefore leads to a net increase of the efficiency of the α2
dynamo mechanism, e.g., By →hyy,hzy Bx →hxx,hzx By in the
case of ferromagnetic boundary conditions as soon as the disks are magnetized. This effect is stronger when the vortex is closer to the wall, which is piloted by the parameter . This effect may therefore explain why changing the blade’s orientation and the material of the impeller has an impact on the dynamo threshold and validates the use of larger values of α when ferromagnetic blades are used and the disks are magnetized [10,14]. It has often been said that the VKS dynamo is just a rotating magnet because of the essential role of the soft iron. If this were the case, the dynamo properties would not be changed by the flow geometry, as it is observed. In the present work, we show that the soft iron may actually enhance the dynamo cycle by retroaction of the magnetic field onto the velocity
fluctuations responsible for the α effect, effect mediated by an helicoidal radial vortex that collimates the magnetic field. Even though the present scenario was elaborated at moderate values of the kinetic Reynolds number, we believe that it remains valid for the conditions realized in the experiments. The next step is to further increase the degree of turbulence and to push toward even more realistic values, such as, for instance, lower magnetic Prandtl number. From an experimental point of view, it would be interesting to seek alternative ways to reinforce the α effect between the blades just by mechanics, by enhancing flow collimation rather than through the use of material favoring strong localized magnetic fields.
ACKNOWLEDGMENTS
We have received funding by the Labex PALM/P2IO/LaSIPS (VKStars Grant No. 2013-02711), INSU/PNST and ERC PoC Grant No. 640997 Solar Predict. We thank M. Cemeljic, W. Herreman, and the VKS team for fruitful discussions.
