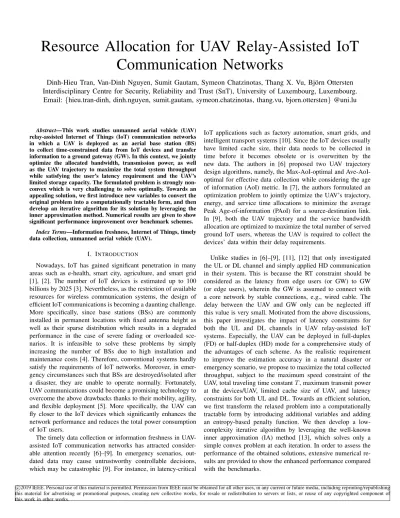

Resource Allocation for UAV Relay-Assisted IoT
Communication Networks
Dinh-Hieu Tran, Van-Dinh Nguyen, Sumit Gautam, Symeon Chatzinotas, Thang X. Vu, Bj¨orn Ottersten
Interdisciplinary Centre for Security, Reliability and Trust (SnT), University of Luxembourg, Luxembourg.
Email: {hieu.tran-dinh, dinh.nguyen, sumit.gautam, symeon.chatzinotas, thang.vu, bjorn.ottersten} @uni.lu
Abstract—This work studies unmanned aerial vehicle (UAV) relay-assisted Internet of Things (IoT) communication networks in which a UAV is deployed as an aerial base station (BS) to collect time-constrained data from IoT devices and transfer information to a ground gateway (GW). In this context, we jointly optimize the allocated bandwidth, transmission power, as well as the UAV trajectory to maximize the total system throughput while satisfying the user’s latency requirement and the UAV’s limited storage capacity. The formulated problem is strongly non-convex which is very challenging to solve optimally. Towards an appealing solution, we first introduce new variables to convert the original problem into a computationally tractable form, and then develop an iterative algorithm for its solution by leveraging the inner approximation method. Numerical results are given to show significant performance improvement over benchmark schemes.
Index Terms—Information freshness, Internet of Things, timely data collection, unmanned aerial vehicle (UAV).
I. INTRODUCTION
Nowadays, IoT has gained significant penetration in many areas such as e-health, smart city, agriculture, and smart grid [1], [2]. The number of IoT devices is estimated up to 100 billions by 2025 [3]. Nevertheless, as the restriction of available resources for wireless communication systems, the design of efficient IoT communications is becoming a daunting challenge. More specifically, since base stations (BSs) are commonly installed in permanent locations with fixed antenna height as well as their sparse distribution which results in a degraded performance in the case of severe fading or overloaded sce-narios. It is infeasible to solve these problems by simply increasing the number of BSs due to high installation and maintenance costs [4]. Therefore, conventional systems hardly satisfy the requirements of IoT networks. Moreover, in emer-gency circumstances such that BSs are destroyed/isolated after a disaster, they are unable to operate normally. Fortunately, UAV communications could become a promising technology to overcome the above drawbacks thanks to their mobility, agility, and flexible deployment [5]. More specifically, the UAV can fly closer to the IoT devices which significantly enhances the network performance and reduces the total power consumption of IoT users.
The timely data collection or information freshness in UAV-assisted IoT communication networks has attracted consider-able attention recently [6]–[9]. In emergency scenarios, out-dated data may cause untrustworthy controllable decisions, which may be catastrophic [9]. For instance, in latency-critical
IoT applications such as factory automation, smart grids, and intelligent transport systems [10]. Since the IoT devices usually have limited cache size, their data needs to be collected in time before it becomes obsolete or is overwritten by the new data. The authors in [6] proposed two UAV trajectory design algorithms, namely, the Max-AoI-optimal and Ave-AoI-optimal for effective data collection while considering the age of information (AoI) metric. In [7], the authors formulated an optimization problem to jointly optimize the UAV’s trajectory, energy, and service time allocations to minimize the average Peak Age-of-information (PAoI) for a source-destination link. In [9], both the UAV trajectory and the service bandwidth allocation are optimized to maximize the total number of served ground IoT users, whereas the UAV is required to collect the devices’ data within their delay requirements.
Device 1 Device 2 Full Duplex start,1 n 1 2 3 4 5 6 7 8 9 N start,2 n T end,1 n end,2 n Uplink 1 Uplink2 Downlink1 Downlink2 FD
Fig. 1: Illustration of the data transmission process of 2 IoT devices with N time intervals. The first IoT device with initial data transmis-sion time at nstart,1 = 2, timeout at nend,1 = 5. The second IoT device with initial data transmission time at nstart,2= 3, timeout at nend,2= 6. The UAV operates in the FD mode from time slots 5 to 6 since two devices utilize the same sub-carrier.
II. SYSTEMMODEL ANDPROBLEMFORMULATION
We consider a wireless communication system where a UAV acts as a relay to receive data from a set K, {1, . . . , K} of K IoT devices and then forward to a ground gateway (GW). Each IoT device is equipped with a single antenna and operates in the HD mode. The UAV is capable of adopting either FD or HD mode. The total flying time of UAV is limited by T . Each device is active at different time instances t, where 0 ≤ t ≤ T . The device k’s location are represented by rk ∈ R2×1, k ∈
K. We assume that the IoT locations, data sizes, the starting data transmission time (i.e., nstart,k), and deadline time (i.e.,
nend,k) are known to the UAV through the control center. As
shown in Fig. 1, we denote nstart,k and nend,k as the starting
data transmission time and latency constraint of the device k, respectively. It is assumed that the UAV must collect device k’s data during period nstart,k ≤ t ≤ nend,k. For simplicity, the
UAV flies at fixed altitude H (meters), which is the minimum altitude to avoid obstacles [5]. Denote by q(t) ∈ R2×1with 0 ≤ t ≤ T the UAV trajectory projected onto the horizontal plane. For tractability, T is divided into N equally slots, i.e., T = N δt
with δtdenotes the duration of each time slot. Thus, q(t) can be
represented as (q[n])Nn=1, where q[n] is the UAV’s horizontal location at n-th time slot. Let Vmaxdenote the maximum flying
speed of the UAV. We then have the UAV’s speed constraint kq[n] − q[n − 1]k ≤ δd = Vmaxδt, n = 2, ..., N . Moreover,
N = {1, . . . , N } denotes the set of all time slots.
Let k and U represent for the k-th IoT device and the UAV, respectively. Henceforth, 1k and 2k denote the channel k → U and U → GW to convey the data of user k, respectively. Then, the distance from k → U or U → GW is dik[n] =
q
H2+ kq[n] − rk2, ∀n, k, where i ∈ {1, 2}, r ∈ {r k, q0},
with q0 denotes the GW’s location.
This work considers a practical channel model including both large-scale and small-scale fading [14]. Concretely, the channel coefficient at n-th time slot, hik[n], is decomposed as [9]
hik[n] =
p
ωik[n]˜hik[n], (1)
where ωik[n] = ω0d−αik [n] represents for the large-scale fading
effects, with ω0 is the average channel power gain at the
reference distance d = 1 meter, and α is the path loss exponent. ˜
hik[n] accounts for the Rician small-scale fading coefficient in
the form of ˜hik[n] = q G 1+Ghik[n] + q 1 1+Gˆhik[n]. Here, G
is the Rician factor; hik[n] and ˆhik[n] ∼ CN (0, 1) denote the
LoS and NLoS components, respectively.
The achievable transmission rate (bits/s) of links k → U and U → GW to convey the data of device k at time slot n, for the FD and HD operations, are respectively given by
r1k[n] = r1kFD[n] = a1k[n]B log2 1 + p1k[n]|˜h1k[n]|2ω0 (H2+kq[n]−r kk2) α/2 φRSI K P k?∈K\k p2k∗[n] + σ2 , (2a) r1kHD[n] = a1k[n]B log2 1 + p1k[n]|˜h1k[n]|2ω0 H2+ kq[n] − r kk 2α/2 σ2 , (2b) r2k[n] = a2k[n]B log2 1 + p2k[n]|˜h2k[n]|2ω0 H2+ kq[n] − q 0k 2α/2 σ2 , (3)
where φRSI, ρRSI|g
U[n]|2with ρRSI∈ [0, 1) is the residual SI
suppression (SiS) level after real-time cancellations in analog-digital domains and gU[n] denotes the fading loop channel at
UAV which interferes the UL reception due to the concurrent DL transmission; σ2denotes the power of additive white
Gaus-sian noise (AWGN); B is the total bandwidth in hertz (Hz); a1k[n]B and a2k[n]B are the the portion of bandwidth allocated
for the UL and DL to transmit data of k-th device during time slot n, respectively. In practice, for a large number of resources, a1k[n] and a2k[n] are approximately continuous between 0
and 1. Thus, the bandwidth allocation should comply with the following constraints P
k∈K
aik[n] ≤ 1, 0 ≤ aik[n] ≤ 1, ∀k, n.
From (2)-(3), the throughput of UL and DL to transmit the data of device k at time slot n are
C1k[n] = δtR1k[n], (4) C2k[n] = δtR2k[n], (5) respectively, where R1k[n] = r1k[n], if n ∈ T1k 0, otherwise (6) R2k[n] = r2k[n], if n ∈ T2k 0, otherwise (7)
with T1k , {nstart,k, . . . , nend,k}, T2k , {nend,k+ 1, . . . , N };
(6) implies that the UL transmission k → U only occurs during time period T1k. On the other hand, the DL transmission U →
on the UL and DL are represented as C1k , P n∈T1k δtR1k[n] and C2k, P n∈T2k δtR2k[n], respectively.
Then, we have the latency constraints λk Sk R1k ≤ (nend,k− nstart,k)δt, ∀k, (8) λk Sk R2k ≤ (N − nend,k)δt, ∀k, (9)
where Sk denotes the data size, R1k , P n∈T1k
R1k[n], R2k ,
P
n∈T2k
R2k[n]; (8) signifies that the device k must transmit the
data to UAV before the latency constraint; (9) implies that the DL process is performed during the flying time of UAV.1
A practical operational constraint of the limited storage capacity of C for the UAV is considered, which is stated as
X k∈K n X l=1 C1k[l] − n−1 X l=1 C2k[l] ! ≤ C, ∀n, (10) where n P l=1 C1k[l] , λkSk− N P l=n+1 δtR1k[l], C2k[l] , δtR2k[l].
Notably, to spend a part of storage capacity for future use, i.e., a free cache size to store new incoming data, the amount of data stored at the UAV is calculated as the size of files collected from all devices till (n)-th time slot minus files transmitted to GW till (n − 1)-th time slot as in (10).
To mathematically describe a successfully served device, a new binary variable λk is introduced
λk =
1, Device k is successfully served
0, otherwise. (11)
Let us define q , {q[n], ∀n}, a , {a1k[n], a2k[n], k ∈
K, n ∈ N }, p , {p1k[n], p2k[n], k ∈ K, n ∈ N }, λ ,
{λk, k ∈ K}. By taking into account the storage limitation,
under the assumption that the locations, initial transmission time, and timeout constraints of all IoT devices are known a priori. Consequently, the problem for maximizing the total throughput by jointly optimizing the UAV trajectory, the allo-cation of resources (i.e., bandwidth and transmit power assigned
1We consider the system model in which the UAV does not transmit the data
during taking off and landing [15]. Thus, the data transmission process only occurs when UAV is flying in the sky.
for UL/DL) can be formulated as P : max q,a,p,λ X k∈K δtmin(R1k, R2k) (12a) s.t. (8), (9), (10), (12b) λk∈ {0, 1}, ∀k, n, (12c) δtmin(R1k, R2k) ≥ λkSk, ∀k, (12d) K X k=1 δtR2k ≥ K X k=1 λkSk, ∀k, (12e) X k∈K λk≥ λthresh, ∀k (12f) X k∈K aik[n] ≤ 1, ∀n (12g) 0 ≤ aik[n] ≤ 1, ∀k, n. (12h) q[1] = qI, q[N ] = qF, (12i) kq[n] − q[n − 1]k ≤ δd, n = 2, . . . , N, (12j) 0 ≤ p1k[n] ≤ Pkmax[n], ∀k, n, (12k) 0 ≤ K X k=1 p2k[n] ≤ PUmax[n], ∀n, (12l)
where constraint (12d) means that each served IoT device uploads the minimum amount of data Sk. Constraint (12e)
guarantees that the device k is successfully served iff all the data uploaded on the UL is transmitted on the DL. Constraint (12f) points out that the total number of served IoT devices must be larger than a given threshold value. Constraint (12i) takes care of the initial and final locations of the UAV. Constraints (12k) and (12l) show that the total transmit power of device k and the UAV is lower than or equal to their maximum power budgets Pmax
k [n] and PUmax[n], respectively.
Analytically, it is evident that problem P is a mixed-integer non-linear program (MINLP), which is generally NP-hard. In addition, the binary constraint (12c) and the non-convex con-straints (12b), (12d), and (12e) introduces intractability. There is no standard method for solving such a problem efficiently. Nevertheless, at least a locally optimal solution may be obtained by employing adequate relaxations to P. In the sequel, we introduce an approximation method for P, followed by its corresponding solution.
III. PROPOSEDITERATIVEALGORITHM FORSOLVINGP
This section provides an iterative algorithm based on the IA method to solve the design problem.
A. Tractable Formulation forP
To bypass the difficulty of binary nature of P, we
re-lax binary variables to continues ones as 0 ≤ λk ≤
1, ∀k. Then, we respectively introduce slack variables z1k[n],
z2k[n], and t1k[n] such that
(φRSI P k?∈K\k p2k∗[n] + σ2) ≤ t1k[n], which yields r1k[n] ≥ r1kFD,lb[n] = a1k[n]B log2 1 +p1k[n]|˜h1k[n]| 2ω 0 z1k[n]t1k[n] ! , (13a) r1kHD,lb[n] = a1k[n]B log2 1 +p1k[n]|˜h1k[n]| 2ω 0 z1k[n]σ2 ! , (13b) r2k[n] = a2k[n]B log2 1 +p2k[n]|˜h2k[n]| 2ω 0 z2k[n]σ2 ! . (14)
By substituting (13) and (14) into (4), (5), (6), and (7), we obtain Clb 1k[n], C2klb[n], Rlb1k[n], and R2klb[n], respectively. Moreover, we have Rlb 1k , P n∈T1k Rlb 1k[n], R2klb , P n∈T2k R2k[n].
Next, the total throughput over N time slots received on the UL and DL can be rewritten as C1klb , P
n∈T1k
δtR1k[n]
and C2klb , P
n∈T2k
δtR2k[n], respectively. Let us denote z ,
{z1k[n], z2k[n], n ∈ N , k ∈ K}, t , {t1k[n], k ∈ K, n ∈ N }.
Then, the problem P can be re-written as Prelaxed: max q,a,p,λ,z,t X k∈K δtmin(Rlb1k, R lb 2k) (15a) s.t. (12f), (12g), (12h), (12i), (12j), (12k), (12l), (15b) 0 ≤ λk≤ 1, ∀k (15c) H2+ kq[n] − rkk 2 ≤ (z1k[n]) 2/α , ∀k, n, H2+ kq[n] − q0k2 ≤ (z2k[n])2/α, ∀n, (15d) (φRSI K X k∗=1,k∗6=k p2k∗[n] + σ2) ≤ t1k[n], ∀k, n, (15e) λk Sk Rlb 1k ≤ (nend,k− nstart,k)δt, ∀k, (15f) λk Sk Rlb 2k ≤ (N − nend,k)δt, ∀k, (15g) δtmin(Rlb1k, R lb 2k) ≥ λkSk, ∀k, (15h) K X k=1 δtRlb2k ≥ K X k=1 λkSk, ∀k ∈ K (15i) X k∈K λkSk− N X l=n+1 δtRlb1k[l] − n−1 X l=1 δtRlb2k[l] ! ≤ C, ∀k, n. (15j)
Although problem Prelaxed is still non-convex due to the
non-convexity of constraints (15c)-(15j). In what follows, we apply IA framework to develop newly approximated functions to convexify non-convex parts.
B. Proposed IA-based Algorithm
We first treat the non-convex functions r1klb[n] and rlb 2k[n]
in constraints (15f), (15g), (15h), (15i), and (15j). Specifically, they can be expressed as
r1klb[n] , a1k[n]Φ1k[n] ≥ a1k[n]Φ1k[n], (16) r2klb[n] , a2k[n]Φ2k[n] ≥ a2k[n]Φ2k[n], (17) where Φ1k[n] , B log2 1 + p1k[n]|˜h1k[n]|2ω0 z1k[n]t1k[n] ! , (18) Φ2k[n] , B log2 1 + p2k[n]|˜h2k[n]|2ω0 z2k[n]σ2 ! , (19) Φ1k[n] , B ζ1+ ζ2 p1k[n] − ζ3 p1k[n], t1k[n], z1k[n] , (20) Φ2k[n] , B ξ1+ ξ2 p2k[n] − ξ3 p2k[n], z2k[n] . (21)
Proof:See Appendix A.
By introducing the slack variables Φlb1k[n] and Φlb1k[n], we
have Φ1k[n] ≥ Φlb1k[n], Φ2k[n] ≥ Φlb2k[n]. Consequently, r lb 1k[n]
and r2klb[n] are converted to the following constraints:
r1klb[n] ≥ rlb1k[n] , a1k[n]Φlb1k[n], (22)
r2klb[n] ≥ rlb2k[n] , a2k[n]Φlb2k[n]. (23)
To deal with the non-convexity of right hand sides (RHSs) of (22) and (23), we replace a1k[n]Φlb1k[n] and a2k[n]Φlb2k[n]
by 0.25(a1k[n] + Φlb1k[n])2 − (a1k[n] − Φlb1k[n])2 and 0.25(a2k[n] + Φlb2k[n]) 2− (a 2k[n] − Φlb2k[n]) 2, respectively.
Then, we apply the first-order Taylor to approximate the convex functions (a1k[n]+Φ1k[n])2and (a2k[n]+Φ2k[n])2at (j+1)-th
iteration, respectively. Thus, we have a1k[n]Φlb1k[n] ≥ a(j)1k[n] + Φlb,(j)1k [n]2 4 + a(j)1k[n] + Φlb,(j)1k [n] 2 ×a1k[n] − a (j) 1k[n] + Φ lb 1k[n] − Φ lb,(j) 1k [n] − a1k[n] − Φ lb 1k[n] 2 4 , ˜r lb 1k[n], (24) a2k[n]Φlb2k[n] ≥ a(j)2k[n] + Φlb,(j)2k [n]2 4 + a(j)2k[n] + Φlb,(j)1k [n] 2 ×a2k[n] − a (j) 2k[n] + Φ lb 2k[n] − Φ lb,(j) 2k [n] − a2k[n] − Φ lb 2k[n] 2 4 , ˜r lb 2k[n]. (25)
To convexify (15e)-(15j), we introduce slack variablesbrlb1k[n] andrblb 2k[n], such that ˜ r1klb[n] ≥brlb1k[n], (26) ˜ r2klb[n] ≥brlb2k[n]. (27) Consequently, substituting brlb 1k[n] and br lb 2k[n] into (4)-(7),
Algorithm 1: Proposed IA Based Design to Solve (12) Initialization: Set j := 0 and generate an initial feasible
point Ψ(0) for all constraints in (30). 1: repeat
2: Solve (30) to obtain the optimal solution Ψ? , (q?, a?, p?, λ? , z?, t?, Φ?, r?). 3: Update q(j+1):= q?, a(j+1):= a?, p(j+1):= p?, λ(j+1) := λ?, z(j+1):= z?, t(j+1):= t?. 4: Set j := j + 1. 5: until Convergence Moreover, we have bRlb1k , P n∈T1k b R1klb[n], bR2klb , P n∈T2k b Rlb2k[n]. Next, the total throughput over N time slots received on the UL and DL can be rewritten as bClb
1k , P n∈T1k δtRblb1k[n] and bClb 2k , P n∈T2k
δtRblb2k[n], respectively. Particularly, as the binary variable λk is relaxed to continuous values between
0 and 1 (15c) which does not guarantee that λk converges
to 0 or 1. This motivates us to execute a penalty function P(λk) , λkln(λk) + (1 − λk) ln(1 − λk) [16]. Since P(λk) is
convex for λk ≥ 0, we replace P(λk) by its first order Taylor
approximation at (j + 1)-th iteration: b P(λk) , κ P(λ(j)k ) + OP(λ (j) k ) λk− λ (j) k , (28) where OP(λ(j)k ) = ln(λ (j) k ) − ln(1 − λ (j) k ). (29)
Let us denote Φ , {Φlb1k[n], Φlb2k[n], ∀k, n} and r , {brlb1k[n],brlb2k[n], ∀k, n}. Bearing all the above developments in mind, we solve the following approximate convex program at (j + 1)-th iteration: Pconvex: max q,a,p,λ,z,t,Φ,r, X k∈K δtmin( bR1k, bR2k) (30a) s.t. (15b), (15c), (15d), (15e), (26), (27), (30b) λk Sk b Rlb 1k ≤ (nend,k− nstart,k)δt, ∀k, (30c) λk Sk b Rlb 2k ≤ (N − nend,k)δt, ∀k, (30d) δtmin bRlb1k, bR lb 2k ≥ λkSk, ∀k, (30e) K X k=1 δtRb2klb ≥ K X k=1 λkSk, (30f) X k∈K λkSk− N X l=n+1 δtRblb1k[l] − n−1 X l=1 δtRblb2k[l] ! ≤ C, ∀k, n, (30g) where bR1k, bRlb1k+ κλkOP(λ (j) k ), bR2k, bR lb 2k+ κλkOP(λ (j) k ).
We successively solve the convex program (30) and update the involved optimization variables until convergence, which output at least a locally optimal solution to the relaxed problem. The detailed algorithm is summarized in Algorithm 1.
400 500 600 700 800 x (meters) 0 100 200 300 400
Achieved Throughput (Mbits)
FD Benchmark FD HD Benchmark HD (a) B = 10 400 500 600 700 800 x (meters) 0 50 100 150 200 250 300 350
Achieved Throughput (Mbits)
FD
Benchmark FD HD
Benchmark HD
(b) B = 5
Fig. 2: Total achievable throughput vs. different network sizes. IV. NUMERICALRESULTS
In this section, we perform the numerical evaluations to validate the proposed designs. Specifically, we consider K IoT devices randomly distributed within the considered area, i.e., 500 m x 500 m, and the ground gateway is located at (0, 500 m). The parameters are set as follows: K = 20, H = 100 meters, B = 10 MHz, path loss exponent α = 2.3, σ2 = −110 dBm, ω
0 = -40 dB, PUmax = 20 dBm, Pkmax =
15 dBm, Sk = 30 Mbits, Rician factor G = 12 dB, the
maximum collection time deadline for each device k nend,k
is uniformly distributed between nmin
end,k and nmaxend,k. The UAV’s
initial and final locations are deployed at qI = [300 m, 200 m]
and qF = [100 m, 0], respectively. For comparison purpose,
two benchmark schemes are considered. More specifically, the Benchmark FD and Benchmark HD are implemented similar to Algorithm 1 with the equal bandwidth allocated to each user, i.e., a1k[n] = a1k[n] = KB.
0 200 400 600 800 1000
Cache size (Mbits)
0 100 200 300 400
Achieved Throughput (Mbits)
FD Benchmark FD HD Benchmark HD (a) N = 70 0 200 400 600 800 1000
Cache size (Mbits)
0 50 100 150 200 250 300 350
Achieved Throughput (Mbits)
FD
Benchmark FD HD
Benchmark HD
(b) N = 60
Fig. 3: Total achievable throughput vs. different cache sizes. a wider area. Thus, the UAV must fly at a higher speed to satisfy the time requirement of each device which is in contradiction with the Vmax constraint. Moreover, the FD and
HD methods outperform the benchmark ones due to the benefits of optimizing bandwidth allocation.
Fig. 3 studies the influence of total traveling time and storage capacity to the total amount of data, with Skis ranging
from 5 to 30 Mbits. It is shown that the proposed algorithms significantly improve the performance compared with the refer-ences for all values of cache size (Mbits). Specifically, the FD algorithm can serve 77.04% of the total data amount and the HD algorithm achieves less than 39.8% at C = 400 Mbits and N = 60 time slots. Whereas the Benchmark FD and Benchmark HD respectively impose 7.65% and 1.28%. Moreover, it is also observed that the more the traveling time is assigned, the higher the amount of data can be collected. Since the UAV has more time to exchange data between the IoT devices/GW. Particularly, at N = 70, the HD scheme can obtain the same performance as the FD one since the UAV has enough time for collecting data from IoT users before transmitting to the GW. Hence, when the total traveling time is sufficiently large, the UAV should operate at HD mode for a simpler implementation
in comparison to that of FD mode. V. CONCLUSION
This work investigated the trajectory design for FD/HD UAV-assisted IoT communication networks under latency constraints. Specifically, the total achieved throughput was maximized via jointly optimizing the UAV trajectory, allocated bandwidth, as well as the transmission power for the devices/UAV while com-plying with delay-sensitive data collection and limited storage capacity. Since our formulated problem was a mixed-integer non-convex program, we transformed the original problem into a convex form which was solved by an IA-based iterative algorithm. Finally, numerical results showed that our proposed designs outperform benchmark approaches.
VI. ACKNOWLEDGEMENT
This research is supported by the Luxembourg Na-tional Research Fund under project FNR CORE ProCAST, grant C17/IS/11691338 and FNR CORE 5G-Sky, grant C19/IS/13713801.
APPENDIXA
From [17, Appendix B], [18], the upper bound of zk[n]t1k[n]
in rlb 1k[n] is: zk[n]t1k[n] ≤ (z1k[n]t1k[n])ub, z(j)1k[n] (t1k[n]) 2 2t(j)1k[n] +t (j) 1k[n] (z1k[n]) 2 2z(j)1k[n] , (A.1) By using [19, Eq. (20)], and (A.1), the lower bounds of Φ1k[n] and Φ2k[n] are, respectively
Φ1k[n] ≥ Φ1k[n] , Bζ1+ ζ2 p1k[n] − ζ3 p1k[n], t1k[n], z1k[n] , (A.2) Φ2k[n] ≥ Φ2k[n] , Bξ1+ ξ2 p2k[n] − ξ3 p2k[n], z2k[n] , (A.3) where the expressions corresponding to ζ1, ζ2, ζ3, ξ1, ξ2, and
ξ3 are provided in Table II.
