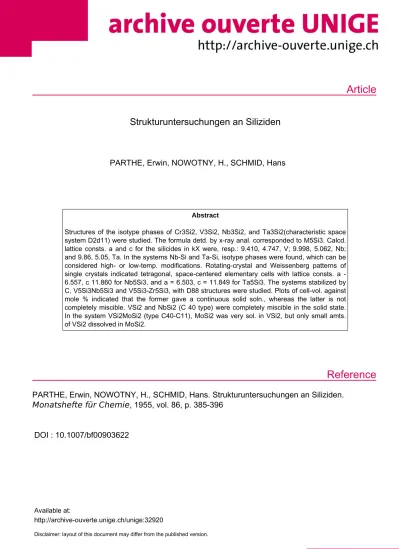

Article
Reference
Strukturuntersuchungen an Siliziden
PARTHE, Erwin, NOWOTNY, H., SCHMID, Hans
Abstract
Structures of the isotype phases of Cr3Si2, V3Si2, Nb3Si2, and Ta3Si2(characteristic space system D2d11) were studied. The formula detd. by x-ray anal. corresponded to M5Si3. Calcd.
lattice consts. a and c for the silicides in kX were, resp.: 9.410, 4.747, V; 9.998, 5.062, Nb;
and 9.86, 5.05, Ta. In the systems Nb-Si and Ta-Si, isotype phases were found, which can be considered high- or low-temp. modifications. Rotating-crystal and Weissenberg patterns of single crystals indicated tetragonal, space-centered elementary cells with lattice consts. a - 6.557, c 11.860 for Nb5Si3, and a = 6.503, c = 11.849 for Ta5Si3. The systems stabilized by C, V5Si3Nb5Si3 and V5Si3-Zr5Si3, with D88 structures were studied. Plots of cell-vol. against mole % indicated that the former gave a continuous solid soln., whereas the latter is not completely miscible. VSi2 and NbSi2 (C 40 type) were completely miscible in the solid state.
In the system VSi2MoSi2 (type C40-C11), MoSi2 was very sol. in VSi2, but only small amts.
of VSi2 dissolved in MoSi2.
PARTHE, Erwin, NOWOTNY, H., SCHMID, Hans. Strukturuntersuchungen an Siliziden.
Monatshefte für Chemie , 1955, vol. 86, p. 385-396
DOI : 10.1007/bf00903622
Available at:
http://archive-ouverte.unige.ch/unige:32920
Disclaimer: layout of this document may differ from the published version.
1 / 1
