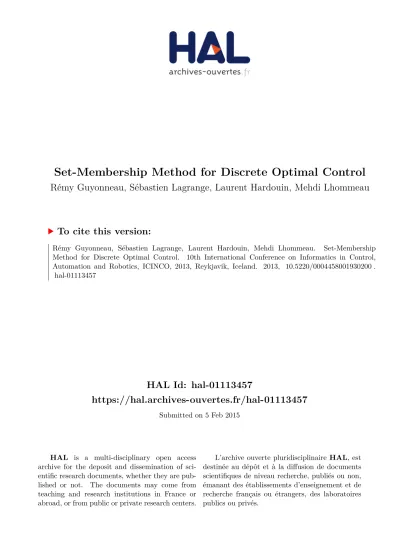

Set-Membership Method for Discrete Optimal Control

HAL Id: hal-01113457

https://hal.archives-ouvertes.fr/hal-01113457

Submitted on 5 Feb 2015

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Set-Membership Method for Discrete Optimal Control

Rémy Guyonneau, Sébastien Lagrange, Laurent Hardouin, Mehdi Lhommeau

To cite this version:

Rémy Guyonneau, Sébastien Lagrange, Laurent Hardouin, Mehdi Lhommeau. Set-Membership Method for Discrete Optimal Control. 10th International Conference on Informatics in Control, Automation and Robotics, ICINCO, 2013, Reykjavik, Iceland. 2013, �10.5220/0004458001930200�.

�hal-01113457�

Set-Membership Method for Discrete Optimal Control

Rémy GUYONNEAU, Sébastien LAGRANGE, Laurent HARDOUIN, Mehdi LHOMMEAU

1. Problem

Considered System

We consider a control system, defined by the differential equa- tion

˙

x(^t) = ^f(^x(^t), u(^t)) ⁽¹⁾

x(^t) ∈ Rⁿ the state vector u(^t) ∈ ^U the control vector

The system is studied over [^t₀, ^tf]

t_k = ^t₀ + ^k × δ^t, ^tk ≤ ^tf, ^k ∈ {¹, · · · , ^m} ⁽²⁾

It is assumed that u(^tk) is bounded over [^tk, ^tk₊₁] so it is possible to determinate a box [^uk] ^{such that u}(^tk) ∈ [^uk] ^over [^tk, ^tk+1]

The flow map of the system is defined as

ϕ(^t₀, ^tk; ^x₀, u(^t)) = ^x(^t) ⁽³⁾

The reachable set of the system at time t_k is

ϕ(^t₀, ^tk; ^X₀, U) = {ϕ(^t₀, ^tk; ^x₀, u(^t))|ϕ(^t₀, ^t₀; ^x₀, u(^t)) = ^x₀

and ϕ : [^t₀, ^tk] × ^X₀ × ^U → R^{n is a}

solution of (1) for some u(^t) ∈

U

where

U

, ^tk−1] → ^U|^u is continuous over [^tk, ^tk+1]} ^de-

notes the set of admissible controls and X₀ a set of possible initial values x₀

Objective

Evaluate Ct₀

,^tf the subset of initial states of K (state constraint) from wich there exists at least one solution of (¹) reaching the tar- get T in finite time t_f starting at a time t₀:

Ct₀

,^tf = {^x₀ ∈ ^K|∃^u(^t) ∈

U

, ϕ(^t₀, ^tf; ^x₀, u(^t)) ∈ ^T} ⁽⁵⁾

Using interval analysis to compute an inner and an outer caracterisations of C^t_0,^t_f

C⁻_t

0,^tf ⊆ ^Ct_0,^tf ⊆ ^C+t₀

,^tf (6)

2. Caracterisation computation

Proposed approach

For each time t_k the algorithm computes a gridding of K (a slice), noted S(^tk)^. The resolution of the gridding is δ_K = (δ^x₁, · · · , δ^x_i, · · · , δ^x_n) ^where δ^x_i corresponds to the i^th dimension of K

t

x₁ x₂

t_f

t₁ t₀

δ^t

δ^x₁

δ^x₂

x₂

x₁

x1 x₁

x₂

x1

S(^tk)

T

Slice computation

We propose an iterative algorithm that classifies the cells of each slice in three categories:

- unreachable (blue), no state inside the cell allows the system to reach the target at time t_f

- reachable (red), all the states inside the cell allow the system to reach the target at time t_f

- indeterminate (yellow), neither reachable nor unreachable

t_k+1

t_k

t x₁ x₂

[^x₁]^∗ [^x₁]

[^x₂]^∗ [^x₂]

[^x₃]^∗ [^x₃]

S(^tk)

S(^tk₊₁)

The slices are built from S(^tf) ^{to S}(^t₀)

3.Optimal discrete path evaluation

Slice modification and graph building

For each cell s_i ∈ ^S(^tk) is defined a set of input vectors U(^si) ^{that leads si to}

reachable or indeterminate cells of S(^tk₊₁)

Gather the cells into nodes and build a graph

S(^t₀) ^S(^t₁) ^S(^t₂) ^S(^t₃) ^S(^tf )

n₀

n₁

n₂

n₁₁

n₁₂

n₂₁

n₁₁₁

n₁₂₁

n₂₁₁

n₂₁₂

n_T

[³, 4] [¹, 2]

[¹, 2] [¹, 2]

[¹, 2] [¹, 2] [¹, 2] [⁶, 7]

[⁶, 7] [⁶, 7] [¹, 2] [¹, 2]

[², 3]

J(^P(ⁿ₀, ⁿ₁, ⁿ₁₁, ⁿ₁₁₁, ⁿ_T)) = [⁶, 10]

J(^P(ⁿ₀, ⁿ₁, ⁿ₁₂, ⁿ₁₂₁, ⁿ_T)) = [¹¹, 15]

J(^P(ⁿ₀, ⁿ₂, ⁿ₂₁, ⁿ₂₁₁, ⁿ_T)) = [⁵, 9]

J(^P(ⁿ₀, ⁿ₂, ⁿ₂₁, ⁿ₂₁₂, ⁿ_T)) = [¹⁴, 18]

Obtained paths

Using the graph and a shortest path algorithm (e.g. Interval Dijkstra) it is possi- ble to compute:

- an enclosure (^P∗) of the optimal discrete control vector to reach the target from an initial state [^x₀] ∈ ^Ct_0,^tf

- an evaluation of the cost (^J(^P∗)) ^{of this}

control vector

For instance

P^∗ = {^P(ⁿ₀, ⁿ₁, ⁿ₁₁, ⁿ₁₁₁, ⁿ_T),

P(ⁿ₀, ⁿ₂, ⁿ₂₁, ⁿ₂₁₁, ⁿ_T)}

J(^P∗) = [⁶, 10] ∪ [⁵, 9] = [⁵, 9]

s_i S(^tk₊₁)

S(^tk) [^u_2,^k] [^u_1,^k] [^u_3,^k]
