Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté

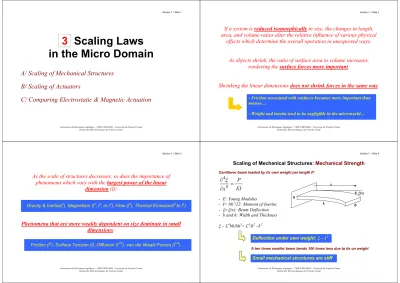

3 Scaling Laws in the Micro Domain
A/ Scaling of Mechanical Structures B/ Scaling of Actuators
C/ Comparing Electrostatic & Magnetic Actuation
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
If a system is reduced isomorphically in size, the changes in length, area, and volume ratios alter the relative influence of various physical
effects which determine the overall operation in unexpected ways.
As objects shrink, the ratio of surface area to volume increases, rendering the surface forces more important.
Shrinking the linear dimensions does not shrink forces in the same way.
- Friction associated with surfaces becomes more important than masses…
- Weight and inertia tend to be negligible in the microworld…
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 3
As the scale of structures decreases, so does the importance of phenomena which vary with the largest power of the linear
dimension (l):
Phenomena that are more weakly dependent on size dominate in small dimensions:
Friction (l
2), Surface Tension (l), Diffusion (l
1/2), van der Waals Forces (l
1/4)…
Gravity & Inertia(l
3), Magnetism (l
2, l
3, or l
4), Flow (l
4), Thermal Emission(l
2to l
4)
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 4
Scaling of Mechanical Structures: Mechanical Strength
Cantilever beam loaded by its own weight per length P:
EI P x =
∂
∂
4 4 ξ
- E: Young Modulus
- I= bh
3/12: Moment of Inertia - ξ = ξ (x): Beam Deflection - b and h: Width and Thickness ξ ~ L
4bh/bh
3= L
4/h
2~l
2A ten times smaller beam bends 100 times less due to its on weight
Deflection under own weight: ξ ~ l
2Small mechanical structures are stiff
ξ (x) x
L b
h
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Section 3 / Slide 5
Dynamic Properties: Resonant Frequency
Eigen frequency of a beam (where the restoring force is due to stiffness):
Mode and Boundary conditions
S EI f r L
ρ α
= 2
f r = h/L
2~ l
-1In case of a bending beam having
a rectangular cross section: - S = bh - I = bh 3 /12
Resonant frequencies become large for small systems Eigen frequencies scale like l
-1Parasitic vibrations vanish in The micro world
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Section 3 / Slide 6
Scaling of Mechanical Structures: Coulomb Friction
In the macroscopic world, friction forces are independent of the contact area (e.g. 2 rough bodies without load touch each other only at 3 points).
Material Related Scaling Effect
In microscopic world, this seems to be different in some cases because silicon is extremely smooth
(The micro surface roughness of silicon wafers is of the order of 1nm)
- Adhesive forces can be very large and lead to process problems (SM) - These surface forces scale with (l
2)and become large in small systems
Section 3 / Slide 7
Scaling of Mechanical Structures: Coupling with Fluids & Gases The transition from laminar to turbulent flow is around Re = 2300.
Consequently:
There is no turbulence in
microsystems in which liquids flow There can be turbulence in
microsystems with gas flow
Reynolds number as a function of size From Hayashi, 1994
Section 3 / Slide 8
Linear Dimension l ∼ l
1Surfaces A ∼ l
2Volume V ∼ l
3Electric Energy W
el∼ l
3Electric Force F
el∼ l
2Magnetic Energy W
mag∼ l
5Magnetic Force F
mag∼ l
4Deflection Under Own Height ζ ∼ l
2Stable Length L
cr∼ l
4/3Diffusion Times τ ∼ l
2Drift Velocity υ
∞∼ l
2Transient Time τ ∼ l
2Electric Resistance R
el∼ l
-1Hydraulic Resistance R
hy∼ l
-3Reynolds Number Re ∼ l
2Resonant Frequency υ ∼ l
-1Scaling of Various Physical Properties
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Scaling of Actuators
Atmospheric Engines Electric Actuators
Rapid heat loss would prevent the gasoline from exploding
External supply of electric power would be most convenient
Electromagnetics
Electrostatics
Macroscopic World
Microscopic World
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Magnetic Circuit
Coil
B
Air-Gap
B
µ 0 The magnetic energy density stored in the
air-gap is:
0 2
2 µ w mag = B
B ~ 1.5T by pushing the coil into saturation:
/ 3
000 ,
950 J m
w mag ≈
?
1) Magnetic field (B) remains constant whatever the size 2) Magnetic field depends on
the size of the device
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 11
Scaling in Magnetics
Assumption 1: The magnetic field (B) remains constant when devices shrink Magnetic energy density:
l B Cte
w mag = = ∀
0 2
2 µ
- B: Magnetic Field - µ
0: Permeability
Magnetic field in the gap:
l i B = µ 0 n
- n: Number of Turns of Wire - l: Total Length of the Coil - i: Current Through the Coil
- Magnetic energy density scales like l
0- Energy in a gap of a magnetic circuit scales with l
3Magnetic forces which are given by the derivative of the magnetic energy scale with l
2This conclusion is too quick
Keeping n constant when shrinking the coil and the magnet:
Cross section S of the wires must shrink Keeping i constant becomes impossible !
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 12
l i µ n B = 0
Magnetic field (B) scales like l S = Cte n
Magnetic field in the air-gap decreases with respect to the
reduction of turns of wire
n = Cte S
Keeping i constant becomes impossible !
l l
i scales like l
2Scaling in Magnetics
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Section 3 / Slide 13
Scaling in Electromagnetic Actuators
Assuming a single wire of any shape carrying a current of i amperes:
i
i
B
B l
d i
F
wire mag
r r
r = ∫ ∧
Electric motors are arrangements for utilizing magnetic force F
magto produce torque in rotating machinery.
dl is a vector representing a small part of the wire , directed along the wire in the sense chosen as positive for i.
F mag
(l
2) (l) (l)
Magnetic force F mag scales like l 4 …
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Section 3 / Slide 14
When downsizing electromagnetic actuators, it is more reasonable to keep the current density constant,which means that:
- Magnetic field (B) scales like l
- Magnetic field energy density (w mag ) scales like l 2 - Magnetic energy (W mag ) ~ l 5
- Magnetic force (F mag ) ~ l 4 (but heat flow scales like l
–1F
mag ~l
2…)
In practice, magnetic actuators smaller than 1 mm
3are hardly feasible and it is difficult to keep n constant !
Scaling effects in downsizing electromagnetic actuators strongly depend on design considerations
Increased current density
Magnetic forces scale like l
2, l
3or l
4Depending on design rules
Section 3 / Slide 15
Scaling in Electrostatics
The electrostatic force ( F
el)between capacitor plates is given by the derivative of its electric energy ( W ) with the gap distance ( x ):
Q
el x
F W
∂
− ∂
=
W can be found in the easiest manner by the energy density (w):
0 2
2 E
w ε
=
Assuming that the dielectric is air ( ε
r=1):
∫ =
= wdV wAx W
For (w) constant (meaning E = cte):
A Q A
wA E F el
0 2 0 2
2
2 ε
ε = −
−
=
−
=
The charge Q must be held constant
Electric Field Strength
Surface of the electrodes
Section 3 / Slide 16
Scaling in Electrostatics
A Q A
wA E F el
0 2 0 2
2
2 ε
ε = −
−
=
−
=
If we are able to shrink the whole capacitor at constant energy density(w) meaning at: constant electric field (E)
constant charge density (Q/A)
- The energy of the capacitor scales with the volume: W
el~ l
3- The force between electrodes scales like the surface: F
el~ l
2Electrostatic forces increase relative to the volume when the systems shrink
Electrostatics scales well in the micro world
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Breakdown of Continuum Theory for Electrostatics The maximum field in air is not independent of the distance of the capacitor
plates if they approach closely ! If the separation of plates is roughly
the mean free path of molecules in air, the maximum field increases…
Below 5 µm in air, the Pashen curve sharply reverses, leading to high electrical breakdown
Depending on surface roughness, the Electric field can be as high as:
- 10 8 V/m with 1.5 µm air gap - 3 10 8 V/m in vacuum
P
xd
If the pressure P remains constant at 1 atm.(760mm Hg), the x-axis can be reduced to a simple distance axis
2.5µm 13.16µm
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté Institut des Microtechniques de Franche Comté
Comparing Electrostatic and Magnetic Actuation
Besides scaling, many other factors need to be considered when deciding upon a certain type of actuation principle
- Thin insulated layers exhibit breakdown voltage as high as 2 MV/cm
- Corresponding energy density : 7 10
5J/m
3(Equivalent to the power density of 1.3 T magnetic field) - The contracting pressure is 1.3 Mpa
- 100 V driving voltage is sufficient to generate the strong fields mentioned
- Simple actuation (pair of electrodes) - Voltage switching far easier and faster than
current switching
- Low Energy loss through Joules heating - Low Weight and power consumption - IC compatible
Attributes of SM electrostatic actuators (l
2)
- In spite of scaling effects, the absolute forces achievable are very large
- In conventional motors using iron, the magnetic induction is restricted to 1.5 T - Corresponding energy density : 9 10
5J/m
3(More than twice the achievable electrostatic energy in a 1 µm gap)
- Thin ferromagnetic films have yielded 2 T fields
- Unfortunately, 10 to 15 T superconducting magnets fall outside the micromachining domain
- Friction easier to avoid in magnetic motors - Less sensitive to dust &humidity (larger gap) Attributes of electromagnetic actuators (l
4)
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 19
Physical Limitations in Downsizing Actuators Actuators do not scale as advantageously as sensors
into the micro-scale
To drive a load several hundreds microns in thickness and several millimeters in diameter, the required torque is on the order of 10 µNm!
Small-size devices have a limited range of force available for actuation However, the torque generated with most S.M. electrostatic motors
ranges from 10 – 6 up to 10 – 3 µNm!
In view of this recognition, perhaps a too extraordinary amount of research went into surface-micromachined actuators ?
Laboratoire de Mécanique Appliquée – UMR CNRS 6604 – Université de Franche Comté
Section 3 / Slide 20
