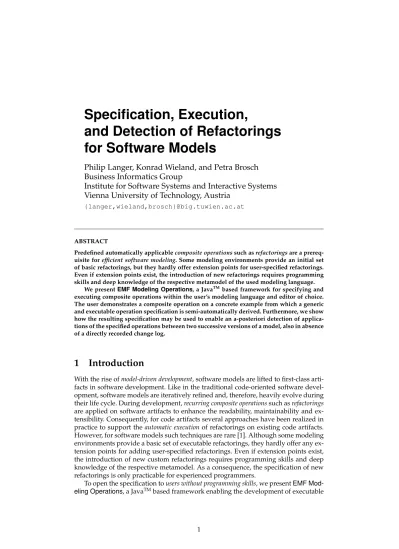

and Detection of Refactorings for Software Models
Philip Langer, Konrad Wieland, and Petra Brosch Business Informatics Group
Institute for Software Systems and Interactive Systems Vienna University of Technology, Austria
{langer,wieland,brosch}@big.tuwien.ac.at
ABSTRACT
Predefined automatically applicablecomposite operationssuch asrefactoringsare a prereq- uisite forefficient software modeling. Some modeling environments provide an initial set of basic refactorings, but they hardly offer extension points for user-specified refactorings.
Even if extension points exist, the introduction of new refactorings requires programming skills and deep knowledge of the respective metamodel of the used modeling language.
We presentEMF Modeling Operations, a JavaTM based framework for specifying and executing composite operations within the user’s modeling language and editor of choice.
The user demonstrates a composite operation on a concrete example from which a generic and executable operation specification is semi-automatically derived. Furthermore, we show how the resulting specification may be used to enable an a-posteriori detection of applica- tions of the specified operations between two successive versions of a model, also in absence of a directly recorded change log.
1 Introduction
With the rise ofmodel-driven development, software models are lifted to first-class arti- facts in software development. Like in the traditional code-oriented software devel- opment, software models are iteratively refined and, therefore, heavily evolve during their life cycle. During development,recurring composite operationssuch asrefactorings are applied on software artifacts to enhance the readability, maintainability and ex- tensibility. Consequently, for code artifacts several approaches have been realized in practice to support theautomatic executionof refactorings on existing code artifacts.
However, for software models such techniques are rare [1]. Although some modeling environments provide a basic set of executable refactorings, they hardly offer any ex- tension points for adding user-specified refactorings. Even if extension points exist, the introduction of new custom refactorings requires programming skills and deep knowledge of the respective metamodel. As a consequence, the specification of new refactorings is only practicable for experienced programmers.
To open the specification tousers without programming skills, we presentEMF Mod- eling Operations, a JavaTMbased framework enabling the development of executable
composite operation specifications. Comparable to macro recording in MicrosoftR Office products, a new specification is created bydemonstrating the composite opera- tion, fine-tuning the automatically derived operation’s pre- and postconditions, and, if necessary, adding additional augmentations such as iterations.
Once a model operation is specified, it may be recurrently applied to arbitrary models using theOperation Execution Engine. This engine enables a time-saving rep- etition of recurring refactoring in modeling environments. Moreover, to help devel- opers retrospectively understanding a model’s evolution, applications of specified model operations, applied between two successive versions of an evolving model, may bedetected a posterioriusing theOperation Detection Engine.
EMF Modeling Operationsis realized as an Eclipse plug-in and may be used for any EMF-based models1. In the following, we outline the functioning of each com- ponent, in particular, theOperation Recorderin Section 2, theOperation Execution Enginein Section 3, and theOperation Detection Enginein Section 4.
2 Operation Specification By Demonstration
Operations such as refactorings may be described by a set of atomic operations, namely, create,update,delete, andmovewhich are executed on a model adhering to specific pre- conditions [2]. Furthermore, to allow for complex attribute value computations in the target model as well as to enable the detection of occurrences of the specified compos- ite operation in generic change scripts (cf. Section 4), also postconditions are included in the operation specification.
A direct way to realizeoperation specification by demonstrationis to record each user interaction within the modeling environment as proposed in [3] for programming languages and in [4] for models. However, this would demand an intervention in the modeling environment, and due to the multitude of modeling environments, we refrain from this possibility. Instead, we apply astate-based comparisonto determine the executed operations after modeling the initial model and the final model. This allows the use of any editor without depending on editor-specific change recording.
To overcome the imprecision of heuristic state-based approaches, a unique ID is au- tomatically assigned to each model element before the user illustrates the changes.
Moreover, theOperation Recorderis designed in such a way to be independent from any specific modeling language, as long as it is based on EMF Ecore or the meta- metamodel is mapped to Ecore.
Following our design rationale, we propose a two-phaseoperation demonstration processwhich is supported by theOperation Recorder(cf. Fig. 1). For a detailed de- scription of the underlying approach, we kindly refer to [5].
Phase 1: Modeling. First, the user creates theinitial modelcontaining all essen- tial model elements to apply the composite operation. Next, each element of the ini- tial model is automatically annotated with an ID, and a so-calledworking model, i.e., a copy of the initial model for demonstrating the composite operation, is created.
The IDs preserve the relationship of the original elements in the initial model and the changed elements in the working model. Finally, the user performs the complete composite operation on the working model in her familiar modeling environment by applying all necessary atomic operations. The output of this step is therevised model, which is together with the initial model the input for the second phase of the opera- tion specification process.
Phase 2: Configuration & Generation.Due to the unique IDs of the model ele- ments, the atomic operations of the operation may precisely be determined automat-
1http://www.eclipse.org/emf
Initial Model Revised Model
Preconditions Postconditions
Diff Model &
Annotations
Figure 1: Screenshot of the EMF Model Macro Editor.
ically using a state-based comparison. The results are saved in adiff modelcontaining all detected atomic changes. Subsequently, an initial version of thepre-andpostcon- ditions(cf. lower right view in Fig. 1) of the operation is inferred by analyzing the initial model and revised model, respectively. Sometimes, the automatically inferred conditions do not completely express the intended pre- and postconditions of the operation. Thus, they only act as a basis for accelerating the operation specification process and may be refined by the user. In particular, conditions may be relaxed, en- forced, and modified and further annotations such asiterations and user inputsmay be specified (cf. upper left view in Fig. 1). Finally, theOperation Specification Model is generated, which is a self-contained and complete description of the specified op- eration consisting of the initial and revised model, the diff model, and the pre- and postconditions.
3 Execution of Operation Specifications
Once the Operation Specification Model is created, it may be applied to (parts of) ar- bitrary models fulfilling to the operation’s preconditions. To start the execution, the user selects a model element in an arbitrary model and provides a so-calledprebind- ingby linking the selected model element to the corresponding model element in the operation specification’s example model. With this, the selected model element in the arbitrary model is specified to be transformed equally to the linked model element in the operation specification. Based on the operation’s preconditions, theOperation Ex- ecution Engineautomatically completes the provided prebinding and presents it—if a valid and complete binding was found—to the user as depicted in Fig. 2a. Next, the Operation Execution Enginequeries the user for additionally configured user inputs and finally performs the operation.
To realize theOperation Execution Engine, we faced two major challenges. First, the condition evaluation engine has to cope with cyclic condition dependencies. There-
(a) (b)
Arbitrary Model Elements
Operation‘s Model Elements
Change Pattern Matching Operation SpecificationOperation SpecificationOperation Specification Input Diff
Model
Diff Model Preprocessing
Operation SpecificationOperation
SpecificationOperation Signature Input
Signature
Preselection
Operation SpecificationOperation Specification Potential Operation Occurrence [diff matches]
[no diff match]
1 2 Precondition Matching 3 Postcondition Matching
Potential Operation Occurrence Derive Precondition
Binding Precondition
Binding Evaluate Binding
Operation SpecificationOperation Specification Valid Precondition
Binding [invalid]
Valid Precondition
Binding Derive Postcondition
Binding Postcondition
Binding
Evaluate Binding
[invalid]
Operation Occurrence [valid]
for each
Potential Operation Occurrence
for each Valid Precondition Binding
[valid]
Figure 2: (a) Screenshot of the execution binding dialog. (b) Detection process.
fore, we use a backtracking algorithm to explore all potentially valid combinations of model element bindings based on the user-specified prebinding to finally find a complete and valid binding. Second, the repeated execution of the detected atomic changes poses some challenging issues. For instance, an added element might refer to already existing model elements. Consequently, new elements may not simply be copied to the target, otherwise the copy would still link to elements contained by the operation’s example model. Instead, they have to be copied and accordinglyrewired to ensure that the new model element only refers to existing elements in the currently transformed model.
4 A-Posteriori Detection of Operation Applications
Given two successively modified versions of one model, we now aim to detect appli- cations of the defined operations. The detection process (cf. Fig. 2b) takes as input a difference report (input diff model) obtained by a state-based comparison of two suc- cessively modified model versions as well as the list of detectable operation specifi- cations. The process consists of three phases:(i)thepreselectionof potential operation occurrences is accomplished by searching for the change patterns of the provided operation specifications in the input diff model. Subsequently, for each potential op- eration occurrence,(ii)the preconditions are evaluated, and finally,(iii)the postcon- ditions are checked. If both are valid, an application of an operation is detected.
Change Pattern Matching. The goal of this phase is to enable an efficient and fast triage of operation occurrence candidates that potentially may have been applied ac- cording to the input diff model. To allow for a fast search, the diff models (input diff model and the operation specification’s diff models) are translated into easily process- able signatures. For each provided operation specification we now check whether its signature is contained in the input signature. If a match is found, the respective op- eration has potentially been applied and we proceed with the condition matching in the following phases.
Precondition Matching. For each potential operation occurrence, the precondi- tions of the respective operation specification are evaluated. For this, a binding of affected model elements to the operation specification’sinitial model elements has to be derived (precondition binding in Fig. 2b) which is then evaluated using the afore- mentioned condition evaluation engine (cf. Section 3). If one operation specification
has been applied more than once, the evaluation engine returns a valid precondition binding for each potential occurrence. This list of valid precondition bindings serves as input for the next phase.
Postcondition Matching. For each valid precondition binding, apostcondition bind- ing, i.e., a binding of changed model elements to the corresponding operation spec- ification’s revised model elements is derived and evaluated. If a valid postcondition binding is found, an occurrence of an operation application is at hand.
5 Conclusions and Ongoing Work
In this paper, we outlinedEMF Modeling Operations, a JavaTMbased framework for specifying and recurrently executing operations. With theOperation Detection En- gine, this framework allows to retrospectively detect applications of user-specified operations.EMF Modeling Operationswill soon be available from our project home- page2using the open source license EPL3.
Ongoing work comprisesoptional changesallowing to specify parts of the opera- tion to be optional. Furthermore, we currently elaborate oncomputing the inverseof an operation specification as well as itscompositionto enable the creation of new (com- posite) composite operations from two or more existing ones. Finally, we plan to set up acommunity serverallowing to easily exchange existing operations.
References
[1] Tom Mens, Michel Wermelinger, Stephane Ducasse, Serge Demeyer, Robert Hirschfeld, and Mehdi Jazayeri. Challenges in Software Evolution. InProceed- ings of the 8th International Workshop on Principles of Software Evolution (IWPSE’05), pages 13–22. IEEE Computer Society, 2005.
[2] Jing Zhang, Yuehua Lin, and Jeff Gray. Generic and Domain-Specific Model Refactoring using a Model Transformation Engine. In Model-driven Soft- ware Development—Research and Practice in Software Engineering, pages 199–217.
Springer, 2005.
[3] Romain Robbes and Michele Lanza. Example-Based Program Transformation.
InProceedings of the 11th International Conference on Model Driven Engineering Lan- guages and Systems (MoDELS’08), pages 174–188. Springer, 2008.
[4] Yu Sun, Jules White, and Jeff Gray. Model transformation by demonstration. In Proceedings of the 12th International Conference on Model Driven Engineering Lan- guages and Systems (MoDELS’09), pages 712–726. Springer, 2009.
[5] Petra Brosch, Philip Langer, Martina Seidl, Konrad Wieland, Manuel Wimmer, Gerti Kappel, Werner Retschitzegger, and Wieland Schwinger. An Example Is Worth a Thousand Words: Composite Operation Modeling By-Example. InPro- ceedings of the 12th International Conference on Model Driven Engineering Languages and Systems (MoDELS’09), pages 271–285. Springer, 2009.
2http://www.modelversioning.org
3http://www.eclipse.org/legal/epl-v10.html
