HAL Id: hal-00805734
https://hal.archives-ouvertes.fr/hal-00805734
Submitted on 28 Mar 2013
HAL is a multi-disciplinary open access
archive for the deposit and dissemination of
sci-entific research documents, whether they are
pub-lished or not. The documents may come from
teaching and research institutions in France or
abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est
destinée au dépôt et à la diffusion de documents
scientifiques de niveau recherche, publiés ou non,
émanant des établissements d’enseignement et de
recherche français ou étrangers, des laboratoires
publics ou privés.
Silicon recovery from silicon-iron alloys by
electrorefining in molten fluorides
Laurent Massot, Anne-Laure Bieber, Mathieu Gibilaro, Laurent Cassayre,
Pierre Taxil, Pierre Chamelot
To cite this version:
Laurent Massot, Anne-Laure Bieber, Mathieu Gibilaro, Laurent Cassayre, Pierre Taxil, et al.. Silicon
recovery from silicon-iron alloys by electrorefining in molten fluorides. Electrochimica Acta, Elsevier,
2013, vol. 96, pp. 97-102. �10.1016/j.electacta.2013.02.065�. �hal-00805734�
O
pen
A
rchive
T
OULOUSE
A
rchive
O
uverte (
OATAO
)
OATAO is an open access repository that collects the work of Toulouse researchers and
makes it freely available over the web where possible.
This is an author-deposited version published in :
http://oatao.univ-toulouse.fr/
Eprints ID : 8620
To link to this article : DOI: 10. 1016/j.electacta.2013.02.065
URL : http://dx.doi.org/10.1016/j.electacta.2013.02.065
To cite this version : Massot, Laurent and Bieber, Anne-laure and
Gibilaro, Mathieu and Cassayre, Laurent and Taxil, Pierre and
Chamelot, Pierre Silicon recovery from silicon-iron alloys by
electrorefining in molten fluorides. (2013) Electrochimica Acta,
vol. 96 . pp. 97-102. ISSN 0013-4686
Any correspondence concerning this service should be sent to the repository
administrator:
[email protected]
㩷
Silicon
recovery
from
silicon–iron
alloys
by
electrorefining
in
molten
fluorides
L.
Massot
∗, A.L.
Bieber, M.
Gibilaro, L.
Cassayre, P.
Taxil, P.
Chamelot
UniversitédeToulouse;UPS,INP,CNRS;LaboratoiredeGénieChimique;DépartementProcédésElectrochimiques;118RoutedeNarbonne,31062Toulouse,France
Keywords: Moltenfluorides Silicon Electrorefining Si–Fealloys Voltammetry
a
b
s
t
r
a
c
t
Electrorefiningofasilicon-ironmaterial(Si–4.7at%Fe)inmoltenNaF-KFat850◦Cwasinvestigatedin
viewofrecoveringpureSi,usingelectrochemicaltechniques,ScanningElectronMicroscopycoupled withEnergyDispersiveSpectroscopy(SEM-EDS)andInductivelyCoupledPlasmawithatomicemission spectroscopy(ICP-AES)analyses.TheselectiveelectrochemicaldissolutionofSiwasevidenced. Elec-trorefiningrunsledtoamaximumrecoveryof80%ofSiinitiallycontainedinthematerial,intheform ofadensedepositatthecathode,withveryhighcurrentefficiencies.TheSipuritywasexaminedandno FewasdetectedbyICP-AESanalysis:therecoveredSipuritywasassumedtobehigherthan99.99%.
1. Introduction
Photovoltaictechnologyisaveryimportantrenewablesource
ofelectricalenergyproductionwiththehighestannualgrowthrate
[1,2]andthemostcommonbasematerialforphotovoltaiccellis
SolarGradeSilicon(SoG-Si),witharequiredpurityof99.9999%.Due
toagrowingdemandforSoG-Si,thedevelopmentofnewprocesses
allowingtheproductionofcheaperSoG-Siisamainissueforthe
solarenergyindustry[3].Inthe1980’s,siliconelectrodepositionin
moltensaltshasbeenconsideredasanattractiveoptionforSoG-Si
production[4].However,theelectrolyticSiproductionprocesshas
notfoundanycommercialapplicationuptonow.Intheframeof
morerecentconcernsaboutcarbon-freeenergyproduction,such
kindofprocesshasneverthelessbeenreassessed.Thus,basic
inves-tigationsonSi(IV)reductionmechanismhavebeencarriedoutin
moltenfluorides[5–14]and more recently,thesaltsproperties
andsilicondepositionstrategieswereexaminedinourlaboratory
[15,16].TheseresultsconcludedthatSi(IV)ionsarereducedinto
Siinaone-stepprocessexchangingfourelectronscontrolledby
diffusioninthesolution.
Thefinalobjectiveofthestudyistoevaluatethefeasibilityof
usingelectrorefining processin moltenfluoridesas preliminary
stepof purificationofmetallurgicalgradeSi(MG-Si)withgood
quality.
Table1comparesthecompositionofMG-Siandthemaximum
admissibleimpuritycontentinSoG-Si.Thesedatashowfirstthat
∗ Correspondingauthor.Tel.:+33561558194;fax:+33561556139. E-mailaddress:[email protected](L.Massot).
oxygenandironarethemostimportantpollutantsofMG-Siand
then,that thehighesttolerance inSoG-Siis forcarbon, oxygen
andiron[17–19].Inthiswork,onlymetallicimpurities(Mi)were
takenintoaccount.Morespecifically,thepresentworkisfocused
ontheseparationofsiliconandironbyelectrolysisatlaboratory
scale,inamoltenfluoridemixture,throughthedissolutionofa
Si–Feanode,withtheoperatingconditionsdefinedinreferences
[15,16].Thestudywasdividedintothreeparts:(i)determinationof
theSi–Fedissolutionpathwaybyelectrochemicaltechniques
cou-pledwithSEMobservationsandEDSanalysis,(ii)silicondeposits
purityexaminationwithEDSandICP-AESanalysesand(iii)anodic
andcathodiccurrentefficienciesevaluationbyweightingthe
elec-trodes.
2. Experimental
2.1. Cell
Thecellwasavitreouscarboncrucibleplacedinacylindrical
vesselmadeofrefractorysteelandclosedbyastainlesssteellid
cooledbycirculatingwater.Thedescriptionofthiscellhasbeen
detailedinpreviouswork[20].Theexperimentswereperformed
underaninertargonatmosphere(Linde).Thecellwasheatedusing
aprogrammablefurnaceandthetemperaturewasmeasuredusing
a chromel-alumelthermocouple. Theelectrolyticbathconsisted
oftheNaF-KF(40–60mol%)eutecticmixture(CarloErba99.99%).
Themixturewasinitiallydehydratedbyheatingunder vacuum
(6×10−2mbar)fromambienttemperatureuptoitsmeltingpoint
Table1
ComparisonbetweenimpuritiescontentinMG-Siandmaximumadmissiblecontent (ppm)inSoG-Si.
Impurities MG-Si SoG-Si(Maximumcontent)
B 20–50 <1 P 25–50 <1 O 3000 <10 C 10–250 <10 Fe 1000–3000 <10 Al,Ca 100–1500 <2
Othermetals(Ti,Cr, Mn,Ni,Cu,Zr...)
5–150 <1
theformofsodiumhexafluorosilicateNa2SiF6(AlfaAesar99.99%)
powder.
2.2. Electrodes
Iron, copper, nickel, titanium, silicon plate
(4mm×8mm×11mm) (Goodfellow 99.99%), molybdenum
(Goodfellow 99.95%), chromium, manganese and zirconium
(Goodfellow99.5%)wires(1mmdiameter)and95.3at%Si–4.7at%
Fealloy(8mmdiameter)wereusedaselectrodes.Thesurfacearea
oftheworkingelectrodewasdeterminedaftereach experiment
bymeasuringtheimmersiondepthinthebath.Theauxiliary
elec-trodes were silicon plate(4mm×8mm×11mm)and graphite
carbonrods(3mmdiameter–Mersenspectroscopicquality)with
a largesurfacearea(3cm2).Aplatinum wireimmersed inthe
moltenelectrolytewasusedasaquasi-referenceelectrode.
2.3. Techniques
Theelectrochemicaltechniqueusedfortheanodicbehaviour
investigationofeachmaterialwaslinearvoltammetry,atascan
rateof10mVs−1,whileelectrorefiningrunswerecarriedoutby
impositionofaconstantcathodiccurrent.Alltheelectrochemical
polarizationswereperformedwithanAutolabPGSTAT30
poten-tiostat/galvanostatcontrolledbya computerusingtheresearch
softwareGPES4.9.
The electrodessurface and cross-section werecharacterized
byScanningElectronMicroscope(SEM)coupledwithEnergy
Dis-persiveSpectroscopy (EDS)probe,afterresidualsalt removalin
HCl–AlCl3–H2Omixtureat50◦Candultrasonicwaves.
SiandFecontentofbothsaltanddepositsampleswere
mea-sured,afterdissolution,usingInductivelyCoupledPlasma-Atomic
EmissionSpectroscopy(ICP-AES,HORIBAUltima2).
3. Resultsanddiscussion
3.1. Operatingconditionsforsiliconelectrorefining
Electrorefiningisamethodappliedforpurifyingmetalsusingan
electrolysiscell.Itconsistsinananodicdissolutionofthematerial
tobepurifiedandadepositionofthetargetmetalwithout
impu-ritiesonthecathode. Threemainissueshavetobeconsidered:
theanodicbehaviourofthematerial,thestabilityofthedissolved
speciesinthemoltensaltandtheelectrodepositionconditionsat
thecathode.In thespecificcaseof Sielectrorefining, twosteps
(Si(IV)stabilityin thesalt andSideposition) havealreadybeen
investigatedinourlaboratory[15,16],asdetailedbelow,whilethe
Siselectivedissolutionremainstobedemonstrated.
ConcerningtheSi(IV)stability,ithasbeenshownthatinmolten
fluoridesalts,Si(IV)ionsaresolvatedasSiF4+xx−inequilibriumwith
gaseousSiF4,accordingtotheequilibrium(1).
SiF4+xx−= SiF4(g)+xF− (1) -0.10 -0.05 0.00 0.05 0.10 0.15 0.20 0.25 -1.5 -1.0 -0.5 0.0 0.5 1.0 j/ A cm -2 E vs.Pt/V Fe MnMn FeCr Ni Mo Zr Si Ti Cu
Fig.1.Comparisonoflinearvoltammograms(anodicpart)onvariousmetalsat 10mVs−1inNaF-KFat850◦
C;Aux.El.:vitreouscarbon;RefEl.:Pt.
Bieberetal.showsthatSiF4+xx−stabilityishighlyinfluenced
by thefluoroacidity (free F− ions content) and that SiF
4+xx− is
more stable in basic molten baths: themost suitable one was
proventobetheeutectic NaF-KF(40–60mol%)mixture[15].In
ordertominimizeSilossesin thegaseous phase,thissalt
mix-ture(Tmelting=718◦C)hasthusbeenselectedfortheelectrorefining
runs.
IthasbeenstatedthattheelectrochemicalreductionofSi(IV)
ionsis aone-stepprocessexchanging4electrons,whateverthe
fluoridesaltcomposition,asindicatedinreaction(2).
Si(IV)+4e−
= Si (2)
Adetailednucleationandelectrodepositionstudyhasbeen
per-formed[16]andledtothefollowingconclusions:
-anoperatingtemperatureof850◦C,about130◦Cabovethe
sol-ventmeltingpoint,allowstoenhanceSielectricalconductivity,
-graphiteorSoG-Sicathodicsubstratesensurethebestadherence
toSideposits,
-aSi(IV)concentrationhigherthan 0.6molkg−1 inhibits
potas-siuminsertionintothedepositatacathodiccurrentdensityof
−50mAcm−2.
TheseexperimentalconditionshavethusbeenappliedtotheSi
electrorefininginmoltenfluorides.
3.2. Impactofimpuritiesontheelectrorefiningselectivity
3.2.1. Preliminarydiscussion
Theselectivityoftheelectrorefiningprocessdependsonthe
dis-solutionpotentials(Ediss)ofthemetalstobetreated.Intheframe
ofelectrorefiningofSibasematerialscontaininganimpurityMi,
threecaseshavetobeconsidered:
-case1:EMi
diss>EdissSi .Theimpurityisnotdissolvedduringanodic
dissolutionofSi:theselectivityoftheprocessisthusgoverned
bytheanodepotential.
-case2:EMi
diss<EdissSi .TheimpurityisdissolvedtogetherwithSi
butisnotreducedatthecathodeduetoalowerreduction
poten-tial:theselectivityoftheprocessisensuredbythecontrolofthe
cathodepotential.
-case3:EMi
diss∼E Si
diss.Theimpurity is dissolvedtogetherwithSi:
completeelectrochemicalreductionbehaviourhastobe
stud-iedinordertoevaluatethepossibilityofitsco-depositionwith
Fig.2.SEMmicrographsofthecrosssectionoftheSi–4.7at%Feanode:(a)bulk;(b)externalsurface(lightgrey:FeSi2;darkgrey:Si).
Fig.3.Fe–Siphasediagram[9].
Theelectrochemicalbehaviourofseveralmetalsconsideredas
commonpollutant in SoG-Sihasbeen studiedby linearsweep
voltammetryinNaF-KFat850◦C.Linearvoltammogramsrecorded
at10Mvs−1areplottedinFig.1.
Thethreecasespreviouslymentionedarehighlightedinthis
figure:Cu,Mo,Ni,CrandFecorrespondtocase1,Zrtocase2,Ti
andMntocase3.
Iron(case1)wasselectedasa“modelimpurity”duetoits
rel-ativelycloseoxidationpotentialcomparedtoSi(1E∼450mV).In
ordertodemonstratethefeasibilityofSi–Feseparationandto
eval-uatecurrentefficiencies,acommercialSi–4.7at%Fealloywitha
ratherhighFecontentwasused.
3.2.2. CharacterizationoftheSi–4.7at%Feanode

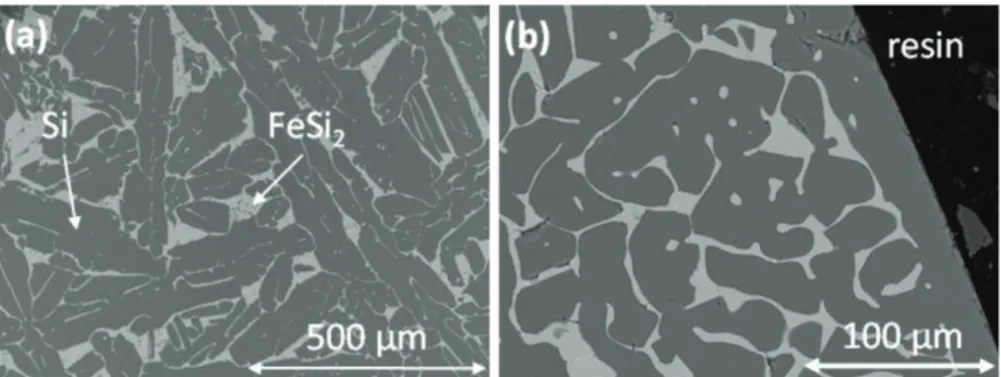

Themicrostructureoftheanodematerial,asillustratedinFig.2
bySEMmicrographsofitscross-section,iscomposedoftwophases:
asiliconmatrixandanintermetalliccompound,FeSi2,in
agree-mentwiththeSi–Fephasediagram(Fig.3)[21].Basedonavailable
densitydata((Si)=2.3gmL−1and(FeSi
2)=4.7gmL−1[22]),the
volumeoftheintermetallicphasewithinthematrixisabout11%.
-0.05 0 0.05 0.1 0.15 0.2 -1 -0.8 -0.6 -0.4 -0.2 0 0.2 I/ A E vs. Pt/V Si Si-4.7at%Fe Fe
Fig.4. ComparisonoflinearvoltammogramsofSi,FeandSi–4.7at%Feat10mVs−1
inNaF-KFat850◦

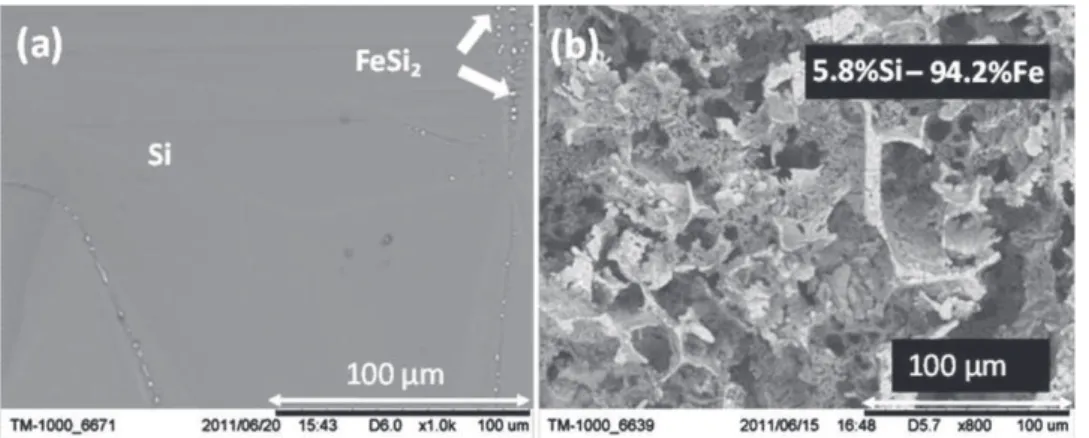

Fig.5. SEMmicrographsoftheSi–4.7at%Feanodesurface:(a)beforeelectrolysisand(b)afterelectrolysisinNaF-KF-Na2SiF6(C=0.73molkg−1)during25hat50mAcm−2
at850◦
C(Q=8659C).
Fig.4exhibitstheanodicbehaviourofSi,FeandSi–4.7at%Fe
recordedbylinearsweepvoltammetryintheNaF-KFsystemat
850◦Cand10mVs−1.ThisfigureverifiesthatthedissolutionofFe
occursatamorepositivepotentialthanSi.ConcerningtheSi–Fe
alloy,theshapeofthelinearvoltammogramcouldbeexplainedby
thetwo-phasestructureoftheanode:SiandFeSi2.Asobservedin
Fig.2,thesampleiscomposedofpureSimatrixwithFeSi2phase.As
theSioxidationpotentialislowerthanFeandaccordingtoNernst
law,onlythepureSiphase isfirstoxidized,explainingwhythe
equilibriumpotentialisthesamethanSisample.Then,aftershort
polarizationduration,SiisoxidizedfrombothpureSiandFeSi2
phases;andaccordingtoNernstlawforSiactivitylowerthan1,
theSioxidationrateislowered.
3.3. Sielectrorefiningprocess
TheoptimizedexperimentalconditionsforSi electrorefining,
remindedinSection3.1,havebeenappliedtotheSi–4.7at%Fealloy.
3.3.1. Si–Feanodedissolutionpathway
Theselectiveanodicdissolutionwasdemonstratedfirst.
Elec-trolysisrunswereperformedinNaF-KF-Na2SiF6 (0.73molkg−1)
system,at850◦Candacurrentdensityof50mAcm−2during25h,
andFig.5showsSEMmicrographsoftheSi–Feanodesurfacebefore
(a)andafter(b)electrolysis.Beforeelectrolysis,bothSiandFeSi2
phasesareobservedwhereas,afterelectrolysis,theresidual
struc-turehasa“sponge-like”shapeandiscomposedofaround94.2at%
ofFe.
Magnificationsof the anode cross sections are presented in
Fig.6,forshort(5h)andlonger(25h)electrolysisdurations.They
indicate the selective dissolution of silicon: for short duration
(Fig.6a),thepuresiliconphaseisremovedwhiletheFeSi2phaseis
depletedinSiattheanode-bathinterface,formingFeSiandaphase
containing27.5at%ofSi.Forlongerelectrolysis(Fig.6b),the
sili-conmatrixismoredeeplydissolved(∼600mm),whileSi–Fephases
remaininthisarea.
Thecompositionprofileoftheanodeafteranelectrorefining
runof 25hwasinvestigated (seeFig.7).This profileevidences
thedecreaseoftheSicontentinintermetallicphasesfrom66.5
to27.5at%,fromthecoretotheelectrodesurface,exhibitingthe
followingdissolutionbehaviour:
-thepureSiphasewasdissolvedupto600mm.
- SiintheFeSi2phasewasselectivelyremovedtotheresidualvalue
of5.8at%,throughtheformationofFe-richcompounds
previ-ouslymentioned:FeSiandFe–27.5at%Si,inagreementwiththe
dissolutionofasolidsolution[23].
3.3.2. Sidepositspurity
Fig. 8 shows silicon coatings obtained after electrorefining
experimentsontwocathodes: SoG-Si(a)andgraphite(b),after
residual salt removal. TheSi deposits were adherentand their
roughnesswasrelativelyhigh.
EDSanalysisindicatesthatthepurityofsilicondepositishigher
than99.9%,correspondingtothedetectionlimitoftheapparatus
forelementstitration(seeEDSspectrumofFig.9).Formore
accu-ratequantificationofFe,theSicoatingwasdissolvedintoKOH
15molL−1 and Fewasanalysedby ICP-AESinthis solution:no
Fewassignificantlydetected,meaningthattheFeconcentration
islessthanthedetectionlimitwhichisaround10mgL−1.TheSi
purityisthenbetterthan99.99%.Ironconcentrationinthesaltwas
Fig.6. SEMmicrographsoftheSi–4.7at%FeanodecrosssectionafterelectrolysisinNaF-KF-Na2SiF6(C=0.73molkg−1)at50mAcm−2and850◦C:(a)duration:5h(Q=2448C)
Fig.7.ConcentrationprofileofSiintheSi–FeintermetallicphaseafterelectrolysisinNaF-KF-Na2SiF6(C=0.73molkg−1)at50mAcm−2and850◦C;duration25h;inset:SEM
observationoftheanodeafterelectrolysisshowingthelocationofSianalysis.
Fig. 8.Photographs of cathodes after electrolysis runs in NaF-KF-Na2SiF6
(C=0.73molkg−1)at50mAcm−2 at 850◦
C:(a)SoG-Si cathodeafter 39h;(b) graphitecathodeafter25h.
alsotitratedaftertheelectrolysisandwasnotdetected,proving
thattheSidissolutionisselective.
3.3.3. Currentefficiencies
Anodicandcathodiccurrentefficiencies,anodicdissolutionand
SirecoveryprogresseswereestimatedbycomparingthefinalSi
Fig. 9. EDS analysis of cathodes after electrolysis runs in NaF-KF-Na2SiF6
(C=0.73molkg−1)at50mAcm−2 at 850◦
C:(a)SoG-Si cathodeafter 39h;(b) graphitecathodeafter25h.
massofanodeandcathodetotheinitialmassofSiinSi–4.7at%Fe
anodes.Thesevalueswerecalculatedaccordingto:
Anodicdissolutionprogress= 1mdissolved
mSi into Si–Feanode
(3)
1mdissolved (g)isthemassofdissolvedSievaluatedfromthe
massbalanceoftheanode,andmSiintoSi–Feanode (g)isthemass
ofsiliconinitiallypresentintheanode.Thismasswascalculated
bymeasuringtheinitialanodemassandcorrecting itbytheSi
composition(90wt%Si).
Sirecoveryprogress= mSi deposited
mSi intoSi–Feanode
(4) mSidepositedisthesiliconmassdeposited.
Table2gathersthevaluesobtainedinseveralelectrorefining
runs,leadingtothefollowingconclusions:
Table2
AnodicSidissolutionandcathodicSirecoveryprogressesandanodicandcathodicfaradicefficienciesofelectrorefiningrunsperformedinNaF-KF-Na2SiF6(C=0.73molkg−1)
at50mAcm−2and850◦ C. Q(C) Anode:Siinitial mass(g) Anodedissolved mass(g) Dissolution progress Anodicfaradic efficiency Cathode:Si depositedmass(g) Sirecovery progress Cathodicfaradic efficiency 1 2448 1.851 0.178 10% 89% 0.205 11% 100% 2 5480 1.028 0.360 35% 98% 0.399 39% 92% 3 8659 1.095 0.548 50% 90% 0.648 59% 90% 4 10,391 1.076 0.646 60% 90% 0.716 67% 94% 5 13,622 1.111 0.878 79% 94% 0.989 89% 99% 6 22,248 1.755 1.457 83% – 1.619 92% 100% 7 23,425 1.818 1.636 90% – 1.809 99% 100%
-the faradic efficiencies are close to 100% and the difference
tounityislikely attributedtomateriallossduringfrozensalt
removalfromelectrodes,
-forexperiments6and7,theanodefeltintothebathbeforethe
endoftherun.Thisindicatesthatthelimitofdissolutionprogress
isaround80%,duetotheanodestructure(11vol%Fe).Athigher
dissolutionrate,theanodesbecometoobrittletoensurecohesive
structure,
-thecathodicefficiency(Sirecovery)reaches99%.
4. Conclusion
Thisworkdemonstratedthatelectrorefininginabasicmolten
fluoridesolventisanoptiontobeconsideredforpuresilicon
recov-eryfromsiliconmaterialscontainingFe.
Previous studiesstated onthe bestoperating conditions for
electrodeposition of Si: solvent (eutectic NaF-KF), temperature
(850◦C),Si(IV)concentration(>0.6molkg−1)andcurrentdensity
(50mAcm−2).
ElectrorefiningrunsevidencedthatelectrodissolutionofSifrom
aSi–Feanodeinvolveda selectiverelease ofSiwithinthe
elec-trolyte,aremainingFerich“skeleton”structureanda complete
recoveryofpuresiliconatthecathode.Itislikelythat,inthecase
ofmaterialswithlowerinitialFecontents,theremainingFerich
phasewillnotformasolidstructurebutratherfalloffandsediment
inthebottomofthecell.
Moreover,theanodicandcathodiccurrentefficienciesareclose
to100%andtheSidepositspurityisassumedtobehigherthan
99.99%,asnoFewasdetectedbyICP-AESanalysisofthedeposit.
Theelectrorefiningmethod,demonstratedinthisworkinthe
specificcase ofFe, is mostprobably suited for thepurification
ofSimaterialscontainingTi,Mn,Cr,Ni,MoandCusinceitwas
shownthat intheNaF-KF mixturetheirdissolution potentialis
moreanodicthanFe.
References
[1]M.A.Green,Recentdevelopmentsinphotovoltaics,SolarEnergyMaterialsand SolarCells76(2004)3.
[2]A.Müllera,M.Ghosha,R.Sonnenscheinb,P.Woditscha,Siliconforphotovoltaic applications,MaterialsScienceandEngineering:B134(2006)257. [3]S.Pizzini,Towardssolargradesilicon:challengesandbenefitsforlowcost
photovoltaics,SolarEnergyMaterialsandSolarCells94(2010)1528. [4]D.Elwell,R.S.Feigelson,Electrodepositionofsolarsilicon,SolarEnergy
Mate-rialsandSolarCells6(1982)123.
[5]K.H.Stern,S.M.McCollum,Electrodepositionofrefractorymetalsfrommolten salts,ThinSolidFilms124(1985)129.
[6]U.Cohen,R.A.Huggins,Siliconepitaxialgrowthbyelectrodepositionfrom moltenfluorides,JournaloftheElectrochemicalSociety123(1976)381. [7]G.M.Rao,D.Elwell,R.S.Feigelson,ElectrowinningofsiliconfromK2SiF6–
moltenfluoridesystems,JournaloftheElectrochemicalSociety127(1980) 1940.
[8] G.M.Rao,D.Elwell,R.S.Feigelson,Electrodepositionofsiliconontographite, JournaloftheElectrochemicalSociety128(1981)1708.
[9] I.G.Sharma,T.K.Mukherjee,Astudyonpurificationofmetallurgicalgrade sil-iconbymoltensaltelectrorefining,MetallurgicalTransactionsB17B(1986) 395.
[10]J.DeLepinay,J.Bouteillon,S.Traore,D.Renaud,M.J.Barbier,Electroplating sili-conandtitaniuminmoltenfluoridemedia,JournalofAppliedElectrochemistry 17(1987)294.
[11]D.Elwell,G.M.Rao,MechanismofelectrodepositionofsiliconfromK2SiF6
-flinak,ElectrochimicaActa27(1982)673.
[12]K.L.Carleton,J.M.Olson,A.Kibbler,Electrochemicalnucleationandgrowthof siliconinmoltenfluorides,JournaloftheElectrochemicalSociety130(1983) 782.
[13]D.Elwell,Electrowinningofsiliconfromsolutionsofsilicainalkalimetal fluo-ride/alkalineearthfluorideeutectics,SolarEnergyMaterialsandSolarCells5 (1981)205.
[14]R.Boen,J.Bouteillon,Theelectrodepositionofsiliconinfluoridemelts,Journal ofAppliedElectrochemistry13(1983)277.
[15] A.L.Bieber,L.Massot,M.Gibilaro,L.Cassayre,P.Chamelot,P.Taxil,Fluoroacidity evaluationinmoltensalts,ElectrochimicaActa56(2011)5022.
[16]A.L.Bieber,L.Massot,M.Gibilaro,L.Cassayre,P.Chamelot,P.Taxil,Silicon electrodepositioninmoltenfluorides,ElectrochimicaActa62(2012)282. [17] J.R.Davis,A.Rohatgi,R.H.Hopkins,P.D.Blais,P.Rai-Choudhury,J.R.Mccormick,
H.C.Mollenkopf,Impuritiesinsiliconsolarcells,IEEETransactionsonElectron Devices27(1980)677.
[18]A.Luque,S.Hegedus,HandbookofPhotovoltaicScienceandEngineering,J. WileyandSonsLtded.,Chichester,2003,Chap.V.
[19]F.Schmid,D.B.Joyce,Recentadvancesinupgradingmetallurgicalgradesilicon forsolargradesiliconfeedstock,in:Proceedingof24thEUPVSEC,Hamburg, German,2009.
[20] L.Massot,P.Chamelot,P.Taxil,Cathodicbehaviourofsamarium(III)inLiF–CaF2
mediaonmolybdenumandnickelelectrodes,ElectrochimicaActa50(2005) 5510.
[21]O. Kubaschewski,Iron-BinaryPhaseDiagrams,Springer-Verlag,NewYork, 1982.
[22] FACTPuresubstancedatabase,http://www.factsage.com/
[23]L.Cassayre,P.Chamelot,L.Arurault,L.Massot,P.Palau,P.Taxil,Electrochemical oxidationofbinarycopper–nickelalloysincryolitemelts,CorrosionScience49 (2007)3610.
