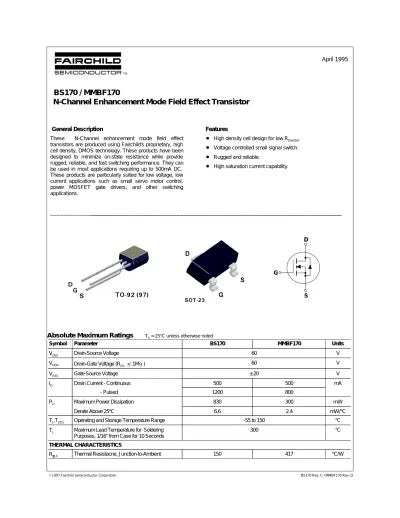

BS170 / MMBF170N-Channel Enhancement Mode Field Effect Transistor

(1)

April 1995

BS170 / MMBF170

N-Channel Enhancement Mode Field Effect Transistor

General Description Features

____________

___________________________________________________________________

Absolute Maximum Ratings

TA = 25°C unless otherwise noted

Symbol Parameter BS170 MMBF170 Units

V_DSS Drain-Source Voltage 60 V

V_DGR Drain-Gate Voltage (R_GS < 1MΩ⁾ ⁶⁰ ^V

VGSS Gate-Source Voltage ± 20 V

I_D Drain Current - Continuous 500 500 mA

- Pulsed 1200 800

P_D Maximum Power Dissipation 830 300 mW

Derate Above 25°C 6.6 2.4 mW/°C

TJ,TSTG Operating and Storage Temperature Range -55 to 150 °C

T_L Maximum Lead Temperature for Soldering Purposes, 1/16" from Case for 10 Seconds

300 °C

THERMAL CHARACTERISTICS

R_θ_JA Thermal Resistacne, Junction-to-Ambient 150 417 °C/W

BS170 Rev. C / MMBF170 Rev. D

High density cell design for low R_DS(ON). Voltage controlled small signal switch.

Rugged and reliable.

High saturation current capability.

These N-Channel enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 500mA DC.

These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.

S D

G

(2)

Electrical Characteristics

(T_A = 25°C unless otherwise noted)

Symbol Parameter Conditions Type Min Typ Max Units

OFF CHARACTERISTICS

BV_DSS Drain-Source Breakdown Voltage V_GS = 0 V, I_D= 100 µA All 60 V

I_DSS Zero Gate Voltage Drain Current V_DS = 25 V, V_GS= 0 V All 0.5 µA

I_GSSF Gate - Body Leakage, Forward V_GS = 15 V, V_DS = 0 V All 10 nA

ON CHARACTERISTICS (Note 1)

V_GS(th) Gate Threshold Voltage V_DS = V_GS, I_D = 1 mA All 0.8 2.1 3 V

R_DS(ON) Static Drain-Source On-Resistance V_GS = 10 V, I_D = 200 mA All 1.2 5 Ω

g_FS Forward Transconductance V_DS = 10 V, I_D = 200 mA BS170 320 mS

V_DS > 2 V_DS(on), I_D = 200 mA MMBF170 320 DYNAMIC CHARACTERISTICS

Ciss Input Capacitance VDS = 10 V, VGS = 0 V, f = 1.0 MHz

All 24 40 pF

C_oss Output Capacitance All 17 30 pF

C_rss Reverse Transfer Capacitance All 7 10 pF

SWITCHING CHARACTERISTICS ^{(Note 1)}

t_on Turn-On Time V_DD = 25 V, I_D = 200 m A,

V_GS = 10 V, R_GEN = 25 Ω ^BS170 ¹⁰ ^ns

VDD = 25 V, ID = 500 mA,

V_GS = 10 V, R_GEN = 50 Ω ^MMBF170 ¹⁰

toff Turn-Off Time VDD = 25 V, ID = 200 m A, V_GS = 10 V, R_GEN = 25 Ω

BS170 10 ns

V_DD = 25 V, I_D = 500 mA,

V_GS = 10 V, R_GEN = 50 Ω ^MMBF170 ¹⁰

Note:

1. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%.

(3)

0 1 2 3 4 5

0 0.5 1 1.5 2

V , DRAIN-SOURCE VOLTAGE (V)

I , DRAIN-SOURCE CURRENT (A)

9.0

4.0 8.0

3.0 7.0 V = 10VGS

DS

D

5.0 6.0

-50 -25 0 2 5 5 0 7 5 1 0 0 1 2 5 1 5 0

0.5 0.75 1 1.25 1.5 1.75 2

T , JUNCTION TEMPERATURE (°C)

DRAIN-SOURCE ON-RESISTANCE

J R , NORMALIZEDDS(ON)

V = 10V G S I = 5 0 0 m A_D

-50 -25 0 2 5 5 0 7 5 1 0 0 1 2 5 1 5 0

0.8 0.85 0.9 0.95 1 1.05 1.1

GATE-SOURCE THRESHOLD VOLTAGE

J

I = 1 mAD

V = V_DS _GS

V , NORMALIZEDth

0 0.4 0.8 1.2 1.6 2

0.5 1 1.5 2 2.5 3

I , DRAIN CURRENT (A)

V =4.0V _GS

D R , NORMALIZEDDS(on)

7.0 4.5

1 0 5.0

6 .0

9.0 8.0

0 0.4 0.8 1.2 1.6 2

0 0.5 1 1.5 2 2.5 3

T = 125°CJ

25°C

-55°C

D

V = 10V _GS

R , NORMALIZEDDS(on)

Typical Electrical Characteristics

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with Gate Voltage and Drain Current.

Figure 3. On-Resistance Variation with Temperature.

Figure 4. On-Resistance Variation with Drain Current and Temperature.

Figure 5. Transfer Characteristics. Figure 6. Gate Threshold Variation with Temperature.

0 2 4 6 8 1 0

0 0.4 0.8 1.2 1.6 2

V , GATE TO SOURCE VOLTAGE (V)

V = 10V_DS

GS

D

T = -55°CJ 25°C 125°C

BS170 / MMBF170

(4)

-50 -25 0 2 5 5 0 7 5 1 0 0 1 2 5 1 5 0

0.925 0.95 0.975 1 1.025 1.05 1.075 1.1

DRAIN-SOURCE BREAKDOWN VOLTAGE

J BV , NORMALIZEDDSS

I = 1 0 0 µ A_D

0.2 0.4 0.6 0.8 1 1.2 1.4

0 . 0 0 1 0 . 0 0 5 0 . 0 1 0 . 0 5 0.1 0.5 1 2

V , BODY DIODE FORWARD VOLTAGE (V)

I , REVERSE DRAIN CURRENT (A)

V = 0VGS

T = 125°CJ

SD

S

25°C

-55°C

0 0.4 0.8 1.2 1.6 2

0 2 4 6 8 1 0

Q , GATE CHARGE (nC)

V , GATE-SOURCE VOLTAGE (V)

g

GS

I = 5 0 0 m A_D V = 25V_DS

1 2 3 5 1 0 2 0 3 0 5 0

1 2 5 1 0 2 0 4 0 6 0

V , DRAIN TO SOURCE VOLTAGE (V)

CAPACITANCE (pF)

DS

C iss

f = 1 MHz V = 0V_GS

C oss

C rss

G D

S

V_DD

R_L V

V

IN

OUT

V_GS

R_GEN DUT

10%

50%

90%

10%

90%

Input, Vin 50%

Output, Vout

t_on t_off

td(off) tf

tr

td(on)

Inverted

10%

Pulse Width Figure 7. Breakdown Voltage Variation

with Temperature.

Figure 8. Body Diode Forward Voltage Variation with Current and Temperature.

Figure 9. Capacitance Characteristics. Figure 10. Gate Charge Characteristics.

Figure 11. Switching Test Circuit. Figure 12. Switching Waveforms.

Typical Electrical Characteristics

(continued)

BS170 / MMBF170

(5)

0.0001 0.001 0.01 0.1 1 10 100 300

0.001 0.002 0.01 0.05 0.1 0.2 0.5 1

t , TIME (sec)

TRANSIENT THERMAL RESISTANCE

r(t), NORMALIZED EFFECTIVE

1 Single Pulse

D = 0.5

0.1 0.05

0.02 0.01 0.2

Duty Cycle, D = t /t₁ ₂ R (t) = r(t) * R R = (See Datasheet)

θJA θJA

θJA

T - T = P * R (t)J A θJA P(pk)

t 1 t ₂

0.0001 0.001 0.01 0.1 1 10 100 300

0.01 0.02 0.05 0.1 0.2 0.5 1

t , TIME (sec)

TRANSIENT THERMAL RESISTANCE

r(t), NORMALIZED EFFECTIVE

1 Single Pulse

D = 0.5

0.1

0.05

0.02 0.01

0.2

Duty Cycle, D = t /t₁ ₂ R (t) = r(t) * R R = (See Datasheet) θJA θJA

θJA

T - T = P * R (t)J A θJA P(pk)

t 1 t 2

1 2 5 1 0 2 0 3 0 6 0 8 0

0.005 0.01 0.05 0.1 0.5 1 2 3

DS

D

V = 1 0 V SINGLE PULSE

T = 25°C GS

A RDS(ON) Limit

1 00m s 1 ms 1 0ms

DC 1s

100us

10s

Figure 15. TO-92, BS170 Transient Thermal Response Curve.

Figure 16. SOT-23, MMBF170 Transient Thermal Response Curve.

1 2 5 1 0 2 0 3 0 6 0 8 0

0.005 0.01 0.05 0.1 0.5 1 2 3

DS D V = 1 0 V SINGLE PULSE

T = 25°C GS

A RDS(ON) Limit

1 00m s 1 ms 1 0ms

DC 1s 10s

100us

Figure 13. BS170 Maximum Safe Operating Area.

Figure 14. MMBF170 Maximum Safe Operating Area.

Typical Electrical Characteristics

(continued)

(6)
