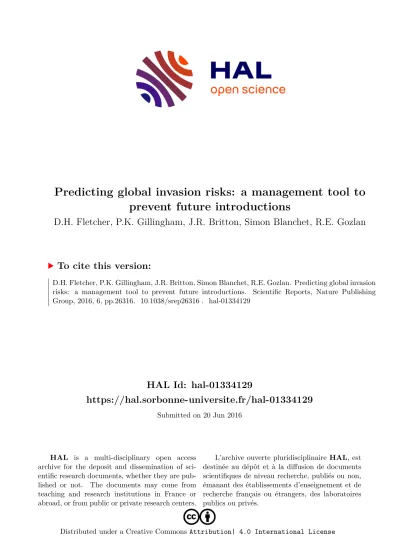

Predicting global invasion risks: a management tool to prevent future introductions

HAL Id: hal-01334129

https://hal.sorbonne-universite.fr/hal-01334129

Submitted on 20 Jun 2016

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Distributed under a Creative Commons Attribution| 4.0 International License

Predicting global invasion risks: a management tool to prevent future introductions

D.H. Fletcher, P.K. Gillingham, J.R. Britton, Simon Blanchet, R.E. Gozlan

To cite this version:

D.H. Fletcher, P.K. Gillingham, J.R. Britton, Simon Blanchet, R.E. Gozlan. Predicting global invasion

risks: a management tool to prevent future introductions. Scientific Reports, Nature Publishing

Group, 2016, 6, pp.26316. �10.1038/srep26316�. �hal-01334129�

Predicting global invasion risks: a management tool to prevent future introductions

D. H. Fletcher

, P. K. Gillingham

, J. R. Britton

, S. Blanchet

& R. E. Gozlan

Predicting regions at risk from introductions of non-native species and the subsequent invasions is

gudgeon Pseudorasbora parva has proved highly invasive across Europe since its introduction in the

further damage through transmission of an emergent infectious disease, known to cause mortality in

ecological niche models and constructed an Ensemble Model predicting suitability, then integrated a proxy for introduction likelihood. This revealed high potential for P. parva to invade regions well beyond its current invasive range. These included areas in all modelled continents, with several hotspots of climatic suitability and risk of introduction. We believe that these methods are easily adapted for a variety of other invasive species and that such risk maps could be used by policy-makers and managers in hotspots to formulate increased surveillance and early-warning systems that aim to prevent introductions and subsequent invasions.

The introduction and establishment of species into novel ecosystems can result in rapid dispersal rates

, with the magnitude of subsequent impacts and associated management costs increasing sharply with the time since the initial introduction

. When eradication is no longer a feasible management option, long-term strategies aimed at control and containment are generally adopted

. Such approaches tend to be expensive and only prevent further damage rather than restoring the invaded systems to their former status

. Consequently, more effective manage- ment strategies focus more on preventing introductions rather than managing subsequent invasions

.

Through increased global connectivity and trade, opportunities for the introduction of non-native species have increased

, with resources at border control stretched and ineffective at preventing the entry of non-native species into new regions

. Whilst risk assessment frameworks can be a strong mechanism to help allocate finite resources between preventing, detecting and managing introductions of non-native species

, they sometimes fail to highlight specific areas within regions where risks of introduction and subsequent invasions are higher

(although, a notable exception is the recent application of the FISK risk assessment tool to a single catchment in Hungary

). Risk maps summarize landscape suitability for non-native species within a region by incorporating multiple factors, such as climatic or habitat suitability and potential introduction pathways, and thus can high- light smaller spatial areas within the region, or continent, where the risk is greatest

.

Freshwater ecosystems provide societies with valuable goods and services, yet are disproportionately vul- nerable to biological invasions, compared to terrestrial systems, due to their high degree of isolation and endemism

. Introductions of non-native fishes represent a considerable threat to global freshwater fish con- servation

and can cause considerable economic damage

. For example, in North America the annual cost of

1UMR MIVEGEC IRD-CNRS-Universités de Montpellier 1 et 2, Centre IRD de Montpellier, B.P. 64501, Montpellier, France. ²Department of Life and Environmental Sciences, Faculty of Science and Technology, Bournemouth University, Poole, BH12 5BB, United Kingdom. ³Centre National de la Recherche Scientifique (CNRS); Station d’Ecologie Théorique et Expérimentale, UMR5321, Moulis, 09200 Saint-Girons, France. ⁴Centre National de la Recherche Scientifique (CNRS), Université Paul Sabatier, École Nationale de Formation Agronomique (ENFA);

UMR5174 EDB (Laboratoire Évolution & Diversité Biologique), 118 route de Narbonne, F-31062 Toulouse cedex 4, France. ⁵Unité Mixte de Recherche Biologie des Organismes et Écosystèmes Aquatiques (IRD 207, CNRS 7208, MNHN, UPMC) Muséum National d’Histoire Naturelle, 75231 Paris Cedex, France. Correspondence and requests for materials should be addressed to D.H.F. (email: [email protected])

received: 10 December 2015 Accepted: 13 April 2016 Published: 20 May 2016

OPEN

www.nature.com/scientificreports/

invasive non-native fish species is estimated as at least US$ 5.4 billion

. In Europe, at least 650 fish species have been introduced into aquatic ecosystems, yet only a relatively small proportion of these are considered invasive and cause detrimental impacts

, such as the topmouth gudgeon Pseudorasbora parva (Temminck & Schlegel).

This Asian cyprinid fish has been described as Europe’s most invasive freshwater fish (e.g.

), having achieved a pan-continental distribution in less than forty years, following its initial accidental introduction into Romania in the 1960s

. Its ability to invade new waters stems from traits that include high tolerance to degraded ecosys- tems, high reproductive effort and early sexual maturity alongside batch spawning and paternal nest guarding

. Moreover, it can rapidly colonize new waters

, with their larval stages particularly likely to disperse into the wider environment

. It is also a healthy carrier of an emergent infectious fungal disease Sphaerothecum destruens that has been implicated in declines in native European fishes

. Given its rapid rate of invasion in Europe and its disease risk, it is thus important to develop tools to predict additional locations at risk, outside of its current invasive range. Such tools would enable countries that contain potentially suitable habitats but have not yet been invaded to set up the necessary infrastructure to prevent an introduction and subsequent invasion.

Invasion risk is a combination of the likelihood of the species being introduced (e.g. the presence of an intro- duction pathway) and the suitability of the environment in the new region (e.g. climate suitability for the species).

Consequently, the aim of this study was to predict the risk of P. parva invasion at the global scale in relation to its climate suitability and likely introduction pathways. Objectives were to (i) use climatic and other relevant abiotic data in both P. parva’s native and European invasive ranges to determine its realized niche; (ii) assess its potential global introduction pathways in relation to its known introduction pathways in Europe; and (iii) develop a niche model that characterizes its realized niche and combine this with data on introduction pathways to develop a global risk map of P. parva invasion. The implications of the risk map are then discussed in a global context.

Materials and Methods

Data on presence and absence of P. parva. Previous niche modelling studies suggest that presence loca- tion data from the invasive range can sometimes provide a significantly better approximation of the actual species niche breadth, thus producing more accurate suitability predictions beyond the native range

. Consequently, our presence dataset incorporated data from the European invasive range, compiled from European national monitoring schemes with consistent recording over the last 30+ years, as well as data from its native Asian range.

When the European national monitoring data were combined with literature review and native and invasive presence records from the Global Biodiversity Information Facility (GBIF, www.gbif.org), this provided 2,882 confirmed P. parva observations from unique locations, across both native and invasive ranges, the latest of which was recorded in 2014. In order to minimise bias caused by multiple presence points in grid cells, i.e. spatial clus- tering of records, we applied a form of spatial filtering similar to that used by Boria et al.

, whereby we removed all but one record from grid cells, essentially leaving us with 2,048 “presence cells” in our dataset.

Absence data were generated on the principle of implied absence, as P. parva’s European distribution, after 40 years since introduction, suggested the species had already reached saturation point (cf.

) and we also assumed equilibrium in the native range. To avoid spatial autocorrelation with presence cells, random points were gener- ated outside buffers of 50 km around presence cell centroids. These random points were limited to a maximum distance of 100 km from presence cell centroids to prevent the characterisation of areas far outside the species’

core areas, which can result in poor model performance

. These methods also maintained a degree of parity with regard to the ratio of presence to absence points across the two distributional aggregations (Asian and European).

A total of 10,000 absence points were generated in 10 absence datasets, and weighted to give equal prevalence for the overall response variable dataset, which was coded in a binary (1/0, presence/absence) fashion. Due to the relatively high recording effort achieved in this monitoring, it was assumed these locations represented genuine absences, rather than just characterising the background environmental variation present within the invasive range.

Predictor variable data. We used a suite of abiotic variables as a basis for the description of P. parva’s niche.

We used the 19 Bioclimatic datasets (Bio1 - Bio19

, see Table 1 for individual descriptions); Mean Potential Incoming Solar Radiation (INMSR); Topsoil pH (TpH); and Topographic Wetness Index (TWIS) as our initial suite of variables (see Table 1 for details of datasets). So as to promote parsimony and minimize over-fitting in models, we refined the list of variables used in the final modelling procedure, using Variance Inflation Factor to identify and remove collinearity in the final suite of variables used. Stepwise selection of variables was carried out using the r package ‘VIF’

and left us with a refined suite of ten abiotic variables (see variables marked with aster- isk in Table 1) to use in our models. All datasets were used at a spatial resolution of 10 km and a spatial reference of GCS WGS 1984. Conforming to accepted protocols in ecological niche modelling

, all of the remaining ten variables are ecologically relevant to P. parva.

Additional data. In order to produce a risk map accurately representing both the likelihood of introduction

and climatic suitability, we incorporated a dataset representing the known major introduction pathways. Given

that the spread of P. parva throughout Europe was strongly related to aquaculture-related introductions

, and

because there is a strong correlation between non-native introductions and international trade

, the “Aquaculture

Pressure” dataset from the “Global Threats to Human Water Security and River Biodiversity” database

was used

as a surrogate for introduction likelihood. This dataset was derived using national annual average aquaculture

harvests from inland and diadromous fishes from 1997–2006 from the UN Food and Agriculture Organization’s

FishStat Plus database (www.fao.org/fishery), which were then distributed proportionately to the grid-cell specific

discharge for each nation. The original dataset was re-sampled using bilinear interpolation to match the resolu-

tion of all other datasets (10 km). All spatial datasets shared the same spatial reference (GCS WGS 1984).

Modelling methods. The first phase of modelling used nine modelling techniques: Artificial Neural Networks (ANN), Classification Tree Analysis (CTA), Flexible Discriminant Analysis (FDA

), Generalized Additive Models (GAM), Generalized Boosted Models (GBM), Generalized Linear Models (GLM), Multivariate Adaptive Regression Splines (MARS), Random Forests (RF) and Surface Range Envelope (SRE

). The use of GLM, GAM, CTA and ANN is described and discussed in Thuiller

. GBM incorporates interactive relationships between predictor variables, as well as being able to discern complex response curves

. MARS and ANN are good at deciphering complex relationships

and RF models have been found to perform consistently well when evaluated against various other well established methods

. The models were implemented in the ‘R’ software

, using the ‘biomod2’ R package

. Modelling parameters were kept at default values, in the interest of repeatability.

Model predictions were output as probability of presence (continuous values between 0 and 1).

Evaluation of model accuracy (predictive power) was carried out using the Area Under Curve (AUC) of the Receiver Operating Characteristic (ROC). A random 70% selection of the data was used to train each model before the remaining 30% of data were used to evaluate accuracy. To compensate for any possible spatial auto- correlation between training and evaluation data

, this cross-validation process was repeated ten times for each model, with the mean calculated to provide a value for a version of the model trained using all of the data.

The final ensemble forecast output was produced in ‘biomod2’ using a weighted average technique, based on the AUC values of each model. Models with higher AUC values were more influential in deciding final cell values. Evaluation of final ensemble model accuracy was conducted using the same cross-validation approach as that used for individual models. Variable importance for each individual model was assessed through the use of biomod2’s randomization function, where each variable’s values are randomized in turn. Pearson’s correlations of model predictions before and after randomization were used to infer relative importance of the variable being randomized

. Where the correlation is high, the relative importance of the variable to the prediction outcome is low. Final Ensemble Model (EMmw) variable importance was calculated by applying the weightings used for the ensemble forecasting to the variable importance scores for individual models, summing values by variable then dividing by the number of models used.

Creation of the P. parva risk map. The final risk map was created by multiplying the values of the EMmw layer, which represents suitability of conditions according to modelled realized niche, by those of the “Aquaculture pressure” layer, which represents likelihood of introduction. Both layers’ values range from 0–1, so the final Risk Map represents equal weightings of the two factors in assessment of the risk of successful invasion, with potential values ranging from 0 (no risk) to 1 (high risk).

Results

Predictive accuracy in models. Predictive accuracy across the nine individual modelling methods was consistently high and the mean of each modelling method always exceeded 0.847 in cross-validation runs, except for SRE (Fig. 1). SRE models were dropped from the final EM, as they were consistently lower scoring than

GIS data layer Short name Source URL

Annual Mean Temperature Bio1* http://www.worldclim.org/bioclim

Mean Diurnal Range (Mean of monthly (max temp - min temp)) Bio2* http://www.worldclim.org/bioclim

Isothermality (BIO2/BIO7) (*100) Bio3* http://www.worldclim.org/bioclim

Temperature Seasonality (standard deviation *100) Bio4 http://www.worldclim.org/bioclim

Max Temperature of Warmest Month Bio5 http://www.worldclim.org/bioclim

Min Temperature of Coldest Month Bio6 http://www.worldclim.org/bioclim

Temperature Annual Range (BIO5-BIO6) Bio7 http://www.worldclim.org/bioclim

Mean Temperature of Wettest Quarter Bio8 * http://www.worldclim.org/bioclim

Mean Temperature of Driest Quarter Bio9 http://www.worldclim.org/bioclim

Mean Temperature of Warmest Quarter Bio10 http://www.worldclim.org/bioclim

Mean Temperature of Coldest Quarter Bio11 http://www.worldclim.org/bioclim

Annual Precipitation Bio12 http://www.worldclim.org/bioclim

Precipitation of Wettest Month Bio13 http://www.worldclim.org/bioclim

Precipitation of Driest Month Bio14* http://www.worldclim.org/bioclim

Precipitation Seasonality (Coefficient of Variation) Bio15 http://www.worldclim.org/bioclim

Precipitation of Wettest Quarter Bio16 http://www.worldclim.org/bioclim

Precipitation of Driest Quarter Bio17 http://www.worldclim.org/bioclim

Precipitation of Warmest Quarter Bio18 * http://www.worldclim.org/bioclim

Precipitation of Coldest Quarter Bio19 * http://www.worldclim.org/bioclim

Mean potential incoming solar radiation (8-day average) derived in SAGA GIS INMSR* http://www.worldgrids.org Topsoil pH (H2O) based on the Harmonized Worlds Soil Database TpH* http://www.worldgrids.org

SAGA GIS Topographic wetness index TWIS* http://www.worldgrids.org

Table 1. Description of abiotic descriptor datasets used in analysis along with source URLs. Variables in the

column entitled short name marked with an asterisk were retained for modelling procedures.

www.nature.com/scientificreports/

the others. AUC scores indicated that all of the retained individual models were acceptable

for predicting the climatic suitability of locations for P. parva. However, the weighted method of ensemble forecasting provided a significant increase in model accuracy (Welch’s t-test p

0.001, testing results of all retained individual models against ensemble model). Variability of predictive accuracy across the different absence datasets and the rand- omized subsets of data (i.e. partitioning for training and testing) was very similar across all modelling methods, indicating that the data for training were representative of the total dataset in each instance (i.e. for each absence dataset and for each randomization run, of which there were 100 in total for each modelling method; 900 in total).

Predictor variable importance. The three most important predictor variables, Bio14, Bio3 and TWIS (in that order) accounted for 66% of the sum of all importance values (Table 2). The density plot curve for Bio14, precipitation of driest month, (Fig. 2) suggested that P. parva prefer areas with values between 25 and 60 mm. The density plot for Bio3, isothermality, suggested that P. parva prefers areas with a mean monthly temperature range that is approximately 33% of the total annual range. Topographic wetness index was the most important of the non-‘bioclim’ variables used in the final modelling, ranking 3rd with a mean score of 11.64% in the randomiza- tion tests.

Suitability predictions. Current known ranges, both invasive (Europe) and native (Asia), were generally well represented by the model output (Fig. 3a). However there were some areas within the native range where the suitability score was lower than expected, such as Taiwan. In addition to the known current invasive range, a number of other areas displayed medium to high suitability values. These areas included parts of central and southern Africa, Malaysia, Indonesia, New Guinea, New Zealand, Australia, North and South America. The high- est values outside the current known range were in the USA (predominantly in the western and southern states), South America (focused around southern Brazil, eastern Paraguay and Argentina, and all of Uruguay), in Eastern Australia and in New Zealand.

Risk predictions. The process of incorporating introduction likelihood to the map refined the suitability map by producing a prediction of relative likelihood of a successful invasion (Fig. 3b). Areas with predicted high suitability and high levels of aquaculture pressure, a surrogate for introduction likelihood, were fairly widespread.

The most significant areas of high and medium-high risk values included the USA, Brazil, Paraguay, Uruguay, Argentina, coastal South Africa, Malaysia, Indonesia and Australia. Although New Zealand possessed areas with high suitability values, the low values of aquaculture pressure meant that the risk levels were very low through- out the country. Similarly, the Island of New Guinea possessed medium-high suitability values, but aquaculture values in the country of Papua New Guinea meant that the eastern part of the island received generally low risk values, whilst the western part of the island, a region of Indonesia with higher levels of aquaculture, received a medium-high risk of successful invasion.

Discussion

The risk maps indicated that P. parva has a substantial scope to invade areas and regions beyond its current inva-

sive range, and these cover all continents. There were several hotspots for climatic suitability and risk of introduc-

tion in each continent that could represent a potential future point of entrance. In North America for example, the

key states at risk are Mississippi, Louisiana, Arkansas, N/S Carolina, Georgia, Alabama, and Tennessee. In South

America, two geographically separated hotspots were identified, which included medium-high values in upper

parts of the Amazon basin in Peru and Columbia and Brazil. Further south, high values were observed in the

south of Brazil, Uruguay and north-east parts of Argentina. In Africa there were narrow fringes of medium-high

risk in coastal areas of South Africa, Madagascar and in Liberia. However these were surrounded by more diffuse

areas of medium risk, generally following the coast but also present in central countries such as the Democratic

Republic of the Congo and Uganda, where the upper part of the Congo River is most at risk. Although already

present in East Asia, our outputs indicated that areas in northern India would be suitable for P. parva, particularly

the foot hills of the Himalayas, including the Indus River basin as far west as Srinagar in the Jammu and Kashmir

minimum, lower quartile, mean upper quartile and maximum values for each modelling method. For each

group n = 100, except for EMmw, where n

state of India. Of particular note is the recent discovery of P. parva in the Brahmaputra River in India

, an area predicted to be climatically suitable and at medium-high risk by our analysis, thus providing confidence in the performance of the risk maps, particularly given that our training dataset contained only one presence cell in the entirety of India. Finally, in Oceania, predicted areas at medium-high to high risk were in Indonesia, Malaysia and parts of eastern Australia.

Evaluation of the model via cross-validation techniques indicated that the modelling method used to predict climatic suitability achieved a high degree of accuracy. However, there were areas where high suitability values were expected, due to known presence of P. parva, but were not predicted by the model. For instance there were locations in Belarus and southern Turkey that received low suitability scores, but contained P. parva records – although they are only present in relatively low abundances

. Equally, in the native range, Taiwan received generally low suitability scores, despite being known to host widespread P. parva populations

. This disparity between predicted and observed suitability in Taiwan may have been due to underrepresentation of distinct envi- ronmental conditions present there, owing to low numbers of presence points in this location. Such an issue can lead to underrepresentation of these conditions in the modelled niche. Because niche conservatism is a funda- mental assumption of the ecological modelling techniques, the projected niche may not have included the full range of suitable conditions in Taiwan.

In time, introduced species will adapt and evolve within their new range, potentially shifting their climatic preferences and their ecological niche. Simon et al.

revealed P. parva populations of Japan and Taiwan have been isolated from those found in continental China for some time (5–6 MYA and 1–1.5 MYA, respectively), allowing the adaptation of the Taiwanese populations to the more tropical climate there. Neither the Japanese, nor the Taiwanese populations have been introduced to the European invasive range, which could explain why the climatic niche of the invasive range may have not yet included the distinct part of the niche occupied only by the Taiwanese populations, which would compound the underrepresentation of this part of the niche in the data used to train our models. One implication of this is that the risk of invasion may be heavily dependent upon the source population for the introduction, particularly when the native ecological niche is distinct compared to that of other populations. In the case of the Taiwanese populations, this may mean that scope for successful invasion into areas with more tropical climates is greater, and for the species as a whole, this may mean that current risk predictions are underestimated for tropical regions.

Model Bio1 Bio2 Bio3 Bio8 Bio14 Bio18 Bio19 TpH INMSR TWIS

ANN 12.50 4.33 8.96 6.79 30.11 12.43 16.46 0.42 2.54 5.44

GLM 3.05 2.89 22.36 6.63 41.50 1.17 5.00 0.79 4.37 12.24

GBM 4.36 2.42 25.89 1.65 46.73 1.63 1.08 0.03 2.05 14.16

SRE 10.08 10.12 10.11 10.45 7.28 9.60 9.37 10.52 11.25 11.22

CTA 9.87 5.64 20.10 4.67 34.33 5.24 3.60 0.60 3.52 12.43

RF 12.62 5.62 24.48 3.98 18.69 6.21 6.15 2.51 7.86 11.88

MARS 7.50 5.48 17.18 5.25 41.93 1.26 6.96 0.10 3.10 11.24

FDA 7.48 3.50 22.83 5.42 35.04 1.42 4.70 0.38 6.70 12.54

GAM 7.85 4.01 30.64 6.74 15.49 3.75 11.60 1.27 5.61 13.05

EMmw 8.15 4.23 21.60 5.13 32.94 4.13 6.93 0.77 4.48 11.64

Table 2. Mean variable importance by modelling method, as a percentage. Variable importance scores, as

measured by randomization technique, calculated for individual models as 1— Pearson’s correlation between predictions, before and after randomization. Scores were then converted into a % of the sum of all variable importance scores for each modelling method. The three most important variables in the final EMmw model are highlighted in bold.

Figure 2. Density plots of top three most important variables in final mean-weighted Ensemble Model

(EMmw), in order of importance; (a) Bio14 – Precipitation of driest month (mm); (b) Bio3 – Isothermality

(mean diurnal temperature range divided by annual temperature range; (c) TWIS – Topographic Wetness

Index.

www.nature.com/scientificreports/

Despite some of the invasion predictions in India already being realized, the risk level of individual coun- tries will also be determined by extant policies on managing non-native species regarding aspects such as risk assessments and surveillance

. For example, the high level of awareness in Australia regarding non-native species introductions

and the calls for more consistent use of appropriate risk assessment tools, as long ago as the 1990s (e.g.

), should have by now resulted in adoption of such practices for all major groups of taxa. However, par- ticularly with regard to non-native fishes, this has not been the case; moreover the only application of a generic risk assessment scheme for non-native fishes, to date, has been that of Vilizzi and Copp

, in 2013. With this in mind, the addition of species-specific risk maps, such as the one produced in our study, present an important additional tool that can identify the specific regions of a country that are most at risk from an introduction and thus enable increased preventative measures such as import bans and additional screening at entry points to be implemented

. This increased prevention is preferable, as it should reduce the long-term management costs

. Currently, screening points for non-native species are often at ports or national/state borders

, locations which might not necessarily be identified as having a high risk of introduction and invasion but are entry points for species in transit and so can serve as useful points of inspection.

Failing to prevent future invasions of P. parva would greatly increase the associated threat to fish biodiversity.

This species is a healthy carrier of a severe emerging fungal pathogen, S. destruens

, that is non species-specific (i.e. generalist) and has so far led to disease in all tested species including salmonids, cyprinids and percids

. Because of the life history traits that make P. parva invasive in so many locations (e.g. broad tolerances, high fecun- dity, etc) and because it is a healthy carrier of the disease (i.e. it doesn’t suffer mortality from infection), it consti- tutes a significant threat, as it can rapidly build dense populations which can act as persistent disease reservoirs for an outbreak. A recent study has highlighted the particular significance of the threat posed by such species

. Given the long distance of natural salmon migrations, the potential impact of an outbreak of S. destruens among North American salmonid populations (which are highly sensitive to the disease

), could have far reaching conse- quences. P. parva’s invasion could thus be the potential stepping stone to a much wider transmission of the disease.

We now know that the rate of spread after initial introduction in Europe was about 0.5 countries per year

, and that invasion in a region comprising largely suitable areas is likely to result in an array of negative impacts.

Given the potential impacts of P. parva of disease transmission and the formation of highly abundant popula- tions that can lead to increased inter-specific competition

, there are strong ecological drivers for the avoidance of introduction. Whilst simple climate-matching approaches can be useful, more representative models such as ours, accounting for critical factors such as introduction likelihood/ propagule pressure (cf.

) should be used in order to provide more accurate risk representations. Consequently, the outputs in this paper can be used to formulate stronger preventative measures and ensure the invasion of P. parva is limited to Europe and does not develop more globally.

References

1. Stohlgren, T. J. & Schnase, J. L. Risk Analysis for Biological Hazards: What We Need to Know about Invasive Species. Risk analysis : an official publication of the Society for Risk Analysis 26, 163–173 (2006).

2. Vitousek, P. M., Mooney, H. a, Lubchenco, J. & Melillo, J. M. Human domination of Earth’s ecosystems. Urban Ecology: An International Perspective on the Interaction Between Humans and Nature 3–13 (2008).

3. Norton, G. “I. Invasive species, databases, and decision making: critical issues.” Extension bulletin. Food and Fertilizer Technology Centre, Taiwan (2005).

4. Britton, J. R., Gozlan, R. E. & Copp, G. H. Managing non-native fish in the environment. Fish Fish. 12, 256–274 (2011).

Figure 3. (a,b) Suitability (a) and Risk (b) maps. Both maps use the same colour scale, from low value of 0 to

high value of 1, indication niche suitability and risk of successful invasion, respectively. Final layout of map

panels was generated using Esri ArcMap (Version 10.0, Build 2414. url: https://www.arcgis.com/).

5. Fernald, S. H., Caraco, N. F. & Cole, J. J. Changes in cyanobacterial dominance following the invasion of the zebra musselDreissena polymorpha: Long-term results from the Hudson River estuary. Estuaries Coasts 30, 163–170 (2007).

6. Myers, J. H., Simberloff, D., Kuris, A. M. & Carey, J. R. Eradication revisited: Dealing with exotic species. Trends Ecol. Evol. 15, 316–320 (2000).

7. Vander Zanden, M. J. & Olden, J. D. A management framework for preventing the secondary spread of aquatic invasive species. Can.

J. Fish. Aquat. Sci. 65, 1512–1522 (2008).

8. Crowl, T. A., Crist, T. O., Parmenter, R. R., Belovsky, G. & Lugo, A. E. The spread of invasive species and infectious disease as drivers of ecosystem change. Front. Ecol. Environ. 6, 238–246 (2008).

9. Keith, M. & Jaarsveld, A.S. van Revisiting green data species lists. Biodivers. Conserv. 11, 1313–1316 (2002).

10. Leung, B. et al. An ounce of prevention or a pound of cure: bioeconomic risk analysis of invasive species. Proc. Biol. Sci. 269, 2407–2413 (2002).

11. Copp, G. H. et al. Calibration of FISK, an invasiveness screening tool for nonnative freshwater fishes. Risk Anal. 29, 457–467 (2009).

12. Jiménez-Valverde, A. et al. Use of niche models in invasive species risk assessments. Biol. Invasions 13, 2785–2797 (2011).

13. Ferincz, Árpád, et al. Risk assessment of non-native fishes in the catchment of the largest Central-European shallow lake (Lake Balaton, Hungary). Hydrobiologia 1–13 (2016).

14. Hulme, P. E. Trade, transport and trouble: Managing invasive species pathways in an era of globalization. J. Appl. Ecol. 46, 10–18 (2009).

15. Moorhouse, Tom P. & David W. Macdonald. Are invasives worse in freshwater than terrestrial ecosystems? WIREs Water 2, 1–8 (2015).

16. Gozlan, R. E., Britton, J. R., Cowx, I. & Copp, G. H. Current knowledge on non-native freshwater fish introductions. J. Fish Biol. 76, 751–786 (2010).

17. Villéger, S., Blanchet, S., Beauchard, O., Oberdorff, T. & Brosse, S. From current distinctiveness to future homogenization of the world’s freshwater fish faunas. Divers. Distrib. 21, 223–235 (2015).

18. Pimentel, D., Zuniga, R. & Morrison, D. Update on the environmental and economic costs associated with alien-invasive species in the United States. Ecol. Econ. 52, 273–288 (2005).

19. Savini, D. et al. The top 27 animal alien species introduced into Europe for aquaculture and related activities. J. Appl. Ichthyol. 26, 1–7 (2010).

20. Gozlan, R. E., Pinder, A. C. & Shelley, J. Occurrence of the Asiatic cyprinid Pseudorasbora parva in England. J. Fish Biol. 61, 298–300 (2002).

21. Gozlan, R. E. et al. Pan-continental invasion of Pseudorasbora parva: Towards a better understanding of freshwater fish invasions.

Fish Fish. 11, 315–340 (2010).

22. Gozlan, R. E., Burnard, D., Britton, J. R. & Andreou, D. Evidence of female preference for hidden sex signals in distant fish species.

Behav. Ecol. 25, 53–57 (2014).

23. Britton, J. R. & Gozlan, R. E. How many founders for a biological invasion? Predicting introduction outcomes from propagule pressure. Ecology 94, 2558–2566 (2013).

24. Pinder, A. C., Gozlan, R. E. & Britton, J. R. Dispersal of the invasive topmouth gudgeon, Pseudorasbora parva in the UK: a vector for an emergent infectious disease. Fish. Manag. Ecol. 12, 411–414 (2005).

25. Andreou, D., Arkush, K., Guegan, J. F. & Gozlan, R. E. Introduced Pathogens and Native Freshwater Biodiversity: A Case Study of Sphaerothecum destruens. PLoS One 7, 1–6 (2012).

26. Gozlan, R. E. et al. Current ecological understanding of fungal-like pathogens of fish: What lies beneath? Front. Microbiol. 5, 1–16 (2014).

27. Fitzpatrick, M. C., Weltzin, J. F., Sanders, N. J. & Dunn, R. R. The biogeography of prediction error: Why does the introduced range of the fire ant over-predict its native range? Glob. Ecol. Biogeogr. 16, 24–33 (2007).

28. Guisan, A., Petitpierre, B., Broennimann, O., Daehler, C. & Kueffer, C. Unifying niche shift studies: insights from biological invasions. Trends Ecol. Evol. 29, 260–269 (2014).

29. Boria, R. A., Olson, L. E., Goodman, S. M. & Anderson, R. P. Spatial filtering to reduce sampling bias can improve the performance of ecological niche models. Ecol. Modell. 275, 73–77 (2014).

30. Mainali, K. P. et al. Projecting future expansion of invasive species: comparing and improving methodologies for species distribution modeling. Glob. Chang. Biol. 21, 4464–4480 (2015).

31. Hijmans, R. J., Cameron, S. E., Parra, J. L., Jones, P. G. & Jarvis, A. Very high resolution interpolated climate surfaces for global land areas. Int. J. Climatol. 25, 1965–1978 (2005).

32. Lin, D., Foster, D. P. & Ungar, L. H. VIF regression: a fast regression algorithm for large data. J. Am. Stat. Assoc. 493, 232–247 (2012).

33. Guisan, A. & Zimmermann, N. E. Predictive habitat distribution models in ecology. Ecol. Modell. 135, 147–186 (2000).

34. Bradley, B. A. et al. Global change, global trade, and the next wave of plant invasions. Front. Ecol. Environ. 10, 20–28 (2012).

35. Vörösmarty, C. J. et al. Global threats to human water security and river biodiversity. Nature 467, 555–561 (2010).

36. Hastie, T., Tibshirani, R. & Buja, A. Flexible Discriminant Analysis by Optimal Scoring. J. Am. Stat. Assoc. 89, 1255–1270 (1994).

37. Busby, J. R. Nature Conservation: Cost Effective Biological Surveys and Data Analysis. BIOCLIM - A Bioclimatic Analysis and Prediction System. In: Margules 64–68 (1991).

38. Thuiller, W., Araújo, M. B. & Lavorel, S. Generalized models vs. classification tree analysis: Predicting spatial distributions of plant species at different scales. J. Veg. Sci. 14, 669–680 (2003).

39. Wisz, M. S. et al. Effects of sample size on the performance of species distribution models. Divers. Distrib. 14, 763–773 (2008).

40. Moisen, G. G. & Frescino, T. S. Comparing five modelling techniques for predicting forest characteristics. Ecol. Modell. 157, 209–225 (2002).

41. Prasad, A. M., Iverson, L. R. & Liaw, A. Newer classification and regression tree techniques: Bagging and random forests for ecological prediction. Ecosystems 9, 181–199 (2006).

42. Ihaka, R. & Gentleman, R. R: A Language for Data Analysis and Graphics. J. Comput. Graph. Stat. 5, 299–314 (1996).

43. Thuiller W., George D. & Engler R. biomod2: Ensemble platform for species distribution modelling. R package version 3.1-64. http://

CRAN.R-project.org/package= biomod2 (2014).

44. Thuiller, W., Lafourcade, B., Engler, R. & Araújo, M. B. BIOMOD - A platform for ensemble forecasting of species distributions.

Ecography 32, 369–373 (2009).

45. Hosmer, D. W. & Lemeshow, S. Applied Logistic Regression. 2nd ed. Wiley Series in Probability and Statistics 23, (2000).

46. Makhrov A. A., Artamonova V. S. & Karabanov D. P. Finding of Topmouth Gudgeon Pseudorasbora parva (Temminck et Schlegel) (Actinopterygii: Cyprinidae) in the Brahmaputra River Basin (Tibetan Plateau, China). Russ. J. Biol. Invasions. 4, 174–179 (2013).

47. Ekmekçi, F. G. & Kirankaya, Ş. G. Distribution of an invasive fish species, Pseudorasbora parva (Temminck and Schlegel, 1846) in Turkey. Turk. J. Zool. 30, 329–334 (2006).

48. Semenchenko, V., Grabowska, J., Grabowski, M., Rizevsky, V. & Pluta, M. Non-native fish in Belarusian and Polish areas of the European central invasion corridor. Oceanol. Hydrobiol. Stud. 40, 57–67 (2011).

49. Simon, A. et al. Invasive cyprinid fish in Europe originate from the single introduction of an admixed source population followed by a complex pattern of spread. Plos One 6, e18560 (2011).

50. Simon, A., Gozlan, R. E., Britton, J. R., Van Oosterhout, C. & Hänfling, B. Human induced stepping-stone colonisation of an admixed founder population: the spread of topmouth gudgeon (Pseudorasbora parva) in Europe. Aquat. Sci. 77, 17–25 (2015).

www.nature.com/scientificreports/

51. Pyšek, P. & Richardson, D. M. Invasive Species, Environmental Change and Management, and Health. Annu. Rev. Environ. Resour.

35, 25–55 (2010).

52. Pheloung, P. C., Williams, P. A. & Halloy, S. R. A weed risk assessment model for use as a biosecurity tool evaluating plant introductions. J. Environ. Manage. 57, 239–251 (1999).

53. Vilizzi L. & Copp G. H. Application of FISK, an invasiveness screening tool for non-native freshwater fishes, in the Murray-Darling Basin (southeastern Australia). Risk Anal. 33, 1432–1440 (2013).

54. Robert Britton, J., Pegg, J. & Gozlan, R. E. Quantifying imperfect detection in an invasive pest fish and the implications for conservation management. Biol. Conserv. 144, 2177–2181 (2011).

55. Davies, G. D., Gozlan, R. E. & Robert Britton, J. Can accidental introductions of non-native species be prevented by fish stocking audits? Aquat. Conserv. Mar. Freshw. Ecosyst. 23, 366–373 (2013).

56. Arkush, K. D., Mendoza, L., Adkison, M. A. & Hedrick, R. P. Observations on the Life Stages of Sphaerothecurn destruens n. g., n.

sp., a Mesomycetozoean Fish Pathogen Formally Referred to as the Rosette Agent. J. Eukaryot. Microbiol. 50, 430–438 (2003).

57. Al-Shorbaji, F., Roche, B., Gozlan, R. E., Britton, R. & Andreou, D. The consequences of reservoir host eradication on disease epidemiology in animal communities. Emerg. microbes & infect. (2016) (In Press).

58. Arkush, K. D., Frasca, S. & Hedrick, R. P. Pathology Associated with the Rosette Agent, A Systemic Protist Infecting Salmonid Fishes. J. Aquat. Anim. Health 10, 1–11 (1998).

59. Pinder, A. C., Davies, G. D., Brazier, M. & Britton, J. R. A Case Study of the Population Ecology of a Topmouth Gudgeon (Pseudorasbora parva) Population in the UK and the Implication for Native Fish Communities. Aquat. Conserv. Mar. Freshw.

Ecosyst. 17, 749–759 (2007).

60. Colautti, R. I., Grigorovich, I. A. & MacIsaac, H. J. Propagule pressure: A null model for biological invasions. Biol. Invasions 8, 1023–1037 (2006).

Acknowledgements

This study was funded the Agence Nationale de la Recherche (GENESIS ANR-13- 0005-001, BIOADAPT) and the Probis Biodiversa programme.

Author Contributions

D.H.F., R.E.G., J.R.B. and P.K.G. designed the study; D.H.F. and P.K.G. analysed the data and completed the modelling; D.H.F., R.E.G., J.R.B., S.B. and P.K.G. wrote the paper.

Additional Information

Competing financial interests: The authors declare no competing financial interests.

How to cite this article: Fletcher, D. H. et al. Predicting global invasion risks: a management tool to prevent

future introductions. Sci. Rep. 6, 26316; doi: 10.1038/srep26316 (2016).

This work is licensed under a Creative Commons Attribution 4.0 International License. The images

or other third party material in this article are included in the article’s Creative Commons license,

unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license,

users will need to obtain permission from the license holder to reproduce the material. To view a copy of this

license, visit http://creativecommons.org/licenses/by/4.0/
