Statistical estimation of stratospheric particle size

distribution by combining optical modelling and lidar

scattering measurements

Julien Jumelet, Slimane Bekki, Christine David, Philippe Keckhut

To cite this version:

Julien Jumelet, Slimane Bekki, Christine David, Philippe Keckhut. Statistical estimation of strato-spheric particle size distribution by combining optical modelling and lidar scattering measurements. Atmospheric Chemistry and Physics Discussions, European Geosciences Union, 2008, 8 (3), pp.8913-8949. �hal-00328326�

(2)

ACPD

8, 8913–8949, 2008 Statistical estimation of stratospheric particle size distribution J. Jumelet et al. Title Page Abstract Introduction Conclusions References Tables Figures ◭ ◮ ◭ ◮ Back Close

Full Screen / Esc

Printer-friendly Version Interactive Discussion

Atmos. Chem. Phys. Discuss., 8, 8913–8949, 2008 www.atmos-chem-phys-discuss.net/8/8913/2008/ © Author(s) 2008. This work is distributed under the Creative Commons Attribution 3.0 License.

Atmospheric Chemistry and Physics Discussions

Statistical estimation of stratospheric

particle size distribution by combining

optical modelling and lidar scattering

measurements

J. Jumelet, S. Bekki, C. David, and P. Keckhut

Service d’A ´eronomie du CNRS/IPSL, UPMC Paris 6, Paris, France

Received: 4 March 2008 – Accepted: 26 March 2008 – Published: 20 May 2008 Correspondence to: J. Jumelet ([email protected])

(3)

ACPD

Full Screen / Esc

Printer-friendly Version Interactive Discussion Abstract

A method for estimating the stratospheric particle size distribution from multiwave-length lidar measurements is presented. It is based on matching measured and model-simulated backscatter coefficients. The lidar backscatter coefficients measured at the three commonly used wavelengths 355, 532 and 1064 nm are compared to a

pre-5

computed look-up table of model-calculated values. The optical model assumes that particles are spherical and that their size distribution is unimodal. This inverse problem is not trivial because the optical model is highly non-linear with a strong sensitivity to the size distribution parameters in some cases. The errors in the lidar backscatter coef-ficients are explicitly taken into account in the estimation. The method takes advantage

10

of the statistical properties of the possible solution cluster to identify the most probable size distribution parameters. In order to discard model-simulated outliers resulting from the strong non-linearity of the model, a 1σ -filter is applied to the solution cluster. Within the filtered solution cluster, the estimation algorithm minimizes a cost function of the misfit between measurements and model simulations.

15

Two validation cases are presented on Polar Stratospheric Cloud (PSC) events de-tected above the ALOMAR observatory (69◦_{N – Norway). A first validation is}

per-formed against optical particle counter measurements carried out in January 1996. In non-depolarizing regions of the cloud (i.e. spherical particles), the parameters of an unimodal size distribution and those of the optically dominant mode of a bimodal size

20

distribution are quite successfully retrieved, especially for the mode radius and the ge-ometrical standard deviation. As expected, the algorithm performs poorly when solid particles drive the backscatter coefficient. A small bias is identified in modelling the refractive index when compared to previous works that inferred PSC type Ib refractive indices. The accuracy of the size distribution retrieval is improved when the refractive

25

index is set to the value inferred in the reference paper.

Our results are then compared to values retrieved with another similar method that does not account for the effect of the measurements errors and the non-linearity of

(4)

ACPD

Full Screen / Esc

the optical model on the likelihood of the solution. The case considered is a liquid PSC observed over northern Scandinavia on January, 2005. An excellent agreement is found between the two methods when our algorithm is applied without any statistical filtering of the solution cluster. However, the solution for the geometrical standard deviation appears to be rather unlikely with a value close to unity (_{σ≈1.04). When}

5

our algorithm is applied with solution filtering, a more realistic value of the standard deviation (σ≈1.27) is found. This highlights the importance of taking into account the

non linearity of the model together with the lidar errors, when estimating particle size distribution parameters from lidar measurements.

1 Introduction

10

Stratospheric particles play an important role in atmospheric chemistry (WMO, 2007) and, in the case of large volcanic eruption, in the earth radiative budget (Robock, 2005). For example, Polar Stratospheric Clouds (PSC) are a key element in polar ozone deple-tion by providing the surfaces for chlorine activadeple-tion through heterogeneous chemistry (Peter, 1997; Charlson and Heintzenberg, 1995). Characterizing and understanding

15

stratospheric particles remains a major scientific issue. The most important charac-teristics of stratospheric particles are their size distribution, shape and composition. This information can be used to calculate radiative properties of particles, rates of heterogeneous chemistry or gravitational sedimentation (ASAP, 2006). But, very few measurements give access to the full size distribution of stratospheric particles. They

20

are mostly balloonborne in-situ measurements (Hofmann and Rosen, 1980; Hofmann, 1990; Deshler et al., 2003) and remain very rare. Retrievals of stratospheric particles size distribution have been performed using aerosol extinctions from satellite measure-ments at multiple wavelengths, for instance using SAGE (Stratospheric Aerosol and Gas Experiment) and SAGE II data (McCormick et al., 1979). Here, we focus our

at-25

tention on aerosol backscatter coefficients from lidar data. Lidar measurements have been used to detect stratospheric particles since the early 1960s (Junge et al., 1961;

(5)

ACPD

Full Screen / Esc

Fiocco and Smullins, 1963). They have been used as a proxy for the stratospheric aerosol loading (David et al., 1997; ASAP, 2006).

Direct determination of the particle size distribution from uniwavelength lidar mea-surements is theoretically precluded because of a lack of constraints (M ¨uller and Quen-zel, 1985). However, there have been attempts to characterize particle size distribution

5

from multiwavelength Raman lidar data (M ¨uller et al., 1998; Veselovskii et al., 2002, 2005). This typical inverse problem can be presented in the following way : given a set of lidar observations and optical modelling of the observations, how can the most probable aerosol size distribution be estimated? This problem is often addressed by assuming model linearity and normally distributed errors. Most retrieval methods are

10

only based on the least square criterion (i.e. minimal discrepancy between measured and model-simulated quantities, variance weighted by the errors). Note that, in some cases, the criterion is used without even considering observation errors. This least-square criterion should lead to the maximum likelihood estimate and to a minimum variance for the analysis error (error in the estimation) if all the errors are Gaussian,

15

unbiased and the model quasi-linear (Lahoz et al., 2007).

In our case, the model is highly non linear (see Sect. 3.3). It is very sensitive to the size distributions parameters in some cases, and, as a consequence, the least square estimator may not always give the most probable solution depending on the magnitude of the observation errors. In addition, even if the errors in the observables were to be

20

normally distributed, the non linearity of the model would result in a Probability Density Function (PDF) of the solution that is not necessarily Gaussian, meaning that the PDF cannot be described by its first and second moment. Therefore, the entire shape of the solution PDF has to be considered.

The best match estimator, identified as the minimal difference between measured

25

and modelled quantities in the least square sense, is usually the most probable solution when errors in the observables are negligible and the model quasi-linear. In our case, errors in the lidar retrieved backscatter coefficient are not at all negligible, and so it is important to check whether the best match solution is the most probable solution.

(6)

ACPD

Full Screen / Esc

It is worth pointing out that the need to find a physical solution has led to added constraints on the form or properties of the solution. One such approach is the reg-ularization technique, and an example of such a constraint is the smoothness of the solution for vertical profile retrievals (Tikhonov and Arsenin, 1977; Tarantola, 1987; M ¨uller et al., 1999, 2000). An accurate retrieval also often requires numerous

opti-5

cal quantities (backscatter and/or extinction coefficients) at different wavelengths. With enough constraints, regularization techniques could also enable the determination of the refractive index (Veselovskii et al., 2004).

In the stratosphere, the particle extinction coefficient is measured with a limited ac-curacy, because very few photons are detected by the lidar at stratospheric altitudes.

10

In addition, most of the best-equipped lidar stations only monitor the stratosphere at three wavelengths, typically at 355, 532 and 1064 nm. Because of these two limitations, the regularization technique is not necessarily the most suited approach for retrieving stratospheric particle size distributions from lidar data. In this paper, we explore an alternative method based on the comparison between measured and model-simulated

15

Backscatter Coefficients (BC), using a Monte Carlo approach. The formulation of the method is inspired by the works of Beyerle et al. (1994) and Merhtens et al. (1999). The retrieval algorithm minimizes a cost function of the misfit between measurements and model simulations with the control variables being the parameters of the PSC size distribution. The errors in the measurements are explicitly taken into account in the

20

search for a solution. A cluster-based filtering of the solution pool ensures both sta-bility and reliable error estimation. The refractive index is determined from the particle composition calculated by the microphysical model, taking into account both sulphuric acid aerosols and liquid type Ib PSC particles.

The paper is organized as follow. As the method is applied to the multiwavelength

25

lidar measurements performed at the Arctic Lidar Observatory for Middle Atmosphere Research (ALOMAR – 69◦N – Norway), the setup of the Rayleigh/Mie/Raman (RMR) lidar is briefly presented in Sect. 2. The size distribution retrieval methodology is de-scribed in Sect. 3, introducing both the microphysical model and the size distribution

(7)

ACPD

Full Screen / Esc

retrieval algorithm. The fourth and fifth sections are dedicated to the validation against size-resolved PSC measurements and a similar approach using lidar measurements performed at ALOMAR. The last section is devoted to the summary and conclusions.

2 Lidar data

Two validation cases are presented in the result section : both feature PSC events

5

observed above ALOMAR (69◦N/16◦E) where lidar measurements are performed rou-tinely. The ALOMAR Rayleigh/Mie/Raman lidar emits laser pulses at 355, 532 and 1064 nm. The beam is produced by a 30 Hz repetition rate pulsed Nd-YAG twin laser. The backscattered light is received by 180 cm diameter Cassegrain telescopes with a field-of-view of 180µrad and detected with photomultipliers tubes in photon-counting

10

mode (von Zahn et al., 2000). The vibrational Raman at 387 and 607 nm (associated with the 355 and 532 nm wavelengths, respectively) and the rotational Raman mea-surements at 529 and 530 nm are also performed simultaneously. The measurement integration time is typically 3 min with a vertical resolution of 150 m. Data are acquired with the lidar pointing to the zenith.

15

3 Methodology of the size distribution estimation

The particle size distribution is retrieved from comparisons between measured and model-simulated backscatter coefficients, taking the measurement errors into account. In the first phase, the model calculates the chemical composition according to the specific environmental conditions (pressure, temperature, total HNO₃, total H₂O) for a

20

range of particle size distributions. Then the refractive index is determined from the composition. In the second phase, we generate aBC look-up table as a function of

the particle size distribution parameters. A Mie scattering module (code from Bohren and Huffman, 1983) is used to calculate the aerosol BC at different wavelengths (within

(8)

ACPD

Full Screen / Esc

the visible and near-infrared domain), for each model-simulated size distribution and chemical composition. In the third phase, the solution is searched by comparing the look-up table and the measurements, taking the errors in the lidar measurements into account.

We assume in our case that the stratospheric particle size distribution can be

repre-5

sented by a lognormal size distribution (Pinnick et al., 1976; WMO, 2007):

n(r) = _√ N0

2π.r. ln(σ)× exp(−

ln2(r/r_m)

2 ln2(σ) ) (1)

whereN0 is the total number of particles per unit volume andσ the geometrical

stan-dard deviation (hereafter called stanstan-dard deviation) around the mode radiusrm.

3.1 Refractive index modelling

10

In the first phase, the model calculates the particle composition, ranging from a binary H2SO4/H2O solution to a ternary H2SO4/HNO3/H2O (STS) solution (Larsen, 2000; Luo

et al., 1996; Krieger et al., 2000). The composition of the condensed phase is as-sumed to be in thermodynamic equilibrium with the gas phase. In order to determine the particle equilibrium composition (weight fractions of sulphuric acid, nitric acid and

15

water), one needs to solve a set of 2 non-linear equations describing the equality be-tween the partial pressures of HNO3 and H2O just over the surface of the condensed

phase and the partial pressures in the gas phase. The model is initialized with total (gaseous + condensed) amounts of HNO3 and H2O and it then redistributes HNO3

and H2O between the gas and the condensed phases according to the calculated

par-20

ticle composition. The iterative procedure of the equilibrium composition calculation ensures that the gas phase and condensed HNO₃ and H₂O is equal to the initial total HNO3and H2O. The model then derives the condensed aerosol mass concentration (or

aerosol volume concentration). Finally, the refractive index is calculated from the equi-librium composition (Luo et al., 1996). The refractive indices at 355 nm and 1064 nm

25

(9)

ACPD

Full Screen / Esc

because of the lack of available data beyond the 360–1000 nm range. Modelling the composition allows us to account for the rapid variations of the particle composition, and hence, the refractive index, around the PSC type Ib temperature threshold (Larsen, 2000; Carslaw et al., 1997) instead of assuming a constant refractive index whatever the environmental conditions.

5

3.2 Backscatter modelling

The particle backscatter coefficient is simulated using Mie theory. It is strictly valid for spherical particles only. Consequently, our size distribution algorithm can only be applied to lidar measurements of spherical particles such as supercooled sulphuric acid aerosol particles or type Ib PSC. The model-simulated size backscatter coefficient,

10

βMie (m−1.sr−1), is expressed as:

βMie,λ =

Z∞ 0

n(r)d σb

d Ω(r, λ, m).dr. (2)

whereλ is the incident wavelength, n(r) is the size distribution, the number of particles

at the radiusr between r and r+dr, m the refractive index and dσb/d Ω the Mie particle

backscattering differential cross section.

15

The other optical quantity used in the retrieval algorithm is the colour ratio CR_λ (or

CR) which is the BC at the wavelength λ normalised by the BC at the most sensitive

wavelength of the lidar system, 532 nm :

CR_λ= βMie,λ

βMie,532 nm

. (3)

3.3 Size distribution retrieval methodology

20

An optical module coupled to a size-resolving aerosol model is used to calculate the three backscatter coefficients (β355 nm, β532 nm and β1064 nm) and the two associated

colour ratios (CR355 nmandCR1064 nm) as a function of the size distribution parameters.

(10)

ACPD

Full Screen / Esc

In principle, the CR should not depend on N_o because N_o vanishes when CR are

formed. But, in our size distribution algorithm, that is not the case. In the look-up table, the refractive index also varies withNo becauseNo, along withσ and rm, determines

the aerosol volume concentration and, hence, the condensed mass of HNO3and H2O.

As the total HNO₃and H₂O is fixed, the partitioning between gas phase and condensed

5

phase as well as the aerosol composition depend on aerosol volume concentration. For example, if N_o is very small (or large), most of the HNO3 is in the gas-phase (or

condensed phase), and so, the particle equilibrium composition would correspond to high (or low) partial pressures of gaseous HNO3. As a result, even whenσ and rm

are kept constant, different No give different aerosol compositions, different refractive

10

indices, and hence, different CR.

The influence ofNo on modelling the refractive index appears in Fig. 1, which

dis-plays sample plots ofCR355 nmandCR1064 nm. The standard deviation is fixed in Fig. 1a

(CR=fi (rm)σ=1.45) while the median radius is fixed in Fig. 1b (CR=fi(σ)rm=0.3 µm). Two

sets of curves are plotted. They correspond toNobeing equal to either 0.1 or 10 cm−3.

15

The reference values ofr_m andσ come from the validation case described in Sect. 4.3.

For high aerosol volumes (high values ofσ or rm) the curves of CR(rm,σ) for No=0.1

and for No=10 cm−3 start to differ, illustrating the influence of No on CR. The

non-linearity of the retrieval problem is also highlighted in this figure, in that the colour ratios are not in univalent relationship with the size distribution parameters in Fig. 1.

20

For the environmental conditions (temperature, pressure, mixing ratios of total HNO3

and H2O) of each lidar data point, a look-up table of model-calculated BC and CR is

generated as a function ofN_o,r_m and σ. The resolution step is typically 0.1 cm−3 _for

No, 0.01µm for rm and 0.01 forσ. The influence of the look-up table resolution on the

retrieval is checked and increased till such influence is not noticeable anymore.

25

The size distribution retrieval algorithm then searches the look-up table for the model-simulatedBC (βi,model withi=355, 532, 1064 nm) and CR (CRj,modelwith j=355/532,

1064/532) that correspond to the measurements (βi,lidar,CRj,lidar). AsCR also depend

(11)

ACPD

Full Screen / Esc

one step by fitting the 5 optical quantities (= 3 BC + 2 CR). If the refractive index had been assumed constant,CR would have been independent of No. We could have first

searched forσ and r_m by fitting the 2CR and then derived N_o by fitting the 3 BC (as

in Blum et al., 2006; Baumgarten et al., 2007). This two-step procedure would have been less demanding in terms of computing time than the simultaneous search ofNo,

5

r_m andσ adopted here.

In order to estimate the errors in the size distribution retrieval, the lidar measurement errors (∆βi ,idar, ∆CRj,lidar) are taken into account by searching theβi andCRj that are

within the measurement intervals (β_i,lidar_{− ∆β}_i,lidar, β_i,lidar+ ∆βi,lidar) and (CRj,lidar−

∆CRj,lidar,CRj,lidar+ ∆CRj,lidar), respectively. Any (No,rm,σ) combination of the

look-10

up table whose associatedβi ,modelandCRj,modelbelong to the measurement intervals

is taken as a possible solution. Obviously, the larger the lidar errors, the wider the pool of possible solutions. Note that, in our algorithm, the model errors are ignored. For instance, the size distribution retrieval algorithm does not account for errors in modelling the particle refractive index. In other words, the model is assumed to be

15

perfect. The additional size distribution retrieval errors originating from possible model deficiencies are discussed in the results and conclusion sections.

Several approaches are possible for determining the model solution (No, rm, σ). It

is possible to simply look for the best (according to the least-square criterion) match between model simulations and measurements by minimizing the following scalar

func-20 tion: J(No, r, σ) = 3 X i =1 βi,model− βi ,lidar 2 ∆β_{i ,lidar}2 + 2 X j =1 CR_j,model_{− CR}_j,lidar2 ∆CR_j,lidar2 . (4) withβ_i orCR_j,model=M (No,σ, rm,λ) where M is the model operator.

This type of quadratic function that quantifies the misfit between model and data is variously referred as cost function, distance function, objective function, or penalty

25

function in data assimilation (Elbern and Schmidt, 2001). This simple approach does not even require identifying the pool of possible model solutions, i.e. the combinations

(12)

ACPD

Full Screen / Esc

(N_o,σ, r_m) such asX_k,lidar_{− ∆X}_k,lidar<M(N_o,σ, r_m,λ)<X_k,lidar+ ∆Xk,lidar(withX =BC or

CR, and k=1 to 5). The best match model solution is indeed identified independently

from the statistical properties of the cluster of possible solutions. This approach gives the most likely solution when the model is quasi-linear and the errors are Gaussian.

A second approach is to look for the most likely solution using the statistical

prop-5

erties of the cluster of possible solutions, given the lidar uncertainties. According to estimation theory, the most likely solution is expected to be found in the densest part of the solution cluster, around the maximum of the probability density function (i.e. maximum likelihood estimation).

The best match solution (i.e. solution corresponding to the minimization of the

model-10

data misfit) and the most probable solution should be very close if the model M(No,σ,

r_m) was linear and the errors were Gaussian. However, our model is highly non-linear. To illustrate the non-linearity of the model, Fig. 2 presents typical examples ofCR355 nm

evolution as a function of rm and σ for No=0.01 cm−3 and the environmental

condi-tions corresponding to the first validation case (see Sect. 4.1). Depending on the value

15

of the CR355 nm measurement, there are several possible solutions that can be quite

scattered all over the rm and σ domain. Figure 2 clearly indicates that the solutions

to a given value ofCR355 nm do not necessarily form a tight cluster in the size

distri-bution parameter space. This is due to the non-linearity of the model and hence, to the high sensitivity of the calculatedBC to the input size distribution parameters. In

20

the same way, the other model-simulated optical properties,BC or CR1064 nm, can also

have highly non-linear dependencies on the size distribution parameters. As shown by Eqs. (1) and (2), the only possible linear relationship at first sight is the dependency ofBC on N_o. BC have a somewhat exponential dependency on r_m andσ but this

de-pendency varies in a complex way in the size distribution parameter space. When σ

25

gets close to 1, the particles tend to have their radius tightly scattered around the me-dian radius. This narrow size distribution enhances the behaviour of the Mie differential backscattering cross section as a function of r, and, when σ is close to 1, its

(13)

ACPD

Full Screen / Esc

The final cluster of possible model solutions is the intersection of 5 different solution clusters corresponding to the 5 optical quantities (=3 BC+2 CR). The resulting 3-D surface of possible model solutions can be very convoluted.

Multiple sensitivity tests have shown that, in several cases, the sole best match ap-proach leads to somewhat unrealistic values ofNo,rmandσ with, in particular, σ being

5

close to 1. Indeed, the surface ofJ=f (No, rm, σ) sometimes exhibits a deep and

ex-tremely localised minimum, but the realistic solutions are mostly found in a very broad but shallower minimum. When looking at the cluster of possible model solutions in these cases, the best match solution (i.e. minimum ofJ=f (No, rm, σ)) is found on the

edge or even completely disconnected from the cloud of possible solutions in the size

10

distribution parameters space. This is confirmed by other numerical experiments using model-simulatedBC as measurements. In this setup, the synthetic measurements are

produced by adding random errors to the model-calculated BC. The true solution is

the set of size distribution parameters taken as input to the model. In several cases, depending on the amplitude of the added random errors, the best match solution can

15

be localised in a deep minimum area far away from the true solution. Therefore, on its own, the best match criterion guarantees neither unicity nor optimality of the solution because of the high non-linearity of the model.

In order to look for a model solution in the densest part of the possible solution clus-ter, the cluster is filtered based on its spread. The standard deviationsσNo,σrm, andσσ

20

on the 3-D solution cluster are first calculated. Then, any possible solutions outside the ±σ=(σNo,σrm,σσ) envelope around the cluster centre are discarded. The coordinates

of the cluster centre are taken as those of the median values ofNo,rmandσ because

the median values are less sensitive to anomalous solution points than the mean val-ues. Overall, this data filtering ensures removal of most unrealistic possible solutions.

25

As expected, test simulations indicate that stable model solutions are associated with a large number of possible solutions within the clusters. Therefore, we also check the number of possible solutions left in the filtered cluster and proceed to the next step only when there is a significant fraction of the look-up table present in the solution cluster

(14)

ACPD

Full Screen / Esc

(typically one hundred points). This issue is of course linked to the amplitude of lidar

BC errors and to the resolution of the look-up table.

The model solution is finally searched within the filtered cluster of possible solutions. The 3-D size of the initial solution cluster and, hence, the filtered cluster are determined by the amplitude of the lidar errors that are not known accurately. We prefer to use the

5

best match approach (i.e. minimum of the model-measurement, as quantified by the scalar function J) to determine the final model solution instead of an average of the

solution cluster, because the best match solution is not sensitive to the size of the solution cluster (except when the errors are assumed to be excessively small and so the realistic model solution may not be found within the searched domain in some

10

particular cases), whereas the mean or median values of the cluster can fluctuate with the cluster size. Overall, the uncertainties on the lidar errors are not critical for the best match model solution but they do influence the estimated errors in the retrieved size distribution parameters. Indeed, the standard deviations on the filtered cluster are taken as estimates of the size distribution retrieval errors. These estimates are

15

possibly lower limits on the retrieval errors because the size of the cluster is reduced by the filtering and model errors are ignored. Note that the points within the cluster are not exactly normally distributed. Therefore, we could have estimated the retrieval error with percentiles that do not require any assumptions on the shape of the solution PDF. However, simple tests have shown that the use of the standard deviation or the

20

75 percentile does not have a very significant influence on the final estimation.

If the inverse problem was properly posed, the best match solution and the cluster centre should be very close. In order to be consistent with estimation theory, a final and slight adjustment is carried out using the lidar error as an adjustable parameter. Indeed, lidar errors are notoriously difficult to estimate (ASAP, 2006). The estimated

25

errors in the measured BC are uncertain by at least 20%. Therefore, the distance

between the best match solution and the cluster centre (defined by the median values) in the size distribution parameter space is minimized by varying theBC errors ∆βlidar

(15)

ACPD

Full Screen / Esc

within their uncertainties. The distance is expressed as a scalar function:

D(∆βlidar) = N_o,bestmatch_{− N}_o,center2 σ_N2 o,cluster + rm,bestmatch− rm,center 2 σ_r2 m,cluster +(σbestmatch− σcenter) 2 σ_σ,cluster2 .(5)

whereX_best−match and X_center are the size distribution parameter X of the best match

solution and of the cluster centre (defined as the median value), respectively;σX,cluster

is the standard deviation of the size distribution parameterX on the solution cluster.

5

The uncertainties on the BC errors are assumed to be 20% typically. Therefore, if

theBC error is 12.5% for example, the distance D is minimized by varying the BC error

between 10% and 15%. The main objective of the whole procedure is to ensure that the retrieval algorithm produces realistic and stable model solutions (i.e. size distribution parameters) that are weakly sensitive to the estimated BC errors as well as being

10

consistent with the estimation theory.

4 Evaluation against size-resolved measurements

The first evaluation of the retrieval algorithm is based on more or less coincident lidar and balloonborne size-resolved measurements of a stratospheric thick cloud observed above ALOMAR and described in Deshler et al. (2000). The lidar measurements

pro-15

vide the input data for the retrieval algorithm and the size-resolved measurements pro-vide the reference values for an independent evaluation of the retrieved size distribu-tion.

4.1 PSC Observations

On 23 January 1996, a thick cloud was detected by lidar above ALOMAR. This cloud

20

was present between 19 and 26 km. The lidar signal was depolarized between 23 and 25 km. The cloud was also probed at about the same time with an Optical Particle Counter (OPC) instrument that provided size distribution measurements. European

(16)

ACPD

Full Screen / Esc

Centre for Meteorological Weather Forecasts (ECMWF) analyses indicated favourable conditions for PSC formation. A detailed description of the temporal evolution of the lidar measurements and of the cloud structure can be found in Hanson and Hoppe (1997). Measurements were carried out at several altitudes within the broad cloud layer, both in the depolarizing and non-depolarizing regions of the cloud. These sets

5

of lidar and size-resolving measurements appear to be excellent opportunities to vali-date our size distribution retrieval methodology. Around 22.5 km, in a non-depolarizing (spherical particles) region of the cloud, Deshler et al. (2000) identified a type Ib PSC whose measured size distribution could be fitted with a unimodal lognormal distribution. This type Ib PSC represents an ideal case of validation because it fulfils the conditions

10

of sphericity for the particles and unimodality for the size distribution. The size-resolved measurements of the other PSC layers indicated bimodal distributions with some being non-depolarizing. In the depolarizing (non-spherical particles) layers, type Ia or even type II PSC were identified. To check the influence of the sphericity and unimodality conditions on the results, we also perform size distribution retrievals on theses cases

15

where the retrieval system is a priori expected to perform poorly. One of the aims is to identify the size distribution parameter whose retrieval is most affected by the non-respect of these conditions. All the lognormal parameters of the measured (reference) and retrieved size distributions are gathered in Table 1.

4.2 Lidar data

20

Lidar signals are averaged between 17:50 and 18:30 UTC in order to be coincident with the in situ balloon-borne size-resolving measurements, as described in Deshler et al. (2000). It is worth pointing out that, even if the lidar and OPC measurements were truly coincident, a BC derived from lidar data averaged over 40 min is not expected

to be equivalent to aBC calculated from the corresponding particle size distribution

25

averaged over the same time interval unless the particle distribution does not vary temporally. TheBC at 355 and 532 nm are retrieved using the vibrational Raman N2

(17)

ACPD

Full Screen / Esc

inelastic scattering allows the determination of the particle extinction, there is no as-sumption on the value of the lidar ratio (extinction over backscatter) in the inversion of the equation linking theBC and the lidar signal. The lidar inversion still requires the

choice of a reference altitude at which theBC is supposed to be known (clear-air

as-sumption) (Ansmann et al., 1990; Ansmann et al., 1992a, 1992b). Figure 3 shows the

5

backscatter ratios profiles at 355, 532 and 1064 nm, defined as the total backscatter divided by the Rayleigh (molecular) contribution. These profiles can be compared to those obtained in Deshler et al. (2000) who used the Klett method for the three wave-lengths assuming a linear relation between extinction and backscatter (Klett, 1981, 1985). There is still an excellent agreement between the two inversion techniques. We

10

estimate the errors in our determination of the backscatter coefficient to be about 10% at 355 and 532 nm, and 20% at 1064 nm.

4.3 Non-depolarizing unimodal size distribution

The unimodal type Ib PSC was observed at about 22.5 km. The temperature was about 186 K according to the measurements. This temperature is used here as input

15

to the microphysical model. The volume mixing ratios in total HNO3and H2O required

by the model are set to the typical values of 10 ppbv and 4.5 ppmv, respectively. The ranges of size distribution parameters considered by the retrieval algorithm are as fol-lows: 10−3<No<20 cm−3, 10−3<rm<3 µm and 1.01<σ<2. After applying the retrieval

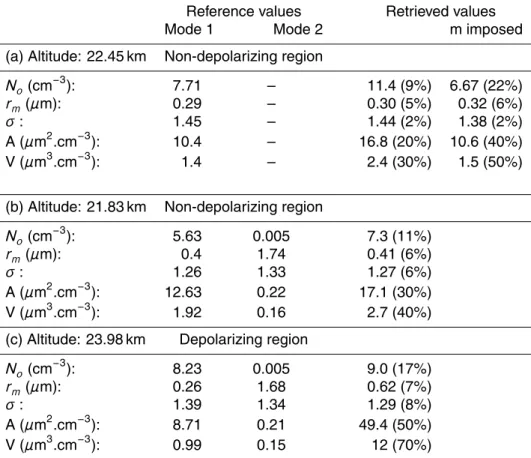

algorithm to the BC and CR data, we obtain N_o=11.4 cm−3 (9%), r_m=0.30 µm (5%)

20

and σ=1.44 (2%) with the numbers in brackets being the estimated retrieval errors.

The retrieved values can be compared with the OPC measurements : No=7.71 cm−3,

r_m=0.29 µm and σ=1.45. The rmandσ values agree extremely well, around a few

per-cent, which is within the error bars. In contrast, theN_ovalues differ by about 50% which is a factor 5 higher than the estimated retrieval error inNo (9%). As stated before,BC

25

andCR are generally less sensitive to N_o thanr_mandσ. Therefore, the retrieval of N_o

is expected to be less accurate.

From the values ofNo,rmandσ, one can calculate higher order moments of the size

(18)

ACPD

Full Screen / Esc

distribution such as the total surface area densityA and volume density V that are key

quantities for heterogeneous chemistry and, hence, ozone loss:

A = No.4π.rm2.e[2. ln 2_σ] and V =No. 4π 3 .r 3 m.e[ 9 2. ln 2 σ]_. ₍₆₎

For our retrieved size distribution parameters, A=16.8 µm2.cm−3 (20%) and

V =2.4 µm3.cm−3 (30%). For the OPC reference measurements, A=10.4 µm2.cm−3

5

and_{V =1.4 µm}3.cm−3 _{with uncertainties of around 30%, with 20% originating from the}

OPC measurement errors and 10% from errors in the refractive index (Deshler et al., 2000). OurA and V values differ by about 60% from the reference values, which is

al-most greater than the total (= size distribution retrieval + OPC) errors. Although A and

V are most sensitive to rm (power law dependency), the 60% bias onA and V mostly

10

originates from the bias inN_o. Indeed, the respective 3% and 1% biases onr_m and σ

only lead to a 5% error inA and V . It is not totally surprising that BC are less sensitive

toNoand hence, thatNo is the most difficult parameter to retrieve. The Mie scattering

kernels in the spectral range of interest (from 0.385 to 1.02µm) show that lidar data

are most sensitive to particles in the 0.1–1µm range (Fig. 4.28 in ASAP, 2006). As a

15

result, the moments that depend on smaller particles (such as theNo concentration)

are less likely to be accurately retrieved.

To check the stability of the solution, the retrieval is performed withBC errors ranging

from 5% to 50%. The solution does not change from around 10% to 50% lidar errors. When lidar errors are lower than 10%, another solution (N_o=11 cm−3,r_m=0.32 µm and

20

σ=1.39) is identified. However, this solution has to be discarded because of the very

low number of points present in the solution cluster. Besides, lidar errors are unlikely to be lower than 10%. Another test is carried out with a look-up table that does not cover the range of the reference OPC values. As expected, no solutions are identified. Overall, it can be concluded that the algorithm appears to perform well, especially when

25

retrieving the size distribution parametersr_m and σ, when applied to unimodal liquid

PSC distributions. The total number of particles N_o is found to be the most difficult parameter to retrieve accurately.

(19)

ACPD

Full Screen / Esc

4.4 Assumptions of unimodality and sphericity 4.4.1 Bimodal size distribution

A non-depolarizing PSC layer with a bimodal size distribution was detected around 21.8 km (Deshler et al., 2000). The values of the size distribution parameters of the two modes are given in Table 1b. Using them as inputs to the optical model, the

5

simulated BC of the small particle mode is found to be more than a hundred times

higher than theBC of the large particle mode at all the considered wavelengths. The

retrieval algorithm is applied at the 21.8 km altitude for the corresponding pressure and temperature and for the same conditions as above (total HNO₃and H₂O, consid-ered ranges of size distribution parameters and lidar errors). The retrieved values are

10

N_o=7.3 cm−3(11%),r_m=0.41 µm (6%) and σ=1.27 (6%), with A=17.1 µm2.cm−3(30%) and_{V =2.7 µm}3.cm−3_{(40%). As expected, the retrieved parameters are found to reflect}

the optically dominant mode of the small particles. They can be compared to the OPC-derived reference parameters of the small particles mode (N_o=5.63 cm−3,r_m=0.4 µm and _{σ=1.26 with A=12.6 µm}2.cm−3 _and _{V =1.9 µm}3_.cm−3_{). As for the previous case}

15

featuring an unimodal distribution, the agreement with the reference values is excellent forr_m and σ and the largest discrepancy is found for N_o. The bias in N_o results in retrieved values of_{A and V that differ from the reference values by about 40%. Again,} the retrieval is found to be stable regarding the specified lidar errors. The results show that the algorithm can be applied to multimodal size distributions, but that the retrieved

20

size distribution parameters are only relevant to the optically dominant mode. 4.4.2 Spherical particles

A depolarizing PSC layer was observed around 24 km. Its size distribution was bi-modal. The exact type of this solid PSC, or at least, PSC containing a mode of solid particles, has not been clearly defined. Based on morphology and colour index,

Han-25

son and Hoppe (1997) concluded that it was a type II (ice) PSC whereas Deshler et 8930

(20)

ACPD

Full Screen / Esc

al. (2000) analysed the measured size distribution and the associated particle volume to arrive at a type Ia (Nitric Acid Trihydate) PSC. As for the case of the liquid bimodal distribution previously considered, optical model calculations indicate that the optical signal of the small particle mode is largely dominant over the signal of the large particle mode. As solid PSC are composed of non-spherical particles, this case is used to test

5

the influence of the presence of non-spherical particles on the quality of the retrieval. The retrieved values areN_o=9.0 cm−3,r_m=0.62 µm and σ=1.29 with A≈49 µm2.cm−3 and_{V ≈12 µm}2.cm−3_{. The OPC-derived parameters for the small particle mode were}

N_o=8.2 cm−3,r_m=0.26 µm and σ=1.39 with A≈9.0 µm2.cm−3andV ≈1.0 µm3.cm−3. In contrast to the previous results, the agreement is very poor forr_m andσ but it is

satis-10

factory forNo. The very large discrepancies onrm andσ lead to retrieved values of A

andV differing from the OPC-derived values by a factor 5–10. Note that the refractive

index value was calculated for STS particles, whose value is close to the NAT value. We also performed a retrieval forcing the refractive index to be equal to the PSC type II refractive index value as inferred in Scarchilli et al. (2005). But the overall results

15

do not change very significantly. The size distribution was found to be N_o=7 cm−3,

rm=0.53 µm and σ=1.75 with A≈46 µm

2

.cm−3 _and_{V ≈18 µm}2_.cm−3_{. Accounting for a}

more accurate refractive index does not improve the retrieval in this case.

As expected, using Mie theory for non-spherical particles results in erroneous re-trieved parameters. For the retrieval of solid PSC size distributions, it is necessary to

20

replace the Mie optical model by a T-matrix optical model in the algorithm (Mishchenko and Travis, 1998), possibly making the particle asphericity (for example the aspect ratio) one of the control variables along withNo,rm andσ.

4.5 Refractive index

An important issue in the retrieval is connected to the modelling of the refractive index

25

m. The backscatter coefficient is actually most sensitive to m, but its possible range of

(21)

ACPD

Full Screen / Esc

al., 2005). For the case of the non-depolarizing unimodal distribution, the STS equi-librium composition was calculated for an assumed 4.5 ppmv H2O and 10 ppbv HNO3

giving a refractive index of 1.45 at 355 nm and reducing to 1.43 at 1064 nm (Luo et al., 1996). Deshler et al. (2000) inferred an_{m value of 1.47±0.03 for the same PSC} from a comparison between scattering and size-resolved aerosol concentration

mea-5

surements. They also concluded that this value was higher than expected on the basis of laboratory experiments, measurements in Antarctica and theory. In order to esti-mate the impact of this m uncertainty on the results, another retrieval is performed

on the same case, but with the refractive index calculation replaced by setting m to

1.48, 1.46 and 1.51 at 355, 532 and 1064 nm wavelengths, respectively, as provided in

10

Deshler et al. (2000). The retrieved parameters areNo=6.7 cm−3 (22%),rm=0.32 µm

(6%) andσ=1.38 (2%) with A=10.6 µm2.cm−3(40%) andV =1.5 µm3.cm−3 (50%). Let us recall that the OPC reference values wereN_o=7.71 cm−3,r_m=0.29 µm and σ=1.45 with_{A=10.4 µm}2.cm−3 _and_{V =1.4 µm}3

.cm−3_{. The quality of the retrieval is slightly}

de-graded forr_m andσ, but it improves drastically for N_o. The improvement is even more

15

noticeable forA and V ; the retrieved values are now within 1% and 7%, respectively, of

the reference values instead of the 60% difference initially obtained when the refractive index was calculated by the model (Sect. 4.3). Although the change inm seems to be

very marginal (about 0.03 or 2%), it has a profound effect on the retrieval results, con-firming by the way that the backscatter coefficient is highly sensitive to m. The results

20

obtained by bypassing the modelling of the composition and refractive index suggest that most of the bias in the initial retrieval was due to errors inm and not to problems

in the Monte Carlo approach. This further validates our retrieval methodology.

If the refractive index inferred by Deshler et al. (2000) is taken as a reference value, the bias in m could originate from either errors in the relationship linking m to the

25

particle composition (Luo et al., 1996) or uncertainties in modelling the composition. The input variables are the temperature, pressure and total HNO3 and H2O mixing

ratios. The temperature is taken from in situ measurements and therefore should not carry a large uncertainty. The volume mixing ratio of total HNO₃and H₂O were set to

(22)

ACPD

Full Screen / Esc

typical values (10 ppbv HNO₃ and 4.5 ppmv H₂O). If ice clouds had occurred prior to the lidar measurements, the water vapour content could have decreased significantly. Measurements at Sodankyl ¨a on 23 January at 00:00 UTC indicated that H2O dropped

under 3 ppmv between 22 and 24 km (V ¨omel et al., 1997). Therefore, lower H₂O could have been considered. An additional retrieval is performed with 3 ppmv of total H2O.

5

The results are very close to those presented in Sect. 4.3. The effect of H2O and

temperature uncertainties on the model-calculated refractive index is further illustrated in Fig. 4. Size distribution parameters and altitude are set to the reference values of the liquid unimodal distribution given in Table 1. The curves show that the uncertainties on the temperature and H₂O can account for, at best, a 5.10−3 change inm which is way

10

insufficient to explain the 0.03 discrepancy with the refractive index derived by Deshler et al. (2000). It is difficult for us to pinpoint the exact reasons for the discrepancy on this particular case because of several possible sources of biases, ranging from the lack of spatio-temporal coincidence between the lidar and size-resolving measurements, errors in the composition model itself (for example, the assumption of thermodynamical

15

equilibrium) or errors in the relationship between composition andm (Luo et al., 1996).

In addition, the refractive indices of PSC do not appear to be known with an accuracy better than 0.03 (Scarchilli et al., 2005).

5 Evaluation against a simplified estimation methodology

Our results are then compared to values retrieved with another approach that is similar

20

but does not consider the effect of the non-linearity of the model on the likelihood of the solution (Blum et al., 2006). The test case is a liquid PSC observed over northern Scandinavia on 5 January 2005. Blum et al. (2006) and first searched for σ and rm

by fitting the 2CR and then derived N_o by fitting the 3BC. They did not consider the

errors in the lidar measurements and retrieved the parameters by simply looking for the

25

minimum of the misfit between model simulations and measurements (i.e. best match solution). The size distributions were found to be very narrow throughout the 5 km

(23)

ACPD

Full Screen / Esc

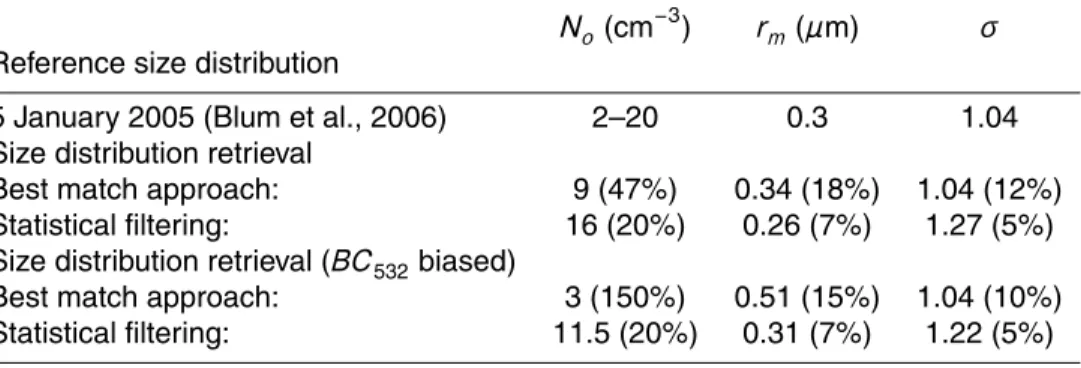

thick cloud. Retrieved values of r_m and σ were more or less constant at 0.3 µm and

1.04, respectively, whereasNo varied between 2 and 20 cm−3. We processed the lidar

signal using vibrational Raman detection for determining theBC and rotational Raman

detection at 529 and 530 nm to get the in situ temperature using the Rotational Raman Technique (Cooney and Pina, 1976; Nedeljkovic et al., 1993). The determination of

5

a simultaneous and collocated temperature profile improved the accuracy of both the

BC and the chemical composition modelling. The volume mixing ratios of total HNO3

and H₂O are set to the typical values of 10 ppbv and 4.5 ppmv, respectively. Lidar backscatter errors are increased to 20% at 355 and 532 nm to account for differences in the inversion procedure with theBC retrieval of Blum et al. (2006) The full retrieval

10

procedure givesNo=16 cm−3(20%),rm=0.26 µm (7%) and σ=1.27 (5%) in the middle

of the PSC layer, at 21 km. The difference with the results of Blum et al. for the σ value is well beyond any possible retrieval errors. When the measurement errors are ignored (i.e. skipping the cluster filtering and statistical error analysis), our retrieval becomes a search for the best match solution only. This simplified version of our retrieval algorithm

15

is then applied to the same lidar data, but the cluster size is still used to estimate the retrieval errors. The retrieved parameters becomeN_o=9 cm−3(47%),r_m=0.34 µm (18%) andσ=1.04 (12%) which is in excellent agreement with the results of Blum et

al. (2006).

The results clearly illustrate the importance of the lidar errors and of the model

non-20

linearity in the choice of the best estimator. The best match solution is found to be outside the ±σ boundary of the initial solution cluster. It corresponds to a very lo-calised and deep minimum in the surface of the model-data misfit function (see Fig. 5). But the highest density of possible solutions (when lidar errors are accounted for) is found in a very broad but shallower minimum in that case. The advantage of the

filter-25

ing can be further justified by performing a retrieval in which the backscatter at 532 nm is substantially biased on purpose (i.e. increasing BC532 nm by 20%). To be

consis-tent, the error in BC532 nm is also increased by 20%. The retrieval is performed with

the biasedBC532 nmand the associated biasedCR355 nmandCR1064 nm whileBC355 nm

(24)

ACPD

Full Screen / Esc

andBC1064 nm remain unchanged. The retrieved parameters for the purely best match

solution (no cluster filtering) areNo=2.9 cm−3 (150%),rm=0.51 µm (15%) and σ=1.04

(10%) whereas the full retrieval (including cluster filtering) givesN_o=11.5 cm−3(20%),

r_m=0.31 µm (7%) and σ=1.22 (5%). The different results of this test are summarized in Table 2. The no-filtering retrieval gives No and rm values for the artificially biased

5

BC532 nmthat are completely different, well beyond the retrieval error bars, from those

produced with the unbiasedBC_{532 nm}. In contrast, taking into account the retrieval error bars, the results of the full retrieval with the artificially biasedBC532 nmare fully

consis-tent with the full retrieval with the unbiased BC532 nm. Our retrieval algorithm shows

less sensitivity to the specified lidar errors and a much greater convergence and

sta-10

bility when the statistical filtering is applied.

6 Summary and conclusions

This paper introduces a particle size distribution retrieval method developed to take advantage of the numerous 3-wavelength lidar setups. It is based on comparing mea-sured and model-simulated lidar backscatter coefficients. The retrieval algorithm

mini-15

mizes a cost function of the misfit between measurements and model simulations with the control variables being the parameters of the PSC size distribution. In similar ap-proaches, the estimator is often chosen as the sole “best match” estimator (i.e. best estimation corresponding to the best fit between modelled and measured backscatter coefficients). The errors in the lidar backscatter coefficients and associated colour

ra-20

tios are rarely used as input parameters in the retrieval procedure. This may be critical in that the retrieval problem is highly non linear, and, on its own, the best match crite-rion guarantees neither unicity nor optimality of the solution. Our approach looks for the most likely estimation, using the statistical properties of the solution cluster given the lidar uncertainties. This solution is expected to be found in the densest part of

25

the solution cluster, around the maximum of the probability density function. With our retrieval procedure, we aim at producing realistic and stable estimators of the size

(25)

dis-ACPD

Full Screen / Esc

tribution parameters that are weakly sensitive to the specified backscatter coefficient errors that are difficult to estimate accurately.

We use a microphysical model to calculate the refractive index from the particle composition, taking into account sulphuric acid aerosol (binary H2SO4/H2O solution)

and liquid type Ib PSC particles (ternary STS solution). We then generate a look-up

5

table of backscatter coefficients as a function of the particle size distribution param-eters. Modelling the composition allows us to account for the rapid variation of the particle composition, and hence, the refractive index around the PSC type Ib temper-ature threshold. This refractive index modelling requires the local tempertemper-ature to be known accurately because the temperature remains the key parameter regarding PSC

10

formation.

To be able to resolve the inverse problem from measurements at only three wave-lengths, the size distribution is assumed to be unimodal. The particles are also as-sumed to be spherical, due to the use of Mie theory in the optical modelling. The model errors are ignored. Our methodology was described and validations were performed

15

against size-resolved OPC measurements and against a similar approach. The first validation case is a PSC event observed above ALOMAR on 23 January 1996. OPC size distribution measurements performed by Deshler et al. (2000) on this PSC pro-vided the reference validation dataset. Due to photo-counting statistics, calculations from OPC measurements suffer from an error of about 20%.

20

In regions where the criteria of unimodality and sphericity are fulfilled, the parame-ters of size distribution of PSC type Ib particles are mostly correctly retrieved, with a respective 3% and 1% error in the median radius (rm) and standard deviation (σ) (see

Table 1a). The total number of particlesNo is found to be the most difficult parameter

to retrieve accurately, with an error of around 50%. In addition, we ran our retrieval

25

algorithm at other altitudes, where non-depolarizing (spherical particles) bimodal size distributions are observed, to check the influence of the assumption of unimodality. When retrieving the size distribution of this bimodal particle population, the retrieved parameters mainly correspond to the particle mode that dominates the lidar

(26)

ACPD

Full Screen / Esc

ter signal (see Table 1b). Overall, the results appear to be satisfying for spherical particles.

When considering the depolarizing region of the PSC, as expected, the retrieved pa-rameters strongly differ from the OPC reference values. It is clear that the assumption of spherical particles appears to be critical (see Table 1c). Accounting for the particle

5

asphericity in the optical model could allow our algorithm to be applied to solid particles (PSC type Ia or type II).

Model errors are not accounted for in our retrieval algorithm. However, the refractive index is a critical parameter in the calculation of the aerosol optical properties. The model-calculated refractive index of liquid particles in the case observed in 1996 was

10

found to be 0.03 lower than the one inferred in Deshler et al. (2000) at the same al-titudes. Using this inferred refractive index value in the optical model, the retrieved parameters are found to be in excellent agreement with the OPC measurements, with both the surface area density and aerosol volume carrying less than 10% error as compared to the reference values. This suggests that most of the errors in the retrieval

15

originate from uncertainties on the refractive index rather than errors in the retrieval methodology. Note that our estimation of the retrieval errors does not take into account the errors involved in the optical modelling such as errors in the chemical composition required in refractive index calculations or errors in the scattering theory.

Our results are then compared to values retrieved with another approach that is

sim-20

ilar but does not consider the effect of the non-linearity of the model on the likelihood of the solution: Blum et al. (2006) retrieved the size distribution a liquid PSC observed over northern Scandinavia on 5 January 2005 using comparison between measured and model-simulated colour ratios, the solution being the best match. We performed retrieval tests with and without the cluster filtering approach on the PSC case described

25

in Blum et al. (2006). An excellent agreement is found between their values and val-ues retrieved with our algorithm without any statistical filtering of the solution cluster. However, the value of the geometrical standard deviation appears to be unlikely, be-ing very close to 1 (_{σ≈1.04). When the full retrieval algorithm is applied (statistical}

(27)

ACPD

Full Screen / Esc

filtering), our results are found to be significantly different with a more realistic value of the standard deviation (_{σ≈1.27). Additional tests were performed with synthetic} li-dar measurements generated a priori with the optical model using specific values of size distribution parameters. These synthetic measurements are then used as inputs to the retrieval algorithm. Even with a 20% artificial bias on one of the backscatter

5

coefficients, the full algorithm is able to retrieve the original size distribution parame-ters with a reasonable accuracy. Our full retrieval procedure does not appear to be very sensitive to the specified lidar errors. Overall, our statistical approach produces reliable estimates of liquid particle size distributions from only three lidar backscatter coefficients.

10

Acknowledgements. We acknowledge the support of the GEMS Integrated Project which is

funded by the European Commission.

References

Ansmann, A., Riebesell, M., and Weitkamp, C.: Measurement of atmospheric aerosol extinction profiles with a Raman lidar, Opt. Lett., 15, 746–748, 1990.

15

Ansmann, A., Riebesell, M., Wandinger, U., Weitkamp, C., Voss, E., Lahmann, W., and Michaelis, W.: Combined Raman elastic-backscatter lidar for vertical profiling of moisture, aerosol extinction, backscatter, and lidar ratio, Appl. Phys. B, 55, 18–28, 1992a.

Ansmann, A., Wandinger, U., Riebesell, M., Weitkamp, C., and Michaelis, W.: Independent measurement of extinction and backscatter profiles in cirrus clouds by using a combined

20

Raman elastic-backscatter lidar, Appl. Opt., 31, 7113–7131, 1992b.

Assessment of Stratospheric Aerosol Properties (ASAP), WCRP-124, WMO/TD-No. 1295, SPARC Report No 4, 2006.

Baumgarten, G., Fiedler, J., and Von Cossart, G.: The size of noctilucent cloud particles above ALOMAR (69N, 16E): Optical modelling and method description, J. Adv. Space Res., 40,

25

772–784, doi:10.1016/j.asr.2007.01.018, 2007.

Beyerle, A., Neuber, R., and Schrems, O.: Multiwavelengths lidar measurements of strato-spheric aerosols above Spitzenberg during winter 1992/1993, Geophys. Res. Lett., 21, 57– 60, 1994.

(28)

ACPD

Full Screen / Esc

Blum, U., Khosrawi, F., Baumgarten, G., Stebel, K., M ¨uller, R., and Fricke, K. H.: Simultaneous lidar observations of a polar stratospheric cloud on the east and west sides of the scandina-vian mountains and microphysical box model calculations, Ann. Geophys., 24, 3267–3277, 2006,

http://www.ann-geophys.net/24/3267/2006/.

5

Bohren, C. F. and Huffman, D. R.: Absorption and Scattering of Light by Small Particles, J. Wiley & Sons, New York, 530 pp., 1983.

Carslaw, K. S., Peter, T., and Clegg, S. L.: Modelling the composition of liquid stratospheric aerosols, Rev. Geophys., 35, 125–154, 1997.

Charlson, R. J. and Heintzenberg, J.: Aerosol Forcing of Climate, Wiley, Chichester, 1995.

10

Cooney, J. and Pina, M.: Laser radar measurements of atmospheric temperature profiles by use of Raman rotational backscatter, Appl. Opt., 15, 602–603, 1976.

David, C., Godin, S., M ´egie, G., Emery, Y., and Fl ´esia, C.: Physical state and composition of Polar Stratospheric Clouds inferred from airborne lidar measurements during SESAME, J. Atmos. Chem., 27, 1–16, 1997.

15

Deshler, T., Nardi, B., Adriani, A., Cairo, F., Hansen, G., Fierli, F., Hauchecorne, A., and Pulvirenti, L.: Determining the index of refraction of polar stratospheric clouds above An-doya (69◦_{N) by combing size-resolved concentration and optical scattering measurements,}

J. Geophys. Res., 105(D3), 3943–3953, 2000.

Deshler, T., Hervig, M. E., Hofmann, D. J., Rosen, J. M., and Liley, J. B.: Thirty years of in situ

20

stratospheric aerosol size distribution measurements from Laramie, Wyoming (41◦_{N), using}

balloon-borne instruments, J. Geophys. Res., 108(D5), 4167, doi:10.1029/2002JD002514, 2003.

Elbern, H. and Schmidt, H.: Ozone episode analysis by four-dimensional variational chemistry data assimilation, J. Geophys. Res., 106(D4), 3569–3590, 2001.

25

Fiocco G. and Smullins, L. D.: Detection of scattering layers in the upper atmosphere (60– 140 km) by optical radar, Nature, 199, 1275–1276, doi:10.1038/1991275a0, 1963.

Hanson, G. and Hoppe, U. P.: Lidar observations of polar stratospheric clouds and stratospheric temperature in winter 1995/96 over northern Norway, Geophys. Res. Lett., 24(2), 131–134, 1997.

30

Hofmann, D. J. and Rosen, J. M.: Stratospheric sulphuric acid layer: Evidence for an anthro-pogenic component, Science, 208, 1368–1370, 1980.
