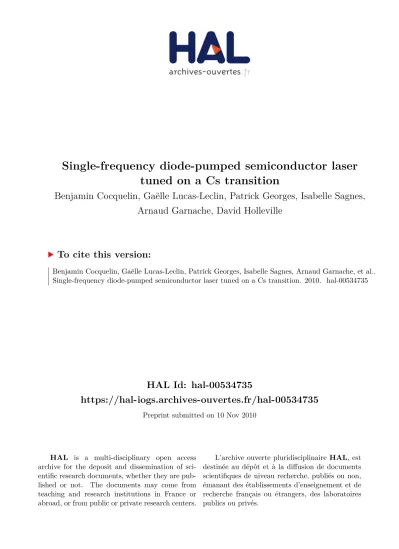

HAL Id: hal-00534735
https://hal-iogs.archives-ouvertes.fr/hal-00534735
Preprint submitted on 10 Nov 2010
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
Single-frequency diode-pumped semiconductor laser tuned on a Cs transition
Benjamin Cocquelin, Gaëlle Lucas-Leclin, Patrick Georges, Isabelle Sagnes, Arnaud Garnache, David Holleville
To cite this version:
Benjamin Cocquelin, Gaëlle Lucas-Leclin, Patrick Georges, Isabelle Sagnes, Arnaud Garnache, et al.. Single-frequency diode-pumped semiconductor laser tuned on a Cs transition. 2010. �hal-00534735�
Single-frequency diode-pumped
Single-frequency diode-pumped
semiconductor laser tuned on a Cs transition
semiconductor laser tuned on a Cs transition
B. Cocquelin, Gaëlle Lucas-Leclin and P. Georges
Laboratoire Charles Fabry de l’Institut d’Optique, Palaiseau, France
I. Sagnes
Laboratoire de Photonique et de Nanostructures, Marcoussis, France
D. Holleville
LNE/SYRTE - Observatoire de Paris , Paris, France
A. Garnache
Institut d’Électronique du Sud, Montpellier, France
Lasers in
Lasers in
Cesium atomic clocks
Cesium atomic clocks
Need for high-power and narrow-linewidth sources emitting at the Cesium D2 line (852 nm)
⇒ a single OP-VECSEL ?
Scheme of an atomic fountain
Microwave interrogation : FCs = 9 192 631 770 Hz F = 3 F = 4 Cs D2 line λ = 852 nm F = 5 4 3 2 Cs atomic levels Optical Detection Δν << 5 MHz Extended-cavity laser diodes Atoms cooling Popt > 200 mW DFB/DBR diodes, MOPA, … 9.192 GHz 60 0 M H z Atom cooling Popt > 200 mW DFB/DBR diodes, MOPA, …
OP-VECSEL
OP-VECSEL
at
at
850 nm
850 nm
Pump module External mirror Semiconductor structure S u b st ra te Bragg mirror QW λP ≅ 700 nm λL ≅ 850 nm• High power in Optically Pumped-VECSEL
30 W @ 980 nm, M2 = 3 (Coherent - Photonics West '04)
1.0 W in-well pump / 0.7 W @ 850 nm, M2 = 5 (University of Strathclyde) • No spatial hole-burning : single-frequency in simple linear cavity
500 mW @ 1003 nm (Jacquemet et al, App.Phys. B 86, 503 (2007))
42 mW @ 870 nm, ∆νL ≅ 3 kHz (Holm et al, IEEE PTL 11, 1551 (1999)) • Linearly polarized, circular TEM beam
Design of
Design of
the
the
semiconductor
semiconductor
structure
structure
• λL = 852 nm
• Barriers absorption at λP ≤ 720 nm
eb ≅ 2 µm ⇒ ηP = 85%
• AR coating (Si3N4) at air/SC surface for :
maximum pump transmission
+ reduction of microcavity etalon effect • Structure grown by MOCVD
Reflectivity Photoluminescence Stop band 70 nm Rmax ≅ 99.97% 1.0 0.2 0.4 0.6 0.8 0.0 0.8 0.9 1.0 1.1 0.7 0.6 Energy Quantum wells Bragg Mirror |E|2 Substrate GaAs 350 µm 32.5 pairs λ/4 Al0.22Ga0.78As/AlAs R ≥ 99.95% Active Layers 29λ/4 GaAs NQW= 7 ; LQW = 8 nm Barriers Al0.22Ga0.78As InGaP Caping Layer (20 nm)
Design
Design
optimization
optimization
• Low threshold pump intensity Ith for high opt-opt efficiency
⇒ NQW= 7 is optimal for ~ 2% losses
0 1 2 3 4 5 0 5 10 15 20 T = 0.5% T = 1% T = 2% 10°C 40°C I th ( kW /c m 2 ) NQW 190 105 Itr (W/cm2) 830 1000 g0(cm-1) 40°C 10°C T(°C) Experimental parameters ! Ith = NQWItr " exp T 2#NQWLQWg0 $ % & & ' ( ) ) Threshold intensity
Single-frequency
Single-frequency
s
s
etup
etup
• Compact plane-concave cavity : Lext ≅ 10 mm
• Single-transverse mode pump laser diode :
Pmax= 120 mW (245 mA) at λP = 658 nm
• 52 x 52 x 58 mm3 integrated setup for improved mechanical stability
Pump Diode Output coupler + PZT Single-mode Laser Diode GaAs DBR QW Active Structure Output coupler T = 1% - RC = 12 mm WP = 20 µm Active Structure PZT
Single-frequency emission
Single-frequency emission
• Low threshold: 4.1 kW/cm²
• Good beam quality : M² < 1.2 and linear polarization
Output coupler T = 1% - RC = 12 mm η = 17% Ith ≅ 4.1 kW/cm2 PL = 17 mW (pump limited) T = 280 K 0 5 10 15 20 0 50 100 150
Incident Pump Power (mW)
O u tp u t P o w er ( mW ) 850.5 851.0 851.5 852.0 852.5 W av ele n g th (n m )
Europhotons ‘08 Single-frequency diode-pumped semiconductor laser at the Cs line 8
Single-frequency emission
Single-frequency emission
Output coupler T = 1% - RC = 12 mm PL = 17 mW (pump limited) T = 280 K 0 5 10 15 20 0 50 100 150Incident Pump Power (mW)
O u tp u t P o w er ( mW ) 850.5 851.0 851.5 852.0 852.5 W av ele n g th (n m ) 0 1 2 3 4 5 F P s ig n a l (V ) FSR = 37.5 GHz
Scanning Fabry-Perot spectrum
• Single frequency operation without intracavity λ-selective element :
checked with a high Finesse (F = 130) 37.5-GHz-FSR scanning Fabry-Perot SMSR > 25 dB tSM " TC # FSR $ % & ' ( ) 2 " 1ms
Single-mode spectrum in for Lext = 10 mm
Jacquemet et al, App.Phys. B (2006)
TC = photon lifetime (~ 10 ns) Γ = gain bandwidth (~ 10 nm)
With
With
an intracavity
an intracavity
etalon
etalon
Output coupler T = 1% - RC = 12 mm
• Increased losses at θ ≠ 0° ⇒ laser power : P = 7 mW @ 852.14 nm
etalon
25-µm thick (≅ 9 nm FSR) silica etalon
⇒ λ independent of operating conditions (T°, PP) + improved long-term stability
10-4 10-3 10-2 10-1 1 840 845 850 855 860 Wavelength (nm) λ = 852.14 nm (Cs) 9 nm
Single-frequency tunability
Single-frequency tunability
• more than 15 GHz continuous tunability (without mode-hops)
by translating the external cavity mirror with PZT
Output coupler T = 1% - RC = 12 mm
Frequency-shift measurement with a low-finesse static 1.5-GHz-FSR Fabry-Perot etalon
⇒ Tuning over the Cs-absorption spectrum (9 GHz)
0
-5 +5
Laser frequency shift (GHz)
P h o to d et ec te d s ig n al Cs absorption 1.5 GHz > 15 GHz FP transmision
Extended-cavity laser diode Δν = 130 kHz PD
Beat-note set-up
Beat-note set-up
Stabilization of the laser frequency
- at side of a Doppler-free Cesium line (5 MHz FWHM)
- on PZT voltage - 2-stage integration electronics - low-frequency servo loop (F < 2 kHz)
OP-VECSEL G PD Cs cell Fast photodiode RF analyzer 10-11 10-9 10-7 S δV ( V /H z 1 /2 )
With low-frequency gain
With optimized gain
10-5
Extended-cavity laser diode Δν1/2 = 130 kHz ΔνL = 15 kHz PD
Linewidth measurement
Linewidth measurement
• FWHM linewidth ≅ 500 kHz : low-frequency noise contribution
• Lorentzian linewidth ≅ 70 kHz related to white noise floor RBW = 10 kHz SW. T = 10 ms AVE = 10 OP-VECSEL PD Cs cell Fast photodiode RF analyzer
Towards higher
Towards higher
power
power
…
…
T = 1.1 % External Mirror
HR @ 852 nm R = -100 mm
WP = 40 µm
• 330 mW at PP = 1.1 W
⇒ Thermal-limited output power
⇒ High output power on a GaAs substrate
G aA
s
λ = 855 nm (Δλ ≅ 1 nm)
Laser Diode Pump 5 W @ 690nm Ø = 100 µm 450 mW under QCW pumping 100 200 300 400 O u tp u t P o w er ( mW ) 845 850 855 860 W av el en g th ( n m ) T = 273 K ηext = 36% Ith ≅ 3.2 kW/cm2
• Single transverse mode
Silica etalon • 120 mW single-frequency tS = 350 µm H E A TS IN K
Conclusion
Conclusion
– Design & fabrication of a AlGaAs/GaAs structure at λ = 852 nm optimized for low power/high efficiency operation
7 QWs
low threshold Ith ≤ 4 kW/cm2
– Single-frequency operation in a simple linear cavity
without λ-selective element : 17 mW with a 25-µm thick etalon : 7 mW
– Validation on a Cs atomic line
>15 GHz continuous tunability
frequency lock-in on an absolute reference (atomic line) comparison with an independent laser source : ΔνL = 500 kHz (-3dB / 10 ms sweep time)
– Increase of the single-frequency power under high power pumping
120 mW without specific thermal management
(GaAs substrate, no intracavity heatspreader)
⇒ evaluation of the spectral properties
+ thermal management for power scaling
at 852.14 nm Specifications alreadyadequate for optical
detection in atomic clocks
