MTFC

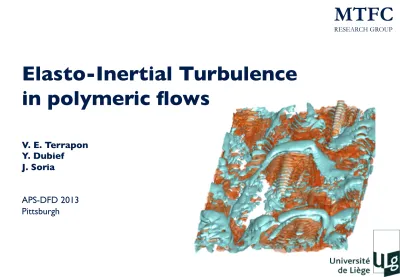

RESEARCH GROUPElasto-Inertial Turbulence !
in polymeric flows"
V. E. Terrapon" Y. Dubief" J. Soria" " ! APS-DFD 2013! Pittsburgh!MTFC
RESEARCH GROUPMTFC
RESEARCH GROUPMTFC
RESEARCH GROUPAcknowledgements"
APS-DFD 2013 2
Yves Dubief !University of Vermont, USA!
Julio Soria !Monash University, Australia !
"King Abdulaziz University, Kingdom of Saudi Arabia! "
• Marie Curie FP7 CIG!
• Vermont Advanced Computing Center!
• US National Institutes of Health!
• Australian Research Council!
• Center for Turbulence Research Summer Program!
Collaborators"
MTFC
RESEARCH GROUPPolymers and turbulence"
APS-DFD 2013 3 Transition! Newtonian" Viscoelastic" Re Laminar! Turbulent! 101! 103! 105! Elastic turbulence" Drag reduction" Early turbulence"
Elasto-Inertial Turbulence (EIT)"
• State of small-scale turbulence!
• Contributions from both elastic and
inertial instabilities!
• Observed over a wide range of Reynolds
numbers !
MTFC
RESEARCH GROUPPolymers and turbulence
"
APS-DFD 2013 4
• Is drag reduction!
- a viscous and large-scale effect (Lumley)!
- an elastic and small-scale effect (de Gennes)!
• What is the nature of EIT?!
- Relative contributions of elastic and inertial
instabilities?!
- Characteristics of MDR?!
- Dynamical interactions between flow and
polymers? ! Key questions" Transition! Newtonian" Viscoelastic" Re Laminar! Turbulent! 101! 103! 105! Elastic turbulence" Drag reduction" Early turbulence"
MTFC
RESEARCH GROUPPolymers and turbulence
"
APS-DFD 2013 5
• Channel flow simulations!
• FENE-P model!
• Accurate numerics!
• Transitional Reynolds numbers!
Approach" Transition! Newtonian" Viscoelastic" Re Laminar! Turbulent! 101! 103! 105! Elastic turbulence" Drag reduction" Early turbulence"
MTFC
RESEARCH GROUP!
MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! ReH fTransitional viscoelastic flows
"
APS-DFD 2013 6
Channel flow simulations"
Friction factor !
• Departure from laminar state
at Re ~ 800 !
• Smooth transition from
laminar to MDR state!
• Flow dynamics controlled by
MTFC
RESEARCH GROUP!
MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! ReH fTransitional viscoelastic flows
"
APS-DFD 2013 7
Channel flow simulations"
Friction factor ! Re=1000, Wi+=24 !
• Not laminar!
• Elastic
contributions!
Re=6000, Wi+=96!
• Inertial & elastic
contributions! • Turbulent?!
• New state?!
MTFC
RESEARCH GROUPTransitional viscoelastic flows
"
APS-DFD 2013 8
Pipe flow experiment with PAAm solution "
Friction factor !
Results of numerical simulations are confirmed by experimental measurements!
Samanta et al., PNAS 110(26), 2013! 103! 10-2! ReD f MDR" Laminar" Turbulent" 500 ppm perturbed! 500 ppm unperturbed! 10-3! 104!
MTFC
RESEARCH GROUPQualitative flow behavior
"
APS-DFD 2013 9 ! MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! Re f Re = 1000 ! Wi+ = 24!
Second invariant of the velocity gradient tensor: Qa = ½ (Ω2-S2)!
MTFC
RESEARCH GROUPQualitative flow behavior
"
APS-DFD 2013 10 ! MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! Re f Re = 1000 ! Wi+ = 24! Polymer extension (Cii / L2)1/2!
MTFC
RESEARCH GROUPQualitative flow behavior
"
APS-DFD 2013 11 ! MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! Re f Re = 6000 ! Wi+ = 96!
Second invariant of the velocity gradient tensor: Qa = ½ (Ω2-S2)!
MTFC
RESEARCH GROUPQualitative flow behavior
"
APS-DFD 2013 12 ! MDR" Laminar" Turbulent" Newtonian! Viscoelastic! 103! 104! 10-3! 10-2! Re f Re = 6000 ! Wi+ = 96! Polymer extension (Cii / L2)1/2!
MTFC
RESEARCH GROUPTypical structures"
APS-DFD 2013 13Q
a!y
+!~10
!p!
f
p! • Train of cylindrical Qa structures of alternating sign!• On each side of sheet!
• Associated with
polymeric part of pressure!
• Correlated with
polymer body force fp
Contour of pressure and isolines of second invariant Qa
MTFC
RESEARCH GROUPFlow topology"
APS-DFD 2013 14
EIT flow – Joint-PDF!
Q
a!R
a! -0.02! 0.01! -0.01! 0.02! -0.001! -0.0005! 0.0005! 0.001! 0! 0!Re=1000!
Wi
+=24!
Re=6000!
Wi
+=96!
• Change from shear flow
(Ra=Qa=0) to mixed flow! • At low Re, symmetric
distribution around 2D flow (Ra=0)!
• At higher Re, “teardrop” shape
similar to Newtonian turbulence!
MTFC
RESEARCH GROUPTurbulent kinetic energy budget !
Energy transfers"
APS-DFD 2013 15
Transfers of turbulent kinetic energy
Re=1000, Wi+=24! 10-1 100 101 102 -3 -2 -1 0 1 2 3
y
+! ×104!-Π
e!P
!-ε
!Energy transfer from polymers to flow!"
P dV
V∫
−
ε
dV
V∫
− Π
edV
V∫
= 0
Transfer between elastic energy and turbulent kinetic energy!Dissipation!
MTFC
RESEARCH GROUPEnergy spectrum"
APS-DFD 2013 16 10-4! 10-6! 10-8! 10-10! 10-12!E(κ
x)
κ
x 101! 100! 102!κ
x-14/3κ
x-5/3Re=1000,
Wi=24
Re=6000,
Wi=720
Re=6000,
Wi=100
-14/3 spectrum agrees well with elastic turbulence and hybrid simulation of Watanabe and Gotoh (JFM 2013) !
MTFC
RESEARCH GROUP• Increase of extensional viscosity
(anisotropic)!
• Anisotropic polymer body force!
Mixed extensional-shear flow"
... = C ∇u
(
)
+ ∇u
(
)
TC − T
Self-sustained"
Our current understanding"
APS-DFD 2013 17
Hyperbolic transport equation"
∂
tC + (u ⋅ ∇)C = ...
• Formation of very thin sheets!
• Trains of cylindrical structures!
• Elliptical pressure redistribution of
energy!
• Excitation of extensional sheet flow!
∇
2p = 2Q
a−
1−
β
Re
∇ ⋅ ∇ ⋅ T
(
)
MTFC
RESEARCH GROUPConclusion and future work
"
APS-DFD 2013 18
Key take-away messages"
• EIT is a new state of small-scale turbulence driven by both elastic and
inertial instabilities!
• EIT could characterize MDR regime!
• EIT explains seemingly contradictory phenomena in viscoelastic turbulence!
• EIT provides support to de Gennes’ theory!
Next steps"
• Further characterize EIT!
• Understand the exact mechanisms during transition process!
Dubief, Terrapon & Soria, “On the mechanism of Elasto-inertial turbulence”, Phys. Fluids 2013! Samanta et al., “Elasto-inertial turbulence”, PNAS 110(26), 2013!
