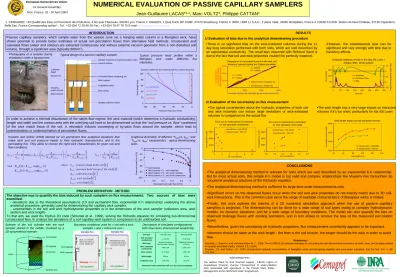

Numerical evaluation of passive capillary samplers

European Geosciences Union.

1st General Assembly.

Nice, France, 25 - 30 April 2004

NUMERICAL EVALUATION OF PASSIVE CAPILLARY SAMPLERS

Jean-Guillaume LACAS*

_{, Marc VOLTZ}

_{, Philippe CATTAN}

INTRODUCTION

Ground surface

Sample extraction and pressurisation tubes

Unraveled fibers contacting soil

Installation cavity Wick support

Wick tubing

Sample collection bottle Hanging water-column [50cm-90cm] Collection depth [50cm-2m]

Typical pressure head profiles within a

fiberglass wick under differents flux

intensities.

In order to achieve a minimal disturbance of the native flow regime, the wick material (which determine a hydraulic conductivity), length and width and the contact area with the overlying soil have to be dimensioned so that the “soil pressure vs. flow” conditions of the wick match those of the soil. A mismatch induces converging or by-pass flows around the sampler, which lead to overestimation or underestimation of percolation fluxes.

-100 -80 -60 -40 -20 0 -1 -0,8 -0,6 -0,4 -0,2 0 Soil material

Wick system n°1 : well matched Wick system n°2 : too much resistive Wick system n°3 : too much conductive

Downward soil water flux (cm/h)

Pressure Head (cm

H2O)

Graphical illustration of different ‘‘hwickvs. qsoil‘‘ and ‘‘hsoilvs. qsoil‘‘ caracteristics : typical dimensioning work.

Passive capillary samplers, which sample water from the vadose zone via a hanging water column in a fiberglass wick, have shown potential to provide better estimates of actual soil percolation fluxes than alternative field methods. Unsaturated and saturated flows (water and solutes) are extracted continuously and without external vacuum generator from a non-disturbed soil

volume, through a significant area (typically 900cm2_).

PROBLEM DEFINITION - METHOD

The objective was to quantify the bias induced by such samplers on flux measurements. Two sources of bias were examined:

- deviations due to the theoretical assumptions (1D and permanent flow, exponential K-h relationship) underlying the above

analytical procedure, generally used for dimensioning the capillary wick sampler.

- uncertainties in the soil and wick hydrodynamic properties or in the dimensions of the wick sampler (collection area, wick section and wick length).

To that aim, we used the Hydrus 2D code (Simunek et al., 1999), solving the Richards equation for simulating two-dimensional unsaturated flow, to analyze the deviations of a soil-capillary wick system in comparison to an undisturbed soil.

1/ Evaluation of bias due to the analytical dimensioning procedure

2/ Evaluation of the uncertainty on flux measurement

RESULTS

CONCLUSIONS

•The analytical dimensioning method is relevant for soils which are well described by an exponential K-h relationship. But for most actual soils, this simple K-h model is not valid and complex relationships like Mualem-Van Genuchten do not permit analytical solutions of the Richards equation.

•The analytical dimensioning method is sufficient for large time-scale measurements only.

•Significant errors on the observed fluxes occur when the soil and wick properties do not exactly match due to 3D soil-wick interactions. This is the common case since the range of available characteristics of fiberglass soil-wicks is limited. •Finally, this work outlines the interest of a 2D numerical simulation approach when the use of passive capillary samplers is projected. The dimensioning can be done for a wide range of soil types owing to complex hydrodynamic models, for dynamic situations, and for a wide range of boundary conditions. The model can also quantify the bias on observed drainage fluxes with existing lysimeters, and in turn allows to remove the bias of the measured percolation fluxes.

•Nevertheless, given the uncertainty on hydraulic properties, flux measurement uncertainty appears to be important. •Attention should be taken at the wick length : the finer is the soil texture, the longer should be the wick in order to avoid bias.
