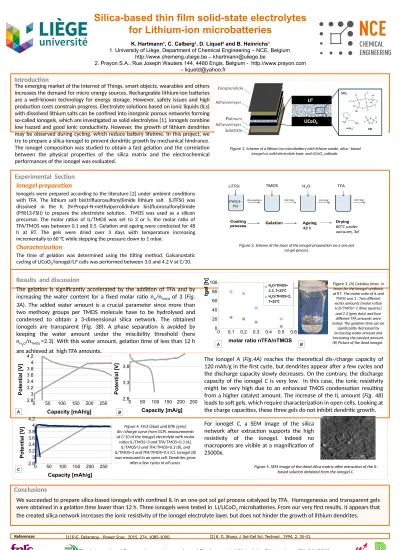

Silica-based thin film solid-state electrolytes
for Lithium-ion microbatteries
K. Hartmann1, C. Calberg1, D. Liquet² and B. Heinrichs1
1. University of Liège, Department of Chemical Engineering – NCE, Belgium http://www.chemeng.uliege.be – khartmann@uliege.be
2. Prayon S.A., Rue Joseph Wauters 144, 4480 Engis, Belgium - http://www.prayon.com – liquetd@yahoo.fr
Experimental Section
Figure 3. (A) Gelation times in hours for the ionogel synthesis at RT. The molar ratio of IL and
TMOS was 3 . Two different water amounts (molar ration
H2O/TMOS= 2 (blue squares) and 2.3 (grey dots) and four
different TFA amounts were tested. The gelation time can be
significantly decreased by increasing water amount and increasing the catalyst amount. (B) Picture of the dried ionogel.
A B
Figure 2. Scheme of the steps of the ionogel preparation via a one-pot sol-gel process.
References [1] P.-E. Delannoy, . Power Sour., 2015, 274, 1085-1090.
0 0.1 0.2 0.3 0.4 0.5 0.6 0 20 40 60 80 100 H2O/TMOS=2.3 , T=25°C H2O/TMOS=2, T=25°C
molar ratio nTFA/nTMOS
tg e l [h ] H2O/TMOS= 2.3, T=25°C H2O/TMOS=2, T=25°C
The emerging market of the Internet of Things, smart objects, wearables and others increases the demand for micro energy sources. Rechargeable lithium-ion batteries are a well-known technology for energy storage. However, safety issues and high production costs constrain progress. Electrolyte solutions based on ionic liquids (ILs) with dissolved lithium salts can be confined into inorganic porous networks forming so-called ionogels, which are investigated as solid electrolytes [1]. Ionogels combine low hazard and good ionic conductivity. However, the growth of lithium dendrites may be observed during cycling, which reduce battery lifetime. In this project, we try to prepare a silica-ionogel to prevent dendritic growth by mechanical hindrance. The ionogel composition was studied to obtain a fast gelation and the correlation between the physical properties of the silica matrix and the electrochemical performances of the ionogel was evaluated.
0 50 100 150 200 250 2.8 3 3.2 3.4 3.6 3.8 4 4.2 Capacity [mAh/g] P o te n ti a l [V ] 0 50 100 150 200 250 2.8 3.3 3.8 Capacity [mA/g] P o te n ti a l [V ] 0 50 100 150 200 250 2.8 3 3.2 3.4 3.6 3.8 4 4.2 Capacity [mAh/g] P o te n ti a l [V
] Figure 4. First (blue) and fifth (grey)
dis-/charge curve from GCPL measurements at C/10 of the ionogel electrolyte with molar
ratios IL/TMOS=3 and TFA/TMOS=0.3 (A), IL/TMOS=5 and TFA/TMOS=0.3 (B), and
IL/TMOS=3 and TFA/TMOS=0.5 (C). Ionogel (B) was measured in an open cell. Dendrites grow
after a few cycles in all cases.
Figure 5. SEM image of the dried silica matrix after extraction of the IL-based solution obtained from the ionogel C.
The ionogel A (Fig.4A) reaches the theoretical dis-/charge capacity of 120 mAh/g in the first cycle, but dendrites appear after a few cycles and the discharge capacity slowly decreases. On the contrary, the discharge capacity of the ionogel C is very low. In this case, the ionic resistivity might be very high due to an enhanced TMOS condensation resulting from a higher catalyst amount. The increase of the IL amount (Fig. 4B) leads to soft gels, which require characterization in open cells. Looking at the charge capacities, these three gels do not inhibit dendritic growth.
B A
C
For ionogel C, a SEM image of the silica network after extraction supports the high resistivity of the ionogel. Indeed no macropores are visible at a magnification of 25000x.
