STUDY OF THE INFLUENCE OF DIFFERENT WASHOUT ALGORITHMS ON
SIMULATOR SICKNESS FOR A DRIVING SIMULATION TASK
Barış Aykent1, Damien Paillot, Frédéric Mérienne Arts et Métiers ParisTech, CNRS, Le2i
Institut Image, 2 rue T. Dumorey, 71100 Chalon-sur-Saône, France 1Contact Author
Zhou Fang, Andras Kemeny Technical Centre for Simulation, RENAULT
GUYANCOURT, France
KEYWORDS
Driving simulator, virtual immersion, motion sickness ABSTRACT
This paper deals with the effects of different washout algorithms used for Stewart platforms on subjective and objective ratings. Washout algorithms are used to represent vehicle dynamics in a restricted spatial place. An adaptive washout algorithm was realized to control the hexapod platform, depending on the specific force error in longitudinal, lateral and vertical directions, in order to compare user‟s experience with those in the case of classical algorithm. In this study, the simulator sickness has been evaluated for three algorithms in dynamic driving simulator situation in objective and subjective way.
INTRODUCTION
Driving simulation is a high demanded domain in terms of virtual immersion. Compared to virtual mock-up visualization in a CAVE system, driving simulation induces the motion of the user‟s body through the car driving task. In driving simulation, the motion is mainly induced by acting on visual cue (vection process) and vestibular cue (with a motion platform). To improve the virtual immersion in driving simulation task, both cues have to be well correlated. The motion platform is controlled with an algorithm which translates the car simulated motion in a possible platform motion.
The washout algorithms are used to depict the driving dynamics of a real vehicle in a constraint space for a driving experience as realistic as possible (see Figure 2). They were firstly introduced in the mid 60s in the aerospace industry
(Stewart, 1965). Afterwards, these techniques have been spread into automotive industry for the development process of the vehicles.
Different algorithms have been developed to control a 6 DOF (Degrees Of Freedom) platform (as a hexapod platform). The following table gives the list of the main common algorithms used in the literature.
Motion control algorithm
References
Classical (Stewart, 1965)
Adaptive (Parrish et al 1975, Ariel and
Sivan 1984, Nehaoua et al, 2006 PA Ioannou and J. Sun, Robust Adaptive Control. Prentice-Hall Inc., 1995)
Optimal (Sivan, et al., 1982)
Predictive model algorithm (Dagdelen et al, 2009)
Objectives of the washout algorithms are given below [3]: - Main objective for implementation of the washout
algorithm is to maximize the contribution of the motion system to the capabilities of the simulator. - Main limiting factors are the maximum speed and
stroke of the actuators.
- Reproduction of motion cues one to one is not possible. Filtering and reducing cues are needed. Proceedings of the ASME 2011 World Conference on Innovative Virtual Reality
WINVR2011 June 27-29, 2011, Milan, Italy
&RS\ULJKWE\$60(
7KH EHVW FRPSURPLVH PXVW EH SURYLGHG &KDQJLQJ D SDUDPHWHULQDVHQVHOHDGVWRSUREOHPVLQDQRWKHU
&XHVDWG\QDPLFGULYLQJVLPXODWRUVDUHJLYHQLQ)LJXUH ,I WKHUH LV D FRQIOLFW EHWZHHQ WKH FXHV LW FDQ FDXVH D SKHQRPHQRQFDOOHGÄPRWLRQVLPXODWRUVLFNQHVVெ
7KH ÄNLQHWRVLVெRUÄPRWLRQ VLFNQHVVெDOVRNQRZQDVWUDYHO VLFNQHVVLVDVLWXDWLRQLQZKLFKDGLVDJUHHPHQWH[LVWVEHWZHHQ YLVXDOO\ SHUFHLYHG PRYHPHQW DQG WKH SHUFHSWLRQ E\ WKH YHVWLEXODUV\VWHP
)RU WKH REMHFWLYH HYDOXDWLRQ RI GLIIHUHQW ZDVKRXW DOJRULWKPV RQ VLPXODWRU VLFNQHVV WKH WHVWV ZHUH UHDOL]HG E\ XVLQJ6&$1H5VWXGLRVRIWZDUHRI2.7$/&RPSDQ\ZLWK WKH³&RXQWU\5RDG´VFHQDULR
5HVXOWV VKRZ WKDW DQ DGDSWLYH DOJRULWKP SURYLGHV D OHVV SRVVLEOHRSSRUWXQLW\WRKDYH VLPXODWRUVLFNQHVVREMHFWLYHO\DV ZHOODVVXEMHFWLYHO\E\XVLQJVLPXODWRUVLFNQHVVTXHVWLRQQDLUH )LJXUH6WUXFWXUHRIWKHFORVHGORRSFRQWURORIG\QDPLFGULYLQJ VLPXODWRU )LJXUH2EMHFWLYHRIZDVKRXWDOJRULWKP>@ '5,9,1*6,08/$7256
9LUWXDO UHDOLW\ HQYLURQPHQWV DUH XVHG PRUH DQG PRUH LQ HQJLQHHULQJV\VWHPVWRGHYHORSDQGHQKDQFHSURGXFWGHVLJQ>@
'ULYLQJ VLPXODWRUV DUH RQH RI WKH ZLGHVSUHDG XVHG W\SHV RI YLUWXDO UHDOLW\ V\VWHPV :H FDQ GLVWLQJXLVK G\QDPLF VLPXODWRU ZLWKPRWLRQSODWIRUPWHFKQRORJ\ DQGVWDWLFVLPXODWRU $VVWDWHGLQWKH)LJXUHDG\QDPLFGULYLQJVLPXODWRULVPDGH XSRIWKHHOHPHQWVOLVWHGEHORZ 0RWLRQV\VWHP '2) GHJUHHVRIIUHHGRP KH[DSRG SODWIRUP 9LVXDOV\VWHP WKURXJKYLGHRSURMHFWRUV
9HKLFOH G\QDPLFV YHKLFOH PRGHO XVHG LQ WKH GULYLQJ VLPXODWLRQ
0RWLRQ GULYLQJ DOJRULWKPV PRWLRQ FXHLQJ DQG ZDVKRXWDOJRULWKPV
&RQWURO DFFRUGLQJWR+0, KXPDQPDFKLQHLQWHUIDFH WKHRU\ QRW RQO\ WKH ZDVKRXW DOJRULWKP LWVHOI EXW DOVR WKHGULYHUKDVDQLPSRUWDQWUROH IRUWKHFRQWURORIWKH
GULYLQJ VLPXODWLRQ LQ WKH VFHQDULR >@ 'ULYHU LV
LQYROYHG LQ WKH VLPXODWLRQ SURFHVV GXH WR KLVKHU UHDFWLRQV ZKLFK DUH VRXUFHG IURP KLVKHU ³SURSULR SHUFHSWLYH´ DQG ³YHVWLEXODU V\VWHP´ WKDW DOVR HQDEOHV KLPKHU DV ÄD VHFRQG FORVHGORRS FRQWUROOHUெ DSDUW IURP WKH H[LVWLQJ DGDSWLYH ZDVKRXW DOJRULWKP RU YHKLFOH G\QDPLFV FRQWUROOHU SULPDU\ FRQWURO 7KH FRUUHFWLRQ LQSXWV RI WKH FRQGXFWRU DUH JHQHUDOO\ DIIHFWHGRIWKRVHOLVWHGEHORZ 9LVXDOVLJQDOV $XGLWLYHVLJQDOV +DSWLFVLJQDOV ,QHUWLDOVLJQDOV 3URSULRSHUFHSWLYHDQG 9HVWLEXODUV\VWHP 7KHPRVWFUXFLDOGLIILFXOWLHVWKDWFDQEHHQFRXQWHUHGLQWKH GULYLQJVLPXODWRUDSSOLFDWLRQVWRKDYHDPRUHUHDOLVWLFGULYLQJ VLPXODWLRQDUH x 7RHPERG\WKHG\QDPLFVUHDFWLRQRIWKHGULYHUெV DVLW LVDVVRFLDWHGZLWKWKHVHFRQGDU\FORVHGORRSFRQWURO x 7RUHSUHVHQWWKHGULYLQJG\QDPLFVDVLQUHDOZRUOGLQ WKH G\QDPLF GULYLQJ VLPXODWRU LW LV FDOOHG ZDVKRXW DOJRULWKP LQWHUPVRIXVHUெVSHUFHSWLRQ
6,08/$7256,&.1(66
³6LPXODWRUVLFNQHVV´LVDSKHQRPHQRQWRGHILQHDVLWXDWLRQ LQ ZKLFK WKH YLVXDOO\ SHUFHLYHG PRYHPHQW DQG WKH SHUFHSWLRQ RIWKHPRYHPHQWE\WKHYHVWLEXODUV\VWHPGRHVQRWFRUUHVSRQG WRHDFKRWKHULQRWKHUZRUGVWKH\GLVDJUHH
7KHUH DUH IRXU EURDGO\ DFFHSWHG WKHRULHV WR GHVFULEH WKH ³VLPXODWRUVLFNQHVV´SKHQRPHQRQ>@
&RS\ULJKWE\$60( &XH &RQIOLFW 7KHRU\ 0RQH\ &DVDOL
0F&DXOH\DQG6KDUNH\
5HDUUDQJHPHQW7KHRU\ 5HDVRQ %UDQG 3RVWXUDO ,QVWDELOLW\ 7KHRU\ .RODVLQVNL HW DO
-RQHVHWDO
5HIOH[7KHRU\ +RZDUG 5RELQVRQ
7KH IDFWRUV WKDW FDQ FDXVH VLPXODWRU VLFNQHVV PD\ EH RUJDQL]HGLQWKUHHFDWHJRULHV>@
D ,QGLYLGXDO IRUH[DPSOH DJH 5HDVRQ %UDQG FRQFHQWUDWLRQOHYHO 5HJDQ VLPXODWRUDGDSWDWLRQ H[SHULHQFH ZLWK VLPXODWRU 8OLDQR HW DO .HQQHG\ )UDQN 5HJDQ
E 6LPXODWRU WHFKQRORJ\ IRU H[DPSOH PRWLRQ SODWIRUP &DVDOL .HQQHG\HWDO .HQQHG\HWDO 0F&DXOH\ 6KDUNH\
F 7DVN IRU LQVWDQFH DSSOLFDWLRQ W\SH 0F&DXOH\ 6KDUNH\
02'(//,1*2)&/$66,&$/$/*25,7+0
&ODVVLFDO ZDVKRXWDOJRULWKP ZDVLQWURGXFHGE\6WHZDUWLQ WR ILJXUH RXW WKH PRWLRQ FXHLQJ DOJRULWKPV RI KH[DSRG PRWLRQ SODWIRUP '2) GHJUHHV RI IUHHGRP 7KH FODVVLFDO DOJRULWKP LV DOVR NQRZQ DV 6WHZDUW SODWIRUP DQG KDV EHHQ ILUVWO\GHYHORSHGIRUWKHDHURVSDFHGRPDLQ IOLJKWVLPXODWRUV
$SDUW IURP WKLV WKH XVDJH UDQJH KDV EHHQ VSUHDG DOVR WR EURDGHU DSSOLFDWLRQ DUHDV VXFK DV DXWRPRWLYH WR GHYHORS ODQG YHKLFOHV
7KH PDLQ REMHFWLYH IRU LPSOHPHQWLQJ WKH ZDVKRXW DOJRULWKP LV WR XVH WKH PRWLRQ V\VWHP DV EHVW DV SRVVLEOH WR UHVWLWXWH D JRRG SHUFHSWLRQ RI GULYLQJ VLWXDWLRQ IURP XVHUெV SRLQW RI YLHZ )LJXUH VKRZV WKH ZRUNLQJ VFKHPH RI WKH FODVVLFDO DOJRULWKP ZKLFK ZDV GHYHORSHG IRU RXU ZRUN IRU '2) LW FRQVLVWV RI WKH ODWHUDO DQG YHUWLFDO G\QDPLFV DQG WKH FRUUHVSRQGLQJ LQFOLQDWLRQV WLOWV DV ZHOO DV WKH ORQJLWXGLQDO VKRZQLQ)LJXUH )LJXUH6FKHPDWLFRIWKHFODVVLFDOZDVKRXWDOJRULWKP 02'(//,1*2)$'$37,9($/*25,7+0
3DUULVK DQG DO >@ SURYLGHG PRWLRQ FXHV ZKLFK FDQ EH VHHQ DV D FODVVLFDO RQH ZKHUH SDUDPHWHUV DUH YDULDEOH DQG FDOFXODWHGDWHDFKVWHSRIVLPXODWLRQWLPH
9DULRXVVFKHPHVZHUHSURSRVHGWRLPSURYHWKHVWDELOLW\RI DOJRULWKP >@ $ULHO DQG 6LYDQ >@ LQFOXGH WKH YHVWLEXODU V\VWHP IRU WKH ODWHUDO IDOVH FXHV UHGXFWLRQ ,W LV EDVHG RQ WKH PLQLPL]DWLRQ RI D FRVW IXQFWLRQ FRQWDLQLQJ WKH DFFHOHUDWLRQ HUURU DQG FRQVWUDLQWV RQ WKH SODWIRUP GLVSODFHPHQW 7KH DGDSWDWLRQLVFDUULHGRXWXVLQJWKHÄ6WHHSHVW'HVFHQW0HWKRGெWR UHVROYH WKH VHQVLWLYLW\ HTXDWLRQV > @ 7KH UHVXOWLQJ ILOWHU LV WKHQ QRQOLQHDU 7KH RSHUDWLQJ VFKHPH RI WKDW DGDSWLYH PRWLRQ FXHLQJDOJRULWKPKDVEHHQJLYHQEHORZLQ)LJXUH )LJXUH6FKHPDWLFRIWKHDGDSWLYHZDVKRXWDOJRULWKP 7KHILOWHUHTXDWLRQLVJLYHQE\ SI SI YHK SI
.
[
D
[
E
[
[
YHK[
9LUWXDOYHKLFOHDFFHOHUDWLRQ SI[
3ODWIRUPDFFHOHUDWLRQ SI[
3ODWIRUPYHORFLW\ SI[
3ODWIRUPSRVLWLRQ.
D
DQGE
DUHWKHSDUDPHWHUVRIWKHZDVKRXWILOWHU7R FRQWURO WKH SODWIRUP PRWLRQ EDVHG RQ WKH DGDSWLYH ZDVKRXWDOJRULWKPWKHFRVWIXQFWLRQWREH PLQLPL]HGLV JLYHQ LQHTXDWLRQ
>
@
L L SL V S V Y V YHK D [ [ [ [ 3 3 - Z
Z
Z
Z
ZKHUH
Z
L DUH ZHLJKWLQJ FRHIILFLHQWV3
L ZLWKL
DUH DGDSWLYHSDUDPHWHUVDQG3
LL DUHLWVLQLWLDOYDOXHV 2SWLPL]DWLRQLVUHDOL]HGE\WKHVWHHSHVWGHVFHQWPHWKRGDV IROORZLQJV L L L3
-3
w
w
J
&RS\ULJKWE\$60( 2QFH WKH ZHLJKWLQJ RI WKH IXQFWLRQ FRVW
Z
L DQG LQLWLDOFRQGLWLRQV
3
L DUH GHWHUPLQHG WKH UHVROXWLRQ RI VHQVLWLYLW\ HTXDWLRQHQDEOHVWKHGHWHUPLQDWLRQRIDFFHOHUDWLRQDQGSRVLWLRQ VLJQDOVWRGULYHWKHSODWIRUP2QH SUREOHP RI WKLV DOJRULWKP LV WKH VWDELOLW\ RI WKH JUDGLHQW GHVFHQW PHWKRG 7KLV LV UHODWHG VWURQJO\ ZLWK WKH SDUDPHWHUV RI DGDSWDWLRQ ZKLFK GHILQH WKH FRQYHUJHQFH VSHHG RIDOJRULWKP
)LJXUH SRLQWV RXW WKH VLPXODWLRQ UHVXOWV RI DGDSWLYH DQG FODVVLFDOZDVKRXWDOJRULWKPVUHVSRQVHVWRJHWKHUWRDVWHSLQSXW IRU ORQJLWXGLQDO DFFHOHUDWLRQ RI PV ZLWK GXUDWLRQ RI VHFRQGVIRUD'2)V\VWHP DFFHOHUDWLRQ>PVð@ YHKLFOH DGDSWLYHZDVKRXWDOJRULWKP FODVVLFDOZDVKRXWDOJRULWKP YHORFLW\>PV@ DGDSWLYHZDVKRXWDOJRULWKP FODVVLFDOZDVKRXWDOJRULWKP WLPH>V@ SRVLWLRQ>P@ DGDSWLYHZDVKRXWDOJRULWKP FODVVLFDOZDVKRXWDOJRULWKP )LJXUH&ODVVLFDODQGDGDSWLYHZDVKRXWDOJRULWKPFRPSDULVRQRI DVWHSLQSXWIRU'2) 9(+,&/( 6<67(0 '<1$0,&6 (0%('',1* ,1 '5,9,1*6,08/$725
'ULYLQJ VLPXODWRUV QRZDGD\V ILQG DSSOLFDWLRQ DUHDV LQWHQVLYHO\ DW ERWK UHVHDUFK DQG SURGXFWLRQ EHFDXVH RI WKHLU FDSDELOLW\ WR RIIHU D UHDOLVWLF HQYLURQPHQW IRU WKH GULYHU ,Q )LJXUHD0DQ,QWKH/RRS 0,/ V\VWHPKDVEHHQLQGLFDWHG WKDWKDGEHHQXWLOL]HGIRUWKHVHDWWHPSWV )LJXUH1HWZRUNLQJRIG\QDPLFVLPXODWRU 7KHRSHUDWLQJVWUXFWXUHRIWKHG\QDPLFVLPXODWRUJLYHQLQ )LJXUHLVPDGHXSRIILYHPDLQFRPSRQHQWV 0DVWHU&RPSXWHU 6XSHUYLVLRQ &66,08 0RWLRQ&RQWURO&RPSXWHU 3&022* 'ULYLQJ6LPXODWRU 9LHZ&RPSXWHUV VODYH3&V &66,08&66,08 &66,08 9LGHRSURMHFWRUVIRUWKHOHIWFHQWUHDQGULJKWYLVXDOV )LJXUH&RQQHFWLRQRIWKH3&VRIWKHVLPXODWRU
$V VHHQ LQ )LJXUH +RVW PDVWHU FRPSXWHU FRQWDLQV YHKLFOH W\SHV GULYLQJ PDQHXYHUV GULYLQJ HQYLURQPHQW DQLPDWRU DQG YHKLFOH G\QDPLFV ZKLFK DUH LQFOXGHG LQ 6&$1H5VWXGLR,QDGGLWLRQWRWKLVWKHKRVWKDVDFFHVVWRZRUN 3& VKRZQ DV &66,08 LQ )LJXUH IRU FRPPXQLFDWLRQ LQWHUIDFHV IRU FRQWURO GLVSOD\V DQG WR VSHFLI\ WKH YHKLFOH FRRUGLQDWHV $GGLWLRQDOO\LWLQFOXGHVLQWHUIDFHVIRUWKHGULYLQJVLPXODWRU IRU*DV%UDNHSHGDOV$QDORJ,2DQGIRUVWHHULQJZKHHO&$1 %XV,QWHUIDFHDQGDOVR6RXQGLQWHUIDFHIRUWKHVRXQGV\VWHP
5 Copyright © 2011 by ASME Motion control computer (PC MOOG in Figure 6) is the
element to control the position and orientation of the Stewart platform. Kinematics and dynamics of the platform are manipulated by PC MOOG. This component accomplishes motion algorithms and washout as well as position velocity acceleration (PVA) transformations.
Driving simulator is constituted of four elements and the driver in the loop:
1- Control system: Steering wheel, gas pedal, brake pedal (haptic cues)
2- Sound system (acoustic cues)
3- Motion system: Hexapod platform (inertial cues) 4- View system: 3 channel animator view in the driver‟s
cabin.(visual cues)
5- Driver (proprio-perceptive,vestibular system)
TESTS ON DRIVING SIMULATOR
In this study, the simulator sickness has been evaluated objectively and subjectively on driver in the dynamic driving simulator SAAM in function of three different motion platform algorithms. The SAAM simulator has been designed and developed by Arts et Métiers ParisTech and RENAULT. For the objective evaluation, we used the data acquisition from the SCANeRstudio® to collect the data related to commands (steering wheel angle, accelerator, brake pedal force, etc.), dynamics (vehicle dynamics data), engine, motion platform (position in X, Y and Z axis and the angles around X, Y and Z axis). The Table 1 gives the capabilities of the driving simulator SAAM we used.
Table 1: Software limits for each degree of freedom (DOF) of the
dynamic simulator SAAM [MOOG FCS User Manual]
DOF Displacement Velocity Acceleration Pitch ±22 deg ±30 deg/s ±500 deg/s2
Roll ±21 deg ±30 deg/s ±500 deg/s2
Yaw ±22 deg ±40 deg/s ±400 deg/s2
Heave ±0.18 m ±0.30 m/s ±0.5 G
Surge ±0.25 m ±0.5 m/s ±0.6 G
Sway ±0.25 m ±0.5 m/s ±0.6 G
The subjects were asked to drive the three different washout algorithms on the dynamic driving simulator SAAM (Figure 1) at the same scenario of Country Road of SCANeRstudio® OKTAL (Figure 8 and 9) with a constant driving velocity of v= 70 km/h. 7 subjects participated to the experiment. In addition, they had a familiarization drive before each session to avoid misevaluation and to help them assess as objective as possible.
During the testing phase, they drove three times for each motion algorithm. After each attempt they were asked to fill in the regarding questionnaire for the subjective rating of the “simulator sickness” and to evaluate the “simulator fidelity” respectively. Besides, at each essay, the data recorded with the default value of SCANeRstudio® software for sampling period of 0.1 s. [OKTAL SCANeRstudio User Manual]
Figure 8. Country scenario OKTAL SCANeRstudio [OKTAL SCANeRstudio User Manual]
Figure 9. Conducted route [OKTAL SCANeRstudio User Manual]
To rate the simulator sickness, the “simulator sickness questionnaire (SSQ)” (Kennedy 1993), “motion sickness questionnaire (MSQ)” (Kennedy 1992), “biofeedback methods (BFM)” are commonly applied with some other approaches like “motion sickness dose value (MSDV)” (ISO 2631-1, 1997) (Griffin 1990).
OBJECTIVE EVALUATION
Objective evaluation refers to an assessment method for the driving simulator applications of which the measured data such as the effective roll, pitch, yaw angles of the hexapod
6 Copyright © 2011 by ASME motion platform; positions of the motion platform ; the
dynamics data of the vehicle model, etc. are considered. Table 2 indicates the experimental conditions of the moving base simulator experiments.
Table 2: Conditions of the moving base simulator experiments
Figure 10. Effective roll angle of the motion platform at different motion drive algorithms
Figure 11. Effective pitch angle of the motion platform at different motion drive algorithms

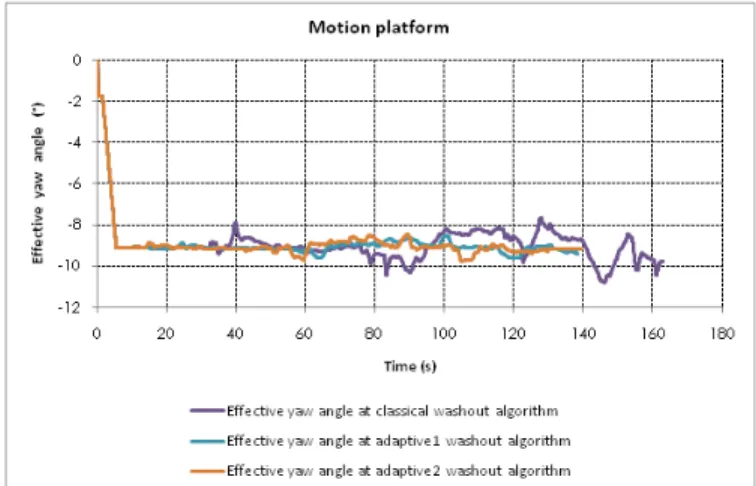

Figure 12. Effective yaw angle of the motion platform at different motion drive algorithms
The results from the motion platform (Figure 10, 11 and 12) point out that by increasing the travel scale for longitudinal, lateral and vertical axis of the hexapod; the oscillations of the associated rotation are being more smoothed. It means that the greater the travel scale factor on the adaptive washout algorithms commanded platform dynamics is, the less the undulations will occur.
EFFECT OF THE DRIVER AS A CLOSED LOOP CONTROL
As we discussed above, the subject participating in the experimentation is also a secondary closed loop controller in addition to washout algorithm. In fact, the subject can also be considered as a primary control (we have investigated the primary control as open loop „classical washout‟ and as closed loop „adaptive washout‟ in this paper).
The lateral position difference of those which have been obtained from the driving simulator („driver + washout algorithm‟ as controller, see blue curve below) and the simulation („washout algorithm‟ as controller, see red curve below) results figure out that, even the same scenario with the same washout has been realized, the results have differed to each other which emphasizes the factor of the „driver behavior‟ that is probably the most difficult part to model, estimate and/or simulate to capture a better fidelity for driving simulator research and development phases.
0 20 40 60 80 100 120 140 160 180 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2 Time (s) La te ra l p os iti on (m )
Effect of the Driver as a "Closed Loop Control (Man in the Loop - MIL)" at Classical Washout Algorithm
Lateral position during the Simulator Tests Lateral position during the Simulation
Figure 13. Driver’s influence as a second closed loop controller Classical Washout Algorithm Adaptive Washout Algorithm (adaptive1, scale factor: 0.2) Adaptive Washout Algorithm (adaptive2, scale factor: 1.0) Velocity Travel Scale factor Velocity Travel Scale factor Velocity 70 km/h 0.2 70 km/h 1.0 70 km/h
&RS\ULJKWE\$60( 2%-(&7,9$7,212)68%-(&7,9((9$/8$7,21
µ027,216,&.1(66'26(9$/8(¶
³0RWLRQ 6LFNQHVV 'RVH 9DOXH´ LV D PHWKRG IRU WKH REMHFWLILFDWLRQRIVXEMHFWLYHHYDOXDWLRQZKLFKKDVEHHQGHILQHG LQ DFFRUGDQFH RI ,62 *ULIILQ ZKLFK ZH SURSRVHGDOVRLQWKLVVWXG\IRUWKHVDPHSXUSRVH,QWKLVZRUN ZHSURSRVHWRXVHWKLVHYDOXDWLRQPHWKRGDQGXVHWKHIROORZLQJ IXQFWLRQWRHYDOXDWHWKHPRWLRQVLFNQHVVGRVHYDOXH
»¼
º
«¬
ª
»
¼
º
«
¬
ª
³
W
GW
P
V
D
06'9
W ]ZI ] ]06'9
0RWLRQ VLFNQHVV GRVH YDOXH IRU YHUWLFDO G\QDPLFV ,62 >PV@ ]ZID
ZHLJKWHGYHUWLFDODFFHOHUDWLRQ>PV@ 7KH HTXDWLRQ DERYH SRLQWV RXW WKH YHUWLFDO G\QDPLFV UHODWHGWRÄPRWLRQVLFNQHVVGRVHYDOXHெ :LWKWKLVDQDORJ\WKH06'9FDQEHH[SDQGHGIRUUROODQG ODWHUDO DFFHOHUDWLRQ WR DVVHVV WKH PRWLRQ VLFNQHVV GRVH YDOXH VRXUFLQJIURPWKHUROODQGODWHUDOG\QDPLFVZLWKLQWKHG\QDPLF GULYLQJVLPXODWRUV
,OOQHVV 5DWLQJ ,5 GHGXFHG IURP 06'9 LV WKH IROORZLQJ IXQFWLRQ ]
06'9
,5
$FFRUGLQJWRWKH\LHOGHGUHVXOWVWKHVXEMHFWLVSURQHWREH GHILQHG LQ WHUPV RI KLVKHU LOOQHVV VFRUHV DV ³´ DV IROORZV ,IHOWJRRG ,IHOWDPLOGLOOQHVV ,IHOWYHU\EDG ,IHOWDEVROXWHO\WHUULEOH 237,0,=$7,212)6,08/$7256,&.1(66 7RSUHYHQWDQGRUDYRLGWKHVLPXODWRUVLFNQHVVDPHWKRGLV SURSRVHGLOOXVWUDWHGLQ)LJXUH$FFRUGLQJ WR WKH VLFNQHVV UHGXFWLRQ ORJLF 65/ WKUHH GLIIHUHQWZDVKRXWDOJRULWKPV FODVVLFDODGDSWLYHDGDSWLYH ZHUH HPEHGGHG LQ WKH GULYLQJ VLPXODWLRQ VRIWZDUH 6&$1H5VWXGLRRI2.7$/DVÄGOOSOXJLQெZKLFKLVDOVRFDSDEOH RI FRQILJXULQJ DV ZHOO DV FKDQJLQJ WKH PRWLRQ FXHLQJ VWUDWHJ\ H[WHUQDOO\ )LJXUH3URSRVHGSURFHGXUHWRUHGXFHWKHVLFNQHVVRQVLPXODWRU 6LFNQHVV5HGXFWLRQ/RJLF65/ ; < 7LPH V ,OOQH VV5D WL Q J ,5 IR U OD WH UD O D [ LV ; < ; < ; < ; < ; < ; < ; < ; < ; < ,OOQHVV5DWLQJDW&ODVVLFDO$OJRULWKP ,OOQHVV5DWLQJDW$GDSWLYH$OJRULWKP )LJXUH,OOQHVVUDWLQJUHODWHGZLWKODWHUDOG\QDPLFVE\9[ NPKDWGLIIHUHQWZDVKRXWDOJRULWKPV 7DEOH 3HDN9DOXHVRI,5E\PHDQVRIPRWLRQGULYHDOJRULWKPV 3HDNYDOXHVE\FODVVLFDOZDVKRXWDOJRULWKP (YDOXDWLRQVWHSV SRLQW SRLQW SRLQW SRLQW SRLQW 7LPH V ,OOQHVV 5DWLQJ SHU ODWHUDO D[LV < D[LV 3HDNYDOXHVE\DGDSWLYHZDVKRXWDOJRULWKP (YDOXDWLRQVWHSV SRLQW SRLQW SRLQW SRLQW SRLQW 7LPH V ,OOQHVV 5DWLQJ SHU ODWHUDO D[LV < D[LV 7DEOH 2SWLPL]DWLRQRI,5E\PHDQVRIPRWLRQGULYHDOJRULWKPV 2SWLPL]DWLRQRILOOQHVVE\VWHSV (YDOXDWLRQ VWHSV SRLQW SRLQW SRLQW SRLQW SRLQW 3HUFHQWDJH RI RSWLPL]DWLRQ § § § § §
&RS\ULJKWE\$60( 7DEOH VKRZV UHVXOWV RI HYDOXDWLRQ RI WHVW GDWD WKDW KDYH
EHHQ FRQGXFWHG RQ &RXQWU\ URDG VFHQDULR ZLWK FODVVLFDO DQG DGDSWLYHZDVKRXWDOJRULWKPV7KHWHVWVZHUHGRQHDWNPK
)LYH SRLQWV ZHUH WDNHQ LQWR DFFRXQW WR FRPSDUH WKH EHKDYLRU RI WKH ODWHUDO G\QDPLFV RI WKH 6WHZDUW SODWIRUP DQG GLVFXVVWKHHIIHFWRIHDFK7KHYDOXHVRIGLVHDVHUDWLQJVIRUHDFK ZHUHVHOHFWHGLQ)LJXUH
7KH RSWLPL]DWLRQ RI VLPXODWRU VLFNQHVV ZDV SURYLGHG DW WKHVH ILYH SRLQWV E\ FRQYHUWLQJ WKH FRQWURO DOJRULWKP RI WKH SODWIRUP LQVWHDG RI FRQYHQWLRQDO DOJRULWKP XVLQJ DGDSWLYH DOJRULWKPKDVDQLPSURYHPHQWRIDERXW DQGUHVSHFWLYHO\
68%-(&7,9((9$/8$7,217(676
7KHGULYLQJDWWHPSWVZHUHDFFRPSOLVKHGRQ6$$0GULYLQJ VLPXODWRU ORFDWHG DW ,QVWLWXWH ,PDJH$UWV HW 0pWLHUV 3DULV7HFK LQ&KDORQVXU6D{QH7KH)LJXUHVKRZVWKHVXEMHFWVDJHDQG GULYLQJH[SHULHQFHGHVFULSWLYHVWDWLVWLFV
5HODWLQJ WR WKLV VXEMHFWLYH DVVHVVPHQW RI WKH VLPXODWRU VLFNQHVV WKH GULYLQJ VLPXODWLRQ H[SHULPHQW XVHG D '2) GHJUHH RI IUHHGRP PRWLRQ V\VWHP PDGH XS RI WKH KH[DSRG V\VWHP 6WHZDUW SODWIRUP 7KH VXEMHFWLYH HYDOXDWLRQ WHVWV JLYHQ LQ 7DEOH KDYH EHHQ UHDOL]HG ZLWK WHVW SHRSOH DJHG EHWZHHQ DQG \HDUV ROG DQG DW OHDVW \HDUV RI GULYLQJ H[SHULHQFH7KHWHVWVZHUHDFFRPSOLVKHGLQGLIIHUHQWFRQGLWLRQV ZLWK&RXQWU\5RDG6FHQDULR DWFRQVWDQWGULYLQJYHORFLW\ Y NPK &ODVVLFDOZDVKRXWDOJRULWKP $GDSWLYHZDVKRXWDOJRULWKP $GDSWLYHZDVKRXWDOJRULWKP )LJXUH$JHVDQGGULYLQJH[SHULHQFHRIWKHVXEMHFWV
,Q RUGHU WR DVVHVV WKH GULYLQJ VLPXODWRU WHVWV VXEMHFWLYHO\ RQ EHKDOI RI VLPXODWRU VLFNQHVV D VLPXODWRU VLFNQHVV TXHVWLRQQDLUH ZKLFK FRQVLVWV RI WZHOYH TXHVWLRQV QRWHV WRR OLWWOH Æ WRR VWURQJ ZDV SURSRVHG WR HDFK SDUWLFLSDQW WR KDYH DQ RSLQLRQ DERXW WKH LQIOXHQFH RI GLIIHUHQW PRWLRQ
ZDVKRXWDOJRULWKPVRQVLPXODWRUVLFNQHVV)LJXUHVKRZVWKH PHDQ YDOXH IRU WKH VXEMHFWLYH UDWLQJ RI WKH VLFNQHVV ZKHUHDV WKH)LJXUH DQGLPSO\WKHVWDWLVWLFDOO\SRVWSURFHVVHG VLFNQHVVYDOXHVZLWKFRQILGHQFHLQWHUYDORI $FFRUGLQJWR )LJXUHWKHPHDQVRIWKHUDWLQJIRUDGDSWLYHDQGDGDSWLYH DOJRULWKPV ZHUH DFTXDLQWHG OHVV WKDQ WKRVH ZKLFK ZHUH REWDLQHGIRUWKHFODVVLFDODOJRULWKPDVH[SHFWHG +RZHYHUIRU VRPHTXHVWLRQVWKHGLIIHUHQFHLVYHU\ZHDN,QRUGHUWRFRPHXS WR D FRQFOXVLRQ DQG WR PDNH D VWURQJHU VWDWHPHQW DW WKRVH SRLQWVLWZRXOGEHDGYDQWDJHRXVWRHYDOXDWHDOVRWKHVXEMHFWLYH UDWLQJ RI WKH G\QDPLFV VLPXODWRU ILGHOLW\ TXHVWLRQQDLUH 7DEOH RIWKHG\QDPLFGULYLQJVLPXODWRUVLPXOWDQHRXVO\ )LJXUH2SHUDWLQJRIWKHG\QDPLFGULYLQJVLPXODWRU6$$0 7DEOH *HQHUDOLQIRUPDWLRQDERXWWKHSDUWLFLSDWHGVXEMHFWV $JH EHWZHHQ\HDUVROG 'ULYLQJH[SHULHQFH EHWZHHQ\HDUVROG &ODVVRIGULYLQJOLFHQFH FODVV$ FODVV% (DUOLHUH[SHULHQFHZLWKVWDWLF VLPXODWRU \HV QR (DUOLHUH[SHULHQFHZLWK G\QDPLFVLPXODWRU \HV QR 7KHTXHVWLRQVFRQFHUQLQJWKHVLPXODWRUVLFNQHVVWKDWZHUH DVNHG MXVW DIWHU FRPSOHWLRQ RI HDFK HVVD\ DUH WKH IROORZLQJ RQHV 4+DYH\RXYRPLWHG" 4'LG\RXIHHOQDXVHD" 4+DYH\RXKDGDFROGVZHDW" 4'LG\RXIHHOGL]]\" 4'LG\RXIHHOH\HVWUDLQ" 4'LG\RXKDYHH\HVWURXEOH" 4+DYH\RXKDGKHDGDFKHV" 4'LG\RXIHHOPHQWDOSUHVVXUH" 4 'LG\RXIHDU" 4:HUH\RXERUHG" 4:HUH\RXWLUHG" 4'LG\RXIHHODQ[LHW\ XQHDVLQHVV "
&RS\ULJKWE\$60( )LJXUH6XEMHFWLYHHYDOXDWLRQRIWKHGLIIHUHQWZDVKRXW DOJRULWKPVLQWHUPVRIVLPXODWLRQVLFNQHVVDVPHDQYDOXH )LJXUH 6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRIVLPXODWLRQVLFNQHVVDWFODVVLFDOZDVKRXWDOJRULWKPZLWK FRQILGHQFHLQWHUYDO )LJXUH6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRIVLPXODWLRQVLFNQHVVDWDGDSWLYHZDVKRXWDOJRULWKPZLWK FRQILGHQFHLQWHUYDO )LJXUH6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRIVLPXODWLRQVLFNQHVVDWDGDSWLYHZDVKRXWDOJRULWKPZLWK FRQILGHQFHLQWHUYDO
7KH TXHVWLRQV FRQFHUQLQJ WKH VXEMHFWLYH HYDOXDWLRQ RI WKH 6LPXODWRU)LGHOLW\ 6) WKDWZHUHDVNHGMXVWDIWHUFRPSOHWLRQRI HDFKHVVD\DUHWKHIROORZLQJRQHV 4±+RZGR\RXHYDOXDWHWKHYLVXDOLQIRUPDWLRQ" 4±+RZGR\RXHYDOXDWHWKHDFFHOHUDWLRQLQIRUPDWLRQ" 4±+RZGR\RXHYDOXDWHWKHVWHHULQJIHHOLQJ" 4±+RZGR\RXHYDOXDWHWKHEUDNLQJLQIRUPDWLRQ" 4±+RZGR\RXHYDOXDWHWKHUROOPRWLRQ" 4+RZGR\RXHYDOXDWHWKHSLWFKPRWLRQ" 4±+RZGR\RXHYDOXDWHWKHLPSUHVVLRQRIÄJRDKHDGெ" 4+RZGR\RXHYDOXDWHWKHLPSUHVVLRQRQFXUYDWXUH" 4 ±+RZGR\RXHYDOXDWHWKHVLPXODWRUILGHOLW\DVZKROH" 7DEOH 1RWHVIRUWKH6XEMHFWLYH(YDOXDWLRQRI6) 4 YHU\EDGÆ YHU\JRRG 4 YHU\EDGÆ YHU\JRRG 4 YHU\XQSOHDVDQWÆ YHU\SOHDVDQW 4 YHU\EDGÆ YHU\JRRG 4 WRROLWWOHÆ WRRVWURQJ 4 WRROLWWOHÆ WRRVWURQJ 4 YHU\EDGÆ YHU\JRRG 4 YHU\EDGÆ YHU\JRRG 4 YHU\EDGÆ YHU\JRRG )LJXUH6XEMHFWLYHHYDOXDWLRQRIWKHGLIIHUHQWZDVKRXW DOJRULWKPVLQWHUPVRI6)DVPHDQYDOXH )LJXUH6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRI6)DWFODVVLFDOZDVKRXWDOJRULWKPZLWKFRQILGHQFH LQWHUYDO
&RS\ULJKWE\$60( )LJXUH6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRI6)DWDGDSWLYHZDVKRXWDOJRULWKPZLWKFRQILGHQFH LQWHUYDO )LJXUH6WDWLVWLFDOGLVWULEXWLRQRI6XEMHFWLYHHYDOXDWLRQE\ PHDQVRI6)DWDGDSWLYHZDVKRXWDOJRULWKPZLWKFRQILGHQFH LQWHUYDO &21&/86,21$1')8785(:25.6
$IWHU WKH UHVHDUFK DQG LPSOHPHQWDWLRQ VWDJH ZLWKLQ WKH PRYLQJ EDVH GULYLQJ VLPXODWRU 6$$0 WKH XVH RI DQ DGDSWLYH ZDVKRXWDOJRULWKP KDVSURYLGHGDUHGXFHG06'9,WKDVEHHQ REWDLQHG ZLWK WKH KHOS RI WKH FRUUHFWLRQ HIIHFW RI WKH FORVHG ORRS DGDSWLYH ZDVKRXW DOJRULWKP ZLWK UHVSHFW WR WKH FODVVLFDO DOJRULWKP ZKLFK LV DQ RSHQ ORRS RQH VHH )LJXUH 7DEOH DQG 0RUH WKHVH JRRG UHVXOWV KDYH EHHQ REWDLQHG ZLWK WKH VDPH VXEMHFWLYH ILGHOLW\ EHWZHHQ WKH WKUHH HYDOXDWHG DOJRULWKPV
$FFRUGLQJ WR 4 LQ WKH VLPXODWRU VLFNQHVV WHVW E\ WKH DGDSWLYH DOJRULWKP WKH VXEMHFWV UHDFWHG OHVV VWUHVVIXOO\ FROG VZHDW WRWKHFRQGLWLRQVZKHUHDVWKH\EHKDYHGPRUHVWUHVVIXOO\ LQ WKH FRQGLWLRQV RI WKH FODVVLFDO DOJRULWKP 5HJDUGLQJ WKH YLVXDO VLFNQHVV 4 4 RI WKH SDUWLFLSDQWV WKH DGDSWLYH DOJRULWKPSUHVHQWVWKHPRVWUHDVRQDEOHVLWXDWLRQ
$OVR FRQFHUQLQJ WKH PHQWDO SUHVVXUH WKH VWDWLVWLFDO GLVWULEXWLRQ SRLQWV RXW DQ DJUHHDEOH H[SHULHQFH IRU DGDSWLYH DOJRULWKP FRPSDUHG WR WKH RWKHUV 6HH )LJXUHV DQG %DVHGXSRQWKHÄVLPXODWRUILGHOLW\DVVHVVPHQWெ VHH)LJXUH DQG WKHPRVWUHDOLVWLFDFFHOHUDWLRQZDVSHUFHLYHG
E\ DGDSWLYH DOJRULWKP ZKHUH WKH PRVW XQSOHDVDQW VWHHULQJ ZDV FRLQFLGHG E\ FODVVLFDO ZKHUHDV WKH PRVW DJUHHDEOH FRQGLWLRQ ZDV H[SHULHQFHG E\ DGDSWLYH DOJRULWKPV IRU SHUFHSWLRQ RI WKH SLWFK PRWLRQ VHYHULW\ 7KH SHUFHSWLRQ RQ FXUYDWXUH ZDV HYDOXDWHG WKH PRVW GLVDJUHHDEO\ GXULQJ WKH DWWHPSWVZLWKFODVVLFDOZDVKRXWDOJRULWKPV
$V D FRQFOXVLRQ FORVHG ORRS FRQWURO RI WKH SODWIRUP FDQ UHGXFH HIIHFW RQ VLPXODWRU VLFNQHVV )RU IXWXUH ZRUN ZH ZLOO HYDOXDWH WKH VLPXODWLRQ VLFNQHVV ZLWK GLIIHUHQW VFHQDULRV OLNH GRXEOHODQHFKDQJHPDQHXYHUVZLWKGLIIHUHQWFRQWUROOHUV6XFK WHVWV ZRXOG EH LQWHUHVWHG EHFDXVH RI LWV KLJK G\QDPLF FKDUDFWHULVWLFV LQVWDWLRQDU\ EHKDYLRU 7KH HYDOXDWLRQV ZHUH GRQHZLWKVXEMHFWV,QRXUIXWXUHZRUNVZHZDQWWRLPSURYH WKH REWDLQHG UHVXOWV ZLWK PRUH VXEMHFWV $QRWKHU SDUW RI RXU ZRUNZLOOEHIRFXVHGLQWKHREMHFWLYHHYDOXDWLRQRQWKHVXEMHFW LQRUGHUWRHYDOXDWHVLPXODWLRQVLFNQHVV)RUWKDWZHLQWHQGWR PDNH VRPH SK\VLRORJLFDO PHDVXUHPHQWV KHDUW SXOVH H\H PRYHPHQW HHJ ,Q SDUDOOHO WR WKHVH HYDOXDWLRQ UHVHDUFK RQ VLPXODWLRQVLFNQHVVZHZRUNRQWHFKQRORJLHVIRUUHGXFLQJWKH VLPXODWLRQ VLFNQHVV LPSURYHPHQW RI ' VRXQG FRXSOHG ZLWK LPDJH YLEUDWLRQV RQ WKH VHDW DV ZHOO DV VWXGLHV UHODWLYH WR VLPXODWLRQVLFNQHVVLQVWDWLFVLPXODWRU IRUORZFRVWV\VWHPV
5()(5(1&(6
6WHZDUW ' $ SODWIRUP ZLWK VL[ GHJUHHV RI IUHHGRP 3URF ,QVW 0HFK (QJ 9RO SDUW, SS
.RODVLQVNL ( 0 Ä6LPXODWRU 6LFNQHVV LQ 9LUWXDO (QYLURQPHQWVெ $UP\ 3URMHFW 1XPEHU 2$ (GXFDWLRQDQG7UDLQLQJ7HFKQRORJ\0D\
)&6 0RWLRQ &XHLQJ 0RGHO 3UHVHQWDWLRQ )&6 &RQWURO 6\VWHPV6HSWHPEHU
3DUULVK 59 'LHXGRQQH -( %RZOHV 5/ DQG 0DUWLQ '- ³&RRUGLQDWHG $GDSWLYH :DVKRXW IRU 0RWLRQ 6LPXODWRUV´ -RXUQDO RI $LUFUDIW 9RO 1R -DQXDU\ SS
3DUULVK59 0DUWLQ'-³&RPSDULVRQRIDOLQHDUDQG D QRQ OLQHDU ZDVKRXW IRU PRWLRQ VLPXODWRU XWLOL]LQJ REMHFWLYH DQG VXEMHFWLYH GDWD IURP WUDQVSRUW ODQGLQJ DSSURDFK´7HFK5HS1$6$
,RDQQRX 3$ DQG 6XQ - Ä5REXVW DGDSWLYH FRQWURO¶
3UHQWLFH+DOO,QF
$ULHO ' DQG 6LYDQ5 ³)DOVH &XH 5HGXFWLRQ LQ 0RYLQJ )OLJKW 6LPXODWRUV´ ,((( 7UDQVDFWLRQV RQ 6\VWHPV 0DQ
DQG&\EHUQHWLFVYROQRSS
1HKDRXD / $ULRXL + (VSLp 6 DQG 0RKHOOHEL + ³0RWLRQ&XHLQJ$OJRULWKPVIRU6PDOO'ULYLQJ6LPXODWRU´ ,((( ,QWHUQDWLRQDO &RQIHUHQFH LQ 5RERWLFV DQG $XWRPDWLRQ ,&5$ 2UODQGR)ORULGD
6LYDQ 5 ,VKVKDORP - DQG +XDQJ - ³$Q RSWLPDO FRQWURO DSSURDFK WR WKH GHVLJQ RI PRYLQJ IOLJKW VLPXODWRUV´ ,((( 7UDQVDFWLRQV RQ 6\VWHPV0DQ DQG
11 Copyright © 2011 by ASME 10. Cardullo,F.; Telban,R. and Houck,J., “Motion cueing
algorithms: A human centered approach,” in 5th International Symposium on Aeronautical Sciences, Zhukovsky, Russia, 1999.
11. Telban, R. and Cardullo,F, “A nonlinear human centred approach to motion cueing with neurocomputing solver,” in AIAA Modeling and Simulation Technologies Conference and exhibit, Monterey, California, Aug. 2002. 12. Colombet, F. [et al.] Motion cueing strategies for driving
simulators WINVR 09. Conference - 2009.
13. Curry, R.; Artz, B.; Cathey L.; Grant, P. & Greenberg, J., “Kennedy SSQ results: fixed- vs motion-based FORD simulators”, Proceedings of Driving Simulation Conference 2002, 289-300.
14. Dagdelen M [et al.] Validation process of the ULTIMATE high-performance driving simulator [Conférence] Proceedings of the Driving Simulation Conference. - 2006. - pp. 37-48.
15. Siegler, I., Reymond,G, Kemeny, A. & Berthoz,A.,“Sensorimotor integration in a driving simulator: contributions of motion cueing in elementary driving tasks”, Proceedings of Driving Simulation Conference 2001, pp 21-32.
16. Aykent B., Tomaske, W., Meywerk, M., “Objective and Subjective Evaluation of an Outrigger Construction‟ Effect on Rollover”, 21st ESV Proceedings, Stuttgart, 15-18 June 2009.
17. Zeeb, E., "Daimler‟s full-scale, high-dynamic driving simulator - A technical overview", Proceedings of
Driving Simulation Conference 2010, pp 157-165
18. Kennedy, R.S., Lane, N.E,. Berbaum, K.S and Lilienthal., M.G. "Simulator sickness questionnaire: an
enhanced method for quantifying simulator sickness", International Journal of Aviation Psychology, 3(3):203-220, 1993.
19. MOOG FCS, "Motion System 6 DOF 2000E User‟s Manual Stewart," 16 May 2008.
20. Reymond,G, Kemeny, A.: “Motion cueing in the Renault driving simulator”, Vehicle System Dynamics, 34(4), 249-259, 2000.
21. Kim, M.S. et al, “Partial range scaling method based washout algorithm for a vehicle driving simulator and its evaluation”, International Journal of Automotive Techno-logy, Vol. 11, No. 2, pp. 269−275 (2010).
22. Reid, L. and Nahon, M., “Simulator Motion-Drive algorithms: a designer's perspective”, Journal of Guidance, 13 (2): 356-362., 1988.
23. Dagdelen, M.; Reymond, G.; Kemeny, A.; Bordier, M. and Mazi, N., “MPC based motion cueing algorithm: development and application to the ultimate driving simulator,” in Driving Simulation Conference 2004, Paris, France.
24. Colombet, F; Dagdelen, M.; Reymond, G. ; Pere, C. ; Merienne, F.; Kemeny, A., “Motion Cueing: what‟s the impact on the driver‟s behaviour?”, Driving Simulation Conference 2008.
25. Griffin, M.J.,“Handbook of Human Vibration”.,Academic Press Limited, London, 1990
26. OKTAL, “User Manual SCANeR Studio Version 1.0”, 19 February 2010.
27. ISO 2631-1:1997, “Mechanical vibration and shock -- Evaluation of human exposure to whole-body vibration -- Part 1: General requirements”.
