Field and Cultured Microbialites from the Alkaline Lake
Alchichica (Mexico)
Estelle Couradeau, Karim Benzerara, David Moreira, Emmanuelle Gerard,
Jozef Kazmierczak, Rosaluz Tavera, Purificacion Lopez-Garcıa
To cite this version:
Estelle Couradeau, Karim Benzerara, David Moreira, Emmanuelle Gerard, Jozef Kazmierczak, et
al.. Prokaryotic and Eukaryotic Community Structure in Field and Cultured Microbialites from the
Alkaline Lake Alchichica (Mexico). PLoS ONE, Public Library of Science, 2012, 6 (12), pp.e28767.
�10.1371/journal.pone.0028767�. �hal-00677228�
and Cultured Microbialites from the Alkaline Lake
Alchichica (Mexico)
Estelle Couradeau1,2,3, Karim Benzerara2, David Moreira1, Emmanuelle Ge´rard3, Jo´zef Kaz´mierczak4, Rosaluz Tavera5, Purificacio´n Lo´pez-Garcı´a1*
1 Unite´ d’Ecologie, Syste´matique et Evolution, CNRS UMR 8079, Universite´ Paris-Sud, Orsay, France, 2 Institut de Mine´ralogie et de Physique des Milieux Condense´s, CNRS UMR 7590, Universite´ Pierre et Marie Curie, Paris, France,3 Institut de Physique du Globe de Paris, CNRS UMR 7154, Universite´ Paris Diderot, Paris, France, 4 Institute of Paleobiology, Polish Academy of Sciences, Warszawa, Poland,5 Departamento de Ecologı´a y Recursos Naturales, Facultad de Ciencias, Universidad Nacional Auto´noma de Me´xico, Distrito Federal, Mexico
Abstract
The geomicrobiology of crater lake microbialites remains largely unknown despite their evolutionary interest due to their resemblance to some Archaean analogs in the dominance of in situ carbonate precipitation over accretion. Here, we studied the diversity of archaea, bacteria and protists in microbialites of the alkaline Lake Alchichica from both field samples collected along a depth gradient (0–14 m depth) and long-term-maintained laboratory aquaria. Using small subunit (SSU) rRNA gene libraries and fingerprinting methods, we detected a wide diversity of bacteria and protists contrasting with a minor fraction of archaea. Oxygenic photosynthesizers were dominated by cyanobacteria, green algae and diatoms. Cyanobacterial diversity varied with depth, Oscillatoriales dominating shallow and intermediate microbialites and Pleurocapsales the deepest samples. The early-branching Gloeobacterales represented significant proportions in aquaria microbialites. Anoxygenic photosynthesizers were also diverse, comprising members of Alphaproteobacteria and Chloroflexi. Although photosynthetic microorganisms dominated in biomass, heterotrophic lineages were more diverse. We detected members of up to 21 bacterial phyla or candidate divisions, including lineages possibly involved in microbialite formation, such as sulfate-reducing Deltaproteobacteria but also Firmicutes and very diverse taxa likely able to degrade complex polymeric substances, such as Planctomycetales, Bacteroidetes and Verrucomicrobia. Heterotrophic eukaryotes were dominated by Fungi (including members of the basal Rozellida or Cryptomycota), Choanoflagellida, Nucleariida, Amoebozoa, Alveolata and Stramenopiles. The diversity and relative abundance of many eukaryotic lineages suggest an unforeseen role for protists in microbialite ecology. Many lineages from lake microbialites were successfully maintained in aquaria. Interestingly, the diversity detected in aquarium microbialites was higher than in field samples, possibly due to more stable and favorable laboratory conditions. The maintenance of highly diverse natural microbialites in laboratory aquaria holds promise to study the role of different metabolisms in the formation of these structures under controlled conditions.
Citation: Couradeau E, Benzerara K, Moreira D, Ge´rard E, Kaz´mierczak J, et al. (2011) Prokaryotic and Eukaryotic Community Structure in Field and Cultured Microbialites from the Alkaline Lake Alchichica (Mexico). PLoS ONE 6(12): e28767. doi:10.1371/journal.pone.0028767
Editor: Jack Anthony Gilbert, Argonne National Laboratory, United States of America Received September 13, 2011; Accepted November 14, 2011; Published December 14, 2011
Copyright: ß 2011 Couradeau et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Funding: This project was financed by the French Centre National de la Recherche Scientifique - CNRS Interdisciplinary program ‘‘Origines des plane`tes et de la vie’’ (PID OPV) and Institut National des Sciences de l’Univers - INSU program ‘‘InteractionsTerre/Vie’’ (InterrVie), and the Polish Ministry of Science and Higher Education grant N307019. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. Competing Interests: Purificacion Lopez-Garcia is an Academic Editor of PLoS ONE. This does not alter the authors’ adherence to all the PLoS ONE policies on sharing data and materials.
* E-mail: puri.lopez@u-psud.fr
Introduction
Microbialites are organosedimentary structures formed by microbially-mediated mineral precipitation and/or accretion [1]. Stromatolites are microbialites exhibiting a laminated macrofabric [2]. Their fossils are found throughout the geological record [3,4], the oldest being 3,43 Ga old (Pilbara Craton, Western Australia) [5]. After having dominated the Precambrian, stromatolite abundance declined steeply at the onset of the Phanerozoic [6,7]. Today, stromatolites are confined to very few marine or quasi-marine environments, such as the well-studied Shark Bay, Australia [8,9] and Exuma Sound, Bahamas [10,11]. Microbialites have also been described in alkaline lakes such as Lake Van,
Turkey [12,13], Pyramid Lake, USA [14], the Indonesian crater lakes Satonda [15,16,17] and Niuafo’ou [18], but also in the freshwater Ruidera pools [19] and the hypersaline lakes LagoVermelha, Brazil [20] and Cuatro Cie´nagas, Mexico [21].
Despite their geological and evolutionary importance, the precise stromatolite formation mechanisms remain poorly understood. It has been proposed that net carbonate precipitation results from a balance between concurrent microbial metabolisms [22]. Photo-synthesis (both oxygenic and anoxygenic) and sulfate reduction lead to local carbonate supersaturation, whereas heterotrophic metab-olisms induce carbonate dissolution [23,24,25,26]. In addition, massive cyanobacterial production of exopolymeric substances (EPS), which efficiently sequester cations such as Ca2+ or Mg2+,
can also inhibit carbonate precipitation [27]. Hence, microbialite formation most likely results from the interplay between microor-ganisms forming complex communities and their metabolic activities under the influence of environmental conditions (e.g. photoperiod, temperature) and local chemistry (ion availability).
The characterization of microbial diversity is thus crucial to further understand microbe-mineral interactions in microbialites. Most diversity studies using molecular methods have focused on marine stromatolites, where Alpha- and Gammaproteobacteria, Cyanobacteria and Planctomycetales appear to dominate [28,29,30,31,32,33,34,35]. In contrast, knowledge about lacustrine microbialites remains much sparser. Firmicutes, Gamma- and Alphaproteobacteria were the most abundant taxa in Lake Van microbialites, but these studies were carried out on 15 year-old dry samples and, hence, probably biased [13]. Recent metagenomic analysis of Cuatro Cie´nagas microbialites revealed a complex community where Cyanobacteria, Alpha- and Gammaproteobac-teria and Planctomycetales predominated, as in marine micro-bialites, identifying functions potentially linked to complex redox-dependent activities and the establishment of structured biofilms [21]. Despite these pioneering studies, the precise role in mineralization and biofilm dynamics of many bacterial taxa, but also of the much less studied eukaryotic and archaeal communi-ties, remains to be elucidated.
Understanding the role of microorganisms in stromatolite formation and the environmental conditions promoting it requires extending microbial diversity studies to other systems, including non-hypersaline or freshwater microbialites. Indeed, lacustrine microbialites may be better analogs for several Archaean stromatolites. The fossil 3.5 Ga-old Australian stromatolites likely formed in a caldera lake [36] and the exceptionally preserved 2,7 Ga-old massive stromatolites from Tumbiana also grew under lacustrine conditions [37,38,39]. The alkaline (pH,8.9) Alchi-chica crater lake in the Central Mexico Plateau is particularly interesting from this perspective. Located at 2300 m above sea level and with a maximum depth of 63 m, it harbors prominent living microbialites down to at least 14 m deep [40]. Conspicuous dry microbialites emerge on the shores due to the 3–5 m lowering of the water level in the past three decades [41]. Alchichica is a monomictic lake, i.e. stratified during most of the year, the oxygenated surface water mixing with deep anoxic water only during the winter season [42]. Hydrochemistry studies show that water is Mg-rich (Mg/Ca = 40), oversaturated with magnesium and calcium carbonates [40,43]. Accordingly, Alchichica micro-bialites are predominantly composed of hydromagnesite [Mg5(CO3)4(OH)2.4(H2O)] [40].
Classical morphological observations and preliminary molecular analyses focused on cyanobacteria suggested that Oscillatoriales and Pleurocapsales dominate these microbialites [40]. Here, we applied cultivation-independent molecular approaches to (i) characterize the diversity of microorganisms of the three domains of life, Bacteria, Archaea and Eucarya, in Alchichica microbialites along a 0–14 m depth gradient, (ii) compare the microbial community structure in lake microbialites with that of Alchichica microbialites maintained for two years under controlled laboratory conditions and (iii) identify microbial taxa potentially involved in carbonate precipitation and microbialite formation.
Results
Microbial community fingerprinting analyses of field and aquarium Alchichica microbialites
Field microbialites exhibited different colors depending on the sampling depth (Table 1). Sub-fossil microbialites at the rim of
the lake, out of the water, were predominantly white. Submerged, living microbialites close to the surface were dark brown to black, those at 6–8 m depth intensely emerald-green and those at the highest depth sampled (14 m) golden-brown (Figure 1). This suggests that the dominant associated communities and/or their photosynthetic and protective pigments vary according to light intensity. These differences in color were also visible in the samples set on the aquaria soon after collection (Figure S1), though they disappeared with time and, after one year, all microbialite fragments in aquaria showed a similar green color (Figure 2A).
To rapidly evaluate the complexity of the microbial commu-nities in these microbialites and select representative samples for in-depth analyses, we obtained bacterial denaturing gel gradient electrophoresis (DGGE) fingerprints of 13 samples from different lake depths plus samples from the two aquaria (Figure S2). Cluster analysis of DGGE profiles divided the samples in two major groups. One corresponded to shallow samples (0.5–2 m), whereas the second included deeper (3–14 m) and aquarium samples. This was consistent with the fact that the aquarium fragments analyzed (Figure S1) corresponded originally to 3 m (AQ1) and 6 m (AQ2) depth and suggested that, at least partly, the native bacterial community was maintained in culture. Fingerprints from deeper samples displayed more bands, reflecting either a higher bacterial diversity or the fact that a few phylotypes dominate surface microbialites, masking minor components. The identity of some dominant and characteristic bands was investigated subsequently. Based on DGGE profiles, we selected the three samples AL31 (0.5 m), AL67 (4 m) and AL52 (14 m), which displayed charac-teristic profiles and grouped in different clusters (Figure S2). More importantly, they were well distributed along the depth gradient and represented three phenotypic types in terms of color (Figure 1).

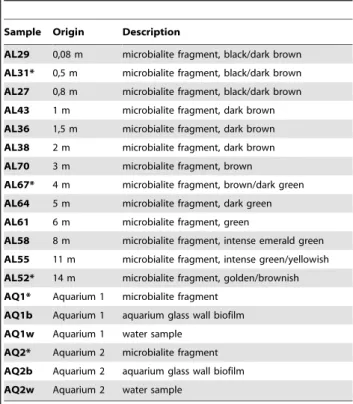

Table 1. Alchichica samples analyzed in this study.
Sample Origin Description
AL29 0,08 m microbialite fragment, black/dark brown AL31* 0,5 m microbialite fragment, black/dark brown AL27 0,8 m microbialite fragment, black/dark brown AL43 1 m microbialite fragment, dark brown AL36 1,5 m microbialite fragment, dark brown AL38 2 m microbialite fragment, dark brown AL70 3 m microbialite fragment, brown
AL67* 4 m microbialite fragment, brown/dark green AL64 5 m microbialite fragment, dark green AL61 6 m microbialite fragment, green
AL58 8 m microbialite fragment, intense emerald green AL55 11 m microbialite fragment, intense green/yellowish AL52* 14 m microbialite fragment, golden/brownish AQ1* Aquarium 1 microbialite fragment
AQ1b Aquarium 1 aquarium glass wall biofilm AQ1w Aquarium 1 water sample
AQ2* Aquarium 2 microbialite fragment AQ2b Aquarium 2 aquarium glass wall biofilm AQ2w Aquarium 2 water sample
Samples used for clone library construction are noted with an asterisk. AQ1, aquarium 1; AQ2, aquarium 2.
Overview of bacterial diversity in Alchichica microbialites Bacterial diversity in the selected samples was further charac-terized by SSU rRNA gene libraries (Table 2). We used general bacterial primers but also cyanobacterial-specific primers to get a finer description of the diversity within this group, since cyanobacteria usually dominate stromatolite microbial biomass, including Alchichica microbialites (Figure 2) [40], and likely play a major role in carbonate precipitation. In addition, since cyanobacterial EPS sheaths may decrease DNA extraction yield [44,45,46], using specific primers would help to detect underrep-resented species. To further limit biases, we generated two bacterial and two cyanobacterial SSU rDNA libraries for each sample, except in cases when a single library allowed a coverage .80% and a small number of singletons (Table 2). There were only minor differences in the diversity obtained between the two libraries for each sample, mostly in relative proportions, in particular for a few cyanobacterial, alpha- and beta-proteobacter-ial phylotypes. The only significant difference was the presence of Firmicutes only in bacterial library 2. These differences are likely due to local heterogeneities and/or to a different coverage achieved by the libraries. However, despite these relatively minor differences, there was a rather good agreement in the bacterial diversity identified in the two libraries, which can therefore be considered as replicates. This was also the case for the most
abundant cyanobacterial groups in both general and specific libraries (Figure 3). Therefore, for each sample we compiled the diversity from the two independent libraries for further inter-sample comparison.
Figure 3 shows the taxonomic distribution of bacterial clones in lake and aquarium samples. We identified members of 14 phyla and 7 candidate divisions. Remarkably, bacterial diversity was generally higher in aquaria than in field samples in terms of high-rank taxa, in agreement with the DGGE analysis, which showed more bands in the aquarium profiles (Figure S2). At phylum level, AQ1 taxa resembled those of field microbialites, especially those collected at higher depth. They were all dominated by Cyanobacteria and the Alpha subdivision of the Proteobacteria (60 to 75% of the total bacterial SSU rDNAs in field sample libraries, Figure 3). AQ2 displayed similar taxonomic composition, but Cyanobacteria and Alphaproteobacteria accounted for only ,15% of sequences. In contrast, Firmicutes, minor components in the other libraries (0 to 2%), were dominant in AQ2 (29%). The rest of bacterial taxa had variable relative proportions, probably reflecting local spatial heterogeneities and/or depth-related adaptation. For example, Betaproteobacteria represented 19% of sequences in AL67 but less than 2% in other samples. The proportion of Actinobacteria increased with depth (from 1% to 10%) whereas Bacteroidetes showed the opposite trend (from 4%

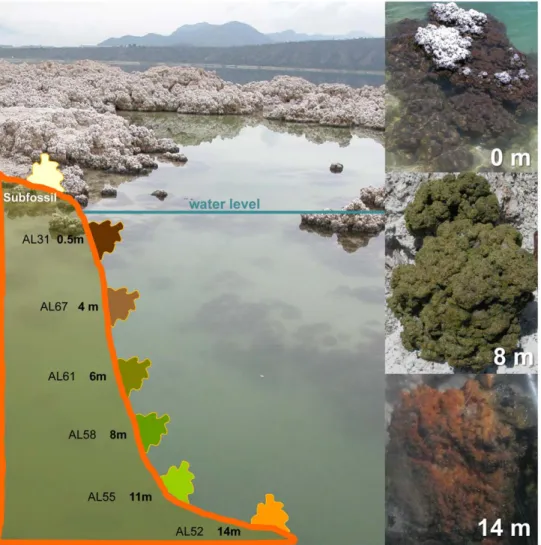

Figure 1. View of Alchichica and schematic depth profile showing the different sampling depths in the lake. Stromatolite fragments from three different depths and colors are shown on the right.
to 1%). Planctomycetales was one of the most constant and abundant phyla with nearly 10% of sequences in all samples, except AL67 (only 4%). AQ1 contained larger proportions of Gammaproteobacteria (8%), Deltaproteobacteria (9%) and Planc-tomycetales (13%) than lake samples. In general, the relative bacterial proportions in libraries appeared distributed more evenly among phyla in the deepest sample and in aquaria samples. This was in agreement with DGGE patterns, which showed more bands in AL52, reinforcing the suggestion that diversity increased with depth (especially among heterotrophic groups).
Cyanobacteria
Confirming microscopy observations, cyanobacteria constituted the most abundant phylum in gene libraries (Figures 2 and 3). Furthermore, the distribution among cyanobacterial orders of sequences obtained with bacterial- and cyanobacterial-specific primers was remarkably similar within each sample (Figure 3). The
only exception was AQ2, with relative proportions of Chroococ-cales and Gloeobacterales obtained with bacterial primers much higher than those obtained with cyanobacterial primers, domi-nated by Oscillatoriales.
Considering all samples together, we retrieved OTUs belonging to 7 of the 8 described cyanobacterial orders (only Stigonematales were absent). The most remarkable observation was the shift of relative abundance of Oscillatoriales with depth. They largely dominated surface and intermediate microbialite sample libraries (,80% in AL31 and 90% in AL67), whereas Pleurocapsales dominated deep microbialite libraries (,80% of cyanobacterial sequences in AL52, Figure 3). In addition, Gloeobacterales were also very abundant, especially in aquarium samples (20–40% of cyanobacterial sequences, Figure 3). Chroococcales, Nostocales and Prochlorales were detected in low proportions in all samples, whereas Acaryochlorales were exclusively amplified from the deepest sample, AL52.
Figure 2. Images of biofilms associated to Alchichica microbialites. (A) Photomicrograph of a fresh biofilm associated with AQ2 microbialite showing the abundance and diversity of Cyanobacteria. (B) and (C) Natural fluorescence CLSM pictures of transversal sections of AQ2 and AL66 (4 m) microbialite surfaces, respectively. AL66 (C) was stained with DAPI and calcein. Mineral areas are indicated by stripes. Biofilm biomass was dominated by photosynthetic organisms, mostly cyanobacteria of different orders, but also diatoms and green algae. Some distinguishable morphotypes are highlighted; d, diatom; c, Chrooccocales; o, Oscillatoriales; n, Nostocales. Scale bars, 20 mm.
At a finer phylogenetic scale, we detected 38 cyanobacterial OTUs (including 4 diatom chloroplast sequences): 9 OTUs only in lake samples, 17 only in aquaria, and the remaining 12 were shared (Figure 4). OTU diversity was thus larger in aquaria microbialites compared to field microbialites. Oscillatoriales were the most diverse group with 16 OTUs, including 3 of the most abundant ones. These affiliated to the genus Leptolyngbya and were also detected in AL31 and AL67. Pleurocapsales were the second most diverse group with 5 OTUs. One of them (CyanoOTU35) accounted for 69% of all cyanobacterial sequences in the 14 m-deep sample AL52 (Figure 4). This phylotype was also present in the other lake samples and in AQ1, though in lower proportions. Its high abundance in deep samples was corroborated by DGGE analyses, corresponding to one of the most intense bands in deep sample fingerprints (band J in samples AL58, AL55 and AL52, Figure S2 and Table 3).
In addition to Pleurocapsales, the Acaryochlorales OTU CyanoOTU23 was relatively abundant at 14 m, in agreement
with the low-light-intensity adaptation characteristic of Acaryo-chlorales [47]. We also detected 5 Chroococcales OTUs, one of them (CyanoOTU32) particularly abundant at 8 m (AL58 sample) as shown by DGGE analyses (band I in Figure S2 and Table 3). Finally, we identified 3 very divergent OTUs belonging to the deep-branching Gloeobacterales. Among them, CyanoOTU02, identified in field sample AL31 (0.5 m), represented 18% and 20% of AQ1 and AQ2 cyanobacterial sequences.
Other bacterial taxa with photosynthetic members Apart from cyanobacteria, we identified phylotypes of other bacterial phyla that comprise phototrophic, in addition to heterotrophic, members: Alphaproteobacteria, Gammaproteobac-teria and Chloroflexi. With ,30% of field sample clones, Alphaproteobacteria was the second most abundant group after Cyanobacteria (Figure 3). Their relative abundance was constant with depth. They were also extremely diverse, with 68 OTUs: 35 Table 2. Summary of SSU rRNA gene sequences analyzed from bacterial, cyanobacterial and eukaryotic-specific gene libraries and the associated diversity indices.
Clone libraries
No. of clones
analyzed No.of OTUs Ace Chao1
Chao1 95%
confidence interval singletons Coverage (%) Bacteria AQ1 Library 1 84 56 198 169 104/323 43 49
AQ1 Library 2 192 93 243 215 153/339 61 68 AQ1 total (1+2) 276 126 423 313 228/468 87 68 AQ2 Library 1 65 42 181 147 81/328 33 49 AQ2 Library 2 200 57 82 74 63/103 30 85 AQ2 total (1+2) 265 86 149 134 108/190 48 82 AL31 Library 2 199 53 119 131 82/260 31 84 AL67 Library 2 202 31 43 42 34/73 12 94 AL52 Library 1 44 17 39 35 21/92 11 75 AL52 Library 2 196 67 137 113 88/171 39 80 AL52 total (1+2) 240 74 137 122 95/180 41 83 Cyanobacteria AQ1 Library 1 53 9 10 12 9/34 3 94 AQ1 Library 2 108 7 7 7 / 0 100 AQ1 total (1+2) 161 16 16 16 / 1 99 AQ2 Library 1 49 13 20 21 15/56 5 90 AQ2 Library 2 101 19 30 28 20/64 8 92 AQ2 total (1+2) 150 22 29 36 25/89 8 95 AL31 Library 2 63 8 11 9 8/23 3 95 AL67 Library 2 62 6 8 6 6/14 1 98 AL52 Library 1 39 5 5 5 / 1 97 AL52 Library 2 61 8 10 9 7/22 3 95 AL52 total (1+2) 100 11 21 26 14/79 6 94 Eukaryotes AQ1 95 21 32 28 22/53 9 91 AQ1 b 76 22 24 23 22/31 4 95 AQ1 w 69 19 74 31 21/74 12 83 AQ2 117 23 30 27 23/45 7 94 AQ2 b 83 16 16 16 16/19 2 98 AQ2 w 72 11 20 21 13/63 5 93 AL31 48 1 0 1 1/1 0 100 AL67 38 1 0 1 1/1 0 100 AL52 38 5 7 6 6/14 2 95
AQ1b and AQ2b refer to aquarium wall-attached biofilm samples; AQ1w and AQ2w refer to plankton samples. doi:10.1371/journal.pone.0028767.t002
exclusively identified in field samples, 23 in the aquaria and 10 in both field samples and aquaria (Figure S3). The composition of the deeper samples AL67 and AL52 was similar, with high proportions of Rhodospirillales and Rhodobacterales, whereas Rhizobiales were scarce in them but more abundant in the shallowest sample AL31. The most abundant Rhodobacterales OTU, AlphaOTU65 (34% and 24% of AL67 and AL52 sequences, respectively), was relatively close to members of the metabolically versatile genus Rhodobacter. Many Rhodobacter species are sulfur-oxidizing photosynthesizers and, in the context of the lake, AlphaOTU65 might actually correspond to anoxygenic photosynthesizers. Moreover, many Rhodospirillales (e.g. Rhodos-pirillum), represented by the abundant phylotypes AlphaOTU20 and AlphaOTU21, and Rhizobiales (e.g. Rhodomicrobium), are also anoxygenic photosynthesizers [48]. In contrast, the vast majority of Gammaproteobacteria phylotypes likely have heterotrophic metabolisms. However, some might be photosynthetic; for example the Chromatiales GammaOTU06 (Figure S4), related
to environmental sequences from the Mexican alkaline lake Texcoco [49], suggesting an adaptation to these particular alkaline environmental conditions.
Chloroflexi (green non-sulfur bacteria) are typically anoxygenic photosynthesizers, although an increasing number of non-photosynthetic lineages (Anaerolineae, Caldilineae and Dehalo-coccoides) has also been characterized [50]. Likely phototrophic Alchichica representatives were ChlorofOTU1 and Chloro-fOTU2, related to Chloroflexus and Chlorothrix, though probable heterotrophic OTUs related to Anaerolinea and other environmen-tal Chloroflexi were more diverse (Figure S5). In contrast to their low proportion in gene libraries (Figure 3), DGGE analyses suggested a high abundance of Chloroflexi in Alchichica microbialites. Such difference may reflect a negative bias in the general primers used for gene library construction, as already noted in the study of Ruidera stromatolites [19,50]. In fact, seven of the most intense DGGE bands from Alchichica field samples (bands A, B, C, D, G, K and M; Figure S2 and Table 3) were
Figure 3. Phylogenetic distribution of bacterial, cyanobacterial and eukaryotic SSU rRNA gene sequences in Alchichica microbialites. In the specific panel for cyanobacteria, the phylogenetic distribution of cyanobacterial clones retrieved with universal bacterial primers (B) or with specific cyanobacterial primers (C) is shown for comparison. Sample names and origins are explained in Table 1. Non-Latin names correspond to Candidate Divisions; Deino-Thermus, Deinococcus/Thermus group.
assigned to Chloroflexi after sequencing, including four (C, D, G and M) related to the two likely anoxygenic photosynthesizers ChlorofOTU1 and ChlorofOTU2. Bands C, G and M, 100% identical to the corresponding ChlorofOTU2 sequence, were detected in nearly all field samples, suggesting that this OTU was abundant at all depths. In contrast, typical photosynthetic Chloroflexi were not detected in aquaria (Figure 3).
Typical heterotrophic bacterial taxa
Along with the potential photosynthetic OTUs mentioned above, many microbialite bacteria belonging to Alphaproteobac-teria, Gammaproteobacteria (Figures S3 and S4), Chloroflexi, Chlorobi and Acidobacteria are most likely heterotrophic (Figures S5 and S6). In addition, we found 19 OTUs of Deltaproteobacteria (Figure S4), including several Myxoccocales and others corresponding most likely to sulfate-reducing bacteria (SRB). Betaproteobacteria, with 15 OTUs, were detected in all microbialite samples and particularly abundant in AL67 and AQ2 (Figures 3 and S7). The most abundant betaproteobacterial OTU in field samples (BetaOTU03) corresponded to Delftia acidovorans, a strict aerobe able to degrade diverse complex compounds [51].
Planctomycetales were moderately abundant (5–15% of se-quences) but highly diverse, with 62 OTUs (Figure S8). Planctomycetales are able to oxidize a large range of substrates, including many different polysaccharides, which explains their frequent association to microbialites, where they probably degrade cyanobacterial EPS [13,52]. As Planctomycetales, Bacteroidetes were also diverse (27 OTUs, Figure S9). They are known to oxidize complex organics like cell wall polymers [53].
We also identified Gram positive bacteria. Firmicutes were relatively diverse (18 OTUs) but quasi-exclusively in AQ2, including several sequences related to strict fermentative
anaer-obes (e.g. Clostridiales) and phylotypes from anoxic environments. Actinobacteria were also diverse (17 OTUs), many from AL52 (Figure S10). Some were Rubrobacterales (ActinoOTU3 specifi-cally related to Rubrobacter radiotolerans), known for their high resistance to UV and ionizing radiation [54]. This could reflect the fact that Alchichica is at high altitude and, therefore, exposed to strong UV radiation.
Although most Chlorobi (green sulfur bacteria) are photosyn-thetic [48], the only Alchichica OTU from this group was related to the chemoheterotroph Ignavibacterium album (Figure S5). Likewise, a phototrophic lifestyle could not be predicted for the Acidobacteria sequences (Figure S6), very distantly related to the photoheterotroph Chloracidobacterium [55]. Finally, we identified bacteria belonging to eleven additional phyla or candidate divisions: Verrucomicrobia, Spirochaeta, with several OTUs related to sequences detected in alkaline or hypersaline micro-bialites and microbial mats, the nitrite-oxidizing Nitrospira, Thermus/Deinococcus, and the candidate divisions OP11, WS6, SBR1, BRC1, NKB19, TM6 and OP3 (Figures S8 and S11). Archaeal diversity
Despite of the use of different archaeal-specific primers and PCR conditions, we failed to amplify archaeal sequences from field samples selected for detailed study (AL31, AL67, AL52). From the rest of samples, we only retrieved two archaeal phylotypes from AL70 (3 m) and the aquarium sample AQ1 (Figure S12 and Table 1). ArchaeOTU01 was a singleton related to euryarchaeotal hot spring or hypersaline mat environmental clones. Archae-aOTU02, detected in both AL70 and AQ1, was close to the Thaumarchaeota Cenarchaeum and Nitrosopumilus and, thus, prob-ably an ammonium-oxidizer [56]. These results suggest that archaea are present in the microbialites but in minor proportions and very low diversity.
Figure 4. Maximum likelihood (ML) phylogenetic tree of SSU rDNA of cyanobacteria and chloroplasts from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Relative proportions of the different OTUs in each sample are indicated by circles of proportional size on the right. The number (n) indicates the number total of clones analyzed for each sample. Asterisks indicate OTUs also identified in DGGE patterns. The scale bar indicates the number of substitutions per site for a unit branch length.
doi:10.1371/journal.pone.0028767.g004

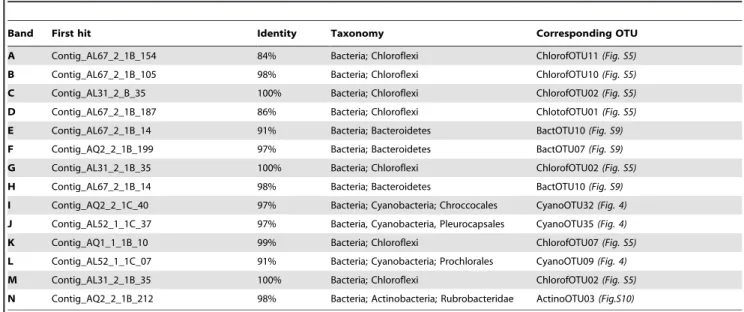

Table 3. Closest Alchichica microbialite OTUs to sequences of DNA fragments amplified from DGGE bands.
Band First hit Identity Taxonomy Corresponding OTU A Contig_AL67_2_1B_154 84% Bacteria; Chloroflexi ChlorofOTU11 (Fig. S5) B Contig_AL67_2_1B_105 98% Bacteria; Chloroflexi ChlorofOTU10 (Fig. S5) C Contig_AL31_2_B_35 100% Bacteria; Chloroflexi ChlorofOTU02 (Fig. S5) D Contig_AL67_2_1B_187 86% Bacteria; Chloroflexi ChlotofOTU01 (Fig. S5) E Contig_AL67_2_1B_14 91% Bacteria; Bacteroidetes BactOTU10 (Fig. S9) F Contig_AQ2_2_1B_199 97% Bacteria; Bacteroidetes BactOTU07 (Fig. S9) G Contig_AL31_2_1B_35 100% Bacteria; Chloroflexi ChlorofOTU02 (Fig. S5) H Contig_AL67_2_1B_14 98% Bacteria; Bacteroidetes BactOTU10 (Fig. S9) I Contig_AQ2_2_1C_40 97% Bacteria; Cyanobacteria; Chroccocales CyanoOTU32 (Fig. 4) J Contig_AL52_1_1C_37 97% Bacteria, Cyanobacteria, Pleurocapsales CyanoOTU35 (Fig. 4) K Contig_AQ1_1_1B_10 99% Bacteria; Chloroflexi ChlorofOTU07 (Fig. S5) L Contig_AL52_1_1C_07 91% Bacteria; Cyanobacteria; Prochlorales CyanoOTU09 (Fig. 4) M Contig_AL31_2_1B_35 100% Bacteria; Chloroflexi ChlorofOTU02 (Fig. S5) N Contig_AQ2_2_1B_212 98% Bacteria; Actinobacteria; Rubrobacteridae ActinoOTU03 (Fig.S10) Bands correspond to those labeled in Figure S2.
Protist diversity
Although protists are conspicuous microbialite inhabitants [57], their diversity in these environments has been rarely studied. To prevent library saturation with animal sequences, we amplified SSU rRNA genes using the primer UNonMet, biased towards non-metazoan eukaryotes [58]. In addition to libraries from the selected samples AL31, AL67, AL52 and aquarium microbialites, we amplified protist SSU rDNAs from the aquarium plankton (AQ1w and AQ2w) and non-calcified biofilms growing on aquarium walls (AQ1b and AQ2b). These samples should serve as controls to identify specific protist phylotypes associated with growing microbialites. The number of clones analyzed for each sample is summarized in Table 2.
There were important differences between field and aquarium samples and also between plankton and microbialites in the aquaria, whereas the aquarium non-calcified biofilms were similar to the aquarium microbialites (Figure 3). Field microbialites were dominated by one single chlorophyte (ChlorophytOTU05, related to the sessile genera Pseudendoclonium and Blidingia), representing ,90% of all sequences in AL31 and AL67, and ,70% in AL52 (Figure 5). Two additional chlorophytes were identified in AL52: ChlorophytOTU06, also related to those two genera, and ChlorophytOTU01, very close to Rhizoclonium hieroglyphicum, an entangling filamentous algae widespread in microbial mats in fresh or brackish waters [59]. AL52 also contained a dinoflagellate OTU related to the photosynthetic genus Woloszynskia. No other photosynthetic eukaryotes were found in the lake, although they certainly exist since living diatoms were observed by microscopy (Figure 2) and their chloroplast SSU rRNA genes were detected in sample AL31 (see above). Field samples were thus dominated by green algae, which possibly masked other eukaryotes present in minor proportions. Thus, only two additional non-photosynthetic phylotypes were identified in AL31, both corresponding to fungi (Figure S13).
Aquaria samples were far more diverse. Among photosynthetic protists, ChlorophytOTU05, dominant in field microbialites, was also abundant in aquarium microbialites, especially AQ1. However, it was absent from both the aquarium plankton and the non-calcified biofilms (Figure 5). It thus seems specifically associated to microbialites, opening the possibility that it plays a role in their formation or stability. A few other chlorophytes and several other photosynthetic lineages were identified in aquaria, notably diatoms (StramenoOTU05-07) and chrysophytes (Stra-menoOTU03, frequent in plankton). Concerning heterotrophic eukaryotes, ciliates (Figure 5) and very diverse opisthokonts were found in the aquaria (Figure S13). The latter included most notably Fungi, with typical Ascomycota, Basidiomycota and Chytridiomycota, but also OTUs of the environmental LKM11 group, now classified as Rozellida or Cryptomycota [60]. A relatively large diversity of Amoebozoa and choanoflagellates was also found, the latter almost exclusively in AQ1 and never in the planktonic fraction. We also identified nucleariids and several divergent sequences at the base of the Choanoflagellida/ Icthyosporea and at the base of the Metazoa without close relatives (Figure S13).
Discussion
To address the long-term question of understanding microbial-mineral interactions and how microbialites form, we first aimed at characterizing microbial communities inhabiting Alchichica mi-crobialites at different depths. The recurrent presence of particular abundant lineages may point out to specific metabolisms and lead to hypotheses about their role in carbonate precipitation and
microbialite formation. Another important issue is the possibility to preserve a significant fraction of the original microbial communities in laboratory aquaria. This would allow mineraliza-tion experiments under controlled condimineraliza-tions using complex and fairly genuine diverse microbial communities. Thus, we studied the diversity of microorganisms belonging to the three domains of life in an integrative approach rarely undertaken for this kind of systems.
Alchichica field microbialite community structure and its variation with depth
Field microbialites at all depths were largely dominated by Cyanobacteria and Alphaproteobacteria. As in Shark Bay stromatolites, where ,10% of the Alphaproteobacteria were potential anoxygenic photosynthesizers [29], many Alchichica Alphaproteobacteria are likely photosynthetic. Most likely, Alchi-chica alphaproteobacterial phylotypes display diverse metabolisms going from autotrophy to heterotrophy which, together with their richness, suggests an important role in microbialite biofilm organization and activity. Chloroflexi, present in all samples and probably abundant according to DGGE fingerprinting, was the third Alchichica bacterial group with photosynthetic members. In addition to photosynthesizers, typical heterotrophs such as Planctomycetales, Bacteroidetes and Actinobacteria, were recur-rently present at relative high frequency, whereas Beta-, Gamma-and Deltaproteobacteria Gamma-and Firmicutes showed more variable proportions (Figure 3). The dominant Cyanobacteria and Alphaproteobacteria, accompanied by relatively abundant Planc-tomycetales, Firmicutes and Bacteroidetes have been reported in comparable systems including Cuatro Cie´nagas [21], Bahamas [34,35] and Shark Bay [29,33]. In addition, many of the closest relatives to Alchichica sequences come from alkaline systems, notably the giant microbialites of Lake Van, more similar by its physico-chemical characteristics to Alchichica microbialites than marine or hypersaline lake ones [13]. This observation was statistically confirmed by comparing the bacterial community composition of Alchichica samples with those of Shark Bay, Bahamas and Lake Van. All Alchichica samples clustered together, forming two clusters, one for lake samples, with 0.5 and 4 m depth samples more closely related, and the other for aquarium microbialites (Figure 6). From the other samples, although much more distant, Lake Van was closer to Alchichica samples than the marine stromatolites.
Two important observations can be outlined from Alchichica microbialite bacterial diversity. First, even if many photosynthetic lineages are present, the relative abundance of typical heterotro-phic lineages suggests that they play an important role. Second, the most remarkable change along the depth gradient was the marked shift in the cyanobacterial community composition, dominated by filamentous Oscillatoriales in surface and interme-diate depths (.90% of sequences at 0.5 and 4 m) and by Pleurocapsales in deeper samples (.80% of sequences, contribut-ed mostly by the phylotype CyanoOTU35). This shift was detected by gene library comparison but also by sequencing intense DGGE bands (Figure S2 and Table 3). Although variation of the cyanobacterial composition at larger spatial scales (.few centimeters), as evidenced in Hamelin Pool [29,33] and Bahamas [32], cannot be discarded, the Oscillatoriales-to-Pleurocapsales dominance transition with depth in Alchichica is likely related to adaptation to depth and light intensity. Oscillatoriales are indeed adapted to high light intensity [61], whereas Pleurocapsales actively search low light (Waterbury and Stanier, 1978). This correlates with microscopy observations showing that filamentous Oscillatoriales tend to grow at the microbialite surface (e.g.
Figure 2A), where their massive presence can obscure that of other microbialite-associated bacteria, whereas the coccoid or pseudo-filamentous Pleurocapsales are intimately associated to the mineral matrix (unpublished observations). The differential presence of these morphologically dissimilar cyanobacteria may have a significant impact on the organization of the microbialite biofilms. In contrast with the recognized importance of bacteria in microbialite formation and dynamics, archaea and microbial eukaryotes might have been overlooked in the past. Our results show that archaea are present in Alchichica microbialites but in minor proportions and very low diversity. This confirms observations from Shark Bay (7% of sequences, [29], Bahamas (1–2%, [31] and Cuatro Cie´nagas [21] stromatolites. Consequent-ly, the role of archaea in microbialite formation is probably minor. Inversely, some reports based on microscopy observations suggest that microbial eukaryotes could be relevant in microbialites [57,62], though their diversity has rarely been assessed. The only available molecular studies, done in Shark Bay and Bahamas stromatolites [34], detected a very low diversity of eukaryotes compared to bacteria. However, protist diversity might have been underestimated with general eukaryotic primers, which lead to rapid saturation of gene libraries by metazoan sequences, especially nematodes [34]. Thus, very little is known about protist contribution to biofilm biodiversity, biomass, structure and lithification. Here, we avoided gene library saturation by metazoans using primers biased against animal sequences. Despite so, we found a low eukaryotic diversity in field microbialites, corresponding essentially to chlorophytes, with some fungi in the deepest sample. Therefore, the major eukaryotic players in Alchichica appear to be green algae, with a same phylotype (ChlorophytOTU05) dominating along the depth gradient.
Finally, although a variety of physico-chemical parameters were measured in the water column during sampling as well as subsequent microbialite mineralogical and isotopic analyses [40], establishing correlations of these with microbialite microbial community composition is difficult because of the inherent
heterogeneity of these systems. Microbialites are irregular, exhibiting different orientations to light at a same depth, and are spatially structured, offering a variety of niches with different physico-chemical parameters at microscale. Establishing mean-ingful correlations between local environmental parameters and microbial diversity will require further studies at microscale. Field versus aquaria microbialites
The observation of a large microbial diversity in microbialites maintained for two years in the laboratory was unexpected for two reasons. First, only relatively small microbialite fragments were installed in aquaria, which might not carry individuals of all the microbial species living in the lake microbialites. Second, since the laboratory conditions were much more stable (e.g., a remarkably constant pH, Figure S1), we expected that a few, perhaps opportunistic, lineages became dominant and excluded the rest of the native microbial diversity. However, not only the diversity of most of the abundant lineages found in the lake was maintained, but bacteria and eukaryotes were much more diverse in laboratory microbialites (Table 2). Indeed, bacterial communities in aquaria were, despite their differences, more similar between them than to the lake samples (Figure 6).
The increase of microbial diversity in aquaria concerns very diverse groups thriving at pH 8.9. This minimizes the possibility of potential contaminants coming from the laboratory, which would be outcompeted by the well-adapted Alchichica alkaliphiles. The stable conditions in aquaria appear not only to have maintained organisms dominant in the different field samples, but also favored the growth of microbes that were in low proportions in the lake. To our knowledge, there is only another example that compares the diversity of cultured versus natural microbialites [28]. Although in this case cultured microbialites were artificial (fused oolitic sand grains inoculated with Bahamian stromatolite microorganisms), a good preservation of the community compo-sition after 1.5 years was inferred by comparison of Shannon indices. These observations suggest a remarkable resilience of microbialite communities.
Gloeobacterales offer an example of increased diversity and abundance in aquaria microbialites (Figure 3). These cyanobac-teria have raised much attention because of their basal position in phylogenetic trees, being the only group branching before chloroplasts, and because unusual features such as the lack of thylakoids and particular photosystems [63,64,65,66,67]. For many years, the only cultured species was Gloeobacter violaceous, isolated from calcareous rock [65,68]. More recently, ‘‘Synechococcus sp. C9’’ was isolated from a mat in Yellowstone alkaline Octopus spring [63,69]. Several environmental sequences were recently added to the group, mostly coming from microbial mats or microbialites, such as the Shark Bay stromatolites [30,33], suggesting that the whole group may be adapted to this kind of environments. Our very distant Alchichica sequences encompass the whole known diversity within this order (Figure 4).
The larger diversity in aquarium microbialites was particularly manifest in the case of microbial eukaryotes. Whereas a few green algal phylotypes dominated lake microbialites, cultured micro-bialites contained those lineages but also a wide variety of other photosynthetic species, including diatoms and chrysophytes, diverse other stramenopiles and ciliates (Figure 5) and many opisthokonts (Figure S13). Possibly, most of these protists were
Figure 5. ML phylogenetic tree of bikont eukaryotic SSU rDNA sequences from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
doi:10.1371/journal.pone.0028767.g005
Figure 6. Hierarchical clustering analysis (UPGMA) of bacterial communities associated to microbialites of various settings based on pairwise UniFrac metrics. Pairwise comparisons were all significantly different (p value,0.001).
present in the lake but throve to large, detectable amounts under stable laboratory conditions. The diversity of opisthokonts was remarkable. Several fungal lineages were detected in microbialites, notably members of the Rozellida [70] or Cryptomycota [60], which constitute the deepest lineage of fungi and groups parasitic flagellates very common in freshwater systems [71]. The diversity of choanoflagellates, amoebae, nucleariids, and several divergent sequences at the base of the Choanoflagellates/Icthyosporea and at the base of the Metazoa (Figure S13), makes these microbialites interesting to explore lineages placed at the onset of metazoan evolution.
Microbial metabolism-based model of microbialite formation
Taking into account the most likely metabolisms of the microorganisms detected in field and aquarium microbialites, we propose to extend the model of formation of microbialites originally build on marine Bahamian stromatolites [22] to Alchichica (Figure S14). Microbialite formation would be the net result of a balance between metabolic activities favoring carbonate precipitation or dissolution, which would in turn depend on light availability (day or night) and on local physico-chemical conditions (e.g. oxic or anoxic microenvironments) [22].
As in the Bahamas case, the most important metabolism involved is probably bacterial photosynthesis, in particular the oxygenic photosynthesis carried out by the very abundant cyanobacteria. Photosynthesis drives the alkalinity engine towards carbonate precipitation by consuming bicarbonate [22] and increasing local pH [72,73]. Although much less studied, eukaryotic photosynthesizers may play a similar role since many eukaryotic algae induce comparable changes in pH and CO2
concentration [74]. In addition, eukaryotic algae can provide nucleation sites [62] and trap particles [75]. Similarly, anoxygenic photosynthetic bacteria, such as the phototrophic Chloroflexi likely abundant in Alchichica, also increase local alkalinity and induce carbonate precipitation [76]. In addition, part of the H2S
consumed by anoxygenic photosynthesis may come from the activity of SRB, represented in Alchichica by Deltaproteobacteria and Firmicutes. Sulfate reduction generates carbonate ions, thus being another activity potentially leading to carbonate precipita-tion [23,24,25,77]. This process, independent of light availability, can take place during day and night.
Alchichica microbialites also contain diverse and abundant heterotrophic bacteria, including Planctomycetales, Bacteroidetes, Acidobacteria, many Proteobacteria and various others. They can induce carbonate dissolution due to respiration of organic matter and production of protons [27] but they can also promote carbonate precipitation by liberating cations sequestered by EPS and other macromolecules, making them available for precipita-tion. Indeed, many of these heterotrophs are known to degrade complex polymeric compounds, including EPS [78]. The balance between these processes determines the net formation of carbonate.
Even if the major role in carbonate precipitation and dissolution is probably due to activities of the largely dominant bacterial community, the role of eukaryotes should not be neglected. Photosynthetic algae may have a direct role on carbonate precipitation and an indirect role associated to chemical properties of the cell walls that provide nucleation centers for crystal growth [79,80]. In addition to their photosynthetic activity, diatoms embedded in the carbonates could be relevant for secondary silicification since, after death, their frustules supply Si. Finally, Alchichica fungi, some of which may be endolithic, also deserve further study. They could make the system more fragile by
forming pervasive microborings but also serve as new calcification centers [81]. At any rate, protists play an important role as grazers and predators, exerting a control over bacteria and being involved in the fine-tuning of the community structure and its activities. Materials and Methods
Sampling and maintenance of living microbialites in aquaria
Samples were collected from Lake Alchichica (N 19u25.119; W 97u23.860, Puebla State, Mexico) in July 2007. No specific permits were required for the described field studies, the location is not privately-owned or protected and the field studies did not involve endangered or protected species. Several physico-chemical parameters were measured in the water column at different depths including total dissolved solutes, pH, temperature, concentrations of Cl-, SO4
22
, Br2, F2, Na+, Mg2+, K+, Ca2+, Li+, O2, Si, NO22, NO32, PO432, NH4+, N/P ratios,
conduc-tivity, alkalinity, suspended matter and the saturation index for several minerals [40]. Similarly, bulk mineralogical and isotopic (d13C and d18O) analyses of microbialites at different depths were carried out [40]. Living microbialite fragments were collected by scuba diving along a depth gradient from immediately below surface down to 14 m in depth. Samples for microbiology studies were picked up with gloves and sterile forceps to minimize all possible contamination, introduced in Falcon tubes and fixed in situ in ethanol (80% final concentration). They were kept at room temperature during transport, then stored at 4uC until processing. Several larger microbialite fragments (.10 cm) were placed in sterile plastic containers filled with lake water for transfer to laboratory aquaria. A layer of small (1 cm) fragments of sub-fossil, rim Alchichica microbialites was deposited at the bottom of aquaria in order to buffer the solution pH and chemical composition. Living microbialite fragments were deposited in aquarium 1 (AQ1, fragments collected at 30 cm, 3 m and 8 m depth) and aquarium 2 (AQ2, fragments collected at 80 cm, 1 m and 6 m depth). Aquaria were illuminated with 15w 210 lumens/ W fluorescent tubes producing solar spectral wavelength. Photo-periods were adjusted to 12 h of daylight for AQ1 and 16 h of light for AQ2. Temperature and pH were measured once a month and water loss due to evaporation replaced by distilled water. Despite some temperature variation over time for over 3 years after collection, pH remained remarkably constant at 8.9 (Supplementary Figure S1). The aquarium microbialite samples collected for molecular analyses were taken from the fragments from 3 m (AQ1) and 6 m (AQ2) depth.
Optical and confocal laser scanning microscopy
Fresh aquarium microbialite-associated biofilms were examined using a Zeiss Axioplan 2 optical microscope and photographed with a Canon PowerShot G5 camera. We also prepared microbialite inclusions in resin for the observation of transversal sections using confocal laser scanning microscopy (CLSM). Several samples were stained with 49,69-diamidino-2-phenylindole or DAPI (1mg/ml; 10 minutes at room temperature) and/or calcein (0.1 mg/ml; 36 h at 4uC) prior to inclusion. Microbialite fragments were dehydrated in a gradual series of ethanol baths (30%, 50%, 70%, 90%, and 100%), and progressively impreg-nated with hard grade LR-white resin (Polysciences, Inc.). Samples were incubated for 18 h at 4uC in (1/1) then (2/1) mixture of LR-white/ethanol and finally in pure LR-white resin. After 3 h at room temperature, samples were embedded in pure LR-white resin for 1 h at 40uC and then for 24 h at 60uC. After polymerization, transverse cross-sections were cut with a diamond
wire and polished (diamond powder Jmm). These sections were examined using a FluoViewTM FV1000 confocal laser scanning microscope with a spectral resolution of 2 nm (Olympus). The FluoViewTM FV1000 was equipped with a 405 nm laser diode, and multi-line argon (458 nm, 488 nm, and 515 nm), helium-neon-green (543 nm) and helium-neon-red (633 nm) lasers. Fluorescence images of the microbialite transversal sections were obtained with concomitant excitation at wavelengths of 405 nm, 488 nm, and 543 nm and collection of the emitted fluorescence between 425– 475 nm, 500–530 nm, and 560–660 nm, respectively.
DNA purification
Total genomic DNA was extracted 1) from ethanol-fixed field samples selected along a depth profile in the lake and 2) from aquaria microbialites 2 years after collection. A small fragment (,1 cm3) from each microbialite sample was ground using a sterile agate mortar. 200ml of the resulting powder were transferred to an eppendorf tube. Carbonates were largely dissolved by adding 100ml of HCl at 33% for 30 s then neutralized with 1 ml of a 1:1 mixture of PBS pH 7 and 0.5 M EDTA pH 9. Samples were centrifuged for 5 min at 12500 rpm. DNA was extracted from the pellet using two different methods. In a preliminary assay, DNA was purified with the QuickPickTMgDNA Kit (Bio-Nobile, Parainen, Finland) following the instructions of the manufacturer except that samples were previously incubated for 3 h at 56uC with 0,5ml of Proteinase K extra (20 mg/ml) and 1,5ml of ViscozymeH. In a second assay DNA was purified using the MoBioPowerSoil DNA kit (MoBio, Carlsbad, CA, USA) after a first incubation step with 2ml of ViscozymeH (Sigma-Aldrich, Buchs, Switzerland) (1 h at 37uC) in order to enhance degradation of the abundant exopolymeric substances. According to prelimi-nary tests (data not shown), the second protocol produced a better extraction yield and was thus applied on every sample selected along the depth gradient. However, we include in the present study the results of libraries constructed using DNA purified with the first method as replicates. Libraries constructed using DNA purified by the first method were labeled Library 1; those made with the second one are labeled Library 2.
Denaturing gel gradient electrophoresis (DGGE) analysis SSU rDNA fragments of approximately 150 bp were amplified from DNA purified from different microbialite samples using the MoBio kit with the specific bacterial forward primer 341F-GCclamp (CGCCCGCCGCGCGCGGCGGGCGGGGCGGG-GGCACGGGGGG CCTACGGGAGGCAGCAG) and the re-verse bacterial primer 543R (ATTACCGCGGCTGCTGG) [82]. Polymerase chain reactions (PCR) were performed under the following conditions: an initial denaturation step at 94uC for 3 min, 30 cycles consisting of a denaturation step at 94uC for 15 s, an annealing step of 30 s (a touch down procedure with a decreasing annealing temperature from 65uC to 55uC for the 10 first cycles was applied followed by a hybridization temperature of 55uC for the following 20 cycles) and a polymerization step at 72uC for 1.5 min, and a final step of 1 h extension at 72uC (modified from [82]). Migration of PCR products was done in a denaturing gradient gel using the CBS Scientific (California, USA) electrophoresis system. Urea and formamide were used as denaturing agents with a concentration gradient from 30% to 60%. 50 bp-ladder markers (Promega, Lyon, France) were intercalated every three samples. The gels were stained with SYBR Gold (Invitrogen, Carlsbad, CA, USA) and photographed under UV light. Gels were normalized according to the ladder migration using the software BionumericsH (AppliedMaths, Sint-Martens-Latem, Belgium). A distance matrix based on the
presence/absence of bands in the different samples was used for cluster analysis of samples using the Jaccard coefficient [83]. Small subunit rRNA gene library construction
We constructed SSU rDNA libraries specific for archaea, bacteria, cyanobacteria and microbial eukaryotes from five selected samples: three field samples from three different depths AL31 (0.5 m), AL67 (3 m), AL52 (14 m) and two samples from the two aquaria. Samples from aquarium microbialites used in this study were collected after 17 months (Libraries 1) and 27 months (Libraries 2). To amplify SSU rDNA, the following sets of specific primers were used: B-27F (AGAGTTTGATCCTGGCTCAG) and 1492R (GGTTACCTTGTTACGACTT) for bacteria; CYA106F (CGGACGGGTGAGTAACGCGTGA) [44] and 23S30R (CTTCGCCTCTGTGTGCCTAGGT) for cyanobacte-ria; Ar109 (AC(G/T)GCTGCTCAGTAACACGT) and 1492R for archaea and 82F (GAAACTGCGAATGGCTC) and UN-onMet (TTTAAGTTTCAGCCTTGCG) for non-metazoan eu-karyotes [58]. PCR reactions were performed under the following conditions: 30 cycles (denaturation at 94uC for 15 s, annealing at 50–55uC for 30 s, extension at 72uC for 2 min) preceded by 2 min denaturation at 94uC, and followed by 7 min extension at 72uC. Clone libraries were constructed using the TopoTA cloning kit (Invitrogen, Carlsbad, CA, USA) according to the manufacturer’s instructions. Clone inserts were partially sequenced (,800 bp) by Beckman Coulter Genomics (Takeley, United Kingdom) using first the reverse primer 1492R for bacteria (including cyanobac-teria) and archaea and the forward primer 82F for eukaryotes. At least one representative clone per phylotype or Operational Taxonomic Unit (OTU, group of sequences sharing .97% identity) was fully sequenced for detailed phylogenetic analysis. Sequences were deposited in GenBank with accession numbers JN825302–JN825705.
Phylogenetic analyses
A total of 1143 bacterial clones excluding cyanobacteria amplified with specific cyanobacterial primers, 526 cyanobacterial clones (in addition to cyanobacterial clones retrieved with general bacterial primers) and 598 eukaryotic clones were analyzed. The closest relatives to these sequences were identified by BLAST [84,85] and retrieved from GenBank (http://ncbi.nlm.nih.gov/). Several datasets (one for each life domain and one specific for cyanobacteria) were constructed and aligned using MAFFT [86]. A preliminary phylogenetic analysis of all partial sequences was done by distance methods (neighbor-joining, NJ), allowing the identification of identical or nearly identical sequences and the selection of representative clones for subsequent analysis. The multiple alignment was then manually edited using the program ED from the MUST package [87]. Final phylogenetic trees included our sequences together with their closest relatives in GenBank and some representative cultivated species. Maximum likelihood (ML) phylogenetic trees were reconstructed using TREEFINDER [88] applying a general time reversible (GTR) model of sequence evolution, and taking among-site rate variation into account by using a four-category discrete approximation of a C distribution. Maximum likelihood bootstrap proportions were inferred using 1,000 replicates. Phylogenetic trees were viewed using FIGTREE [89].
Estimates of microbial diversity and community comparison analyses
Distance matrices were generated for each clone library using ClustalX software [90]. They were used as input for the software
DOTUR [91], which was used to cluster sequences in OTUs using an identity cut-off of 0.03. Richness estimations (Chao1 and Ace) were calculated using DOTUR with default settings. Coverage values were calculated using the Good estimator [92] following the equation C = (12n/N)6100, where C is the percentage of coverage of the library, n the number of singletons and N the total number of clones examined. To compare the composition of bacterial communities associated to Alchichica microbialites with those associated to Bahamas [31] and Shark Bay [29] stromatolites as well as to the alcaline Lake Van microbialites [13], we recovered the SSU rDNA bacterial sequences from those studies and constructed an alignment containing 3040 sequences using MAFFT [86]. We then constructed an approximately maximum likelihood phylogenetic tree based on 338 unambiguously aligned positions using FastTree [93]. We then compared ß-diversity measurements and obtained pairwise p-values using UniFrac [94] as implemented in the software MOTHUR [95].
Supporting Information
Figure S1 Alchichica microbialites maintained in laboratory aquaria. A. Initial setting of microbialites fragments in aquaria with different photoperiods. B. Microbialites after one year of cultivation in aquaria. C. Measurements of pH and temperature over time. Orange symbols (aquarium 1); blue symbols, aquarium 2. Red bars indicate points at which aquaria were sampled for the clone Library 1 and Library 2 construction of the present study. (TIF)
Figure S2 Cluster analysis of DGGE fingerprints of bacteria associated to Alchichica microbialites. The name and depth of each sample are given on the right. AQ1 and AQ2 correspond to samples from laboratory aquaria. The scale bar above the dendrogram shows distances (%) between samples based on presence/absence of bands. Grey bars at nodes indicate the standard deviation. Bands labeled with capital letters were cut for sequencing. Samples labeled with an asterisk were chosen for detailed molecular diversity analyses.
(TIF)
Figure S3 Maximum likelihood (ML) phylogenetic tree of alphaproteobacterial SSU rDNAs from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Relative proportions of the different OTUs in each sample are indicated by circles of proportional size on the right. The number (n) indicates the number total of clone analyzed for each sample. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S4 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Deltaproteobacteria and Gammaproteobac-teria from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S5 Maximum likelihood phylogenetic tree of SSU rDNA sequences of Chloroflexi and Chlorobi from Alchichica micro-bialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. Asterisks indicate OTUs also identified in DGGE patterns. The scale bar indicates the number of substitutions per site for a unit branch length. (TIF)
Figure S6 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Gemmatimonadetes and Acidobacteria from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S7 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Betaproteobacteria from Alchichica micro-bialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S8 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Planctomycetales and Verrucomicrobia from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S9 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Bacteroidetes from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. Asterisks indicate OTUs also identified in DGGE patterns. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S10 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Actinobacteria and Firmicutes from Alchi-chica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. Asterisks indicate OTUs also identified in DGGE patterns. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S11 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of CD OP11, CD WS6, Deinoccocus-Thermus, CD SBR1, CD BRC1, CD NKB19, Nitrospira, CD TM6, CD OP3 and Spirochaeta from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length.
(TIF)
Figure S12 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Archaea from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Sequences from this study are in bold. Numbers of clones retrieved from each sample for each OTU are given in brackets. The scale bar indicates the number of substitutions per site for a unit branch length. (TIF)
Figure S13 Maximum likelihood (ML) phylogenetic tree of SSU rDNA sequences of Unikonts (Amoebozoa plus Opisthokonta) from Alchichica microbialites. Numbers at nodes indicate bootstrap values. Numbers of clones retrieved from each sample
for each OTU are given on the right. The scale bar indicates the number of substitutions per site for a unit branch length. (TIF)
Figure S14 Hypothetical model of carbonate formation dynam-ics based on known metabolisms of microbial lineages detected in Alchichica microbialites. The panels represent the activities that would occur during day (left) and; night (right) in areas where oxygenic (upper panels) or anoxygenic (lower panels) photosyn-thesis predominates.
(TIF)
Acknowledgments
We thank warmly B. Kramer (Foundation for Polish Science) for her role in co-organizing the 2007 Alchichica Lake expedition. We also thank S. Kempe and H.V. Henschel for their participation to our sampling expedition.
Author Contributions
Conceived and designed the experiments: PL-G DM KB. Performed the experiments: EC EG. Analyzed the data: EC PL-G DM. Contributed reagents/materials/analysis tools: PL-G KB. Wrote the paper: EC PL-G DM KB. Field work: PL-G DM JK RT.
References
1. Burne RV, Moore LS (1987) Microbialites; organosedimentary deposits of benthic microbial communities. Palaios 2: 241–254.
2. Riding R (2000) Microbial carbonates: the geological record of calcified bacterial-algal mats and biofilms. Sedimentology 47: 179–214.
3. Grotzinger JP, Knoll AH (1999) Stromatolites in Precambrian carbonates: Evolutionary mileposts or environmental dipsticks? Annual Review of Earth and Planetary Sciences 27: 313–358.
4. Altermann W (2004) Precambrian Stromatolites: Problems in definition, classification, morphology and stratigraphy. In: Elsevier, editor Eriksson PG, Altermann W, Nelson DR, Mueller W, Catuneanu O, eds. The Precambrian Earth: Tempos and Events Developments in Precambrian Geology. pp 564–574.
5. Allwood AC, Walter MR, Kamber BS, Marshall CP, Burch IW (2006) Stromatolite reef from the Early Archaean era of Australia. Nature 441: 714–718.
6. Awramik SM (1971) Precambrian columnar stromatolite diversity: reflection of metazoan appearance. Science 174: 825–827.
7. Altermann (2006) Cyanobacterial calcification and its rock-building potential during 3.5 billion years of Earth history. Geobiology.
8. Reid RP, James NP, Macintyre IG, Dupraz CP, Burne RV (2003) Shark Bay stromatolites: Microfabrics and reinterpretation of origins. Facies 49: 299–324. 9. Burns BP, Goh F, Allen M, Neilan BA (2004) Microbial diversity of extant stromatolites in the hypersaline marine environment of Shark Bay, Australia. Environmental Microbiology 6: 1096–1101.
10. Riding R, Awramik SM, Winsborough BM, Griffin KM, Dill RF (1991) Bahamian Giant Stromatolites - Microbial Composition of Surface Mats. Geological Magazine 128: 227–234.
11. Andres MS, Reid RP (2006) Growth morphologies of modem marine stromatolites: A case study from Highborne Cay, Bahamas. Sedimentary Geology 185: 319–328.
12. Kempe S, Kazmierczak J (1990) Chemistry and Stromatolites of the Sea-Linked Satonda Crater Lake, Indonesia - a Recent Model for the Precambrian Sea. Chemical Geology 81: 299–310.
13. Lopez-Garcia P, Kazmierczak J, Benzerara K, Kempe S, Guyot F, et al. (2005) Bacterial diversity and carbonate precipitation in the giant microbialites from the highly alkaline Lake Van, Turkey. Extremophiles 9: 263–274.
14. Arp G, Thiel V, Reimer A, Michaelis W, Reitner J (1999) Biofilm exopolymers control microbialite formation at thermal springs discharging into the alkaline Pyramid Lake, Nevada, USA. Sedimentary Geology 126: 159–176. 15. Kempe S, KaA˚ umierczak Jz (1993) Satonda Crater Lake, Indonesia:
Hydro-geochemistry and biocarbonates. Facies 28: 1–31.
16. Arp G, Reimer A, Reitner J (2004) Microbialite formation in seawater of increased alkalinity, Satonda Crater Lake, Indonesia - Reply. Journal of Sedimentary Research 74: 318–325.
17. Benzerara K, Meibom A, Gautier Q, Kazmierczak J, Stolarski J, et al. (2010) Nanotextures of aragonite in stromatolites from the quasi-marine Satonda crater lake, Indonesia. Geological Society, London, Special Publications 336: 211–224. 18. Kazmierczak J, Kempe S (2006) Genuine modern analogues of Precambrian stromatolites from caldera lakes of Niuafo’ou Island, Tonga. Naturwissenschaf-ten 93: 119–126.
19. Santos F, Pena A, Nogales B, Soria-Soria E, del Cura MAG, et al. (2010) Bacterial diversity in dry modern freshwater stromatolites from Ruidera Pools Natural Park, Spain. Systematic and Applied Microbiology 33: 209–221. 20. Spadafora A, Perri E, McKenzie JA, Vasconcelos C (2010) Microbial
biomineralization processes forming modern Ca:Mg carbonate stromatolites. Sedimentology 57: 27–40.
21. Breitbart M, Hoare A, Nitti A, Siefert J, Haynes M, et al. (2009) Metagenomic and stable isotopic analyses of modern freshwater microbialites in Cuatro CiEnegas, Mexico. Environmental Microbiology 11: 16–34.
22. Dupraz C, Reid RP, Braissant O, Decho AW, Norman RS, et al. (2009) Processes of carbonate precipitation in modern microbial mats. Earth-Science Reviews 96: 141–162.
23. Visscher PT, Reid RP, Bebout BM, Hoeft SE, Macintyre IG, et al. (1998) Formation of lithified micritic laminae in modern marine stromatolites (Bahamas): The role of sulfur cycling. American Mineralogist 83: 1482–1493.
24. Visscher PT, Reid RP, Bebout BM (2000) Microscale observations of sulfate reduction: Correlation of microbial activity with lithified micritic laminae in modern marine stromatolites. Geology 28: 919–922.
25. Baumgartner LK, Reid RP, Dupraz C, Decho AW, Buckley DH, et al. (2006) Sulfate reducing bacteria in microbial mats: Changing paradigms, new discoveries. Sedimentary Geology 185: 131–145.
26. Braissant O, Decho AW, Dupraz C, Glunk C, Przekop KM, et al. (2007) Exopolymeric substances of sulfate-reducing bacteria: Interactions with calcium at alkaline pH and implication for formation of carbonate minerals. Geobiology 5: 401–411.
27. Dupraz C, Visscher PT (2005) Microbial lithification in marine stromatolites and hypersaline mats. Trends in Microbiology 13: 429–438.
28. Havemann SA, Foster JS (2008) Comparative Characterization of the Microbial Diversities of an Artificial Microbialite Model and a Natural Stromatolite. Applied and Environmental Microbiology 74: 7410–7421.
29. Papineau D, Walker JJ, Mojzsis SJ, Pace NR (2005) Composition and structure of microbial communities from stromatolites of Hamelin Pool in Shark Bay, Western Australia. Applied and Environmental Microbiology 71: 4822–4832. 30. Allen MA, Goh F, Burns BP, Neilan BA (2009) Bacterial, archaeal and
eukaryotic diversity of smooth and pustular microbial mat communities in the hypersaline lagoon of Shark Bay. Geobiology 7: 82–96.
31. Baumgartner LK, Spear JR, Buckley DH, Pace NR, Reid RP, et al. (2009) Microbial diversity in modern marine stromatolites, Highborne Cay, Bahamas. Environmental Microbiology 11: 2710–2719.
32. Foster JS, Green SJ, Ahrendt SR, Golubic S, Reid RP, et al. (2009) Molecular and morphological characterization of cyanobacterial diversity in the stromat-olites of Highborne Cay, Bahamas. Isme Journal 3: 573–587.
33. Goh F, Allen MA, Leuko S, Kawaguchi T, Decho AW, et al. (2009) Determining the specific microbial populations and their spatial distribution within the stromatolite ecosystem of Shark Bay. Isme Journal 3: 383–396. 34. Myshrall KL, Mobberley JM, Green SJ, Visscher PT, Havemann SA, et al.
(2010) Biogeochemical cycling and microbial diversity in the thrombolitic microbialites of Highborne Cay, Bahamas. Geobiology 8: 337–354. 35. Mobberley JM, Ortega MC, Foster JS (2011) Comparative microbial diversity
analyses of modern marine thrombolitic mats by barcoded pyrosequencing. Environmental Microbiology, no-no.
36. Van Kranendonk MJ, Philippot P, Lepot K, Bodorkos S, Pirajno F (2008) Geological setting of Earth’s oldest fossils in the ca. 3.5 Ga Dresser Formation, Pilbara Craton, Western Australia. Precambrian Research 167: 93–124. 37. Buick R (2008) When did oxygenic photosynthesis evolve? Philos Trans R Soc
Lond B Biol Sci 363: 2731–2743.
38. Lepot K, Benzerara K, Brown GE, Philippot P (2008) Microbially influenced formation of 2,724-million-year-old stromatolites. Nature Geoscience 1: 118–121.
39. Awramik SM, Buchheim HP (2009) A giant, Late Archean lake system: The Meentheena Member (Tumbiana Formation; Fortescue Group), Western Australia. Precambrian Research 174: 215–240.
40. Kaz´mierczak J, Kempe S, Kremer B, Lo´pez-Garcı´a P, Moreira D, et al. (2011) Hydrochemistry and microbialites of the alkaline crater lake Alchichica, Mexico. Facies. pp 1–28.
41. Caballero M, Vilaclara G, Rodrı´guez A, Jua´rez D (2003) Short-term climatic change in lake sediments from lake Alchichica, Oriental, Mexico. Geofı´sica Internacional 42: 529–537.
42. Macek M, Pestova D, Perez MEM (2008) Seasonal and spatial dynamics of a ciliate assemblage in a warm-monomictic Lake Alchichica (Puebla, Mexico). Hidrobiologica 18: 25–35.
43. Armienta MA, Vilaclara G, De la Cruz-Reyna S, Ramos S, Ceniceros N, et al. (2008) Water chemistry of lakes related to active and inactive Mexican volcanoes. Journal of Volcanology and Geothermal Research 178: 249–258. 44. Nubel U, GarciaPichel F, Muyzer G (1997) PCR primers to amplify 16S rRNA
genes from cyanobacteria. Applied and Environmental Microbiology 63: 3327–3332.
45. Pinto FL, Thapper A, Sontheim W, Lindblad P (2009) Analysis of current and alternative phenol based RNA extraction methodologies for cyanobacteria. Bmc Molecular Biology 10.
