ZEN2: a narrow J-band search for z
∼ 9 Lyα emitting galaxies directed
towards three lensing clusters
J. P. Willis,
1F. Courbin,
2J.-P. Kneib
3and D. Minniti
41Department of Physics and Astronomy, University of Victoria, Elliot Building, 3800 Finnerty Road, Victoria, BC, V8P 1A1, Canada 2Laboratoire d’Astrophysique, Ecole Polytechnique F´ed´erale de Lausanne (EPFL), 1290 Sauverny, Switzerland
3Laboratoire d’Astrophysique de Marseille, Traverse du Siphon BP8, 13376 Marseille Cedex 12, France 4Department of Astronomy, P. Universidad Cat´olica, Av. Vicu˜na Mackenna 4860, Casilla 306, Santiago 22, Chile
Accepted 2007 September 3. Received 2007 August 24; in original form 2007 July 30
A B S T R A C T
We present the results of a continuing survey to detect Lyα emitting galaxies at redshifts
z∼ 9: the ‘z equals nine’ (ZEN) survey. We have obtained deep VLT Infrared Spectrometer
and Array Camera observations in the narrow J-band filter NB119 directed towards three massive lensing clusters: Abell clusters 1689, 1835 and 114. The foreground clusters provide a magnified view of the distant Universe and permit a sensitive test for the presence of very high redshift galaxies. We search for z ∼ 9 Lyα emitting galaxies displaying a significant narrow-band excess relative to accompanying J-band observations that remain undetected in
Hubble Space Telescope (HST)/Advanced Camera for Surveys (ACS) optical images of each
field. No sources consistent with this criterion are detected above the unlensed 90 per cent point-source flux limit of the narrow-band image, FNB= 3.7 × 10−18erg s−1cm−2. To date,
the total coverage of the ZEN survey has sampled a volume at z∼ 9 of approximately 1700 comoving Mpc3to a Lyα emission luminosity of 1043erg s−1. We conclude by considering the
prospects for detecting z∼ 9 Lyα emitting galaxies in light of both observed galaxy properties at z< 7 and simulated populations at z > 7.
Key words: gravitational lensing – galaxies: clusters: general – galaxies: high-redshift.
1 I N T R O D U C T I O N
Observations of distant galaxies provide a direct view of the early stages of galaxy evolution as well as probing the physical condi-tions of the high-redshift intergalactic medium (IGM). The advent of the Advanced Camera for Surveys (ACS) deployed on the
Hub-ble Space Telescope (HST) in addition to wide field optical cameras
operated on 8-m class telescopes has provided access to relatively large samples of galaxies located at z∼ 6 and beyond. Observa-tions of distant Lyman drop-out galaxies (e.g. Stanway, Bunker & McMahon 2003; Dickinson, Stern & Giavalisco 2004) and Lyα emitting galaxies selected via narrow-band photometry (Rhoads et al. 2003; Hu et al. 2004) indicate that these bright, distant galaxies cannot be the sole agents of the global re-ionization demonstrated by studies of Gunn–Peterson absorption in high-redshift quasars (Bunker et al. 2006). Current solutions to this dilemma centre upon the potential contribution of faint galaxies at z∼ 6 – pointed to in the very deepest, yet numerically smallest, ACS samples – or the possibility that an earlier epoch of more intense star formation was responsible for the observed re-ionization.
Perhaps the most important contribution to the debate con-cerning the physical nature of bright, high-redshift galaxies has come from Spitzer Space Telescope observations of rest-frame
E-mail: [email protected]
optical emission in these systems (e.g. Eyles et al. 2005; Yan et al. 2006). Optical to near-infrared (NIR) observations of z∼ 6 galaxies sample rest-frame emission bluewards of the 4000 Å discontinuity and are thus sensitive primarily to the spectral contribution from younger stellar populations. The addition of
Spitzer Infrared Array Camera (IRAC) bands, particularly at 3.6
and 4.5 μm, samples the potential contribution of older stellar populations in these galaxies. From the limited number of bright
z∼ 6 galaxies studied to date, there has emerged a picture of their stellar populations as being relatively old (up to 700 Myr) and mas-sive (up to 3× 1010M). The extrapolation of these integrated
star formation histories to earlier cosmic times points to an epoch of potentially intense star formation in the predecessors of bright
z∼ 6 galaxies extending to redshifts z ∼ 10.
Though compelling evidence points to the existence of actively star-forming galaxies at z> 7, the direct observation of such sources is far from straightforward – mainly due to the extreme faintness of high-redshift galaxies. The brightest galaxies observed at z∼ 6 display total AB magnitudes of the order of 24 (e.g. Stanway et al. 2003; Hu et al. 2004). Galaxies at z > 7 – including cur-rent samples of candidate systems – can be reasonably expected to display signal levels AB> 25 in NIR wavebands (Bouwens et al. 2004). Obtaining a spectroscopic redshift for such faint, continuum-selected systems with currently available technology is challenging (though not impossible; cf. Kneib et al. 2004). Studies employing

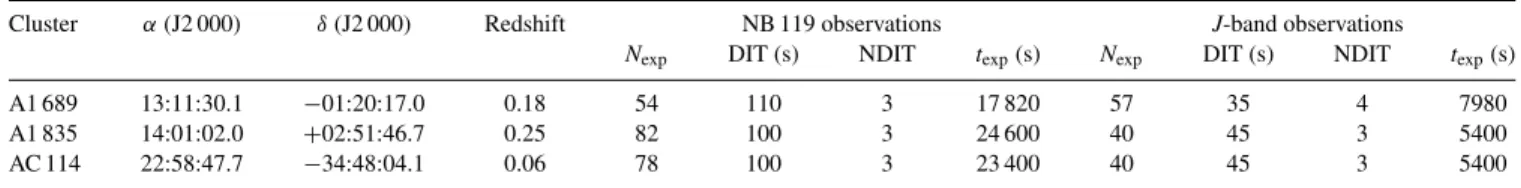

Table 1. NIR data obtained for the three cluster fields. ‘DIT’= detector integration time. ‘NDIT’ = number of detector integration times.
Cluster α (J2 000) δ (J2 000) Redshift NB 119 observations J-band observations
Nexp DIT (s) NDIT texp(s) Nexp DIT (s) NDIT texp(s)
A1 689 13:11:30.1 −01:20:17.0 0.18 54 110 3 17 820 57 35 4 7980
A1 835 14:01:02.0 +02:51:46.7 0.25 82 100 3 24 600 40 45 3 5400
AC 114 22:58:47.7 −34:48:04.1 0.06 78 100 3 23 400 40 45 3 5400
narrow-band filters or long-slit spectral observations are sensitive to the subset of high-redshift galaxies that emit a significant fraction of their energy in the form of narrow spectral lines – typically, the Lyα emission line. Deep narrow-band imaging and subsequent spectro-scopic observations have been employed successfully to generate high spectral completeness samples of distant galaxies at redshifts
z= 5.7 (Hu et al. 2004) and z = 6.5 (Taniguchi et al. 2005).
Long-slit spectral observations of massive lensing clusters have been em-ployed to investigate the faint end of the Lyα emission luminosity function over the interval 4.5 < z < 5.7 (Santos et al. 2004) in addition to generating samples of candidate systems in the inter-val 7< z < 10 (Stark et al. 2007). In comparison to narrow-band observations, long slit spectroscopic observations of Lyα emitting sources typically probe a lower background per resolution element yet are normally restricted to relatively small volume studies due to the limited field of view of a spectrograph slit.
A critical unknown factor determining the visibility of the Lyα emission feature in z> 7 galaxies is the physical state of the inter-vening IGM. Absorption studies of z∼ 6 quasars appear to have identified the very end of the global re-ionization process (Fan et al. 2006) while measurement of the optical depth of electron scatter-ing at large angular scales in the cosmic microwave background (CMB) points to a typical (though not definitive) epoch of reion-ization around z= 11 (Page et al. 2006). Clearly, then, galaxies at redshifts 7< z < 11 may be located in a partly ionized IGM where the local fraction of neutral hydrogen around individual galaxies may be sufficient to attenuate the Lyα emission signature. How-ever, individual Lyα emitting galaxies have been identified in deep, narrow z-band surveys and confirmed spectroscopically at redshifts
z= 6.56 (Hu et al. 2002) and z = 6.96 (Iye et al. 2006). Prompted
by such observations, numerous theoretical studies have been un-dertaken to compute the escape fraction of ultraviolet (UV) photons from a volume of high-redshift intergalactic hydrogen ionized as a result of star formation occurring in an embedded galaxy (Haiman 2002; Santos 2004; Barton et al. 2004). While the detailed properties of the Lyα line transmitted through such a medium are necessarily model dependent, e.g. depending upon the mass, metallicity, star formation rate and initial mass function of the burst and the local density of the IGM, a range of plausible scenarios exist whereby an HIIregion of sufficient size is created such that transmission of a partially attenuated Lyα line occurs.
The above considerations serve as the motivation for a NIR search for Lyα emitting galaxies at z > 7. The search technique employs a narrow J-band filter centred on 1.187μm and is sensitive to the signature of Lyα emitting galaxies located at a redshift z = 8.8 (termed z∼ 9 in the following text). The remaining sections are organized as follows. In Section 2, we describe in further detail the construction of the narrow-band survey. In Section 3, we de-scribe the techniques used to process the data and identify candidate
z ∼ 9 Lyα emitting galaxies. Finally, in Section 4 we determine
the comoving volume at z∼ 9 sampled in terms of the Lyα emis-sion luminosity and compare this to a reasonable range of ex-pected properties of z∼ 9 galaxies. Throughout this paper, values of
M,0= 0.3, ,0= 0.7 and H0= 70 km s−1Mpc−1are adopted for
the present epoch cosmological parameters describing the evolution of a model Friedmann–Robertson–Walker Universe. All magnitude information is quoted using AB zero-point values.
2 T H E Z E N S U RV E Y
The desirability of detecting very high redshift Lyα emitting galax-ies forms the motivation for the ‘z equals nine’ (ZEN) survey. Lyα emitting galaxies occupying narrow redshift intervals at z> 7 will present a characteristic emission excess signature in infrared pho-tometry employing a combination of narrow- and broad-band fil-ters. Narrow-band, NIR filters tuned to sample regions of night sky emission devoid of strong terrestrial line features provide access to relatively low background signals and thus permit sensitive imag-ing observations to be executed. In what we refer to as ZEN1, we constructed a 32-h on-sky image of the Hubble Deep Field-South (HDF-S) in the narrow-band filter NB119 employing the VLT In-frared Spectrometer and Array Camera (ISAAC) facility (Willis & Courbin 2005, hereafter WC05). Using deep, archival images of the field consisting of VLT/ISAAC Js band and HST/WFPC2 optical
bands, we were able to execute a sensitive test for faint narrow-band excess sources (i.e. NB< 25.2, Js − NB > 0.3) that remain
undetected in optical bands – a practical definition for candidate
z ∼ 9 Lyα emitters. No candidate ZEN sources were identified
in these observations. However, the study demonstrated that inter-loping low-redshift emission excess sources could be successfully identified and rejected using deep optical images and that a detailed
z∼ 9 volume selection function could be computed in terms of Lyα emission luminosity.
As part of a new study – dubbed ZEN2 – we have obtained further narrow- and broad-band images directed towards the fields of three low-redshift galaxy clusters: A1 689, A1 835 and AC 114 (Table 1). Each cluster acts as a gravitational lens and provides a spatially magnified view of the background Universe. When con-sidering unresolved sources, the effect of this magnification is to increase the total brightness measured within a photometric de-tection aperture. We therefore use the presence of each cluster along the line of sight to provide a gravitational ‘boost’ to the sig-nal from putative z∼ 9 galaxies. The properties of each cluster have been described in detail in the literature and each possesses a well-determined gravitational lens model. Lens models describ-ing the clusters A1 689, A1 835 and AC 114 are presented, respec-tively, in Limousin, Richard & Jullo (2007); Smith et al. (2005) and Campusano et al. (2001). Infrared observations of the three clus-ters were obtained with the VLT/ISAAC facility as part of Euro-pean Southern Observatory (ESO) programmes 070.A-0643, 071.A-0428, 073.A-0475 and are summarized in Table 1. Optical obser-vations of the three clusters consist of HST/ACS F850LP mosaics. These are described briefly in Table 2 and in further detail in Broad-hurst et al. (2005) for A1 689 and Hempel et al. (2007) for A1 835 and AC 114. The NIR observations described in this paper fall com-pletely within the ACS mosaic areas.
Table 2. Properties of the HST/ACS F850LP images of each field.
Cluster texp(s) Image scale 5σ limiting magnitude (arcsec pixel−1) within 0.7 arcsec aperture
A1689 28600 0.05 27.48
A1835 18220 0.04 26.92
AC114 18368 0.05 26.98
3 DATA R E D U C T I O N A N D A N A LY S I S
The NIR NB119 and J-band data were processed using techniques essentially identical to those described in WC05, and we summa-rize them briefly here. Imaging data were (i) dark subtracted using standard calibration frames, (ii) corrected for varying pixel response using twilight sky exposures, (iii) sky-subtracted having masked ar-ray regions containing objects above a specified ADU level, (iv) corrected for both high- and low-frequency spatial artefacts and (v) shifted to a common pixel scale and co-added using a suitable pixel weighting and rejection algorithm. The image quality in each field and filter combination was computed as the mean full width at half-maximum (FWHM) of a sample of bright, stellar sources visible in each image and is displayed in Table 3.
The J-band observations were obtained under photometric con-ditions and were placed on an absolute flux scale using observations of standard stars taken with the science data. Reference magnitudes for standard stars observed with the NB119 filter are not available. The NB119 data were therefore placed on an absolute flux scale by comparing the flux measured within a 5 arcsec diameter circular aperture for a sample of bright, isolated stellar sources visible in both the J-band and NB119 images of each field. The colour term
J−NB for these reference sources is approximately zero and the relationship between J-band reference magnitudes and NB119 in-strumental magnitudes is linear and displays a gradient of unity. A total of 12, 16 and 16 such reference sources were employed for the fields A1 689, A1 835 and AC 114, respectively.
Source detection and photometry were performed on each im-age using the SEXTRACTORsoftware package (Bertin and Arnouts 1996). Once again, we continue the approach outlined in WC05, i.e. source detection is optimized for the detection of marginally resolved or unresolved objects and source fluxes are measured in circular apertures of diameter 0.7 arcsec. The required correction to convert aperture photometry to pseudo-total photometry (assumed to be a 5 arcsec diameter circular aperture) was computed for bright stellar sources in each field. Corrections generated for each image are given in Table 3, though it should be noted that subsequent calcu-lations based upon image photometry, all use the 0.7 arcsec aperture values.
The magnitude corresponding to the 90 per cent point source re-covery threshold in each image (m90) was computed by introducing
artificial point sources into the reduced image of each field and deter-mining the fraction recovered (see WC05). This procedure produces a low-resolution (3 arcsec pixels) image of the varying depth of each
Table 3. Image quality and photometric properties of each reduced image.
Cluster Image quality (arcsec) AB depth at 90 per cent completeness Correction to total magnitudes Lyα flux sensitivity
(0.7 arcsec aperture) (×10−18erg s−1cm−2)
NB119 J band NB119 J band NB119 J band Image plane Source plane
A1689 0.47 0.49 24.5 24.9 0.63 0.68 3.7 0.48
A1835 0.42 0.42 24.5 24.8 0.56 0.55 3.6 2.38
AC114 0.45 0.42 24.5 24.8 0.63 0.60 3.8 2.67
Figure 1. Mean detection probability of simulated point sources as a func-tion of AB magnitude within the NB119 (square symbols and dashed line) and J images (circular symbols and solid line). The horizontal dotted line indicates the 90 per cent completeness threshold.
image. In addition, this process generates a map of photometric un-certainty across each field taking into account contamination by bright galaxies. The average value of the completeness across each image is also displayed in Fig. 1 as a function of source magnitude. The magnitudes corresponding to the 90 per cent completeness limit in each field and filter combination are displayed in Table 3. The typical signal-to-noise ratio (SNR) of a source displaying m90in
each field is approximately 15. Note that for the purposes of com-puting the survey selection function in Section 4, we employ the two dimensional completeness information available for each field. Candidate z∼ 9 Lyα emitting galaxies are identified as narrow-band excess sources relative to the J-narrow-band reference filter. Fig. 2 displays the narrow-band excess versus NB119 magnitude for each of the target fields. We identify emission line sources as those dis-playing a positive J− NB signature in excess of the local 3σ un-certainty in J− NB. At the 90 per cent completeness limit of each field, this corresponds to a colour excess J − NB 0.3. Of the sources satisfying this narrow-band excess threshold, all are ulti-mately detected in HST F850LP images of each field. We there-fore associate these sources with intervening emission line galaxies (e.g. [OII]3727, Hβ or H α) located at redshifts that place the emis-sion feature in the NB119 filter (cf. WC05). The field of view of the NIR images of each cluster covers an area of 4 arcmin2in each
case. Within this area, the images of clusters A1 689, A1 835 and AC 114, respectively, contain 4, 13 and 21 interloping emission line sources down to the observed frame magnitude limit m90
appropri-ate for each field. In addition, a small number of sources in each field are detected in the narrow band but remain undetected in the accompanying J band. All of these sources were investigated and ul-timately associated with faint sources in optical HST observations.

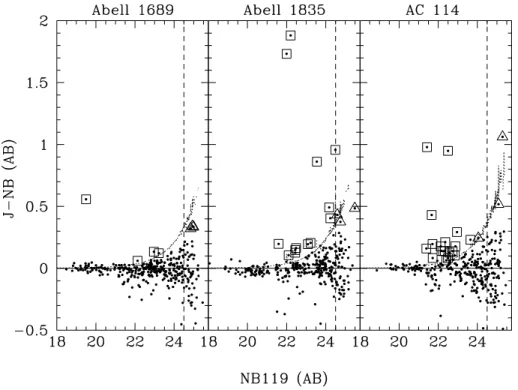

Figure 2. Distribution of narrow-band excess J− NB versus NB119 magnitude for the three cluster fields. Values of J − NB versus NB119 for sources in each field are indicated by dots. For each panel, the dotted curve indicates the 3σ uncertainty in the narrow-band excess and the solid horizontal line indicates
J− NB = 0. The vertical dashed line in each panel indicates the value NB11990. Sources displaying a narrow-band excess greater than the 3σ uncertainty are highlighted using a box. For clarity only, sources satisfying NB>22 or notable brighter sources are marked in this manner. Sources failing the above narrow-band excess measure, yet close to either the selection envelope or the magnitude cut, are indicated with a triangle. These sources were also inspected visually and excluded as potential ZEN sources due to their detection in the corresponding ACS z-band image.
Therefore, no candidate z∼ 9 Lyα emitting galaxies have been detected in any of the three fields studied.
4 P R O B I N G T H E L U M I N O S I T Y F U N C T I O N O F Z ∼ 9 LAE G AL AXIE S
The non-detection of candidate z∼ 9 Lyα emitting galaxies in the three cluster fields may be understood by computing the total volume sampled at each Lyα luminosity. To achieve this, the survey flux sensitivity as a function of solid angle must be corrected for the magnification introduced by the cluster lensing potential in each field, distance dimming and the effect of partial transmission of the Lyα line by the NB119 filter.
The gravitational potential associated with each galaxy cluster creates a magnified view of the background Universe. This mag-nification can be considered as a spatially varying transformation between the source plane and image plane geometry of a particular field. The detection limits displayed in Fig. 1 are associated with the image plane of each cluster. The corresponding source plane detec-tion map for each cluster was computed using theLENSTOOLpackage (Kneib 1993) and a model potential describing each cluster. Each pixel in the detection map (location and area) was transformed to the source plane accounting for the varying lens deflection angle as a function of sky position before being reassembled on to a uniform pixel grid. Images displaying the individual stages in this procedure are displayed in Fig. 3.
In appendix A of WC05, we described how the magnitude limit of a particular narrow-band image could be transformed into a Lyα emission line luminosity at z∼ 9 by accounting for the equivalent
width criterion applied to select narrow-band excess sources and the partial transmission of the Lyα line by the narrow-band filter. The mean Lyα flux sensitivity towards each cluster field is given in Table 3 and is computed over both image plane and source plane (i.e. de-lensed) pixels. The volume sampled as a function of Lyα luminosity, V(LLyα), is then computed as the integral over the
dif-ferential comoving volume element out to the maximum redshift at which a source displaying the specified luminosity would be de-tected. We apply the same procedure to determine V(LLyα) in the
current study with only a minor modification: rather than compute the volume sampling based upon the average depth over each field, we compute the volume sampled per pixel in the source plane detec-tion map describing each cluster. The volume sampled as a funcdetec-tion of Lyα luminosity for each cluster field is then computed as the contribution from individual detection map pixels, weighted by the solid angle of each pixel. The volume selection function for each cluster is displayed in Fig. 4. Each curve is computed assuming a Lyα emission line of rest-frame velocity width σv = 50 km s−1
(see WC05 for additional details).
The inverse of the volume selection function for the ZEN sur-vey is equal to the cumulative space density of z∼ 9 Lyα emit-ting galaxies sampled as a function of their emission luminosity (Fig. 5). The region above each curve in Fig. 5 indicates the re-gion of the cumulative luminosity function of putative z∼ 9 Lyα emitting galaxies that can be ruled out as a result of the non-detection of bona fide z ∼ 9 sources. It is instructive to com-pare these limits to the cumulative luminosity function both of observed Lyα emitting galaxies at redshift z = 6.6 (Kashikawa et al. 2006) and to z∼ 9 Lyα emitting galaxies simulated within a semi-analytic model of galaxy formation (Le Delliou et al.
Figure 3. Grey-scale images demonstrating the processing applied to the two-dimensional sensitivity maps. All images measure 2 arcmin on a side with north up and east towards left. Panels for each cluster are arranged in rows. Left-hand panel: narrow-band image of each field. Centre panel: image plane source detection sensitivity, m90(see text for more details). Lighter regions indicate fainter sensitivity levels. Right-hand panel: Lyα flux detection sensitivity computed for a source plane located at z= 8.8. Lighter regions indicate fainter sensitivity levels. The field distortion arises from the inversion of the image plane sensitivity map through the cluster potential. In each panel, the black and white (red and yellow, respectively, in the online version) contours indicate, respectively, the critical and caustic lines corresponding to a source located at z= 8.8.
2006). We consider the implications for each population in turn. If we use the observed population of Lyα emitting galaxies at
z= 6.6 as a model for emission at z ∼ 9, then the current areal
coverage of the ZEN survey would have to be increased by a factor of at least 3 in order to provide a realistic constraint on the putative z∼ 9 population. The prospect for extending deep, narrow-band surveys at z∼ 9 to wider areal coverage is promis-ing given the advent of both the DAZLE (Horton et al. 2004) and HAWK-I (Casali et al. 2006) NIR cameras at the ESO VLT. If instead the properties of Lyα emitting galaxies at z ∼ 9 are
de-scribed by the semi-analytic model of Le Delliou et al., then the prospects for their detection are less certain. A small region of the model described by an UV photon escape fraction of 0.2 has already been tentatively ruled out by the ZEN survey. However, reducing the escape fraction to 0.02 results in a proportionate decrease in the Lyα luminosity and the detection of such a population with either DAZLE or HAWK-I will remain challenging. An interest-ing alternative approach employs the current generation of rela-tively wide field NIR cameras operating on 4-m class telescopes. In Fig. 5, we displaythe anticipated results of ZEN3, a narrow-band
Figure 4. Comoving volume sampled brighter than a given Lyα luminosity.
The light black curves indicate the comoving volume sampled towards each of the three cluster fields in this paper: A1 689 (dashed), A1 835 (dotted) and AC 114 (solid). The heavy black curves indicate the total comoving volume sampled towards the three ZEN2 cluster fields (dotted; shown as a dashed blue line online), the comoving volume sampled towards the ZEN1 field (HDF-South) described in WC05 (dashed; shown in solid blue online) and the total comoving volume sampled by the ZEN1 and ZEN2 surveys to date (solid; shown in solid red online).
Figure 5. A comparison of the limits imposed upon the z> 7 Lyα luminos-ity function by existing and planned NIR narrow-band surveys. The heavy black curves (shown in blue online) indicate the region of the cumulative space density versus Lyα luminosity sampled by observations: the ZEN1+2 surveys (solid), the wide area, shallow depth ISAAC survey of Cuby et al. (2007) (dotted) and the planned sensitivity of ZEN3, a wide area NB survey employing CFHT WIRCam (dashed). The points indicate the observations of z= 6.6 Lyα emitting galaxies by Kashikawa et al. (2006): circles indicate the photometric sample corrected for completeness while the triangles indi-cate the spectroscopically confirmed sample. The light black curves (shown in red online) indicate the Lyα luminosity function simulated at z = 9 by Le Delliou et al. (2006), assuming a Lyα escape fraction of 0.02 (solid) and 0.2 (dashed), respectively.
search for Lyα emitting galaxies at z ∼ 8 currently underway using the Canada–France–Hawaii Telescope (CFHT) WIRCam facility (Puget et al. 2004). The exceptional volume sampling of such wide field cameras will permit a very sensitive test of the space density of putative z∼ 8 emitters, whether based upon observed z = 6.6 or model populations.
AC K N OW L E D G M E N T S
The authors wish to thank both Nobunari Kashikawa and Cedric Lacey for making their data available in electronic form. JPW acknowledges financial support from the Canadian National Sci-ence and Engineering Research Council (NSERC). FC acknowl-edges financial support from the Swiss National Science Foundation (SNSF). DM is partially supported by FONDAP 15010003.
R E F E R E N C E S
Barton E. J., Dav´e R., Smith J.-D. T., Papovich C., Hernquist L., Springel V., 2004, ApJ, 604, L1
Bertin E., Arnouts S., 1996, A&AS, 117, 393 Bouwens R. J. et al., 2004, ApJ, 616, L79 Broadhurst T. et al., 2005, ApJ, 621, 53
Bunker A., Stanway E., Ellis R., McMahon R., Eyles L., Lacy M., 2006, New Astron. Rev., 50, 94
Campusano L. E., Pell`o R., Kneib J.-P., Le Borgne J.-F., Fort B., Ellis R., Mellier Y., Smail I., 2001, A&A, 378, 394.
Casali M. et al., 2006, Proc. SPIE, 6269, 29
Cuby J.-G., Hibon P., Lidman C., Le F`evre O., Gilmozzi R., Moorwood A., van der Werf P., 2007, A&A, 461, 911
Dickinson M., Stern D., Giavalisco M., 2004, ApJ, 600, 99
Eyles L. P., Bunker A. J., Stanway E. R., Lacy M., Ellis R. S., Doherty M., 2005, MNRAS, 364, 443
Fan X. et al., 2006, AJ, 132, 117
Gunn J. E., Peterson B. A., 1965, ApJ, 142, 1633 Haiman Z., 2003, ApJ, 578, 702
Hempel A. et al., 2007, A&A, submitted
Horton A., Parry I., Bland-Hawthorn J., Cianci S., King D., McMahon R., Medlen S., 2004, Proc. SPIE, 5492, 1022
Hu E. M., Cowie L. L., McMahon R. G., Capak P., Iwamuro F., Kneib J.-P., Maihara T., Motohara K., 2002, ApJ, 568, L75
Hu E. M., Cowie L. L., Capak P., McMahon R. G., Hayashino T., Komiyama Y., 2004, AJ, 127, 563
Iye M. et al., 2006, Nat, 443, 186 Kashikawa N. et al., 2006, ApJ, 648, 7 Kneib J.-P., 1993, PhD thesis
Kneib J.-P., Ellis R. S., Santos M. R., Richard J., 2004, ApJ, 607, 697 Limousin M., Richard J., Jullo E., 2007, ApJ, 668, 643
Le Delliou M., Lacey C. G., Baugh C. M., Morris S. L., 2006, MNRAS, 365, 712
Page L. et al., 2006, ApJ, submitted (astro-ph/0603450) Puget P. et al., 2004, Proc. SPIE, 5492, 978
Rhoads J. E. et al., 2003, AJ, 125, 1006
Santos M. R., Ellis R. S., Kneib J.-P., Richard J., Kuijken K., 2004, ApJ, 606, 683
Santos M., 2004, MNRAS, 349, 1137
Smith. G. P., Kneib J.-P., Smail I., Mazzotta P., Ebeling H., Czoske O., 2005, MNRAS, 359, 417
Stanway E. R., Bunker A. J., McMahon R. G., 2003, MNRAS, 342, 439 Stark D. P., Ellis R. S., Richard J., Kneib J.-P., Smith G. P., Santos M. R.,
2007, ApJ, 663, 10.
Taniguchi Y. et al., 2005, PASJ, 57, 165
Willis J. P., Courbin F., 2006, MNRAS, 357, 1348 (WC05)
Yan H., Dickinson M., Giavalisco M., Stern D., Eisenhardt P. R. M., Ferguson H. C., 2006, ApJ, 651, 24
