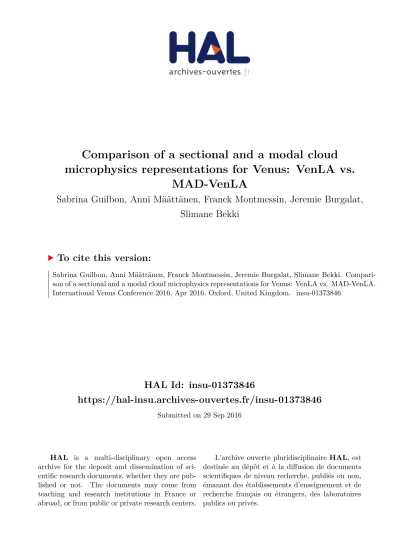

Comparison of a sectional and a modal cloud microphysics representations for Venus: VenLA vs.
MAD-VenLA
Sabrina Guilbon, Anni Määttänen, Franck Montmessin, Jeremie Burgalat, Slimane Bekki
