Optimization by a genetic algorithm
of pyramidal structures made of one,
two or three stacks of metal/dielectric
layers for a quasi-perfect broadband
absorption of UV to near-infrared
radiations
Mayer, Alexandre, Griesse-Nascimento, Sarah, Bi, Hai,
Mazur, Eric, Lobet, Michaël
Alexandre Mayer, Sarah Griesse-Nascimento, Hai Bi, Eric Mazur, Michaël
Lobet, "Optimization by a genetic algorithm of pyramidal structures made of
one, two or three stacks of metal/dielectric layers for a quasi-perfect
Optimization by a genetic algorithm of pyramidal structures
made of one, two or three stacks of metal/dielectric layers for
a quasi-perfect broadband absorption of UV to near-infrared
radiations
Alexandre Mayer
a, Sarah Griesse-Nascimento
b, Hai Bi
b, Eric Mazur
b, and Micha¨
el Lobet
b,c aDepartment of Physics, University of Namur, Rue de Bruxelles 61, 5000 Namur, Belgium
bJohn A. Paulson School of Engineering and Applied Sciences, Harvard University, 29 Oxford
Street, 02138 Cambridge, MA, USA
c
Centre Spatial de Li`
ege, Avenue du Pr´
e-Aily, 4031 Angleur, Belgium
ABSTRACT
We use a genetic algorithm to optimize 2-D periodic arrays of truncated square-based pyramids made of successive stacks of metal/dielectric layers. The objective is to achieve a quasi-perfect broadband absorption of normally incident radiations with wavelengths comprised between 420 and 1600 nm. We compare the results one can obtain by considering (i) Ni, Ti, Al or Cr for the metal, and (ii) poly(methyl methacrylate) (PMMA) or TiO2 for the
dielectric. The structures considered consist of only one, two or three stacks of each metal/dielectric combination. The absorption spectrum of these structures is calculated by a Rigorous Coupled Waves Analysis method. A genetic algorithm is then used to determine optimal values for the period of the system, the lateral dimensions of each stack of metal/dielectric and the width of each dielectric. The results show that Ni/PMMA represents the best metal/dielectric combination. With an optimized structure made of only three stacks of Ni/PMMA, it is possible indeed to absorb 99.8% of the considered incident radiations. An integrated absorptance of 99.4% is achieved with three stacks of Ti/PMMA or Cr/PMMA. Aluminium is not to recommend for this application. The solutions obtained with this metal are indeed too sensitive on the geometrical parameters of the system. Keywords: broadband absorber, nanopyramids, metamaterial, plasmon hybridization, optical engineering, ge-netic algorithm, optimization
1. INTRODUCTION
Metamaterials make it possible to control and mold the flow of electromagnetic waves in an unprecedented way. They came along with a new paradigm in the manipulation of the refractive index of a material. Negative refraction, superlenses or invisibility cloaks are innovative concepts derived from metamaterials.1,2 However,
metamaterials are mainly made of a combination of dielectric and metallic elements. The latter suffer from high losses in the visible. It opened the way for the development of perfect absorbers that act either at specific wavelengths3 or over an extended wavelength range.4–14 Previous work has shown that plasmon hybridization
in periodic arrays of truncated square-based pyramids made of 20 stacks of Au/Ge layers leads to an integrated absorptance of 98% of incident light over a 0.2-5.8 µm wavelength range.15,16 This ultra-broadband absorption is essentially due to (i) an efficient anti-reflection property of these pyramidal structures17,18and (ii) a well-designed coupling between the localized surface plasmons found at the metal/dielectric interfaces of each stack.19–22
The great performances described in this previous work require the fabrication of a structure that is too demanding in terms of time and resources (20 stacks of metal/dielectric layers are indeed required). There is therefore an interest to determine structures that consist of a reduced number of stacks (only 1, 2 or 3 stacks). In contrast with the approach considered in previous work (stack dimensions varying linearly along the vertical
Further author information: (Send correspondence to A.M.)
A.M.: E-mail: [email protected], Telephone: +32 81 724720 M.L.: E-mail: [email protected]
Metamaterials XII, edited by Kevin F. MacDonald, Isabelle Staude, Anatoly V. Zayats, Proc. of SPIE Vol. 11344, 113441L · © 2020 SPIE · CCC code: 0277-786X/20/$21 · doi: 10.1117/12.2552463
axis of the nanopyramids), one can actually give to each stack of metal/dielectric specific and well-tailored dimensions (typically the lateral dimension of each stack and the width of each dielectric layer will be adjustable parameters). This provides the extra degrees of freedom that are necessary to maintain high performances. The physical picture is as follows. The lateral dimensions of the metallic resonators essentially control the plasmonic resonances of the system. The period of the system controls the lateral coupling between these resonances. The widths of the different dielectric layers finally control the vertical coupling between these resonances. A fine tuning between these different parameters makes it possible to achieve the desired broadband absorption. The number of possible parameter combinations to consider grows however exponentially with the number of these parameters. There is therefore a need for efficient global optimization algorithms if we want to adopt this approach.
We showed in previous work that genetic algorithms (GA) are well suited to this type of optical engineering problems.23–26 The general idea of these algorithms consists in working with a population of individuals that
represent possible solutions to the problem. The initial population consists of random individuals. The best individuals are then selected. They generate new individuals for the next generation. Random mutations in the coding of parameters are finally introduced. This strategy is repeated from generation to generation until the population converges, ideally, to the global optimum of the problem.27–32 For computationally expensive
problems, it makes sense to analyze the data collected by the algorithm in order to infer more rapidly the final solution. An approach consists in establishing surrogate models for the function to optimize in order to reduce the number of evaluations.33–35 Another approach consists in coupling the genetic algorithm with a local optimizer that works on these collected data.36–38 An idea consists in establishing quadratic approximations of the function to optimize in order to implement this local optimization.39–46 The algorithm developed in our previous work finally accounts for the experimental resolution of the parameters considered. This resolution sets the accuracy with which each parameter should be determined.
In our previous work on these metamaterial super-absorbers, structures made of one, two or three stacks of nickel/poly(methyl methacrylate) (Ni/PMMA) were considered.26 Our objective was to achieve a quasi-perfect
broadband absorption of normally incident radiations for wavelengths comprised between 420 and 1600 nm (UV to near-infrared). Ni was chosen because it is cheaper and more lossy than Au over the considered wavelength range. PMMA was also chosen as a cheaper alternative to Ge. By tuning the period of the system, the lateral dimensions of each stack of Ni/PMMA and the width of each PMMA layer, an integrated absorptance of 99.8% was achieved with a structure made of only three stacks of Ni/PMMA. The objective of this work is to extend this study by considering all possible combinations between (i) Ni, Ti, Al or Cr for the metal, and (ii) PMMA or TiO2for the dielectric. This article is organized as follows. We present in Section2the genetic algorithm that is
used for the parameter optimization. In Section3, we use this algorithm to optimize broadband absorbers that consist of one, two or three stacks of the mentioned metal/dielectric materials. Section4 finally concludes this work.
2. DESCRIPTION OF THE GENETIC ALGORITHM
The genetic algorithm is used to determine the global maximum of an objective function f = f (x1, . . . xn), where
the n decision variables xi∈ [xmini , xmaxi ] with a discretization step ∆xi (∆xi sets the accuracy with which each
decision variable should be determined). The decision variables are represented by sequences of binary digits (genes). We use the Gray code to interpret the bit content of these genes.32,47 The decision variables are hence
given by xi= xmini + hgene ii × ∆xi, where hgene ii ∈ [0, 2ni− 1] refers to the value of the gene. The bit length
ni of each gene is the first integer for which xmini + (2ni− 1) × ∆xi ≥ xmaxi . nbits =Pni=1ni refers to the total
number of bits in a DNA, i.e. the set of genes used for coding the n decision variables.
We work with a population of npop=50 individuals. We start with a random population. We evaluate the
fitness f (x1, . . . xn) of each individual and sort the population from the best individual to the worst. The worst
nrand= 0.1 × npop× (1 − p) individuals of the population are replaced by random individuals. p = |s − 0.5|/0.5
is a progress indicator determined by the genetic similarity s; s corresponds to the fraction of bits in the population whose value is identical to the best individual.23,47 These random individuals are transferred to the
next generation. The remaining N = npop− nrandindividuals of the current population participate to the steps
Selection: We select N parents by a rank-based roulette wheel selection, noting that a given individual can be selected several times.32 Crossover: For any pair of parents, we define two children for the next generation either (i) by a one-point crossover of the parents’ DNA (probability of 70%), or (ii) by a simple replication of the parents. Mutation: The children obtained by crossover are subjected to a modified mutation operator that acts on randomly-shifted Gray codes (see Appendix A of Ref. 26). The idea consists in expressing the genes in randomly-shifted versions of the original Gray code before applying mutations. We then use m = 0.95/nbits
as mutation rate for individual bit flips. The result of these mutations is translated back to the original Gray code (reference encoding used in the rest of the algorithm). The use of randomly-shifted Gray codes when applying mutations helps the genetic algorithm to escape local optima. It also ensures a wider diversity in the displacements generated by these mutations.26,46
In order to infer more rapidly the final solution, we apply at each generation a local optimization procedure that works on the data collected by the algorithm (see Appendix B of Ref. 26). The idea consists in establishing a quadratic approximation of the fitness in the close neighborhood of the best-so-far individual, by using a singular-value-decomposition technique. Given the quadratic approximation f (~x) ' a0+ ~A1. ~X + 12X.A~ 2X of~
the fitness, where ~X = ∆−1(~x − ~xref) with ~xref the best-so-far individual and ∆ = diag[∆1, . . . ∆n]/ maxi∆i a
diagonal matrix that contains appropriate scaling factors, the optimum is given formally by ~x∗= ~xref−∆A−12 A~1.
We compute the eigensystem A2~xk = λk~xk of the matrix A2 in order to express ~x∗ = ~xref− ∆Pk ~ xk. ~A1
λk ~xk,
where the summation is restricted to eigenvalues λk for which |λk| ≥ 10−3× λmax in order to control numerical
instabilities (λmax= maxk|λk|). If the solution obtained by this procedure is within the specified boundaries, it
replaces the last individual scheduled for the next generation (a random individual if nrand> 0).
We finally evaluate the fitness f of all individuals scheduled for the next generation. We sort the new population from the best individual to the worst. If the best individual in the new generation is not as good as in the previous generation, the elite of that previous generation replaces an individual chosen at random in the new generation. We repeat these different steps from generation to generation until a termination criterion is met. Since the fitness calculations are computationally expensive, we keep a record with all fitness evaluations in order to avoid any duplication of these evaluations. This record is also used by the local optimization procedure. A multi-agent implementation of this algorithm was developed in order to enable a massive-parallelization of the fitness calculations. We showed in previous work that this algorithm applies with success to typical benchmark problems in 5, 10 and 20 dimensions.45,46,48
3. OPTIMIZATION OF PYRAMIDAL STACKS OF METAL/DIELECTRIC LAYERS
FOR THE DEVELOPMENT OF QUASI-PERFECT BROADBAND ABSORBERS
Light absorption is a fundamental optical phenomena in which the energy of an electromagnetic wave is trans-formed in another useful form of energy, such as thermal, chemical or electronic. Applications where light absorption plays an essential role include optical imaging, energy harvesting, local heating or photo-catalysis. Previous work has shown that metamaterials make it possible to develop perfect absorbers that act over an extended wavelength range.4–14 An approach adopted by Lobet et al. consists in considering periodic arrays of truncated square-based pyramids made of alternating layers of metal/dielectric.15,16,26 The optimized structure determined by Lobet et al. in 2014 consists of twenty stacks of Au/Ge layers.15 Each gold layer in this structure has a thickness of 15 nm. This value is smaller than the skin depth over the considered radiation wavelengths. It allows therefore a coupling between the surface plasmons at the two sides of each gold layer. The wavelength associated with these plasmon resonances is proportional to the lateral dimensions of the metallic layers. The dielectric layers play the role of spacer between the metallic resonators. The pyramids stand on a flat 200 nm-thick gold layer. The role of this gold layer is to block the transmission of incident radiations. To maximize the absorptance A(λ) = 1 − T (λ) − R(λ) at any wavelength λ, we need indeed the transmittance T (λ) → 0 and the reflectance R(λ) → 0. The substrate finally consists of a semi-infinite medium of SiO2. This metamaterial
provides an integrated absorptance of 98.0% over a 0.2-5.8 µm wavelength range.
The ultra-broadband absorption obtained by Lobet et al. in Ref. 15is essentially due to (i) an efficient anti-reflection property of these pyramidal structures (R(λ) → 0)17,18 and (ii) a well-designed coupling between the

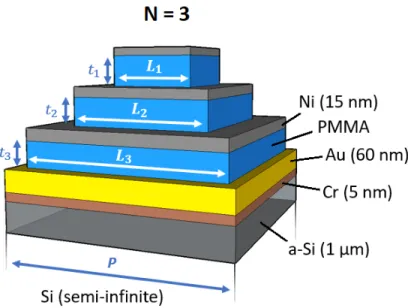

Figure 1. Square-based truncated pyramid made of N =3 stacks of Ni/PMMA layers. The support of the pyramid consists of uniform layers of Au (60 nm), Cr (5 nm) and a-Si (1 micron). We assume an infinite substrate of Si (ε = 16).
localized surface plasmons found at each metal/dielectric interface in these pyramids.19–22 These controlled plas-monic resonances and their hybridization lead effectively to A(λ) → 1. A large number N =20 of metal/dielectric stacks was considered in this previous work. This enables a smooth transition between the refractive index of air and the substrate (anti-reflection effect). The plasmonic resonances of the individual metallic layers also cover a broad wavelength range. It was shown that an hybridization of these plasmon modes occurs. The thickness of the dielectric layers (tdiel) was then used to control the vertical coupling between these modes (tdiel was given
the same value for the N dielectric layers). The period of the system (P ) was used to control the lateral coupling between these modes. A manual optimization of N , P and tdiel was performed in order to achieve the desired
ultra-broadband absorption.
In Ref. 26, Mayer and Lobet used a genetic algorithm to determine broadband absorbers that consist of N =1, 2 or 3 stacks of Ni and PMMA layers (see Fig. 1). The objective was to achieve a quasi-perfect absorption (A(λ) → 1) of incident radiations in the wavelength range 420-1600 nm, by tuning the geometrical parameters of these structures. Ni was chosen because it is cheaper and more lossy than Au over the considered wavelength range. PMMA was also taken as cheaper alternative to Ge. The motivation for considering structures made of only 1, 2 or 3 stacks of Ni/PMMA was to limit the study to structures that are compatible with current fabrication scenario. The general strategy for obtaining perfect absorption was similar to the one described in the previous work.15 The flat support of the pyramids consists of successive uniform layers of Au (60 nm), Cr
(5 nm) and amorphous Si (1 micron). A semi-infinite substrate of Si is then considered. The role of the gold layer is again to block the transmission of incident radiations (T (λ) → 0). Pyramids are expected to exhibit anti-reflection properties (R(λ) → 0). In contrast with the previous study,15 the dielectric spacers have specific thicknesses ti, where i ∈ [1, N ]. The lateral dimensions Li of the metallic resonators are also free parameters,
except for the constraint that L1< L2< L3≤ P . This provides the extra degrees of freedom that are required
in order to obtain the desired broadband absorption (despite the reduced number of stacks and thanks to a fine tuning of the plasmon hybridization). By using a genetic algorithm for the parameter optimization, Mayer and Lobet could achieve an integrated absorptance of 99.8% of the considered incident radiations, with a structure that consists of only three stacks of Ni/PMMA.26
The objective of this work is to generalize this previous study to a wider variety of materials. We will consider the eight possible combinations between (i) Ni, Ti, Al or Cr for the metal, and (ii) PMMA or TiO2 for
the dielectric. For each metal/dielectric combination, we consider pyramids made of N =1, 2 or 3 stacks of these materials. Each structure is optimized with the genetic algorithm. This extensive study aims at identifying the
best combination of materials in order to achieve a quasi-perfect broadband absorption of incident radiations in the 420-1600 nm wavelength range. The absorptance spectrum of the structures considered is obtained by a Rigorous Coupled Waves Analysis (RCWA) method.49,50 This method solves Maxwell’s equations numerically
in laterally periodic systems. We used 11 × 11 plane waves for the application of the RCWA method and reported values for the refractive indices of each material.51–54 The figure of merit η of each structure is the integrated
absorptance over the considered wavelength range. It is defined by η(%) = 100 ×Rλmax
λmin A(λ)dλ / (λmax− λmin),
where A(λ) refers to the absorptance of normally incident radiations at the wavelength λ, λmin=420 nm and
λmax=1600 nm. We then use the genetic algorithm to maximize a fitness f = η(P, L1, t1, . . . LN, tN) given by
this figure of merit, by exploring a large number of different parameter combinations for the period P of the system, the lateral dimension Li of each stack of metal/dielectric and the thickness ti of each dielectric.
The results provided by the genetic algorithm for the eight material combinations considered are given in Tables 1and2. For these different optimizations, the period P of the system could take values between 50 and 500 nm by steps of 1 nm. The lateral dimension Li of each stack of metal/dielectric could take values between
50 and 500 nm by steps of 1 nm. The thickness tiof each dielectric could take values between 50 and 250 nm by
steps of 1 nm. We use here subscripts i=1, 2 and 3 to refer respectively to the stack at the apex, in the middle or at the bottom of each pyramid. The thickness of each metallic layer was finally fixed to a value of 15 nm. In order to obtain pyramidal structures, we enforced the genetic algorithm to consider only solutions for which L1< L2< L3≤ P . When the final solution established by the genetic algorithm was such that L3> P −40 nm,
a second optimization was run by enforcing this time L1< L2< L3 and L3≤ P − 40 nm in order to ensure a
safe minimal distance of 40 nm between adjacent pyramids. The constrains actually considered for each solution are indicated in the tables. When optimizing structures made of three stacks of metal/dielectric layers, there are actually seven parameters to determine (P , L1, t1, L2, t2, L3 and t3), with a total of 13,936,405,106,594,025
possible parameter combinations. The genetic algorithm is actually able to establish a globally optimal set of parameters after only a few thousands evaluations. This makes the considered optical engineering problem tractable with current super-calculators.
The examination of Tables1and2reveals that PMMA is a better choice than TiO2regarding the dielectric.
The use of PMMA leads indeed to higher figures of merit η for all situations considered (i.e., for any choice of metal and for structures made of 1, 2 or 3 stacks). This can be understood by the fact that absorption is higher in TiO2than in PMMA. This leads to a slight reduction of the coupling between plasmonic resonances, which in
turn reduces the broadband character of the absorption spectrum. Despite this reduction of η, it must be noted that TiO2 remains a material worth considering for the development of broadband absorbers. An integrated
absorptance of 99.3% over the considered 420-1600 nm wavelength range is indeed achieved with only 3 stacks of Ni/TiO2 (see Table2).
The best combination of materials is Ni/PMMA (see Table1). With only 3 stacks of Ni/PMMA, one can indeed achieve an integrated absorptance of 99.8% over the considered 420-1600 nm wavelength range. An integrated absorptance of 99.4% is already achieved with 2 stacks of Ni/PMMA. This material combination is actually that considered in our previous work.26 Ti/PMMA and Cr/PMMA provide comparable results
(η=99.8% for 3 stacks of Ti/PMMA and η=99.7% for 3 stacks of Cr/PMMA). The solutions provided by the genetic algorithm have however L3= P , which is not appropriate for a realistic device. By enforcing L3≤ P -40
nm in a second run of the genetic algorithm, we obtain solutions with η=99.4% for 3 stacks of Ti/PMMA or 3 stacks of Cr/PMMA. These solutions are slightly below the integrated absorptance of 99.8% achieved with 3 stacks of Ni/PMMA.
Aluminium is not to recommend for a practical device. The optima found for 1, 2 or 3 stacks of Al/PMMA or Al/TiO2 turn out indeed to be very sharp ! The solutions obtained with Ni, Ti or Cr are comparatively
much broader. This is illustrated in Fig. 2, where we compare maps obtained in the (P, L1) and (L1, t1) planes
that pass through the final solution established by the genetic algorithm, when considering either 1 stack of Al/PMMA or 1 stack of Ni/PMMA. These maps are generated by a linear interpolation of the data collected by the genetic algorithm along the optimization. The final solution established by the genetic algorithm is indicated by a star. The black regions in these maps correspond to forbidden solutions (constraint L1≤ P not satisfied).
Table 1. Optimal parameters found by the genetic algorithm and figure of merit η for structures made of N =1, 2 or 3 stacks of Ni/PMMA, Ti/PMMA, Al/PMMA or Cr/PMMA (from top to bottom).
Ni / PMMA L1 (nm) t1 (nm) L2 (nm) t2 (nm) L3 (nm) t3(nm) P (nm) η N =1 stack L1≤ P 201 117 - - - - 286 95.0% N =2 stacks L1< L2≤ P 132 123 227 107 - - 287 99.4% N =3 stacks L1< L2< L3 149 131 268 124 369 101 412 99.8% L3≤ P − 40 nm Ti / PMMA L1 (nm) t1 (nm) L2 (nm) t2 (nm) L3 (nm) t3(nm) P (nm) η N =1 stack L1≤ P 368 134 - - - - 491 89.3% N =2 stacks L1< L2≤ P 175 117 306 127 - - 336 98.6% N =3 stacks L1< L2< L3 161 125 302 126 451 113 491 99.4% L3≤ P − 40 nm Al / PMMA L1 (nm) t1(nm) L2 (nm) t2 (nm) L3(nm) t3 (nm) P (nm) η N =1 stack L1≤ P 221 151 - - - - 491 89.2% N =2 stacks L1< L2≤ P 187 108 263 58 - - 415 97.9% N =3 stacks L1< L2< L3≤ P 129 112 208 110 294 97 465 98.7% Cr / PMMA L1 (nm) t1 (nm) L2 (nm) t2 (nm) L3 (nm) t3(nm) P (nm) η N =1 stack L1≤ P 314 124 - - - - 419 88.8% N =2 stacks L1< L2≤ P 192 121 332 127 - - 369 98.5% N =3 stacks L1< L2< L3 151 120 277 127 427 123 467 99.4% L3≤ P − 40 nm

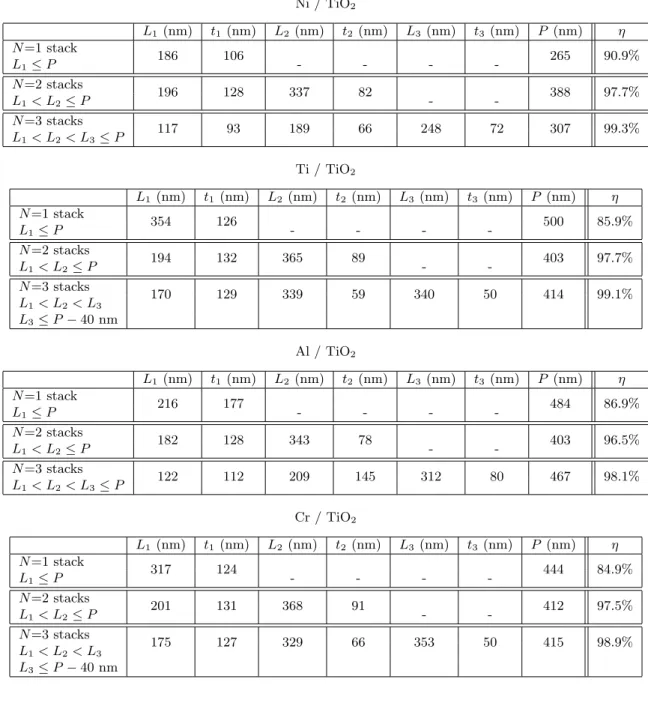

Table 2. Optimal parameters found by the genetic algorithm and figure of merit η for structures made of N =1, 2 or 3 stacks of Ni/TiO2, Ti/TiO2, Al/TiO2 or Cr/TiO2 (from top to bottom).
Ni / TiO2 L1 (nm) t1(nm) L2 (nm) t2 (nm) L3(nm) t3 (nm) P (nm) η N =1 stack L1≤ P 186 106 - - - - 265 90.9% N =2 stacks L1< L2≤ P 196 128 337 82 - - 388 97.7% N =3 stacks L1< L2< L3≤ P 117 93 189 66 248 72 307 99.3% Ti / TiO2 L1 (nm) t1 (nm) L2 (nm) t2 (nm) L3 (nm) t3(nm) P (nm) η N =1 stack L1≤ P 354 126 - - - - 500 85.9% N =2 stacks L1< L2≤ P 194 132 365 89 - - 403 97.7% N =3 stacks L1< L2< L3 170 129 339 59 340 50 414 99.1% L3≤ P − 40 nm Al / TiO2 L1 (nm) t1(nm) L2 (nm) t2 (nm) L3(nm) t3 (nm) P (nm) η N =1 stack L1≤ P 216 177 - - - - 484 86.9% N =2 stacks L1< L2≤ P 182 128 343 78 - - 403 96.5% N =3 stacks L1< L2< L3≤ P 122 112 209 145 312 80 467 98.1% Cr / TiO2 L1 (nm) t1 (nm) L2 (nm) t2 (nm) L3 (nm) t3(nm) P (nm) η N =1 stack L1≤ P 317 124 - - - - 444 84.9% N =2 stacks L1< L2≤ P 201 131 368 91 - - 412 97.5% N =3 stacks L1< L2< L3 175 127 329 66 353 50 415 98.9% L3≤ P − 40 nm

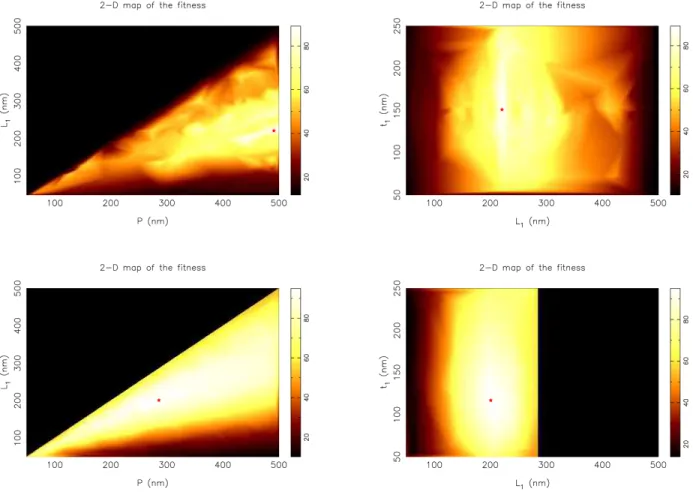

Figure 2. Maps obtained by a linear interpolation of the data collected by the genetic algorithm in the (P, L1) and (L1, t1)
planes that pass through the final solution established by the algorithm (indicated by a star). Top: optimization of 1 stack of Al/PMMA (global optimum at P =491 nm, L1=221 nm and t1=151 nm). Bottom: optimization of 1 stack of
Ni/PMMA (global optimum at P =286 nm, L1=201 nm and t1=117 nm).
L1 from their optimal values, while Ni for example would be more tolerant to these deviations. Aluminium is
therefore not recommended for this application.
Figure3finally represents the absorptance spectrum obtained with the optimized 3-stack structures given in Tables1(PMMA) and2(TiO2). The figures also include for comparison the absorptance obtained with just the
flat support of the pyramids (uniform layers of Au (60 nm), Cr (5 nm) and a-Si (1 micron) on a semi-infinite Si substrate). The peak in this last result corresponds to the surface plasmon resonance of the gold layer. The two figures confirm that Ni and PMMA form the best combination of materials. Ti and Cr provide good alternatives. The results obtained with Al confirm that this material should be discarded.
Most solutions in Tables 1 and 2 actually represent good alternatives for the development of broadband absorbers in the 420-1600 nm wavelength range (except for Al as discussed). The best combination of materials is Ni/PMMA, which provides an integrated absorptance of 99.8% with only 3 stacks of metal/dielectric. This design is much easier to fabricate compared to the 20-stack structure considered in the previous work by Lobet et al.15 Our results are also competitive compared to other devices present in the literature.4–14 The optimization of
structures made of only one or two stacks of metal/dielectric still provides interesting solutions. When considering for example only 2 stacks of Ni/PMMA, one can still absorb 99.4% of the considered incident radiations. An optimized structure made of only 1 stack of Ni/PMMA absorbs 95% of these radiations. These results prove again the interest of an evolutionary approach to optical engineering problems.

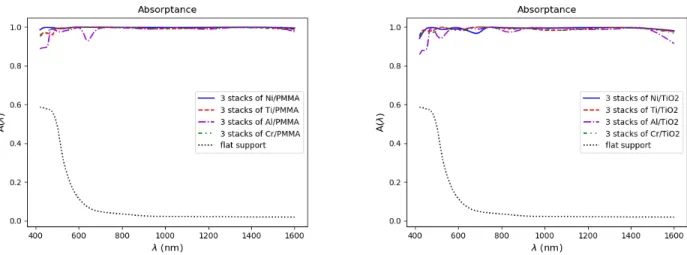

Figure 3. Left: Absorptance A(λ) for optimized structures made of 3 stacks of Ni/PMMA (solid), Ti/PMMA (dashed), Al/PMMA (dotdashed) or Cr/PMMA (dotdotdashed). Right: Absorptance A(λ) for optimized structures made of 3 stacks of Ni/TiO2 (solid), Ti/TiO2 (dashed), Al/TiO2 (dotdashed) or Cr/TiO2 (dotdotdashed). The solutions represented in
Tables1and2are those for which L3≤ P -40 nm. The dotted curves correspond to the absorptance obtained with just
the flat support of the pyramids.
4. CONCLUSIONS
We used a genetic algorithm to optimize broadband absorption by periodic arrays of truncated square-based pyramids that consist of 1, 2 or 3 stacks of different metal/dielectric materials. We considered in particular the eight possible combinations between (i) Ni, Ti, Al or Cr for the metal, and (ii) PMMA or TiO2 for the
dielectric. Our objective was to achieve a quasi-perfect broadband absorption of electromagnetic radiations with wavelengths between 420 nm and 1600 nm. A Rigorous Coupled Waves Analysis method was used for the calculation of the absorptance spectra. The genetic algorithm was then used to determine the optimal dimensions of each structure. This study reveals that Ni/PMMA is the best material combination. An optimized structure made of 3 stacks of Ni/PMMA provides indeed an integrated absorptance of 99.8% of the considered radiations. Optimized structures made of three stacks of Ti/PMMA or Cr/PMMA provide an integrated absorptance of 99.4% of these radiations. An integrated absorptance of 99.4% is also achieved with only 2 stacks of Ni/PMMA. The study shows that Al should be discarded for this application because the solutions obtained with this metal are too sensitive on deviations from the optimum. The results obtained with Ni, Ti and Cr are highly competitive. The structures determined in this work have the advantage to be easier to fabricate because of the reduced number of layers involved in the design. Future work will focus on an experimental demonstration of this broadband absorption.
