Appendix C : ADL : Architecture Description Language

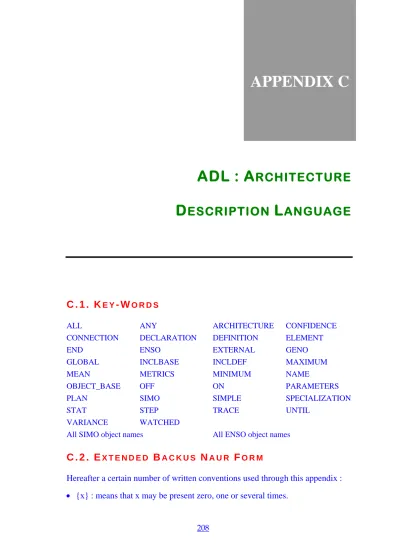

APPENDIX C

ADL : A RCHITECTURE

D ESCRIPTION L ANGUAGE

C . 1 . K

- W

ALL ANY ARCHITECTURE CONFIDENCE CONNECTION DECLARATION DEFINITION ELEMENT

END ENSO EXTERNAL GENO GLOBAL INCLBASE INCLDEF MAXIMUM MEAN METRICS MINIMUM NAME OBJECT_BASE OFF ON PARAMETERS

PLAN SIMO SIMPLE SPECIALIZATION STAT STEP TRACE UNTIL

VARIANCE WATCHED

All SIMO object names All ENSO object names

C . 2 . E

B

N

F

Hereafter a certain number of written conventions used through this appendix :

• {x} : means that x may be present zero, one or several times.

208

Appendix C : ADL : Architecture Description Language

• +{x} : means that x is present at least once.

• [x] : means that x is present or not.

• ⏐ : represents OR

• A terminal symbol which is not a character is written in capital letters without any quotations.

Database = OBJECT_BASE Identifier “;” +{SIMO_dec}

{ENSO_dec} END “.”

SIMO_dec = SIMO SIMO_obj_id “;” Param_dec [Metric_dec]

END “;”

Param_dec = PARAMETERS NAME “:=“ String “;”

{Param_ident “:=“ Number “;”}

Metric_dec = METRICS +{Metric_ident “:=“ Metric_type “;”}

Metric_type = SIMPLE ⏐ STAT

ENSO_dec = ENSO ENSO_obj_id “={“ SIMO_obj_id {“,” SIMO_Obj_id} “}”

Number = Integer ⏐ Real Integer = [“+” ⏐ “-”] +{“0..9”}

Real = [“+” ⏐ “-”] +{“0..9”} [“.” +{“0..9”}] [“e” [“+” ⏐ “-”]

+{“0..9”}]

SIMO_obj_id = Identifier ENSO_obj_id = Identifier Metric_ident = Identifier Param_ident = Identifier

Identifier = [“-”] Letter {Letter ⏐ “_” ⏐ “0..9”}

Letter = “a..z” ⏐ “A..Z”

String = “”” +{Character} “””

209

Appendix C : ADL : Architecture Description Language

Elem_def = ELEMENT Identifier “;” Declare_part [Connect_part]

[Special_part] [Plan_part] END “;”

Declare_part DECLARATION +{Inst_dec}

Inst_dec = Type_ident Var_ident {“,” Var_ident} “;”

Type_ident = Elem_ident ⏐ Predef_obj_id Var_ident = Identifier [“(“ Indice “)”]

Indice = “1..9” +{“0..9”} ⏐ Const_ident Elem_ident = Identifier

Predef_obj_id = ANY ⏐ SIMO_obj_id ⏐ ENSO_obj_id Const_ident = Identifier

Connect_part = CONNECTION +{Conn_inst}

Conn_inst = Link_name ⏐ Link_no_name

Link_name = Var_ident [.Var_ident] “<“ Link_ident “>“

Var_ident [.Var_ident] “;”

Link_no_name = Var_ident +{“,” Var_ident}“<->“ Var_ident “;”

Link_ident = Identifier

Special_part = SPECIALIZATION +{Param_spec ⏐ Metric_spec ⏐ Var_spec}

Param_spec = Path Param_ident “:=“ Num_free Num_free = Number ⏐ Free_var ⏐ Const_ident

Metric_spec = Path Metric_ident [“:” Metric_kind ] “:=“ Onoff “;”

Onoff = ON ⏐ OFF

Metric_kind = MEAN ⏐ VARIANCE ⏐ MAXIMUM ⏐ MINIMUM

⏐ CONFIDENCE ⏐ ALL

Var_spec = [Path] Var_ident “:=“ SIMO_obj_id “;”

Free_var = Identifier

210

Appendix C : ADL : Architecture Description Language

Path = +{Var_ident “.”}

Plan_part = PLAN +{Plan_def}

Plan_def = Plan_left “:=“ Plan-right “;”

Plan_left = Free_var {Ser_paral Free_var}

Ser_paral = “⏐⏐“ ⏐ “,”

Plan_right = Number_list ⏐ Range ⏐ Filename Number_list = Number +{“,” Number}

Range = Number UNTIL Number STEP Number Filename = String

Program = ARCHITECTURE Identifier “;” Global_part [Define_part] Declare_part [Connect_part]

[Special_part] [Plan_part] END “.”

Global_part = GLOBAL Include_base {Global_const}

Include_base = INCLBASE Filename_DB “;”

Filename_DB = Filename

Global_const = Const_ident “:=“ Num_str “;”

Num_str = Number ⏐ String

Define_part = DEFINITION {Incl_def} {Elem_def}

Incl_def = INCLDEF Filename_ExD “;”

Filename_ExD = Filename

External_def = EXTERNAL +{Elem_def} END “.”

211
