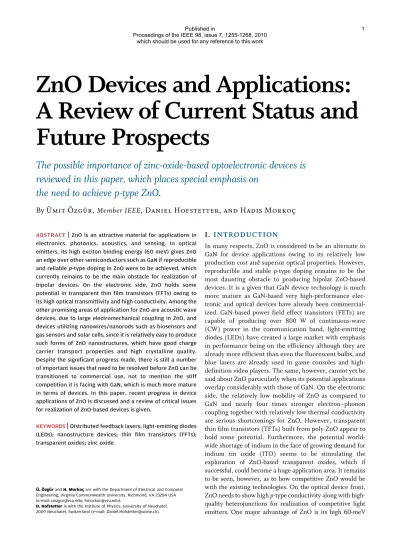

ZnO Devices and Applications:
A Review of Current Status and Future Prospects
The possible importance of zinc-oxide-based optoelectronic devices is reviewed in this paper, which places special emphasis on
the need to achieve p-type ZnO.
By U ¨ mit O ¨ zgu ¨ r ,
Member IEEE, D a n i e l H o f s t e t t e r , a n d H a d i s M o r k o c ¸
ABSTRACT| ZnO is an attractive material for applications in electronics, photonics, acoustics, and sensing. In optical emitters, its high exciton binding energy (60 meV) gives ZnO an edge over other semiconductors such as GaN if reproducible and reliablep-type doping in ZnO were to be achieved, which currently remains to be the main obstacle for realization of bipolar devices. On the electronic side, ZnO holds some potential in transparent thin film transistors (TFTs) owing to its high optical transmittivity and high conductivity. Among the other promising areas of application for ZnO are acoustic wave devices, due to large electromechanical coupling in ZnO, and devices utilizing nanowires/nanorods such as biosensors and gas sensors and solar cells, since it is relatively easy to produce such forms of ZnO nanostructures, which have good charge carrier transport properties and high crystalline quality.
Despite the significant progress made, there is still a number of important issues that need to be resolved before ZnO can be transitioned to commercial use, not to mention the stiff competition it is facing with GaN, which is much more mature in terms of devices. In this paper, recent progress in device applications of ZnO is discussed and a review of critical issues for realization of ZnO-based devices is given.
KEYWORDS|Distributed feedback lasers; light-emitting diodes (LEDs); nanostructure devices; thin film transistors (TFTs);
transparent oxides; zinc oxide
I . I N T R O D U C T I O N
In many respects, ZnO is considered to be an alternate to GaN for device applications owing to its relatively low production cost and superior optical properties. However, reproducible and stable p-type doping remains to be the most daunting obstacle to producing bipolar ZnO-based devices. It is a given that GaN device technology is much more mature as GaN-based very high-performance elec- tronic and optical devices have already been commercial- ized. GaN-based power field effect transistors (FETs) are capable of producing over 800 W of continuous-wave (CW) power in the communication band, light-emitting diodes (LEDs) have created a large market with emphasis in performance being on the efficiency although they are already more efficient than even the fluorescent bulbs, and blue lasers are already used in game consoles and high- definition video players. The same, however, cannot yet be said about ZnO particularly when its potential applications overlap considerably with those of GaN. On the electronic side, the relatively low mobility of ZnO as compared to GaN and nearly four times stronger electron–phonon coupling together with relatively low thermal conductivity are serious shortcomings for ZnO. However, transparent thin film transistors (TFTs) built from poly-ZnO appear to hold some potential. Furthermore, the potential world- wide shortage of indium in the face of growing demand for indium tin oxide (ITO) seems to be stimulating the exploration of ZnO-based transparent oxides, which if successful, could become a huge application area. It remains to be seen, however, as to how competitive ZnO would be with the existing technologies. On the optical device front, ZnO needs to show highp-type conductivity along with high- quality heterojunctions for realization of competitive light emitters. One major advantage of ZnO is its high 60-meV
U¨ . O¨ zgu¨randH. Morkoçare with the Department of Electrical and Computer Engineering, Virginia Commonwealth University, Richmond, VA 23284 USA (e-mail: uozgur@vcu.edu; hmorkoc@vcu.edu).
D. Hofstetteris with the Institute of Physics, University of Neuchatel, 2009 Neuchatel, Switzerland (e-mail: Daniel.Hofstetter@unine.ch).
exciton binding energy compared to 25 meV of GaN. If lasers utilizing excitonic transitions were to be built, ZnO would have an advantage over GaN provided that p-type conductivity is obtained and other necessary processing capabilities are developed for ZnO. Another promising application area of ZnO is acoustic wave devices owing to its large electromechanical coupling, particularly along the c-direction. Further yet, ZnO appears to be well suited for producing nanostructures, which may be used for devices.
A significant part of the recent research in the field of ZnO-based devices and applications deals with ZnO nano- structures (nanowires, nanobelts, etc.) and their integration with the mainstream semiconductor materialsVsuch as Si, GaN, and organic semiconductors. ZnO nanowires have attracted a lot of attention due to their good charge carrier transport properties and high crystalline quality [1]–[3].
Such 1-D systems have unique properties that make them potentially attractive for nanoscale devices [LEDs, lasers, photodetectors, chemical/biosensors, and surface acoustic wave (SAW) devices], which have been intensively investi- gated [4]–[7].
In this paper, device applications of ZnO are discussed and a critical review of the recent progress in this field is given. First, optical devices, such as light-emitting diodes (LEDs), optically pumped lasers, and transparent thin films transistors based on ZnO are reviewed. This is followed by a discussion of ZnO piezoelectric devices.
Finally, gas/biosensor and solar cell applications exploit- ing the unique properties of ZnO nanostructures are discussed.
I I . O P T I C A L D E V I C E S
Reiterating, ZnO is considered as a potentially attractive material for light-emitting devices emitting in the ultraviolet (UV) region, because of its large exciton binding energy (60 meV). Since reproduciblep-type ZnO has not yet been developed widespread fabrication of ZnOp–nhomojunction- based LEDs has not been possible. In the interim,n-type ZnO on other available and comparablep-type materials was used for at least investigating the particulars of junctions partici- pated by ZnO. This subject has seen a great deal of activity, and heterojunctions have been realized using variousp-type materials such as Si, GaN, AlGaN, SrCu2O2, NiO, ZnTe, Cu2O, CdTe, SiC, diamond, ZnRh2O4, and ZnO/GaAs. Some details of these heterostructures concerning their growth and properties can be found in [8] and [9]. In general, electroluminescence (EL) under forward bias was observed to be weak, while in some cases the p–n heterojunctions were considered for uses as ultraviolet photodetectors (PDs).
If studies on radiation hardness of ZnO hold true [10], ZnO- based PDs in and of themselves could have superior resistance to ionizing radiation and high-energy particles. In the absence of p–n junctions, EL properties of ZnO have also been exploited by fabricating metal–insulator–semiconductor (MIS) structures which do not requirep-type ZnO [11].
Schottky diodes based on ZnO have also been implemented as high-efficiency UV photodetectors. In one particular study [12], a spin coated transparent and conducting polymer [poly(3,4-ethylenedioxythiophene) poly(styrenesulfonate) (PEDOT : PSS)] has been used as a Schottky contact on hydrothermally grown Zn-polar single crystal ZnO (Tokyo Denpa). Schottky diodes of 500 500 m2 in size exhibited current densities of 4109 A/cm2 at 10 V and 10 A/cm2 at þ2 V (ideality factor n¼1:02 and Schottky barrier height b¼ 1.1 eV). Under illumination and at zero bias, the photodiodes attained a significantly large responsivity of 0.3 A/W at 370 nm corresponding to unity quantum efficiency, and a UV/visible rejection ratio of about 103as shown in Fig. 1. Such structures that do not involvep-type ZnO are promising for application in UV detection.
ZnO is also extremely attractive as a transparent contact layer due to its high conductivity and transparency in addition to its low cost (needs to be lowered further), nontoxicity, and relatively low deposition temperature. In general, PDs based on other semiconductors with ZnO transparent window layers would have a significant advantage over the ITO window varieties because the transparency of ZnO at 450 nm is more than that of ITO (90%), and ZnO is also expected to offer lower resistance.
A. Light-Emitting Diodes
One of the first if not the first ZnO-based hybrid heterostructure LEDs was fabricated by Drapak [13] in 1968 who used Cu2O as a p-type layer. In all the other hybrid structures that followed, the emission observed under forward bias either originated in thep-type layer, or
Fig. 1.Responsivity of a PEDOT : PSS/ZnO Schottky photodiode at zero bias as a function of the incident photon wavelength. The vertical dashed lines mark the onsets of absorption in PEDOT: PSS (left) and ZnO (right). The inset shows the typical IV characteristics in dark.
(After Nakano et al. [12].)
showed a very weak contribution at the ZnO band edge corresponding to extremely small external quantum efficiencies. When p-AlGaN was used to favor hole injection into ZnO thereby promoting emission in that material, strong EL peaking at390 nm due to excitonic recombination within ZnO has been observed [14], [15].
Although these results show that p-AlGaN is a good candidate for fabricating efficient hybrid heterostructure LEDs with ZnO active layers, all ZnO-based LEDs incor- porating stable p-ZnO are needed for light emitters to compete with those based on nitrides.
Reports on all ZnO-based light-emitting devices have also started to appear [16], [17] asp-type ZnO began to become available. However, production of stable and device-quality p-type ZnO has not been realized despite a large number of publications reporting successful demonstration ofp-type as discussed in detail in [18]. Incorrect interpretation of the van der Pauw–Hall measurements has been suggested [19] as one of the reasons for the controversial reports of p-type conduction in ZnO. In wide bandgap semiconductors doped with a high density of acceptor-type impurities, localization is an endemic problem: carriers are trapped and cannot follow the Lorentz force and the electric force induced by the low fields employed in Hall measurements. High carrier concentrations inp-type ZnO, which are often reported in the literature, are caused by very low Hall voltages.
Corresponding low-mobility values measured are usually indicative of strong localization in the material, which, if present, brings the applicability of conventional Hall measurements under question, particularly at low tempera- tures. Therefore, the interpretation of Hall effect measure- ments should be made very carefully.
For reliablep-type behavior, first high density of donor- type defects should be minimized and almost intrinsic nearly perfect single crystal ZnO films should be obtained, which is still considered a major challenge. Even when such an approach was adopted, to the extent possible nitrogen doping resulted in very lowp-doping concentra- tion (1016cm3) [17], though recent first principles calculations suggest that nitrogen is a deep acceptor and cannot lead to hole conductivity [20]. Under such conditions, injection from the highly doped n-type ZnO to the lightly doped p-type ZnO is dominant and the recombination takes place primarily in thep-type ZnO, as shown in Fig. 2. This degrades the recombination efficiency as the quality of the p-type material is inferior.
The EL emission coincides with the PL band at 440 nm which is thought to represent the donor–acceptor pair (DAP) recombination in p-type ZnO. To circumvent this problem, the p-doping level must be increased (>1018 cm3Þ.
Near-bandedge EL has also been observed from ZnO homojunction LED structures fabricated using phosphorous- doped p-ZnO on gallium-doped n-ZnO grown by radio frequency (RF) sputtering on c-sapphire [21]. The p-ZnO layer was reported to have a questionably high hole concentration of 1.01019 cm3 but a mobility of only 1 cm2/V-s after rapid thermal annealing at 800C in N2
ambient for 5 min. As shown in Fig. 3, UV emission was evident at 380 nm at room temperature. By inserting 40-nm- thick Mg0:1Zn0:9O barrier layers with a 40-nm-thickn-ZnO layer in between near the p–n junction, the carrier recombination was confined in then-type ZnO layer, which resulted in the suppression of the defect-related broad band
Fig. 2.(a) EL spectra of all ZnOp–njunction recorded at 293 K for dc forward bias currents of 8, 12, and 16 mA. The arrow indicates the absorption edge ofp-type ZnO top layer. (b) PL spectra at 293 K of undoped andp-type ZnO layers (dotted lines) and transmission spectrum (broken line) ofp-type ZnO layer. The EL emission is red shifted (440 nm) with respect to the bandedge and occurs where the PL emission is detected and is most likely associated with donor–acceptor-pair (DAP) transitions in thep-type ZnO layer. Thicknesses of the undoped and p-type films are 1m and 500 nm, respectively. (Courtesy of M. Kawasaki [17].)
centered at650 nm and enhancement of the band edge emission by 55%.
ZnO-based LEDs were also fabricated using p-type arsenic-doped BeZnO and ZnO layers grown by hybrid beam deposition [22]. The hole concentrations in the p-type layers were reported to range from high 1016 cm3 for BeZnO to mid-1017 cm3 for ZnO. The active region was composed of seven undoped Be0:2Zn0:8O (7 nm)/ZnO (4 nm) quantum wells (QWs). The turn on voltage was above 10 V, and UV EL peaks were observed at 363 and 388 nm at room temperature as shown in Fig. 4, which were attributed to localized excitons in the QWs and donor or acceptor bound excitons, respectively. The green band centered at550 nm blue shifted with increasing current injection. The peak at 363 nm was the dominant spectral feature at current injection levels above 20 mA. Similar active regions were used to fabricate laser structures with Be0:3Zn0:7O cladding layers [23]. Under pulsed current injection, sharp Fabry–Pe´rot oscillations were observed over the 3.21-eV emission peak, above a threshold current density of420 A/cm2. However, no further analysis of the cavity resonance mode separation was reported.
In terms of nanostructure devices, ZnO nanotips have been used to increase radiation outcoupling in the form of an improved passive light extraction layer in GaN light emitters [24]. As shown in Fig. 5(a), the Ga-doped ZnO (GZO) layer, which has the dual role of contact top-GaN and optically transparent window, was deposited on top of conventional InGaN/GaN LED structures. Then, ZnO nanotips were grown on GZO coated GaN as a light extraction layer. In comparison with a conventional Ni/Au p-electrode GaN LED, the light emission efficiency was enhanced by a factor of 1.7 [Fig. 5(b)]. Enhancement in light extraction
efficiency was explained by the interaction between the spontaneous emission from the GaN LED and ZnO nanostructures. The results represent one of the low-cost and large-scale fabrication methods for the integration of ZnO nanotips with GaN-based optoelectronic devices using epitaxial growth technologies without the need for e-beam lithography or etching. Even without the nanotips, GZO or Al-doped ZnO (AZO) coated GaN in place of ITO, which is used in all GaN-based LEDs, might turn out to be very lucrative in part fuelled by worldwide shortage of In.
B. Optically Pumped Lasers: Surface-Emitting ZnO DFB Laser
There are plenty of reports on UV lasing from ZnO- based materials and devices under optical pumping, for example, lasing from ZnO photonic crystals [25], [26] and random lasing from ZnO powder under certain pumping conditions [27]. ZnO-based microcavities promising for low-threshold surface-emitting polariton lasers are dis- cussed in [28].
Yet another possibility for the realization of a surface- emitting laser is the use of an intracavity diffraction element. If the period of such a diffracting structure is carefully adapted to the emission wavelength and the effective refractive index of the device, distributed feedback (DFB) will occur. In the case of a second-order diffraction grating for optical feedback, the surface emission is at exactly 90 to the epitaxial layer plane [29]. In two recently demonstrated devices based on ZnO material, a third-order grating provided feedback. In the latter case, the optical output takes place at angles slightly different from 90, but nevertheless the device can be
Fig. 3.EL spectra from ZnO-based LEDs grown by RF sputtering with and withoutMg0:1Zn0:9Obarrier layers measured at an operating current of 40 mA. (After Lim et al. [21].)
Fig. 4.EL spectrum measured at room temperature for ZnO-based LED having seven BeZnO/ZnO QWs in the active layer. The primary spectral emission peak is located near 363 nm and arises from localized-exciton (LE) emissions in the QWs, while the secondary peak centered near 388 nm is from impurity-bound exciton emissions in ZnO. The green band (GB) blueshifts with increasing current injection.
(After Ryu et al. [22].)
regarded as a surface emitter. In an optically pumped laser, the diffraction grating for DFB is typically etched directly into the active semiconductor material [30], [31]. Experi- ments have shown, however, that direct etching of a diffraction structure into a ZnO thin film is quite prob- lematic. In order to circumvent difficulties with surface roughness, back reflections, and the etching process itself, a Si3N4host layer for the grating needs to be deposited on the ZnO film. The thickness of this additional nitride layer has to be adapted to both the waveguide properties of the epitaxial layer stack and the desired coupling constant of the DFB laser.
One of the main purposes of optically pumped ZnO- based DFB lasers is to understand their spectral character- istics by investigation of their wavelength tuning behavior.
In addition, the well-defined, line-shaped far-field distri- bution with precisely measurable emission angles allows an unambiguous confirmation of lasing action. Finally, the relatively large pumped volume of such a horizontal cavity surface emitter generates optical output powers which are large enough to be measured with standard photodetec- tors. This again is a considerable advantage for assessing the most important basic characteristics of the device [32].
All characteristics of optically pumped ZnO-based DFB lasers follow the expected behavior known since 1972 when Kogelnik and Shank published their seminal work on the coupled mode theory [33].
ZnO-based DFB lasers with thin film active regions have recently been implemented [34]. The active region consisted of a thin (5–10 nm) MgO nucleation layer followed by a nominally 200-nm-thick ZnO active region.
A 120-nm-thick Si3N4host layer for the grating deposited by plasma-enhanced chemical vapor deposition completed the waveguide structure. A schematic of the waveguide refractive index profile along with the vertical mode profile is shown in Fig. 6. It illustrates clearly that an
optical overlap on the order of 7% can be achieved for the grating layer. By using a full 120-nm corrugation depth, this geometry results theoretically in a coupling strength of 400 cm1for a third-order diffraction grating.
Fabrication was based on holographic definition of the grating pattern with a period of 268 nm in a photoresist mask and subsequent transfer into the Si3N4 layer by reactive ion etching. The corrugation depth corresponds exactly to the thickness of the host layer, i.e., 120 nm. The inset of Fig. 6 shows a scanning electron microscope image of a small portion of the finished grating after etching into the Si3N4. Optical pumping was then performed at an angle of 70to the surface normal in order to obtain a diffracted surface emission (20 from the surface normal) going straight into a microscope objective. The pump source for this experiment was a pulsed nitrogen laser emitting at 337.1 nm; after focalization into a narrow stripe of 3.60.1 mm2, its peak power density was 1.1 MW/cm2.
Fig. 5.(a) Schematic of an integrated ZnO nanotip/GZO/GaN LED. (b) Light output power versus forward injection current for Ni/Au and ZnO nanotip/GZO/GaN LED; inset compares the EL spectra of Ni/Aup-contact GaN LED and ZnO nanotip/GZO/GaN LED at a forward current of 20 mA. (After Zhong et al. [24].)
Fig. 6.Waveguide simulation of an optically pumped ZnO DFB laser based on a thin film active region. The inset shows a small portion of the Bragg reflector acting as distributed feedback element.
From the microscope, the output beam entered a high- resolution grating spectrometer for spectral analysis.
The light output versus pump intensity curve was normalized by a careful measurement of the average intensities of both pump and output beams, and it exhibits a linear behavior above the lasing threshold as shown in Fig. 7. The center wavelength is at 383.5 nm and shifts slightly to longer wavelengths with increasing pump intensity (see inset of Fig. 7). Together with a larger linewidth at higher pump intensities, these observations prove clearly that thermal chirping is present in this material. The simulated effective refractive index of the waveguideðntheff ¼2:181Þis in good agreement with that obtained from experimentsðnexeff ¼2:146Þ. These devices produced a maximum peak output power of 14 mW, and temperature tuned single-mode lasing could be observed up to around 270 K, with a performance maximum around 220 K. The low-temperature threshold intensity of the DFB laser was on the order of 120 kW/cm2, which is reasonable considering the large pumped volume of the cavity. At threshold, the linewidth dropped from its luminescence value of 3.5 down to 0.4 nm. At temperatures around 120 K, an abrupt change of the laser wavelength occurred. Because of a hysteresis behavior of the emission wavelength seen under increasing and decreasing temperatures, we attri- bute this jump to lasing in a Bragg mode on one of the sides of the Bragg reflector’s stopband. A comparison with the luminescence spectrum confirmed that indeed the single- mode lasing peak switched from the short to the long wavelength side of the gain maximum at this temperature.
The size of the spectral stopband, i.e., the spectral separation between the two modes, finally allowed us to determine experimentally the coupling constant of the diffraction grating. Its value of 700 cm1 agrees qualita- tively with the computed value cited above.
In an attempt to reduce the pumping threshold of optically pumped ZnO-based DFB lasers, multi-QW active
regions have been employed [35]. The basic fabrication concept resembles that used for the thin film devices described above, however, the exact realization is neverthe- less subject to several important changes. Because of the lower refractive index of Mg-containing MgZnO compounds, the thicknesses and compositions of a waveguide using a QW active region need to be adapted. The epitaxial growth was initiated with a 20-nm-thick ZnO buffer, followed by a 400-nm Mg0:3Zn0:7O lower cladding, a 30-nm Mg0:2Zn0:8O lower waveguide layer, a nominally 93-nm-thick active region, and another 30-nm Mg0:2Zn0:8O upper waveguide layer. The stack was then covered with a 50-nm-thick Mg0:3Zn0:7O upper cladding layer, and capped with 150-nm Si3N4for the grating. The active region consists of ten 3-nm- thick ZnO QWs with 7-nm-thick Mg0:2Zn0:8O barrier layers in between. Similar waveguide simulations as in the sample with thin film active region together with a grating depth of 100 nm resulted in a simulated coupling strength of 550 cm1. Owing to the QW confinement shift, the emission wavelength of this sample was 360 nm, considerably shorter than that of the thin film device. However, the smaller effective index of this Mg-containing waveguide nevertheless resulted in a longer grating period of 276 nm.
Fig. 8 shows the far-field distribution of the DFB laser as a projection on a white sheet of paper and under different pump intensities. The rectangular spot depicts the direct reflection of the pump beam while the narrow slightly curved line is the surface emission (diffraction) of the ZnO multi-QW laser. While the pump beam is still clearly visible at the lowest intensity level, the ZnO laser beam fades away completely as soon as the threshold condition is no longer fulfilled. Note that the emission angle can be described by the standard grating formula taking into account the refractive index of the laser material.
Fig. 9 shows the light output versus pump intensity curves at different temperatures ranging from 11 up to
Fig. 7.Spectral characteristics of an optically pumped ZnO DFB laser at 220 K and different pump intensities (0.15, 0.25, 0.35, 0.45, 0.6, 0.8, 0.9, 1.0, 1.1 MW/cm2). The inset shows peak power, peak wavelength, and linewidth as a function of pump power.
Fig. 8.Far-field distribution of a ZnO-based multi-QW DFB laser at different pump intensities [(a)–(f): 1.2, 1.0, 0.8, 0.6, 0.4, and 0.2 MW/cm2]. The picture at the lower right-hand side is taken below threshold.
135 K. As expected, there is a linear relation between the two quantities above threshold. Although this particular device suffered from a relatively large mismatch between the Bragg reflection and the gain peak, a threshold intensity as low as 330 kW/cm2was achieved at 11 K. With a better match of the grating period, a substantial improvement to similar values as in the thin film device can be expected.
The maximum peak output power reached 16 mW at low temperatures and a remarkably small linewidth of 1.5A was observed. All these characteristics indicate a high quality of the epitaxial material and a textbook behavior of the lasing properties; therefore, a promising performance for future ZnO laser experiments can be anticipated.
As an epilogue, it should again be mentioned that unavailability of reliablep-type conductivity prevents ZnO from competing with GaN for optoelectronic applica- tions to a first extent. There are of course continuing developments in the GaN industry to satisfy the increasing demands for larger data storage capacity by developing short wavelength emitters of high efficiency, such as high- coherence and low-threshold UV/violet lasers. ZnO-based low-threshold or nearly thresholdless lasers, especially those based on polariton lasing in ZnO [28], will also have applications in ever increasing telecommunications and optical storage, in addition to being possible strong light pump sources for white light generation. Therefore, this too underlines the need to develop reliable p-type ZnO that will allow demonstration of high-efficiency ZnO light sources.
C. Transparent Conducting Oxides and TFTs Although Si has shown its supremacy in the field of TFT technology with amorphous Si (a-Si) and polycrystal- line-Si (poly-Si), an interest is developing for the optically transparent analog, the transparent thin film transistor
(TTFT) technology [36]. Unlike conventional FET or TFT structures, TTFTs require all of the device components (channel, gate, electrodes, and substrate) to be transpar- ent. Such invisible TTFTs can be used in wide range of commercial and military applications where transparency is required. The interest is in part because it is expected that the characteristics of TTFT will not degrade on exposure to visible light due to the wide bandgap of its active channel layer, whereas the characteristics of amorphous or poly-Si TFT degrade. Therefore, measures would not be required in this case to shield the active channel layer from visible light, unlike the commercial amorphous silicon transistors in which visible light generates excess carriers, and therefore, must be shielded.
Also it should be noted that such invisible TFTs using ZnO as an active channel achieve much higher field effect mobilities than amorphous silicon transistors (0.5 cm2/V-s), the major material of today’s FET technol- ogy. Besides, high-quality crystalline ZnO films can be grown at relatively low deposition temperatures on various substrates including amorphous glasses.
Before delving into the discussion of transistor structures, a brief review of the transparent oxides based on ZnO in their own merits is warranted. In most optoelectronic devices such as flat panel displays, LEDs, and solar cells, it is essential to use a transparent electrode such as a thin film transparent conducting oxide (TCO). Although tin-doped ITO thin films deposited by magnetron sputtering are widely used today for most transparent electrode applications, there are many reports on other TCO semiconductors such as aluminum- doped zinc oxide (AZO), gallium-doped zinc oxide (GZO), indium-doped zinc oxide (IZO), tin-doped zinc oxide (TZO) in large part due to the expected worldwide shortage of In.
The growing demand for ITO thin-film transparent electro- des is the impetus for looking at alternative TCO materials since a stable supply of ITO may be difficult to achieve for the expanding market because of the cost and, as mentioned, limited amount of indium available. ZnO-based TCOs have attracted significant attention due to their good conductivity, high optical transparency (in the 90% range), excellent sur- face smoothness, low deposition temperature, good etch- ability for patterning, and good reproducibility [37]–[39].
Candidates for transparent amorphous oxides having large electron mobilities must be constituted of heavy post- transition metal cations with an electronic configuration ðn1Þd10ns0, wheren5 [40]. Oxide semiconductor XZO films, whereX¼Al, Ga, In, Sn, are prepared from a target made of homogeneous Al2O3(ZnO)n, Ga2O3(ZnO)n, In2O3(ZnO)n, or SnO2(ZnO)ncompounds. Although various dopants have been used to achieve ZnO TCO films, low resistivity (below 2104 cm) and high carrier con- centration (above 1021 cm3) have only been obtained in AZO and GZO films, as can be seen from Table 1 [41]. For example, resistivities as low as 0.85104 -cm and 0.81104 -cm have been obtained for ZnO : Al [42]
and ZnO : Ga [43] thin films grown by pulsed laser
Fig. 9.Series of light output versus pump intensity curves for temperatures between 11 and 135 K. The inset shows the threshold intensity as a function of temperature. From these data,
a characteristic temperature ofT0¼60 K can be inferred.
deposition, comparable to values obtained for ITO (e.g., 0.72104 -cm [44]). In general, the electrical properties of the TCO films strongly depend on the deposition methods and conditions. AZO and GZO films with resistivities on the order of 105 -cm have been achieved by PLD, but preparing films on large substrates with high deposition rates is still challenging.
A typical schematic of a ZnO-based bottom-gate-type TTFT structure reported to have an optical transmission (including substrate) of75% for visible light is shown in Fig. 10 [45]. A glass substrate was blanket coated with a 200-nm-thick layer of sputtered ITO to serve as the gate and a 220-nm-thick layer of aluminum–titanium oxide (ATO) deposited by atomic layer deposition to serve as the gate insulator. After deposition of the ZnO layer by ion beam sputtering, a rapid thermal anneal, typically at 600C–800C in O2, was employed to increase the ZnO channel resistivity in order to improve the electrical quality of the ATO/ZnO interface, and to enhance the crystallinity of the ZnO layer.
Fig. 11 displays direct current (dc) electrical characteristics involving the drain currentID, gate currentIG, gate voltage VGS, and the drain voltage VDS, for a ZnO channel TTFT having a channel length and width-to-length ratio of 1500m and 10 : 1, respectively. These curves indicate ann-channel, enhancement-mode TFT operation with excellent drain current saturation and a maximum drain current on-to-off ratio of107. The effective channel mobility and the turn on gate voltage were found to be 0.35–0.45 cm2/V-s and12 V, respectively.
Song et al. [38] reported on TTFTs using amorphous ZnO : In (IZO) for the active channel layer and gate–
source–drain electrodes fabricated by RF magnetron sputter- ing on glass substrates at room temperature while amorphous AlOxserved as the gate dielectric. The devices exhibited low threshold voltages of 1.1 V, on/off ratios of106, saturation currents of 1.41A at 5 V, and optical transmittance of 80%
(including the substrate) in the visible range. Nomuraet al.
[46] proposed a novel semiconducting material, amorphous oxide semiconductor In–Ga–Zn–O (a-IGZO), for the active channel in TTFTs. They depositeda-IGZO on polyethylene terephthalate (PET) at room temperature that exhibited a Hall effect mobility above 10 cm2 V1 s1. TTFTs fabri- cated on such PET sheets showed saturation mobilities of 6–9 cm2V1s1, and device characteristics were stable during repetitive bending of the TTFT sheet. The transfer characteristics showed a low off-current, of the order of 107A, and a103on-to-off current ratio. Studies on the effect of bending on the TTFT characteristics showed that the performance of the TTFT after repetitive bending remained largely unaffected. Only a slight decrease in the saturation
Fig. 10.The schematic of a typical ZnO channel enhancement mode TTFT structure. (After Hoffman et al. [45].)
Fig. 11.Electrical characteristics of a ZnO channel TTFT: (a) drain currentVdrain voltageðID–VDSÞcharacteristics with the gate voltageVGSfrom 0 to 40 V in 10-V increments; (b) transfer characteristics and gate leakage current forVDS¼10 V.
(After Hoffman et al. [45].) Table 1Minimum Resistivity and Maximum Carrier Concentration
Obtained for ZnO Films Doped With Various Impurities. (After Minami [41].)
current was observed. The TTFT was stable at temperatures up to 120 C, but inoperative at higher temperatures, probably owing to the softening of the PET substrate.
Another key issue for ZnO TFTs is the selection of the gate insulator. Among the various gate dielectric materials tested, such as SiO2, HfO2, (Pb,Zr)TiO3, ZnMgO, and Y2O3, high dielectric constant Bi1:5Zn1:0Nb1:5O7(BZN) has been shown to result in very low operation voltages (G4 V) in TTFTs with ZnO serving as the electron channel [47]. At an operating voltage of 4 V the devices exhibited a field effect mobility (drift mobility) and a current on/off ratio of 0.024 cm2/V-s and 2104, respectively, and the threshold voltage was 2 V. High optical transparency (>80% for wavelengths above 400 nm), low-temperature processing, and low operation voltage of ZnO-based TFTs with integrated BZN dielectric are promising for transparent device technology.
Lowering the carrier concentration in a TFT channel is crucial for reducing the leakage current. This can be achieved by compensating then-type carriers by acceptor doping. High-performance thin TTFTs with nitrogen- doped ZnO as the channel grown by atomic layer deposition on glass substrates have been demonstrated by Limet al.[48]. The entire TFT fabrication process was carried out below 150 C including the Al2O3 gate insulator deposition before the ZnO channel growth. By nitrogen doping, the electron concentration in ZnO was lowered to 61014cm3. Consequently, the enhance- ment-mode TFT devices (40-m channel width, 20-m channel length) so produced exhibited off-currents as low as 2 pA, with a threshold (turn-on) voltage of 4.7 V, an on- to-off drain current ratio of 9.5107, and a saturation mobility of 6.7 cm2/V-s at 35-V drain bias. The devices with undoped ALD-grown ZnO channels did not show any pinch-off and depletion as the electron concentrations in the channel were up to 51019 cm3.
Enhancement-mode MgZnO-based field-effect transis- tors utilizing HfO2 as the gate dielectric and ITO-coated glass substrates have also been reported [49]. A polycrys- talline ZnO channel doped with Mg (10%) and P (2%, assuming that it serves asp-type compensating center) was used to decrease the electron carrier concentration. Mg doping increases the bandgap, and therefore, increases the activation energy for defect-related donors, helping the compensation ofn-type carriers together with P doping. In these devices, an on/off ratio of 103and channel mobility on the order of 5 cm2/V-s were obtained. Another report [50] compared ZnO thin film metal–semiconductor field effect transistors (MESFETs) and metal–oxide–
semiconductor (MOS) FETs with either P-doped (2%) or undoped ZnO channels and gate lengths as small as 1.5m. Growth of a0.8–0.9-m-thick ZnO buffer on sapphire or glass substrates was deemed necessary prior to depositing the active layers in order to reduce the gate leakage current. As would be expected due to the relatively low barrier height of metals onn-type ZnO (0.6–0.8 eV),
the MOS structure with 50-nm-thick (Ce,Tb) MgAl11O19
gate dielectric showed an order of magnitude lower gate leakage current than the MESFET. The MOS gate struc- tures using P-doped ZnO channels showed good depletion mode conductance modulation with a field-effect mobility of 5.32 cm2/V-s, as compared to the very poor modulation by the metal structures.
Transparent nature of ZnO, potential achievement of low-cost polycrystalline ZnO, and fabrication technologies that are amenable to TFT production appear to suggest that ZnO may find a niche application in transparent thin film technologies with added features over the Si-based varieties.
I I I . P I E Z O E L E C T R I C D E V I C E S
Due to its moderately high (very high for a semiconductor) electromechanical coupling coefficients, ZnO has been successfully used in thin film piezoelectric devices such as bulk acoustic wave and SAW resonators, filters, sensors, and microelectromechanical systems (MEMS), the most common application being the SAW filter, which has been an important component in mass consumer items such as TV filters and wireless communications systems. Success- ful development of sputtering of high-quality ZnO thin films on Si has been a breakthrough in the SAW device field as it allowed integration of ultrasonics with Si electronics for the first time, liberating device design from bulk piezoelectric substrates. For implementing acoustic- wave devices piezoelectric ZnO thin films grown on nonpiezoelectric substrates having high acoustic velocity and low propagation loss (diamond, sapphire), weakly piezoelectric materials such as quartz, amorphous sub- strates such as glass, and other semiconductors (Si, GaAs, InP, etc.) have been used.
SAW devices have been implemented with ZnO and MgxZn1xO thin films grown on various substrates such as Si, GaAs, quartz, sapphire, SiC, diamond, GaN, and AlN [51], [52]. Fig. 12 shows the S21scattering parameter (ratio of the transmitted signal amplitude to the incident signal amplitude) from a 10-m wavelength [periodicity of the interdigitated transducer (IDT)] SAW device fabricated on a 1.5-m-thicka-plane ZnO film grown onr-plane sapphire [53]. The central frequency is at 420 MHz (Rayleigh wave), which gives a sound velocity of 4200 m/s using 0¼10m. A large effective electromechanical coupling coefficient K2eff of 6% was obtained. To reduce the con- ductivity and achieve piezoelectricity, the as-grownn-type ZnO films were compensated by Li doping during MOCVD growth.
To explore higher frequency capability, ZnO thin films have been prepared on high acoustic velocity materials such as SiC and AlN. SAW devices fabricated using 400-nm-thick ZnO thin films deposited on commercial SiC substrates have shown generalized SAW modes with acoustic velocities of 7000 m/s and pseudo-SAW modes with acoustic velocities of
12 500 m/s [54]. ZnO thin films deposited on diamond, which has the highest acoustic velocities among all materials, have shown to exhibit SAW velocities as large as 11 600 m/s with coupling coefficients up to 1.1% [55]. Using 0.65-m- wide electrode devices with a center frequency of 10 GHz, a coupling coefficient of 1.5% was also demonstrated for the fifth harmonic of the second Sezawa mode [56]. All the aforementioned results show that ZnO thin films on various substrates can be successfully implemented as efficient SAW devices. Even though piezoelectric materials such as LiNbO3and LiTaO3have larger electromechanical coupling coefficients, as high as 38% and 14%, respectively, ZnO is promising for applications that require electroacoustic modulation and monolithic integration with other semicon- ductor technologies.
ZnO-based SAW devices have been used for UV photodetection [57] and for gas [58] and biochemical [59] sensing. The SAW UV photodetector is based on the acoustoelectric interaction. The photogenerated carriers increase the conductivity in the material which in turn increases the attenuation and decreases the SAW velocity, and therefore, the SAW frequency. SAW UV detectors with ZnO piezoelectric layers (highly compensated by Li doping with a resistivity above 107-cm) have also been demonstrated on r-sapphire using a thin Mg0:2Zn0:8O buffer layer in between for isolation and as a diffusion barrier for Li [57]. The IDTs were placed on the piezoelectric layer with the ZnO UV absorbing layer in between the transmitter and receiver IDTs. A frequency shift up to 11 MHz and an insertion loss increase of23 dB were observed in the central Sezawa mode frequency (711 MHz) when the device was illuminated with 365-nm light of intensity 2.32 mW/cm2. The corresponding maximum phase shift was measured at 365 nm as 107. ZnO SAW UV detectors with such performance were proposed for use as passive zero-power remote wireless sensors [57].
I V . S E N S O R S A N D S O L A R C E L L S B A S E D O N Z n O N A N O S T R U C T U R E S
ZnO nanorod/nanowire FET sensors may create opportu- nities for highly sensitive and selective real-time detection of a wide variety of gas molecules and biomolecules. The principle of gas sensor operation depends on the nature of gas molecules and is based on the modification of nanowire FET channel conductivity. Oxygen vacancies in ZnO function as n-type donors on oxide surfaces and are electrically and chemically active. Upon adsorption of charge accepting gas molecules, for example, NO2and O2, electrons are depleted from the conduction band resulting in a reduced conductivity of then-type oxide. On the other hand, molecules that chemically react with surface oxygen (for example, CO and H2) interact with surface adsorbed oxygen on ZnO and remove it leading to an increase in conductivity. ZnO exhibits strong adsorption of molecules on the surface, which affects the electrical characteristics of ZnO-based devices, dependent on surface-mediated phenomena. Thanks to the large surface-to-volume ratio of the nanostructures, the detection sensitivity of FET biosensors may be increased to a single-molecular detection level by measuring the small conductance changes caused by binding of biomolecular species on a nanorod conduction channel.
A. Gas Sensors
There is a strong interest in the development of lightweight gas sensors capable of parts per million (ppm) range sensitivity and extended operation at low-power levels. All experimental results demonstrate that ZnO nanowires, owing to the large surface area, have a potential for detecting NO2[60], NH3[61], NH4[62], CO [62], H2
[63], H2O [64], O3 [65], H2S [66], and C2H5OH [67].
Detection of gas molecules is usually achieved by measuring the resistivity change of either the nanocrystal- line ZnO films or the nanowire channel of an FET.
Choet al.[60] reported a 1.8 fold decrease in resistance of well-dispersed ZnO nanorods at 1-ppm NO2, while there was no significant change in resistance at 50-ppm CO.
Sputtered nano-crystallite Cu-doped ZnO films of columnar structure with average grain size of 5 nm exhibited very high sensitivity (2.7–20 ppm) to CO at 350C [62]. A substantial change in resistance of the ZnO films was also observed at a low operating temperature of 150C when the sensor was exposed to 6-ppm CO. The sensitivity for room temperature detection of hydrogen by ZnO nanorods was shown to be greatly enhanced by sputter-depositing clusters of Pd on the surface [63]. An increase in the resistivity by a factor of 5 was observed upon exposure to hydrogen concentrations of 10–
500 ppm compared to that without Pd. Pd-coated ZnO nanorods showed sensitivities lower than 10 ppm, with 95%
recovery of the initial conductance after 20 s.
ZnO nanorods are also promising candidates for detecting extremely low concentrations of H2S. High
Fig. 12.Frequency response of a 10-m wavelength SAW device on a 1.5-m-thick ZnO film. (After Gorla et al. [53].)
response and good selectivity of ZnO nanorods to low concentrations of H2S was observed by Wanget al.[66].
The ratio of the electrical resistance in air to that in 0.05-ppm H2S was measured to be 1.7 at room temper- ature. One of the most important parameters of gas sensors is their selectivity. The selectivity is achieved by applying different voltages to the gate of a nanowire FET or by performing measurements at different temperatures since different gas molecules have different activation energies.
Fig. 13 shows an example of such selectivity for NH3and NO2 gas molecules, where the refresh (erase) voltages, negative gate voltages required for electrical desorption of adsorbed gas molecules, for the two gas molecules are significantly different making it possible to distinguish different gas species [68].
B. Biosensors
The potential of ZnO nanostructures as nanosized biosensors has also been explored for detecting different biological molecules. Development of 1-D ZnO nanos- tructures as biosensors is in the embryonic stage and only a limited number of reports are available [69]–[74]. The 1-D ZnO biosensors have advantages such as stability in air, nontoxicity, chemical stability, electrochemical activity, ease of synthesis, and bio-safe characteristics. As in the case of gas sensors, the principle of operation is that the conductance of ZnO nanorod FETs drastically changes when biomolecules are adsorbed.
The key factor in most biological processes is the need for a small change of the pH concentration created by the release of Hþ ions during biochemical reactions. There- fore, determination of pH is a prerequisite for many processes. The sensing mechanism for pH is the polariza- tion-induced bound surface charge by interaction with the polar molecules in the liquids. Application of ZnO nanorods as pH sensors for intracellular chemical sensing
is under development and a room temperature sensitivity (change in surface potential) as high as 59 mV per decade change in the pH value has been reported [74].
C. Solar Cells
Solar cells represent a very promising renewable energy technology because they provide clean (beyond manufacturing) and renewable energy reducing our dependence on fossil oil and our impact on the environ- ment. Dye-sensitized solar cells (DSSCs), using inorganic semiconductors, are being studied for very efficient, inexpensive, large-scale solar energy conversion. DSSCs have been explored as possible substitutes for conventional silicon cells, but they suffer from possible dye agglomer- ation or electrolyte leakage [75]–[79].
During its traversal to the photoelectrode, an electron in a polycrystalline solar cell usually crosses about 103to 106 nanoparticles, and disorder structure of the nanopar- ticle film leads to enhanced scattering of free electrons, thus reducing the electron mobility and increasing detrimental electron recombination rate. Replacement of the nanoparticle film with an array of oriented single- crystalline nanorods would result in the rapid collection of carriers generated throughout the device as the nanorods provide a direct path from the point of photogeneration to the conducting substrate, thus effectively reducing the electron recombination losses. Fig. 14 shows a typical DSSC structure, which has three main components: 1) a thick (10m) film of wide bandgap semiconductor nanos- tructures (TiO2, SnO2, or ZnO), 2) a monolayer of organic dye molecules absorbed onto the semiconductor nanos- tructures, and 3) a liquid electrolyte containing the redox (reduction-oxidation reaction) couple I=I3 that pene- trates in between the dye-coated nanostructures. Electron transport in the single crystalline rod is expected to be several orders of magnitude faster than that in a random polycrystalline network. However, increased surface area by nanorods, as compared to thin films, also increases the surface recombination causing reduction in efficiency.
Fig. 13.Gate refresh voltages of a ZnO nanowire FET for NH3and NO2gas molecules as a function of gas concentration. (After Fan and Lu [68].)
Fig. 14.A schematic of a nanotip ZnO-based DSSCs. (Courtesy of Y. Lu.)
V . C O N C L U D I N G R E M A R K S
ZnO offers some potential in providing electronic, photonic, and spin-based devices, and encouraging prog- ress has been made in the research phase. Despite this progress, there is still a number of important issues that are in need of further investigation before this material can be transitioned to commercial use for the stated applica- tions. The task is made more difficult by the highly successful GaN which competes for similar applications.
However, there are some niche applications of ZnO which are not addressed by GaN which if explored fully might pave the way for ZnO. TTFT, ZnO-based transparent oxides, laser structures exploiting the large exciton binding energy of ZnO are among these applications.
In the case of TTFTs, the critical issues are the mobility in noncrystalline or polycrystalline ZnO, and the choice of gate oxide, substrate, and the methods to deal with high electron concentrations encountered in ZnO channel layers. For electrical characteristics, the on-to-off ratio as well as the transconductance is important to home in on.
ZnO also lends itself to applications in sensing, in part due to ease with which ZnO can be produced in the form of nanostructures. There is still much to be understood in terms of the mechanism of ZnO gas sensors and biosensors. Although a number of ZnO sensors have been reported on detecting different gas molecules and biomolecules, the selectivity (not unique to ZnO) remains to be the main issue since identification of the nature of the absorbed molecules is very important. Although several approaches have been proposed, which employ different activation energies of different gas molecules,
this field is still in a state of infancy and much more effort needs to be expended to pave the way for improved selectivity of ZnO sensors and increase the lifetime of the devices.
Regarding solar sells, which received some attention although the competition is very stiff, further studies are required to improve the current density and efficiency.
This could be achieved by application of various electro- lytes [80] and doping the ZnO films to improve its conductivity. There is also the control of the properties of individual building blocks which at this point is inadequate and device-to-device reproducibility is low.
As for the nanostructures, ZnO nanostructures (nano- wires, nanorods, etc.) provide a path to a new generation of devices, but a deliberate effort has to be expended for ZnO nanostructures to be taken seriously for large-scale device applications, and to achieving high device density with accessibility to individual nanodevices. Reliable methods for assembling and integrating building blocks into circuits need to be developed.
Finally, ZnO as a semiconductor is facing a very stiff competition from GaN which is much more mature in terms of devices (also has acceptablep-type dopant unlike the case in ZnO). Lack of a crediblep-type doping hampers widespread optical emitters in ZnO. Furthermore, highly ionic nature of ZnO with large electron phonon coupling and low thermal conductivity does not bode well for ZnO- based electronic devices. Nanostructures seem a little easier to produce with ZnO, but it remains to be seen whether nanostructures in general as hyped would really make inroads in the area of devices.h
