• Aucun résultat trouvé

Influence of Surface Defectivity on the Performances of Silicon Heterojunction Solar Cells

N/A
N/A
Protected

Academic year: 2021

Partager "Influence of Surface Defectivity on the Performances of Silicon Heterojunction Solar Cells"

Copied!
2
0
0

Texte intégral

(1)

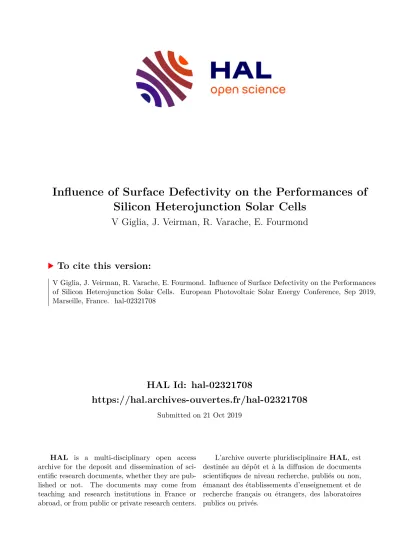

HAL Id: hal-02321708

https://hal.archives-ouvertes.fr/hal-02321708

Submitted on 21 Oct 2019

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Influence of Surface Defectivity on the Performances of Silicon Heterojunction Solar Cells

V Giglia, J. Veirman, R. Varache, E. Fourmond

To cite this version:

V Giglia, J. Veirman, R. Varache, E. Fourmond. Influence of Surface Defectivity on the Performances

of Silicon Heterojunction Solar Cells. European Photovoltaic Solar Energy Conference, Sep 2019,

Marseille, France. �hal-02321708�

(2)

Commissariat à l’énergie atomique et aux énergies alternatives 17 rue des martyrs |38054 Grenoble Cedex

www-liten.cea.fr

UNDERSTANDING OF THE INFLUENCE OF THE SURFACE DEFECTIVITY ON SILICON HETEROJUNCTION CELL PERFORMANCE.

V.Giglia

a,b

, J.Veirman

a

, R. Varache

a

, E.Fourmond

b

Corresponding author: valentin.giglia@cea.fr

a) CEA, LITEN, Department of Solar Technologies, F-73375 Le Bourget du Lac, France b) Univ. Lyon, INSA-Lyon, INL UMR5270, F-69621 Villeurbanne, France

Commercially available bulk lifetimes ↑

Production tools throughputs ↑ Defectivity importance likely to increase

Conclusions:

Predict the influence of cell parameters on the performance losses (r, bulk lifetime).

Study the influence of defectivity properties (spatial distribution, location (BS/FS), size …).

Suggest ways to mitigate losses.

Combined experimental-modellisation approach.

Strong impact of surface defectivity mostly on FF according to [1].

The depassivated region high recombination rate induces a force increasing with the voltage towards itself leading to important FF losses.

Perspectives:

Necessary to quantify and understand the defectivity- induced efficiency (h) losses

Creation of a controlled defectivity protocol

Exp. Quantification of defectivity induced losses

Validation of the modelled structure

Identification of physical mechanisms

Experimental approach Simulation approach

Normalised Isc I(V) measurements Simulation results

0,925 0,950 0,975 1,000

Normalised FF

0 3 6 9

0,925 0,950 0,975 1,000

Normalised Efficiency

number of scratches 0 3 6 9

Normalised Voc number of scratches

 A scratch every 9 pitches (total c-Si surface depassivation).

 Choice of Busbarless metal scheme  easy scratch creation and facilitated simulation.

Protocol for the creation of a well- defined defectivity

 Controlled defectivity on busbarless cells:

 FF losses = 2/3 of efficiency losses.

 Good scratch-to-scratch repeatability.

 0.2% surface scratched = -6%relh !

 Good agreement experiments/simulation

 Quantification of defectivity- induced efficiency (h) losses

 Validation of the modelled 2D structure (ATLAS Silvaco)

 Physical mechanisms:

 Same defectivity distribution as the actual cells.

 Parametrization based on SHJ cells characterization.

 Defect: locally maximized Dit.

0 20 40 60 80 100 120 140 160

-0,7 -0,6 -0,5 -0,4 -0,1 0,0

Depassivated region effect Emitter effect

BS FS

BS

b) with a depassivated region

Increasing voltage

Jsc 0,3V 0,45V 0,49V 0,53V 0,57V 0,61V mpp 0,65V 0,69V 0,73V Voc

Depth (µm)

F,h(eV)

Increasing voltage a) without a depassivated region FS

Emitter effect

20 40 60 80 100 120 140 160 Depth (µm)

0,0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8

0 10 20 30 40

Without defectivity With defectivity

Voltage (V)

Curent density (mA/cm²)

Vt

c) I(V) comparision with or without a depassivated region

0 5 10 15 90 100

Relative J losses

Relative J losses (%)

 Minority charge carrier quasi fermi level𝜀 ,.

 Force applied on holes ≈ 𝛻𝜀,

Force towards the defect increasing with the voltage

On 10 cells : I(V) measurements after each scratch.

𝛻𝜀, profile in the c-Si at the short circuit working point (Jsc):

Vertical profile of 𝜀, from the c-Si front side FS to its back side BS.

The study of 𝜀 , explains the mechanisms behind the hlosses.

I(V) curves with and without a depassivated region

 Carriers photogenerated within the affected region (pink) recombine in the depassivated region.

 1,4% of carriers are lostJsc losses = 1,4%rel.

 The same analysis also holds for the other I(V) parameters losses (presented in the article).

Context of the study

Approaches used to carry out the study

Presentation of the study

c-Si

Allows to trust the code to investigate the mechanisms behind hlosses

Towards the back surface Electron contact layer

Hole contact layer

[5] O.Nos, “Quality control method based on photoluminescence imaging for the performance prediction of c-Si/a-Si:H heterojunction solar cells in industrial production lines”,2016, Solar Energy Materials and Solar Cells

Références

Documents relatifs

when the transparent bottom electrode is used as cathode, the contribution of fullerene to the Jsc short-circuit current of the cells, if not dominant, is not

In order to study whether the surface defects at the a-Si:H/c-Si interface that determine carrier recombination in c-Si can be considered as a projection of the defects in a-Si:H,

In this report a 2D modeling of n-type interdigitated back contact (IBC) crystalline silicon (c-Si) solar cell structures is presented for two different types of the BSF and

In order to benefit from the new cell architecture, the implanted additional (p + )c-Si layer requires a high temperature treatment to properly activate the boron atoms and limit

a-Si:H/c-Si Heterojunction Solar Cells on 50 µm Thick Wafers With Rear Point Contacts.. 23rd European Photovoltaic Solar Energy Conference and Exhibition, Jan 2008,

ABSTRACT: Full size silicon heterojunction solar cells (SHJ) made on the pilot line at CEA-INES reach efficiencies () up to 24.5%. However, photoluminescence pictures of such

Furthermore, given that photogeneration under an AM1.5 spectrum occurs mostly at the vicinity of the front c-Si surface, the short circuit current loss is determined

Influence of injection level and wafer resistivity on series resistance of silicon heterojunction solar cells.. Léo Basset, Wilfried Favre, Olivier Bonino,
