Improving Communication Patterns in Polyhedral

Process Networks

Christophe Alias

To cite this version:

Christophe Alias. Improving Communication Patterns in Polyhedral Process Networks. [Research

Report] RR-9131, INRIA Grenoble - Rhône-Alpes. 2017, pp.1-13. �hal-01665155�

ISSN 0249-6399 ISRN INRIA/RR--9131--FR+ENG

RESEARCH

REPORT

N° 9131

Improving

Communication Patterns

in Polyhedral Process

Networks

Christophe Alias

RESEARCH CENTRE GRENOBLE – RHÔNE-ALPES

Inovallée

655 avenue de l’Europe Montbonnot 38334 Saint Ismier Cedex

Improving Communication Patterns in

Polyhedral Process Networks

Christophe Alias

Project-Team Roma

Research Report n° 9131 — version 1 — initial version December 2017 — revised version December 2017 — 13 pages

Abstract: Embedded systems performances are bounded by power consumption. The trend

is to offload greedy computations on hardware accelerators as GPU, Xeon Phi or FPGA. FPGA chips combine both flexibility of programmable chips and energy-efficiency of specialized hardware and appear as a natural solution. Hardware design is long, fastidious and bug prone. Hardware compilers from high-level languages (High-level synthesis, HLS) are required to exploit all the capabilities of FPGA while satisfying tight time-to-market constraints. Compiler optimizations for parallelism and data locality restructure deeply the execution order of the processes, hence the read/write patterns in communication channels. This breaks most FIFO channels, which have to be implemented with addressable buffers. Expensive hardware is required to enforce synchronizations, which often results in dramatic performance loss. In this paper, we present an algorithm to partition the communications so that most FIFO channels can be recovered after a loop tiling, a key optimization for parallelism and data locality. Experimental results show a drastic improvement of FIFO detection for regular kernels at the cost of (few) additional storage. As a bonus, the storage can even be reduced in some cases.

Key-words: High-level synthesis, polyhedral compilation, FIFO, FPGA

Amelioration des sch´

emas de communication dans les

r´

eseaux de processus poly´

edriques

R´esum´e : Les performances des syst`emes embarqu´es sont limit´ees par la consommation

´electrique. La tendance est de d´el´eguer les calculs gourmands en ressources `a des acc´el´erateurs

mat´eriels comme les GPU, les Xeon Phi ou les FPGA. Les circuits FPGA allient la flexibilit´e d’un circuit programmable et l’efficacit´e ´energ´etique d’un circuit sp´ecialis´e et apparaissent comme une

solution naturelle. Des compilateurs de mat´eriels `a partir d’un langage haut-niveau sont requis

pour exploiter au mieux les FPGA tout en remplissant les contraintes de mise sur le march´e. Les optimisations de compilateur restructurent profondement les calculs et les sch´emas de commu-nication (ordre de lecture/´ecriture). En cons´equence, la plupart des canaux de commucommu-nication ne sont plus des FIFOs et doivent ˆetre impl´ement´ees avec un tableau adressable, ce qui n´ecessite du mat´eriel suppl´ementaire pour la synchronisation. Dans ce rapport, nous pr´esentons un algo-rithme capable de partitionner les communications de sorte que la plupart des FIFO puissent ˆetre retrouv´ees apr`es un tuilage de boucles. Les r´esultats exp´erimentaux confirment la puissance

de note algorithme et son faible surcoˆut en stockage.

Improving Communication Patterns in Polyhedral Process Networks 3

1

Introduction

Since the end of Dennard scaling, the performance of embedded systems is bounded by power consumption. The trend is to trade genericity (processors) for energy efficiency (hardware ac-celerators) by offloading critical tasks to specialized hardware. FPGA chips combine both flex-ibility of programmable chips and energy-efficiency of specialized hardware and appear as a natural solution. High-level synthesis (HLS) techniques are required to exploit all the capabili-ties of FPGA, while satisfying tight time-to-market constraints. Parallelization techniques from high-performance compilers are progressively migrating to HLS, particularly the models and al-gorithms from the polyhedral model – a powerful framework to design compiler optimizations. Additional constraints must be fulfilled before plugging a compiler optimization into an HLS tool. Unlike software, the hardware size is bounded by the available silicum surface. The bigger is a parallel unit, the less it can be duplicated, thereby limiting the overall performance. In particular, tough program optimizations are likely to spoil the performances if the circuit is not post-optimized carefully [5]. An important consequence is that the the roofline model is not longer valid in HLS [8]. Indeed, peak performance is no longer a constant: it decreases with the operational intensity. The bigger is the operational intensity, the bigger is buffer size and the less is the space remaining for the computation itself. Consequently, it is important to produce at source-level a precise model of the circuit which allows to predict accurately the resource con-sumption. Process networks are a natural and convenient intermediate representation for HLS [4, 13, 18]. A sequential program is translated to a process network by partitioning computa-tions into processes and flow dependences into channels. Then, the the process and buffers are factorized and mapped to hardware.

In this paper, we focus on the translation of buffers to hardware. We propose an algorithm to restructure the buffers so they can be mapped to inexpensive FIFOs. Most often, a direct translation of a regular kernel – without optimization – produces to a process network with FIFO buffers [15]. Unfortunately, data transfers optimization [3] and generally loop tiling reorganizes deeply the computations, hence the read/write order in channels (communication patterns). Consequently, most channels may no longer be implemented by a FIFO. Additional circuitry is required to enforce synchronizations [4, 19, 14, 16] which result in larger circuits and causes performance penalties. In this paper, we make the following contributions:

ˆ We propose an algorithm to reorganize the communications between processes so that more channels can be implemented as FIFO after a loop tiling. As far as we know, this is the first algorithm to recover FIFO communication patterns after a compiler optimization. ˆ Experimental results show that we can recover most of the FIFO disabled by communication

optimization, and more generally any loop tiling, at almost no extra storage cost.

The remainder of this paper is structured as follows. Section 2 introduces polyhedral pro-cess network and discusses how communication patterns are impacted by loop tiling, Section 3 describes our algorithm to reorganize channels, Section 4 presents experimental results, Finally, Section 5 concludes this paper and draws future research directions.

1

2

Preliminaries

This section defines the notions used in the remainder of this paper. Section 2.1 and 2.2 introduces the basics of compiler optimization in the polyhedral model and defines loop tiling. Section 2.3

4 Alias

defines polyhedral process networks (PPN), shows how loop tiling disables FIFO communication patterns and outlines a solution.

2.1

Polyhedral Model at a Glance

Translating a program to a process network requires to split the computation into processes and flow dependences into channels. The polyhedral model focuses on kernels whose computation and flow dependences can be predicted, represented and explored at compile-time. Specifically, the control must be predictable: (for loops, if with conditions on loop counters), arrays only; and loop bounds, conditions and array accesses must be affine functions of surrounding loop counters and structure parameters (typically the array size). This way, the computation may be represented with Presburger sets (typically approximated with convex polyhedra, hence the name). This makes possible to reason geometrically about the computation and to produce precise compiler analysis thanks to integer linear programming: flow dependence analysis [9], scheduling [7] or code generation [6, 12] to quote a few. Most compute-intensive kernels from linear algebra and image processing fit in this category. In some case, kernels with dynamic control can even fit in the polyhedral model after a proper abstraction [2]. Figure 1.(a) depicts a polyhedral kernel and (b) depicts the geometric representation of the computation for each

assignment (• for assignment load, • for assignment compute and ◦ for assignment store). The

vector ~i = (i1, . . . , in) of loop counters surrounding an assignment S is called an iteration of S.

The execution of S at iteration ~i is denoted by hS,~ii. The set DS of iterations of S is called

iteration domain of S. The original execution of the iterations of S follows the lexicographic

order  over DS. For instance, on the statement C: (t, i)  (t0, i0) iff t < t0 or (t = t0 and

i < i0). The lexicographic order over Zd _{is naturally partitioned by depth: =}1 _{] . . . ]}d

where (u1. . . ud) k(v1, . . . , vd) iff ∧k−1i=1ui= vi
∧ uk < vk.

Dataflow Analysis On Figure 1.(b), red arrows depict several flow dependences (read

af-ter write) between executions instances. We are inaf-terested in flow dependences relating the production of a value to its consumption, not only a write followed by a read on the same lo-cation. These flow dependences are called direct dependences. Direct dependences represent the communication of values between two computations and allow to rule communications and synchronizations in the final process network. They are crucial to build the process network. Direct dependences can be computed exactly in the polyhedral model [9]. The result is a re-lation → relating each producer hP,~ii to one or more consumers hC,~ji. Technically, → is a

Presburger relation between vectors (P,~i) and vectors (C,~j) where assignments P and C are

encoded as integers. For example, dependence 5 is summed up with the Presburger relation: {(t − 1, i) → (t, i), 0 < t ≤ T ∧ 0 ≤ i ≤ N }. Presburger relations are computable and efficient libraries allow to manipulate them [17, 10]. In the remainder, direct dependence will be referred as flow dependence or dependence to simplify the presentation.

2.2

Scheduling and Loop Tiling

Compiler optimizations change the execution order to fulfill multiple goals such as increasing the parallelism degree or minimizing the communications. The new execution order is specified by

a schedule. A schedule θS maps each execution hS,~ii to a timestamp θS(~i) = (t1, . . . , td) ∈ Zd,

the timestamps being ordered by the lexicographic order . In a way, a schedule dispatches

each execution instance hS,~ii into a new loop nest, θS(~i) = (t1, . . . , td) being the new iteration

vector of hS,~ii. A schedule θ induces a new execution order ≺θ such that hS,~ii ≺θ hT,~ji iff

θS(~i)  θT(~j). Also, hS,~ii θ hT,~ji means that either hS,~ii ≺θ hT,~ji or θS(~i) = θT(~j). When

Improving Communication Patterns in Polyhedral Process Networks 5

fori := 0 to N + 1 • load(a[0, i]);

fort := 1 to T fori := 1 to N

• a[t, i] := a[t − 1, i − 1] + a[t − 1, i]+ a[t − 1, i + 1]; fori := 1 to N ◦ store(a[T, i]); i i t i 0 1 2 3 4 5 6 N = 7 1 2 3 4 5 = T 1 1 3 2 1 3 3 6 5 4 7 7 7 7 7 7 Load 2 1 3 C 4 5 6 7 Store

(a) Jacobi 1D kernel (b) Flow dependences (c) Polyhedral process network

Figure 1: Motivating example: Jacobi-1D kernel

a schedule is injective, it is said to be sequential: no execution is scheduled at the same time, hence everything is executed in sequence. In the polyhedral model, schedules are affine functions. They can be derived automatically from flow dependences [7]. On Figure 1, the original execution

order is specified by the schedule θload(i) = (0, i), θcompute(t, i) = (1, t, i) and θstore(i) = (2, i). The

lexicographic order ensures the execution of all the load instances (0), then all the compute instances (1) and finally all the store instances (2). Then, for each statement, the loops are executed in the specified order.

Loop tilingis a transformation which partitions the computation in tiles, each tile being

exe-cuted atomically. Communication minimization [3] typically relies on loop tiling to tune the ratio computation/communication of the program beyond the ratio peak performance/communication bandwidth of the target architecture. Figure 2.(a) depicts the iteration domain of compute and the new execution order after tiling loops t and i. For presentation reasons, we depict a domain bigger than in Figure 1.(b) (with bigger N and M ) and we depict only a part of the domain. In the polyhedral model, a loop tiling is specified by hyperplans with linearly independent normal

vectors ~τ1, . . . ,~~τd where d is the number of nested loops (here ~τ1= (0, 1) for the vertical

hyper-planes and ~τ2 = (1, 1) for the diagonal hyperplanes). Roughly, hyper-plans along each normal

vector ~τi are placed at regular intervals bi (here b1= b2= 2) to cut the iteration domain in tiles.

Then, each tile is identified by an iteration vector (φ1, . . . , φd), φk being the slice number of an

iteration ~i along normal vector ~τk: φk = ~τk·~i ÷ bk. The result is a new iteration domain (here

ˆ

D = {(φ1, φ2, t, i), 2φ1≤ t < 2(φ1+ 1) ∧ 2φ2≤ t + i < 2(φ2+ 1)}). In turn, this domain can be

processed with polyhedral analysis: the polyhedral model is closed under loop tiling. In

partic-ular, the tiled domain can be scheduled. For instance, ˆθS(φ1, φ2, t, i) = (φ1, φ2, t, i) specifies the

execution order depicted in Figure 2.(a)): tile with point (4,4) is executed, then tile with point (4,8), then tile with point (4,12), and so on. For each tile, the iterations are executed for each t, then for each i.

2.3

Polyhedral Process Networks

Given the iteration domains and the flow dependence relation, →, we derive a polyhedral process

networkby partitioning iterations domains into process and flow dependence into channels. More

formally, a polyhedral process network is a couple (P, C) such that:

ˆ Each process P ∈ P is specified by an iteration domain DP and a sequential schedule θP

inducing an execution order ≺P over DP. Each iteration ~i ∈ DP realizes the execution

6 Alias

instance µP(~i) in the program. The processes partition the execution instances in the

program: {µP(DP) for each process P } is a partition of the program computation.

ˆ Each channel c ∈ C is specified by a producer process Pc∈ P, a consumer process Cc∈ P

and a dataflow relation →c relating each production of a value by Pc to its consumption

by Cc: if ~i →c~j, then execution ~i of Pc produces a value read by execution ~j of Cc. →c is

a subset of the flow dependences from Pc to Cc and the collection of →c for each channel

c between two given processes P and C, {→c, (P, C) = (Pc, Cc)}, is a partition of flow

dependences from P to C.

The goal of this paper is to find out a partition of flow dependences for each producer/consumer couple (P, C), such that most channels from P to C can be realized by a FIFO.

Figure 1.(c) depicts the PPN obtained with the canonical partition of computation: each

execution hS,~ii is mapped to process PS and executed at process iteration ~i: µPS(~i) = hS,~ii.

For presentation reason the compute process is depicted as C. Dependence depicted as i on the dependence graph in (b) are solved by channel i. To read the input values in parallel, we use a different channel per couple producer/read reference, hence this partitioning. We assume that, locally, each process executes instructions in the same order than in the original program:

θload(i) = i, θcompute(t, i) = (t, i) and θstore(i) = i. Remark that the leading constant (0 for

load, 1 for compute, 2 for store) has disappeared: the timestamps only define an order local to

their process: ≺load, ≺compute and ≺store. The global execution order is driven by the dataflow

semantics: an operation is executed whenever its operands are available. The next step is to detect communication patterns to figure out how to implement channels.

Communication Patterns A channel c ∈ C might be implemented by a FIFO iff the consumer

Cc read the values from c in the same order than the producer Pcwrite them to c (in-order) and

each value is read exactly once (unicity) [13, 15]. The in-order constraint can be written:

in-order(→c, ≺P, ≺C) :=

∀x →cx0, ∀y →cy0 : x0 ≺C y0 ⇒ x P y

The unicity constraints can be written:

unicity(→c) :=

∀x →cx0, ∀y →cy0 : x0 6= y0 ⇒ x 6= y

Notice that unicity depends only on the dataflow relation →c, it is independent from the execution

order of the producer process ≺P and the consumer process ≺C. Furthermore, ¬in-order(→c

, ≺P, ≺C) and ¬unicity(→c) amount to check the emptiness of a convex polyhedron, which can

be done by most LP solvers.

Finally, a channel may be implemented by a FIFO iff it verifies both in-order and unicity constraints:

fifo(→c, ≺P, ≺C) :=

in-order(→c, ≺P, ≺C) ∧ unicity(→c)

When the consumer reads the data in the same order than they are produced but a datum may

be read several times: in-order(→c, ≺P, ≺C) ∧ ¬unicity(→c), the communication pattern is said

to be in-order with multiplicity: the channel may be implemented with a FIFO and a register keeping the last read value for multiple reads. However, additional circuitry is required to trigger the write of a new datum in the register [13]: this implementation is more expensive than a single

FIFO. Finally, when we have neither in-order nor unicity: ¬in-order(→c, ≺P, ≺C)∧¬unicity(→c),

the communication pattern is said to be out-of-order without multiplicity: significant hardware

Improving Communication Patterns in Polyhedral Process Networks 7

resources are required to enforce flow- and anti- dependences between producer and consumer and additional latencies may limit the overall throughput of the circuit [4, 19, 14, 16].

Consider Figure 1.(c), channel 5, implementing dependence 5 (depicted on (b)) from h•, t−1, ii

(write a[t, i]) to h•, t, ii(read a[t − 1, i]). With the schedule defined above, the data are produced

(h•, t −1, ii) and read (h•, t −1, ii) in the same order, and only once: the channel may be

implemented as a FIFO. Now, assume that process compute follows the tiled execution order depicted in Figure 2.(a). The execution order now executes tile with point (4,4), then tile with point (4,8), then tile with point (4,12), and so on. In each tile, the iterations are executed for each t, then for each i. Consider iterations depicted in red as 1, 2, 3, 4 in Figure 2.(b). With the new execution order, we execute successively 1,2,4,3, whereas an in-order pattern would have required 1,2,3,4. Consequently, channel 5 is no longer a FIFO. The same hold for channel 4 and 6. Now, the point is to partition dependence 5 and others so FIFO communication pattern hold.

i t 3 4 5 6 7 8 4 5 6 7 8 9 10 11 12 i t 3 4 5 6 7 8 4 5 6 7 8 9 10 11 12 1 2 3 4 i t 3 4 5 6 7 8 4 5 6 7 8 9 10 11 12 i t 1 2 2 3

(a) Loop tiling (b) Communication pattern (c) Our solution (d) Buffers size

Figure 2: Impact of loop tiling on communication pattern

Consider Figure 2.(c). Dependence 5 is partitioned in 3 parts: red dependences crossing tiling

hyperplane φ1 (direction t), blue dependences crossing tiling hyperplane t + i (direction t + i)

and green dependences inside a tile. Since the execution order in a tile is the same than the original execution order (actually a subset of the original execution order), green dependences will clearly verify the FIFO communication pattern. As concerns blue and red dependences, source and target are executed in the same order because the execution order is the same for each tile and dependence 5 happens to be short enough. In practice, this partitioning is effective to reveal FIFO channels. In the next section, we propose an algorithm to find such a partitioning.

3

Our Algorithm

Figure 3 depicts our algorithm for partitioning channels given a polyhedral process network

(P, C) (line 5). For each channel c from a producer P = Pc to a consumer C = Cc, the channel

is partitioned by depth along the lines described in the previous section (line 7). DP and DC

are assumed to be tiled with the same number of hyperplanes. P and C are assumed to share a

schedule with the shape: θ(φ1, . . . , φn,~i) = (φ1, . . . , φn,~i). This case arise frequently with tiling

schemes for I/O optimization [4]. If not, the next channel →c is considered (line 6). The split

is realized by procedure split (lines 1–4). A new partition is build starting from the empty set. For each depth (hyperplane) of the tiling, the dependences crossing that hyperplane are filtered

8 Alias

1 _split(→c,θP,θC)

2 fork := 1 to n

3 _add(→c∩{(x, y), θP(x) kθC(y)});

4 _add(→c∩{(x, y), θP(x) ≈nθC(y)});

5 _{fifoize((P, C))} 6 for eachchannel c

7 {→1c, . . . , →n+1c } := split(→c,Pc,Cc);

8 iffifo(→kc, ≺θ_Pc, ≺θ_Cc) ∀k

9 _remove(→c);

10 _insert(→k_c) ∀k;

Figure 3: Our algorithm for partitioning channels

and added to the partition (line 3): this gives dependences →1

c, . . . , →nc. Finally, dependences

lying in a tile (source and target in the same tile) are added to the partition (line 4): this gives

→n+1

c . θP(x) ≈nθC(y) means that the n first dimensions of θP(x) and θC(y) (tiling coordinates

(φ1, . . . , φn)) are the same: x and y belong to the same tile. Consider the PPN depicted in

Figure 1.(c). with the tiling and schedule discussed above : process compute is tiled as depicted

in Figure 2.(c) with the schedule θcompute(φ1, φ2, t, i) = (φ1, φ2, t, i). Since processes load and store

are not tiled, the only channels processed by our algorithm are 4,5 and 6. split is applied on

the associated dataflow relations →4, →5and →6. Each dataflow relation is split in three parts

as depicted in Figure 2.(c). For →5: →15 crosses hyperplane t (red), →25crosses hyperplane t + i

(blue) and →3

5stays in a tile (green).

This algorithm works pretty well for short uniform dependences →c: if fifo(c) before tiling,

then, after tiling, the algorithm can split c in such a way that we get FIFOs. However, when dependences are longer, e.g. (t, i) → (t, i + 2), the target operations (t, i + 2) reproduce the tile execution pattern, which prevents to find a FIFO. The same happens when the tile hyperplanes

are “too skewed”, e.g. τ1 = (1, 1), τ2 = (2, 1), dependence (t − 1, i − 1) → (t, i). Figure 2.(d)

depicts the volume of data to be stored on the FIFO produced for each depth. In particular, dotted line with k indicates iterations producing data to be kept in the FIFO at depth k. FIFO at depth 1 (dotted line with 1) must store N data at the same time. Similarly, FIFO at depth

2 stores at most b1 data and FIFO at depth 3 stores at most b2 data. Hence, on this example,

each transformed channel requires b1+ b2 additional storage. In general the additional storage

requirements are one order of magnitude smaller than the original FIFO size and stays reasonable in practice, as shown in the next section.

4

Experimental Evaluation

This section presents the experimental results obtained on the benchmarks of the polyhedral community. We demonstrate the capabilities of our algorithm at recovering FIFO communication patterns after loop tiling and we show how much additional storage is required.

Experimental Setup We have run our algorithm on the kernels of PolyBench/C v3.2 [11].

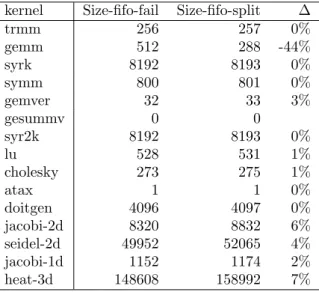

Tables 1 and 2 depicts the results obtained for each kernel. Each kernel is tiled to reduce I/O while exposing parallelism [4] and translated to a PPN using our research compiler, Dcc (DPN C Compiler). Dcc actually produces a DPN (Data-aware Process Network), a PPN optimized for a specific tiled pattern. DPN features additional control processes and synchronization for

Improving Communication Patterns in Polyhedral Process Networks 9

I/O and parallelism which have nothing with our optimization. So, we actually only consider the PPN part of our DPN. We have applied our algorithm to each channel to expose FIFO patterns. For each kernel, we compare the PPN obtained after tiling to the PPN processed by our algorithm.

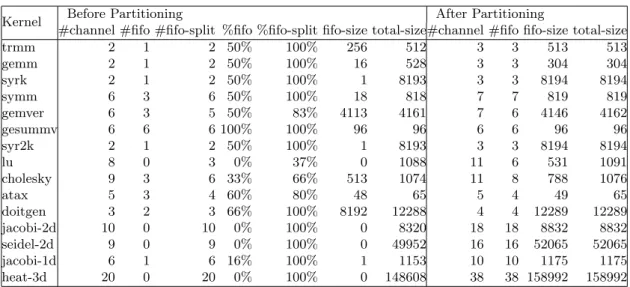

Results Table 1 depicts the capabilities of our algorithm to find out FIFO patterns. For each

kernel, we provide the channels characteristics on the original tiled PPN (Before Partitioning) and after applying our algorithm (After Partitioning). We give the total number of channels (#channel), the FIFO found among these channels (#fifo), the number of channels which were successfully turned to FIFO thanks to our algorithm (#fifo-split), the ratios #fifo/#channel (%fifo) and #fifo-split/#channel (%fifo-split), the cumulated size of the FIFO found (fifo-size) and the cumulated size of the channels found, including FIFO (total-size). On every kernel, our algorithm succeeds to expose more FIFO patterns (%fifo vs %fifo-split). On a significant number of kernels (11 among 15), we even succeed to turn all the compute channels to FIFO. On the remaining kernels, we succeed to recover all the FIFO communication patterns disabled by the tiling. Even though our method is not complete, as discussed in section 3, it happens that all the kernels fulfill the conditions expected by our algorithm (short dependence, tiling hyperplanes not too skewed).

Kernel Before Partitioning After Partitioning

#channel #fifo #fifo-split %fifo %fifo-split fifo-size total-size#channel #fifo fifo-size total-size trmm 2 1 2 50% 100% 256 512 3 3 513 513 gemm 2 1 2 50% 100% 16 528 3 3 304 304 syrk 2 1 2 50% 100% 1 8193 3 3 8194 8194 symm 6 3 6 50% 100% 18 818 7 7 819 819 gemver 6 3 5 50% 83% 4113 4161 7 6 4146 4162 gesummv 6 6 6 100% 100% 96 96 6 6 96 96 syr2k 2 1 2 50% 100% 1 8193 3 3 8194 8194 lu 8 0 3 0% 37% 0 1088 11 6 531 1091 cholesky 9 3 6 33% 66% 513 1074 11 8 788 1076 atax 5 3 4 60% 80% 48 65 5 4 49 65 doitgen 3 2 3 66% 100% 8192 12288 4 4 12289 12289 jacobi-2d 10 0 10 0% 100% 0 8320 18 18 8832 8832 seidel-2d 9 0 9 0% 100% 0 49952 16 16 52065 52065 jacobi-1d 6 1 6 16% 100% 1 1153 10 10 1175 1175 heat-3d 20 0 20 0% 100% 0 148608 38 38 158992 158992

Table 1: Detailed results

Table 2 depicts the additional storage required after splitting channels. For each kernel, we compare the cumulative size of channels split and successfully turn to a FIFO (size-fifo-fail) to the cumulative size of the FIFOs generated by the splitting (size-fifo-split). The size unit is a datum e.g. 4 bytes if a datum is a 32 bits float. We also quantify the additional storage required by split channels compared to the original channel (∆ := size-fifo-split - size-fifo-fail / size-fifo-fail). It turns out that the FIFO generated by splitting use mostly the same data volume than the original channels. Additional resources are due to our sizing heuristic [1], which rounds channel size to a power of 2. Surprisingly, splitting can sometimes help the sizing heuristic to find out a smaller size (kernel gemm), and then reducing the storage requirements. Indeed, splitting decompose channel into channels of a smaller dimension, for which our sizing heuristic is more precise. In a way, our algorithm allows to finds out a nice piecewise allocation function whose

10 Alias

footprint is smaller than a single piece allocation. We plan to exploit this nice side effect in the future.

kernel Size-fifo-fail Size-fifo-split ∆

trmm 256 257 0% gemm 512 288 -44% syrk 8192 8193 0% symm 800 801 0% gemver 32 33 3% gesummv 0 0 syr2k 8192 8193 0% lu 528 531 1% cholesky 273 275 1% atax 1 1 0% doitgen 4096 4097 0% jacobi-2d 8320 8832 6% seidel-2d 49952 52065 4% jacobi-1d 1152 1174 2% heat-3d 148608 158992 7%

Table 2: Impact of splitting on storage requirements

5

Conclusion

In this paper, we have proposed an algorithm to reorganize the channels of a polyhedral process network to reveal more FIFO communication patterns. Specifically, our algorithm operates producer/consumer processes whose iteration domain has been partitioned by a loop tiling. Experimental results shows that our algorithm allows to recover most of the FIFO disabled by loop tiling with almost the same storage requirement. Our algorithm is sensible to the dependence size and the loop tiling chosen. In the future, we plan to design a reorganization algorithm provably complete, in the meaning that a FIFO channel will be recovered whatever the dependence size and the tiling used. We also observe that splitting channels can reduce the storage requirements in some cases. We plan to investigate how such cases can be revealed automatically.

References

[1] Christophe Alias, Fabrice Baray, and Alain Darte. Bee+Cl@k: An implementation of lattice-based array contraction in the source-to-source translator Rose. In ACM Conf. on Languages, Compilers, and Tools for Embedded Systems (LCTES’07), 2007.

[2] Christophe Alias, Alain Darte, Paul Feautrier, and Laure Gonnord. Multi-dimensional rank-ings, program termination, and complexity bounds of flowchart programs. In International

Static Analysis Symposium (SAS’10), 2010.

[3] Christophe Alias, Alain Darte, and Alexandru Plesco. Optimizing remote accesses for of-floaded kernels: Application to high-level synthesis for FPGA. In ACM SIGDA Intl. Con-ference on Design, Automation and Test in Europe (DATE’13), Grenoble, France, 2013.

Improving Communication Patterns in Polyhedral Process Networks 11

[4] Christophe Alias and Alexandru Plesco. Data-aware Process Networks. Research Report

RR-8735, Inria - Research Centre Grenoble – Rhˆone-Alpes, June 2015.

[5] Christophe Alias and Alexandru Plesco. Optimizing Affine Control with Semantic Factor-izations. ACM Transactions on Architecture and Code Optimization (TACO) , 14(4):27, December 2017.

[6] C´edric Bastoul. Efficient code generation for automatic parallelization and optimization. In 2nd International Symposium on Parallel and Distributed Computing (ISPDC 2003), 13-14 October 2003, Ljubljana, Slovenia, pages 23–30, 2003.

[7] Uday Bondhugula, Albert Hartono, J. Ramanujam, and P. Sadayappan. A practical auto-matic polyhedral parallelizer and locality optimizer. In Proceedings of the ACM SIGPLAN 2008 Conference on Programming Language Design and Implementation, Tucson, AZ, USA, June 7-13, 2008, pages 101–113, 2008.

[8] Bruno da Silva, An Braeken, Erik H D’Hollander, and Abdellah Touhafi. Performance mod-eling for fpgas: extending the roofline model with high-level synthesis tools. International Journal of Reconfigurable Computing, 2013:7, 2013.

[9] Paul Feautrier. Dataflow analysis of array and scalar references. International Journal of Parallel Programming, 20(1):23–53, 1991.

[10] Wayne Kelly, Vadim Maslov, William Pugh, Evan Rosser, Tatiana Shpeisman, and Dave Wonnacott. The omega calculator and library, version 1.1. 0. College Park, MD, 20742:18, 1996.

[11] Louis-No¨el Pouchet. Polybench: The polyhedral benchmark suite. URL: http://www. cs. ucla. edu/˜ pouchet/software/polybench/[cited July,], 2012.

[12] Fabien Quiller´e, Sanjay Rajopadhye, and Doran Wilde. Generation of efficient nested loops from polyhedra. International journal of parallel programming, 28(5):469–498, 2000. [13] Alexandru Turjan. Compiling nested loop programs to process networks. PhD thesis, Leiden

Institute of Advanced Computer Science (LIACS), and Leiden Embedded Research Center, Faculty of Science, Leiden University, 2007.

[14] Alexandru Turjan, Bart Kienhuis, and E Deprettere. Realizations of the extended lineariza-tion model. Domain-specific processors: systems, architectures, modeling, and simulalineariza-tion, pages 171–191, 2002.

[15] Alexandru Turjan, Bart Kienhuis, and Ed Deprettere. Classifying interprocess communi-cation in process network representation of nested-loop programs. ACM Transactions on Embedded Computing Systems (TECS), 6(2):13, 2007.

[16] Sven van Haastregt and Bart Kienhuis. Enabling automatic pipeline utilization improvement in polyhedral process network implementations. In Application-Specific Systems, Architec-tures and Processors (ASAP), 2012 IEEE 23rd International Conference on, pages 173–176. IEEE, 2012.

[17] Sven Verdoolaege. isl: An integer set library for the polyhedral model. In ICMS, volume 6327, pages 299–302. Springer, 2010.

[18] Sven Verdoolaege. Polyhedral Process Networks, pages 931–965. Handbook of Signal Pro-cessing Systems. 2010.

12 Alias

[19] C Zissulescu, A Turjan, B Kienhuis, and E Deprettere. Solving out of order communication using cam memory; an implementation. In 13th Annual Workshop on Circuits, Systems and Signal Processing (ProRISC 2002), 2002.

Improving Communication Patterns in Polyhedral Process Networks 13

Contents

1 Introduction 3

2 Preliminaries 3

2.1 Polyhedral Model at a Glance . . . 4

2.2 Scheduling and Loop Tiling . . . 4

2.3 Polyhedral Process Networks . . . 5

3 Our Algorithm 7

4 Experimental Evaluation 8

5 Conclusion 10

RESEARCH CENTRE GRENOBLE – RHÔNE-ALPES

Inovallée

655 avenue de l’Europe Montbonnot 38334 Saint Ismier Cedex

Publisher Inria

Domaine de Voluceau - Rocquencourt BP 105 - 78153 Le Chesnay Cedex inria.fr
