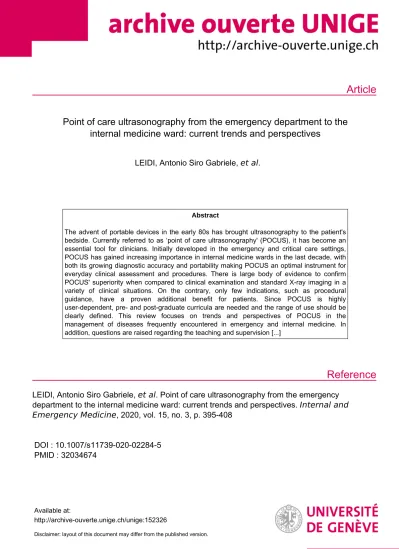

Point of care ultrasonography from the emergency department to the internal medicine ward: current trends and perspectives
LEIDI, Antonio Siro Gabriele, et al.
Abstract
The advent of portable devices in the early 80s has brought ultrasonography to the patient's bedside. Currently referred to as ‘point of care ultrasonography' (POCUS), it has become an essential tool for clinicians. Initially developed in the emergency and critical care settings, POCUS has gained increasing importance in internal medicine wards in the last decade, with both its growing diagnostic accuracy and portability making POCUS an optimal instrument for everyday clinical assessment and procedures. There is large body of evidence to confirm POCUS' superiority when compared to clinical examination and standard X-ray imaging in a variety of clinical situations. On the contrary, only few indications, such as procedural guidance, have a proven additional benefit for patients. Since POCUS is highly user-dependent, pre- and post-graduate curricula are needed and the range of use should be clearly defined. This review focuses on trends and perspectives of POCUS in the management of diseases frequently encountered in emergency and internal medicine. In addition, questions are raised regarding the teaching and supervision [...]
LEIDI, Antonio Siro Gabriele, et al . Point of care ultrasonography from the emergency department to the internal medicine ward: current trends and perspectives. Internal and Emergency Medicine , 2020, vol. 15, no. 3, p. 395-408
DOI : 10.1007/s11739-020-02284-5 PMID : 32034674
Available at:
http://archive-ouverte.unige.ch/unige:152326
Disclaimer: layout of this document may differ from the published version.
1 / 1
Online Resource 1
Caption:
Sensitivity, specificity and reference list of diagnostic point-of-care ultrasonography Article title:
Point of Care Ultrasonography from the Emergency Department to the Internal Medicine Ward:
current Trends and Perspectives.
Journal Name:
Internal and Emergency Medicine Authors:
Antonio Leidi
a(ORCID ID: 0000-0002-3934-0104), Frédéric Rouyer
b, Christophe Marti
a, Jean-Luc Reny
a(ORCID ID: 0000-0002-7528-7363) , Olivier Grosgurin
a,ba. General Internal Medicine, Department of Medicine, Geneva University Hospitals, Geneva, Switzerland
b. Emergency Medicine, Department of Acute Medicine, Geneva University Hospitals, Geneva, Switzerland
Corresponding author: Olivier.Grosgurin@hcuge.ch
Diagnostic POCUS application Diagnostic performance Reference
Sensitivity (95% CI) Specificity (95% CI)
Sinus Acute sinusitis a 0.71 (0.61-0.79) 0.83 (0.71-0.91) [1]
Eye
Optic nerve sheath Intracranial
hypertension 0.90 (0.80-0.95) 0.85 (0.73-0.93) [2]
Retinal detachment 0.94 (0.78-0.99) 0.96 (0.89-0.99) [3]
Trachea Tube placement 0.98 (0.97-0.99) 0.98 (0.95-0.99) [4]
Lung
Effusion b 0.94 (0.88-0.97) 0.98 (0.92-1.00) [5]
Pneumonia 0.78 (0.70–0.84) 0.95 (0.68–0.99) [6]
Acute heart failure a 0.88 (0.75-0.95) 0.90 (0.88-0.92) [7]
A-profile, with no PLAPS a 0.78 (0.67-0.86) 0.94 (0.89-0.97) [6]
Pneumothorax b 0.91 (0.86-0.94) 0.98 (0.97-0.99) [8]
Heart
Left systolic dysfunction a 0.84 (0.74-0.91) 0.89 (0.85-0.91) [9]
Pericardial effusion c 0.96 (0.90-0.99) 0.98 (0.96-0.99) [10]
Right ventricle dilatation c 0.92 (0.65-0.98) 0.99 (0.95-1.00) [11]
Abdomen
Inferior cava vein Fluid
responsiveness b 0.63 (0.56–0.69) 0.73 (0.67–0.78) [12]
FAST Blunt intra-abdominal injury b 0.82 (0.75-0.89) 0.99 (0.98-0.99) [13]
Ascites c 0.96 (0.87-0.99) 0.82 (0.59-0.94) [14]
Cholecystitis b 0.82-0.91 0.66-0.95 [15]
Gallbladder stones a 0.90 (0.86-0.93) 0.88 (0.84-0.91) [16]
Splenomegaly c 1.00 (0.57-1.00) 0.74 (0.57-0.85) [17]
MRI = magnetic resonance imaging; CT = computer tomography; MRR = medical record review; PLAPS = posterolateral alveolar and/or pleural syndrome; COPD = chronic obstructive pulmonary disease; TTE = transthoracic echocardiography; NI BP = non invasive blood pressure; FAST = focused assessment with sonography in trauma; US = ultrasonography. A reference list is available in Online Resource 1.
a Result from meta-analysis with no test for heterogeneity
b Result from meta-analysis with high heterogeneity (I² ≥75%)
c Result from single studies
Abdominal aortic aneurism 0.99 (0.96-1.00) 0.98 (0.97-0.99) [18]
Hydronephrosis c 0.81 (0.80-83) 0.59 (0.56-0.63) [19]
Nephrolithiasis b 0.70 (0.67-0.73) 0.75 (0.72-0.78) [20]
Small bowel obstruction b 0.92 (0.89-0.95) 0.97 (0.88-0.99) [21]
Appendicitis b 0.84 (0.72–0.92) 0.91 (0.85–0.95) [22]
Pneumoperitoneum c 0.96 (0.86–0.99) 0.82 (0.73–0.86) [23]
Pelvis
Bladder distention c 0.96 (0.79–0.99) 0.75 (0.53–0.90) [24]
Ectopic pregnancy b 0.99 (0.97-1.00) 0.42-0.90 [25]
Acute scrotal pain c 0.95 (0.78 to 0.99) 0.94 (0.72 to 0.99) [26]
Limbs
Tendon injury c 0.94 (0.73-1.00) 1.00 (0.92-1.00) [27]
Long bone fracture c 0.93 (0.75-0.99) 0.83 (0.65-0.94) [28]
Soft Tissue Abscess a 0.96 (0.89 to 0.98) 0.80 (0.56 to 0.93) [29]
Deep vein thrombosis b [30]
2-point 0.91 (0.68-0.98) 0.98 (0.96-0.99)
3-point 0.90 (0.83-0.95) 0.95 (0.83-0.99)
1. Ebell MH, McKay B, Guilbault R, Ermias Y (2016) Diagnosis of acute rhinosinusitis in primary care: a systematic review of test accuracy. Br J Gen Pract 66 (650):e612-632. doi:10.3399/bjgp16X686581
2. Dubourg J, Javouhey E, Geeraerts T, Messerer M, Kassai B (2011) Ultrasonography of optic nerve sheath diameter for detection of raised intracranial pressure: a systematic review and meta-analysis. Intens Care Med 37 (7):1059-1068. doi:10.1007/s00134-011-2224-2 3. Gottlieb M, Holladay D, Peksa GD (2019) Point-of-Care Ocular Ultrasound for the Diagnosis of Retinal Detachment: A Systematic Review and Meta-Analysis. Acad Emerg Med 26 (8):931-939. doi:10.1111/acem.13682
4. Gottlieb M, Holladay D, Peksa GD (2018) Ultrasonography for the Confirmation of Endotracheal Tube Intubation: A Systematic Review and Meta-Analysis. Ann Emerg Med 72 (6):627-636. doi:10.1016/j.annemergmed.2018.06.024
5. Yousefifard M, Baikpour M, Ghelichkhani P, Asady H, Shahsavari Nia K, Moghadas Jafari A, Hosseini M, Safari S (2016) Screening Performance Characteristic of Ultrasonography and Radiography in Detection of Pleural Effusion; a Meta-Analysis. Emerg (Tehran) 4 (1):1- 10
6. Staub LJ, Mazzali Biscaro RR, Kaszubowski E, Maurici R (2019) Lung Ultrasound for the Emergency Diagnosis of Pneumonia, Acute Heart Failure, and Exacerbations of Chronic Obstructive Pulmonary Disease/Asthma in Adults: A Systematic Review and Meta-analysis. J Emerg Med 56 (1):53-69. doi:10.1016/j.jemermed.2018.09.009
7. Maw AM, Hassanin A, Ho PM, McInnes MDF, Moss A, Juarez-Colunga E, Soni NJ, Miglioranza MH, Platz E, DeSanto K, Sertich AP, Salame G, Daugherty SL (2019) Diagnostic Accuracy of Point-of-Care Lung Ultrasonography and Chest Radiography in Adults With Symptoms Suggestive of Acute Decompensated Heart Failure: A Systematic Review and Meta-analysis. JAMA Netw Open 2 (3):e190703.
doi:10.1001/jamanetworkopen.2019.0703
8. Alrajhi K, Woo MY, Vaillancourt C (2012) Test characteristics of ultrasonography for the detection of pneumothorax: a systematic review and meta-analysis. Chest 141 (3):703-708. doi:10.1378/chest.11-0131
9. Marbach JA, Almufleh A, Di Santo P, Jung R, Simard T, McInnes M, Salameh JP, McGrath TA, Millington SJ, Diemer G, West FM, Domecq MC, Hibbert B (2019) Comparative Accuracy of Focused Cardiac Ultrasonography and Clinical Examination for Left Ventricular Dysfunction and Valvular Heart Disease: A Systematic Review and Meta-analysis. Ann Intern Med. doi:10.7326/M19-1337
10. Mandavia DP, Hoffner RJ, Mahaney K, Henderson SO (2001) Bedside echocardiography by emergency physicians. Ann Emerg Med 38 (4):377-382. doi:10.1067/mem.2001.118224
11. Biais M, Carrie C, Delaunay F, Morel N, Revel P, Janvier G (2012) Evaluation of a new pocket echoscopic device for focused cardiac ultrasonography in an emergency setting. Crit Care 16 (3):R82. doi:10.1186/cc11340
12. Long E, Oakley E, Duke T, Babl FE, Predict (2017) Does Respiratory Variation in Inferior Vena Cava Diameter Predict Fluid Responsiveness: A Systematic Review and Meta-Analysis. Shock 47 (5):550-559. doi:10.1097/Shk.0000000000000801
13. Nishijima DK, Simel DL, Wisner DH, Holmes JF (2012) Does This Adult Patient Have a Blunt Intra-abdominal Injury? Jama-J Am Med Assoc 307 (14):1517-1527. doi:10.1001/jama.2012.422
14. Keil-Rios D, Terrazas-Solis H, Gonzalez-Garay A, Sanchez-Avila JF, Garcia-Juarez I (2016) Pocket ultrasound device as a complement to physical examination for ascites evaluation and guided paracentesis. Intern Emerg Med 11 (3):461-466. doi:10.1007/s11739-016-1406-x 15. Jain A, Mehta N, Secko M, Schechter J, Papanagnou D, Pandya S, Sinert R (2017) History, Physical Examination, Laboratory Testing, and Emergency Department Ultrasonography for the Diagnosis of Acute Cholecystitis. Acad Emerg Med 24 (3):281-297.
doi:10.1111/acem.13132
16. Ross M, Brown M, McLaughlin K, Atkinson P, Thompson J, Powelson S, Clark S, Lang E (2011) Emergency Physician-performed Ultrasound to Diagnose Cholelithiasis: A Systematic Review. Academic Emergency Medicine 18 (3):227-235. doi:10.1111/j.1553- 2712.2011.01012.x
17. Olson AP, Trappey B, Wagner M, Newman M, Nixon LJ, Schnobrich D (2015) Point-of-care ultrasonography improves the diagnosis of splenomegaly in hospitalized patients. Crit Ultrasound J 7 (1):13. doi:10.1186/s13089-015-0030-8
18. Rubano E, Mehta N, Caputo W, Paladino L, Sinert R (2013) Systematic review: emergency department bedside ultrasonography for diagnosing suspected abdominal aortic aneurysm. Acad Emerg Med 20 (2):128-138. doi:10.1111/acem.12080
19. Pathan SA, Mitra B, Mirza S, Momin U, Ahmed Z, Andraous LG, Shukla D, Shariff MY, Makki MM, George TT, Khan SS, Thomas SH, Cameron PA (2018) Emergency Physician Interpretation of Point-of-care Ultrasound for Identifying and Grading of Hydronephrosis in Renal Colic Compared With Consensus Interpretation by Emergency Radiologists. Acad Emerg Med 25 (10):1129-1137. doi:10.1111/acem.13432 20. Wong C, Teitge B, Ross M, Young P, Robertson HL, Lang E (2018) The Accuracy and Prognostic Value of Point-of-care Ultrasound for Nephrolithiasis in the Emergency Department: A Systematic Review and Meta-analysis. Acad Emerg Med 25 (6):684-698.
doi:10.1111/acem.13388
21. Gottlieb M, Peksa GD, Pandurangadu AV, Nakitende D, Takhar S, Seethala RR (2018) Utilization of ultrasound for the evaluation of small bowel obstruction: A systematic review and meta-analysis. Am J Emerg Med 36 (2):234-242. doi:10.1016/j.ajem.2017.07.085
22. Lee SH, Yun SJ (2019) Diagnostic performance of emergency physician-performed point-of-care ultrasonography for acute appendicitis:
A meta-analysis. Am J Emerg Med 37 (4):696-705. doi:10.1016/j.ajem.2018.07.025
23. Nazerian P, Tozzetti C, Vanni S, Bartolucci M, Gualtieri S, Trausi F, Vittorini M, Catini E, Cibinel GA, Grifoni S (2015) Accuracy of abdominal ultrasound for the diagnosis of pneumoperitoneum in patients with acute abdominal pain: a pilot study. Crit Ultrasound J 7 (1):15. doi:10.1186/s13089-015-0032-6
24. Daurat A, Choquet O, Bringuier S, Charbit J, Egan M, Capdevila X (2015) Diagnosis of Postoperative Urinary Retention Using a Simplified Ultrasound Bladder Measurement. Anesth Analg 120 (5):1033-1038. doi:10.1213/Ane.0000000000000595
25. Stein JC, Wang R, Adler N, Boscardin J, Jacoby VL, Won G, Goldstein R, Kohn MA (2010) Emergency Physician Ultrasonography for Evaluating Patients at Risk for Ectopic Pregnancy: A Meta-Analysis. Annals of Emergency Medicine 56 (6):674-683.
doi:10.1016/j.annemergmed.2010.06.563
26. Blaivas M, Sierzenski P, Lambert M (2001) Emergency evaluation of patients presenting with acute scrotum using bedside ultrasonography. Academic Emergency Medicine 8 (1):90-93. doi:DOI 10.1111/j.1553-2712.2001.tb00563.x
27. Mohammadrezaei N, Seyedhosseini J, Vahidi E (2017) Validity of ultrasound in diagnosis of tendon injuries in penetrating extremity trauma. Am J Emerg Med 35 (7):945-948. doi:10.1016/j.ajem.2017.01.059
28. Marshburn TH, Legome E, Sargsyan A, Li SM, Noble VA, Dulchavsky SA, Sims C, Robinson D (2004) Goal-directed ultrasound in the detection of long-bone fractures. J Trauma 57 (2):329-332. doi:10.1097/01.ta.0000088005.35520.cb
29. Barbic D, Chenkin J, Cho DD (2017) In patients presenting to the emergency department with skin and soft tissue infections what is the diagnostic accuracy of point-of-care ultrasonography for the diagnosis of abscess compared to the current standard of care? A systematic review and meta-analysis (vol 7, e013688, 2017). Bmj Open 7 (9). doi:ARTN e013688corr110.1136/bmjopen-2016-013688corr1 30. Lee JH, Lee SH, Yun SJ (2019) Comparison of 2-point and 3-point point-of-care ultrasound techniques for deep vein thrombosis at the emergency department A meta-analysis. Medicine 98 (22). doi:ARTN e1579110.1097/MD.0000000000015791
