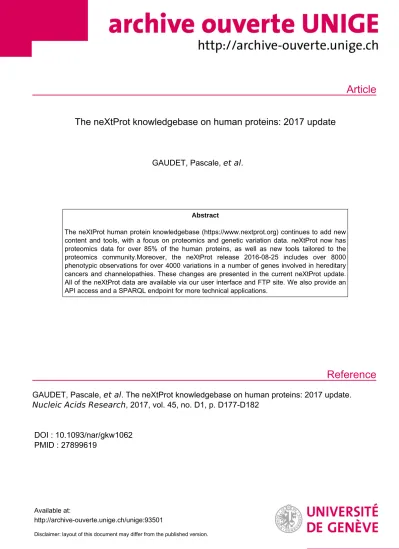

Article
Reference
The neXtProt knowledgebase on human proteins: 2017 update
GAUDET, Pascale, et al.
Abstract
The neXtProt human protein knowledgebase (https://www.nextprot.org) continues to add new content and tools, with a focus on proteomics and genetic variation data. neXtProt now has proteomics data for over 85% of the human proteins, as well as new tools tailored to the proteomics community.Moreover, the neXtProt release 2016-08-25 includes over 8000 phenotypic observations for over 4000 variations in a number of genes involved in hereditary cancers and channelopathies. These changes are presented in the current neXtProt update.
All of the neXtProt data are available via our user interface and FTP site. We also provide an API access and a SPARQL endpoint for more technical applications.
GAUDET, Pascale, et al . The neXtProt knowledgebase on human proteins: 2017 update.
Nucleic Acids Research , 2017, vol. 45, no. D1, p. D177-D182
DOI : 10.1093/nar/gkw1062 PMID : 27899619
Available at:
http://archive-ouverte.unige.ch/unige:93501
Disclaimer: layout of this document may differ from the published version.
1 / 1
The neXtProt knowledgebase on human proteins:
2017 update
Pascale Gaudet
1,2,*, Pierre-Andr ´e Michel
1, Monique Zahn-Zabal
1, Aurore Britan
1, Isabelle Cusin
1, Marcin Domagalski
1,2, Paula D. Duek
1, Alain Gateau
1, Anne Gleizes
1, Val ´erie Hinard
1, Valentine Rech de Laval
1,2, JinJin Lin
3, Frederic Nikitin
1,
Mathieu Schaeffer
1,2, Daniel Teixeira
1, Lydie Lane
1,2and Amos Bairoch
1,21CALIPHO group, SIB Swiss Institute of Bioinformatics, Geneva, Switzerland, 1206,2Department of Human Protein Sciences, Faculty of Medicine, University of Geneva, Geneva, Switzerland, 1206 and3Sun Yat-sen University, 135 Xingang W Rd, Haizhu, Guangzhou, Guangdong, China
Received September 30, 2016; Revised October 19, 2016; Editorial Decision October 20, 2016; Accepted October 24, 2016
ABSTRACT
The neXtProt human protein knowledgebase (https:
//www.nextprot.org) continues to add new content and tools, with a focus on proteomics and genetic variation data. neXtProt now has proteomics data for over 85% of the human proteins, as well as new tools tailored to the proteomics community.
Moreover, the neXtProt release 2016-08-25 in- cludes over 8000 phenotypic observations for over 4000 variations in a number of genes involved in hereditary cancers and channelopathies. These changes are presented in the current neXtProt up- date. All of the neXtProt data are available via our user interface and FTP site. We also provide an API access and a SPARQL endpoint for more technical applications.
INTRODUCTION
neXtProt (https://www.nextprot.org; (1–3)) is a knowledge platform that represents the current state of knowledge on human proteins. It complements UniProtKB (4) by extend- ing the content and tools, with the aim of supporting ap- plications specifically relevant to human proteins. To inte- grate data accurately and develop tools that are relevant to the users, we collaborate closely with all our data and tools providers. neXtProt values high quality data, which is achieved by manual annotation or review of all data and a stringent quality control process. Whenever possible, we provide our data, tools and code freely to all users.
Since our last neXtProt update (1), we have continued to expand the database, focusing mainly on proteomics and ge- netic variations. One major new development is a large set of manual annotations that we have created to capture the phenotypic effect of genetic variations as described in the
literature, as well as a corresponding new view to present the impact of changes at the amino acid sequence on var- ious characteristics of the protein. We have also developed tools to support our proteomics user community. This arti- cle describes the major features of our most recent release.
neXtProt contents overview
Our main data sources are listed in Table 1: UniProtKB (4), Bgee (5), HPA (6), PeptideAtlas (7), SRMAtlas (8), GOA (9), dbSNP (10), Ensembl (11), COSMIC (12), DKF GFP-cDNA localization (13,14), Weizmann Institute of Science’s Kahn Dynamic Proteomics Database (15) and In- tAct (16). In the past year we have worked closely with PeptideAtlas (17) to integrate their processed data (2016-01 build), including new phosphorylation data (2015-09 build).
Moreover, for the first time ADP-ribosylation sites have been integrated (18), and new acetylation sites with their corresponding peptides have also been loaded (19). With this data, neXtProt now contains 142,453 post-translational modification sites and 1,150,170 peptides. Our own curation efforts have also led to the annotation of more than 4000 variants associated with more than 8000 observations at the molecular, cellular and organism levels. These data can be viewed on our user interface in a new phenotype view (see Section II) in each annotated entry, or on our new ‘Portal’
pages (see Section III).
Phenotypic impact of genetic variations
In the course of two separate projects to characterize ge- netic variants involved in hereditary cancers and chan- nelopathies, we have annotated the phenotypic impact of genetic variants for proteins with known causative roles in these diseases: BRCA1, BRCA2, EPCAM, MLH1, MLH3, MSH2, MSH6, PMS2, SCN1A, SCN2A, SCN3A, SCN4A, SCN5A, SCN8A, SCN9A, SCN10A and SCN11A.
*To whom correspondence should be addressed. Tel: +41 22 3779 5050; Email: [email protected]
C The Author(s) 2016. Published by Oxford University Press on behalf of Nucleic Acids Research.
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by-nc/4.0/), which permits non-commercial re-use, distribution, and reproduction in any medium, provided the original work is properly cited. For commercial re-use, please contact [email protected]
D178 Nucleic Acids Research, 2017, Vol. 45, Database issue
Table 1. Data content of the neXtProt 2016-08-25 release
Entries Statistics
Change since
previous release Source
Protein entries/isoforms 22 061/42 024 +6/+32 UniProtKB
Binary interactions 140 270 +18 351 IntAct
Post-translational modifications (PTMs) 142 453 +172 PeptideAtlas, UniProtKB, neXtProt
Variants (including disease mutations) 4 943 914 +2 461 938 UniProtKB, COSMIC, dbSNP
Entries with an experimental 3D structure
5740 +119 PDB via UniProtKB
Entries with proteomics data 17 279 +340 PeptideAtlas
Entries with a disease 3916 +336 UniProtKB
Phenotypic annotations 8014 +8014 neXtProt
Cited publications 99 922 +22 850 All resources
The neXtProt variation phenotypes are curated in a highly structured model with complete traceability to the original experimental results. Our annotation statements are triplets composed of (i) a subject, corresponding to the protein variation being annotated; (ii) a predicate (or relation) describing how the object is affected (Table 2);
and (iii) an object describing the phenotype tested. This phenotype can correspond to the protein’s molecular function or its localization (captured with Gene Ontology (GO) terms (20)), effects at the level of the organism (captured with the mammalian phenotype ontology (21)), interactions with proteins (represented by neXtProt entries) or small molecules (captured using the ChEBI dictionary of molecular entities (22)). Changes in protein or mRNA stability are captured with in-house vocabularies available on our FTP site:ftp://ftp.nextprot.org/pub/current release/
controlled vocabularies/cv protein property.obo. Finally, for ion channels, the impact on electrophysiological properties is captured with the ICEPO ontology (23).
Experimental evidence for each statement is provided, including a reference, an evidence code from the Evidence and Conclusion Ontology (24), and, importantly, a qualita- tive assessment of the phenotype intensity: mild, moderate or severe. Variations producing no significant difference compared to the wild-type are annotated as having no impact. A detailed description of our annotation model and data will be published elsewhere.
New phenotype view
We have deployed a new view to display the phenotype data.
The view contains two main sections: Phenotypes and Vari- ants. The Phenotypes section (Figure 1A) lists the differ- ent phenotypes observed for the protein, grouped by object type: GO molecular function, biological process, cellular component, binary interaction, protein property and mam- malian phenotype, as well as the number of phenotypes in each group. Clicking on the object type opens the list of phe- notypes annotated in that category. For example the effect of MSH6 variants on four different GO molecular functions have been tested: ATPase activity, mismatched DNA bind- ing, DNA clamp loader activity and adenyl–nucleotide ex- change factor activity. The number of variants assayed for each specific phenotype is given: as shown in Figure1A.
Nine MSH6 variants have been tested for ATPase ac- tivity, including Ser144Ile, Ser285Ile and Gly566Arg. Note that the names are shown with the specific isoform selected:
for MSH6, the isoform displayed by default is MSH6- isoGTBP-N.
Any number of phenotypes can be selected. The variants associated with these phenotypes can be viewed by clicking on either ‘Apply filter’ button, on the top and bottom right corner of the phenotype box.
TheVariants Section(Figure1B) lists all variants ordered by their position along the sequence. Different depth of in- formation can be viewed. At the top-most level, the variant names are shown with the intensity of its most deleterious phenotype on the right. The phenotype(s) assayed for a vari- ant can be viewed by clicking on the arrow on the left, which can also be opened in more details to view the experimen- tal evidence supporting the annotation: an evidence code (‘experimental evidence’ or ‘sequence similarity evidence’
for experiments carried out in non-human model systems), whether the evidence is Gold or Silver (general criteria are described in (1)), the intensity of the phenotype, the species from which the test protein was derived, and the reference.
Alternatively, all details can be opened for all the variants at once by clicking the button ‘Expand all’.
Variant portals
For convenience, our phenotypic data are also available on our new data portals: the neXtProt Cancer variants portal and the Ion channels variants portal, both accessible from the top menu ‘Portals’. These portals contain the variants, their associated molecular, cellular and organism level phe- notypes, and the associated experimental evidence for each observation (Figure2). These data are presented in table format, in which each column is searchable and sortable.
The data can also be downloaded in CSV format, copied or printed.
Improvements to proteomics data representation and peptide unicity checker
In entries having proteomics data, we have implemented a new peptide view that lists all the peptides that match the entry, their position on the sequence, an indication as to whether or not they are unique to that entry (‘proteotypic’), and whether they have been detected in biological samples (‘natural’) or chemically synthesized as reagents for selected reaction monitoring experiments (‘synthetic’).
One important need of the proteomics community is to be able to determine whether a peptide is unique to a protein
Table 2. Relations used in the neXtProt phenotype annotations
Relation Definition
No impact No significant effect observed compared to wild-type control
Impact A significant effect observed compared to wild-type control
Increase A significant increase observed in a measured parameter compared to wild-type control Decrease A significant decrease observed in a measured parameter compared to wild-type control Gain of function Mutant protein acquires a property absent from the wild-type (new substrate, new cellular
localization, etc.)
Figure 1. New Phenotype View for the MSH6 entry. (A) Phenotypes section. (B) Variants sections.
D180 Nucleic Acids Research, 2017, Vol. 45, Database issue
Figure 2. Excerpt of the Ion channel variants portal.
or not. The ‘unicity checker’, which uses the pepx program (available athttps://github.com/calipho-sib/pepx), was de- signed to help scientists determine which peptides are un- ambiguous and can thus be used to confidently identify pro- tein entries. The ‘additional mappings with known variants’
mode takes into account all the SNPs and disease mutations in neXtProt to increase the search space. Making use of this tool for mass spectrometry data interpretation is now part of the recommendations of the HUPO Human Proteome Project (25). An example of the unicity checker user inter- face is shown in Figure3.
Revamped neXtProt website
Our latest release also features a renewed user interface. The neXtProt home page has been re-organized so that informa- tion and data are easier to find and use. Navigation in our website has also been re-organized such that the user has ac- cess to all the neXtProt content via menus in the page head- ers and footers. The new header menu offers quick access to tools, data and new documentation describing the neXtProt data model, how to access data (instructions for searching and downloading) and how to use our tools and API. Infor- mation regarding neXtProt, the human proteome, the cur- rent data release including the best evidence for protein ex-
istence of entries broken down by chromosome and how to cite neXtProt is available from the About menu.
Data and software availability
All neXtProt annotations are available as XML and PEFF files (3) on our FTP site (ftp://ftp.nextprot.org/). Note that our XML format has changed to accommodate the new phenotypic data. Changes are documented in a comment at the beginning of the new XSD file (version 2), also on the FTP site. The former XML files are no longer pro- vided due to technical constraints. Annotations can also be accessed through our API at https://api.nextprot.organd our SPARQL endpoint (https://www.nextprot.org/proteins/
search?mode=advanced). The Cellosaurus – a knowledge resource on cell lines is available at ftp://ftp.expasy.org/
databases/cellosaurus/(note that the files are no longer on the neXtProt FTP site). The neXtProt content is avail- able under the Creative Commons Attribution-NoDerivs License. Our software is freely available from the GitHub repository (https://github.com/calipho-sib) or biojs (http:
//www.biojs.io/), as described in our documentation (https:
//www.nextprot.org/help/technical-corner/).
Figure 3. Peptide unicity checker user interface. A list of peptides provided by the user (separated by a space, a comma, a semi-colon or a carriage return) is verified for their unicity in neXtProt sequences by hitting the ‘Check’ button. Users have the option to take into account variants for determining unicity.
CONCLUSION
The neXtProt human protein knowledgebase integrates data to provide comprehensive, up-to-date, high quality in- formation organized in such a way so as to provide scien- tists around the world with a resource that facilitates their research. neXtProt is continually evolving and, in terms of content, the focus will continue to be the incorporation of new variant and proteomics data in the immediate future.
Concerning the quality of the data, global checks comple- menting the spot checks described in our previous paper (1) have been introduced. While content is important, it is just as critical that users be able to view, analyze and export the data in a useful manner. We have thus developed a number of tools, starting with the private lists and queries, and the latest being the peptide unicity checker. We recently started introducing more user interaction features in our web inter- face so as to improve usability. In the new Phenotype view, the user can select the content that should be displayed both in the Phenotype and Variant sections, thereby focusing ex- clusively on the data of interest. Another new feature allow- ing more flexibility for the user is the possibility to down- load all or part of the data, in XML, JSON or FASTA for- mat, for the entry currently being viewed by simply click- ing on the ‘download’ icon at the top right of each page.
While all these developments are undertaken in the hope of improving user access and use of our knowledgebase, we
count on feedback from our users to provide a high quality resource.
ACKNOWLEDGEMENTS
The authors thank the UniProt groups at SIB, EBI and PIR for their dedication in providing up-to-date high-quality an- notations for the human proteins in UniProtKB/Swiss-Prot thus providing neXtProt with a solid foundation. The au- thors thank the PeptideAtlas team for fruitful exchanges re- garding proteomics data handling. The authors also thank Google Summer of Code for supporting J.J.L. for the sum- mer 2016.
FUNDING
The neXtProt server is hosted by Vital-IT, the SIB Swiss Institute of Bioinformatics’ Competence Centre in Bioin- formatics and Computational Biology; SIB Swiss Institute of Bioinformatics, University of Geneva; Recherche Su- isse Contre le Cancer (RSCC) [KFS-3297-08-2013 to A.B.];
Swiss National Science Fund [CR33I3 156233 to A.B.].
Funding for open access charge: SIB Swiss Institute of Bioinformatics.
Conflict of interest statement.None declared.
D182 Nucleic Acids Research, 2017, Vol. 45, Database issue
REFERENCES
1. Gaudet,P., Michel,P.A., Zahn-Zabal,M., Cusin,I., Duek,P.D., Evalet,O., Gateau,A., Gleizes,A., Pereira,M., Teixeira,D.et al.(2015) The neXtProt knowledgebase on human proteins: current status.
Nucleic Acids Res.,43, D764–D770.
2. Gaudet,P., Argoud-Puy,G., Cusin,I., Duek,P., Evalet,O., Gateau,A., Gleizes,A., Pereira,M., Zahn-Zabal,M., Zwahlen,C.et al.(2013) neXtProt: organizing protein knowledge in the context of human proteome projects.J. Proteome Res.,12, 293–298.
3. Lane,L., Argoud-Puy,G., Britan,A., Cusin,I., Duek,P.D., Evalet,O., Gateau,A., Gaudet,P., Gleizes,A., Masselot,A.et al.(2012) neXtProt:
a knowledge platform for human proteins.Nucleic Acids Res.,40, D76–D83.
4. Breuza,L., Poux,S., Estreicher,A., Famiglietti,M.L., Magrane,M., Tognolli,M., Bridge,A., Baratin,D. and Redaschi,N. (2016) The UniProtKB guide to the human proteome.Database (Oxford),2016, bav120.
5. Rosikiewicz,M., Comte,A., Niknejad,A., Robinson-Rechavi,M. and Bastian,F.B. (2013) Uncovering hidden duplicated content in public transcriptomics data.Database (Oxford),2013, bat010.
6. Uhlen,M., Oksvold,P., Fagerberg,L., Lundberg,E., Jonasson,K., Forsberg,M., Zwahlen,M., Kampf,C., Wester,K., Hober,S.et al.
(2010) Towards a knowledge-based Human Protein Atlas.Nat.
Biotechnol.,28, 1248–1250.
7. Farrah,T., Deutsch,E.W., Omenn,G.S., Sun,Z., Watts,J.D., Yamamoto,T., Shteynberg,D., Harris,M.M. and Moritz,R.L. (2014) State of the human proteome in 2013 as viewed through PeptideAtlas:
comparing the kidney, urine, and plasma proteomes for the biology- and disease-driven human proteome project.J. Proteome Res.,13, 60–75.
8. Kusebauch,U., Campbell,D.S., Deutsch,E.W., Chu,C.S., Spicer,D.A., Brusniak,M.Y., Slagel,J., Sun,Z., Stevens,J., Grimes,B.et al.(2016) Human SRMAtlas: A resource of targeted assays to quantify the complete human proteome.Cell,166, 766–778.
9. Huntley,R.P., Sawford,T., Mutowo-Meullenet,P., Shypitsyna,A., Bonilla,C., Martin,M.J. and O’Donovan,C. (2015) The GOA database: gene ontology annotation updates for 2015.Nucleic Acids Res.,43, D1057–D1063.
10. Tatusova,T. (2016) Update on genomic databases and resources at the national center for biotechnology information.Methods Mol. Biol., 1415, 3–30.
11. Aken,B.L., Ayling,S., Barrell,D., Clarke,L., Curwen,V., Fairley,S., Fernandez Banet,J., Billis,K., Garcia Giron,C., Hourlier,T.et al.
(2016) The Ensembl gene annotation system.Database (Oxford), 2016, baw093.
12. Forbes,S.A., Beare,D., Gunasekaran,P., Leung,K., Bindal,N., Boutselakis,H., Ding,M., Bamford,S., Cole,C., Ward,S.et al.(2015) COSMIC: exploring the world’s knowledge of somatic mutations in human cancer.Nucleic Acids Res.,43, D805–D811.
13. Liebel,U., Starkuviene,V., Erfle,H., Simpson,J.C., Poustka,A., Wiemann,S. and Pepperkok,R. (2003) A microscope-based screening platform for large-scale functional protein analysis in intact cells.
FEBS Lett.,554, 394–398.
14. Simpson,J.C., Wellenreuther,R., Poustka,A., Pepperkok,R. and Wiemann,S. (2000) Systematic subcellular localization of novel proteins identified by large-scale cDNA sequencing.EMBO Rep.,1, 287–292.
15. Sigal,A., Danon,T., Cohen,A., Milo,R., Geva-Zatorsky,N., Lustig,G., Liron,Y., Alon,U. and Perzov,N. (2007) Generation of a fluorescently labeled endogenous protein library in living human cells.Nat. Protoc.,2, 1515–1527.
16. Orchard,S., Ammari,M., Aranda,B., Breuza,L., Briganti,L., Broackes-Carter,F., Campbell,N.H., Chavali,G., Chen,C., del-Toro,N.et al.(2014) The MIntAct project–IntAct as a common curation platform for 11 molecular interaction databases.Nucleic Acids Res.,42, D358–D363.
17. Deutsch,E.W., Sun,Z., Campbell,D., Kusebauch,U., Chu,C.S., Mendoza,L., Shteynberg,D., Omenn,G.S. and Moritz,R.L. (2015) State of the human proteome in 2014/2015 as viewed through peptideatlas: enhancing accuracy and coverage through the AtlasProphet.J. Proteome Res.,14, 3461–3473.
18. Zhang,Y., Wang,J., Ding,M. and Yu,Y. (2013) Site-specific characterization of the Asp- and Glu-ADP-ribosylated proteome.
Nat. Methods,10, 981–984.
19. Sun,G., Jiang,M., Zhou,T., Guo,Y., Cui,Y., Guo,X. and Sha,J. (2014) Insights into the lysine acetylproteome of human sperm.J.
Proteomics,109, 199–211.
20. The,Gene Ontology Consortium(2015) Gene ontology consortium:
going forward.Nucleic Acids Res.,43, D1049–D1056.
21. Smith,C.L. and Eppig,J.T. (2012) The Mammalian Phenotype Ontology as a unifying standard for experimental and
high-throughput phenotyping data.Mamm. Genome,23, 653–668.
22. Hastings,J., Owen,G., Dekker,A., Ennis,M., Kale,N., Muthukrishnan,V., Turner,S., Swainston,N., Mendes,P. and Steinbeck,C. (2016) ChEBI in 2016: Improved services and an expanding collection of metabolites.Nucleic Acids Res.,44, D1214–D1219.
23. Hinard,V., Britan,A., Rougier,J.S., Bairoch,A., Abriel,H. and Gaudet,P. (2016) ICEPO: the ion channel electrophysiology ontology.
Database (Oxford),2016, baw017.
24. Chibucos,M.C., Mungall,C.J., Balakrishnan,R., Christie,K.R., Huntley,R.P., White,O., Blake,J.A., Lewis,S.E. and Giglio,M. (2014) Standardized description of scientific evidence using the evidence ontology (ECO).Database (Oxford),2014, bau075.
25. Deutsch,E.W., Overall,C.M., Van Eyk,J.E., Baker,M.S., Paik,Y.K., Weintraub,S.T., Lane,L., Martens,L., Vandenbrouck,Y.,
Kusebauch,U.et al.(2016) Human proteome project mass
spectrometry data interpretation guidelines 2.1.J. Proteome Res.,15, 3961–3970.
