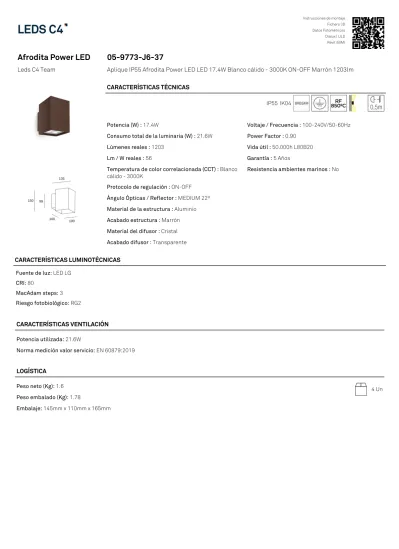

CARACTERÍSTICAS TÉCNICAS
IP55 IK04
Potencia (W) : 17.4W
Consumo total de la luminaria (W) : 21.6W Lúmenes reales : 1203
Lm / W reales : 56
Temperatura de color correlacionada (CCT) : Blanco
cálido - 3000KProtocolo de regulación : ON-OFF Ángulo Ópticas / Reflector : MEDIUM 22º Material de la estructura : Aluminio Acabado estructura : Marrón Material del difusor : Cristal Acabado difusor : Transparente
Voltaje / Frecuencia : 100-240V/50-60Hz Power Factor : 0.90
Vida útil : 50.000h L80B20 Garantía : 5 Años
Resistencia ambientes marinos : No
CARACTERÍSTICAS LUMINOTÉCNICAS Fuente de luz: LED LG
CRI: 80
MacAdam steps: 3 Riesgo fotobiológico: RG2
CARACTERÍSTICAS VENTILACIÓN
Potencia utilizada: 21.6W
Norma medición valor servicio: EN 60879:2019
LOGÍSTICA
Peso neto (Kg): 1.6 Peso embalado (Kg): 1.78
Embalaje: 145mm x 110mm x 165mm
4 Un
Rectangular Luminaire Length 136 mm Width 100 mm Height 150 mm
Rectangular Luminous Area Length 55 mm Width 55 mm Height 150 mm
Horizontal Luminous Area 0.003025 m2 Emitting area on Plane 180° 0.008250 m2
Emitting area on Plane 0° 0.008250 m2 Emitting area on Plane 270° 0.008250 m2
Emitting area on Plane 90° 0.008250 m2 Glare area at 76° 0.008737 m2
Coordinate system CG Symmetry Type Double Symmetrical
Date 30-11-2017 Maximum Gamma Angle 180
Measurement Distance 0.00 Measurement Flux 1203.25 lm
Operator LEDS Rated Voltage
Temperature 25.00 °C Rated Current
Humidity 60.00 % Photocell
Notes
Luminaire Lamps
Line Code Name Flux [lm] Pow. [W] Q.ty
05-9773-J6-37V3 05-9773-14-37V2 1203.25 21.00 1
C.I.E. 93 98 99 50 100 D DIN 5040 C61
F UTE 0.50 A + 0.50 T B NBN BZ 1
600
600 1200
1200 1800
1800 2400
2400
3000
0° 15°
15° 30°
30° 45°
45°
60°
60°
75°
75°
90°
90°
105°
105°
120°
120°
135°
135° 180° 165° 150°
cd/klm Gamma Angles
0 180
90
270 136mm x 100mm
C Halfplanes
180.0 0.0
270.0 90.0
ULOR 50.00 % DLOR 50.00 % RN 50.00 %
Luminous Intensity Table cd/klm Table 1/1
C 0.00 C 15.00 C 30.00 C 45.00 C 60.00 C 75.00 C 90.00 G 0.0 2475.39 2475.39 2475.39 2475.39 2475.39 2475.39 2475.39 G 5.0 2127.52 2117.30 2093.91 2070.99 2063.26 2083.74 2141.50 G 10.0 1365.32 1362.45 1361.88 1369.28 1396.76 1358.36 1406.71
G 15.0 648.65 666.69 696.18 694.18 678.82 661.84 671.37
G 20.0 274.91 286.32 294.16 283.98 265.67 253.52 246.58
G 25.0 114.96 121.75 115.59 114.87 105.10 90.61 86.52
G 30.0 55.60 60.35 57.42 53.16 62.40 53.00 56.20
G 35.0 37.21 37.60 37.78 35.65 35.93 39.66 43.72
G 40.0 24.87 25.88 25.83 25.53 27.01 27.54 29.78
G 45.0 18.34 18.53 18.60 18.21 18.83 18.47 18.20
G 50.0 13.48 13.64 13.80 13.65 13.54 13.01 11.79
G 55.0 10.01 10.14 10.45 10.37 10.21 10.02 9.21
G 60.0 7.42 7.42 7.74 7.85 7.88 7.97 8.11
G 65.0 4.96 5.23 5.63 5.86 5.97 6.08 6.60
G 70.0 2.93 3.20 3.77 4.24 4.37 4.43 4.80
G 75.0 1.12 1.73 2.46 3.06 3.24 3.28 3.32
G 80.0 0.49 1.25 2.22 2.47 2.69 2.73 2.60
G 85.0 0.16 2.00 2.40 2.42 2.54 2.59 2.49
G 90.0 0.32 4.64 4.68 4.78 4.88 5.11 5.36
G 95.0 0.16 2.00 2.40 2.42 2.54 2.59 2.49
G100.0 0.49 1.25 2.22 2.47 2.69 2.73 2.60
G105.0 1.12 1.73 2.46 3.06 3.24 3.28 3.32
G110.0 2.93 3.20 3.77 4.24 4.37 4.43 4.80
G115.0 4.96 5.23 5.63 5.86 5.97 6.08 6.60
G120.0 7.42 7.42 7.74 7.85 7.88 7.97 8.11
G125.0 10.01 10.14 10.45 10.37 10.21 10.02 9.21
G130.0 13.48 13.64 13.80 13.65 13.54 13.01 11.79
G135.0 18.34 18.53 18.60 18.21 18.83 18.47 18.20
G140.0 24.87 25.88 25.83 25.53 27.01 27.54 29.78
G145.0 37.21 37.60 37.78 35.65 35.93 39.66 43.72
G150.0 55.60 60.35 57.42 53.16 62.40 53.00 56.20
G155.0 114.96 121.75 115.59 114.87 105.10 90.61 86.52
G160.0 274.91 286.32 294.16 283.98 265.67 253.52 246.58
G165.0 648.65 666.69 696.18 694.18 678.82 661.84 671.37
G170.0 1365.32 1362.45 1361.88 1369.28 1396.76 1358.36 1406.71 G175.0 2127.52 2117.30 2093.91 2070.99 2063.26 2083.74 2141.50 G180.0 2475.39 2475.39 2475.39 2475.39 2475.39 2475.39 2475.39
600
600 1200
1200 1800
1800 2400
2400
3000
0° 15°
15° 30°
30° 45°
45°
60°
60°
75°
75°
90°
90°
105°
105°
120°
120°
135°
135° 180° 165° 150°
cd/klm Gamma Angles
0 180
90
270
136mm x 100mm C Halfplanes
180.0 0.0
270.0 90.0
0 250 500 750 1000 1250 1500 1750 2000 2250 2500
-180° -120° -60° 0° 60° 120° 180°
cd/klm 0 180
90
270
136mm x 100mm C Halfplanes
180.0 0.0
270.0 90.0
UGR S = 0.250 Reflectancies
Ceiling/Cavity 0.7 0.7 0.5 0.5 0.3 0.7 0.7 0.5 0.5 0.3
Walls 0.5 0.3 0.5 0.3 0.3 0.5 0.3 0.5 0.3 0.3
WorkingPlane 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
RoomDimensions Viewed Crosswise Viewed Endwise
x=2H y=2H 3.8 4.4 4.7 5.2 6.3 3.8 4.4 4.7 5.3 6.3
x=2H y=3H 3.9 4.4 4.8 5.3 6.4 4.2 4.8 5.1 5.6 6.7
x=2H y=4H 3.8 4.3 4.8 5.2 6.4 4.4 4.8 5.3 5.7 6.9
x=2H y=6H 3.7 4.2 4.7 5.1 6.2 4.5 4.9 5.4 5.8 7.0
x=2H y=8H 3.7 4.1 4.6 5.0 6.2 4.5 4.9 5.4 5.8 7.0
x=2H y=12H 3.6 4.0 4.5 4.9 6.1 4.5 4.9 5.5 5.9 7.1
x=4H y=2H 3.8 4.3 4.7 5.2 6.3 3.8 4.3 4.7 5.2 6.3
x=4H y=3H 4.0 4.4 4.9 5.3 6.5 4.3 4.7 5.3 5.6 6.8
x=4H y=4H 3.9 4.3 4.9 5.2 6.5 4.5 4.9 5.5 5.8 7.0
x=4H y=6H 3.9 4.2 4.9 5.1 6.4 4.7 5.0 5.7 6.0 7.2
x=4H y=8H 3.8 4.1 4.8 5.0 6.3 4.8 5.0 5.8 6.0 7.3
x=4H y=12H 3.8 4.0 4.8 5.0 6.3 4.9 5.1 5.9 6.1 7.4
x=8H y=4H 3.9 4.2 4.9 5.1 6.4 4.4 4.7 5.4 5.7 6.9
x=8H y=6H 3.9 4.1 4.9 5.1 6.4 4.7 4.9 5.7 5.9 7.2
x=8H y=8H 3.9 4.1 4.9 5.1 6.4 4.9 5.0 5.9 6.1 7.4
x=8H y=12H 3.9 4.1 5.0 5.1 6.4 5.1 5.2 6.1 6.2 7.6
x=12H y=4H 3.8 4.1 4.9 5.1 6.4 4.4 4.6 5.4 5.6 6.9
x=12H y=6H 3.9 4.1 4.9 5.1 6.4 4.7 4.9 5.7 5.9 7.2
x=12H y=8H 3.9 4.1 4.9 5.1 6.4 4.8 5.0 5.9 6.0 7.4
Total Flux=1203.25 Luminaire Flux=1203.25 RI
DRR RC
0.60 - 0.69
0.80 - 0.74
1.00 - 0.78
1.25 - 0.82
1.50 - 0.85
2.00 - 0.90
2.50 - 0.93
3.00 - 0.95
4.00 - 0.97
5.00 - 0.98
10.00 - 1.01
20.00 - 1.01
Zonal Flux per 1000 Lumen Y°
ZF(Y) 10 179
20 378
30 439
40 464
50 479
60 488
70 494
80 497
90 500
100 503
110 506
120 512
130 521
140 536
150 561
160 622
170 821
180 1000 CIE Flux Codes
93 98 99 50 100 C.I.E. -/-/-/-/-/-/-/-/-/-/-/-
D DIN 5040 C61
F UTE 0.50 A + 0.50 T
B NBN BZ 1
RN 50.00000 %
BLF 1.0
LOR 100.00000 %
ULOR 50.00000 %
DLOR 50.00000 %
UFF 50.00000 %
DFF 50.00000 %
FFR 100.00000 %
0 30 60 90 120 150 180
Y 0%
25%
50%
75%
100% ZF
Zonal Flux
Gamma ° Flux Sum lm Flux [%] Sum [%]
0° 0.00 0.00 0.00% 0.00 %
5° 54.63 54.63 5.46 % 5.46 %
10° 124.00 178.63 12.40 % 17.86 %
15° 121.53 300.16 12.15 % 30.02 %
20° 78.32 378.48 7.83 % 37.85 %
25° 40.08 418.57 4.01 % 41.86 %
30° 20.90 439.47 2.09 % 43.95 %
35° 13.97 453.44 1.40 % 45.34 %
40° 10.74 464.18 1.07 % 46.42 %
45° 8.33 472.51 0.83 % 47.25 %
50° 6.44 478.95 0.64 % 47.89 %
55° 5.11 484.06 0.51 % 48.41 %
60° 4.14 488.20 0.41 % 48.82 %
65° 3.29 491.49 0.33 % 49.15 %
70° 2.47 493.95 0.25 % 49.40 %
75° 1.74 495.69 0.17 % 49.57 %
80° 1.29 496.98 0.13 % 49.70 %
85° 1.19 498.17 0.12 % 49.82 %
90° 1.83 500.00 0.18 % 50.00 %
95° 1.83 501.83 0.18 % 50.18 %
100° 1.19 503.02 0.12 % 50.30 %
105° 1.29 504.31 0.13 % 50.43 %
110° 1.74 506.05 0.17 % 50.60 %
115° 2.47 508.51 0.25 % 50.85 %
120° 3.29 511.80 0.33 % 51.18 %
125° 4.14 515.94 0.41 % 51.59 %
130° 5.11 521.05 0.51 % 52.11 %
135° 6.44 527.49 0.64 % 52.75 %
140° 8.33 535.82 0.83 % 53.58 %
145° 10.74 546.56 1.07 % 54.66 %
150° 13.97 560.53 1.40 % 56.05 %
155° 20.90 581.43 2.09 % 58.14 %
160° 40.08 621.52 4.01 % 62.15 %
165° 78.32 699.84 7.83 % 69.98 %
170° 121.53 821.37 12.15 % 82.14 %
175° 124.00 945.37 12.40 % 94.54 %
180° 54.63 1000.00 5.46 % 100.00 %
Utilizations CIE
Mounting Direct Normalization Normalised Suspension Ratio1/3 Standard CIE Settings
Ceiling
K 8873 8773 8871 8771 7773 7771 7753 7553 7751 7551 7731 7331 7711 7111 5551 5531 5331 5511 5111 3331 3311 1111 0000 0.60 526 472 479 432 449 412 408 346 382 326 361 272 346 236 304 291 257 282 225 244 238 205 188 0.80 583 535 515 475 508 454 462 404 422 371 399 317 382 279 347 333 300 321 266 285 277 244 222 1.00 622 579 536 502 551 481 504 449 449 404 426 351 408 313 378 363 333 351 299 316 308 274 250 1.25 658 620 553 524 590 503 543 494 474 433 451 384 433 347 407 392 365 380 332 347 339 305 278 1.50 685 650 563 538 619 518 574 528 491 455 469 409 451 373 429 414 389 402 357 371 363 330 300 2.00 719 691 573 554 659 536 619 579 513 484 494 444 478 411 459 446 424 435 396 406 398 368 333 2.50 742 718 578 563 686 546 650 615 527 503 510 467 496 438 478 467 448 457 423 430 423 395 357 3.00 758 737 581 569 705 553 673 642 536 515 522 484 509 458 492 482 465 473 443 448 442 415 375 4.00 779 763 585 576 730 562 704 679 549 533 537 508 527 486 511 503 489 496 471 473 468 443 400 5.00 793 780 588 580 747 567 725 703 557 543 547 522 538 504 523 516 505 510 489 489 485 462 417 10.00 822 815 591 588 782 578 770 758 573 566 568 555 563 544 549 545 539 542 530 525 523 505 455 20.00 837 833 593 591 801 583 795 789 581 577 579 572 577 567 562 561 558 560 554 545 544 529 476
Wall
K 8873 8773 8871 8771 7773 7771 7753 7553 7751 7551 7731 7331 7711 7111 5551 5531 5331 5511 5111 3331 3311 1111 0000
0.60 296 268 237 214 252 201 199 171 162 138 136 102 117 79 125 106 94 92 73 86 75 63 47
0.80 344 315 266 244 293 227 239 208 190 164 163 125 142 99 146 127 112 112 90 101 90 73 53
1.00 374 346 281 260 319 241 266 235 206 181 180 141 159 114 157 139 124 124 101 108 98 77 54
1.25 404 377 295 276 345 254 295 263 222 198 197 159 177 131 169 152 137 137 113 117 107 82 55
1.50 425 401 303 287 365 262 317 286 233 210 209 173 190 145 177 161 147 148 123 123 113 85 56
2.00 448 427 306 293 385 266 343 314 242 222 221 188 204 162 182 169 155 157 134 126 117 84 51
2.50 460 441 304 293 395 264 358 332 244 226 226 196 211 172 183 171 159 161 139 124 118 80 44
3.00 465 449 299 289 399 260 366 343 242 227 227 200 214 177 180 170 159 161 141 121 115 75 36
4.00 476 463 297 289 409 258 382 362 244 231 232 209 221 189 180 172 163 165 147 120 115 71 29
5.00 481 470 293 286 414 255 391 373 243 232 233 213 223 195 178 172 163 165 150 117 113 66 22
10.00 473 466 264 260 404 227 391 380 221 215 216 204 211 193 155 152 146 148 138 92 90 36 0
20.00 428 424 208 206 358 172 352 346 170 166 167 160 165 155 102 101 98 100 94 39 38 0 0
Working Pl.
K 8873 8773 8871 8771 7773 7771 7753 7553 7751 7551 7731 7331 7711 7111 5551 5531 5331 5511 5111 3331 3311 1111 0000 0.60 605 574 564 538 555 521 490 461 472 446 438 403 413 376 429 404 392 386 368 381 367 353 343 0.80 685 652 631 604 624 581 557 523 531 501 495 453 468 421 475 449 434 430 406 417 402 381 368 1.00 752 718 685 659 683 630 616 580 583 552 548 501 520 465 517 492 474 472 444 451 436 408 392 1.25 813 780 733 708 737 674 672 634 630 598 596 546 568 509 554 530 512 511 480 480 466 430 411 1.50 860 828 768 744 778 707 717 678 666 635 633 584 607 545 583 560 541 542 510 503 490 447 425 2.00 928 900 818 798 840 755 786 749 720 692 692 644 668 607 628 609 590 592 560 540 529 476 449 2.50 974 949 850 833 882 786 834 800 757 731 732 688 711 652 658 642 624 627 596 565 556 494 465 3.00 1000 984 872 857 912 808 870 838 783 760 761 721 742 688 680 666 650 653 624 584 576 508 476 4.00 1000 1000 899 887 950 834 915 887 815 795 797 762 781 733 706 695 681 685 659 605 599 522 486 5.00 1000 1000 915 905 974 850 944 920 834 818 820 790 807 764 723 714 701 705 682 619 613 531 491 10.00 1000 1000 949 944 1000 884 1000 995 877 867 869 851 862 837 759 754 747 750 736 648 646 549 503 20.00 1000 1000 966 963 1000 901 1000 1000 898 893 895 886 893 878 777 776 772 774 766 663 663 557 507
LM53 SHR C0-C180: 0.362 SHR C90-C270: 0.371 SHR Square: 0.382
Width at 50.00 % of Max Intensity
H[m] 1.00 2.00 3.00 4.00 5.00 H[m] 1.00 2.00 3.00 4.00 5.00
OA 0.19 0.38 0.57 0.76 0.95 OC 0.20 0.39 0.59 0.78 0.98
OB 0.19 0.38 0.57 0.76 0.95 OD 0.20 0.39 0.59 0.78 0.98
Luminous Intensities [ cd/klm]
0 5 15 25 35 45 55 65 75 85
OA 2978.51 2559.93 780.49 138.33 44.78 22.07 12.04 5.97 1.35 0.20
OB 2978.51 2559.93 780.49 138.33 44.78 22.07 12.04 5.97 1.35 0.20
OC 2978.51 2576.76 807.83 104.11 52.61 21.90 11.09 7.94 3.99 3.00
OD 2978.51 2576.76 807.83 104.11 52.61 21.90 11.09 7.94 3.99 3.00
[m] Max Med
lux lux
5.00 119 74
4.00 186 116
3.00 331 206
2.00 745 463
1.00 2979 1853
A B C
D O
Alpha=10.8°+10.8° G=0.0° Beta=11.0°+11.0°
H[m] D[m] Med
lux Max
lux
1.00 0.38 2979 1853
2.00 0.76 745 463
3.00 1.14 331 206
4.00 1.52 186 116
5.00 1.90 119 74
Alpha=10.8°+10.8° G=0.0
H[m] D[m] Med
lux Max
lux
1.00 0.39 2979 1853
2.00 0.78 745 463
3.00 1.17 331 206
4.00 1.56 186 116
5.00 1.95 119 74
Beta=11.0°+11.0° G=0.0
Isolux (Floor)
Luminaire position X=0.00m Y=0.00m Z=2.50m
-2 -1.5 -1 -0.5 0 0.5 1 1.5 2 m
-2 -1.5 -1 -0.5 0 0.5 1 1.5 2
lux V0H+
H0V- C90
C0
25
25
25
25 50
50
50
50 75100
125 150175200225
250
250
275 300325
Luminance
600
600 1200
1200 1800
1800 2400
2400
3000
270° 285° 300° 315°
330°
345°
0°
15°
30°
45°
60°
75°
90°
150°
165°
180°
195°
210°
225° 240° 255°
cd/m2 C Halfplanes
45.0°
Luminance cd/m2 Table 1/3
C 0.00 C 10.00 C 20.00 C 30.00 C 40.00 C 50.00 C 60.00 C 70.00 C 80.00 C 90.00 C 100.00 C 110.00 C 120.00 G 0.0 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 G 5.0 685844.95 663789.34 645386.96 630550.65 620846.72 617437.09 621322.20 633742.93 656904.07 690351.97 656904.07 633742.93 621322.20 G 10.0 372382.53 353579.70 340417.58 331985.57 328119.06 332724.68 340487.14 341975.42 353814.56 383673.52 353814.56 341975.42 340487.14 G 15.0 154332.34 146913.91 144016.97 143468.28 141572.08 139979.55 139890.98 141501.13 147714.89 159739.03 147714.89 141501.13 139890.98 G 20.0 58398.50 55612.23 54045.20 52852.01 51028.01 49045.36 47733.36 47829.54 49395.23 52379.79 49395.23 47829.54 47733.36 G 25.0 22210.22 21465.57 20071.22 18534.25 18113.86 17762.75 16852.27 15808.29 15646.62 16716.10 15646.62 15808.29 16852.27 G 30.0 9919.56 9654.19 9184.56 8369.46 7552.63 8042.26 9095.89 8590.15 8493.29 10025.96 8493.29 8590.15 9095.89 G 35.0 6210.24 5656.36 5328.35 5083.13 4784.71 4645.32 4834.70 5385.18 6205.44 7296.41 6205.44 5385.18 4834.70 G 40.0 3926.24 3644.59 3431.91 3250.52 3128.15 3190.03 3399.09 3606.36 3993.76 4701.75 3993.76 3606.36 3399.09 G 45.0 2767.98 2496.43 2328.68 2213.85 2120.44 2135.04 2242.12 2335.11 2480.05 2746.79 2480.05 2335.11 2242.12 G 50.0 1962.29 1762.58 1642.37 1570.12 1521.10 1510.78 1540.43 1589.60 1644.39 1716.56 1644.39 1589.60 1540.43 G 55.0 1417.57 1267.29 1186.51 1146.13 1115.12 1102.39 1120.73 1172.80 1234.16 1305.37 1234.16 1172.80 1120.73
G 60.0 1031.64 907.53 846.92 825.88 814.56 816.81 841.28 894.80 985.10 1126.77 985.10 894.80 841.28
G 65.0 681.52 619.70 593.84 589.79 590.98 601.32 624.74 665.98 752.41 906.89 752.41 665.98 624.74
G 70.0 401.55 370.53 369.62 390.19 414.79 434.71 452.29 481.08 543.64 657.33 543.64 481.08 452.29
G 75.0 153.72 181.91 215.09 253.65 290.86 317.00 334.52 357.57 395.06 455.96 395.06 357.57 334.52
G 80.0 68.00 115.40 175.63 229.72 243.85 254.71 278.77 301.90 326.51 361.65 326.51 301.90 278.77
G 85.0 23.19 186.91 252.81 250.99 243.90 249.07 266.22 288.48 315.43 353.37 315.43 288.48 266.22
G 90.0 46.56 456.44 529.52 499.89 491.72 500.34 520.72 571.10 654.32 781.16 654.32 571.10 520.72
Luminance cd/m2 Table 2/3
C 130.00 C 140.00 C 150.00 C 160.00 C 170.00 C 180.00 C 190.00 C 200.00 C 210.00 C 220.00 C 230.00 C 240.00 C 250.00 G 0.0 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 G 5.0 617437.09 620846.72 630550.65 645386.96 663789.34 685844.95 663789.34 645386.96 630550.65 620846.72 617437.09 621322.20 633742.93 G 10.0 332724.68 328119.06 331985.57 340417.58 353579.70 372382.53 353579.70 340417.58 331985.57 328119.06 332724.68 340487.14 341975.42 G 15.0 139979.55 141572.08 143468.28 144016.97 146913.91 154332.34 146913.91 144016.97 143468.28 141572.08 139979.55 139890.98 141501.13 G 20.0 49045.36 51028.01 52852.01 54045.20 55612.23 58398.50 55612.23 54045.20 52852.01 51028.01 49045.36 47733.36 47829.54 G 25.0 17762.75 18113.86 18534.25 20071.22 21465.57 22210.22 21465.57 20071.22 18534.25 18113.86 17762.75 16852.27 15808.29 G 30.0 8042.26 7552.63 8369.46 9184.56 9654.19 9919.56 9654.19 9184.56 8369.46 7552.63 8042.26 9095.89 8590.15 G 35.0 4645.32 4784.71 5083.13 5328.35 5656.36 6210.24 5656.36 5328.35 5083.13 4784.71 4645.32 4834.70 5385.18 G 40.0 3190.03 3128.15 3250.52 3431.91 3644.59 3926.24 3644.59 3431.91 3250.52 3128.15 3190.03 3399.09 3606.36 G 45.0 2135.04 2120.44 2213.85 2328.68 2496.43 2767.98 2496.43 2328.68 2213.85 2120.44 2135.04 2242.12 2335.11 G 50.0 1510.78 1521.10 1570.12 1642.37 1762.58 1962.29 1762.58 1642.37 1570.12 1521.10 1510.78 1540.43 1589.60 G 55.0 1102.39 1115.12 1146.13 1186.51 1267.29 1417.57 1267.29 1186.51 1146.13 1115.12 1102.39 1120.73 1172.80
G 60.0 816.81 814.56 825.88 846.92 907.53 1031.64 907.53 846.92 825.88 814.56 816.81 841.28 894.80
G 65.0 601.32 590.98 589.79 593.84 619.70 681.52 619.70 593.84 589.79 590.98 601.32 624.74 665.98
G 70.0 434.71 414.79 390.19 369.62 370.53 401.55 370.53 369.62 390.19 414.79 434.71 452.29 481.08
G 75.0 317.00 290.86 253.65 215.09 181.91 153.72 181.91 215.09 253.65 290.86 317.00 334.52 357.57
G 80.0 254.71 243.85 229.72 175.63 115.40 68.00 115.40 175.63 229.72 243.85 254.71 278.77 301.90
G 85.0 249.07 243.90 250.99 252.81 186.91 23.19 186.91 252.81 250.99 243.90 249.07 266.22 288.48
G 90.0 500.34 491.72 499.89 529.52 456.44 46.56 456.44 529.52 499.89 491.72 500.34 520.72 571.10
Luminance cd/m2 Table 3/3
C 260.00 C 270.00 C 280.00 C 290.00 C 300.00 C 310.00 C 320.00 C 330.00 C 340.00 C 350.00 G 0.0 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 984630.62 G 5.0 656904.07 690351.97 656904.07 633742.93 621322.20 617437.09 620846.72 630550.65 645386.96 663789.34 G 10.0 353814.56 383673.52 353814.56 341975.42 340487.14 332724.68 328119.06 331985.57 340417.58 353579.70 G 15.0 147714.89 159739.03 147714.89 141501.13 139890.98 139979.55 141572.08 143468.28 144016.97 146913.91 G 20.0 49395.23 52379.79 49395.23 47829.54 47733.36 49045.36 51028.01 52852.01 54045.20 55612.23 G 25.0 15646.62 16716.10 15646.62 15808.29 16852.27 17762.75 18113.86 18534.25 20071.22 21465.57 G 30.0 8493.29 10025.96 8493.29 8590.15 9095.89 8042.26 7552.63 8369.46 9184.56 9654.19 G 35.0 6205.44 7296.41 6205.44 5385.18 4834.70 4645.32 4784.71 5083.13 5328.35 5656.36 G 40.0 3993.76 4701.75 3993.76 3606.36 3399.09 3190.03 3128.15 3250.52 3431.91 3644.59 G 45.0 2480.05 2746.79 2480.05 2335.11 2242.12 2135.04 2120.44 2213.85 2328.68 2496.43 G 50.0 1644.39 1716.56 1644.39 1589.60 1540.43 1510.78 1521.10 1570.12 1642.37 1762.58 G 55.0 1234.16 1305.37 1234.16 1172.80 1120.73 1102.39 1115.12 1146.13 1186.51 1267.29
G 60.0 985.10 1126.77 985.10 894.80 841.28 816.81 814.56 825.88 846.92 907.53
G 65.0 752.41 906.89 752.41 665.98 624.74 601.32 590.98 589.79 593.84 619.70
G 70.0 543.64 657.33 543.64 481.08 452.29 434.71 414.79 390.19 369.62 370.53
G 75.0 395.06 455.96 395.06 357.57 334.52 317.00 290.86 253.65 215.09 181.91
G 80.0 326.51 361.65 326.51 301.90 278.77 254.71 243.85 229.72 175.63 115.40
G 85.0 315.43 353.37 315.43 288.48 266.22 249.07 243.90 250.99 252.81 186.91
G 90.0 654.32 781.16 654.32 571.10 520.72 500.34 491.72 499.89 529.52 456.44
