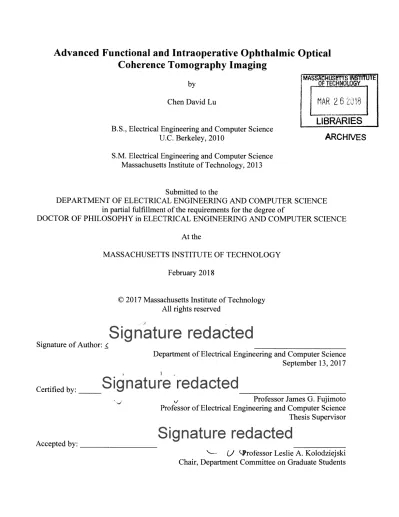

Advanced Functional and Intraoperative Ophthalmic Optical
Coherence Tomography Imaging
by
Chen David Lu
B.S., Electrical Engineering and Computer Science
U.C. Berkeley, 2010 MASSACHUSM!5 1NSTTUTE OF TECHNOLOGY MA R
2
P
2)18LIBRARIES
ARCHIVES
S.M. Electrical Engineering and Computer Science
Massachusetts Institute of Technology, 2013
Submitted to the
DEPARTMENT OF ELECTRICAL ENGINEERING AND COMPUTER SCIENCE DOCTOR OF
in partial fulfillment of the requirements for the degree of
PHILOSOPHY in ELECTRICAL ENGINEERING AND COMPUTER SCIENCE At the
MASSACHUSETTS INSTITUTE OF TECHNOLOGY
February 2018
C 2017 Massachusetts Institute of Technology All rights reserved
Signature of Author: 4
Certified by:
Department of Electrical Engineering and Computer Science September 13, 2017
Professor James G. Fujimoto Professor of Electrical Engineering and Computer Science Thesis Supervisor
Accepted by:
U 'Professor Leslie A. Kolodziej ski
Advanced Functional and Intraoperative Ophthalmic Optical
Coherence Imaging Tomography
by
Chen David Lu
Submitted to the Department of Electrical Engineering and Computer Science
on September 13, 2017 in Partial Fulfillment of the Requirements for the Degree of Doctor of Philosophy in Electrical Engineering and Computer Science
Abstract
Optical coherence tomography (OCT) is a non-contact, non-invasive imaging technique that uses optical interferometry to generate high-resolution, depth-resolved images of tissue in vivo. Ophthalmologists now use commercial OCT systems as a standard diagnostic instrument for imaging the retina to detect or monitor pathologies. However, prototype OCT research instruments exceed commercial systems in terms of faster imaging speeds and higher resolutions. Finding applications for these improvements will improve clinical utility for future OCT systems.
This thesis describes the design and use of an ultrahigh resolution spectral domain OCT system for detecting the photoreceptor changes during flash stimulus and an ultrahigh resolution swept source OCT system for use in eye surgery. The ultrahigh axial resolution of our system enabled visualization of thickness changes in the outer retinal layers after flash stimulus and subsequent dark adaptation. This finding could be used as a marker for photoreceptor health in retinal diseases that influence dark adaptation such as age-related macular degeneration. In the operating room, the ultrahigh speed system attaches to the operating microscope to share the surgeon's view and provide depth-resolved information that is not possible with the standard surgeon's stereoscopic view. This allows for imaging during surgical procedures and the ultrahigh speed enables acquisition of dense, widefield data sets as well as rapid volume acquisition to generate 3D visualizations in time. These data sets will enable 3D planning of procedures, assessment of outcomes before leaving the operating room, and feedback for surgical procedures.
Thesis Supervisor: James G. Fujimoto
Acknowledgements
I would like to thank my professor James Fujimoto for his guidance and support while obtaining
my Ph.D.
To the former and current members of the ophthalmic OCT team, Dr. Benjamin Potsaid, Dr. Ireneusz Grulkowski, Dr. Bernhard Baumann, Dr. Zhao Wang, Dr. Jonathan Liu, Dr. WooJhon Choi, ByungKun Lee, Eric Moult, and Patrick Yiu, I thank you all for your insights in OCT system building, image processing, and experience in conducting scientific studies. To our visiting students from University Erlangen-Nuremberg, Dr. Martin F. Kraus, Lennart Husvogt, Kathrin J. Mohler, Julia Schottenhamml, and Stefan Ploner, I thank you all for the computer science expertise to enable new forms of imaging technologies and techniques. I would also like to thank Dr. Hsiang-Chieh Lee and Dr. Michael Giacomelli for their mentorship during my Ph.D. studies.
Furthermore, I would like to thank my research collaborators Dr. Nadia Waheed, Dr. Andre Witkin, Dr. Caroline Baumal for their clinical knowledge throughout my time in the group and surgical assistance in our intraoperative studies. I would also like to thank Dr. Edward Pugh for our close collaboration in our back and forth discussions about study design and the origins of the effect we observed during our OCT dark adaption study.
Lastly, I would like to thank my wife, family, and friends for their unconditional love, understanding, and support throughout my long time in the laboratory.
Table of Contents
A bstract ... 3
A cknow ledgem ents ... 4
Table of C ontents...5
C hapter 1 Introduction and O verview ... 8
1.1 Introduction ... 8
1.2 Scope of Thesis...10
1.3 Sum m ary of C ontributions... 11
R eferences...15
Chapter 2 Spectral / Fourier Domain Optical Coherence Tomography...22
2.1 O verview ... 22
2.2 Spectral Domain Optical Coherence Tomography System Design...22
Light Source C hoice ... 23
C oupler C hoice ... 25
Sam ple A rm D esign...26
R eference A rm D esign...34
Spectrom eter D esign... 35
2.3 SD -O C T Processing... 38
Linear W avenum ber R esam pling ... 38
D ispersion C om pensation ... 41
W indow ing by Spectral Shaping... 45
2.4 O C T System Characterization ... 47
A xial R esolution... 47
Transverse R esolution... 49
Im aging R ange and Sensitivity R olloff... 50
O C T Sensitivity... 51
R eferences...52
Chapter 3 Ultrahigh Resolution OCT for Dark Adaptation...54
3.2 D ark A daptation Background ... . 55
H istory of D ark A daptation... 55
Retinal Diseases Inhibiting Dark Adaptation ... 59
3.3 R etinal Bleaching Instrum ent D esigns ... 60
3.4 D ark A daptom eter D esign... 66
3.5 U ltrahigh R esolution O CT... 68
3.6 Photoreceptor Band A nalysis ... 69
First Iteration... 69
Second Iteration... 73
Final Iteration ... 75
3.7 Preliminary Dark Adaptation OCT Results ... 78
Initial Dark Adaptation Experiment with Camera Flash...78
First Experiments with the Retinal Bleaching Instrument...80
High Power Retinal Bleaching Instrument with Finer Temporal Sampling.83 3.7 O C T D ark A daptation Study ... 87
M ethods ... 87
R esults...94
D iscussion ... 102
C onclusion...109
R eferences...110
Chapter 4 Swept Source Optical Coherence Tomography...117
4.1 O verview ... 117
4.2 Sw ept Source O CT System D esign...118
Light Sources...118
Interferom eter...120
Sam ple A rm D esign...121
R eference A rm D esign...121
Signal D etection and A cquisition ... 123
O ptical Clocking ... 126
4.3 Sw ept Source O CT Processing ... 133
Windowina cocoa
References ... 135
Chapter 5 Intraoperative SS-OCT Attachment for Retinal and Anterior Eye Imaging.. 138
5.1 Introduction ... 138 5.2 M ethods ... 141 5.3 Results ... 145 5.4 Discussion ... 151 5.5 Conclusions ... 155 References ... 155 Biography ... 165
Chapter 1
Introduction and Overview
1.1 Introduction
Optical coherence tomography (OCT) is an optical imaging technique for non-invasive, non-contact depth imaging based on the interference of coherent light. OCT was first developed in 1991 by our group with collaborators.1 OCT functions similarly to ultrasound but uses light
instead of sound. The light backscattered or back-reflected from a sample is interfered with a known reference light, generating an interference pattern. Processing the interference pattern or
fringe reveals the 1-dimensional encoded signals at various depths at a single position, known as
an A-scan. Sweeping this light beam in a line to acquire multiple A-scans produces a 2-dimensional
cross-sectional image known as a B-scan. Stepping the B-scan sweeps in a raster scan acquires a 3-dimensional volumetric OCT data.
Two critical OCT system specifications are the axial resolution and imaging speed. OCT's
imaging resolution lies between optical microscopy and ultrasound. Unlike traditional optical microscopy, the axial resolution and transverse resolution are decoupled. The optical spectral bandwidth determines the axial resolution while the imaging optics limit the transverse resolution.
The TD-OCT in the original publication achieved an axial resolution of 17 Pm in air using a
super-luminescent diode (SLD). Later TD-OCT systems could achieve ultrahigh resolutions of 2-3 Pm
differentiation of closely spaced retinal layers that previously blurred together. Spectral domain OCT (SD-OCT), developed in the early 2000s, offered increased sensitivity and speed compared
to previous TD-OCT systems.3'4 SD-OCT recorded the interference fringe with a spectrometer
built with a line scan camera. Since SD-OCT systems can operate using the same light sources as
TD-OCT, wide bandwidth light sources allow for ultrahigh resolution SD-OCT.5 Currently, the majority of commercial systems are SD-OCT systems. However, as of this thesis, most
commercial OCT systems operate at about 6 pm axial resolution in tissue while ultrahigh
resolution SD-OCT systems operate with <3 pm axial resolution. However, UHR-OCT systems
offer additional design challenges which will be described in the subsequent chapters.
The imaging speed, often given as A-scans per second, is critical for in vivo imaging
applications as the acquisition time is often limited. For example, the subject's eye can be held
open only for a limited amount of time. The first generation of OCT, known as time domain OCT
(TD-OCT), was limited in imaging speed because acquiring each A-scan required a physical
translation of the reference length. This limited the imaging speed to around single digit kHz. As
mentioned previously, SD-OCT increased the imaging speed by an order of magnitude compared
to traditional TD-OCT methods. SD-OCT systems operate from 10s of kHz to 100s of kHz.6 The
only limitation for SD-OCT is the imaging speed of the line scan camera in the spectrometer.
Another type of OCT system, swept source OCT (SS-OCT) samples a narrow wavelength laser
sweeping through wavelengths or frequencies in time instead of a light source emitting all
wavelengths at once. Both SD-OCT and SS-OCT detect light in the Fourier domain by measuring
the interference fringe and then Fourier transforming to extract the A-scan information. Since the
imaging speed is based on the laser sweep speed rather than on detection speed, recent advances
of kilohertz to megahertz.7-0 These advances allowed SS-OCT to be an ideal system to construct
an ultrahigh speed OCT system. Currently, the maximum commercial OCT system imaging speed
is 100 kHz. Research into ultrahigh speed OCT will provide applications for the next generation
of commercial OCT systems.
1.2 Scope of Thesis
This thesis focuses on the development of two advanced prototype OCT systems that
exceed the current commercial systems in terms of ultrahigh resolution and ultrahigh speed. The
ultrahigh resolution SD-OCT system was capable of imaging the micron-scale changes in the outer
retina after flash stimulus and subsequent dark adaptation. The unique thickness changes vary with
time and resemble the sensitivity recovery curves measured with a dark adaptometer. These results
may be used as a marker of photoreceptor health in diseases that affect sensitivity recovery in
darkness such as age-related macular degeneration. The other ultrahigh speed SS-OCT system
utilized a 400 kHz swept laser to acquire images during retinal and anterior eye surgery. The
ultrahigh speed enabled acquisition of widefield data and rapidly acquired volumes in time.
Analyzing the widefield data before the procedure provides surgical planning information while
widefield volumes after the procedure can analyze if the procedure was successful before the
patient leaves the operating room. The rapidly acquired volumes allow for 3D visualization of
surgical techniques while the surgeon is operating. In the future, this can be used to provide
real-time feedback for the surgeon to give them better accuracy to improve surgical outcomes. These
two systems will be described in the following chapters.
Chapter 2 describes the design of a SD-OCT system by using the ultrahigh resolution
Chanter first analyzes the nhvsical components of the system and then follows with the processing
necessary to recover an image with the best point spread function. The later part of the Chapter
analyzes how to characterize the specifications for an OCT system.
Chapter 3 introduces the OCT dark adaptation study using UHR-OCT. The Chapter starts
with background information about previous research into dark adaptation and some of the
diseases that impair sensitivity recovery in darkness. The next sections describe the bleaching
instrument and prototype dark adaptometer. The last portion of the Chapter describes the
preliminary studies followed by the final published dark adaptation study.
Chapter 4 parallels the structure of Chapter 2 by outlining the design considerations for a
SS-OCT system while focusing on the specifications of the intraoperative SS-OCT system. The
physical design is discussed followed by focusing on the processing necessary to generate the best
quality images.
Chapter 5 details the study using the intraoperative SS-OCT system to image patients in the operating room. The Chapter details the background behind prototype and commercial
integrated OCT systems used for ophthalmic surgery. The section will describe our system in
further detail and present the results from imaging 22 patients at the Tufts Medical Center.
1.3 Summary of Contributions
This section will summarize my contributions to the field of OCT during my time at MIT, including my Masters and Ph.D. work. From the start of my graduate program in 2010, our group
was one of the pioneers of high-speed SS-OCT research with our publication on the 100 kHz
commercial Axsun system by Dr. Benjamin Potsaid." With industrial support from Thorlabs Inc,
and Praevium Research, we had access to the vertical cavity surface-emitting laser (VCSEL) light
modifications on the initial laboratory results from the VCSEL light source.12 With knowledge of
the VCSEL light source, I constructed and imaged with a 350 kHz VCSEL SS-OCT system with a handheld OCT scanner for my Masters thesis. This included building the optical components of
the SS-OCT system, programming the sinusoidal scan pattern, and modelling with SolidWorks the
3D printed enclosure for the handheld instrument. Before the publication, handheld OCT systems
were limited to commercial SD-OCT systems operating at 26-32 kHz and research prototypes at
70 kHz.13 The publication showed that a combination of ultrahigh speed, motion correction,
reduced weight/size, and improved imaging range could overcome many of the prior limitations
of handheld OCT.14 Despite the current high cost of SS-OCT, technological advancements with
time will reduce the cost and size of OCT systems. This will enable portable OCT imaging in
settings beyond the ophthalmology setting, potentially enabling regular OCT screening of retinal
diseases at yearly doctor visits to detect and treat the diseases before they cause irreversible vision
loss.
Following the handheld OCT, I had two main directions to continue developing handheld
OCT devices. Dr. David Huang from Oregon Health and Science University (OHSU) proposed a
combination vitrectomy illuminator with OCT scanning using a gradient-index (GRIN) lens relay.
This would provide retinal surgeons with OCT depth information since they were limited to a
stereoscopic view on the retina. The OHSU group filed a patent on the device15 and I began
simulations to test the viability of such a scanner. However, after many simulations, I found that
the use of a GRIN lens to relay the scanning position causes the accumulation of aberrations with
increased pitch. Higher scan angles and smaller diameter GRIN lenses amplify this effect. While
limit the OCT scanning device to larger diameter needles (<20 gauge). Because of these reasons, the project was not continued.
The second direction was to develop a handheld OCT scanner that would scan patients during retinal surgery. Previous work at that time has used a commercial handheld SD-OCT scanner operating at ~20 kHz for imaging of the eye in the operating room.16'17 However, handheld
intraoperative OCT imaging requires pauses in the operation to move the surgical microscope away from the eye before imaging alignment. This prevents imaging while the surgeon is operating and potentially extends the surgery time due to the pauses. Previous groups at that time had integrated OCT scanning inside of the surgical microscope before the objective lens so that OCT imaging can occur concurrently with the surgeon looking through the eyepieces. These systems were limited to SD-OCT with speeds of 20 kHz18 and 36 kHz.19 Rather than integrate the OCT
scanning inside the microscope, we went another direction with an OCT scanning attachment after the objective lens in the surgical microscope. With assistance from Topcon Medical Systems, we received one of their commercial surgical microscopes and a prototype OCT scanner that attaches to the bottom of the microscope. I built the imaging engine consisting of a SS-OCT powered by a
1050 nn wavelength VCSEL system operating at 400 kHz. With this ultrahigh-speed SS-OCT
system, we were able to acquire dense widefield volumes, rapidly-acquired volumes over time for 4D imaging, and functional OCT angiography volumes in the operating room. Overall, we imaged 22 patients from 2015 to 2016. As of this thesis, we have submitted this work for publication.20
Since we began this project, the Duke University group have published their 100 kHz SS-OCT intraoperative system integrated into the surgical microscope.2 1'
22 The group has also recently
demonstrated an effective 800 kHz imaging speed by buffering a 200 kHz Axsun to 400 kHz and
nrogress in intraonerative A 47 -- -- -- - --r-- - - -- -. -- -- -- OCT will -- -- -- --~0- --_ _ _ _ __ -,focus on lltili7ing higher imaging sneed to give more information to surgeons in the operating room.
Along with the ultrahigh speed intraoperative OCT project, I was assigned to investigate photoreceptor thickness changes after flash stimulus following a 2013 paper describing photoreceptor thickness changes seen in normal and Best disease patients under dark and light adaptation.2 4 This project was related to an aim in our National Institutes of Health (NIH)
ophthalmic grant renewal where we specified that we would find possible disease markers using ultrahigh-resolution OCT (UHR-OCT). However, our group had not published any major ophthalmic UHR-OCT publications since 2009.25, 26 After many iterations of different flash
stimulus instruments, processing methods, and UHR-OCT systems, I completed the study for normal subjects and the manuscript has been accepted for publication for September 2017.27 In this paper, I detailed how there are three unique photorresponse waveforms that scale in amplitude and duration with bleaching intensity. These findings will need to be verified in patients with disease compared to normal subjects to analyze if the findings can be used as markers for disease progression. Discovering disease progression markers will be very important for clinical drug trials targeting dry age-related macular degeneration (AMD) to determine if treatment methods halt or reverse the disease.
In addition to these projects, I also contributed to deployment of OCT systems to our collaborators. One of my first tasks as a graduate student was to build a triggering circuit to synchronize the SS-OCT sweep trigger to the scanning mirrors and the acquisition card. This
triggering circuit was also integrated into an electrical enclosure that housed many of the electrical
connections and the galvanometer driver boards. I replicated this enclosure for a 100 kHz Axsun
split-spectrum amplitude-decorrelation angiography (SSADA 28, 29 now commerciali7ed as the
Optovue Angiovue OCT angiography algorithm. I constructed the electrical enclosure for another
100 kHz Axsun SS-OCT system deployed to University of Pittsburg Medical Center (UPMC). I
also took charge of the C++ acquisition software and updated the graphics interface to make the acquisition procedure more intuitive for the operators. The UPMC system focused on studies of the lambina cribrosa in the optic nerve head of the eye.30-32 I also constructed the electrical
enclosure and optical components for the 100 kHz Axsun and 400 kHz VCSEL system deployed at New England Eye Center. The Axsun system generated studies on the vitreous33 and the VCSEL
system generated important studies with OCT angiography of retinal diseases.34-37 Lastly, I took
charge of the deployment of a second 100 kHz Axsun system for anterior eye imaging for OHSU. In addition to developing the electrical components, I programmed additional scan patterns and rebuilt the sample arm during the deployment at OHSU. The group at OHSU are currently using the system for preliminary studies for an anterior eye National Institutes of Health grant proposal.3 8
References
1. Huang D, Swanson EA, Lin CP, Schuman JS, Stinson WG, Chang W, Hee MR, Flotte T,
Gregory K, Puliafito CA, Fujimoto JG. Optical Coherence Tomography. Science
1991;254:1178-1181.
2. Drexler W, Morgner U, Ghanta RK, Kartner FX, Schuman JS, Fujimoto JG. Ultrahigh-resolution ophthalmic optical coherence tomography. Nature medicine 2001;7:502-507.
3. Leitgeb R, Hitzenberger CK, Fercher AF. Performance of fourier domain vs. time domain
4. Wojtkowski M, Leitgeb R, KowalczVk A Bairszewski T Fe-rcher AF. In vivo human retinal
imaging by Fourier domain optical coherence tomography. Journal of Biomedical Optics
2002;7:457-463.
5. Srinivasan VJ, Adler DC, Chen Y, Gorczynska I, Huber R, Duker JS, Schuman JS, Fujimoto
JG. Ultrahigh-Speed Optical Coherence Tomography for Three-Dimensional and En Face
Imaging of the Retina and Optic Nerve Head. Invest Ophth Vis Sci 2008;49:5103-5110.
6. Potsaid B, Gorczynska I, Srinivasan VJ, Chen Y, Jiang J, Cable A, Fujimoto JG. Ultrahigh
speed spectral / Fourier domain OCT ophthalmic imaging at 70,000 to 312,500 axial scans per second. Optics express 2008;16:15149-15169.
7. Jayaraman V, Jiang J, Li H, Heim PJS, Cole GD, Potsaid B, Fujimoto JG, Cable A. OCT
Imaging up to 760 kHz Axial Scan Rate Using Single-Mode 131 Onm MEMS-Tunable
VCSELs with > 1 00nm Tuning Range. 2011 Conference on Lasers and Electro-Optics (Cleo) 2011.
8. Potsaid B, Jayaraman V, Fujimoto JG, Jiang J, Heim PJS, Cable AE. MEMS tunable VCSEL
light source for ultrahigh speed 60kHz - 1 MHz axial scan rate and long range centimeter class OCT imaging. In: Joseph Al, James GF, Valery VT (eds): SPIE; 2012:82130M.
9. Wieser W, Biedermann BR, Klein T, Eigenwillig CM, Huber R. Multi-Megahertz OCT:
High quality 3D imaging at 20 million A-scans and 4.5 GVoxels per second. Optics Express 2010;18:14685-14704.
10. Klein T, Wieser W, Eigenwillig CM, Biedermann BR, Huber R. Megahertz OCT for
ultrawide-field retinal imaging with a 1050nm Fourier domain mode-locked laser. Optics Express 2011;19:3044-3062.
11. Potsaid B, Baumann B, Huang D, Barry S, Cable AE, Schuman JS, Duker JS. Fujimoto JG.
Ultrahigh speed 1050nm swept source/Fourier domain OCT retinal and anterior segment imaging at 100,000 to 400,000 axial scans per second. Optics express 2010;18:20029-20048. 12. Grulkowski I, Liu JJ, Potsaid B, Jayaraman V, Lu CD, Jiang J, Cable AE, Duker JS,
Fujimoto JG. Retinal, anterior segment and full eye imaging using ultrahigh speed swept source OCT with vertical-cavity surface emitting lasers. Biomedical optics express
2012;3:2733-2751.
13. Shelton RL, Jung W, Sayegh SI, McCormick DT, Kim J, Boppart SA. Optical coherence
tomography for advanced screening in the primary care office. Journal of biophotonics
2014;7:525-533.
14. Lu CD, Kraus MF, Potsaid B, Liu JJ, Choi W, Jayaraman V, Cable AE, Hornegger J, Duker
JS, Fujimoto JG. Handheld ultrahigh speed swept source optical coherence tomography
instrument using a MEMS scanning mirror. Biomedical optics express 2013;5:293-311.
15. Huang D, Wang Y, Wilson D, Stout JT, Fujimoto J, Lu C. Oct vitrectomy probe. US Patent
App. 14/890,035; 2014.
16. Dayani PN, Maldonado R, Farsiu S, Toth CA. Intraoperative use of handheld spectral
domain optical coherence tomography imaging in macular surgery. Retina 2009;29:1457-1468.
17. Ehlers JP, Dupps WJ, Kaiser PK, Goshe J, Singh RP, Petkovsek D, Srivastava SK. The
Prospective Intraoperative and Perioperative Ophthalmic ImagiNg with Optical CoherEncE TomogRaphy (PIONEER) Study: 2-year results. American journal of ophthalmology
1 Tao YK, Ehlers JP, Toth CA, lzatt JA. Intraoperative spectral domain ontical coherence
tomography for vitreoretinal surgery. Optics letters 2010;35:3315-3317.
19. Tao YK, Srivastava SK, Ehlers JP. Microscope-integrated intraoperative OCT with
electrically tunable focus and heads-up display for imaging of ophthalmic surgical maneuvers. Biomedical optics express 2014;5:1877-1885.
20. Lu CD, Waheed NK, Witkin AJ, Baumal CR, Liu JJ, Potsaid B, Joseph A, Jayaraman V, Cable A, Chan K, Duker JS, Fujimoto JG. Intraoperative Ultrahigh Speed Swept Source Optical Coherence Tomography with a Microscope Attachment for Widefield Retinal and
Anterior Segment Imaging. Ophthalmic surgery, lasers & imaging retina 2017.
21. Carrasco-Zevallos 0, Keller B, Viehland C, Shen L, Todorich B, Shieh C, Kuo A, Toth C, Izatt JA. 4D microscope-integrated OCT improves accuracy of ophthalmic surgical
maneuvers. Proc Spie; 2016:969306-969306-969307.
22. Carrasco-Zevallos OM, Keller B, Viehland C, Shen L, Waterman G, Todorich B, Shieh C, Hahn P, Farsiu S, Kuo AN, Toth CA, Izatt JA. Live volumetric (4D) visualization and guidance of in vivo human ophthalmic surgery with intraoperative optical coherence tomography. Scientific reports 2016;6:31689.
23. Carrasco-Zevallos 0, Viehland C, Keller B, N. Kuo A, Toth C, Izatt J. High-speed 4D
intrasurgical OCT at 800 kHz line rate using temporal spectral splitting and spiral scanning (Conference Presentation); 2017:100530E.
24. Abramoff MD, Mullins RF, Lee K, Hoffmann JM, Sonka M, Critser DB, Stasheff SF, Stone
EM. Human photoreceptor outer segments shorten during light adaptation. Invest Ophthalmol Vis Sci 2013;54:3721-3728.
25. Srinivasan VJ, Chen Y Duker JS, Fujimoto JCT In Vivo Functional Imaging of Intrinsic
Scattering Changes in the Human Retina with High-speed Ultrahigh Resolution OCT. Optics
express 2009;17:3861-3877.
26. Witkin AJ, Vuong LN, Srinivasan VJ, Gorczynska I, Reichel E, Baumal CR, Rogers AH,
Schuman JS, Fujimoto JG, Duker JS. High-speed ultrahigh resolution optical coherence
tomography before and after ranibizumab for age-related macular degeneration.
Ophthalmology 2009; 116:956-963.
27. Lu CD, Lee B, Schottenhamml J, Maier A, Pugh EN, Fujimoto JG. Photoreceptor Length
Thickness Changes During Dark Adaptation Observed with Ultrahigh Resolution Optical
Coherence Tomography. Invest Ophthalmol Vis Sci 2017.
28. Jia Y, Bailey ST, Wilson DJ, Tan 0, Klein ML, Flaxel CJ, Potsaid B, Liu JJ, Lu CD, Kraus
MF, Fujimoto JG, Huang D. Quantitative optical coherence tomography angiography of
choroidal neovascularization in age-related macular degeneration. Ophthalmology
2014;121:1435-1444.
29. Jia Y, Morrison JC, Tokayer J, Tan 0, Lombardi L, Baumann B, Lu CD, Choi W, Fujimoto JG, Huang D. Quantitative OCT angiography of optic nerve head blood flow. Biomedical
optics express 2012;3:3127-3137.
30. Nadler Z, Wang B, Wollstein G, Nevins JE, Ishikawa H, Kagemann L, Sigal IA, Ferguson
RD, Hammer DX, Grulkowski I. Automated lamina cribrosa microstructural segmentation in
optical coherence tomography scans of healthy and glaucomatous eyes. Biomedical optics
express 2013;4:2596-2608.
31. Wang B, Nevins JE, Nadler Z, Wollstein G, Ishikawa H, Bilonick RA, Kagemann L, Sigal IA, Grulkowski I, Liu JJ. In Vivo Lamina Cribrosa Micro-Architecture in Healthy and
Glaucomatous Eyes as Assessed by Optical Coherence Tomographyln Vivo Assessment of
3D LC Micro-Architecture. Invest Ophth Vis Sci 2013;54:8270-8274.
32. Wang B, Nevins JE, Nadler Z, Wollstein G, Ishikawa H, Bilonick RA, Kagemann L, Sigal IA, Grulkowski I, Liu JJ. Reproducibility of in-vivo OCT measured three-dimensional
human lamina cribrosa microarchitecture. PloS one 2014;9:e95526.
33. Liu JJ, Witkin AJ, Adhi M, Grulkowski I, Kraus MF, Dhalla A-H, Lu CD, Hornegger J,
Duker JS, Fujimoto JG. Enhanced vitreous imaging in healthy eyes using swept source
optical coherence tomography. PloS one 2014;9:e102950.
34. Choi W, Moult EM, Waheed NK, Adhi M, Lee B, Lu CD, De Carlo T, Jayaraman V,
Rosenfeld PJ, Duker JS. Ultrahigh Speed Swept Source OCT Angiography in Non-Exudative
Age-Related Macular Degeneration with Geographic Atrophy. Ophthalmology
2015; 122:2532.
35. Choi W, Moult EM, Waheed NK, Adhi M, Lee B, Lu CD, de Carlo TE, Jayaraman V,
Rosenfeld PJ, Duker JS, Fujimoto JG. Ultrahigh-Speed, Swept-Source Optical Coherence
Tomography Angiography in Nonexudative Age-Related Macular Degeneration with
Geographic Atrophy. Ophthalmology 2015;122:2532-2544.
36. Moult E, Choi W, Waheed NK, Adhi M, Lee B, Lu CD, Jayaraman V, Potsaid B, Rosenfeld PJ, Duker JS, Fujimoto JG. Ultrahigh-speed swept-source OCT angiography in exudative
AMD. Ophthalmic surgery, lasers & imaging retina 2014;45:496-505.
37. Moult EM, Waheed NK, Novais EA, Choi W, Lee B, Ploner SB, Cole ED, Louzada RN, Lu CD, Rosenfeld PJ. Swept-source optical coherence tomography angiography reveals
choriocapillaris alterations in eyes with nascent geographic atrophy and drusen-associated
38. Skalet AH, Li Y, Lu CD, Jia Y, Lee B, Husvogt L, Maier A, Fujimoto JG, Thomas CR,
Huang D. Optical coherence tomography angiography characteristics of iris melanocytic tumors. Ophthalmology 2017;124:197-204.
Chapter 2
Spectral / Fourier Domain Optical Coherence Tomography
2.1 Overview
Spectral / Fourier domain optical coherence tomography relies on accurately sampling wavenumbers to determine depth information encoded in sinusoidal interference fringes. One method of sampling wavenumbers is to detect continuously a broadband coherent light source with a spectrometer. This method of OCT is commonly known as spectral domain optical coherence tomography (OCT). Currently, most commercial ophthalmic OCT systems operate using
SD-OCT. The following sections will detail the various parts of the SD-OCT system assuming the
reader has background knowledge in Michaelson interferometry. These sections will characterize the SD-OCT system used for the OCT dark adaptation experiments described in Chapter 3.
Much of the SD-OCT knowledge listed in this Chapter was obtained from helpful discussions with Dr. Benjamin Potsaid, Dr. Jonathan Liu, and Dr. WooJhon Choi while planning and constructing SD-OCT systems. Additionally, I would like to acknowledge Dr. Jonathan Liu for programming the LabView acquisition software that interfaced with the SD-OCT system.
2.2 Spectral Domain Optical Coherence Tomography System Design
A SD-OCT system can be divided up into individual components. Figure 2.1 shows an
example of a fiber-based SD-OCT system with the major components labelled. The interferometer fiber coupler connects all the different parts of the SD-OCT system.
Light Source
Dichroic Telescope lenses
Mirror Isolator
SuperRuminescent
Diode (SLD) 80/20 Scanning
Coupler Mirrors
Line Scan Transmission Water/Glass Cat's Eye
Camera Grating AdJustable ND CompensationRef. Mirror
Light Atenuator Focusing Lens
Spectrometer Reference Arm
Figure 2.1. Fiber-based SD-OCT system schematic. Light Source Choice
In general, an OCT system is designed around its light source. The type of fibers used, fiber coupling ratio, lens coatings, and spectrometer components all depend on the wavelengths and output power of the light source. SD-OCT light sources need to continuously output a wide wavelength of light so that the spectrometer can sample the interference spectrum that encodes the depths as sinusoidal frequencies. Currently, most SD-OCT light sources multiplex one or more
superluminescent diodes (SLDs) to output a broad wavelength band of coherent laser light. In the past, femtosecond lasers have also been used to provide a wide optical bandwidth for OCT.'
The bandwidth of the light source determines the axial resolution of the system. To illustrate the relationship between optical bandwidth and axial resolution in OCT, assume that the input laser power follows a Gaussian distribution as a function of k
A 2(k)=exp -4i(2)(kk) 2 (2.2.1)
Ak2
where k is the mean wavenumber and A k is the full width half maximum (FWHM) of the
F IA22(k)} = Ak exp(jkz) exp -Z
J2.
7r4 ln(2) 4 4ln(2) (2.2.2)
Gaussian
This is known as the point spread function (PSF). The PSF is the depth response from a single
reflector in the sample arm. The resulting A-scan image in depth of a complex tissue with
multiple reflectors is simply the convolution of PSF with those reflectors. However, due to non-uniform sampling and dispersion mismatches, the Fourier transform of the immediate data obtained from an SD-OCT system will not result in the best PSF. Section 2.3 will detail these
effects and methods of recovering the maximum resolution for the PSF. Section 2.4 will further
explain how to characterize the axial resolution from the PSF.
The previous analysis assumes that the spectrum has a Gaussian distribution. In reality, multiplexing multiple SLD modules results in a spectrum with intensity ripples over the band of
output wavelengths. Figure 2.2 shows the optical spectrum of the Superlum Broadlighter
T870-HP (Superlum Diodes Ltd, Carrigtwohill, Ireland) used in the SD-OCT system for the dark adaptation experiment. This light source multiplexes three SLD modules to generate a spectrum centered at 870 nm wavelength with a FWHM of 170 nm. These ripples will cause increased sidelobes in the PSF after the Fourier transformation. Section 2.4 will describe spectral shaping as a way of minimizing the effects of these ripples.
1 0.9 --- --- - - -- --- ---0.8 ..--- --- --- -- ---- --- -- -- -- -- - - - -0.6 --- -- --- -- -- -- .-- --- --- -- ---- - ---0.4 --- -- --- --- --- ---... ---- --- ---0.3 --- -- .. ... .--- --- -- --- --- -- ---0 z 0.2 --- --- --- --- --- --- -- ---950 800 850 900 950 1000 1050 Wavelengt (nm)
Figure 2.2. Optical spectrum of the Superlum Broadlighter T870-HP.
Lastly, an optical isolator placed after the output of the SLD prevents backcoupling of any
optical power into the SLD, which may result in degradation of the SLD light source with use. The
isolator must be selected with an appropriate passband to prevent the loss of optical bandwidth and
optical power for the OCT system.
Coupler Choice
To reduce power losses and save space, most OCT systems use a fiber-based
interferometer rather than a free-space interferometer. The 80/20 fiber coupler used in the
SD-OCT system connecting the four portions of the system acts as the beamsplitter in a standard
Michaelson interferometer. This coupling ratio varies from the 50/50 in a normal Michaelson
interferometer for two reasons. First, the SLD usually provides an excess of power, so the 20%
coupling to the sample arm ensures that the retinal exposure is below established limits.2 Second,
after the sample arm collects the returning back-scattered/back-reflected signal, 80% of that
power will couple to the spectrometer path. This higher coupling ratio ensures a higher collection
Sample Arm Design
The sample arm is designed with a telescopic arrangement of lenses to image the scanning
beam pivot plane onto the pupil plane of the eye. This pivot point allows the collimated beam to
focus down to scan the retina. As a double pass system, the sample arm collects the back-reflected
and back-scattered light from the retina through same path as the illumination. Shown in Figure
2.3, the choice of optical components determines key optical specifications for scanning the retina.
f1 1T2 T2 Fiber dc Connector G, fc de Scanner Dichroic f1 T2 Plane Mirror
Figure 2.3. Unfolded sample arm with indicated variables used to describe the optical scanning
of the eye.
From the fiber connector with a known numerical aperture NAf, the diameter of the beam
after the collimator is determined by
d, = 2f, tan(arcsin(NAf)) (2.2.3)
where
f,
is the focal length d, of the collimator. The size of the scanning mirrors limits the diameter of the collimated beam. The beam is scanned at an angle 0, through a 4F telescope torelay the scanning plane on to the pupil of the eye. The focal lengths fj and
f
2 of the two lensessets the magnification factor M.
M = -f2 / Ai (2.2.4)
'd -IAd
L4e - I I VAI 4C
and the input angle into the eye is
t,
= t-
(fI
/f
2 tan(Os))= tan-' (tan(O,) / M) (2.2.6)Usually,
f2
is chosen to be smaller than fA such that IMI <i to increase the scanning range on the retina while trading off beam diameter.A first order approximation of the scanning angle on the retina 0. can be determined by
the differences in the index of refraction between air and within the eye
6 Or e
- (2.2.7)
neye
where neye =1.336 is the refractive index of the eye. A more thorough calculation for the angle
on the retina requires an optical simulation using a model eye that includes the refractive effects
of the curved cornea and varying refractive index within the crystalline lens. The field of view
(FOV) in length units requires determination of the scanned arc on the retina assuming the pivot
position is at the pupil. This requires determination of the chord angle on the eye assuming as
1POSt
6.
...
...
...
...
..
:E
F V
FOV
D
Figure 2.4. Diagram of scanning the retina to determine the field of view. The retinal scanning angle has been exaggerated to accentuate the angle relations. Point A lies on the pupil pivot plane for the beams. Point C is the center given by the radius of curvature for the back of the eye. The right triangle ABC forms from the relationship between the pupil pivot point and the center of the eye. Point D lies on the scanning point of the retina. Point E lies on the chord formed by scan angle.
To determine the chord angle 0, the length BC must be determined first
BC = sin,(Or )(lpost -r) (2.2.8)
Where 1post 20 mm is the posterior eye distance equal to the distance between the pupil to the
retina and r =12 mm is the retinal radius of curvature. Determination of BC allows for the computation of angle ZBCD
ZBCD= cos(BC-I /r)= cos-'(sin(r)(lpost -r)/r) (2.2.9)
The chord angle can then be determined through angle relationships
This produces the arc length equal to the FOV
20 4rr (90 -O,-cos-'( sin(Or }{ post -r)/ r 2
FOV = 2rr C _ s (2.2.11)
3600 3600
The transverse resolution or spot size depends on the imaging performance of the eye.
Assuming a Gaussian beam, the transverse resolution or spot size dr on the retina is dependent on
the diameter of the beam entering the eye.
dr = 44fe (2.2.12)
;neyed,
Where )4 is the wavelength of light in vacuum, and feye = 16.6 mm is the effective focal length
of the cornea and crystalline lens of the eye.
Since the spot size and field of view scale inversely, an invariant parameter describing the imaging performance is useful to compare sample arm designs. The number of resolvable spot
NRS measures the number of unique scan points along the entire field of view. The number of
resolvable spots can be determined by dividing the length of the field of view by the spot size.
NRS =FOV (2.2.13)
dR
With this invariant parameter, increases in the magnification of the 4F telescope will reduce the
field of view at the same rate as narrowing the spot size, resulting in an invariant NRS. The number
of resolvable spots can only increase by increasing the input diameter into the scanner and/or the initial scanning angles.
The depth of field (DOF) or confocal parameter in the OCT system determines a range of depths where the system is in focus. Assuming the laser outputs a Gaussian beam, the depth of field is
27 2d
2
ZDOF - 2n edv (2.2.14)
Ideally, the depth of focus should be longer than the thickness of the retina (-300 pim) so that the
entirety of the retina can be in focus to maximize the signal from the layers and to prevent
transverse blurring.
The second lens translates axially to correct for myopic and hyperopic eyes as shown in
Figure 2.5. Because the beams at various scan angles are parallel in the infinity space before the
second lens, the overall scan angle into the cornea and the working distance from the surface of
the lens and the eye is unchanged. However, because the second lens is moving towards or away
from the subject's eye, the system must also move to maintain the working distance.
First Lens Second Lens
Position Position
Normal
Az2cor
Hyperopia
Myopia
Figure 2.5. Translation of the second lens in the 4F telescope accommodates for refractive errors in the subject without changing the working distance or scanning angle into the eye.
The axial translation of the second lens Az, corresponds to a refractive error correction measured
in diopters by the following relationship
(2.2.15)
D= I I
f2
+ Af2
Typically, the correction should be at least 12 diopters to account for a diverse range of refractive
errors.
The previous analysis assumed that the X and Y galvanometer scanners are at the same
plane. In reality, because each scanning direction requires a mirror attached to a separate servo,
the scanning axes are displaced by some distance. This displacement contributes to axial shifts in
the pivot positions and in the scan angle for the X and Y scanning directions. Figure 2.6 shows
the effects of the scanning pivot displacement if the scanner is closer to the first lens by Az,.
I
~Z
2 fi1~
I2
2I 1ig A2 IhOjhi3
II
Figure 2.6. Diagram for a scan displacement towards the first lens.
The resulting shift in the pupil pivot away from the second lens Az is equal to
&iW =&CsIM2 (2.2.16)
Determining the angle change AzW requires the lens equation. The focal position for the diverging beam is given by
I
Z2 = .j1J dISj (2.2.17)
AdJs
The scan height on the first lens can be written in terms of the original, non-displaced scan height
I% =f tan'I(9,). The displaced scan height at the first lens is given by
A~k
,
_k(1_
, )(2.2.18)The height at the second lens is proportional to increase in distance between the first and second lens
h=Z2+f +f2 (2.2.19)
Z2
The angle incident on the cornea from the displaced scan point can then be calculated
O&, = tan - + j (2.2.20)
For the case where the scanning shift is away from the first lens, the calculations can be repeated with a negative Azds. Ideally, the scanning position should be set between the two galvanometer scanners to minimize jAzds I for both the X and Y scanning directions. From this analysis, we can see that the pivot point can change the axial pivot position between the X and Y scanning, causing increased vignetting on one axis versus the other. The angle variations also may require slightly different mapping of scan angle to imaging area for X and Y directions.
The folded sample arm optics used in the SD-OCT system are shown in Figure 2.7. With
the listed optical components and specifications from the light source, the parameters derived from
f =80 mmf
=
80 mm f=8mmand f= 50mm Dichroic Mirror f = 20 mm Cambridge Technology 6215HFigure 2.7. Optical components used in the SD-OCT sample arm for OCT imaging.
Specification Variable Value Units
ight Source Center Wavelength AO 870 nm
780HP Fiber Numberical Aperture N44 0.13 Unitless
-ollimator Focal Length fr 20 mm
3eam Diameter After Collimator de 5.24 mm
ican Angle 09S 20 0
irst Telescope Lens Focal Length A 80 mm
)econd Telescope Lens Focal Length A 30.8 mm
F Telescope Magnification M -0.385 Unitless
3eam Diameter Before Eye d, 2.02 mm
3eam Angle into Eye _, 43.4 0
3eam Angle from Pupil On Retina 9. 32.5 1 *_
:hord Angle on Retina OG 53.5 0
Oaximum Field of View FOV 22.4 mm
7ransverse Resolution/Spot Size d, 6.88 pm
4umber of Resolvable Spots NRS 3255 Spots
)epth of Field DOF 457 pm
ial Translation of Second Lens ACor 25.4 mm
ositive Diopter Correction 153 D
egative Diopter Correction D -14.7 D
canning Pivot Displacement 5 mm
hift in Pupil Pivot 0.741 mm
ositive Shift in Pupil Pivot Beam Angle dis 43.4
egative Shift in Pupil Pivot Beam Angle dis 44.6 *
Table 2.1. Sample arm parameters from the SD-OCT system used in the final OCT dark adaptation study.
A few particular specifications require additional discussion. First, these specifications are
the zeroth order classification of the specifications for the sample arm. This means that the values may vary for measured data based on the assumptions used for the zeroth order calculations. The zeroth order specifications allow for quick comparison between different configurations but optical simulation testing would reveal the specifications that are closer to real world performance. Second, the scan angle listed is the absolute maximum optical scanning angle for the galvanometers. In reality, the full scanning range is not used for acquisition because the scanning mirrors need additional area during flyback to overshoot in order to steer the beam to the next scanning position. This effectively reduces the overall raster acquisition field of view of the retina. Furthermore, the complete field of view cannot be used if the axial imaging range cannot encompass the retina. The axial imaging range characterization is further explored in Section 2.4. Reference Arm Design
Shown in Figure 2.1, the other portion of light from the sample arm enters the reference arm. The reference arm requires an optical path distance that matches the sample arm for interference. Due to differences in the optics between the sample and reference arm, glass compensation elements help match the dispersive elements within the sample arm. The water cell compensates the beam imaging through the vitreous of the eye when imaging the retina. The dispersion compensation elements must be selected considering the reference arm is double-pass where the output beam is reflected and is collected by the same collimator. The reference arm path may contain an additional attenuator such as an adjustable neutral density filter or iris to prevent spectrometer light saturation. The reference beam should transmit through the dispersion compensation and attenuation elements at a non-normal angle to prevent back-coupling of reference arm signal which may manifest as interference artifacts. The collimated light focuses
waist lies at the mirror surface to improve light coupling on the return path. Furthermore, increasing optical delay by translating the entire cat's eye unit or transverse vibrations would have
minor effects on the beam focused on the mirror.
Spectrometer Design
The spectrometer detects and samples the interfered light from the sample and reference arms. The spectrometer listed in this system consists of a collimator, a transmission grating, a scan
lens, and a line scan camera shown in Figure 2.8. This section will describe parameters of interest
as a zeroth order way of modeling the spectrometer performance for a given light source. These
parameters will then be evaluated for the eventual SD-OCT system used in the OCT dark
adaptation study outlined in Chapter 3.
a (Ipmm) dpcfo
da,
fco
0 d9 ... ... dcam ,.-Wcam...---Figure 2.8. SD-OCT spectrometer with indicated parameters that characterize the spectrometer performance. The insert shows a zoomed view on the center wavelength angle of incidence of the first principle order.
The collimator with focal length
fco,
generates a collimated beam with diameter dspecdspec =2JCol LakNtsi-l kIVAf)) (2-.2.21)
The collimated beam strikes a transmission grating which deflects the light based on the number of grating per length a. The angle of incidence 69 for the center wavelength 4 of the first principle order is given by
61 =sin-, a, (2.2.22)
2
The diameter of the beam after the grating dg also increases by d
d = (2.2.23)
g cos(6 )
Based on the lower Amn and upper Ama wavelengths of the spectrum, the angle span Os after the grating can be calculated
Ospec = sin-I - Amin -sin-' aK -- Ama (2.2.24)
The fan of wavelengths focuses through a focusing lens of focal length
ffoc
to a narrow line of width weam given bycam = 2
ffoc
tan(Ospec /2)(2.2.25)
This line is detected with a line scan camera with horizontal pixels that sample the spectrum. For
a given wavelength, the focusing lens focuses the beam down to a spot size of dcm detected by
the line scan camera.
d am = (2.2.26)
This spot should be smaller than the pixel sampling in the vertical direction to ensure the maximum
collection of signal by the system. The spot should also be narrow in the horizontal direction to
prevent blurring of neighboring wavelengths that would reduce the overall wavelength resolution
of the spectrometer. This is one of the factors that would cause sensitivity rolloff, which is further
explained in Section 2.4.
The spacing of spectral sampling by the line scan camera determines the axial imaging
range after Fourier transform of the interference fringe. The bit-range of the camera determines
the quantization noise present in the signal. The speed of the line scan camera in sampling the
entire line, known as the line rate, determines the A-scan rate of the overall SD-OCT system.
The parameters described above used to design the SD-OCT spectrometer used in the OCT
dark adaptation study are shown in Table 2.2.
Spectrometer specification Variable Value Units
ight Source Upper Wavelength Al 960 nm
ight Source Center Wavelength /3 870 nm
ight Source Lower Wavelength Alnin 780 nm
80HP Fiber Numberical Aperture N -f 0.13 Unitless
ollimator Focal Length fco _ 82 mm
'earn Diameter After Collimator d 13.11 mm
ransmission Grating per length 7 1200 Lines per mm
ngle of Incidence 31.47 *
iameter After Grating d 15.37 mm
Angle Span After Grating 16.54 0
ocusing Lens Focal Length 100 mm
ine Width on Camera Wcan 29.07 mm
pot Size (Upper Wavelength) da 8 pm
pot Size (Center Wavelength) can 7.2 pm
pot Size (Lower Wavelength) d 6.4 pm
ine Scan Camera Model _____ spL4096 140km N/A
ine Scan Camera Pixel Size 10 pm
/aximum Camera Pixels 4096 Pixels
-amera Line Scan Width 40.96 mm
Jsed Number of Pixels 2907 Pixels
ixel Bit Depth 12 bits
maging Speed 70000 Lines per second
maging Speed Lowered Pixels 98630 Lines per second
Table 2.2. Zeroth order calculations for the design of the SD-OCT spectrometer used in the OCT
Of narticular note, the sn4096-140km (Basler AG Ahrensburg Germny) line scan camera can trade off the number of acquisition pixels to achieve more imaging speed. Our group has previously achieved imaging speeds of up to 312.5 Hz using this camera.3 In the SD-OCT system used for the dark adaptation experiment, the specified spectrum in Table 2.2 covers 2907 pixels of the line scan camera. Sampling only those pixels proportionally boosts the imaging speed to 98.6 kHz. In reality, the number of sampled pixels is increased from 2907 to sample both ends of the spectrum. In the end, the number of acquired pixels is 3072 for an imaging speed of 91 kHz.
2.3 SD-OCT Processing
After the spectrometer acquires the interference fringe, each acquisition requires additional processing to recover the maximum possible axial resolution for each A-scan. The three major processing steps are the resampling to linear wavenumber, dispersion compensation, and spectral shaping.
Linear Wavenumber Resampling
While the spectrometer in the previous section can resolve the spectrum, the grating displaces the spectrum linearly in wavelength rather than in wavenumber. Directly Fourier transforming the linear wavelength acquisition will result in a phase mismatch from improperly sampling the interference fringe. This spectrum will require resampling to linear wavenumber before the Fourier transformation to recover the depth-encoded elements. There are two methods to determine the wavelength to wavenumber conversion.
The first method of recovering the absolute wavelength values for resampling is to illuminate the spectrometer with a mercury-argon light source with known emission bands (Figure
1~~
mow1 arw 29672 4 WAS16-53155 34?M -43"3 '343 -?63.11 7fl3 6 Masi&-III 0' 2500 3000Figure 2.9. (A) Mercury-argon calibration light source. (B) Calibration spectrum seen on the pixels of the line scan camera in the spectrometer. Certain wavelength peaks indicated on the mercury-argon source manifest as double peaks due to the high spectral resolution of the spectrometer. Online resources can provide a more accurate listing of the additional emission peaks. 2500 2000. 1500-1000~ 500 . i00 750o 8000 8S0 9000 Wavelength (angstrom)
B
E 3500 3000 2500 2000 1500 1000 500 0 -500 96095W--.-;U - 7 7 5 8 8 5 9 Wavenumber (radian) X 105Figure 2.10. (A) The mercury-argon emission peaks plotted against line-scan camera pixel. The spectrometer shows high linearity in wavelength. (B) Conversion of wavelength to wavenumber
with a 51 order fitted curve. This curve provides the conversion from wavelength to linear
wavenumber.
The second method does not require a known light source. This method determines the
resampling parameters for a spectrometer by imaging a single reflector at two different depths.
I
B
0) C 0) 0) CU 1... 0) 500 1000 200 150 r 100 501 0 -50 E 0 00 0 0 0 0 Sled aw~e ' '""" 1500 2000 Camera PixelExplaining this technique will require examination of the phase obtained from a single reflector. In a Michaelson interferometer, the current at the detector will have a DC autocorrelation term and an oscillating cross-correlation term. The phase of the cross-correlation term of a single reflector at two separate displacements L, and 4 from the reference arm are
Zicross, (k) = 2kL1 + (D(k)
Zicross,2 (k) 2kL2 + I?(k)
where (D(k) includes additional phase effects such as dispersion mismatch. Since the dispersion effects from the displacement between L, and L2 are small, they are ignored and both depths experience the same phase effects. By subtracting the two phases, the additional phase effects cancel out and what remains is a linear phase with a slope dependent on the separation between the two depths
Zicross,2 - cross,1(k) = 2k(L2 -L) (2.3.2)
If the wavenumber is sampled with equal periods between samples, the phase difference of the two
reflectors will appear linear. However, as mentioned in Section 2.2, the standard spectrometer samples linearly in wavelength, resulting in a curved phase difference between the two reflectors.
By interpolating the points such that the curvature is linear, it is possible to resample the spectrum
to linear wavenumbers so that the data can be directly Fourier transformed.
A comparison between the two methods is shown in Figure 2.11. Since both methods yield
similar results, the two-depth displacement method is preferable since it only requires back-coupling of a single reflector in the sample arm and two measurements.
Ar C C A Calibration o 9 - Displacement Calibration 08. 07 ) 6) .4
Displacement Calibration i E03
0 Z 02
0 1
0355 036 0365 037 0375 038
Axial Depth (mm in air)
Figure 2.11. Retinal images with linear wavenumber resampling from (A) mercury argon calibration and (B) two-depth displacement calibration. (C) Point spread function for both methods.
Dispersion Compensation
Dispersion occurs because the propagation velocity depends on the wavelength or frequency of light passing through the material. This produces a wavelength dependent phase delay
determined by the type and length of material. As seen from the SD-OCT system schematic, the
sample and reference arms in the system have distinct optical elements that can create dispersion
mismatch between the two arms. Excessive dispersion mismatch in OCT can cause a broadening
of the point spread function, reducing axial resolution and image quality. In general, the sample
arm contains more dispersive elements due to the telescopic arrangement of lenses and from
imaging through the vitreous of the eye. While a portion of this dispersion can be compensated
physically with the use of added glass and a water cell in the reference arm shown in Section 2.2, numerical dispersion compensation is required to completely recover the point spread function.
To illustrate the effects of dispersion, a phase delay cD (k) dependent on the wavenumber
in vacuum k = 27rc/! where c is the speed of light in vacuum and
