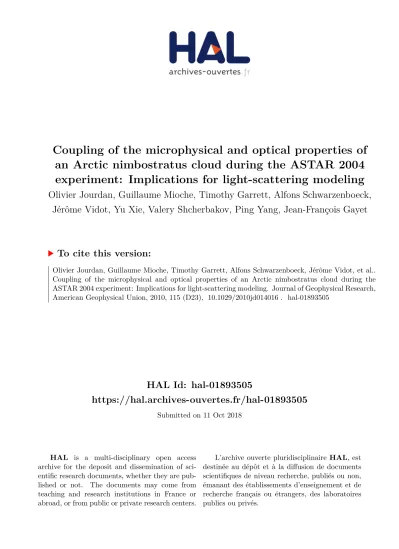

HAL Id: hal-01893505
https://hal.archives-ouvertes.fr/hal-01893505
Submitted on 11 Oct 2018
HAL is a multi-disciplinary open access
archive for the deposit and dissemination of
sci-entific research documents, whether they are
pub-lished or not. The documents may come from
teaching and research institutions in France or
abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est
destinée au dépôt et à la diffusion de documents
scientifiques de niveau recherche, publiés ou non,
émanant des établissements d’enseignement et de
recherche français ou étrangers, des laboratoires
publics ou privés.
an Arctic nimbostratus cloud during the ASTAR 2004
experiment: Implications for light-scattering modeling
Olivier Jourdan, Guillaume Mioche, Timothy Garrett, Alfons Schwarzenboeck,
Jérôme Vidot, Yu Xie, Valery Shcherbakov, Ping Yang, Jean-François Gayet
To cite this version:
Olivier Jourdan, Guillaume Mioche, Timothy Garrett, Alfons Schwarzenboeck, Jérôme Vidot, et al..
Coupling of the microphysical and optical properties of an Arctic nimbostratus cloud during the
ASTAR 2004 experiment: Implications for light-scattering modeling. Journal of Geophysical Research,
American Geophysical Union, 2010, 115 (D23), �10.1029/2010jd014016�. �hal-01893505�
Coupling of the microphysical and optical properties of an Arctic
nimbostratus cloud during the ASTAR 2004 experiment:
Implications for light
‐scattering modeling
Olivier Jourdan,
1Guillaume Mioche,
1Timothy J. Garrett,
2Alfons Schwarzenböck,
1Jérôme Vidot,
1Yu Xie,
3Valery Shcherbakov,
1,4Ping Yang,
3and Jean
‐François Gayet
1 Received 5 February 2010; revised 28 September 2010; accepted 5 October 2010; published 4 December 2010. [1]Airborne measurements in an Arctic mixed
‐phase nimbostratus cloud were conducted
in Spitsbergen on 21 May 2004 during the international Arctic Study of Tropospheric
Aerosol, Clouds and Radiation (ASTAR) campaign. The in situ instrument suite
aboard the Alfred Wegener Institute Polar 2 aircraft included a polar nephelometer (PN),
a cloud particle imager (CPI), a Nevzorov probe, and a standard PMS 2DC probe to
measure the cloud particle single
‐scattering properties (at a wavelength of 0.8 mm), and the
particle morphology and size, as well as the in
‐cloud partitioning of ice/water content.
The main objective of this work is to present a technique based on principal component
analysis and light
‐scattering modeling to link the microphysical properties of cloud
particles to their optical characteristics. The technique is applied to the data collected
during the 21 May case study where a wide variety of ice crystal shapes and liquid
water fractions were observed at temperatures ranging from
−1°C to −12°C. CPI
measurements highlight the presence of large supercooled water droplets with diameters
close to 500
mm. Although the majority of ice particles were found to have irregular
shapes, columns and needles were the prevailing regular habits between
−3°C and −6°C
while stellars and plates were observed at temperatures below
−8°C. The implementation
of the principal component analysis of the PN scattering phase function measurements
revealed representative optical patterns that were consistent with the particle habit
classification derived from the CPI. This indicates that the synergy between the CPI
and the PN can be exploited to link the microphysical and shape properties of cloud
particles to their single
‐scattering characteristics. Using light‐scattering modeling, we have
established equivalent microphysical models based on a limited set of free parameters
(roughness, mixture of idealized particle habits, and aspect ratio of ice crystals) that
reproduce the main optical features assessed for cloud regions with different particle
geometries and liquid water fractions. However, the retrieved bulk microphysical
parameters can substantially differ from the measurements (by several times for the
effective size and up to 3 orders of magnitude for the number concentration). Several
possible explanations for these discrepancies are discussed. The retrievals show that the
optical contribution of small particles with sizes lower than 50
mm (droplets and ice
crystals) is significant, always exceeding 50% of the total scattering signal, and thus needs
to be more accurately quantified. The shattering of large ice crystals on the shrouded
inlet of the PN could also strongly affect the retrieved microphysical parameters.
Citation: Jourdan, O., G. Mioche, T. J. Garrett, A. Schwarzenböck, J. Vidot, Y. Xie, V. Shcherbakov, P. Yang, and J.‐F. Gayet (2010), Coupling of the microphysical and optical properties of an Arctic nimbostratus cloud during the ASTAR 2004 experiment: Implications for light‐scattering modeling, J. Geophys. Res., 115, D23206, doi:10.1029/2010JD014016.
1Laboratoire de Météorologie Physique, Université Blaise Pascal, OPGC/CNRS UMR 6016, Clermont‐Ferrand, France.
2Department of Atmospheric Sciences, University of Utah, Salt Lake City, Utah, USA.
3Department of Atmospheric Sciences, Texas A&M University, College Station, Texas, USA.
4Laboratoire de Météorologie Physique, Institut Universitaire de Technologie de Montluçon, Montluçon, France.
Copyright 2010 by the American Geophysical Union. 0148‐0227/10/2010JD014016
1.
Introduction
[2] Climate models indicate that the surface air
tempera-ture increase in the arctic will be substantially more pro-nounced than the average warming of the planet [Arctic Climate Impact Assessment, 2004]. Arctic surface condi-tions strongly complicate cloud radiation feedback processes identified as key uncertainties for the prediction of Arctic and global climate [Intergovernmental Panel on Climate Change (IPCC), 2001, 2007; Vavrus, 2004]. The assess-ment of the radiative effect of Arctic cloud is hindered by inadequate knowledge of their thermodynamic phase and their geometrical (height, thickness, fractional coverage), microphysical (liquid water fraction, particle size and shape) and optical (cloud optical depth, phase function and single‐scattering albedo) properties [see, e.g., Verlinde et al., 2007; McFarquhar et al., 2007]. Remote sensing observations from space performed by active instruments such as CALIOP [Winker and Trepte, 2007] and CloudSat [Stephens et al., 2002] of the A‐Train constellation could help bridge these gaps and provide detailed characterization of Arctic cloud properties with adequate spatial and tem-poral coverage. However, since Arctic clouds have a wide variety of physical characteristics [McFarquhar et al., 2007; Garrett et al., 2001; Gayet et al., 2009a, 2009b], detailed optical and microphysical in situ measurements are needed to evaluate satellite products and to develop more appro-priate retrieval algorithms, in particular, for glaciated and mixed‐phase clouds [Labonnote et al., 2000]. Accurate modeling of mixed‐phase cloud single‐scattering parameters is the primary condition for interpretation of remote‐sensing measurements. In this respect, parameterizations of the scattering and geometric properties for various ice crystal shapes and sizes were developed for shortwave bands [see, e.g., Yang et al., 2000]. Despite substantial progress in this research area, measurements of the optical characteristics of ice crystals in natural conditions are still needed for validation of numerical techniques and for the determination of free parameters of light‐scattering models.
[3] The Arctic Study of Tropospheric Aerosol, Clouds
and Radiation (ASTAR) 2004 project [Engvall et al., 2008] focused on the detailed in situ characterization of the microphysical and optical properties of Arctic mixed‐phase clouds. A unique combination of instruments was installed onboard the Polar 2 aircraft operated by the Alfred Wegener Institute for Polar and Marine Research (AWI). The instru-ments include a polar nephelometer [Gayet et al., 1997], a cloud particle imager (CPI) [Lawson et al., 2001] and standard 2D‐C and Nevzorov probes [Korolev et al., 1998] to measure cloud particle properties in terms of scatter-ing, morphology and size, and in‐cloud partitioning of ice/ water content. Remote sensing measurements were obtained onboard the Polar 2 aircraft from the Airborne Mobile Aerosol Lidar (AMALi) [Stachlewska et al., 2004].
[4] This paper starts with an overview of the
microphys-ical and optmicrophys-ical properties of a mixed‐phase nimbostratus cloud observed on 21 May 2004. The cloud case study is characterized by a wide variety of ice crystal shapes and liquid water fractions. An assessment of the relationships between the ice crystal shape and their scattering properties is presented. The methodology consists of implementing a principal component analysis of the polar nephelometer
measurements in order to establish a set of representative optical properties correlated to different particle shapes observed in the CPI data. Finally, light‐scattering modeling is used to establish equivalent microphysical models based on a limited set of free parameters (roughness, mixture of simple particle habits, aspect ratio) corresponding to the main optical features of the cloud system.
2.
Instrumentation, Flight Procedure,
and Cloud Situation
2.1. Instrumentation
[5] The experimental campaign ASTAR (Arctic Study
on Tropospheric Aerosol and Radiation) was carried out between 15 May and 19 June 2004, by operating a specially equipped Dornier 228‐101 aircraft (Polar 2) owned by the Alfred Wegener Institute of Polar and Marine Research (AWI). The instruments used for the determination of the microphysical and optical properties of Arctic clouds included four independent techniques: the polar nephelometer (PN), the cloud particle imager (CPI), the PMS 2D‐C probe, and the Nevzorov probe. The combination of these techniques pro-vides a description of cloud particles within a size range varying from a few micrometers (typically 3mm for the PN) to about two millimeters (for the CPI probe). The method of data processing, the reliability of the instruments and the uncertainties of the derived microphysical and optical para-meters were described in detail by Gayet et al. [2006, 2009a]. [6] The polar nephelometer [Gayet et al., 1997] measures
the angular scattering pattern (nonnormalized scattering phase function) of an ensemble of cloud particles (i.e., water droplets, ice crystals or a mixture of these particles) ranging from a few micrometers to approximately 1 mm in diameter. The measurements are performed at a wavelength of 0.8mm with scattering angles ranging from ±15° to ±162° and with a resolution of 3.5°. In general, 32 scattering angles are available. Measurements at nearly forward and backward directions ( < 15° and > 162°) are not reliable due to the diffracted light pollution caused by the edges of holes drilled on the paraboloidal mirror. The instrument provides a con-tinuous sampling volume by integrating the measured sig-nals of each detector over a period selected by the operator (typically 100 ms). The average errors of the angular scat-tering coefficients (ASC) measurements lie between 3% to 5% for scattering angles ranging from 15° to 162° (with a maximum error of 20% at 162°) [Shcherbakov et al., 2006]. Direct measurement of the scattering phase function allows particle type (water droplets or ice crystals) to be distin-guished and calculation of the optical parameters to be performed, i.e., the extinction coefficient and asymmetry parameter. Comparisons between PMS‐FSSP‐100 and polar nephelometer (PN) measurements in stratocumulus clouds showed that the uncertainty of the extinction coefficient (sext)
is 25% [Gayet et al., 2002a]. In this paper, the asymmetry parameter (g) is assessed based on the ASC measurements documented between 15° and 155°. We follow the meth-odology proposed by Gerber et al. [2000] assuming that the fraction of energy f scattered into angles smaller than 15° is constant and equal to 0.56, regardless of the cloud com-position. The absolute error on the asymmetry parameter is expected to range approximately between ±0.04 [Gerber
et al., 2000; Garrett et al., 2001; Gayet et al., 2002a] and ±0.05 (for clouds dominated by large ice crystals).
[7] The CPI registers cloud‐particle images on a solid
state, one million pixel digital charge‐coupled device (CCD) camera by freezing the motion of the particle using a 40 ns pulsed, high‐power laser diode [Lawson et al., 2001]. Each pixel in the CCD camera array has an equivalent size in the sample area of 2.3mm. In the present study, the CPI’s region of interest (ROI) minimum size is set up to 10 pixels. Therefore particles with sizes ranging approximately from 25mm to 2 mm are imaged. The method of data and image processing as well as the calibration of the CPI are described in detail by Gayet et al. [2009a]. Accordingly, a 5 s running average is applied during the data processing in order to improve the statistical significance of low particle con-centrations. Additionally, Gayet et al. [2009b] showed that CPI and PMS 2D‐C measurements performed in different mixed‐phase clouds conditions were in good agreement. Therefore, the CPI errors on the size distributions and derived microphysical parameters are expected to be of the same order of those obtained with the PMS 2D‐C instru-ment: up to 75% on the particle concentration and 100% on the ice water content (IWC) [Gayet et al., 2002b].
[8] The PMS 2D‐C instrument was also installed on the
Polar 2 aircraft. Due to some intermittent failures which occurred on the data acquisition system, the available data are not discussed in this study but have been used (when reliable) in intercomparisons with the CPI measurements [see Gayet et al., 2009a, Appendix A]. The PMS 2D‐C probe provides information on particle size and shape for the size range 25–800 mm.
[9] The shallow cone Nevzorov liquid water content
(LWC) and total water content (TWC) instrument is a constant‐temperature hot‐wire probe designed for aircraft measurements of the liquid and ice water content of clouds [Korolev et al., 1998]; the uncertainties on these quantities have originally been evaluated to 15% and 20%, respectively [Korolev et al., 1998, 2003]. However, more recently, Korolev et al. [2008] showed that the shallow cone Nevzorov probe underestimates the IWC by a factor of 3 compared to a more reliable version of the probe with a cone with a sharper angle (deep cone Nevzorov instrument). Conse-quently, the IWC and TWC data derived from this instrument were not used in this paper. Additionally, the accuracy on LWC measurements could also be affected (underestimated) when large droplets (drizzle) are sampled [Schwarzenboeck et al., 2009].
[10] It also should be pointed out that the accuracies of
microphysical measurements could seriously be hampered by the shattering of large ice crystals on probes with shrouded inlets (PN and CPI for instance) [Korolev and Isaac, 2005; Heymsfield, 2007]. For particle diameters larger than about 100mm, the number of shattered particles increases with the concentration of large particles.
2.2. Meteorological Situation and Flight Procedure [11] The observations discussed in this paper were
obtained during the Polar 2 flight on 21 May 2004 (between 0930 and 1130 UTC) in the southeast of the Svalbard Archipelago across the Storfjorden. Figure 1 represents the MODIS satellite image at 1010 UTC and gives an overview of the cloud situation. The weather situation over the
obser-vation area was characterized by a warm front created by a low‐pressure system south of Svalbard, leading to the for-mation of a deep nimbostratus cloud system. The Polar 2 flight consisted of two main cloud vertical soundings from about 100 m/−1°C (the lowest possible altitude above the sea level) to 3000 m/−12°C (aircraft ceiling). These sound-ings included in‐cloud sequences at several constant levels (2500 m, 1950 m, 1450 m, 950 m, 500 m and 150 m for the descending profile and 1450 m, 1950 m, 2450 m and 2950 m for the ascending profile). Each sequence lasted about 10 min (or 50 km long) with a U‐turn maneuver at the end of the sequence. The descending profile was carried out from 0930 to 1040 UTC and the climbing profile from 1040 to 1130 UTC.
2.3. In Situ Measurements: Overview of the Cloud System Microphysical and Optical Properties
[12] The purpose of this section is to give a brief overview
of the microphysical and optical properties of the cloud system. Figures 2a–2d represent the average vertical profiles of cloud parameters obtained during the descending track of the aircraft while Figures 2e–2h correspond to the ascending track. The cloud parameters are: the number concentration and the mean diameter of particles larger than 100 mm measured by the CPI (Figures 2a and 2e); the liquid water content and the ice water content deduced from the Nevzorov probe and the CPI, respectively (Figures 2b and 2f); the asymmetry factor and the extinction coefficient derived from the polar nephelometer (Figures 2c and 2g); and, the air temperature and the particle shape classification for particles with sizes larger than 50 mm obtained from the CPI data (Figures 2d and 2h). The horizontal error bars represent the standard deviation of the cloud parameters highlighting significant horizontal inhomogeneities on a scale of 50 km. [13] The cloud layers were entirely below the freezing
level with temperatures ranging from −1°C to −12°C and with a temperature inversion located around 1000 m (see Figure 2d). The results show that the cloud consisted of mixed‐phase layers throughout the sampled cloud depth.
[14] The cloud portions sampled during the descent of the
aircraft from 1500 m to the cloud base are characterized by layers of large supercooled liquid water droplets with mean diameters Dm100 reaching 250mm (Figure 2a). The vertical distribution of particle concentration remains nearly con-stant with a mean value N100 equal to 2 L−1 (Figure 2a). The presence of liquid water droplets is clearly evidenced by the LWC peaks (with values up to 0.4 g−3) measured by the Nevzorov probe (Figure 2b). This is confirmed by the CPI particle shape classification which shows that large droplets account for more than 40% of the observed particles (with values up to 85% at 500 m) (Figure 2d). Additionally, the extinction coefficient derived from the PN data (Figure 2c) is correlated to the LWC measurements (with the square of the correlation coefficient, r2, equal to 0.85) indicating that the optical properties of the cloud layers below 1500 m are mainly driven by water droplets. This statement is confirmed by values of the asymmetry factor g larger than 0.835, typical of layers dominated by liquid water droplets [Gayet et al., 2002a; Garrett et al., 2001]. The vertical variation of g in these layers can be explained by changes in the effective size of the droplets (proportional to the ratio LWC/sext). In
crystals account for more than 70% of the observed shapes (Figure 2d). Small fractions of columns (15%) and plates (9%) are also evidenced at 1950 m and 2500 m, respectively. The liquid water fraction, LWC/(LWC+IWC), gradually decreases with height and is associated with a decrease of the asymmetry factor from 0.84 to 0.81 characteristic of mixed‐ phase conditions (Figure 2b and Figure 2c). A similar trend was observed previously by Garrett et al. [2001] who found evidence that values of g within Arctic stratus decrease lin-early with the fractional number of particles in the cloud that are ice rather than liquid.
[15] The cloud layers corresponding to the ascending
track of the airplane are characterized by the presence of a significant ice phase. Larger concentrations of ice crystals (up to 15 L−1) with Dm100 close to 280mm are encountered (Figure 2e) at 1450 m and 1950 m. In these layers, the IWC is significant (50 mg.m−3) and becomes higher than the LWC measured at 1950 m (30 mg.m−3), resulting in asymmetry factor values approximately equal to 0.775 (Figures 2f and 2g). This means that the scattering properties of the cloud layers are essentially dominated by ice crystals. Accordingly, CPI measurements reveal a high occurrence of irregular shaped ice crystals accounting for 55% to 65% of the observed shapes (Figure 2h). Previous measurements have also shown that regular ice crystals are rare in Arctic clouds (the majority of ice crystals are irregular) due to altering processes and coagulation [Korolev et al., 1999]. An interesting feature is the significant occurrence (30% to 40%) of needle or column shaped particles at 1450 m and 1950 m. In the upper cloud layers (at 2450 m and 2950 m) where the temperature is below−8°C, plates and stellars are the dominant habits among the regular shapes. The asym-metry parameter values are larger than 0.80 possibly due to the increase of the liquid water fraction (decrease of IWC
and increase of LWC) or to the changes in ice crystal habits (increase of the fraction of irregulars and plates associated with a decrease of the fraction of column shaped crystals).
[16] The main conclusions based on the analysis of the
measured profiles must be regarded with caution as no direct measurements of the microphysical properties of small water droplets (with sizes lower than 50 mm) were per-formed during this flight (the FSSP‐100 probe was not available during this flight). This hinders the accurate inter-pretation of the coupling between microphysical and optical properties of the mixed‐phase cloud system. Nevertheless, the large variability of ice crystal habits and liquid water fractions encountered in the cloud system gives the oppor-tunity to study the relationships between the ice crystal shapes and their scattering properties. In section 3, we will investigate the impact of ice crystal shapes and liquid/ice par-titioning on cloud optical properties in mixed‐phase conditions.
3.
Statistical Analysis of the Mixed
‐Phase Cloud
System Optical Properties
3.1. Principal Component Analysis Methodology [17] In this section, the principle component analysis (PCA)
technique is applied to the polar nephelometer (PN) mea-surements following the methodology described by Jourdan et al. [2003a]. The PN optical database consists of approxi-mately 2500 angular scattering coefficients relative to differ-ent particle microphysical properties. The main objective of the PCA is data reduction in order to allow a better physical interpretation of the mixed‐phase cloud light‐scattering properties. The PCA is designed to generate a new limited set of uncorrelated parameters, called principal components, representative of the original data set variability. We recall that the PN measures the angular scattering coefficients (ASC) ðÞ! (i.e., nonnormalized scattering phase function) of an ensemble of randomly oriented particles as a function of 32 light‐scattering directions ranging from 15° to 162°. According to the PCA technique, the jth measurement of angular scattering coefficients!jðÞ, expressed in log scale, can be expanded using the following expression:
ln jðÞ
!
’ ln ðÞD!EþX4
l¼1
Cjl!lðÞ; ð1Þ
where hln !i represents the average ASC of the data set (i.e., the 2500 PN measurements).!lðÞis the lth eigenvector (i.e., principal component) of the total data set correlation matrix. Cjl= (ln j
!− hln i!
)T.!l is the expansion coefficient corresponding to the lth eigenvector and the jth measure-ment vectorln !j.
[18] A first implementation of the PCA was used to detect
data corresponding to unreliable photodiodes characterized by a low signal‐to‐noise ratio (eight were detected in the data set) or defective records during the measurements. After excluding the unreliable data, the PCA was applied a second time to the remaining set of measured ASC now documented on 24 scattering angles ranging from 15° to 155°. The first four eigenvectors, !lðÞ of the correla-tion matrix along with their normalized eigenvalues, ll,
are displayed in Figure 3. The first eigenvector !1ðÞ is Figure 1. MODIS RGB true color composite satellite
image taken on 21 May 2004 at 1010 UTC. The Polar 2 flight trajectory during the ASTAR campaign is superim-posed on the map of the Svalbard Archipelago (thick solid line). The measurements discussed in this paper are located in the region defined by the red circle. The green symbol corresponds to the location of the Longyearbyen airport.
approximately constant and represents 93.7% of the total variance. A constant eigenvector with scattering angle means that only the magnitude of the ASC varies without any changes in its global shape. This means that nearly 94% of the angular scattering intensity variations are related to changes of total cloud particle scattering or extinction (since the particle absorption is very low at 0.8 mm). Indeed, measurements show that there is a high correlation (r2= 0.90) between the first principal component and the extinction coefficient.
[19] The second eigenvector,!2ðÞ, accounts for nearly 6%
of the ASC variability.!2ðÞreverses sign twice at scattering angles equal to 60° and 130° and maximizes at 100°. Accordingly, the second principal component governs the redistribution of scattered energy from the angle interval (60–130°) to scattering angles lower than 60° and higher
than 130°. Light‐scattering modeling studies [see, e.g., Saunders et al., 1998; Yang and Liou, 1996; Doutriaux‐ Boucher et al., 2000; Xie et al., 2009] show that the scat-tering properties of cloud particles in sideward angles, approximately between 60° and 140°, are sensitive to the particle shape structure and thermodynamic phase.
[20] The third and fourth components taken together
represent only 0.16% of the variance which is negligible compared to the first two components. However, these eigenvectors contain some information in important scat-tering regions that are not sufficiently well described by the first two principal components. For example,!4ðÞhas opposite signs for < 40° and > 100° and has maximum absolute values at = 15° and around the angle interval [130–140°]. Indeed, modeling studies [Xie et al., 2006, Figure 2. Average vertical profiles of microphysical and optical properties measured on April 21st
during ASTAR 2004. The error bars correspond to the standard deviation of the cloud parameter at a given altitude. (a–d) The descending profiles. (e–h) The ascending profiles. Instruments selected to derive the cloud properties are indicated in brackets. Profiles of the number particle concentration N100 (red line) and mean diameter Dm100 with diameter greater than 100mm (black line) measured by the CPI (Figures 2a and 2e). Profiles of liquid water content (LWC) obtained from the Nevzorov probe (red line) and ice water content (IWC) measured by the CPI (black line) (Figures 2b and 2f). Profiles of the asymmetry parameter (g) (red line) and the extinction coefficientsext(black line) derived from
the polar nephelometer (Figures 2c and 2g). Vertical profile of shape classification of particles larger than 50mm in percentage weighted by concentration from CPI images (Figures 2d and 2h). Ice crystal habits are color coded. The average air temperature profile is superimposed with a black line.
2009] show that the phase functions of ice crystals with different habits or surface roughness differ substantially around the 22° and 46° halo regions, at scattering angles around 140°, and at backscattering angles ( > 120°).
[21] The eigenvector analysis shows that nearly 99.9%
of the ASC variability is described by the first four prin-cipal components. Consequently, each PN measurement can be expressed with a good accuracy as a linear combi-nation of the four eigenvectors according to equation (1). Accordingly, the PN data are expanded and projected in the four‐dimensional space of the expansion coefficient, Cjl
(instead of the 24‐dimensional space of ASC). The scat-terplot of the −Cj2 expansion coefficient versus the Cj4
coefficient describes the optical features of the cloud sys-tem in one of the clearest representations as evidenced in Figure 4. Each point can be directly associated with a nonnormalized scattering phase function (i.e., ASC) docu-mented on 24 angles. Additionally, the (−C2, C4)
coor-dinates of the average ASC of the data set are, in such representation, (0, 0).
[22] Figure 4 shows that the variability of Cj2coefficients
is significant, with values approximately ranging from−1.25 to 1.25. According to the angular variation of !2ðÞ dis-played in Figure 3, large values of −Cj2(i.e.,−Cj2> 0.75)
are associated to ASC characterized by low side scatter-ing (60–130°) and higher scatterscatter-ing in the angular ranges (15–60°) and (130–155°). Additionally, positive values of −Cj2 are characterized by scattering regions where the
concentration of points is high. This means that specific cloud regions sharing similar scattering properties can be identified on the basis of the second principal component. Moreover, this component is linearly correlated (r2= 0.87) to the measured values of the asymmetry parameter as evidenced on the expansion coefficient diagram (see color coded values of g in Figure 4). The asymmetry parameter
increases with increasing values of −Cj2, reaching values
larger than 0.83 for−Cj2> 0.5.
[23] In the space of the fourth principal component, the
ASC are mostly distributed between −0.05 and 0.05. This means that most of the measured ASC do not significantly differ from the average ASC in the angular ranges (15–40°) and (100–155°). However, some specific scattering regions can be identified where values of Cj4are greater than 0.05 or
lower than−0.05.
[24] Merging the information derived from the first four
principal components, seven clusters representative of par-ticular scattering behavior of cloud particles (see numbered areas in Figure 4) are determined. These clusters are mainly identified according to the Cj2coefficients and the
concen-tration of points. Clusters 1 and 2 as well as cluster 6 and 7 are also discriminated on the basis of the fourth component. The first principal component enables us to select cloud segments on the base of their extinction coefficient values. Finally, the third component is used to refine the classifi-cation stemming from the fourth component.
[25] Table 1 summarizes the altitude, the static
tempera-ture, the asymmetry factor, and the extinction coefficient values associated with the different clusters identified in Figure 4. It can be clearly seen that most of the clusters are representative of specific cloud layers (altitude, temper-ature and optical properties). For instance, the ASC classified in clusters 1, 3, and 6 characterize the particle scattering behavior of the cloud system at approximately 500 m, 150 m, and 2950 m altitude, respectively. The cloud layers located between 950 m and 1450 m, characterized by large asym-metry factor values (0.85) and liquid water droplets, are gathered in cluster 2 (−Cj2> 0.5 and Cj4< −0.05). Cloud
particles regrouped in cluster 7 (−Cj2 < 1 and Cj4 > 0.05)
exhibit the lowest asymmetry parameter (0.765) and corres-pond to the ice crystal particles sampled during the ascen-ding track of the aircraft between 1450 m and 1950 m. Cluster 4 (0 <−Cj2< 0.5 and−0.05 < Cj4< 0.05) and Cluster 5
Figure 4. Expansion coefficient diagram: second coeffi-cient versus fourth coefficoeffi-cient. The points are color coded according to their corresponding asymmetry parameter value shown in the color bar. The seven typical scattering regimes are indicated and numbered accordingly.
Figure 3. Results of the principal component analysis applied on the data set of measurements obtained with the polar nephelometer during the ASTAR flight. First four eigenvectors of the angular scattering coefficient (ASC) correlation matrix versus measured scattering angles. Values of the first four normalized eigenvalues of the eigenvectors are also displayed.
(−0.5 < −Cj2< 0 and−0.05 < Cj4< 0.05) are associated with
the cloud particles sampled between 1450 m and 2450 m. For these two clusters the scattering properties vary more significantly and do not really match with specific cloud regions evidenced during the flight track. However, as a whole, the cloud classification based on ASC measurements is consistent with the cloud layers properties derived from the airplane vertical profiles (e.g., Figure 2).
3.2. CPI‐PN Synergy: An Attempt to Couple Ice Crystal Shapes to Optical Properties
[26] The averaged normalized phase functions related to
the first four clusters identified by the PCA as well as the one of the whole data set are displayed in Figure 5 (left). These phase functions are characterized by substantial scattering at forward angles ( < 60°) that is associated with much lower scattering at sideward angles (120° > > 60°) and enhanced scattering around 140° corresponding to the rainbow feature. This typical behavior reveals that the single‐ scattering properties of these clusters are mostly dominated by spherical particles (mainly water droplets). The histo-grams of cloud particle habits derived from CPI
measure-ments shown in Figure 5 (right) confirm this statement. Large liquid water droplets (with diameter up to 500mm) constitute more than 80% of the particles sampled in the cloud regions classified in clusters 1, 2 and 3.
[27] The main difference between the phase function
behavior occurs in the side scattering region (60–130°). This is in complete agreement with the position of the four clusters on the expansion coefficient diagram (Figure 4). A decrease in the value of the expansion coefficient−Cj2is
associated to a side scattering enhancement. As mentioned in section 3.1 and in the study of Jourdan et al. [2003a] this scattering behavior can be connected in particular to changes of particle shape or composition (thermodynamic phase and liquid water fraction). This is clearly illustrated by the histograms of cloud particle habits relative to cluster 1 (−Cj2> 0.8) and cluster 4 (0 < −Cj2< 0.5). For cluster 1,
98% of particles with size greater than 50mm are droplets whereas the area classification gives 4% droplets, 37% graupels, 20% irregulars and 13% columns for cluster 4. Even though the number concentration of cluster 4 is dominated by water droplets (70%), the phase function is mostly sensitive to the projected area of the particles (area
Table 1. Median Values of Altitude, Z, Temperature, T, Asymmetry Parameter, g, and Extinction Coefficient,sext, Corresponding to the
Seven Clusters Identified by the Principle Component Analysisa
Z (m) T (°C) g PN sextPN (km−1) Median 25th to 75th Percentiles Median 25th/75th Percentiles Median 25th to 75th Percentiles Median 25th to 75th Percentiles Cluster 1 494 492–495 −0.9 −1.0/−0.5 0.843 0.840–0.855 34.9 29.4–41.5 Cluster 2 970 969–1447 −1.7 −2.2/−1.3 0.849 0.848–0.852 4.5 2.1–8.9 Cluster 3 140 138–168 −1.2 −1.3/−1.2 0.838 0.835–0.839 15.0 11.7–16.5 Cluster 4 1943 1447–2500 −4.8 −7.9/−1.9 0.830 0.824–0.833 19.9 13.9–26.1 Cluster 5 2450 1943–2593 −8.0 −9.0/−4.9 0.808 0.801–0.815 12.4 3.7–20.8 Cluster 6 2771 2627–2950 −10.1 −11.3/−9.1 0.797 0.790–0.801 1.6 0.7–2.1 Cluster 7 1960 1465–1961 −4.8 −4.9/−3.7 0.765 0.755–0.776 8.9 4.6–13.6
aSee Figure 4. The 25th to 75th percentiles are also indicated.
Figure 5. Scattering and particle habit properties of clusters 1, 2, 3 and 4 (the clusters are defined in Figure 4). (left) Average phase functions of the first four clusters determined by the PCA analysis. Variations of optical properties within each cluster are represented by means of standard deviation (bars). (right) Histogram of cloud particle habits derived from CPI measurements for the first four clusters. The percentages weighted by concentration, area and mass are shown for each habit category. Typical images of cloud particles observed by the CPI are also displayed for these clusters.
concentration). So, the side scattering enhancement observed in cluster 4 is more likely to be attributed to the presence of large non spherical ice crystals (mainly graupels and irre-gulars). This trend was already observed by Gayet et al. [2002a] for clouds in mixed‐phase conditions. Addition-ally, the estimated liquid water fraction (LWF) derived from the CPI and the Nevzorov probe measurements is higher for cluster 1 (100%) than for cluster 4 (80%). However, the changes in the measured LWF cannot explain the fact that the phase functions of cluster 2 and 3 are more flat at side scattering angles than the one corresponding to cluster 1. LWF for clusters 2 and 3 is 99.7% and 98.7%, respectively. The differences of scattering properties are more likely to be due to the variability of particle shape and size although the contribution of undetected small water droplets cannot be excluded. Indeed, when sorted by area, the percentages are 86% droplets, 8% graupels and 5% irregulars for cluster 2 and 75% droplets, 15% plates and 5% graupels for cluster 3 compared to nearly 100% droplets for cluster 1.

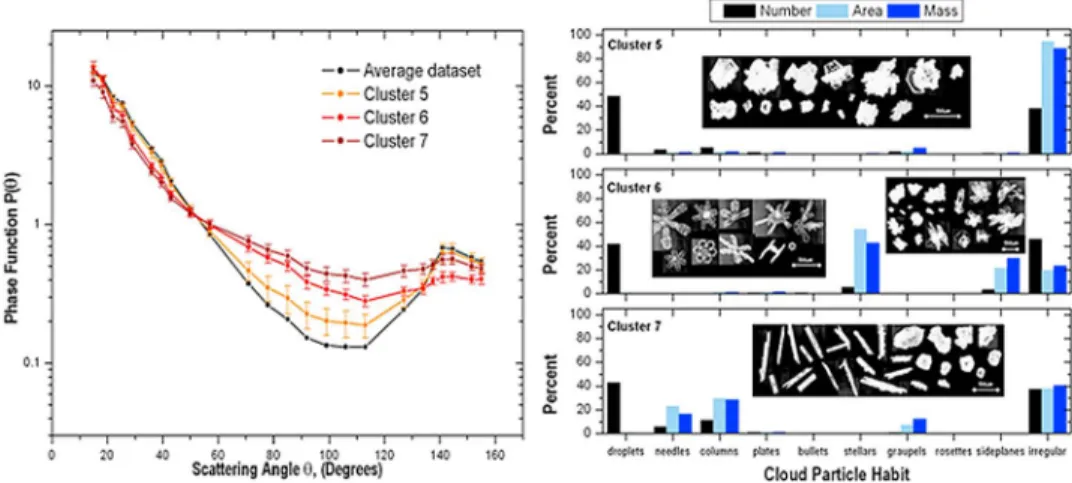

[28] The phase functions associated with clusters 5, 6 and
7 as well as the corresponding histograms of cloud particle habits are displayed in Figure 6. In comparison to the pre-vious scattering patterns (Figure 5), the phase functions exhibit a featureless behavior and are more flat at side scattering angles, which is in accordance with most of the observations in glaciated clouds [Francis et al., 1999; Shcherbakov et al., 2006; Gayet et al., 2006; Jourdan et al., 2003b; Baran and Francis, 2004]. The main differences between the phase function of cluster 5 and the average one occur in the side scattering region (60–130°) as expected by its location on the expansion coefficient diagram (−0.5 < −Cj2 < 0 and −0.05 < −Cj4 < 0.05) (see Figure 4). CPI
measurements show that irregularly shaped ice crystals account for more than 90% of the particle area observed in the cloud layers gathered in cluster 5. However, when sorted by number, the contribution to total concentrations is nearly 40% for irregularly shaped crystals and 50% for water droplets. This means that this cluster is characterized by a mixture of water droplets (with sizes significantly smaller than the ones observed in cluster 1, 2 and 3) and large rimed ice crystals. In this sense, the particle composition of cluster 5 and cluster 4 is similar but the fractional contribu-tion of ice crystals to optical extinccontribu-tion is more pronounced in cluster 5.
[29] The phase functions corresponding to cluster 6 and 7
deviate from the data set average phase function at nearly all scattering angles. This is particularly true in the side scat-tering region but also at backward angles where the phase function is more flat (the rainbow feature disappears). CPI measurements show that these two clusters are characterized by the presence of specific ice crystals habits (stellars, sideplanes, columns and needles) which were not identified in the other clusters. Particles with a predominant a‐axis growth (54% stellars and 22% complex with sideplanes for percentages by area) are gathered in cluster 6 whereas a predominant c‐axis growth (45% columns and needles) is observed for cluster 7. This variability of ice crystal shapes can be related to the significant discrepancies observed in the angular scattering region (100–155°). As mentioned earlier, Xie et al. [2006 and 2009] showed that the phase functions of different ice crystal habits differ substantially in this region and that surface roughness or the inhomogeneity
inside the ice crystal leads to a featureless and flat behavior for scattering angles greater than 100°. This ties in with the position of cluster 6 and 7 in the expansion coefficient diagram as the fourth principal component has maximum values for > 100°. In this region, light is scattered more efficiently by the cloud particles gathered in cluster 7 resulting in higher values of Cj4(Cj4> 0.05).
[30] The main conclusion of this section is that the
rep-resentative optical patterns revealed by the principal com-ponent analysis are consistent with the particle habit classification derived from the CPI measurements. Thus, the synergy between the CPI and PN can be exploited to link the microphysical and shape properties of cloud particles to their single‐scattering properties. Indeed, we find that the general behavior of the phase function is connected to specific ice crystal habits. A limitation of this study is that the optical contribution of small particles with sizes smaller than 50 mm is not considered due to ambiguity in habit identification for smaller CPI particle images. In essence, we are assuming that, either smaller particles contribute negli-gibly to total extinction (which is unlikely) or that habit distributions are approximately invariant with size (which is plausible). We discuss this issue further in section 4.
4.
Discussion of the Assessment of Equivalent
Microphysical Models
[31] This section is devoted to the assessment of
equiva-lent microphysical models capable of describing the optical properties of ice crystals in the mixed‐phase cloud. To this end a key issue is to evaluate the contribution of small particles to the measured scattering properties obtained from the PCA and the PN data. To study this issue, the iterative inversion method, developed by Oshchepkov et al. [2000], using light‐scattering modeling is applied to the average ASC within a given cluster. The method is based on a bicomponent representation of cloud composition and con-stitutes a nonlinear weighted least square fitting of the ASC using positive and smoothness constraints on the desired particle size distribution [see Oshchepkov et al., 2000; Jourdan et al., 2003b]. It is designed for the retrieval of two volume particle size distributions simultaneously. For each component, the thermodynamic phase is fixed but the shape of the cloud particles does not necessarily remain invariant for all sizes within a particle size distribution. The shape of the particle is prescribed among the following habits: spheres, droxtals, columns with four aspect ratios (1, 2, 5, 10), plates with three aspect ratios (0.1, 0.5, 0.2), hollow columns, six branch bullet rosettes and aggregates of columns. The surface texture or roughness of the ice crystals is also considered by assuming small tilted facets on the ice crystal surface [Yang and Liou, 1998]. The slopes of the tilted facets are randomly sampled based on the fol-lowing Gaussian distribution [Cox and Munk, 1954; Yang et al., 2008a], f ðsÞ ¼ 1 p exp ffiffiffi s2 2 ; ð2Þ
where s represents the slope of the tilted facets and s is relative to the variance of the distribution. Thus, the surface of the ice crystal can vary from smooth to deeply rough
whens increases from 0 to 1. In the simulations, the surface texture of the ice crystals is accounted for by considering three roughness parameters: smooth (s = 0), moderately rough (s = 0.025) and deeply rough (0.25). These values are consistent with the ones used in a previous study on the impact of ice particle roughness on the scattering phase matrix by Baum et al. [2010]. Detailed information on the ice crystal surface roughness and the computation of the scattering properties for surface roughened ice crystals have been thoroughly introduced by Yang et al. [2008a, 2008b] and Shcherbakov et al. [2006].
[32] The retrieval algorithm is based on a lookup table
approach where the ASC of individual cloud particles need to be specified. Accordingly, the optical properties of spherical particles with diameters ranging from 2 mm to 500 mm are simulated using the Lorentz‐Mie theory. The scattering patterns of nonspherical randomly oriented in 3D space ice crystals are computed by the improved geometric‐ optics model developed by Yang and Liou [1996]. The calculations are performed for particles with maximum dimensions ranging from 2mm to 200 mm for droxtals and from 20mm to 900 mm for the other ice crystal habits.
[33] The retrieved ASC from the inversion scheme along
with the direct PN measurements corresponding to the first four clusters are displayed in Figure 7. The retrievals are in good agreement with the measurements even though dis-crepancies are encountered near the rainbow scattering region for > 140°. Such measured enhanced scattering has already been observed when light reflected on the edges of the forward positioned photodiodes < 15° contaminates the light scattered toward the backward positioned photo-diodes > 140°.
[34] The minimum root‐mean‐square deviation (RMSD)
between the measured (represented by dots in Figure 7) and the retrieved ASC (gray line) were achieved for a micro-physical model corresponding to a combination of water droplets and deeply rough droxtal shaped ice crystals (with roughness parameter equal to 0.25). It should be noted that the habit classification of CPI images is unambiguous only when ice particles have sizes larger than about 50 mm. Therefore, they can only be used as a priori information on the general growth mode of the particles or to characterize the deviation from pristine particles (riming or evaporation
on the edges of the crystal). In this respect, deeply rough droxtal particles must be considered as surrogate for small irregular ice crystals.
[35] Considering the discrepancies observed at scattering
angles larger than 140°, the RMSD gave acceptable values of 22%, 18%, 16%, and 12% for clusters 1, 2, 3, and 4, respectively. The contribution of each microphysical com-ponent (dashed lines in Figure 7) emphasizes that water droplets dominate the scattering phase function for each of the 4 clusters. Indeed, droplets contribute for more than 99% of the total extinction (or scattering) coefficient for clusters 1, 2 and 3. For these clusters, the ice particle scattering contribution is negligible and the sensitivity of the inversion results regarding the shape or the roughness of the crystals is very low. However, for cluster 4, the ice contribution becomes significant representing 7.5% of the total scatter-ing. Here droxtal shaped particles are responsible for the enhanced side scattering observed in the measurements. Figure 7 also shows the asymmetry factors corresponding to the retrieved ASC. Compared to the measured asymmetry parameters listed in Table 1, the retrieved values of g are consistent but larger. In the retrievals, g is inferred from the scattering phase function documented between 0° and 180° whereas the measured g is approximated based on an incomplete phase function (between 15° and 155°). The retrieved values clearly indicate that cluster 1 (g = 0.864) is characterized by larger water droplets than clusters 2 and 3 (g = 0.854 and g = 0.847). Whereas, the lower asymmetry factor observed for cluster 4 (g = 0.835) is more likely to be explained by an enhanced side scattering associated with a non negligible population of ice crystals.
[36] The bulk microphysical parameters retrieved by the
inversion scheme are presented in Table 2 along with the direct measurements performed by the CPI and the Nevzorov probe. Taking into account the instrumental errors associated with the Nevzorov probe (at least 15% for LWC), the retrieved liquid water contents are in reasonable agreement with the measurements. However, the retrieved LWC of cluster 2 is underestimated, probably because the contribu-tion of large droplets is also underestimated in the inversion. Indeed, this cluster is characterized by a low extinction coefficient (4.5 km−1; see Table 1) and a relatively high LWC (0.105 g.m−3) which indicate that a small concentration of Figure 6. Same as Figure 5 but for clusters 5, 6, and 7.
large droplets may be responsible for most of the scattering. But, the problematic accuracy of the LWC inferred from the Nevzorov probe for optically thin liquid water clouds cannot be excluded from consideration. For each cluster, retrievals compare well with measurements, indicating that the IWC is negligible compared to the LWC. The liquid water fraction reaches more than 99.9% for cluster 1 decreasing to approx-imately 80% for cluster 4. Measurements confirm that these four cloud patches are dominated by liquid water droplets.
[37] Table 2 also displays the retrieved concentration and
effective diameter of cloud particles corresponding to the water droplet component and the ice crystal component. For these parameters, direct measurements and retrievals are not quantitatively comparable as the CPI measurements are only valid for particles typically larger than 50mm. The retrieved concentration for the water droplet component ranges between 37 cm−3 for cluster 2 to 163 cm−3 for cluster 4 which is 3 orders of magnitude more than the CPI mea-surements. However, the concentrations of both water dro-plets and ice crystals assessed from the PN measurements are in the range of previous observations performed in mixed‐ phase Arctic clouds [McFarquhar et al., 2007; Ehrlich et al., 2008]. The study of McFarquhar et al. [2007] focused on single‐layer mixed‐phase stratocumulus and showed that the cloud droplet and the ice crystal concentrations were on average 44 ± 30 cm−3 and 0.3 ± 1.8 cm−3, respectively. Additionally, Table 2 reveals that the retrieved and measured concentrations of particles with sizes greater than 50 mm (N50) are in reasonable agreement. Values range from 2 L−1 for cluster 3 to 95 L−1for cluster 4. Finally, water droplets with diameter lower than 50 mm contribute to more than
98.5% of the total scattering signal of the water droplet component. The small ice crystal contribution always ex-ceeds 63%. These results confirm that the cloud layers corresponding to the first four clusters are optically domi-nated by particles (mainly water droplets) with sizes lower than 50mm.

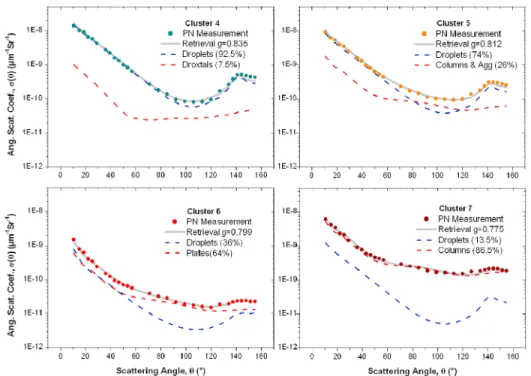

[38] The retrieved and measured ASC corresponding to
cluster 5, 6 and 7 are represented in Figure 8 (cluster 4 is also displayed for comparison). The results show that the retrievals and the measurements are in good accordance with RMSD approximately equal to 9.5%, 7%, and 10% for clusters 5, 6, and 7, respectively. The best fit of the mea-surements for cluster 5 was achieved with a microphysical model representing a combination of water droplets, deeply rough columns (with aspect ratio equal to 1 and with roughness parameter equal to 0.25) and aggregates of col-umns. For cluster 6, it was found that an ensemble model of deeply rough plates with aspect ratios of 0.5 and 0.1 was the best to reproduce the scattering properties of the ice crystals. Finally, a mixture of deeply rough hexagonal col-umns (with roughness parameter equal to 0.25) with varying aspect ratios was used to model the ice crystal component of cluster 7.
[39] The contribution of each microphysical component
reveals that an ensemble of rough ice crystals reproduces the general featureless and flat (mainly at side scattering angles) behavior of the measurements. Indeed, in the simulation the roughness of the ice surface is assumed to be composed of a number of small facets which are locally planar and ran-domly tilted from position corresponding to the case of a perfectly plane surface. The rough surface can substantially Figure 7. Measured and retrieved angular scattering coefficients at the polar nephelometer nominal
wavelength (800 nm) for clusters 1, 2, 3, and 4. The contributions of both components (water droplets and ice crystals) to the total scattering properties are also displayed. The ice crystal component used in the retrievals is constituted of deeply rough droxtals with roughness parameter equal to 0.25 and maximum dimension ranging from 2mm to 200 mm.
affect the scattering properties by reducing the backscatter-ing signal and smooth out the scatterbackscatter-ing peaks linked to the hexagonal geometry of the“idealized” modeled ice crystals. However, a water droplet component is still needed to model the slight scattering enhancement observed for > 120° as well as to more accurately fit the scattering behavior for < 60°. Moreover, in his review paper, Baran [2009] highlighted that an ensemble model of ice particles or inhomogeneous crystals is more suitable to represent the scattered intensity of glaciated clouds than a single pristine ice crystal model. Our retrievals show that this seems to be the case for mixed‐phase clouds when the liquid water fraction is lower than approximately 55%.
[40] Ice crystals contribute for 26% of the total scattering
coefficient for cluster 5 and reach 86.5% for cluster 7. Even though the retrieved asymmetry parameters are slightly higher than the ones directly derived from the PN mea-surements, the trends are still respected. The larger the ice crystals contribution to the scattering properties of the cloud patches, the lower is g. This stems from the behavior of the ASC in the side scattering region which is partly connected to the liquid water fraction. Indeed, the mean ASC of cluster 5 is less flat at side scattering compared to the ASC of cluster 6 and 7 resulting in higher asymmetry parameters (0.812, 0.799, and 0.775, respectively). As reported in Table 3, this feature could be explained by a retrieved liquid water fraction (55%) 10 times higher than the ones associated with cluster 6 and 7 (5.5%). On the other hand, the difference of the g values between cluster 6 and 7 is more likely to be explained by the differences in the retrieved ice crystal habits.
[41] The results of the inversion displayed in Table 3
show that the retrieved and measured liquid water content are in close agreement. This is generally true for the IWC even though the retrievals are overestimated by a factor of 2 for cluster 7. The only microphysical model which did not lead to a significant overestimation of the IWC was a mixture of water droplets and rough aggregates of columns. However, the use of such model to fit the measured ASC resulted in an unrealistically high concentration (29 cm−3) of small ice crystals with maximum dimensions smaller than 25mm (i.e., with an effective diameter Deff = 8 mm).
Accordingly, we selected an ensemble model composed of deeply rough hexagonal columns in order to reproduce the scattering properties observed in cloud segments gathered in cluster 7. With this model, the retrieved concentrations (8.6 cm−3) and effective sizes (44mm) of the ice crystals are more in accordance with previous observations [see McFarquhar et al., 2007].
[42] As a whole, the retrieved concentrations are at least
3 orders of magnitude higher than the measurements for each cluster. The water droplet component dominates the ice crystal component in number concentration but this is not the case when comparing the volume concentration. Indeed, the IWC contributes to nearly 45% of the total water content for cluster 5 and 95% for clusters 6 and 7. As evidenced by the retrievals of the concentration of particle with size larger than 50 mm (N50) and of the effective sizes (Deff), higher
concentrations of large ice crystals are evidenced in these cloud layers compared to those corresponding to clusters 1, 2 and 3. Additionally, the retrieved values of N50 are in
Table 2. Measured and Retrieved Bulk Microphysical Properties for Clusters 1, 2, 3, and 4a
Droplets and Crystals Water Droplets Ice Crystals Measurements D > 50mm
Cluster 1, RMSD = 21.7% N (L−1) 61,863 61,823 40 150 N50 (L−1) 61.3 61 0.3 39 TWC (mg m−3) 414.6 414.5 0.1 421(LWC)+0.1(IWC) TWC50 9.3 9.2 0.1 Deff(mm) 28 28 55 54 Deff50 67 67 118 Cluster 2, RMSD = 18.3% N (L−1) 37,626 37,583 43 28 N50 19.5 19 0.5 3 TWC (mg m−3) 61.4 61.2 0.2 105(LWC)+0.3(IWC) TWC50 3.3 3.2 0.1 Deff(mm) 22 21 60 48 Deff50 71 69 117 86 Cluster 3, RMSD = 16.2% N (L−1) 94,811 94,734 77 10 N50 2 0.3 1.7 4 TWC (mg m−3) 83.9 83.4 0.5 77(LWC)+1(IWC) TWC50 0.4 0.04 0.36 Deff(mm) 15 15 62 20 Deff50 109 66 117 135 Cluster 4, RMSD = 11.8% N (L−1) 166,660 163,420 3232 151 N50 96 1 95 45 TWC (mg m−3) 119.5 91.9 27.6 91(LWC)+22.5(IWC) TWC50 14 0.1 13.9 Deff(mm) 17 14 52 61 Deff50 94 67 94
aThe measured microphysical properties correspond to the direct measurement performed by the CPI (for N, IWC, and D
eff) and the Nevzorov probe (for LWC). The retrieved properties are assessed using the PN measurements.
much better agreement with measurements than are total concentrations. The acceptable match between the retrieved and CPI derived ice crystal effective diameters is most likely explained by the accurate retrieval of IWC. Values are similar to those found previously by McFarquhar et al. [2007] (i.e., 50 ± 4 mm). However, our retrieval shows that ice crystals with sizes smaller than 50mm account for more than 96% of the total ice number concentration of each cluster. Finally, we get better insight into the optical importance of small ice crystals by estimating their influ-ence on the total scattered signal. Crystals with sizes lower than 50mm contribute to 94%, 51%, and 84% of the scat-tering coefficient of the cloud layers corresponding to clusters 5, 6, and 7, respectively. This ties in with the studies of Yang et al. [2003] and Zhang et al. [2004] where it was found that the single‐scattering properties of glaciated clouds are highly sensitive to the presence of small ice crystals (with size parameter lower than 20mm).
[43] To summarize the above, the inversion results confirm
that the use of idealized geometric shape models represent-ing ensembles of rough ice crystals combined with a popu-lation of water droplets is suitable to describe the scattering properties of the mixed‐phase cloud. Such a mixture of shapes is able to represent the bulk LWC and IWC derived from in situ CPI measurements. However, the retrieved concentration deviate from measurements and there are at least two possibilities to explain these discrepancies.
[44] First, the inverse problem might be ill posed meaning
that for one specific combination of ice crystal geometry dif-ferent size distributions can be retrieved. In this respect, the inversion algorithm was designed to minimize the root‐mean‐ square deviation between the measured and the retrieved ASC. In the set up of the inversion procedure, priority was given to retrieve LWC and IWC in order to fit as best as possible to the measurements. Additionally, a priori informa-tion on the ice crystal habit and liquid water fracinforma-tion were established from the CPI and Nevzorov probe observations. For each cluster, several combinations of shapes were tested and the ensemble model corresponding to the minimum RMSD and to the best retrieval of IWC and LWC according to the measurements was selected. However, for a given RMSD and a given cluster, the maximum variability of the retrieved concentration, effective size and TWC caused by changes in the microphysical model are 75%, 50%, and 35%, respec-tively, for the water optically dominated clusters. For the clusters where the ice crystals are responsible for most of the scattering properties (clusters 6 and 7), the discrepancies are 140%, 80%, and 75% for the concentration, effective size, and TWC, respectively. Additionally, the impact of the roughness parameter on these retrieved quantities can be significant. Table 4 along with Figure 9 shows an example of the influence of ice crystal roughness on the retrievals. There, the micro-physical model is the same as the one obtained for cluster 7 except for the values of the ice particle roughness parameter. Figure 8. Same as Figure 7 but for clusters 4, 5, 6, and 7. The ice crystal component used in the
retrievals is: for cluster 5 a combination of deeply rough columns with roughness parameter equal to 0.25, aspect ratio 1, maximum dimension ranging from 20mm to 330 mm and deeply rough aggregates with maximum dimension ranging from 330mm to 900 mm; for cluster 6 a combination of deeply rough plates with roughness parameter equal to 0.25, aspect ratio 0.5, maximum dimension ranging from 20 mm to 330 mm and deeply rough plates, aspect ratio 0.1, with maximum dimension ranging from 330 mm to 900 mm; for cluster 7 a combination of deeply rough columns with roughness parameter equal to 0.25, aspect ratio 1, maximum dimension ranging from 20mm to 330 mm and deeply rough columns, aspect ratio 5, with maximum dimension ranging from 330mm to 900 mm.
It can be clearly seen that the discrepancies between the retrieved microphysical properties are significant. For exam-ple, if moderately roughened ice columns (s = 0.025) are considered instead of deeply rough (s = 0.25) ice particles, the effective size and the TWC can be underestimated by a factor 2. In this particular case, the TWC retrieved with the moder-ately rough ice crystals model would be in better agreement with the direct measurements. However, Figure 9 shows that the best fit of the measured ASC is achieved with the deeply rough ice particle model with a RMSD equal to 9.7% (com-pared to 17.3% and 25% for moderately rough and smooth crystals, respectively). Indeed, deeply rough particles tend to smooth out maxima of the phase function linked to the hex-agonal geometry of the ice columns. This leads to an ASC with a featureless and flat behavior which is more in accordance with the measurements.
[45] Second, we have found that it is not possible to
reproduce the measured scattering properties of the cloud patches using light‐scattering modeling based exclusively on CPI observations. This strengthens the theory that CPI information should be considered with caution and should mainly be used to characterize the ice particle growth mode and to derive the bulk microphysical properties of large ice crystals only (with dimensions larger than 50 mm). However, it is also possible that the discrepancies between
retrievals and measurements are caused by the shattering of large ice crystals with diameters larger than 100mm on the shrouded inlets of the CPI and PN probes [Korolev and Isaac, 2005]. Heymsfield [2007] and McFarquhar et al. [2007] found that particle shattering results in a subse-quent enhancement of the total concentration of ice crystals especially for sizes lower than 50mm. Shcherbakov et al. [2010] showed, with a probabilistic model, that for a size distribution of ice crystals with an effective diameter equal to 70 mm (and with 10 mm fragments of ice crystals) the extinction coefficient derived from the PN could be over-estimated by 25%. The values of the asymmetry parameter estimated using the PN measurements are also likely to be reduced by non pristine small ice particles produced by the shattering of larger ice crystals on the probe tip. Indeed, light‐scattering modeling shows that a decrease of the size of the ice crystals coupled with an increase of their surface roughness leads to a decrease of the asymmetry parameter [Baum et al., 2010]. However, with the instrument payload onboard the aircraft, it was not possible to evaluate accu-rately possible effects of shattering artifacts on measured ice crystal concentrations. New particle imaging probes with high pixel resolution (2D‐S or CIP for example) may be used to quantify the contribution of shattering to particle size distribution and optical properties [Lawson et al., 2006].
Table 4. Example of the Impact of Ice Particle Roughness on the Retrieval of Bulk Microphysical Propertiesa
Model With Smooth Ice Crystals
Model With Moderately Rough Ice Crystal
Model With Deeply
Rough Ice Crystals Measurements
N (L−1) 200,460 126,090 29,142 67
TWC (mg m−3) 42 71 149 10(LWC)+ 70(IWC)
Deff(mm) 14 20 41 61
aThe results are relative to cluster 7; that is, the microphysical model used in the inversion is a combination of water droplets and ice columns with varying aspect ratio. Three different surface roughness of the ice crystals are considered in the inversion process: smooth (s = 0), moderately rough (s = 0.025), and deeply rough (s = 0.25).
Table 3. Measured and Retrieved Bulk Microphysical Properties for Clusters 5, 6, and 7a
Droplets and Crystals Water Droplets Ice Crystals Measurements D > 50mm
Cluster 5, RMSD = 9.5% N (L−1) 165,960 162,820 3130 50 N50 22 3 19 18 TWC (mg m−3) 70.1 38.7 31.3 37.2(LWC)+25(IWC) 18 4.5 0.7 3.8 Deff(mm) 16 11 27 25 Deff50 72 70 72 70 Cluster 6, RMSD = 6.7% N (L−1) 30,286 29,556 730 31 N50 30 0.5 29.5 8 TWC (mg m−3) 17.2 1.1 17.1 1(LWC)+11(IWC) TWC50 14 0.5 13.5 Deff(mm) 37 7 50 52 Deff50 83 68 83 103 Cluster 7, RMSD = 9.7% N (L−1) 29,142 20,553 8589 67 N50 86 3 83 23 TWC (mg m−3) 149 8 141 10(LWC)+ 70(IWC) TWC50 88 1 87 Deff(mm) 41 15 44 61 Deff50 160 75 160 175 a
The measured microphysical properties correspond to the direct measurement performed by the CPI (for N, IWC, and Deff) and the Nevzorov probe (for LWC). The retrieved properties are assessed using the PN measurements.
Additionally, the accurate assessment of the number con-centration of the water droplets or small ice crystals is compromised in the absence of a FSSP probe.
5.
Conclusions
[46] In this paper, the results of a case study (21 May
2004) during the ASTAR airborne campaign in the south-east of the Svalbard Archipelago were presented. A detailed in situ characterization of the microphysical and optical properties of an Arctic mixed‐phase nimbostratus cloud has been performed. The CPI observations showed that each cloud layer had distinctive but relatively homogeneous ice crystal morphology. Although the majority of the ice par-ticles were classified as irregularly shaped parpar-ticles, a high occurrence of columns and needles was found in layers characterized by temperatures ranging from −3°C to −6°C. Stellars and plates were observed at temperatures lower than −8°C. An interesting feature was the presence of large supercooled water droplets with diameters close to 500 mm when the temperature of the cloud layers was higher than −2°C. Therefore, the wide variety of ice crystal shapes and liquid water fractions experienced in the cloud system was an ideal case to study the influence of ice crystal habit on optical properties in mixed‐phase conditions.
[47] In this respect, a principal component analysis (PCA)
of the phase functions measured by the polar nephelometer (PN) was conducted. The results showed that the informa-tion content of the PN scattering measurements at a wave-length of 0.8mm was sufficient to detect changes in cloud particle shape and liquid water fraction. Indeed, the optical patterns revealed by the PCA were consistent with the particle shape classification derived from the CPI measure-ments. One conclusion is that the synergy between the CPI
and PN instruments can be exploited to link the microphysical and shape properties of cloud particles to their single‐ scattering properties. However, this is only true for particles with sizes larger than 50 mm as the optical contribution of small particles could not be directly determined. To study the issue of the influence of small particles (with sizes lower than 50mm) on the optical properties, an iterative inversion algo-rithm using light‐scattering modeling was applied to the PN phase functions measurements. The inversion results showed that small ice crystals contribute to at least 50% of the scat-tering coefficient of the cloud layers dominated by the ice phase. Additionally, the retrievals confirmed that idealized geometric shape models representing ensembles of deeply rough ice crystals combined with a population of water dro-plets were able to describe the scattering properties of the mixed‐phase cloud. The optical properties of the cloud layers dominated by the liquid water phase (i.e., with an asymmetry factor greater than 0.83) can be modeled by a mixture of water droplets (representing at least 90% of the total scattering coefficient) and small droxtal shaped ice crystals. Cloud layers characterized by an asymmetry parameter around 0.81 were essentially composed of irregular shaped ice crystals and water droplets. Their scattering properties can be reproduced by a combination of water droplets (75%) and a mixture of rough columns and aggregates (25%). When the ice phase prevailed (g < 0.80), the optical properties of the cloud layers were modeled either by a mixture of droplets (35%) and rough plates (65%) or a combination of droplets (15%) and rough columns (85%) with a varying aspect ratio. However, the maximum variability of the retrieved concentration, effective size, and TWC caused by changes in the microphysical model can reach 140%, 80%, and 75%, respectively, for ice domi-nated cloud layers. It was also shown that the retrieved bulk microphysical parameters can substantially differ from the measurements (by several times for the effective size and up to 3 orders of magnitude for the number concentration). With the instrument payload onboard the aircraft, it was not possible to evaluate accurately possible effects of shattering artifacts on the measurements. This strengthens the fact that new particle imaging probes with high pixel resolution (2D‐S or CIP for example) should be used to quantify the contribution of shattering to optical properties. Finally, it should be noted that these results hold only for this specific case study and this methodology should be applied to larger data sets of Arctic mixed‐phase cloud properties.
[48] Acknowledgments. This work was funded by the Institut Polaire Français Paul Emile Victor (IPEV) and by a grant from the CNRS/INSU. We thank the members of OPTIMARE GmbH and DLR (Deutsches Zentrum für Luft‐ und Raumfahrt) who organized the experiment management and aircraft operations during the ASTAR 2004 campaign. We acknowledge C. Gourbeyre and J.‐F. Fournol (LaMP) for their technical assistance. The authors thank the two anonymous reviewers for their help in improving the manuscript. This research was supported by the Centre National d’Etudes Spatiales (CNES) and the Institut National des Sciences de l’Univers (INSU/PNTS).
References
Arctic Climate Impact Assessment (2004), Impacts of a Warming Arctic, 139 pp., Cambridge Univ. Press, New York.
Baran, A. J. (2009), A review of the light scattering properties of cirrus, J. Quant. Spectrosc. Radiat. Transfer, 110, 1239–1260, doi:10.1016/j. jqsrt.2009.02.026.
Figure 9. Example of the impact of the ice particle rough-ness on the retrieval of angular scattering coefficients. The results are relative to cluster 7; that is, the microphysical model used in the inversion is a combination of water droplets and ice columns with varying aspect ratio. Three different surface roughness of the ice crystals are considered in the inversion process: smooth (s = 0), moderately rough (s = 0.025), and deeply rough (s = 0.25). The root‐mean‐square deviation (RMSD) from the measurements is also displayed.
