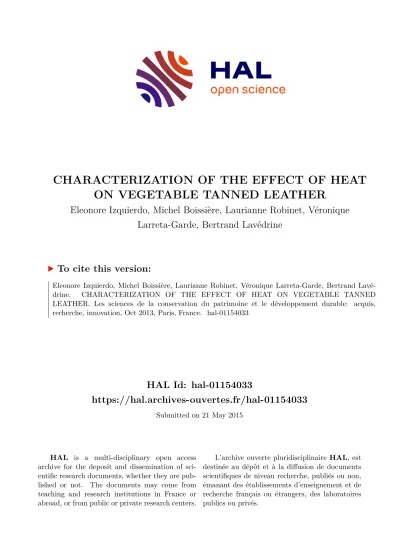

HAL Id: hal-01154033
https://hal.archives-ouvertes.fr/hal-01154033
Submitted on 21 May 2015
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
CHARACTERIZATION OF THE EFFECT OF HEAT ON VEGETABLE TANNED LEATHER
Eleonore Izquierdo, Michel Boissière, Laurianne Robinet, Véronique Larreta-Garde, Bertrand Lavédrine
To cite this version:
Eleonore Izquierdo, Michel Boissière, Laurianne Robinet, Véronique Larreta-Garde, Bertrand Lavé- drine. CHARACTERIZATION OF THE EFFECT OF HEAT ON VEGETABLE TANNED LEATHER. Les sciences de la conservation du patrimoine et le développement durable: acquis, recherche, innovation, Oct 2013, Paris, France. �hal-01154033�
Introduction
Funded by the LabEx PATRIMA, this project combines the expertise of the CRCC laboratory, in physical chemistry and the ERRMECe laboratory in biology and biochemistry. The research aims to develop a new restoration approach for leather having lost its flexibility as a result of alteration, in particular after exposure to heat. This innovative method relies on the use of biological molecules to respect the nature of the object and preserve its past and future.
Our hypothesis is that exposure to heat causes a protein aggregation. To validate this hypothesis and develop the restoration method, the modifications taking place in the leather structure are examined at different scales.
CHARACTERIZATION OF THE EFFECT OF HEAT ON
VEGETABLE TANNED LEATHER
Eléonore IZQUIERDO, Michel BOISSIERE b , Laurianne ROBINET a , Véronique LARRETA-GARDE b , Bertrand
LAVEDRINE a
a CRCC, MNHN-USR3224, Paris
b ERRMECe EA1391, UCP, Cergy-Pontoise
contact angle measurement/wettability
http://crcc50.sciencesconf.org
[Figure 1] New manuscript website “le fleuron du cuir ”, Virginie Gallon , picture of a book of the 17
thcentury restored
[Figure 1] Damaged manuscript, le Nouvel Observateur, BibliObs “ Weimar : une bibliothèque renaît de ses cendres ” Sylvie Prioul , picture of a book exposed to heat during the fire of the Anna-Amalia library (Weimar).
Mass change was followed from 25°C to 800°C under a constant heating rate 10°C/min, in Argon 40mL/min.
Sequential protein extraction
denaturating
- +
Unheated leather Heated leathers
denaturating
- +
Sumac Mimosa
é quipe de
r echerche sur les r elations
m atrice
e xtracellulaire ce llules
A droplet of distilled water (15µL) was deposited on the leather grain side and the contact angle was measured with a goniometre at different time intervals (0, 30 secondes and 3 minutes )
Samples were successively immersed in solutions more denaturating in order to extract protein difficult to extract.
TGA and DSC analysis
1
3
2
4
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5
0 100 200 300 400 500 600 700 800
deriv.weight (%/°C)
temperature (°C)
Analytical techniques
- Thermal-mechanical: Thermogravimetric analysis (TGA), Differential scanning calorimetry (DSC) and Dynamic mechanical analysis (DMA)
- Physical-chemical: Contact angle measurement, Scanning electron microscopy (SEM), ATR-FTIR spectroscopy
- Biochemical: Protein extraction, Protein assays, Western Blot…
From the analysis of the unheated and artificially heated leathers the aim was to establish correlation between visual and structural modification at various scales.
Results
Heat induces leather browning, loss of mass (~17%), decrease in size (~10% in length and width), and stiffness increase [figure 1].
Heat modifies the surface properties of leather as shown by contact angle measurements: going from hydrophobic and wettable for the unheated sample to non wettable after heating [figure 2]. This change could be due to a rearrangement of leather proteins.
Mimosa and sumac leathers display similar TGA profiles for heated and unheated samples [figure 3]. Heat causes a peak shift to higher temperatures which could be due to the melting of crystalline zones as observed in DSC for sumac leather [figure 2 b]. This phenomenon could be correlated to protein aggregation.
Results of sequential protein extraction [figure 4], according to protein assay shows that after heating more denaturating solutions are required to extract proteins from the leather. This validates the protein aggregation hypothesis.
Conclusion
Heat induces similar modifications on sumac- (hydrolysable tannin) and mimosa (condensed tannin) leathers. Oxidation is know to be the main alteration process taking place in leather exposed to heat with degradation of both collagen and tannins. In this project, the combination of physical- chemical and biochemical characterization has evidenced a protein aggregation in leathers as a result of heat exposure. In the view of this new information, biochemical restoration approaches aiming to break the protein aggregates will be developed for heat damaged leather.
Unheated leather Artificially aged leather
dehydration
Mass loss
Samples and artificial heating
Two vegetable (mimosa and sumac) tanned calf leather, prepared during the European STEP Project (1994) were used for the heat ageing trials.
The leathers were exposed to dry heat in an oven at 160°C for 4 days to recreate extreme heat conditions caused by a fire [figure 1].
Fire + (water ?)
160°C, 4 days water
Artificially aged mimosa leather
Mimosa unheated leather
7,7J/g 3,2 J/g
Sumac unheated
leather
Sumac artificially aged leather
Sumac leather Phase transition temperatures was followed from 25 and 260 ° C, constant heating rate 10 ° C / min under Argon, in sealed aluminum capsule.
dehydration
Melting of crystalline
zones
0,5cm 0,5cm 0,5cm
Mimosa leather
Mimosa
qE= 100° qE= 87°
0 seconde 30 secondes 3 minutes
Sumac
qE= 91° qE= 84°Unheated leather
qE= 98° qE= 97° qE= 96°
qE= 108°
qE= 109° qE= 106°
0 seconde 30 secondes 3 minutes
