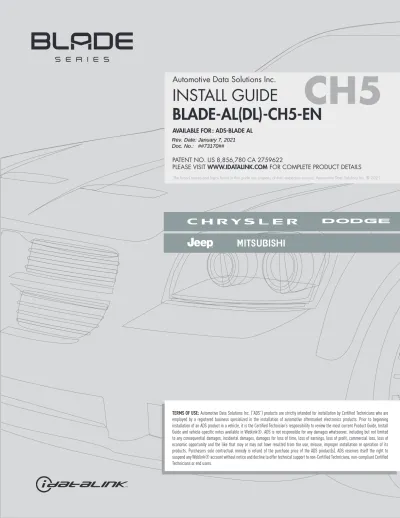

Automotive Data Solutions Inc. AVAILABLE FOR : ADS-BLADE AL. Rev. Date: January 7, 2021 Doc. No.: ##73170##

(1)

PATENT NO. US 8,856,780 CA 2759622

CONDITIONS D’UTILISATION:les produits d’Automotive Data solutions inc. («ADs») sont strictement destinés à être installés par des Techniciens certifi és qui sont employés par une entreprise enregistrée, spécialisée dans l’installation de produits électroniques d’après- vente automobile. Avant de commencer l’installation d’un produit ADs dans un véhicule, il est de la responsabilité du Technicien certifi é de consulter le guide d’installation, le guide de produit ainsi que les notes spécifi ques au véhicule disponibles dans Weblink^MD. ADs n’est pas responsable des dommages quels qu’ils soient, y compris mais sans s’y limiter à tous dommages indirects, dommages accessoires, dommages punitifs, dommages pour perte de temps, perte de gain, perte de profi t, perte commerciale, perte d’opportunité économique et autres dommages résultant de l’utilisation, de la mauvaise utilisation, de la mauvaise installation ou de la mauvaise opération de ses produits. le seul recours contractuel réservé aux acheteurs est le remboursement du prix d’achat du(des) produit(s) ADs. ADs se réserve le droit de suspendre tout compte Weblink^MD sans préavis et de refuser d’offrir une assistance technique aux Techniciens non certifi és, aux Techniciens certifi és non conformes ou aux utilisateurs fi naux.

TERMS OF USE: Automotive Data solutions Inc. (“ADs”) products are strictly intended for installation by Certifi ed Technicians who are employed by a registered business specialized in the installation of automotive aftermarket electronics products. prior to beginning installation of an ADs product in a vehicle, it is the Certifi ed Technician’s responsibility to review the most current product guide, Install guide and vehicle-specifi c notes available in Weblink®. ADs is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profi t, commercial loss, loss of economic opportunity and the like that may or may not have resulted from the use, misuse, improper installation or operation of its products. purchasers sole contractual remedy is refund of the purchase price of the ADs product(s). ADs reserves itself the right to suspend any Weblink® account without notice and decline to offer technical support to non-Certifi ed Technicians, non-compliant Certifi ed Technicians or end users.

BLADE-AL(DL)-CH5-EN

AVAILABLE FOR : ADS-BLADE AL

PLEASE VISIT WWW.IDATALINK.COM FOR COMPLETE PRODUCT DETAILS Rev. Date: January 7, 2021

Doc. No.: ##73170##

(2)

INSTALL TYPE SELECTION

MAKe MoDel YeAR inSTAll TYPe

FeATUReS

DATA iMMoBiliZeR BYPASS PRioRiTY UnloCK DooR loCK DooR UnloCK ARM oeM AlARM DiSARM oeM AlARM TRUnK/HATCH ReleASe DooR STATUS oUTPUT TRUnK STATUS oUTPUT BRAKe PeDAl STATUS oUTPUT e-BRAKe oUTPUT TACHoMeTeR oUTPUT DATA/MUX STARTeR CTRl RAP SHUTDoWn CTRl

CHRYSleR

200 11-14 3 • • • • • • • • • • • • • •

300 / 300C 05-07 1 • • • • • • • • • • • • • •

Aspen 07-10 3 • • • • • • • • • • • • • •

PT Cruiser 06-10 1 • • • • • • • • • • • • • •

Sebring 07-10 3 • • • • • • • • • • • • • •

DoDGe

Avenger 08-14 3 • • • • • • • • • • • • • •

Caliber (with start wire) 07 1 • • • • • • • • • • • • • •

Caliber 07-12 3 • • • • • • • • • • • • • •

Charger 06-07 1 • • • • • • • • • • • • • •

Dakota 05-06 4 • • • • • • • • • • •

Dakota 07-11 3 • • • • • • • • • • • •

Durango 04-06 4 • • • • • • • • • • • • •

Durango 07-10 3 • • • • • • • • • • • • • •

Magnum 05-07 1 • • • • • • • • • • • • • •

Nitro 07-11 3 • • • • • • • • • • • • •

Ram 1500 06 2 • • • • • • • • • • • •

Ram 1500 07-08 3 • • • • • • • • • • • •

Ram 1500 SRT 06 3 • • • • • • • • • • • •

Ram 2500 06 2 • • • • • • • • • • • •

Ram 2500 07-09 3 • • • • • • • • • • • •

Ram 3500 05-06 2 • • • • • • • • • • • •

Ram 3500 07-09 3 • • • • • • • • • • • •

Ram 3500 chassis cab 07-09 3 • • • • • • • • • • • •

Ram 4500 chassis cab 08-10 3 • • • • • • • • • • • •

Ram 5500 chassis cab 08-10 3 • • • • • • • • • • • •

JeeP

Commander 06-07 1 • • • • • • • • • • • • • •

Compass 07-17 3 • • • • • • • • • • • • • •

Grand Cherokee 05-07 1 • • • • • • • • • • • • • •

Liberty 08-12 3 • • • • • • • • • • • • •

Patriot 07-17 3 • • • • • • • • • • • • • •

Wrangler JK STD Key AT 07-18 3 • • • • • • • • • • • • •

RAM

4500 chassis cab 10 3 • • • • • • • • • • • •

5500 chassis cab 10 3 • • • • • • • • • • • •

MiTSUBiSHi

Raider 05-06 4 • • • • • • • • • • •

Raider 07-09 3 • • • • • • • • • • • •

Visit our website for advanced features.

(3)

TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 2

MAKe MoDel YeAR WiRe DeSCRiPTion ConneCToR nAMe ConneCToR ColoR ConneCToR TYPe PoSiTion WiRe Col

oR PolARiTY MoDUle loC

ATion

CoMPonenT loC

AToR

CHRYSleR

300 05-07

CanH ~ ~ 8 pin 6 White/Orange (DATA) Ignition switch ~

CanL ~ ~ 8 pin 7 White (DATA) Ignition switch ~

Mux ~ ~ 5 pin 2 Purple/Brown (DATA) Ignition switch ~

Ignition ~ ~ 5 pin 3 Pink/White (+) Ignition switch ~

Start ~ ~ 5 pin 4 Pink/DkGreen (+) Ignition switch ~

12V ~ ~ 5 pin 5 LtBlue/Red (+) Ignition switch ~

PT Cruiser 06-10

Start ~ ~ 5 pin 4 Pink/LtBlue (+) Ignition switch ~

12V ~ ~ 5 pin 5 Red (+) Ignition switch ~

DoDGe

Caliber with start wire 07

CanL ~ ~ 8 pin 7 White/Pink (DATA) Ignition switch ~

Start ~ ~ 5 pin 4 Pink/LtBlue (+) Ignition switch ~

12V ~ ~ 5 pin 5 Red/Orange (+) Ignition switch ~

Charger 06-07

Magnum 05-07

JeeP

Commander 06

Ignition ~ ~ 5 pin 3 Pink/LtGreen (+) Ignition switch ~

Start ~ ~ 5 pin 4 Pink/Orange (+) Ignition switch ~

12V ~ ~ 5 pin 5 Blue/Red (+) Ignition switch ~

Commander 07

(4)

TYPE 1 - WIRE CROSS REFERENCE CHART - 2 OF 2

ATion

CoMPonenT loC

AToR

JeeP Grand

Cherokee 05-07

(5)

TYPE 1 - WIRING DIAGRAM

1 2 3 4

5 3 2

5 4

1 2 3 4 5 6 7 8 7 6

5 AMPS

1N4001 DIODE

BROWN/RED - CANH BROWN/RED - CANH

BLUE/RED (NC) BLUE/RED (NC) YELLOW - MUX YELLOW - MUX BROWN/YELLOW - CANL BROWN/YELLOW - CANL ORANGE/BLACK (NC) ORANGE/BLACK (NC) ORANGE/WHITE (NC) ORANGE/WHITE (NC) ORANGE (NC) ORANGE (NC) PINK/BLACK (NC) PINK/BLACK (NC) PINK (NC) PINK (NC) BLUE/YELLOW (NC) BLUE/YELLOW (NC) GREEN/RED (NC) GREEN/RED (NC)

BLACK (NC) BLACK (NC) GRAY/RED (NC) GRAY/RED (NC) GRAY/YELLOW (NC) GRAY/YELLOW (NC)

REMOTE STARTER

01 02 03 04 05 06 07 08 09 10

11 12 13 14 15 16 17 18 19 20

GRAY/RED GRAY/YELLOW BLUE/YELLOW YELLOW GREEN/RED

BLUE/RED

NO WIRE ORANGE

ORANGE/WHITE ORANGE/BLACK

BROWN/YELLOW BROWN/RED

BLACK NO WIRE

PINK PINK/BLACK

NO WIRE WHITE

WHITE/BLACK WHITE/RED

*BLADE CONNECTOR EXACT PIN-OUT

12V (+) IGNITION (+)MUX START (+)

WHITE/BLACK - IGNITION (+) OUTPUT WHITE/BLACK - IGNITION (+) OUTPUT IGNITION (+) INPUT

IGNITION (+) INPUT 12V (+) INPUT 12V (+) INPUT

WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE - 12V (+)

WHITE - 12V (+) STARTER (+) OUTPUT

STARTER (+) OUTPUT IGNITION SWITCH

CANLCANH

WARNING:

DO NOT CONNECT ANY OTHER ACCESSORY, IGNITION OR START WIRE FROM THE REMOTE STARTER TO THE VEHICLE.

CONNECT TO BCM OR BATTERY DO NOT CONNECT TO IGNITION SWITCH

(6)

TYPE 2 - WIRE CROSS REFERENCE CHART - 1 OF 1

ATion

CoMPonenT loC

AToR

DoDGe

Ram 1500 06

Start ~ ~ 6 pin 4 DkGreen/Yellow (+) Ignition switch ~

12V ~ ~ 6 pin 6 ~ (+) Ignition switch ~

Ram 2500 06

Ram 3500 06

(7)

TYPE 2 - WIRING DIAGRAM

1 2 3 4 5 66 4 3 2

1 2 3 4 5 6 7 8 7 6

5 AMPS

1N4001 DIODE

REMOTE STARTER

01 02 03 04 05 06 07 08 09 10

11 12 13 14 15 16 17 18 19 20

BLUE/RED

NO WIRE ORANGE

BLACK NO WIRE

PINK PINK/BLACK

NO WIRE WHITE

12V (+) IGNITION (+)MUX START (+)

WHITE/BLACK - IGNITION (+) OUTPUT WHITE/BLACK - IGNITION (+) OUTPUT IGNITION (+) INPUT

IGNITION (+) INPUT 12V (+) INPUT 12V (+) INPUT

WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE - 12V (+)

WHITE - 12V (+) STARTER (+) OUTPUT

STARTER (+) OUTPUT IGNITION SWITCH

CANLCANH

WARNING:

CONNECT TO BCM OR BATTERY DO NOT CONNECT TO IGNITION SWITCH

(8)

TYPE 3 - WIRE CROSS REFERENCE CHART - 1 OF 2

ATion

CoMPonenT loC

AToR

CHRYSleR

200 11-14

Ignition ~ ~ 8 pin 3 Pink (+) Ignition switch ~

Aspen 07-10

Ignition ~ ~ 8 pin 3 Pink/Gray (+) Ignition switch ~

Sebring 07-10

DoDGe

Avenger 08-14

Caliber 07-12

12V ~ ~ 8 pin 5 Red/LtBlue (+) Ignition switch ~

Dakota 07-11

Durango 07-10

CanL ~ ~ 8 pin 7 White/LtBlue (DATA) Ignition switch ~

Nitro 07-11

CanH ~ ~ 8 pin 6 White/LtGreen (DATA) Ignition switch ~

Ram Pickup 07-10

(9)

TYPE 3 - WIRE CROSS REFERENCE CHART - 2 OF 2

ATion

CoMPonenT loC

AToR

JeeP

Compass 07-17

12V ~ ~ 8 pin 5 Red/LtGreen (+) Ignition switch ~

Liberty 08-12

CanH ~ ~ 8 pin 6 White/Black (DATA) Ignition switch ~

CanL ~ ~ 8 pin 7 White/Blue (DATA) Ignition switch ~

Patriot 07-17

12V ~ ~ 8 pin 5 Red/LtGreen (+) Ignition switch ~

Wrangler JK STD Key AT 07-18

CanH ~ ~ 8 pin 6 White/Black (DATA) Ignition switch ~

CanL ~ ~ 8 pin 7 White/LtBlue (DATA) Ignition switch ~

RAM Pickup 10

12V ~ ~ 8 pin 5 Gray/Red (+) Ignition switch ~

MiTSUBiSHi

Raider 07-09

(10)

TYPE 3 - WIRING DIAGRAM

1 2 3 4 5 6 7

8 7 6 5 3 1

1N4001 DIODE

REMOTE STARTER

01 02 03 04 05 06 07 08 09 10

11 12 13 14 15 16 17 18 19 20

BLUE/RED

NO WIRE ORANGE

BLACK NO WIRE

PINK PINK/BLACK

NO WIRE WHITE

12V (+)

IGNITION (+) INPUT IGNITION (+) INPUT 12V (+) INPUT 12V (+) INPUT IGNITION SWITCH

WHITE/BLACK - IGNITION (+) OUTPUT WHITE/BLACK - IGNITION (+) OUTPUT WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE/RED - IGNITION STATUS (+) OUTPUT WHITE - 12V (+)

WHITE - 12V (+)

CONNECT TO BCM OR BATTERY DO NOT CONNECT TO IGNITION SWITCH WARNING:

CANLCANH IGNITION (+)MUX

(11)

TYPE 4 - WIRE CROSS REFERENCE CHART - 1 OF 1

ATion

CoMPonenT loC

AToR

DoDGe

Dakota 05-06

Durango 04-06

MiTSUBiSHi

Raider 05-06

(12)

TYPE 4 - WIRING DIAGRAM

1 2 3 4 5 6 7 8 7 6

BLUE/RED WHITE/BLACK (NC) WHITE/BLACK (NC) WHITE/RED (NC) WHITE/RED (NC) WHITE (NC) WHITE (NC) YELLOW (NC) YELLOW (NC) BROWN/YELLOW - CANL BROWN/YELLOW - CANL ORANGE/BLACK (NC) ORANGE/BLACK (NC) ORANGE/WHITE (NC) ORANGE/WHITE (NC) ORANGE (NC) ORANGE (NC) PINK/BLACK (NC) PINK/BLACK (NC) PINK (NC) PINK (NC) BLUE/YELLOW (NC) BLUE/YELLOW (NC) GREEN/RED (NC) GREEN/RED (NC)

REMOTE STARTER

01 02 03 04 05 06 07 08 09 10

11 12 13 14 15 16 17 18 19 20

BLUE/RED

NO WIRE ORANGE

BLACK NO WIRE

PINK PINK/BLACK

NO WIRE WHITE

*BLADE CONNECTOR EXACT PIN-OUT IGNITION SWITCH

WARNING:

STANDARD REMOTE STARTER CONNECTIONS TO VEHICLE ARE REQUIRED.

TEST WIRES AND CONNECT ACCORDINGLY.

MAY TAKE UP TO:

2x IGNITION (+) 3x ACCESSORY (+) / (-)

1x START (+) 1x KEYSENSE (-)

CANLCANH

(13)

CARTRIDGE INSTALLATION

1

Slide cartridge into unit. Notice

button under LED.

2

Ready for Module Programming

Procedure.

MODULE PROGRAMMING PROCEDURE

9

Module Programming

Procedure completed.

5

Turn key to OFF position.

OFF

1

Insert key into ignition.

2

Turn key to ON position.

ON

7

Press UNLOCK on the OEM

remote.

If vehicle is not equipped with OEM remote, press module programming button.

UNLOCK

4

Within 5 seconds, LED will fl ash

BLUE rapidly.

3

LED will turn solid RED.

8

Wait, LED will turn solid BLUE

for 2 seconds.

6

Remove key.

(14)

Patent No. US 8,856,780 CA 2759622

leD STATUS DiAGnoSTiCS

DURinG PRoGRAMMinG DURinG ReMoTe START WiTH iGniTion oFF Flashing RED Missing/wrong information from

fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more

vehicle information Flashing BLUE Additional steps required to complete

programming Correctly programmed and

operational False ground when running status from remote starter

Solid BLUE then OFF Correctly programmed Reset in progress Reset in progress

OFF No activity or already programmed Invalid ground when running status

from remote starter At rest and ready for a remote start sequence

MODULE DIAGNOSTICS

FACTORY RESET PROCEDURE

5

RECONNECT all connectors.

Repeat programming procedure.

!

Failure to follow procedure may result with a DTC or a CHECK ENGINE error message.

1

DISCONNECT cartridge from

remote starter.

2

PRESS AND HOLD programming

button while re-connecting cartridge to remote starter.

3

LED will fl ash red. Immediately

RELEASE programming button.

4

LED will turn solid red for 2

seconds.

RESET COMPLETED.

IDENTIFY VEHICLE YEAR

1

Locate the Vehicle Identifi cation Number (VIN), identify the 10th character then match it to its corresponding year.

4 3 A 5 Y 1 N 5 T A L 8 D 5 R 0 X

Æ

A 1980 ^l 1990 ^Y 2000 ^A 2010

B 1981 ^M 1991 ¹ 2001 ^B 2011

C 1982 ⁿ 1992 ² 2002 ^C 2012

D 1983 ^P 1993 ³ 2003 ^D 2013

e 1984 ^R 1994 ⁴ 2004 ^e 2014

F 1985 ^S 1995 ⁵ 2005 ^F 2015

G 1986 ^T 1996 ⁶ 2006 ^G 2016

H 1987 ^V 1997 ⁷ 2007 ^H 2017

J 1988 W 1998 8 2008 J 2018

K 1989 ^X 1999 ⁹ 2009 ^K 2019

Æ

A 1980 ^l 1990 ^Y 2000 ^A 2010 ^l 2020 B 1981 ^M 1991 ¹ 2001 ^B 2011 ^M 2021 C 1982 ⁿ 1992 ² 2002 ^C 2012 ⁿ 2022 D 1983 ^P 1993 ³ 2003 ^D 2013 ^P 2023 e 1984 ^R 1994 ⁴ 2004 ^e 2014 ^R 2024 F 1985 ^S 1995 ⁵ 2005 ^F 2015 ^S 2025 G 1986 ^T 1996 ⁶ 2006 ^G 2016 ^T 2026 H 1987 ^V 1997 ⁷ 2007 ^H 2017 ^V 2027 J 1988 W 1998 8 2008 J 2018 W 2028 K 1989 ^X 1999 ⁹ 2009 ^K 2019 ^X 2029

Page 14 of 14 BLADE-AL(DL)-CH5-EN Doc. No.: ##73170## 20210107
