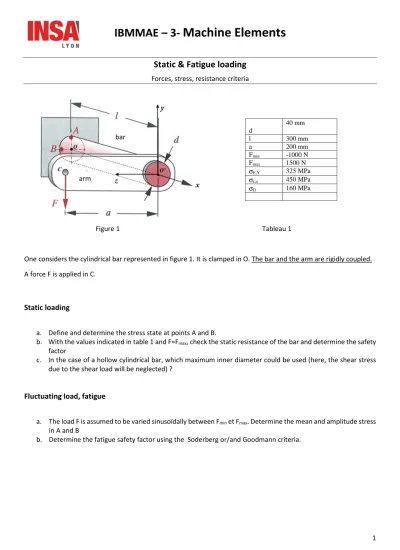

IBMMAE – 3- Machine Elements

1

Static & Fatigue loading

Forces, stress, resistance criteria

Figure 1 Tableau 1

One considers the cylindrical bar represented in figure 1. It is clamped in O. The bar and the arm are rigidly coupled.

A force F is applied in C.

Static loading

a. Define and determine the stress state at points A and B.

b. With the values indicated in table 1 and F=Fmax, check the static resistance of the bar and determine the safety factor

c. In the case of a hollow cylindrical bar, which maximum inner diameter could be used (here, the shear stress due to the shear load will be neglected) ?

Fluctuating load, fatigue

a. The load F is assumed to be varied sinusoïdally between Fmin et Fmax. Determine the mean and amplitude stress in A and B

b. Determine the fatigue safety factor using the Soderberg or/and Goodmann criteria.

d

40 mm

l 300 mm

a 200 mm

Fmin -1000 N Fmax 1500 N σE,Y 325 MPa σr,u 450 MPa

σD 160 MPa

bar

arm
