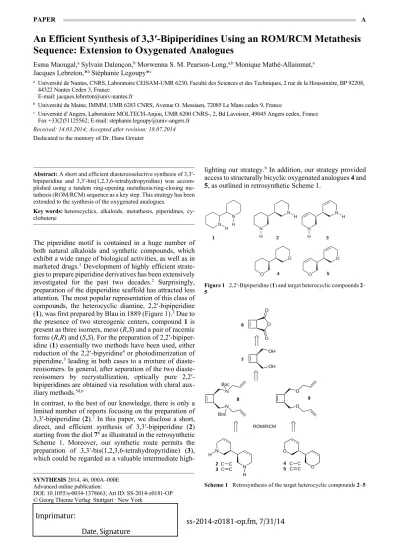

An Efficient Synthesis of 3,3′-Bipiperidines Using an ROM/RCM Metathesis Sequence: Extension to Oxygenated Analogues
3,3′-Bipiperidines
Esma Maougal,
aSylvain Dalençon,
bMorwenna S. M. Pearson-Long,
a,bMonique Mathé-Allainmat,
aJacques Lebreton,*
aStéphanie Legoupy*
ca Université de Nantes, CNRS, Laboratoire CEISAM-UMR 6230, Faculté des Sciences et des Techniques, 2 rue de la Houssinière, BP 92208, 44322 Nantes Cedex 3, France
E-mail: jacques.lebreton@univ-nantes.fr
b Université du Maine, IMMM, UMR 6283 CNRS, Avenue O. Messiaen, 72085 Le Mans cedex 9, France
c Université d’Angers, Laboratoire MOLTECH-Anjou, UMR 6200 CNRS-, 2, Bd Lavoisier, 49045 Angers cedex, France Fax +33(2)51125562; E-mail: stephanie.legoupy@univ-angers.fr
Received: 14.03.2014; Accepted after revision: 18.07.2014 Dedicated to the memory of Dr. Hans Greuter
Abstract: A short and efficient diastereoselective synthesis of 3,3′- bipiperidine and 3,3′-bis(1,2,3,6-tetrahydropyridine) was accom- plished using a tandem ring-opening metathesis/ring-closing me- tathesis (ROM/RCM) sequence as a key step. This strategy has been extended to the synthesis of the oxygenated analogues.
Key words: heterocyclics, alkaloids, metathesis, piperidines, cy- clobutene
The piperidine motif is contained in a huge number of both natural alkaloids and synthetic compounds, which exhibit a wide range of biological activities, as well as in marketed drugs.
1Development of highly efficient strate- gies to prepare piperidine derivatives has been extensively investigated for the past two decades.
2Surprisingly, preparation of the dipiperidine scaffold has attracted less attention. The most popular representation of this class of compounds, the heterocyclic diamine, 2,2′-bipiperidine (1), was first prepared by Blau in 1889 (Figure 1).
3Due to the presence of two stereogenic centers, compound
1 ispresent as three isomers, meso (R,S) and a pair of racemic forms (R,R) and (S,S). For the preparation of 2,2′-bipiper- idine (1) essentially two methods have been used, either reduction of the 2,2′-bipyridine
4or photodimerization of piperidine,
5leading in both cases to a mixture of diaste- reoisomers. In general, after separation of the two diaste- reoisomers by recrystallization, optically pure 2,2′- bipiperidines are obtained via resolution with chiral aux- iliary methods.
5d,6In contrast, to the best of our knowledge, there is only a limited number of reports focusing on the preparation of 3,3′-bipiperidine (2).
7In this paper, we disclose a short, direct, and efficient synthesis of 3,3′-bipiperidine (2) starting from the diol 7
8as illustrated in the retrosynthetic Scheme 1. Moreover, our synthetic route permits the preparation of 3,3′-bis(1,2,3,6-tetrahydropyridine) (3), which could be regarded as a valuable intermediate high-
lighting our strategy.
9In addition, our strategy provided access to structurally bicyclic oxygenated analogues 4 and
5, as outlined in retrosynthetic Scheme 1.Figure 1 2,2′-Bipiperidine (1) and target heterocyclic compounds 2–
5
Scheme 1 Retrosynthesis of the target heterocyclic compounds 2–5
N N H H
N
N
H
H N
N
H
H
1 2 3
O
O
O
O
4 5
O O
O OH OH
O O
O
O N
N
N
N Boc
Boc
H
H
ROM/RCM
2 3
6
7
8 9
4 C C 5
C C
C C C C
SYNTHESIS2014, 46, 000A–000E Advanced online publication:0039-78811437-210X
DOI: 10.1055/s-0034-1378663; Art ID: SS-2014-z0181-OP
© Georg Thieme Verlag Stuttgart · New York
B E. Maougal et al. PAPER
We envisioned a fast and reliable strategy to reach our
four target molecules starting from the easily available diol
7, prepared by simple treatment of the anhydride 6with LiAlH
4. From this diol 7, the corresponding bis-pro- tected allyl derivative 8 and 9 could be prepared by using standard procedures. A tandem ring-opening metathesis (ROM)/ring-closing metathesis (RCM) sequence was planned as a key step of our work. Over the past few de- cades, olefin metathesis has proven to be one of the most powerful tools for the rapid construction of complex het- erocycles.
9In addition, a ruthenium-catalyzed tandem metathesis sequence offers a unique opportunity to pre- pare efficiently original heterocyclic compounds, as building blocks for more elaborated structures,
10in few steps from readily available simple olefinic substrates.
The success of this metathesis cascade in our plan results from the release of the ring-strain during the ROM reac- tion of the cyclobutene ring acting as the driving force.
11Also in this context, it is important to point out that ROM/RCM reaction sequence to prepare the 2,2′-bis(di- hydropyran) from the cis- or trans-4,5-bis(allyloxy)cyclo- hexene failed; only the 6,8-fused bicyclic RCM reaction adducts were isolated.
12A close result was also mentioned in the literature with cis-N,N′-bis(tosyl)-4,5-diallylamino- cyclohexene.
13Our synthesis began with the diol 7, which was obtained by simple reduction of anhydride 6
14with LiAlH
4as pre- viously described.
8According to the literature,
8athe diol 7 was successively subjected to dimesylation and to nucle- ophilic displacement with sodium azide to give the corre- sponding diazide, which was then reduced with LiAlH
4. The resulting diamine was finally protected as its bis(N,N′-Boc) derivative to provide the intermediate
10(Scheme 2). This four-step sequence could be carried out on a multi-gram scale to afford the intermediate 10 in 45%
overall yield from 7. At this point, the full characterization of all the following synthetic intermediates by NMR spec- troscopy was hampered by the presence of rotamers about the
N-Boc bond. The use of variable temperature NMRspectroscopy to complete assignments on these bis-Boc intermediates 8, 10, and 11 failed. The N-allylation of 10 was achieved by treatment with an excess of allyl bromide in the presence of NaH to furnish the key metathesis pre- cursor 8 in 85% yield. With 8 in hand, it was now possible to investigate the key ROM/RCM reaction. Pleasingly, the treatment of the diene 8 in the presence of a catalytic amount of second-generation Grubbs catalyst in dichloro- methane for 3 days at room temperature cleanly provided the desired adduct 11 in 60% yield after silica gel chroma- tography. Towards our first objective, removal of the Boc groups was achieved by treatment of 11 with an excess of trifluoroacetic acid in dichloromethane providing the de- sired unsaturated bis-heterocycle
3 as its trifluoroacetatesalt in 90% yield. To prepare the saturated derivative
2,the key intermediate 11 was first hydrogenated upon treat- ment with a catalytic amount of Pd/C in ethanol under one atmosphere of hydrogen followed by cleavage of the Boc protecting groups as previously described, to furnish the
saturated bis-heterocycle
2 as its trifluoroacetate salt in50% yield for the two steps (Scheme 2).
Scheme 2 Reagents and conditions: (i) see ref. 8 (ii) allyl bromide, NaH, r.t., DMF, 85%; (iii) Grubbs II catalyst, CH2Cl2, r.t., 60%; (iv) TFA, CH2Cl2, r.t., for 3 90%, for 2 77%; (v) H2, 10% Pd/C, r.t., EtOH, 70%.
Having synthesized the two first target molecules 2 and 3, our attention turned to decreasing the number of steps of this synthesis. It was then envisaged that the key metathe- sis substrates 12 or 13 could be directly obtained from the diol
7 (see Scheme 3) by treatment with 14 or 15 underMitsunobu conditions according to literature precedent, to install the allylamine moiety.
15Unfortunately, all attempts failed as neither conversion nor decomposition was ob- served.
Scheme 3 Reagents and conditions: (i) 1,1′-(azodicarbonyl)dipiper- idine (ADDP) or diisopropyl azodicarboxylate (DIAD), Ph3P, 14 or 15, THF or toluene.
Encouraged by our results in the synthesis of 3,3′-bipiper- idines 2 and 3, we extended this strategy to the oxygenat- ed series as outlined in Scheme 4. To the best of our knowledge no work has been published on the synthesis of compounds 4 and 5, only their corresponding racemic 2,2′-bis(tetrahydropyran)
5a,band 5,5-bis(6-oxacyclohex- 2-ene)
11b,e,16analogues have been described. Both primary alcohol functions in 7 were alkylated as their correspond- ing allyl ethers by using standard conditions to furnish 9 in 40% yield. Then, this bis(allyl ether) was subjected to the ROM/RCM reaction in the same conditions as previ- ously described for 8 to give the desired 3,3′-bis(dihydro-
OH i OH
NHBoc NHBoc
ii N iii
N Boc
Boc
N
N Boc
Boc
N
N H
H
N
N H
H iv
v, iv 10
7 8
11
3·2TFA
2·2TFA 45%
7 OH i OH
N N R R
12 R = CF3CO 13 R = Ts
14 R = CF3CO 15 R = Ts
N R H
PAPER 3,3′-Bipiperidines C
pyran) (5) in 76% yield. This later compound was
subsequently hydrogenated under classical conditions, as already reported for intermediate
11, to provide thebis(pyran) 4 in 75% yield. It should be noted that the mod- est yields obtained in this series are mainly due to the vol- atility of these compounds.
Scheme 4 Reagents and conditions: (i) allyl bromide, NaH, 0 °C to r.t., THF, 40%; (ii) Grubbs II catalyst, CH2Cl2, r.t., 76%; (iii) H2, 10%
Pd/C, r.t., EtOH, 75%.
In conclusion, to the best of our knowledge, the prepara- tion of 3 and 2 are not described in the literature and this present work has provided an efficient access to these ni- trogen heterocycles from intermediate
7 in seven andeight steps, respectively. Also, this strategy has been ex- tended to the preparation of the oxygenated analogues
4and 5.
All solvents used were reagent grade. Petroleum ether (PE) refers to the fraction boiling at ????–???? °C. TLC was performed on silica gel coated aluminum sheets (Kieselgel 60 F254, Merck) and visual- ized by UV radiation (λ = 254 nm), or a vanillin or molybdate solu- tion. Flash column chromatography was performed on silica gel 60 ACC 40–63 μm (SDS-Carlo Erba). NMR spectra were recorded on a Bruker AC300 (300 MHz for 1H), on a Bruker 400 (400 MHz for
1H) or on a Bruker 500 (500 MHz for 1H) at r.t., on samples dis- solved in an appropriate deuterated solvent. Used references were Me4Si for 1H, deuterated solvent signal for 13C. Chemical shifts (δ) are expressed in parts per million (ppm), and coupling constants (J) in hertz (Hz). Low-resolution mass spectra (MS) were recorded in CEISAM laboratory on a Thermo-Finnigan DSQII quadripolar at 70 eV (CI with NH3 gas). High-resolution mass spectrometry (HRMS in Da unit) analyses were recorded on a LC-Q-TOF (Syn- apt-G2 HDMS, Waters) in IRS-UN center (Mass Spectrometry plat- form, Nantes) or a LTQ-Orbitrap ThermoFisher Scientific in Oniris center (LABERCA laboratory, Nantes) or a MALDI-TOF-TOF ap- paratus (Autoflex III from Bruker) in INRA center (BIBS platform, Nantes).
The compounds 714 and 108a have been described previously.
cis-3,4-Bis(tert-butoxycarbonylaminomethyl)(allylcarba- mate)cyclobut-1-ene (8)
To a solution of compound 10 (250 mg, 0.80 mmol, 1 equiv) in an- hydrous DMF (14 mL) was added portionwise NaH (60% in miner- al oil, 160 mg, 4 mmol, 5 equiv), at 0 °C and the reaction mixture was stirred at the same temperature for 15 min. Allyl bromide (2.78 mL, 16 mmol, 20 equiv) was added and the mixture stirred at r.t. for 12 h. After evaporation of the solvent, the residue was dissolved in CH2Cl2 (34 mL) and washed successively with H2O (3 × ?? mL) and brine (3 × ?? mL). The organic layer was dried (Na2SO4) and the solvents were removed in vacuo.The crude product was purified
by column chromatography on silica gel (PE–EtOAc, 100:0 to 93:7) to give 8 as a brown oil; yield: 210 mg (85%).
1H NMR (300 MHz, CDCl3): δ = 6.18 (s, 2 H, CH=CH), 5.77 (m, 2 H, 2 × CH2CH=CH2), 5.13 (m, 4 H, 2 × CH2CH=CH2), 3.80–3.60 (br s, 4 H, 2 × NCH2CH=CH2), 3.55–3.13 (m, 6 H, 2 × CHCH2NBoc and 2 × CHCH2NBoc), 1.45 [s, 18 H, 2 × C(CH3)].
13C NMR (75 MHz, CDCl3): δ = 155.4 (C=O), 139.4, 139.3, 139.2, 139.0 (rotamers, CH=CH), 134.1 (CH2CH=CH2), 116.2, 115.9 (ro- tamers, CH2CH=CH2), 79.6 [C(CH3)3], 49.9, 49.4 (rotamers, CH2NBoc), 47.2 and 44.1 (rotamers, CHCH2NBoc), 28.4 [C(CH3)3].
MS (MALDI-DHB-PEG 400): m/z= 415 [M + Na]+.
HRMS (MALDI-DHB-PEG 400): m/z [M + Na]+ calcd for C22H36N2O4 + Na: 415.2567; found: 415.2570.
Di-tert-butyl 2,2′,3,3′-Tetrahydro[3,3′-bipyridine]- 1,1′(6H,6′H)-dicarboxylate (11)
To a solution of compound 8 (260 mg, 0.66 mmol, 1 equiv) in an- hydrous CH2Cl2 (36 mL) was added Grubbs II catalyst (28 mg, 0.033 mmol, 0.15 equiv) in three portions and the solution was stirred at r.t. for 3 days, until TLC (PE–EtOAc, 90:10) indicated no remaining starting material. The solvent was removed in vacuo to give the crude product, which was purified by column chromatog- raphy on a silica gel column (PE–EtOAc, 99:1 to 90:10) to give 11 as a colorless oil; yield: 140 mg (60%).
1H NMR (300 MHz, CDCl3): δ = 5.90 (br d, 1 H, CH=CH), 5.72 (br s, 1 H, CH=CH), 3.85–3.79 (m, 4 H, 2 × CH2NBoc) 3.58–3.27 (m, 4 H, 2 × CH2NBoc), 2.16 (m, 2 H, 2 × CHCH2), 1.45 [s, 18 H, 2 × C(CH3)3].
13C NMR (125 MHz, CDCl3): δ = 154.97 (C=O), 128.01, 127.78 (rotamers, CH=CH), 125.59, 125.01 (rotamers, CH=CH), 79.63 [C(CH3)3], 43.90 and 43.24 (rotamers, CH2NBoc) 37.90 and 37.63 (rotamers, CHCH2NBoc), 28.46 [C(CH3)3].
MS (MALDI): m/z= 387 [M + Na]+.
HRMS (MALDI-DHB-PEG 400): m/z [M + Na]+ calcd for C20H32N2O4 + Na: 387.2254; found: 387.2249.
3,3′-Bipiperidine Trifluoroacetic Salt (2·2 CF3CO2H) N-Boc-3,3′-bipiperidine
Compound 11 (510 mg, 1.40 mmol, 1 equiv) was reduced in the presence of Pd/C (10%, 100 mg) in EtOH (30 mL) under H2 atmo- sphere. The reaction mixture was stirred at r.t. for 2 h. The mixture was filtered on Celite and the filtrate was concentrated in vacuo to give the desired product as a white solid; yield: 400 mg (77%).
13C NMR (125 MHz, C6D6): δ = 154.66 (C=O), 78.77 [C(CH3)3], 47.82–47.76 (rotamers CH2NBoc), 44.87–44.82 (rotamers CH2NBoc), 38.55 (CHCH2), 30.16 (CH2CH2), 28.6 [C(CH3)3], 25.2 (CH2CH2).
HRMS (MALDI-DHB-PEG 400): m/z [M + Na]+ calcd for C20H36N2O4 + Na: 391.2567; found: 391.2567.
2·2 CF3CO2H
To a solution of this N-Boc-bipiperidine (100 mg, 0.27 mmol) in an- hydrous CH2Cl2 was added TFA (805 mg, 7.06 mmol, 26 equiv) at 0 °C. The solution was stirred at this temperature for 15 min and then for 2 h at r.t., until TLC (PE–EtOAc, 90:10) indicated no re- maining starting material. The mixture was diluted with toluene (??
mL) and then solvents were removed in vacuo to give the salt 2·2 CF3CO2H as a brown solid; yield: 80 mg (75%).
1H NMR (400 MHz, MeOD): δ = 3.41 (d, J= 12.3 Hz, 2 H, 2 × CHCHH′NH), 3.35 (dd, J= 12.1, 2.7 Hz, 2 H, 2 × CH2CHH′NH), 2.89 (td, J= 12.1, 4 Hz, 2 H, 2 × CH2CHH′NH), 2.77 (t, J= 12.Hz, 2 H, 2 × CHCHH′NH), 1.94 (m, 4 H, 2 × CH2CHH′CH and 2 × CH2CHH′CH2), 1.73 (m, 4 H,
7 OH i OH
O O
O
O
ii O
O
iii 9
5 4
D E. Maougal et al. PAPER
2 × CHCH2 and 2 × CH2CHH′CH2), 1.31 (m, 2 H, 2 × CH2CHH′CH).
13C NMR (100 MHz, MeOD): δ = 47.61 (CH2NH), 45.30 (CH2NH), 37.87 (CH), 26.72 (CH2CH2), 23.37 (CH2CH2).
MS (CI+): m/z= 169 [M + H]+.
HRMS (CI+): m/z [M + H]+ calcd for C10H21N2: 169.1699; found:
169.1699.
1,1′,2,2′,3,3′,6,6′-Octahydro-3,3′-bipyridine Trifluoroacetic Salt (3·2 CF3CO2H)
To a solution of compound 11 (220 mg, 0.060 mmol, 1 equiv) in an- hydrous CH2Cl2 (2 mL) was added TFA (1.79 g, 15.71 mmol, 26 equiv) at 0 °C. The solution was stirred at this temperature for 15 min and then for 2 h at r.t. until TLC (PE–EtOAc, 90:10) indicated no remaining starting material. The reaction was diluted with tolu- ene (?? mL) and the solvents were removed in vacuo to give the salt 3·2 CF3CO2H as a yellow oil; yield: 150 mg (90%).
1H NMR (400 MHz, MeOD): δ = 5.98 (m, 2 H, 2 × CH=CHCH2NH), 5.88 (d, J= 12 Hz, 2 H, 2 × CHCH=CH), 3.68 (AB system, 4 H, 2 × CH=CHCH2NH), 3.54 (dd, J= 12, 4 Hz, 2 H, 2 × CHCHH′NH), 3.01 (dd, J= 12 Hz, 2 H, 2 × CHCHH′NH), 2.87 (m, 2 H, 2 × CHCH2NH).
13C NMR (100 MHz, MeOD): δ = 127.91 (CH=CH), 124.29 (CH=CH), 43.71 (CHCH2NH), 43.04 (CH=CHCH2NH), 35.56 (CHCH2NH).
MS (CI+): m/z= 165 [M + H]+.
HRMS (ESI+): m/z [M + H]+ calcd for C10H17N2: 165.1386; found:
165.1379.
cis-3,4-Bis(allyloxymethyl)cyclobut-1-ene (9)
To a solution of diol 7 (1 g, 8.77 mmol, 1 equiv) in anhydrous THF (28 mL), was added portionwise NaH (60% in mineral oil, 1.75 g, 43.85 mmol, 5 equiv) at 0 °C and the solution was stirred at this temperature for 15 min. Allyl bromide (3.78 mL, 43.85 mmol, 5 equiv) was added and the solution was stirred at r.t. for 24 h. After evaporation of the solvent, the residue was dissolved in CH2Cl2 (68 mL) and washed successively with H2O (3 × ?? mL) and brine (3 ×
?? mL). The organic layer was dried (Na2SO4) and the solvents were removed in vacuo to give the crude product, which was puri- fied by column chromatography on silica gel (PE–EtOAc, 99:1 to 90:10). The desired product 9 was obtained as a colorless oil; yield:
660 mg (40%).
1H NMR (300 MHz, CDCl3): δ = 6.19 (s, 2 H, CH=CH), 5.91 (m, 2 H, 2 × CH2CH=CH2), 5.27 (dd, J= 17.6, 1.8 Hz, 2 H, 2 × CH2CH=CHH′), 5.17 (dd, J= 10.5, 1.5 Hz, 2 H, 2 × CH2CH = CHH′), 3.97 (dt, J= 5.4, 1.2 Hz, 4 H, 2 × CH2CH=CH2), 3.56 (m, 4 H, 2 × CH2OAllyl), 3.21 (m, 2 H, CHCH2OAllyl).
13C NMR (100 MHz, CDCl3): δ = 138.56 (CH=CH), 135.0 (CH2CH=CH2), 116.81 (OCH2CH=CH2), 72.05 (OCH2CH=CH2), 70.37 (CH2OAllyl), 45.51 (CHCH).
MS (CI+): m/z= 195 [M + H]+.
HRMS (ESI+): m/z [M + Na]+ calcd for C12H18O2 + Na: 217.1199;
found: 217.1191.
3,3′,6,6′-Tetrahydro-2H,2′H-3,3′-bipyran (5)
The title compound was prepared according to the procedure de- scribed for compound 11, starting from the cyclobutene derivative 9 (660 mg, 3.40 mmol) in the presence of Grubbs II catalyst (146 mg, 0.17 mmol). Flash chromatography on a silica gel column (PE–
EtOAc, 95:5 to 90:10) afforded 5 as a brown oil; yield: 420 mg (76%).
1H NMR (300 MHz, CDCl3): δ = 5.80 (s, 4 H, 2 × CH=CH), 4.09 (d, J= 2.2 Hz, 4 H, 2 × CH=CHCH2O), 3.85 (AB part of ABX sys- tem, JAB= 11.1 Hz and JAX= 4.5 Hz, 2 H, 2 × OCHH′CH), 3.65
(AB part of ABX system, JAB= 11.1 and JBX= 5.7 Hz, 2 H, 2 × OCHH′CH), 2.32 (X part of ABX system, m, 2 H, 2 × CHCH2O).
13C NMR (75 MHz, CDCl3): δ = 127.41 (CH=CH), 126.52 (CH=CH), 67.07 (CH2O), 65.47 (CH2O), 37.14 (CHCH2).
MS (CI+): m/z= 167 [M + H]+.
HRMS (CI+): m/z [M + H]+ calcd for C10H15O2: 167.1067; found:
167.1064.
Octahydro-2H,2′H-3,3'-bipyran (4)
The title compound was prepared according to the procedure de- scribed for compound 2, starting from the unsaturated bicyclic de- rivative 5 (140 mg, 0.84 mmol) in the presence of Pd/C as the catalyst (10%, 28 mg). Flash chromatography on a silica gel column (PE–EtOAc, 90:10) afforded 4 as a brown oil; yield: 106 mg (74%).
1H NMR (400 MHz, CDCl3): δ = 3.91 (dd, J= 11.2, 2.0 Hz, 2 H, 2 × CHCHH′O), 3.85 (m,2 H, 2 × CH2CHH′O), 3.33 (m, 2 H, 2 × CH2CHH′O), 3.14 (m, 2 H, 2 × CHCHH′O), 1.81 (m, 2 H, 2 × CH2CHH′CH), 1.57 (m, 4 H, CH2-CH2CH2), 1.41 (m, 2 H, 2 × CHCH2O), 1.22 (m, 2 H, 2 × CH2CHH′CH).
13C NMR (100 MHz, CDCl3): δ = 71.29 (CH2O), 68.41 (CH2O), 37.87 (CHCH2), 27.22 (CH2CH2), 25.75 (CH2CH2).
HRMS (CI+): m/z [M + H]+ calcd for C10H19O2 [M + H]+: 171.1380;
found: 171.1381.
Acknowledgment
The authors are deeply indebted to the Ministère de l’Enseignement Supérieur et de la Recherche, the Centre National de la Recherche Scientifique (CNRS), the Université de Nantes, the Université du Maine, and the Université d’Angers for their constant support. E.M.
wishes to acknowledge the Algerian Government for a Ph.D. grant (Programme National Exceptionnel). The authors would like to thank Dr. Samuel Golten for fruitful discussions and comments.
Supporting Information
for this article is available online at http://www.thieme-connect.com/products/ejournals/journal/10.1055/s-00000084.Supporting InformationSupporting Information
References
(1) For a recent review on this field, see: (a) Mateeva, N. N.;
Winfield, L. L.; Redda, K. K. Curr. Med. Chem. 2005, 12, 551. For related publications, see: (b) Watson, P. S.; Jiang, B.; Scott, B. Org. Lett. 2000, 2, 3679. (c) Berggren, K.;
Vindebro, R.; Bergstrom, C.; Spoerry, C.; Persson, H.; Fex, T.; Kihlberg, J.; von Pawel-Rammingen, U.; Luthmant, K.
J. Med. Chem. 2012, 55, 2549. (d) Ortiz, G. X. Jr.; Kang, B.;
Wang, Q. J. Org. Chem. 2014, 79, 571. (e) Peng, Z.; Wong, J. W.; Hansen, E. C.; Puchlopek-Dermenci, A. L. A.; Clarke, H. J. Org. Lett. 2014, 16, 860, and references cited therein.
(2) For an excellent recent review on this topic, see:
(a) Charette, A. B.; Bull, J. A.; Mousseau, J. J.; Pelletier, G.
Chem. Rev. 2012, 112, 2642. (b) For recent synthetic efforts in this field, see: Lemire, A.; Charette, A. B. Org. Lett. 2005, 7, 2747. (c) Boussonnière, A.; Ranaivondrambola, T.;
Lebreton, J.; Mathé-Allainmat, M. Synthesis 2010, 2456.
(d) Ranaivondrambola, T.; Hatton, W.; Felpin, F.-X.; Evain, M.; Mathé-Allainmat, M.; Lebreton, J. Synlett 2010, 1631.
(e) Subba Reddy, B. V.; Chaya, D. N.; Yadav, J. S.; Grée, R.
Synthesis 2012, 44, 297. (f) Domodar, K.; Das, B. Synthesis 2012, 44, 83. (g) Lemonnier, G.; Charette, A. B. J. Org.
Chem. 2012, 77, 5832. (h) Duttwyler, S.; Lu, C.; Rheingold, A. L.; Bergman, R. G.; Ellman, J. A. J. Am. Chem. Soc.
PAPER 3,3′-Bipiperidines E
2012, 134, 4064. (i) Smout, V.; Peschiulli, A.; Verbeeck, S.;
Herrebout, W.; Bultinck, P.; Vande Velde, C. M. L.;
Berthelot, D.; Meerpoel, L.; Maes, B. U. W. J. Org. Chem.
2013, 78, 9803. (j) Ren, H.; Wulff, W. A. Org. Lett. 2013, 15, 242. (k) Veerasamy, N.; Carlson, E. C.; Collett, N. D.;
Saha, M.; Carter, R. G. J. Org. Chem. 2013, 78, 4779; and references cited therein.
(3) Blau, F. Monatsh. Chem. 1889, 10, 375.
(4) (a) Krumholz, P. J. Am. Chem. Soc. 1953, 75, 2163.
(b) Lunn, G.; Sansone, E. B. J. Org. Chem. 1986, 51, 513.
(c) Herrmann, W. A.; Baskakov, D.; Herdtweck, E. D.;
Hoffmann, S. D.; Bunlaksananusorn, T.; Rampf, F.;
Rodefeld, L. Organometallics 2006, 25, 2449.
(5) (a) Naarmann, H.; Beaujean, M.; Merényi, R.; Viehe, H. G.
Polym. Bull. 1980, 2, 363. (b) Brown, S. H.; Crabtree, R. H.
J. Am. Chem. Soc. 1989, 111, 2935. (c) Krajnik, P.;
Ferguson, R. R.; Crabtree, R. H. New J. Chem. 1993, 17, 559. (d) Denmark, S. E.; Fu, F.; Lawler, M. J. J. Org. Chem.
2006, 71, 1523.
(6) Noole, A.; Lippur, K.; Metsala, A.; Lopp, M.; Kanger, T.
J. Org. Chem. 2010, 75, 1313.
(7) (a) Hamilton, T. S.; Adams, R. J. Am. Chem. Soc. 1928, 50, 2260. (b) Smith, C. R. J. Am. Chem. Soc. 1928, 50, 1936.
(c) Efimova, E. I.; Forostyan, Y. N. Zh. Org. Khim. 1971, 7, 2442; Chem. Abstr. ??????.
(8) (a) Lescop, C.; Mevellec, L.; Huet, F. J. Org. Chem. 2001, 66, 4187. (b) Pichon, C.; Hubert, C.; Alexandre, C.; Huet, F.
Tetrahedron: Asymmetry 2000, 11, 2429.
(9) For recent reviews on this field, see: (a) Felpin, F.-X.;
Lebreton, J. Curr. Org. Synth. 2004, 1, 83. (b) Holub, N.;
Blechert, S. Chem. Asian J. 2007, 2, 1064.
(10) For recent reviews on synthetic applications, see: (a) Nolan, S. P.; Clavier, H. Chem. Soc. Rev. 2010, 39, 3305.
(b) Prunet, J. Eur. J. Org. Chem. 2011, 3634. (c) Fürstner, A.
Chem. Commun. 2011, 6505. (d) Cossy, J.; Arseniyadis, S.;
Meyer, C. Metathesis in Natural Product Synthesis; Wiley- VCH: Weinheim, 2010. For recent representative examples,
see: (e) Donnard, M.; Tschamber, T.; Desrat, S.; Hinsinger, K.; Eustache, J. Tetrahedron Lett. 2008, 49, 1192. (f) Jeon, K. O.; Rayabarapu, D. K.; Rolfe, A.; Volp, K. A.; Omar, I.;
Hanson, P. R. Tetrahedron 2009, 65, 4992. (g) Malik, C. K.;
Yadav, R. N.; Drew, M. G. B.; Ghosh, S. J. Org. Chem.
2009, 74, 1957. (h) Nguyen, N. N. M.; Leclère, M.;
Stogaitis, N.; Fallis, A. G. Org. Lett. 2010, 12, 1684.
(i) Bose, S.; Gosh, M.; Gosh, S. J. Org. Chem. 2012, 77, 6345; and references cited therein.
(11) (a) Le, D.; Morandi, G.; Legoupy, S.; Montembault, V.;
Pascual, S.; Fontaine, L. Eur. Polym. J. 2013, 49, 972. For recent representative examples on ROM/RCM reaction sequence on cyclobutene-containing substrates, see:
(b) Zuercher, W. J.; Hashimoto, M.; Grubbs, R. H. J. Am.
Chem. Soc. 1996, 118, 6634. (c) Zhang, F.; Simpkins, N. S.;
Blake, A. J. Org. Biomol. Chem. 2009, 7, 1963. (d) Tang, B.;
Bray, D. C.; Pattenden, G.; Rogers, J. Tetrahedron 2010, 66, 2492. (e) Clavier, H.; Broggi, J.; Nolan, S. P. Eur. J. Org.
Chem. 2010, 937; and references cited therein. (f) Snapper, M. L.; Tallarico, J. A.; Randall, M. L. J. Am. Chem. Soc.
1997, 119, 1478. (g) Takao, K.-i.; Nanamiya, R.;
Fukushima, Y.; Namba, A.; Yoshida, K.; Tadano, K-i. Org.
Lett. 2013, 15, 5582.
(12) Groaz, E.; Banti, D.; North, M. Tetrahedron Lett. 2007, 48, 1927.
(13) Groaz, E.; Banti, D.; North, M. Eur. J. Org. Chem. 2007, 3727.
(14) Gauvry, N.; Comoy, C.; Lescop, C.; Huet, F. Synthesis 1999, 574.
(15) (a) Tsunoda, T.; Otsuka, J.; Yamamiya, Y.; Itô, S. Chem.
Lett. 1994, 539. (b) Sisko, J.; Henry, J. R.; Weinreb, S. M.
J. Org. Chem. 1993, 58, 4945.
(16) (a) Baylon, C.; Heck, M.-P.; Mioskowski, C. J. Org. Chem.
1999, 64, 3354. (b) Jafarpour, L.; Heck, M.-P.; Baylon, C.;
Lee, H. M.; Mioskowski, C.; Nolan, S. P. Organometallics 2002, 21, 671.
OH OH
N N Boc
Boc
N
N H
H 8 steps
graphic abstract
